Rear Seat & Seat Track

163 part groups · 11 illustrations

Illustrations

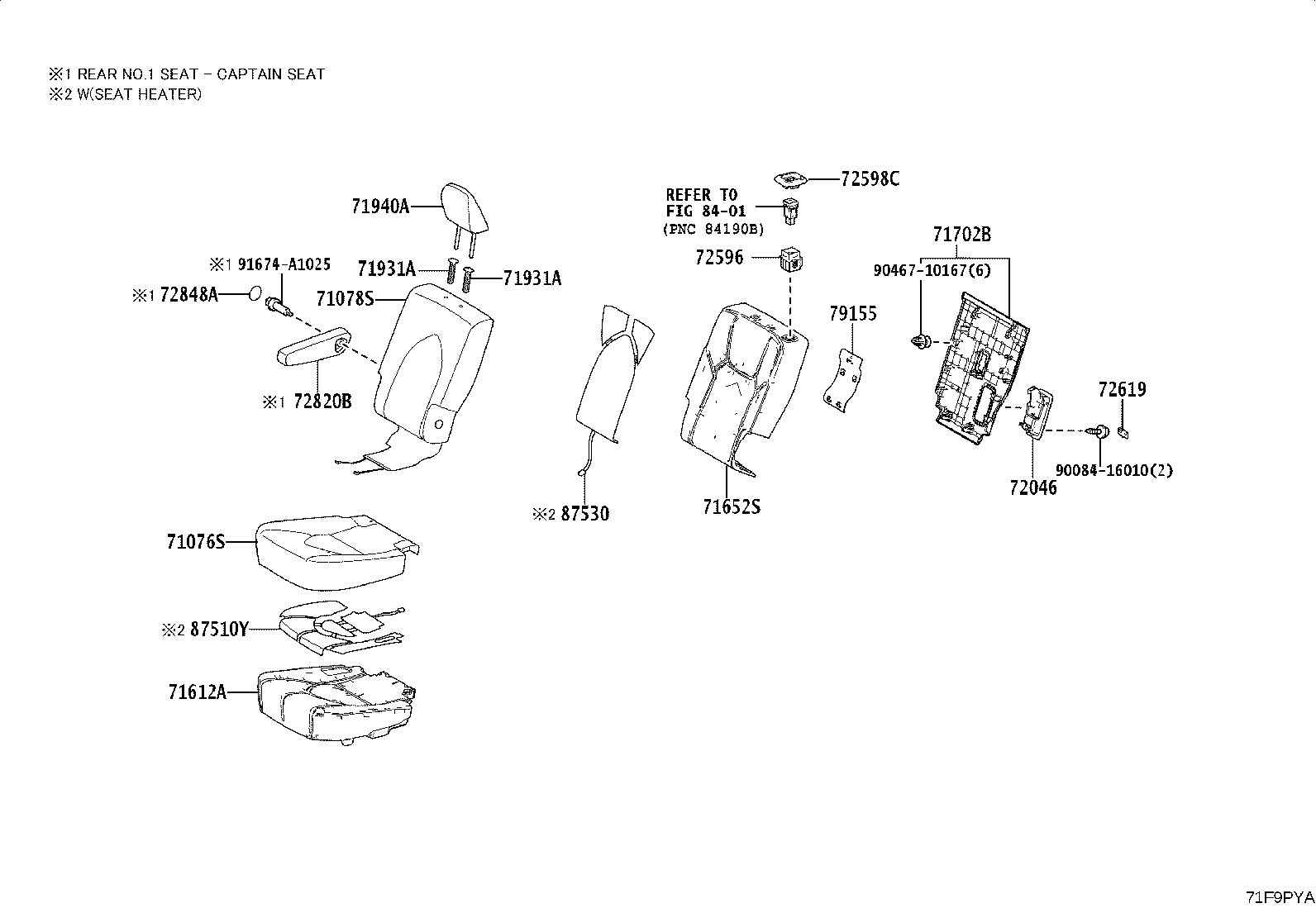

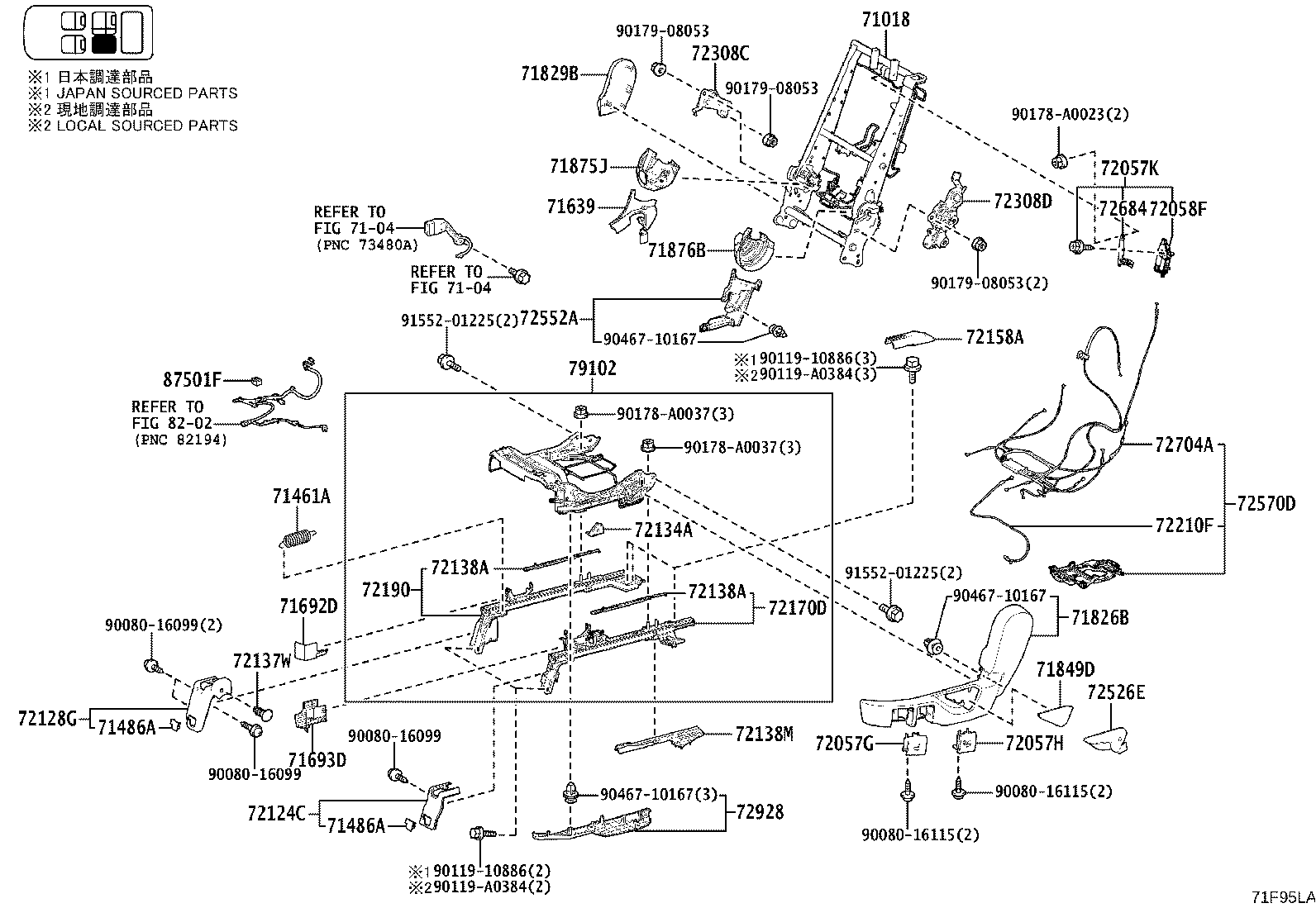

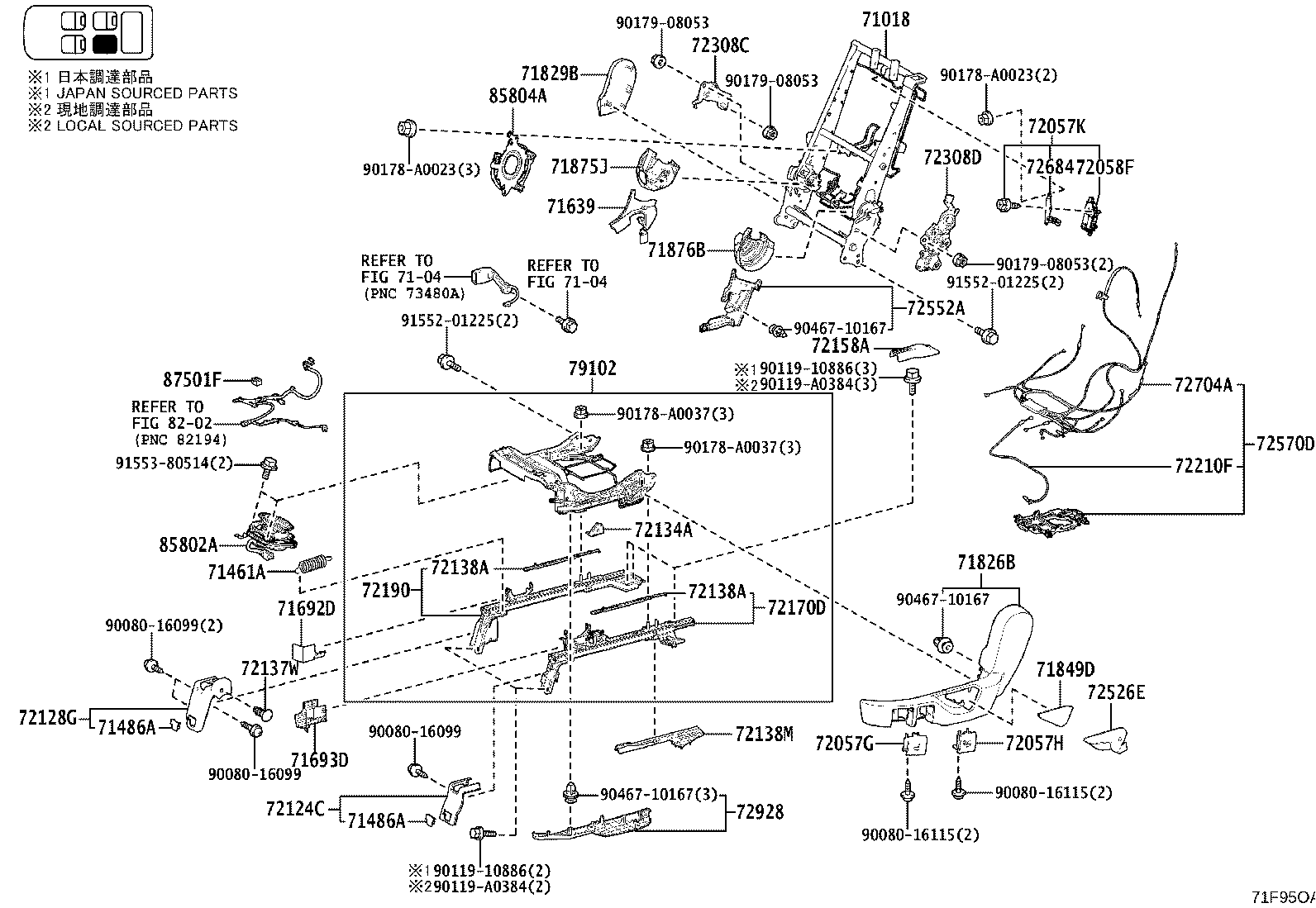

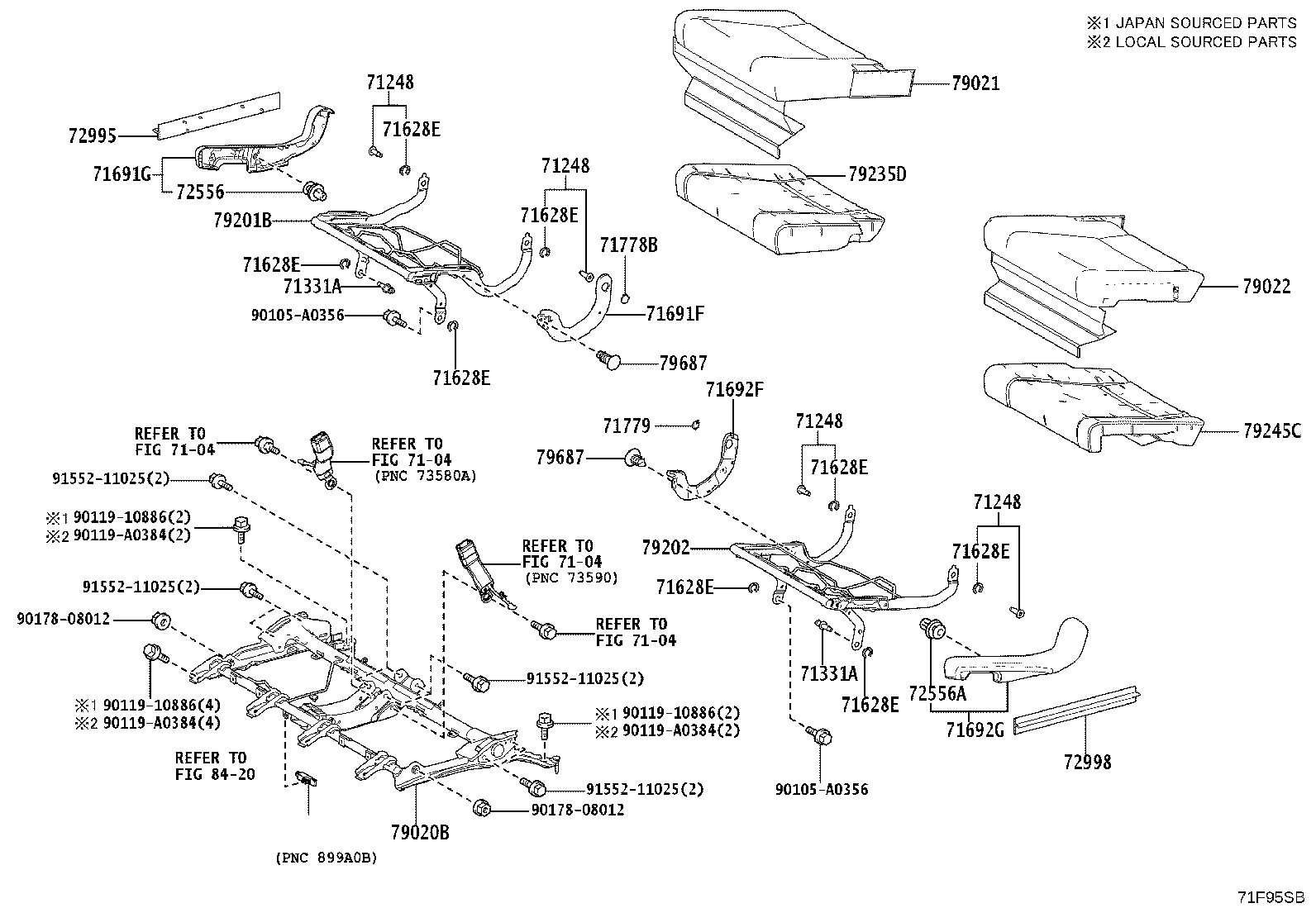

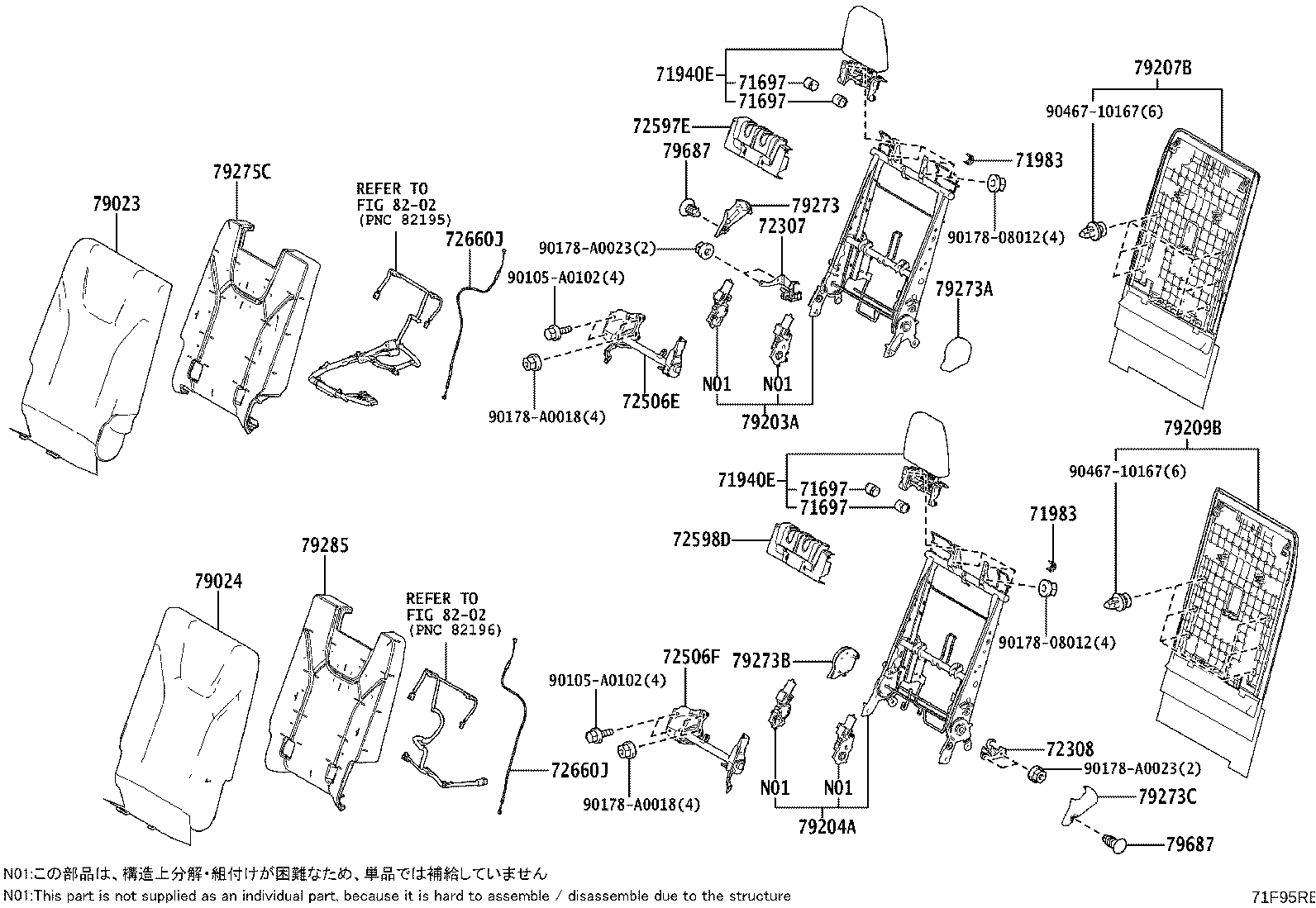

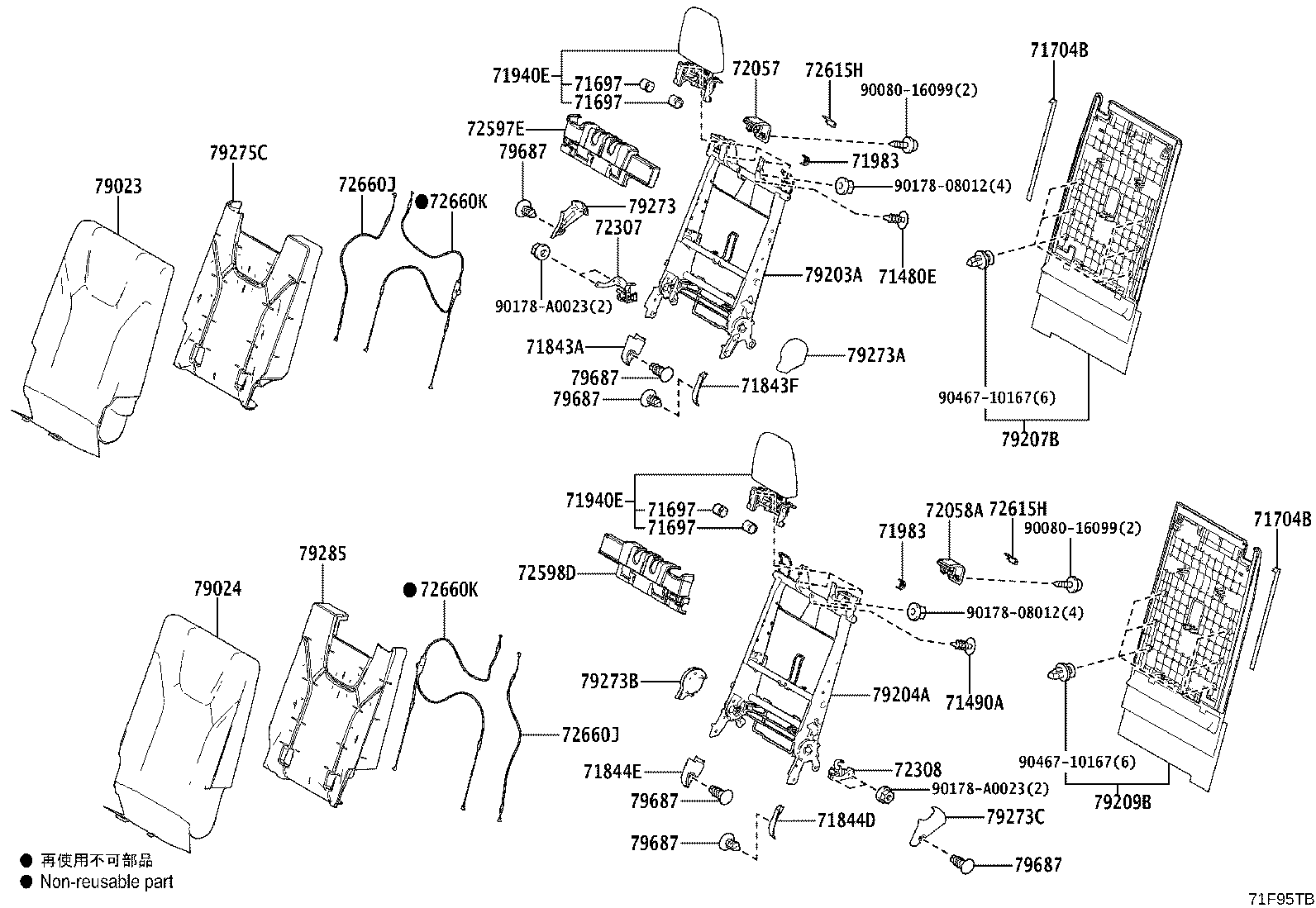

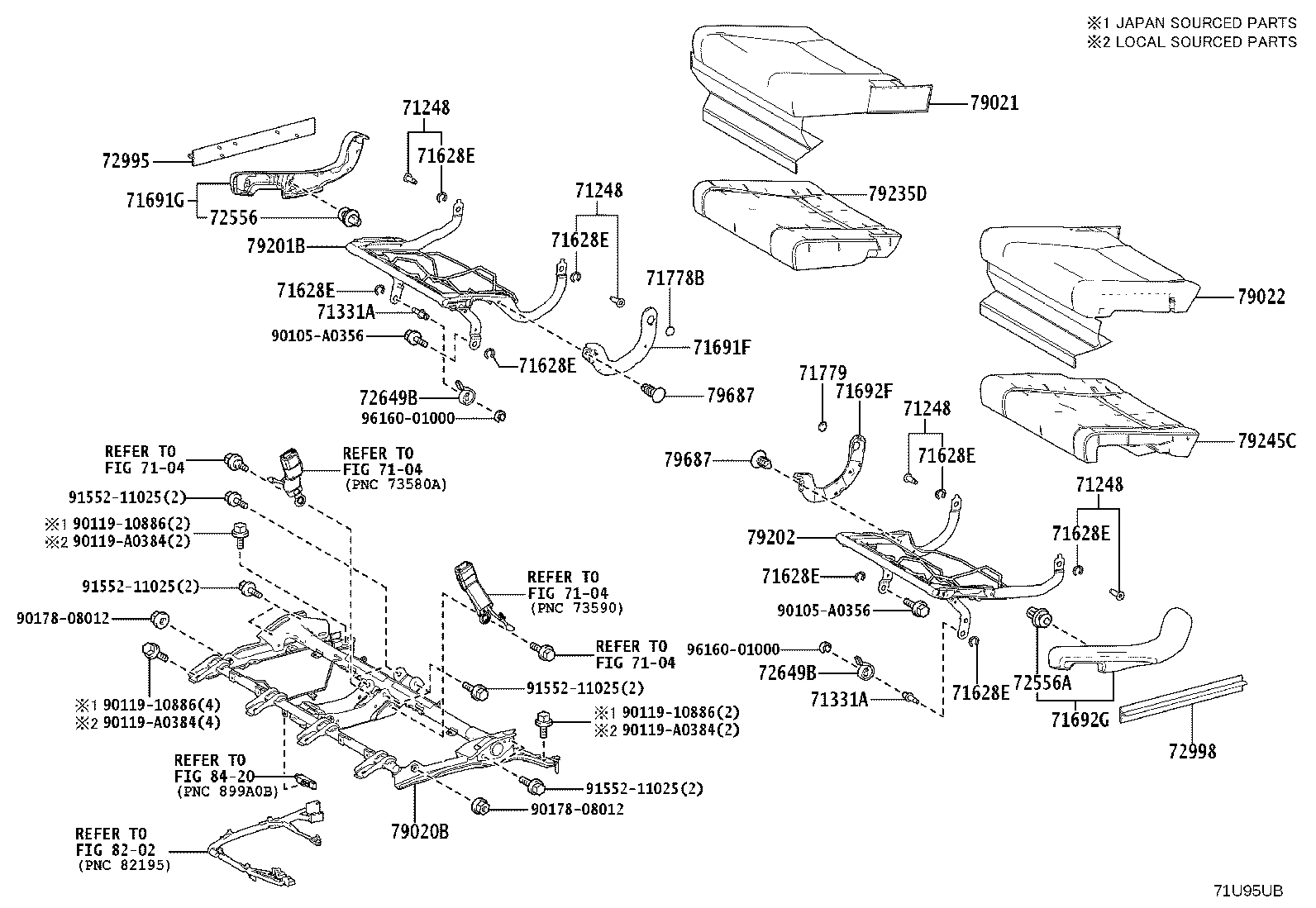

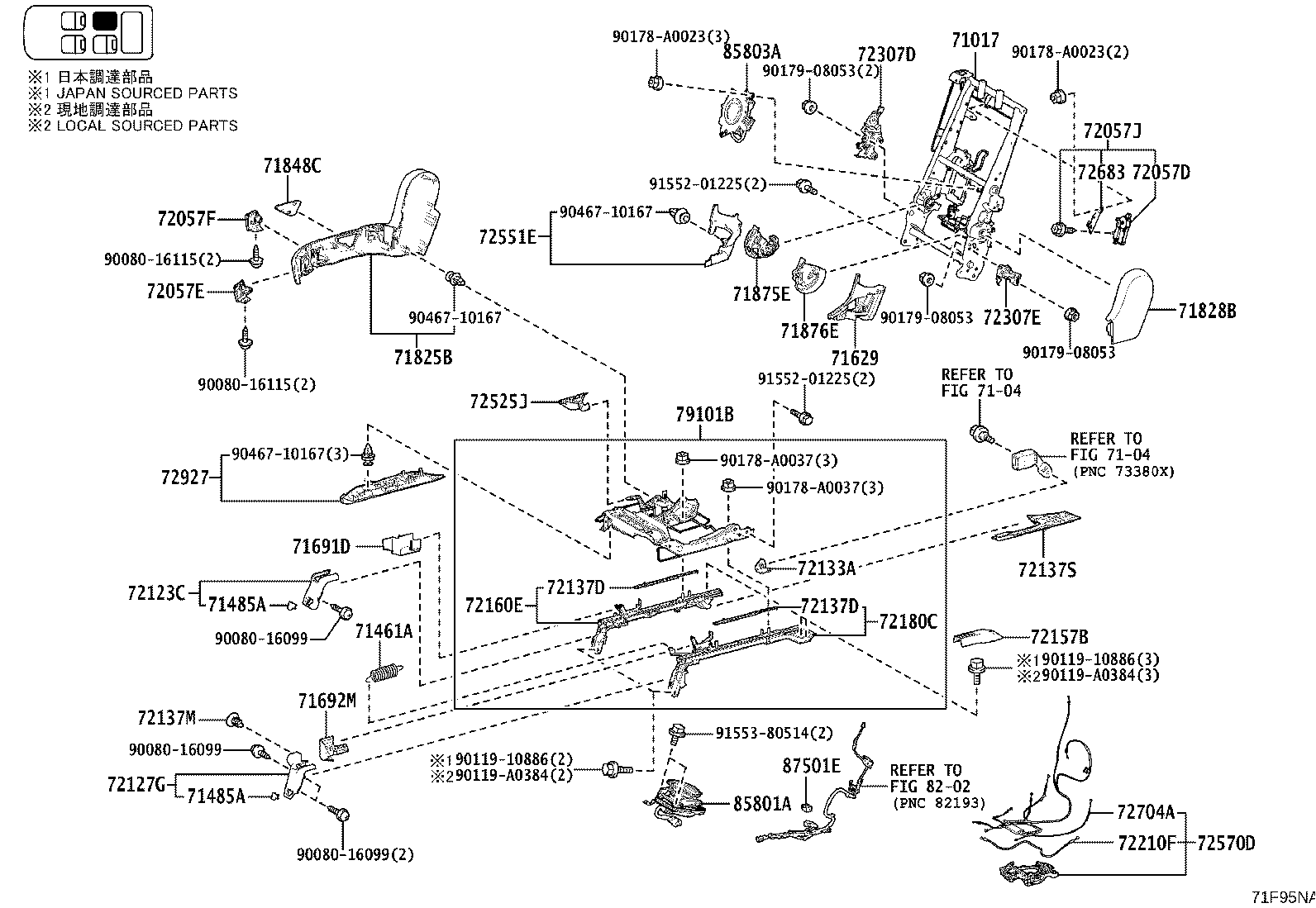

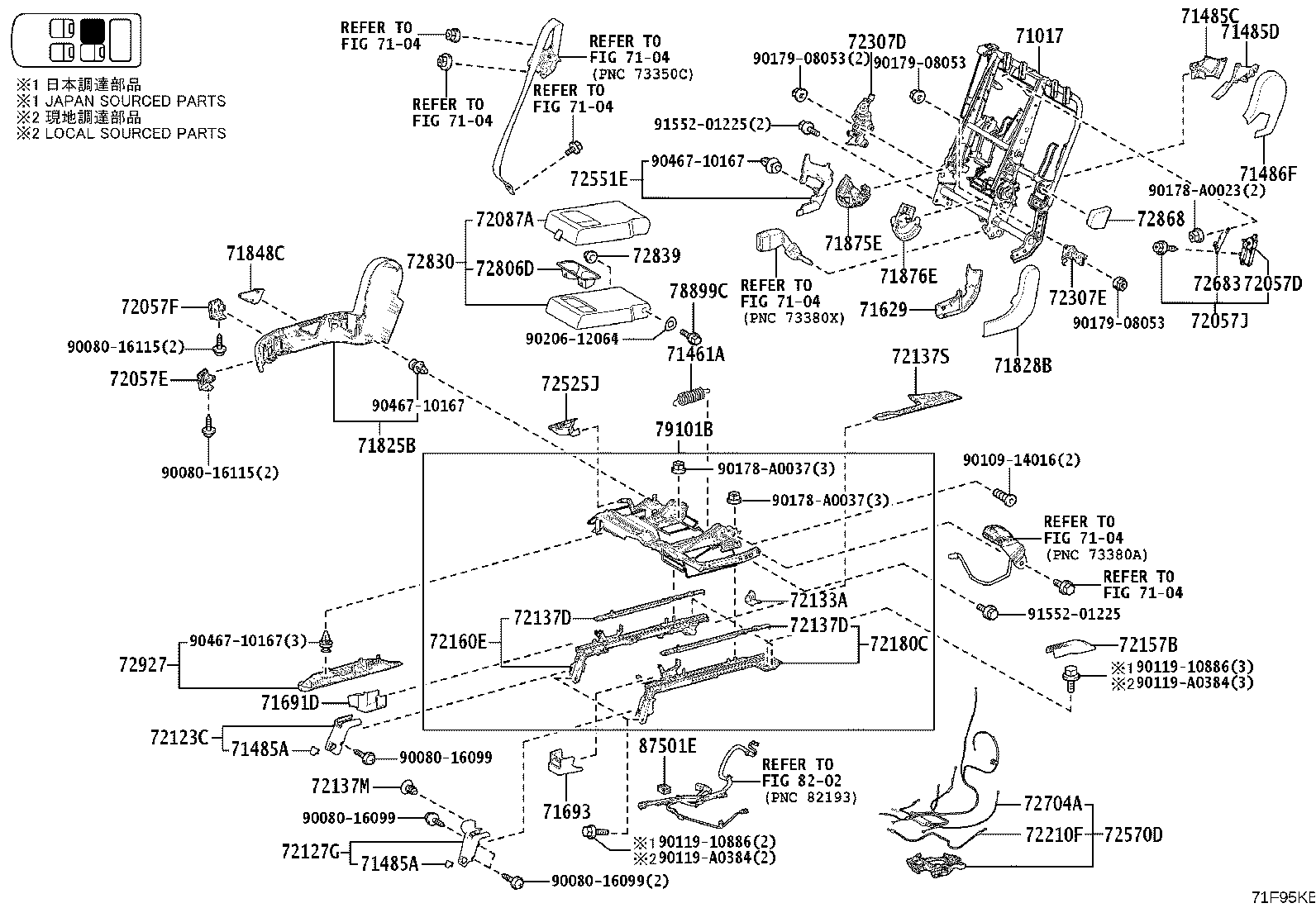

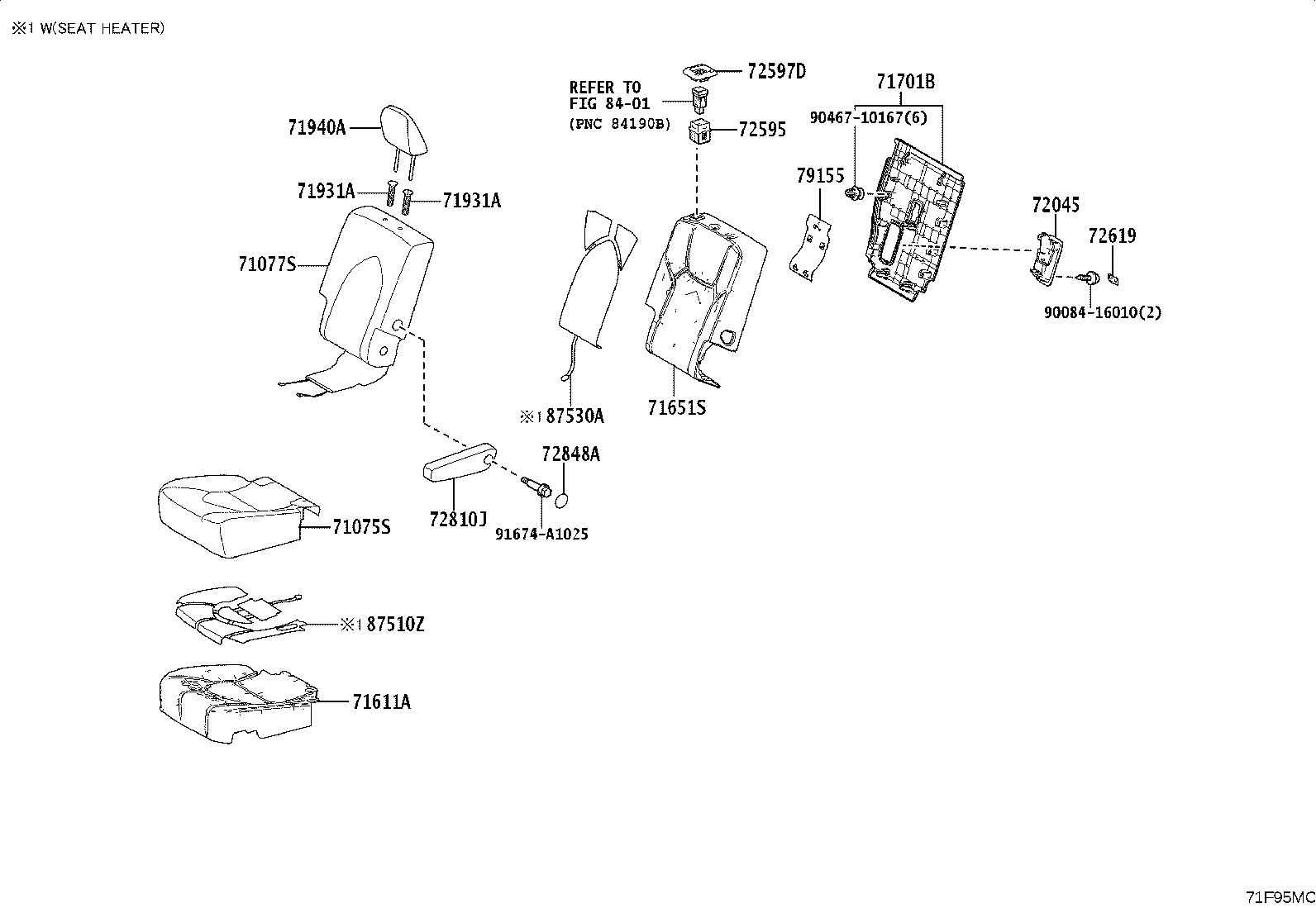

Figure 71F95JC 71F95JC 2023-09 → — Figure 71F95MC 71F95MC 2023-09 → — Figure 71F95KB 71F95KB 2023-09 → — Figure 71F95NA 71F95NA 2023-09 → — Figure 71F9PYA 71F9PYA 2023-09 → — Figure 71F95LA 71F95LA 2023-09 → — Figure 71F95OA 71F95OA 2023-09 → — Figure 71F95RB 71F95RB 2023-09 → — Figure 71F95SB 71F95SB 2023-09 → — Figure 71F95TB 71F95TB 2023-09 → — Figure 71F95UB 71F95UB 2023-09 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71248 Retainer, Rear Seat Cushion Hinge, NO.1
71331A Pin, Rear Seat Hinge
71461A Spring, Rear Seat Cushion, NO.1
71480E Clip, Rear Seatback, RH
71485A Cover, Rear Seat Hinge, NO.2 RH
71485C Cover, Rear Seat Hinge, RH
71485D Cover, Rear Seat Hinge, LH
71486A Cover, Rear Seat Hinge, NO.2 LH
71486F Cover, Rear Seat Hinge, LH
71490A Clip, Rear Seatback, LH
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71628E Spacer, Rear Seat Cushion
71629 Cover, Rear Seat Cushion Hinge
71639 Cover, Rear Seat Cushion Hinge, LH
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691D Cover, Rear Seat Cushion Hinge, Upper RH
71691F Cover, Rear NO.1 Seat Cushion Hinge, Inner RH
71691G Cover, Rear NO.1 Seat Cushion Hinge, Outer RH
71692D Cover, Rear Seat Cushion Hinge, Upper LH
71692F Cover, Rear NO.1 Seat Cushion Hinge, Inner LH
71692G Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
71692M Cover, Rear Seat Cushion Hinge, Upper LH NO.2
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71693D Cover, Rear Seat Cushion Hinge, Inner RH
71697 Protector, Rear Seatback Edge
71701B Board Sub-assy, Rear Seatback, RH
71702B Board Sub-assy, Rear Seatback, LH
71704B Band Sub-assy, Rear Side Seat, NO.2
71778B Cover, Rear Seat Side Hinge Male, RH
71779 Cover, Rear Seat Side Hinge Male, LH
71825B Moulding, Rear Seat Cushion, RH
71826B Moulding, Rear Seat Cushion, LH
71828B Moulding, Rear Seat Cushion, Rear RH
71829B Moulding, Rear Seat Cushion, Rear LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71843F Cover, Rear Seat Reclining, LH (FOR RH SEAT)
71844D Cover, Rear Seat Reclining, LH (FOR LH SEAT)
71844E Cover, Rear Seat Reclining, RH (FOR LH SEAT)
71848C Cap, Seat Adjuster Cover, RH
71849D Cap, Seat Adjuster Cover, LH
71875E Cover, Reclining Adjuster Inside, RH
71875J Cover, Reclining Adjuster Inside, RH
71876B Cover, Reclining Adjuster Inside, LH
71876E Cover, Reclining Adjuster Inside, LH
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71940E Headrest Assy, NO.2 Seat
71960B Headrest Assy, Rear Seat, Center
71983 Guide, Rear Seat Headrest
72045 Cover Sub-assy, RR Seat Track, Outer RH
72046 Cover Sub-assy, Rear Seat Track, Outer LH
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72057D Lever Sub-assy, Rear Seat Lock Control, RH
72057E Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057F Lever Sub-assy, Rear Seat Lock Control, RH NO.2
72057G Lever Sub-assy, Rear Seat Lock Control, LH NO.1
72057H Lever Sub-assy, Rear Seat Lock Control, LH NO.2
72057J Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT)
72057K Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72058F Lever Sub-assy, NO.1 Seat Lock Control, LH
72087A Cover Sub-assy, Rear Seat Center Armrest
72123C Cover, Seat Track Bracket, Outer Front RH
72124C Cover, Seat Track Bracket, Outer Front LH
72127G Cover, Seat Track Bracket, Inner Front RH
72128G Cover, Seat Track Bracket, Inner Front LH
72133A Bracket, Front Inner Seat Track Upper Rail, RH
72134A Bracket, Front Inner Seat Track Upper Rail, LH
72137D Cover, Rear Seat Track, RH
72137M Clip (FOR SEAT TRACK COVER RH)
72137S Cover, Seat Track Bracket, Outer Rear RH
72137W Clip (FOR SEAT TRACK COVER LH)
72138A Cover, Rear Seat Track, LH
72138M Cover, Seat Track Bracket, Outer Rear LH
72157B Cover, Rear Seat Track Bracket, Inner RH
72158A Cover, Rear Seat Track Bracket, Inner LH
72160E Track Assy, Rear Seat, Outer RH
72170D Track Assy, Rear Seat, Outer LH
72180C Track Assy, Rear Seat, Inner RH
72190 Track Assy, Rear Seat Inner, LH
72210F Cable Assy, Seat Track Control
72307 Link Sub-assy, Reclining Control, RH
72307D Link Sub-assy, Reclining Control, RH NO.1
72307E Link Sub-assy, Reclining Control, RH NO.2
72308 Link Sub-assy, Reclining Control, LH
72308C Link Sub-assy, Reclining Control, LH NO.1
72308D Link Sub-assy, Reclining Control, LH NO.2
72506E Rod Sub-assy, Reclining Connecting, RH
72506F Rod Sub-assy, Reclining Connecting, LH
72525J Handle, Reclining Adjuster Release, RH
72526E Handle, Reclining Adjuster Release, LH
72551E Cover, Reclining Hinge, RH
72552A Cover, Reclining Hinge, LH
72556 Clip(FOR REAR SEAT)
72556A Clip(FOR REAR SEAT)
72570D Cable Assy, Reclining Adjusting
72595 Base, Reclining Remote Control, RH
72596 Base, Reclining Remote Control, LH
72597D Bezel, Reclining Remote Control, RH
72597E Bezel, Reclining Remote Control, RH NO.2
72598C Bezel, Reclining Remote Control, LH
72598D Bezel, Reclining Remote Control, LH NO.2
72615H Cover, Rear Seatback Lock Striker, NO.1
72619 Cover, Rear Seatback Lock Striker
72649B Spring, Rear Seat Cushion Support
72660J Cable Assy, Rear NO.2 Seat Cushion Lock
72660K Cable Assy, Rear NO.2 Seat Cushion Lock, RH
72683 Bracket, Rear Seatback Lock, RH
72684 Bracket, Rear Seatback Lock, LH
72704A Cable, Rear Seat Reclining Control
72806D Holder Sub-assy, Rear Seat Center Armrest Cup
72810J Armrest Assy, Seat, RH
72820B Armrest Assy, Seat, LH
72830 Armrest Assy, Rear Seat, Center
72839 Shim, Rear Seat Armrest Hinge
72848A Cap, Seat Armrest, NO.1
72868 Cover, Center Armrest Hinge, RH
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
72995 Cover, Rear Seat Cushion, RH
72998 Cover, Rear Seat Cushion, LH
78899C Bolt, Rear Sub Seat
79020B Leg Assy, NO.2 Seat
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79101B Frame Sub-assy, NO.1 Seat Cushion, RH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79155 Plate, NO.1 Seatback
79201B Frame Sub-assy, NO.2 Seat Cushion, RH
79202 Frame Sub-assy, NO.2 Seat Cushion, LH
79203A Frame Sub-assy, NO.2 Seatback, RH
79204A Frame Sub-assy, NO.2 Seatback, LH
79207B Board Sub-assy, NO.2 Seatback, RH
79209B Board Sub-assy, NO.2 Seatback, LH
79235D Pad, NO.2 Seat Cushion, RH
79245C Pad, NO.2 Seat Cushion, LH
79273 Cover, NO.2 Seat Hinge
79273A Cover, NO.2 Seat Hinge, NO.2
79273B Cover, NO.2 Seat Hinge, NO.3
79273C Cover, NO.2 Seat Hinge, NO.4
79275C Pad, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
79687 Clip
85801A Blower Sub-assy, Seat Cushion Climate, RH
85802A Blower Sub-assy, Seat Cushion Climate, LH
85803A Blower Sub-assy, Seatback Climate, RH
85804A Blower Sub-assy, Seatback Climate, LH
87501E Control Sub-assy, Seat Heater, RH
87501F Control Sub-assy, Seat Heater, LH
87510Y Heater Assy, Rear NO.1 Seat Cushion, LH
87510Z Heater Assy, Rear NO.1 Seat Cushion, RH
87530 Heater Assy, Rear NO.1 Seatback, LH
87530A Heater Assy, Rear NO.1 Seatback, RH
