Toyota Lexus TX Series

2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States

Supported model Data version 2024-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

183 part groups · 27 illustrations

Illustrations

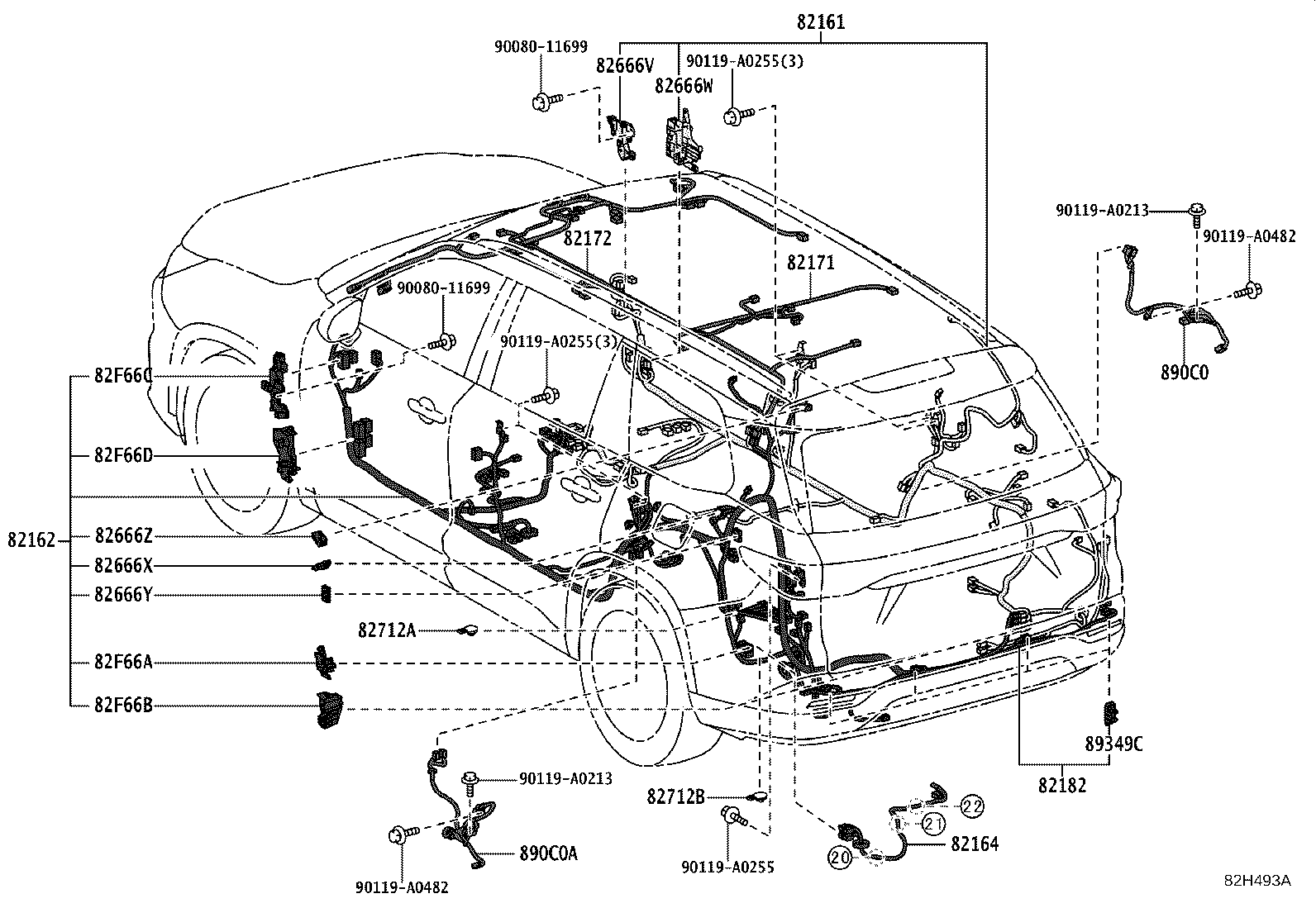

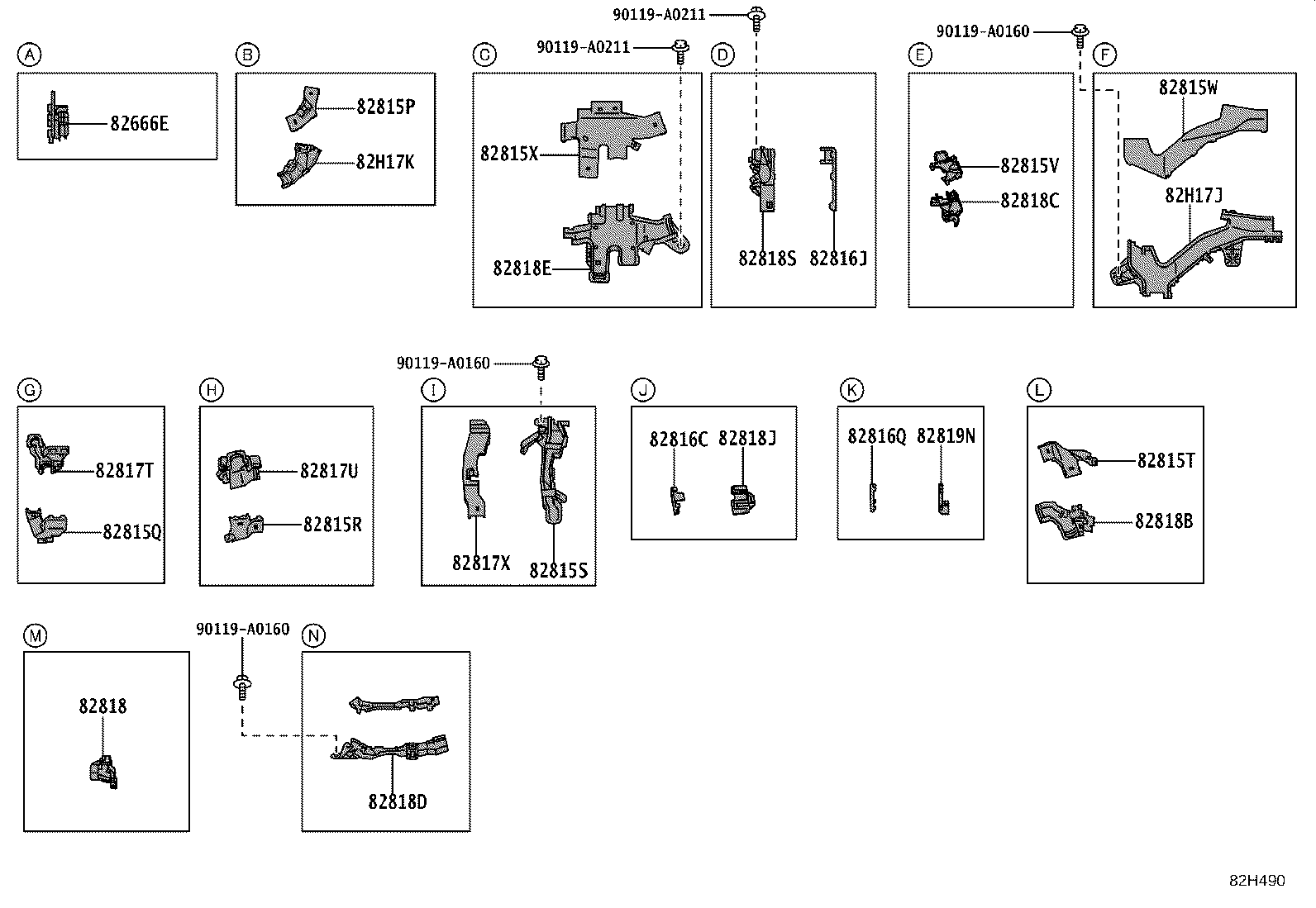

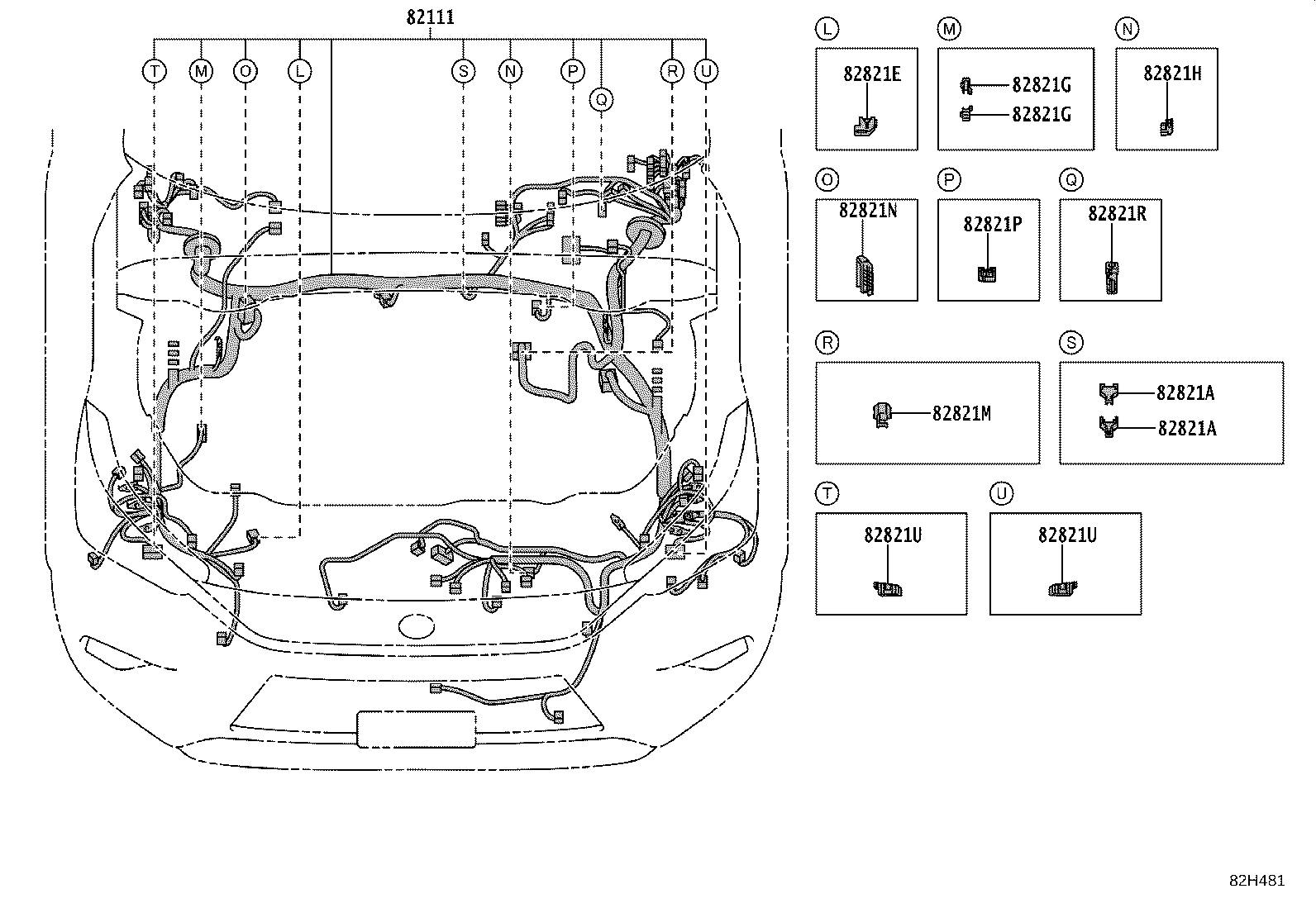

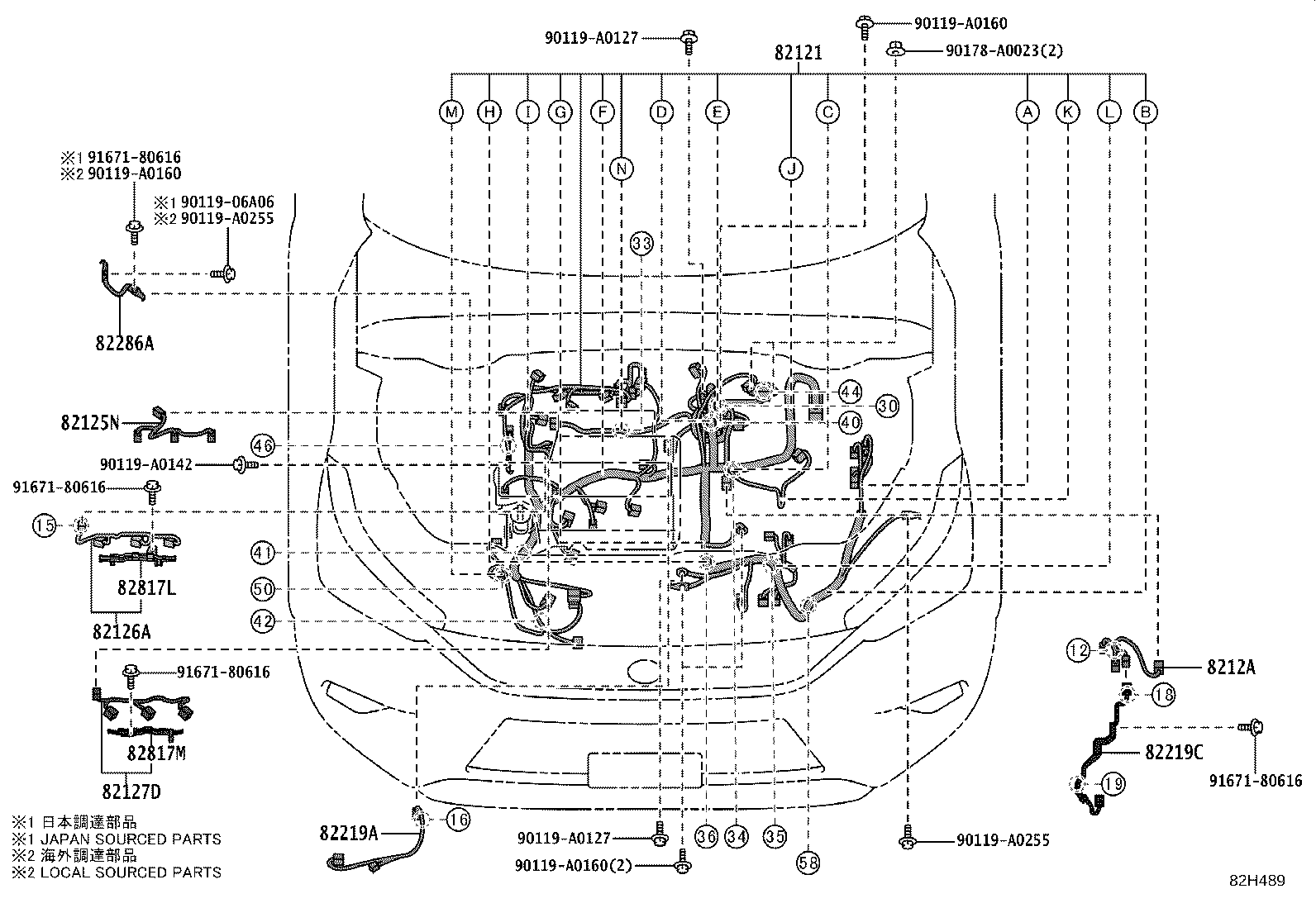

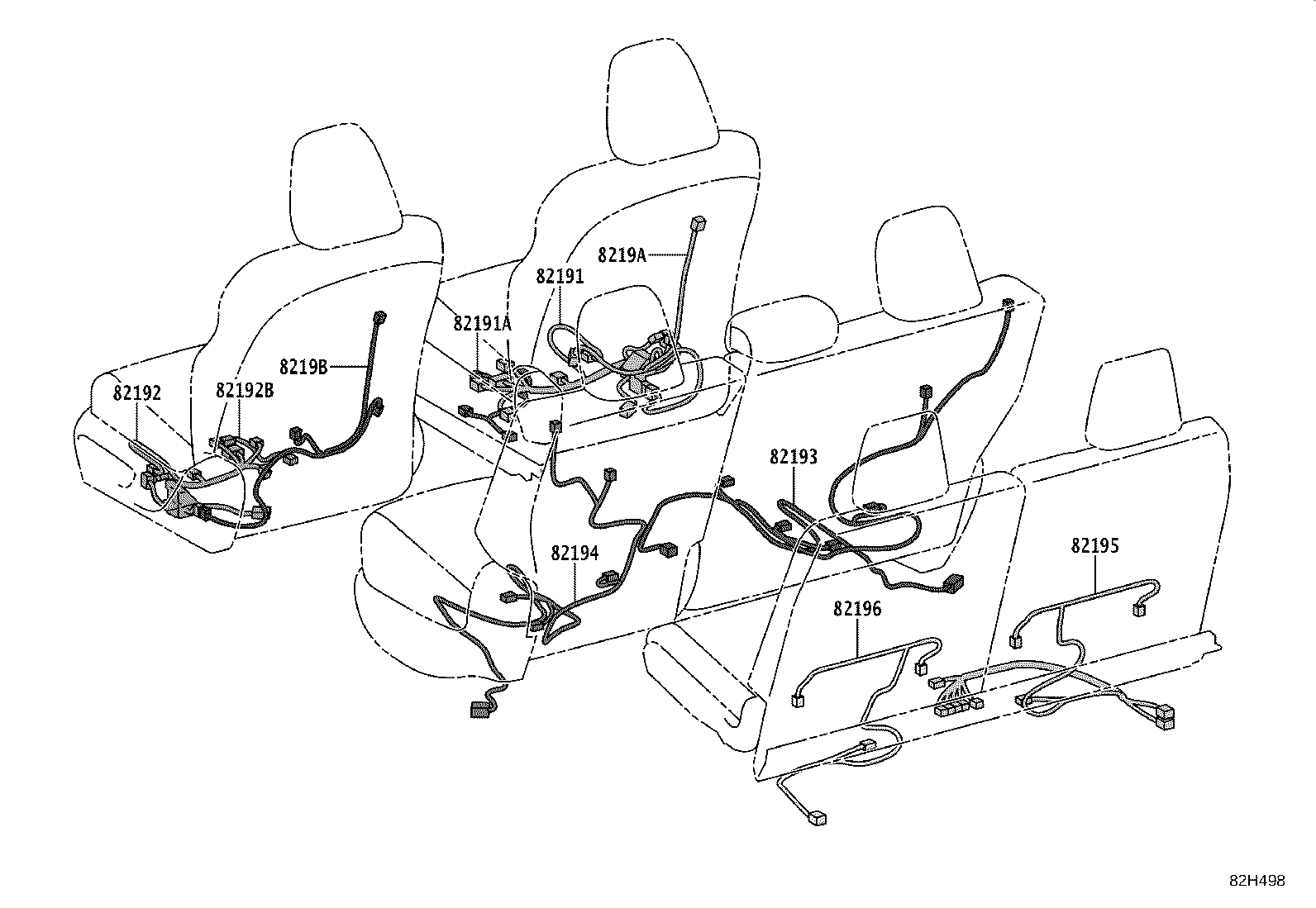

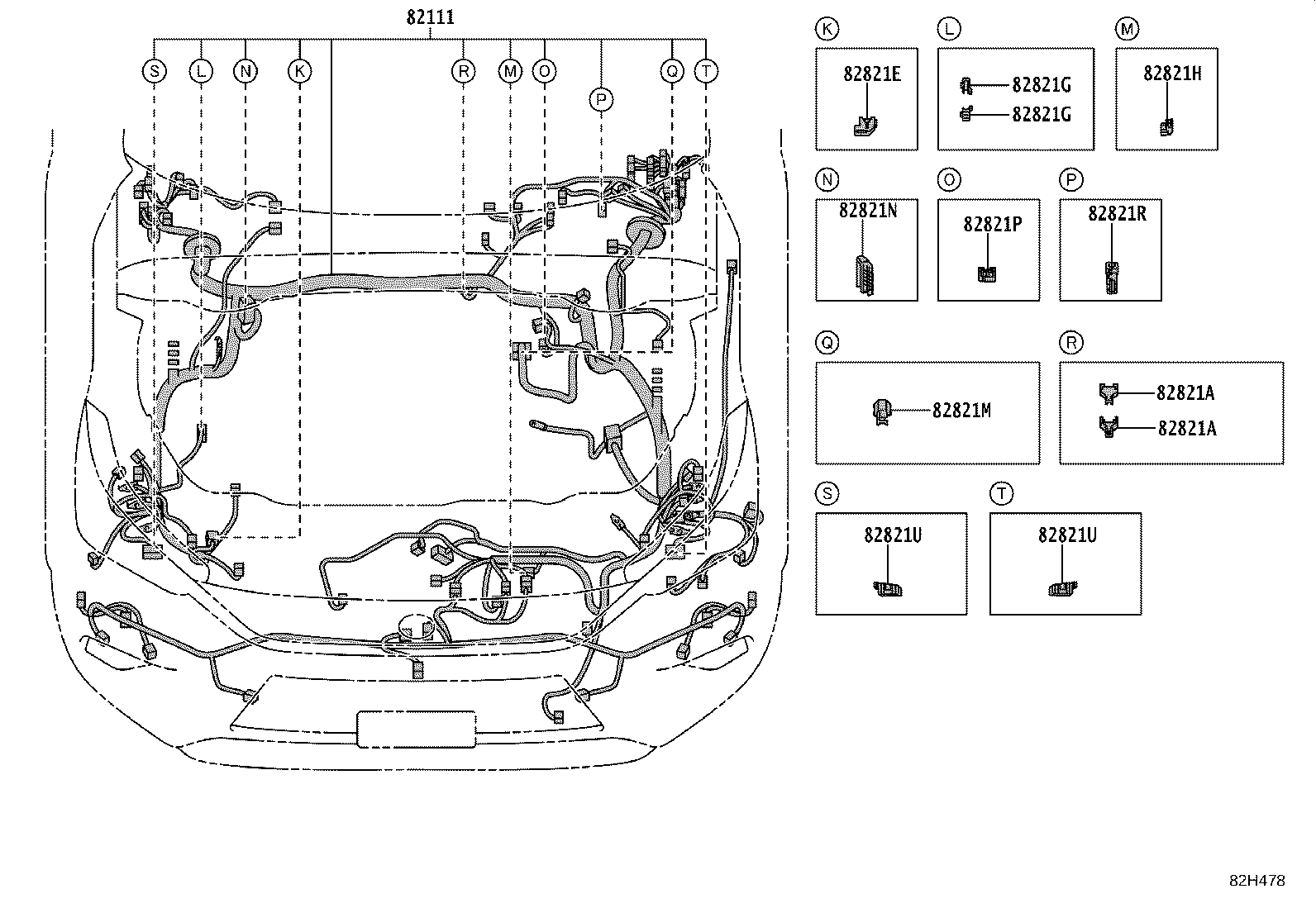

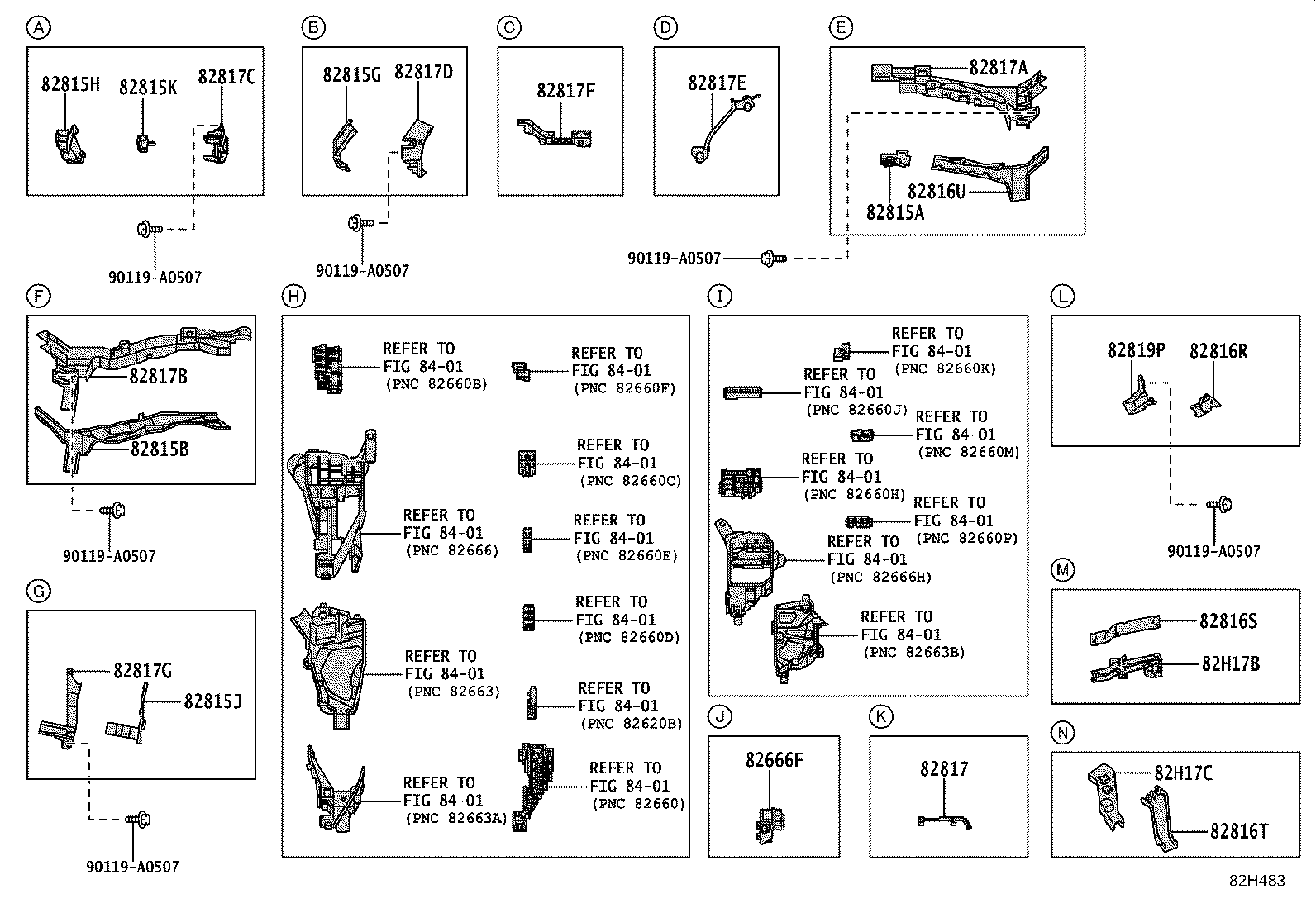

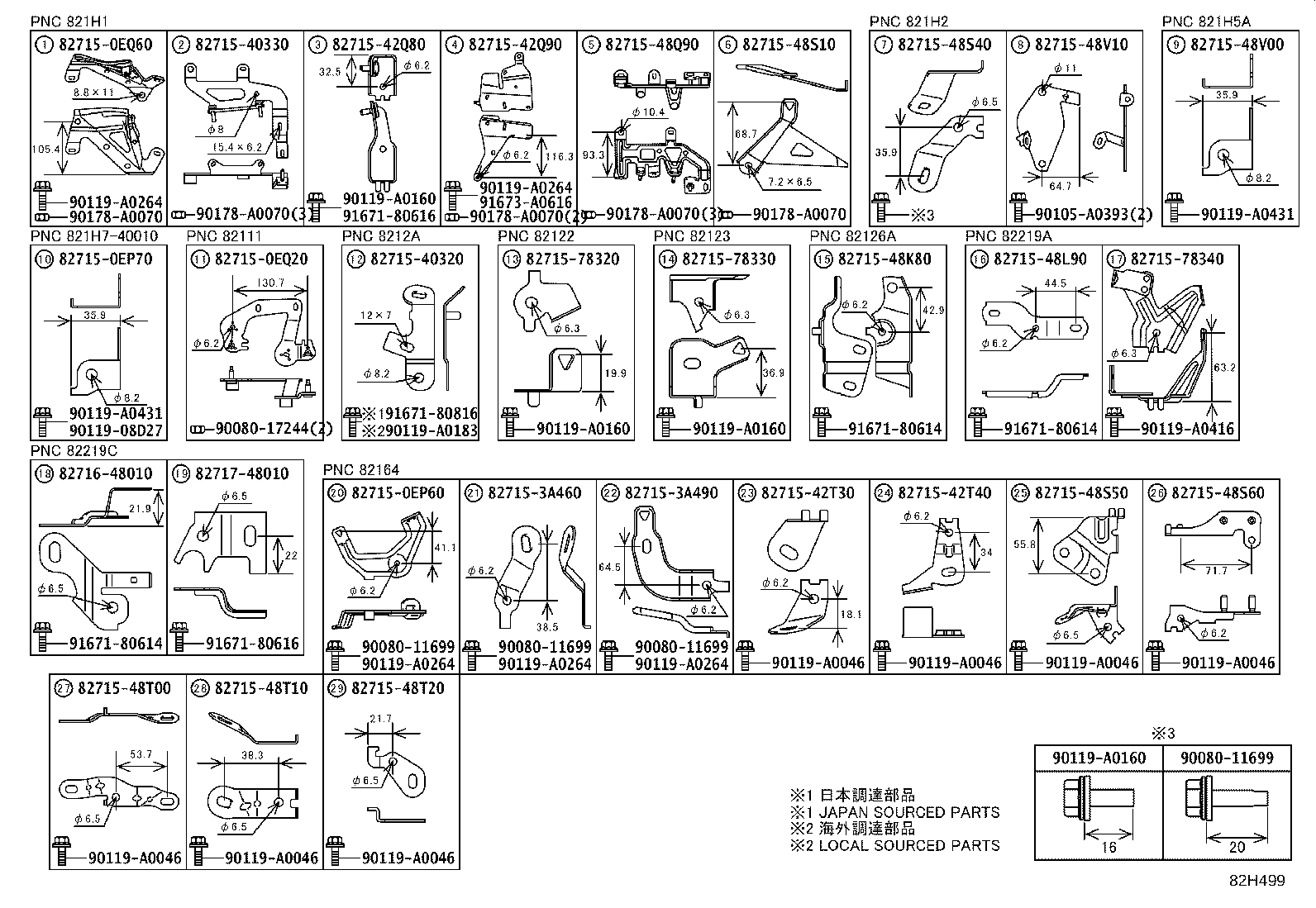

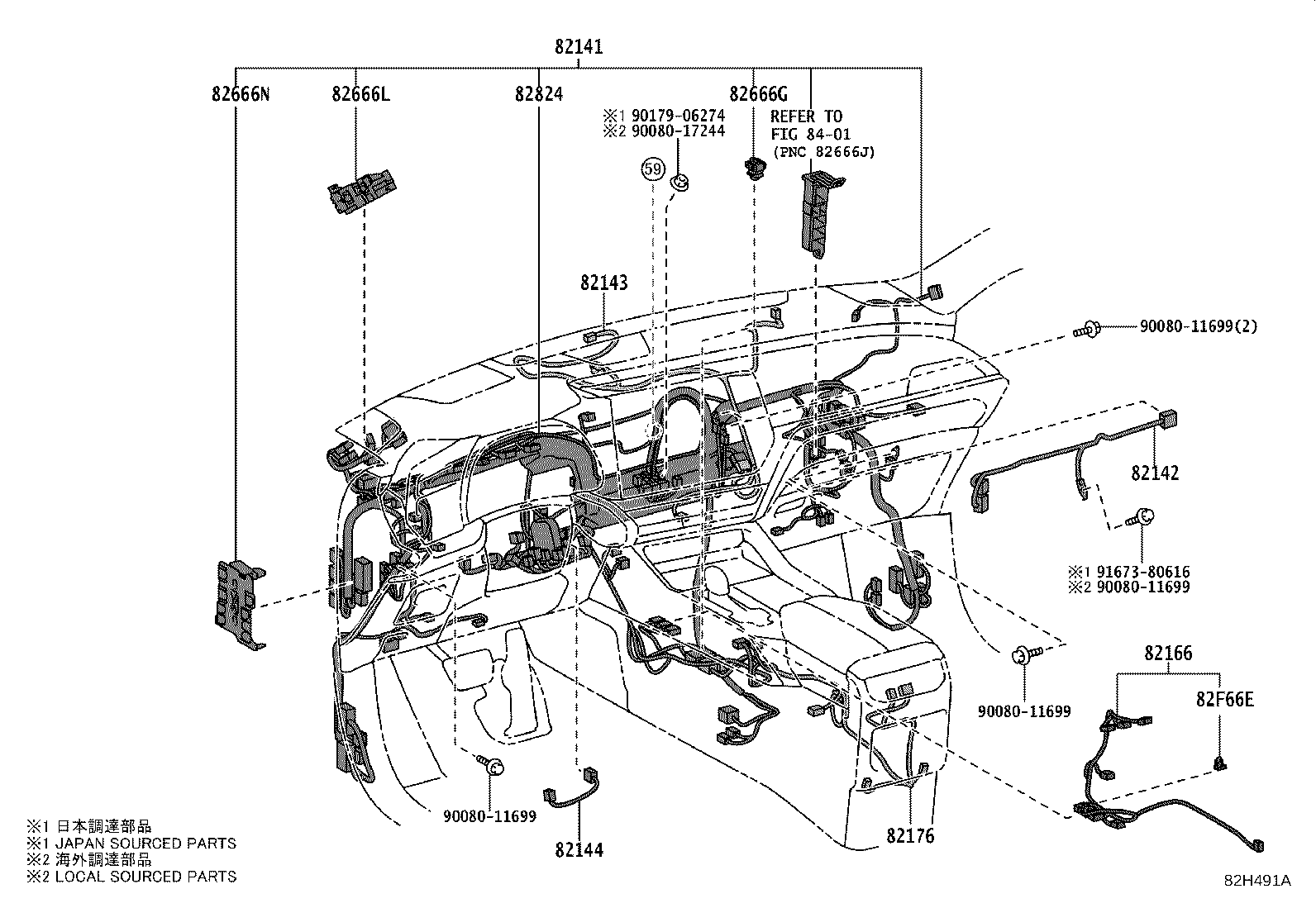

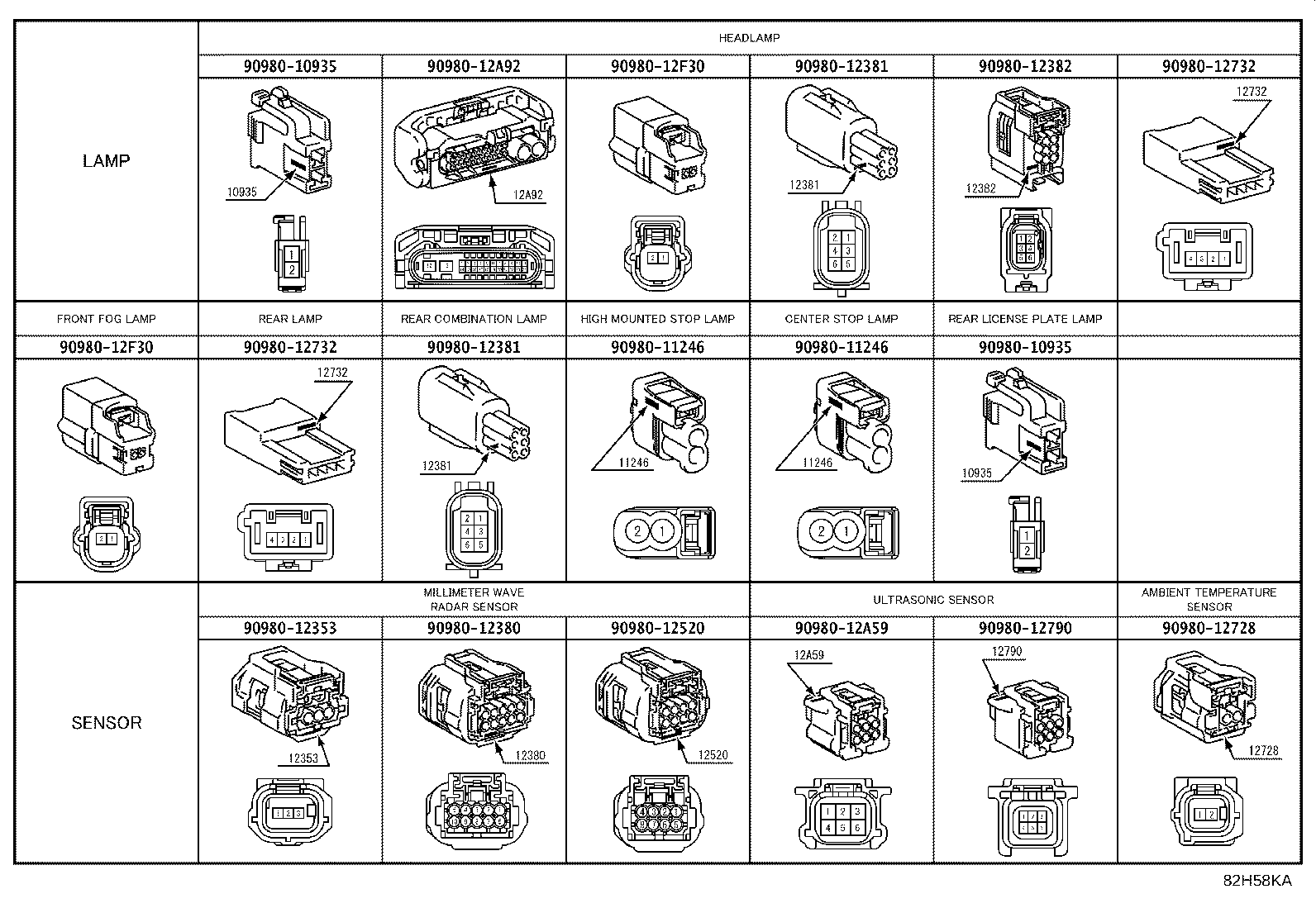

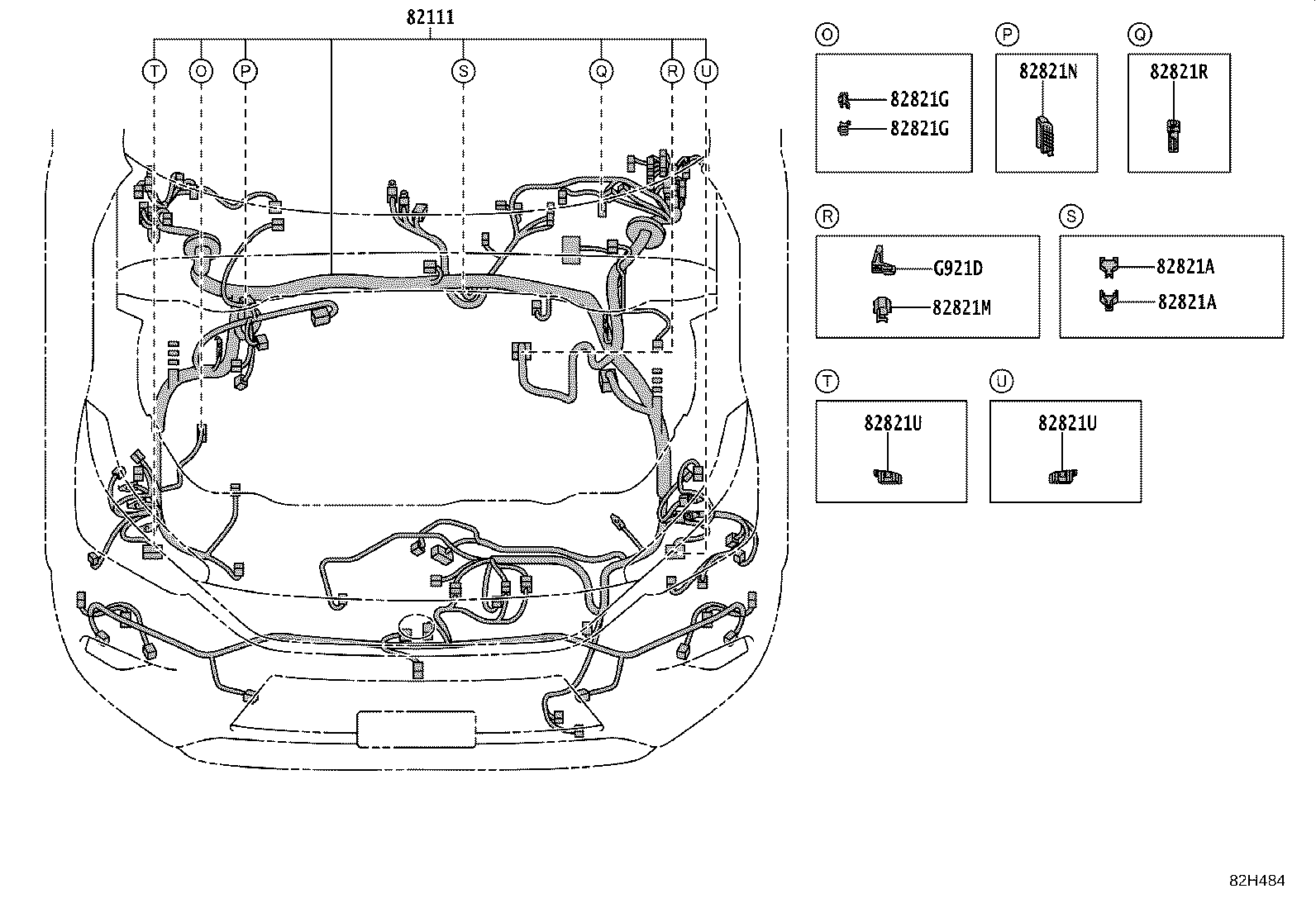

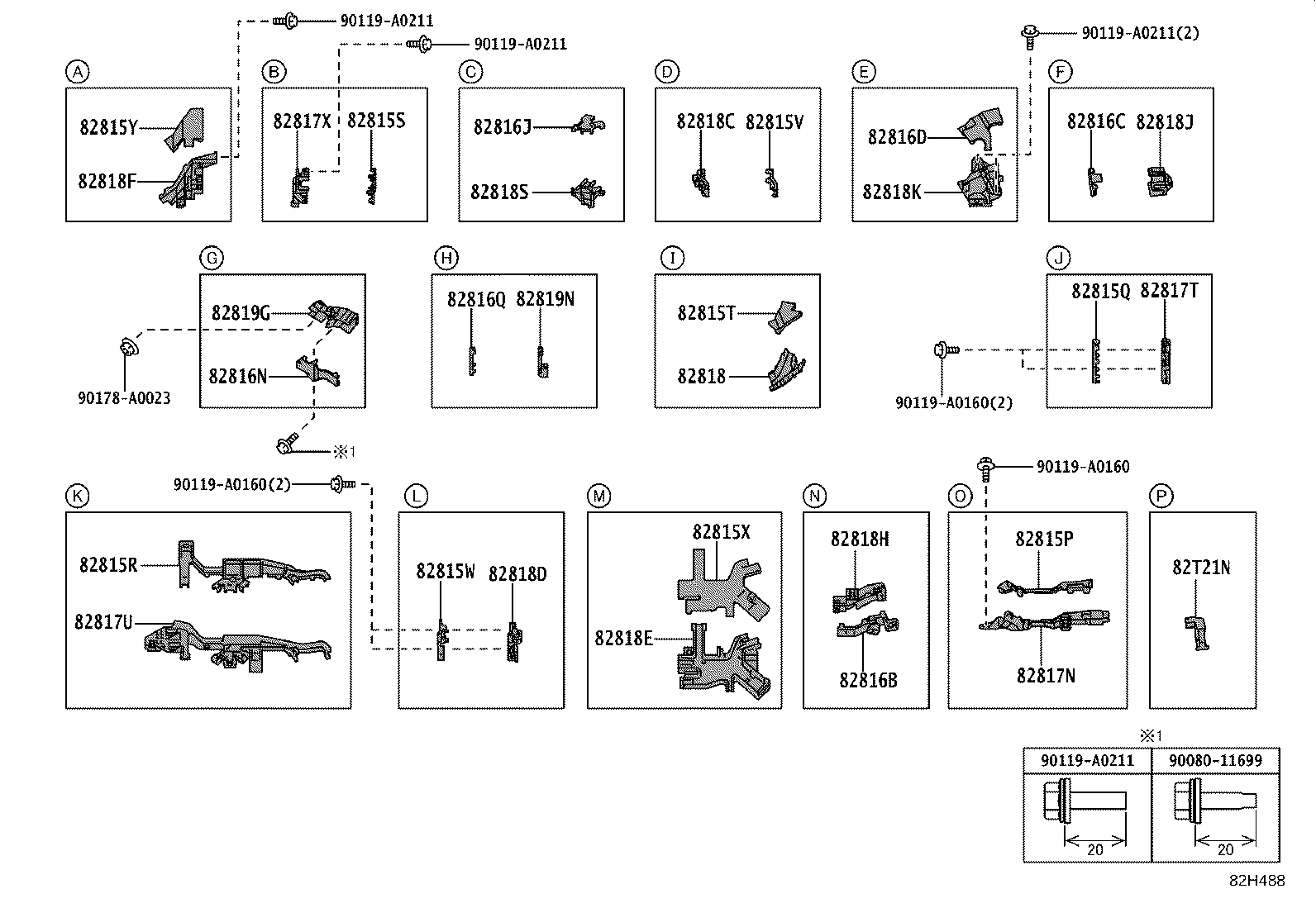

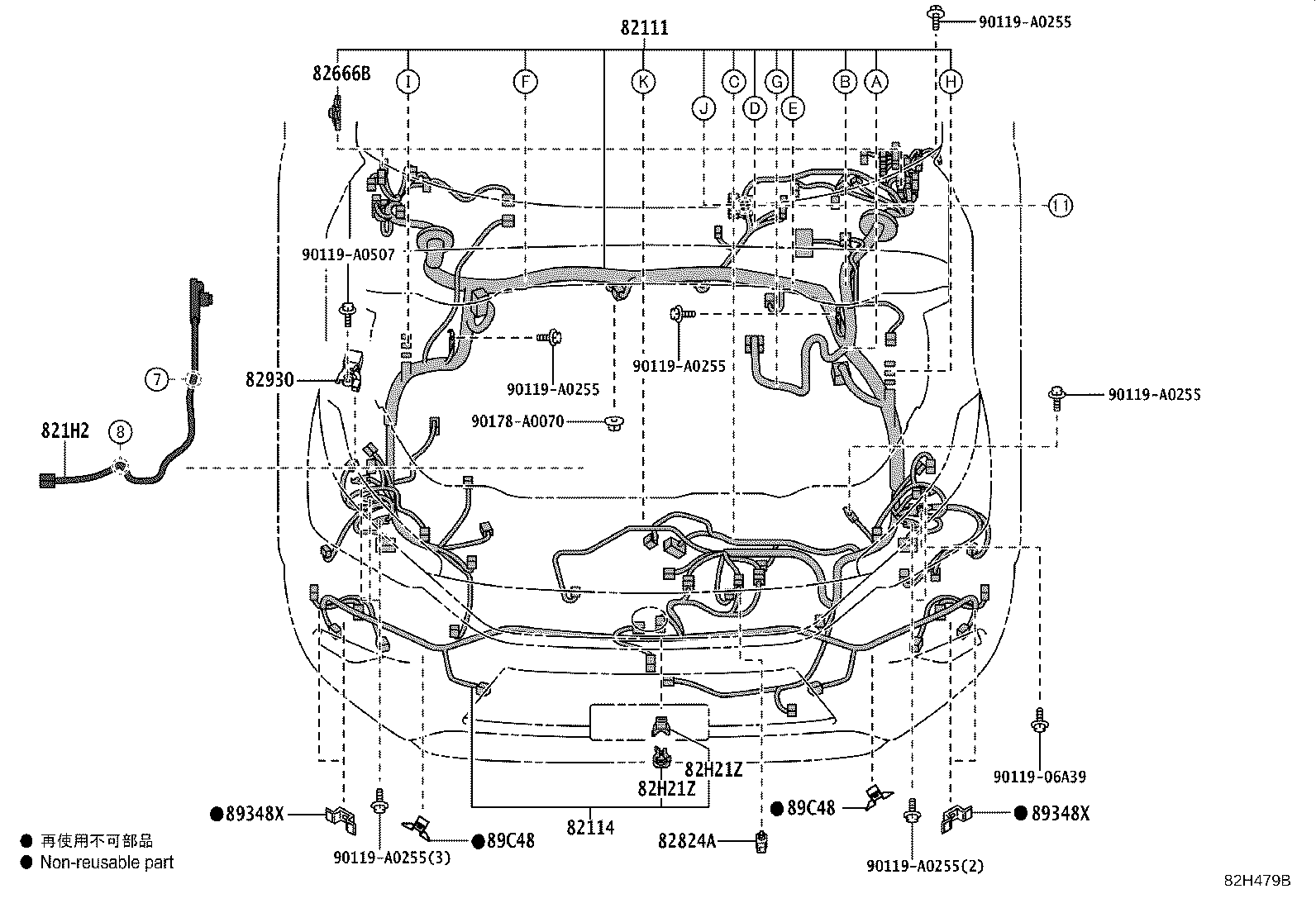

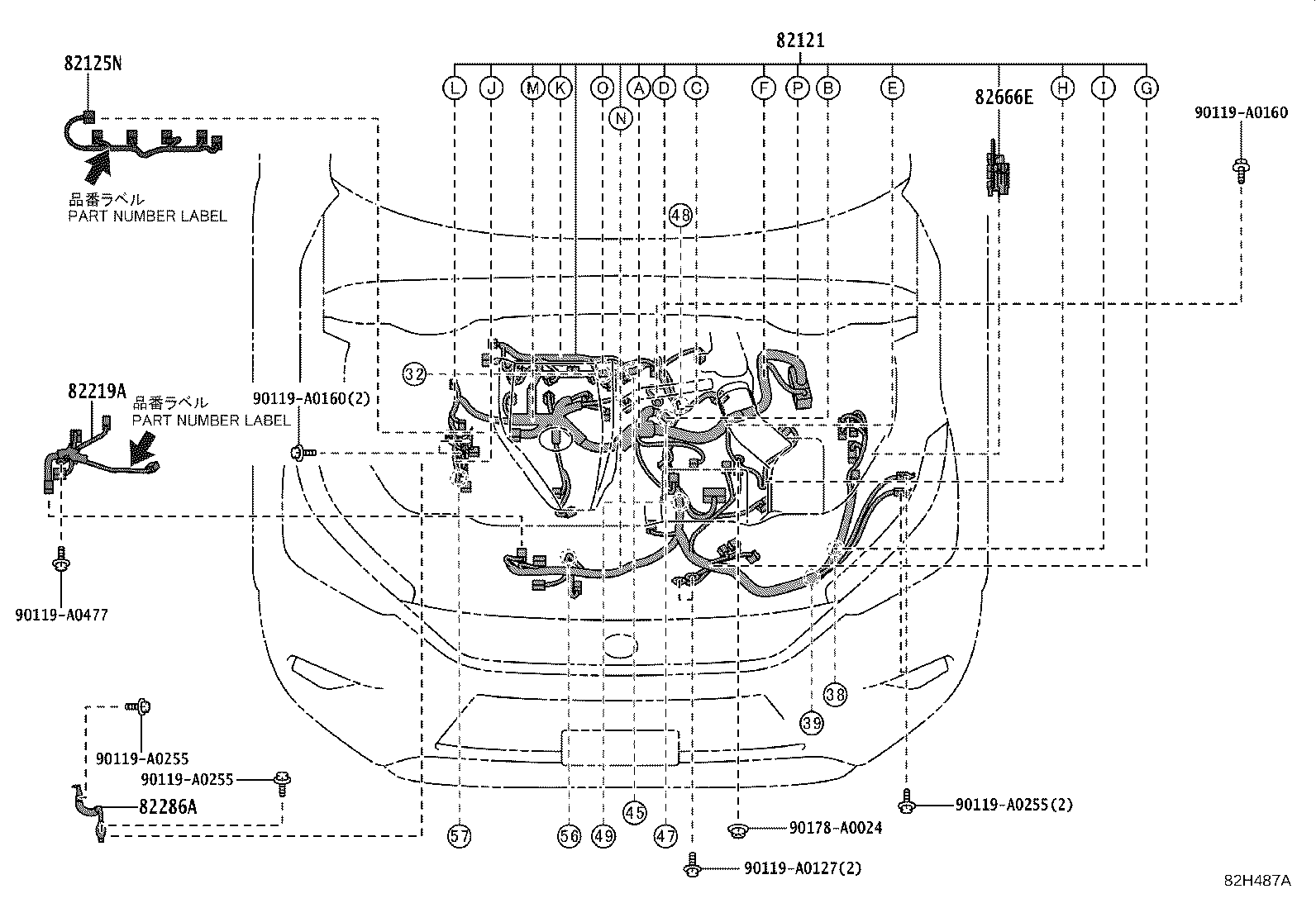

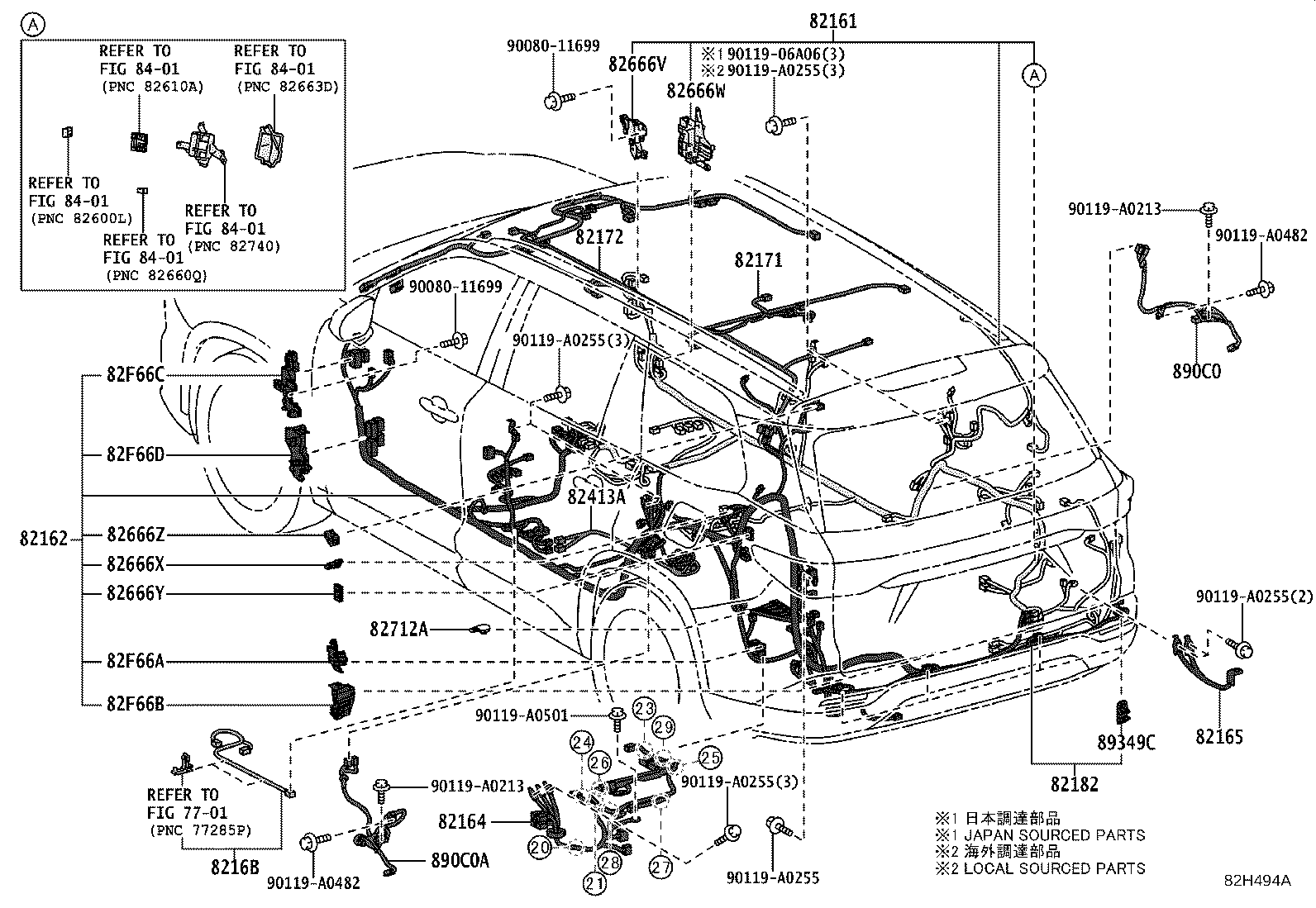

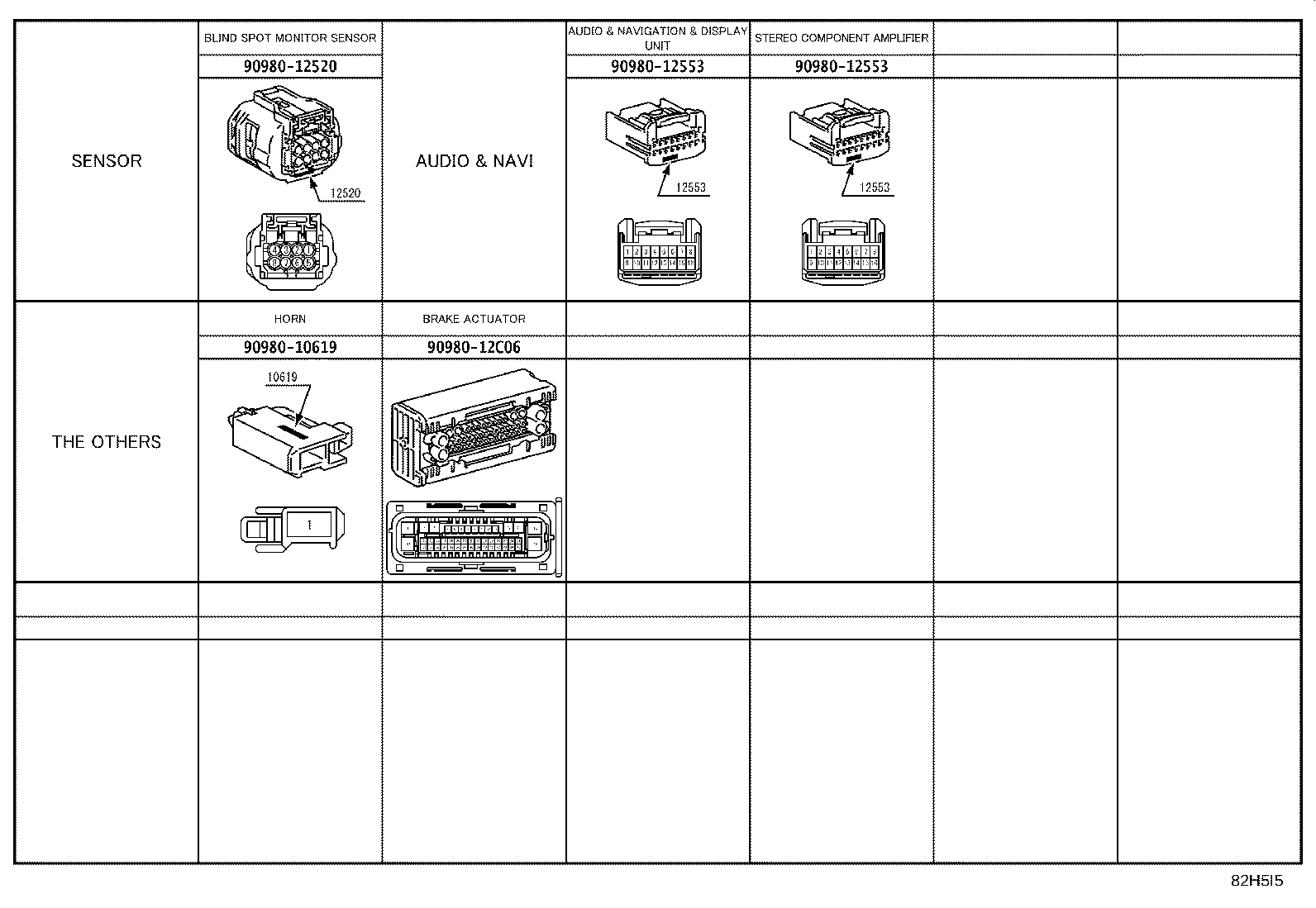

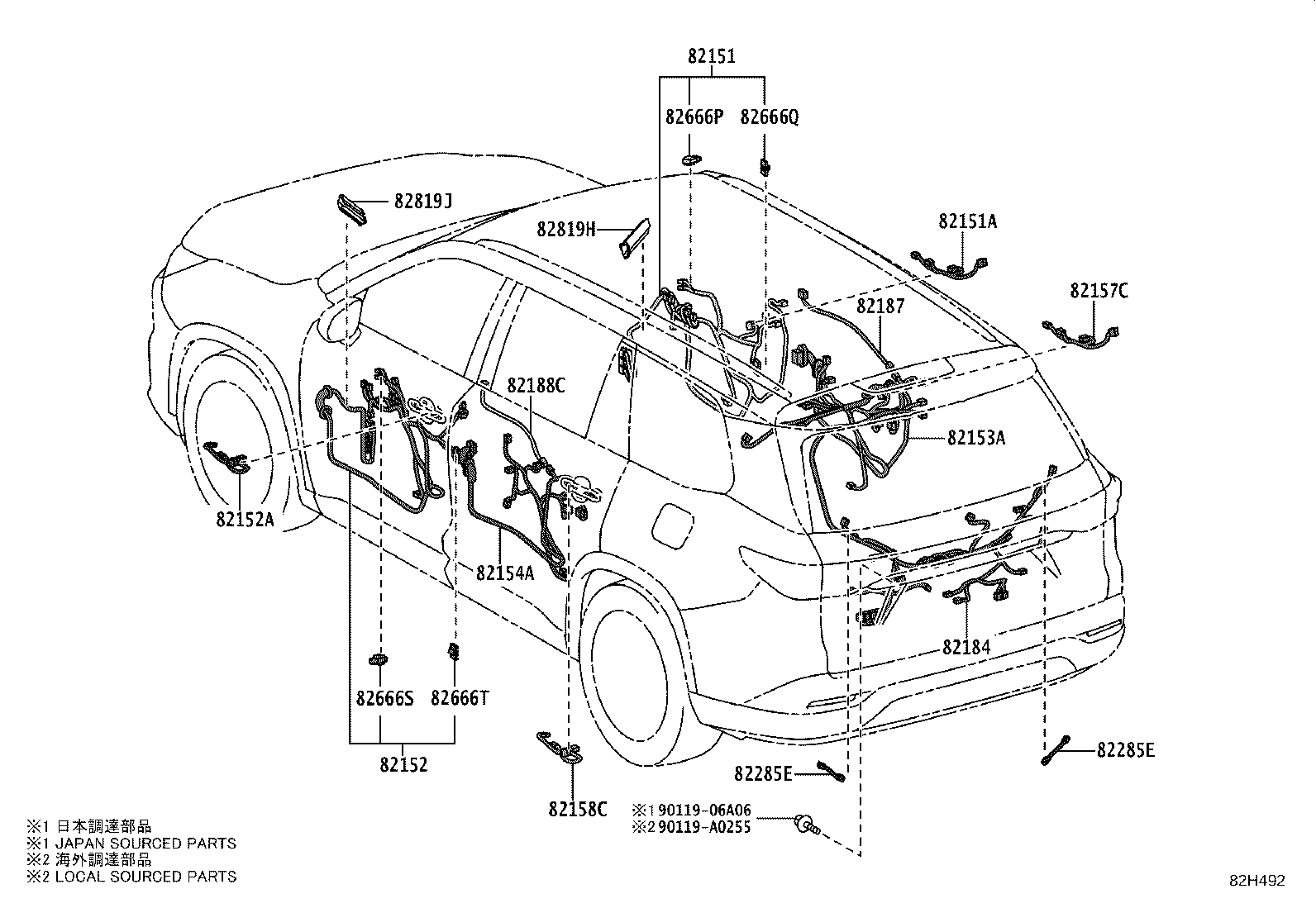

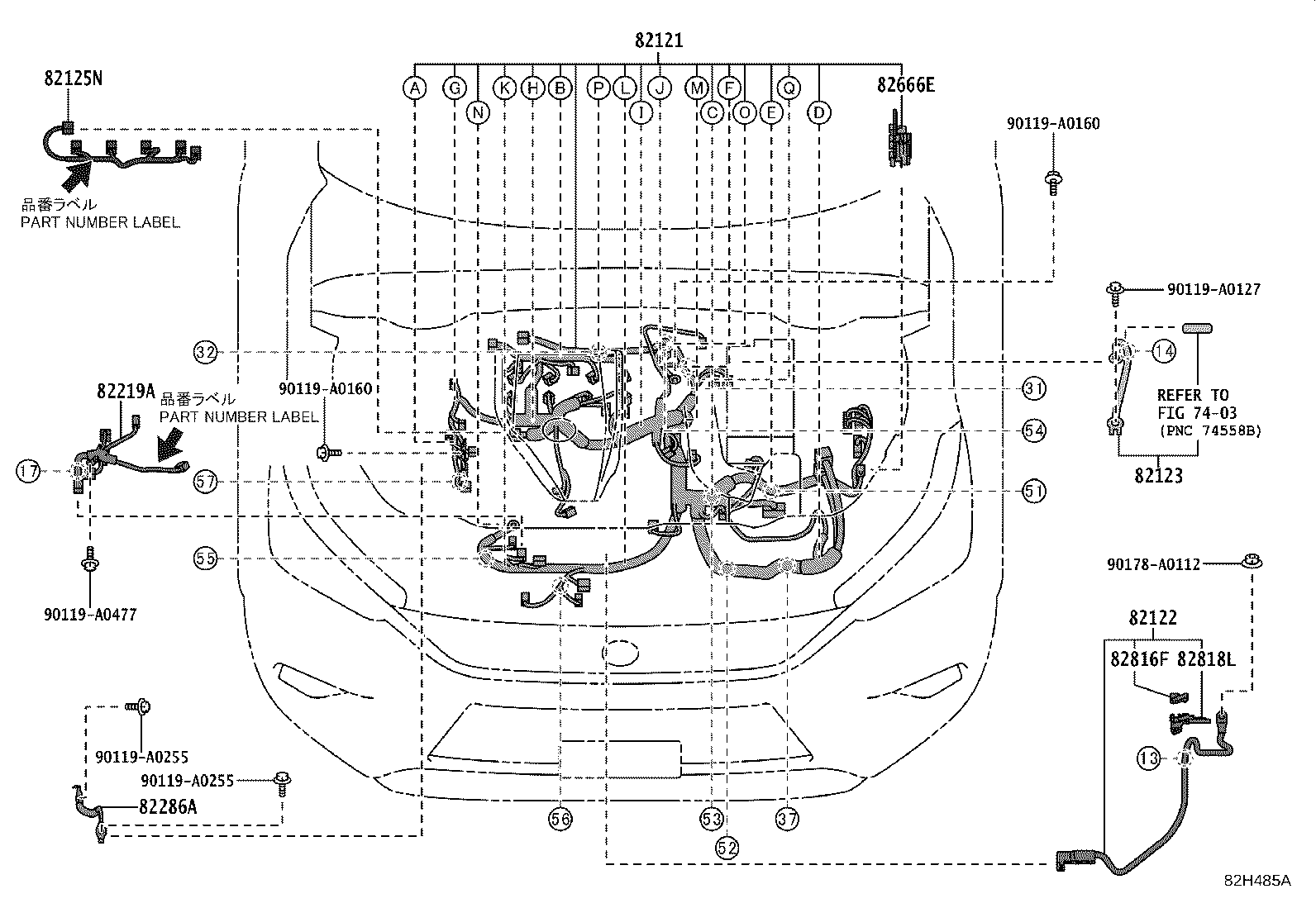

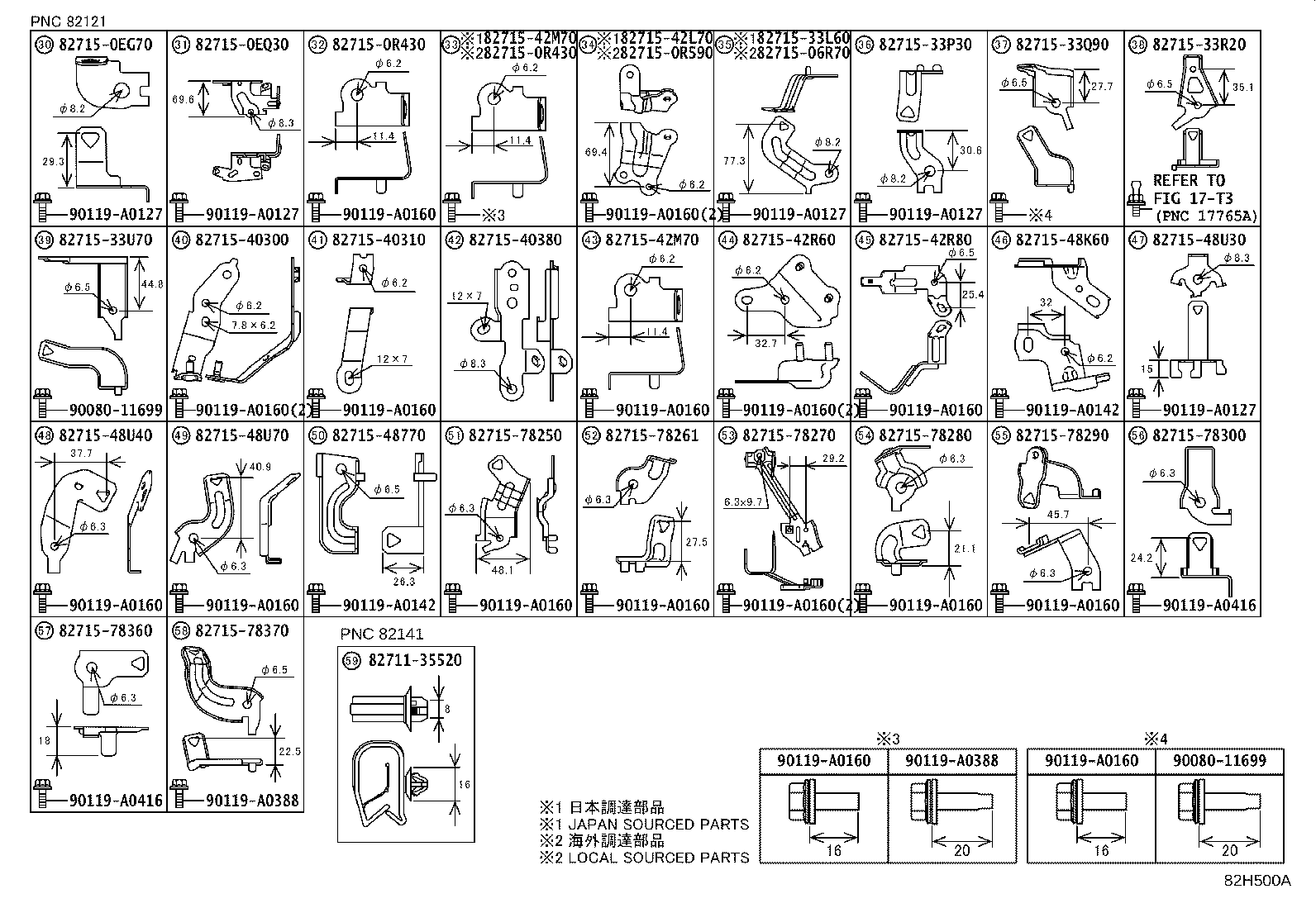

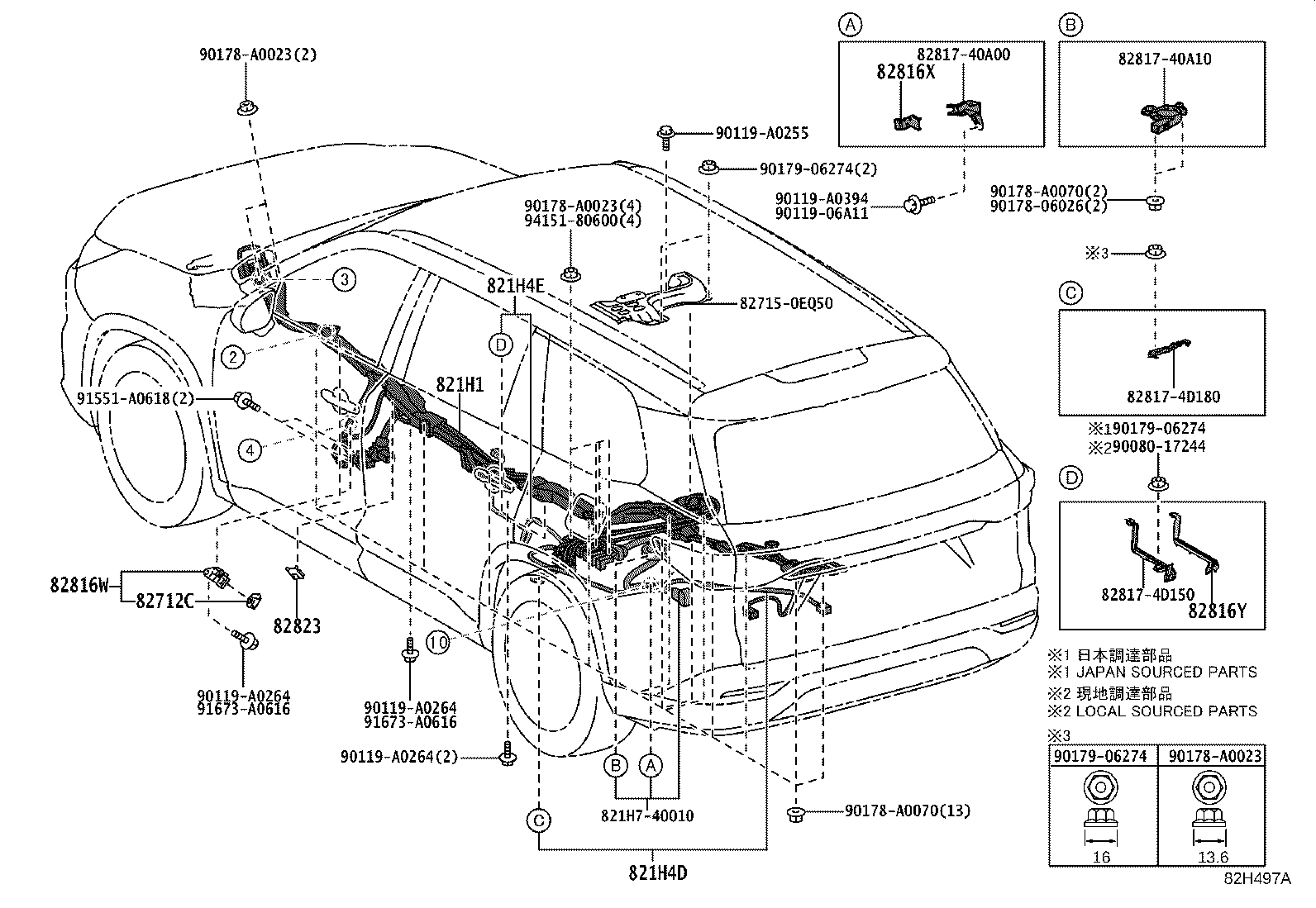

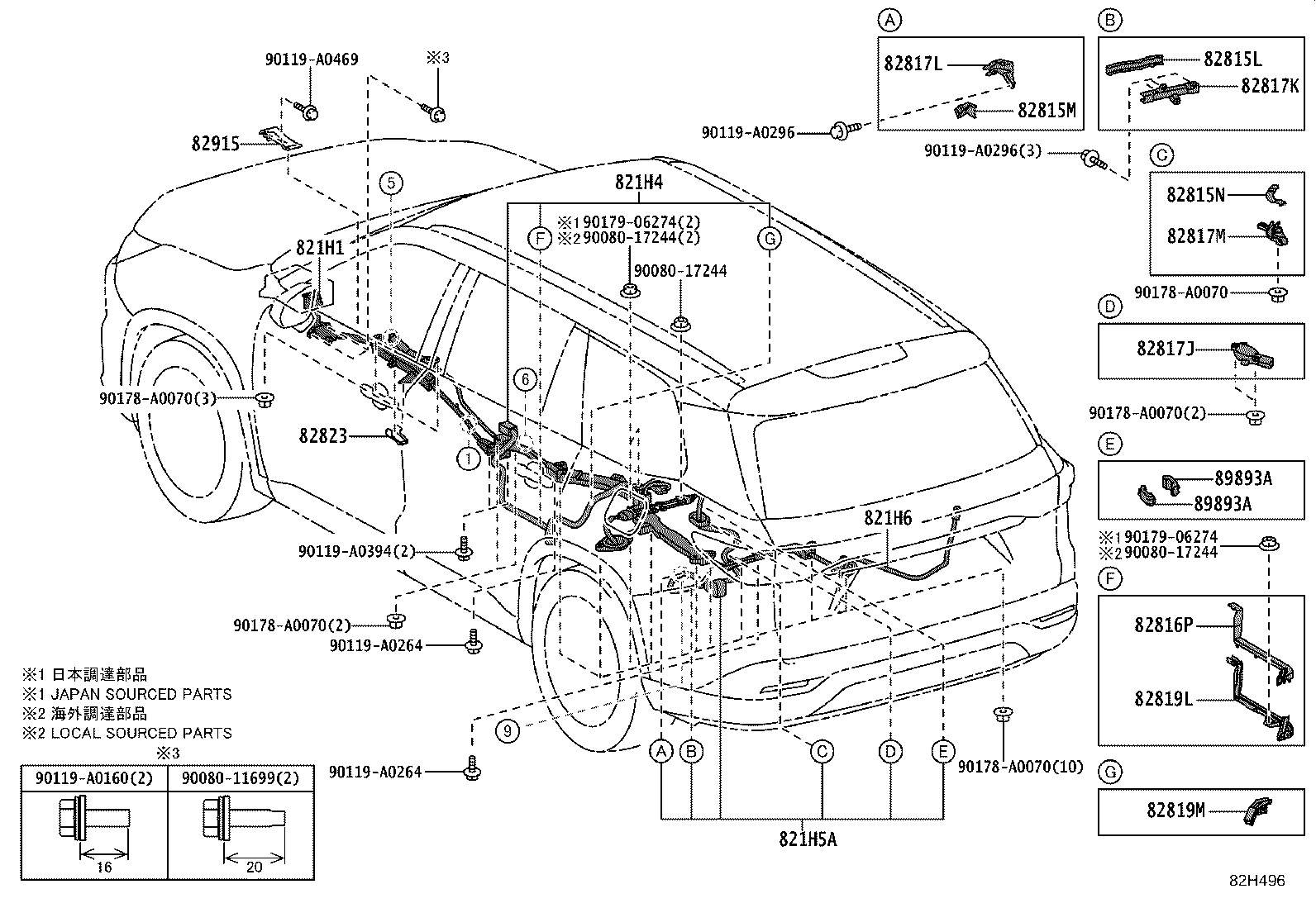

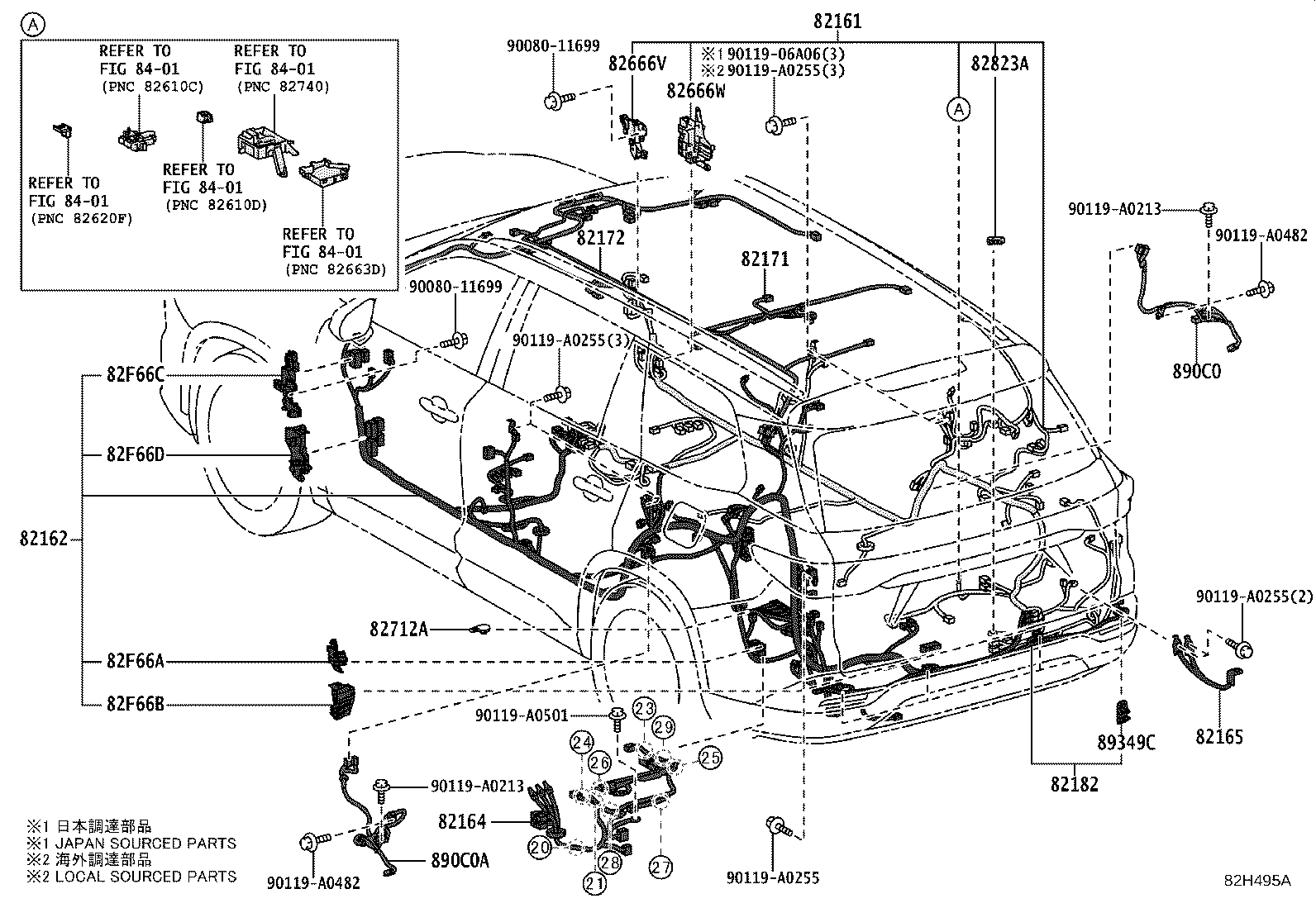

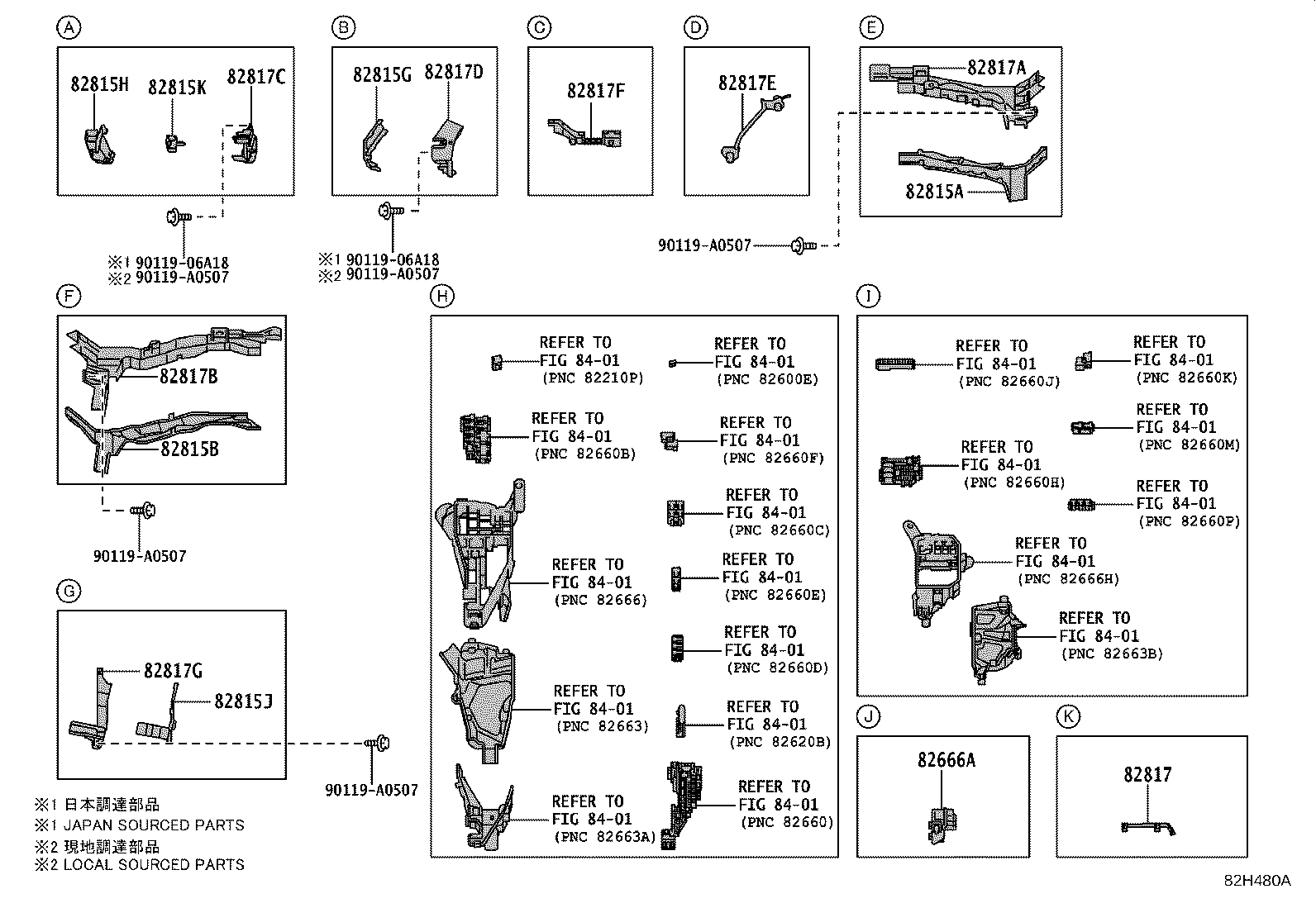

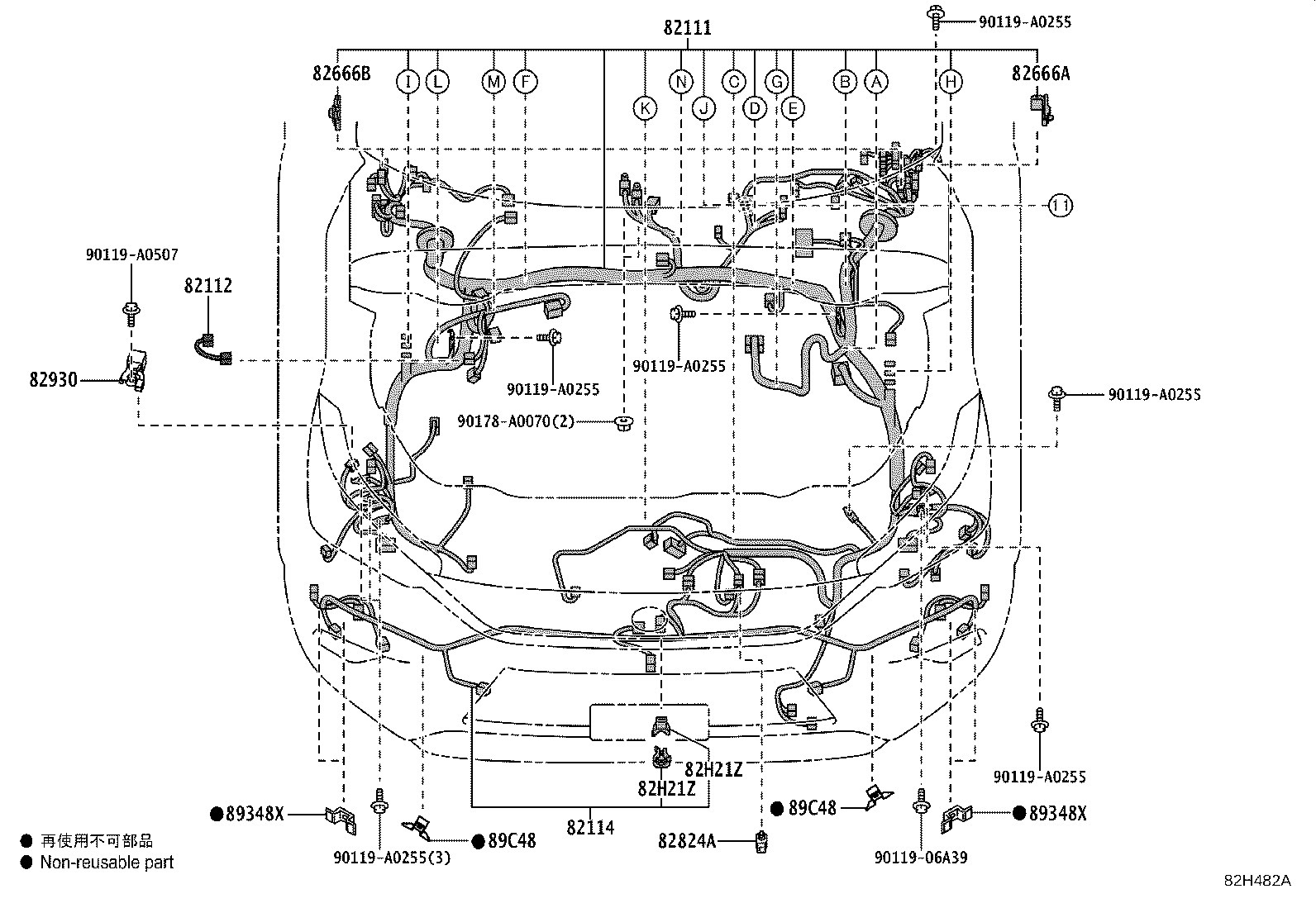

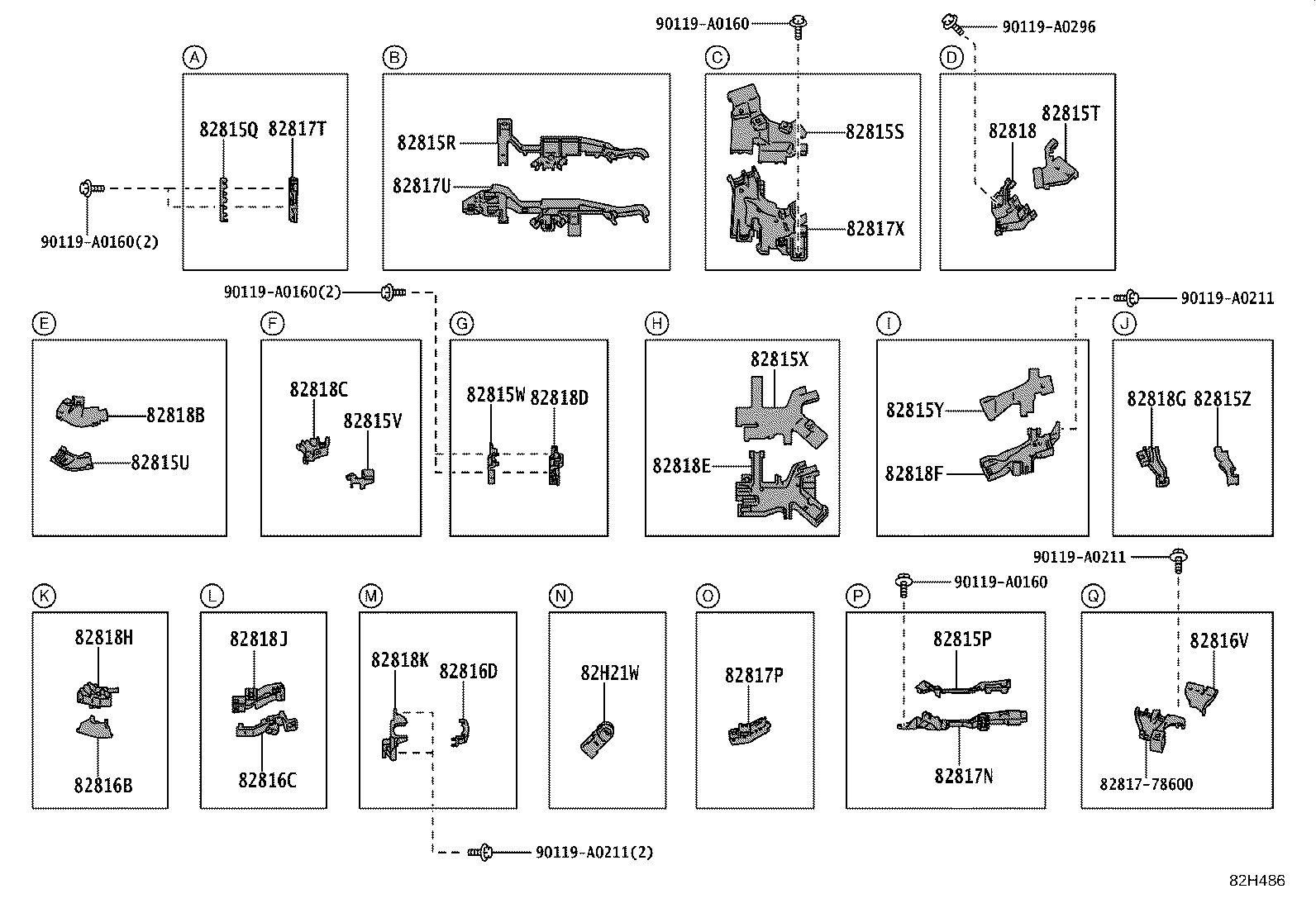

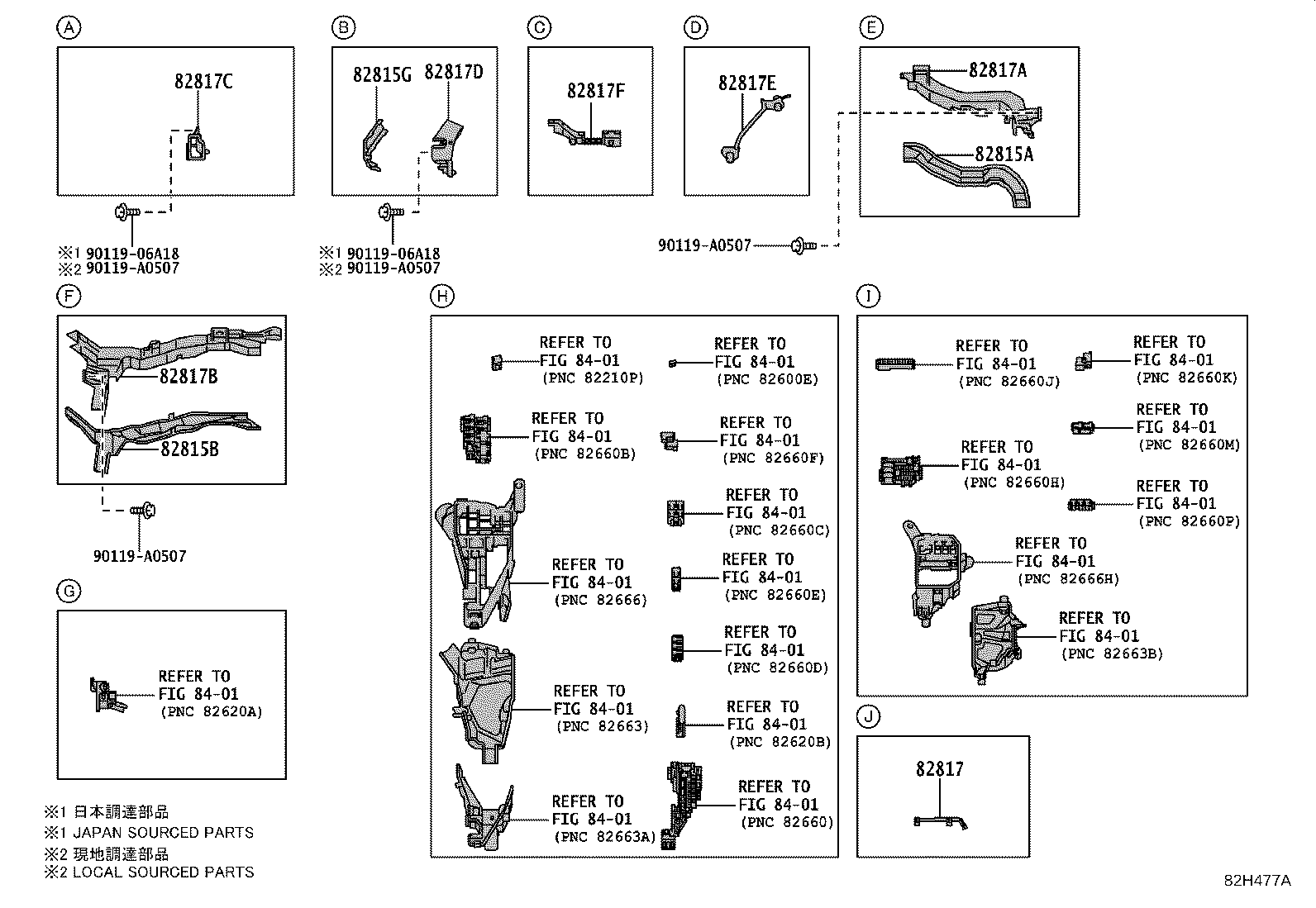

Figure 82H476B 82H476B 2023-09 → — Figure 82H477A 82H477A 2023-09 → — Figure 82H478 82H478 2023-09 → — Figure 82H479B 82H479B 2023-09 → — Figure 82H480A 82H480A 2023-09 → — Figure 82H481 82H481 2023-09 → — Figure 82H482A 82H482A 2023-12 → — Figure 82H483 82H483 2023-12 → — Figure 82H484 82H484 2023-12 → — Figure 82H485A 82H485A 2023-09 → — Figure 82H486 82H486 2023-09 → — Figure 82H487A 82H487A 2023-09 → — Figure 82H488 82H488 2023-09 → — Figure 82H489 82H489 2023-12 → — Figure 82H490 82H490 2023-12 → — Figure 82H491A 82H491A 2023-09 → — Figure 82H492 82H492 2023-09 → — Figure 82H493A 82H493A 2023-09 → — Figure 82H494A 82H494A 2023-09 → — Figure 82H495A 82H495A 2023-12 → — Figure 82H496 82H496 2023-09 → — Figure 82H497A 82H497A 2023-12 → — Figure 82H498 82H498 2023-09 → — Figure 82H499 82H499 2023-09 → — Figure 82H500A 82H500A 2023-09 → — Figure 82H58KA 82H58KA 2023-09 → — Figure 82H5I5 82H5I5 2023-09 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
8212A Wire, Engine, NO.9
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82157C Wire, Rear Door, RH NO.2
82158C Wire, Rear Door, LH NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
8216B Wire, Floor NO.8
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82176 Wire, Rear Console Box
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82187 Wire, Rear Window, NO.2
82188C Wire, Smart Door, Rear LH
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
821H4 Wire, HV Socket Inverter
821H4D Wire, High Voltage Socket Inverter, NO.1
821H4E Wire, High Voltage Socket Inverter, NO.2
821H5A Wire, HV Battery Charger
821H6 Wire, HV Floor Under, NO.2
82219A Wire, Sensor
82219C Wire, Sensor
82284 Wire, Earth
82285E Wire, Illumination
82286A Wire, Earth, NO.2
82413A Wire, Fuel Tank
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82666Z Holder, Connector NO.19
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816J Cover, Wiring Harness Protector, NO.7
82816N Cover, Wiring Harness Protector, NO.11
82816P Cover, Wiring Harness Protector, NO.12
82816Q Cover, Wiring Harness Protector, NO.13
82816R Cover, Wiring Harness Protector, NO.14
82816S Cover, Wiring Harness Protector, NO.15
82816T Cover, Wiring Harness Protector, NO.16
82816U Cover, Wiring Harness Protector, NO.17
82816V Cover, Wiring Harness Protector, NO.18
82816W Cover, Wiring Harness Protector, NO.19
82816X Cover, Wiring Harness Protector, NO.20
82816Y Cover, Wiring Harness Protector, NO.21
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818S Protector, Wiring Harness, NO.15
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82819L Protector, Wiring Harness, NO.27
82819M Protector, Wiring Harness, NO.28
82819N Protector, Wiring Harness, NO.29
82819P Protector, Wiring Harness, NO.30
82821A Cover, Connector
82821E Cover, Connector
82821G Cover, Connector(FOR DIAGNOSIS)
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82915 Insulator, Wiring Harness Heat, NO.1
82930 Condenser Assy, Wiring Harness, NO.1
82F66A Holder, Connector, NO.38
82F66B Holder, Connector, NO.39
82F66C Holder, Connector, NO.40
82F66D Holder, Connector, NO.41
82F66E Holder, Connector, NO.42
82H17B Protector, Wiring Harness, NO.1
82H17C Protector, Wiring Harness, NO.2
82H17J Protector, Wiring Harness, NO.3
82H17K Protector, Wiring Harness, NO.4
82H21W Cover, Connector
82H21Z Cover, Connector
82T21N Cover, Connector
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89348X Clip, Ultrasonic Sensor, Front
89349C Clip, Ultrasonic Sensor, Rear NO.2
89893A Filter, Battery Noise
89C48 Clip, Ultrasonic Sensor, Front NO.2
G921D Protector, Inverter Connector Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
