Toyota Avanza
2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States
Discontinued model
Data version 2019-04

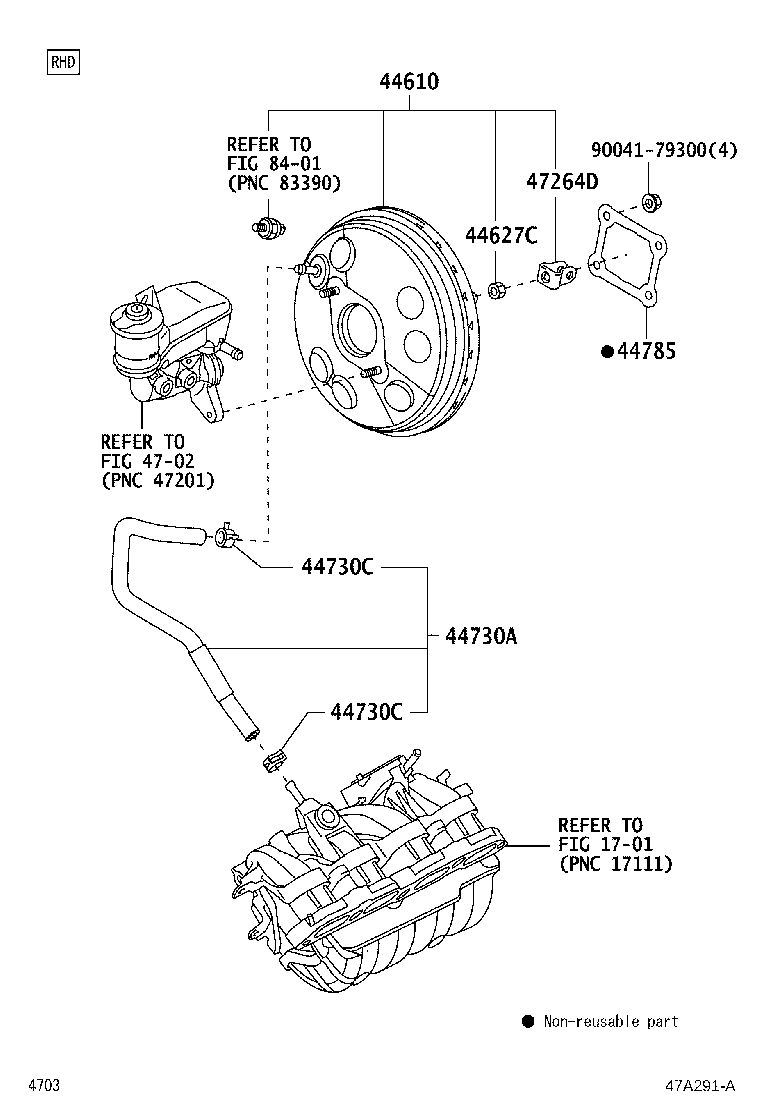

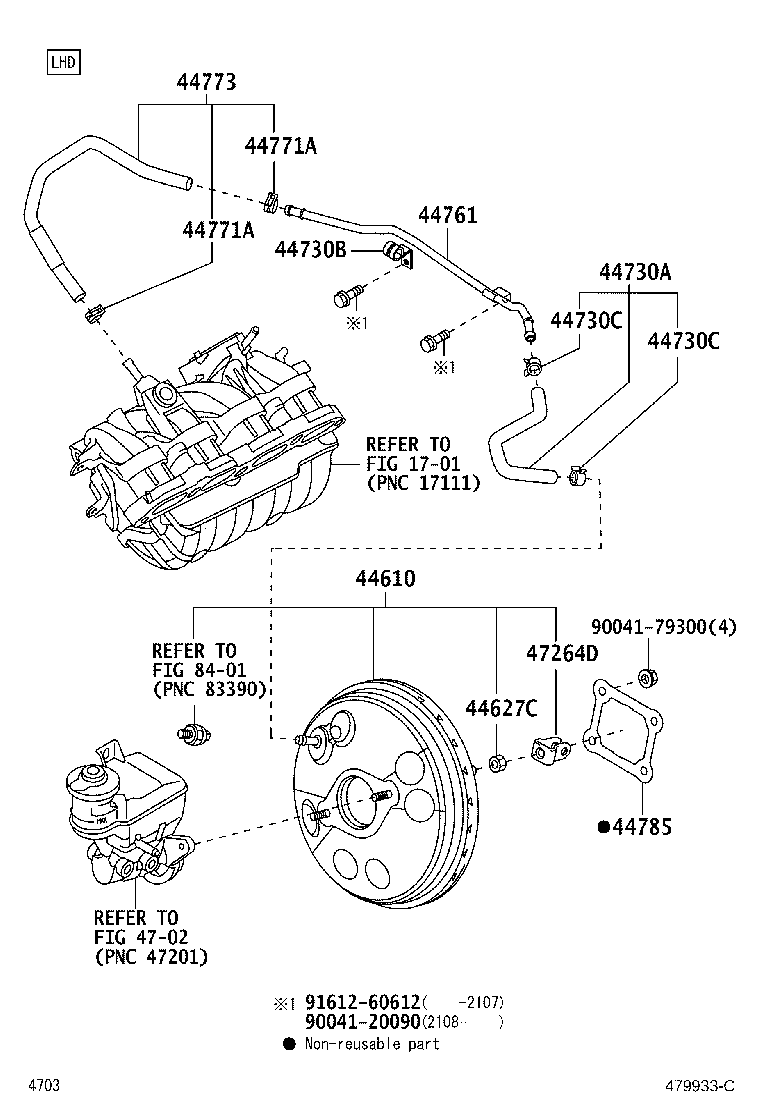

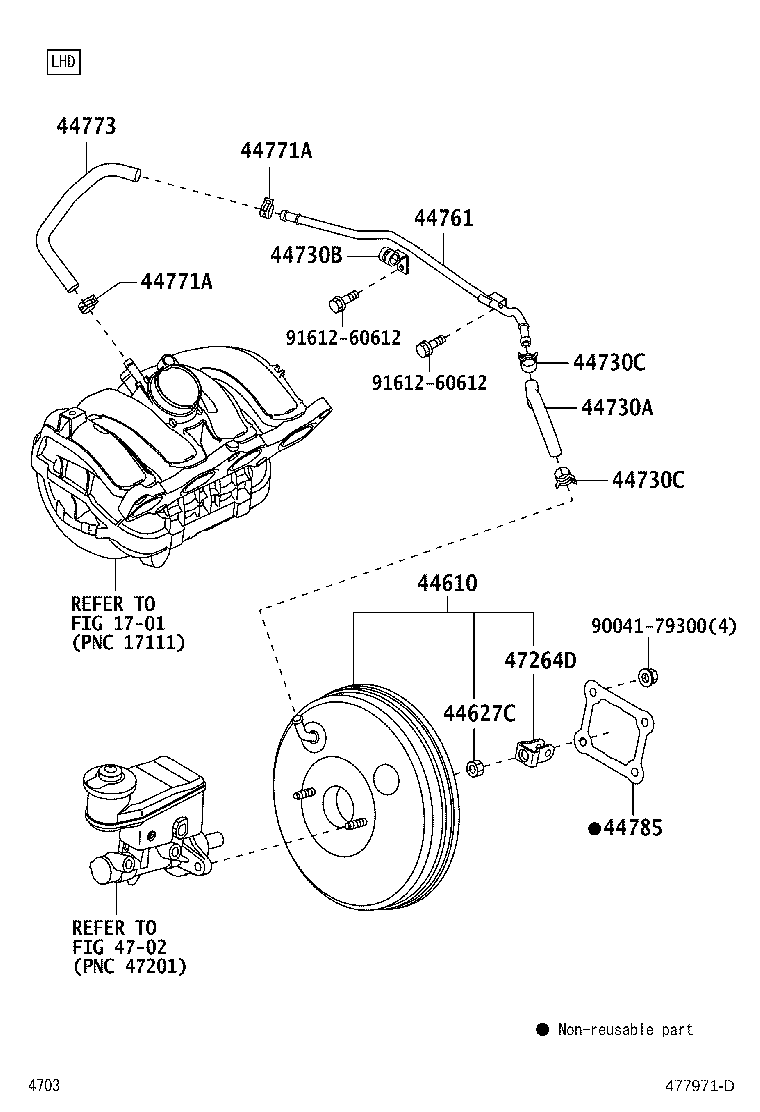

Brake Booster & Vacuum Tube
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44627C | Nut, Booster Sleeve Cylinder |
| 44730A | Hose, Vacuum, NO.1 |
| 44730B | Clamp, Vacuum Hose |
| 44730C | Clip(FOR VACUUM HOSE) |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44771A | Clip(FOR VACUUM TUBE CONNECTOR HOSE) |
| 44773 | Hose, Vacuum, NO.2 |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
