Toyota Avanza

2011-11 → 2023-01 · chassis F65# · catalogue 613220 · United States

Discontinued model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

50 part groups · 26 illustrations

Illustrations

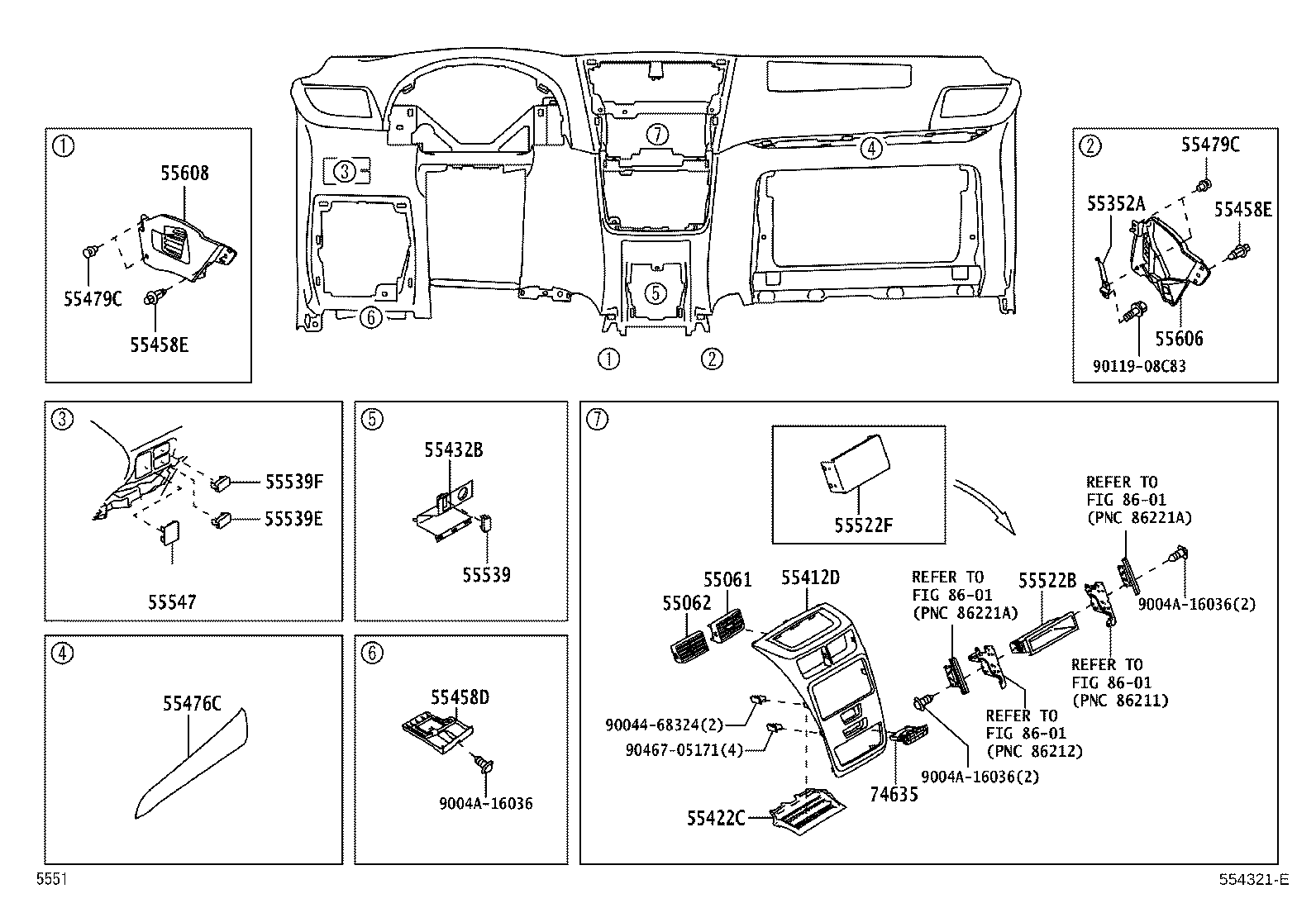

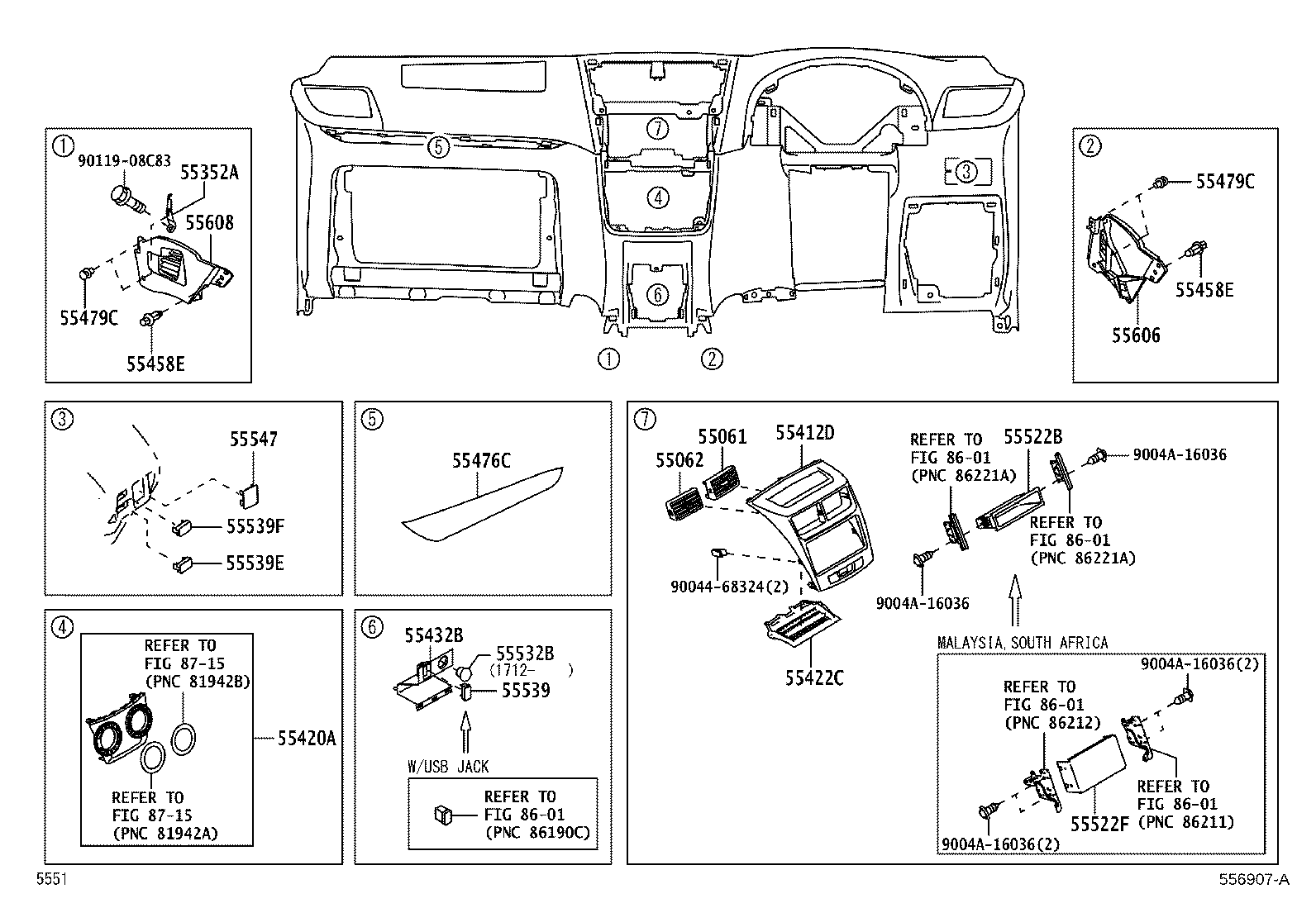

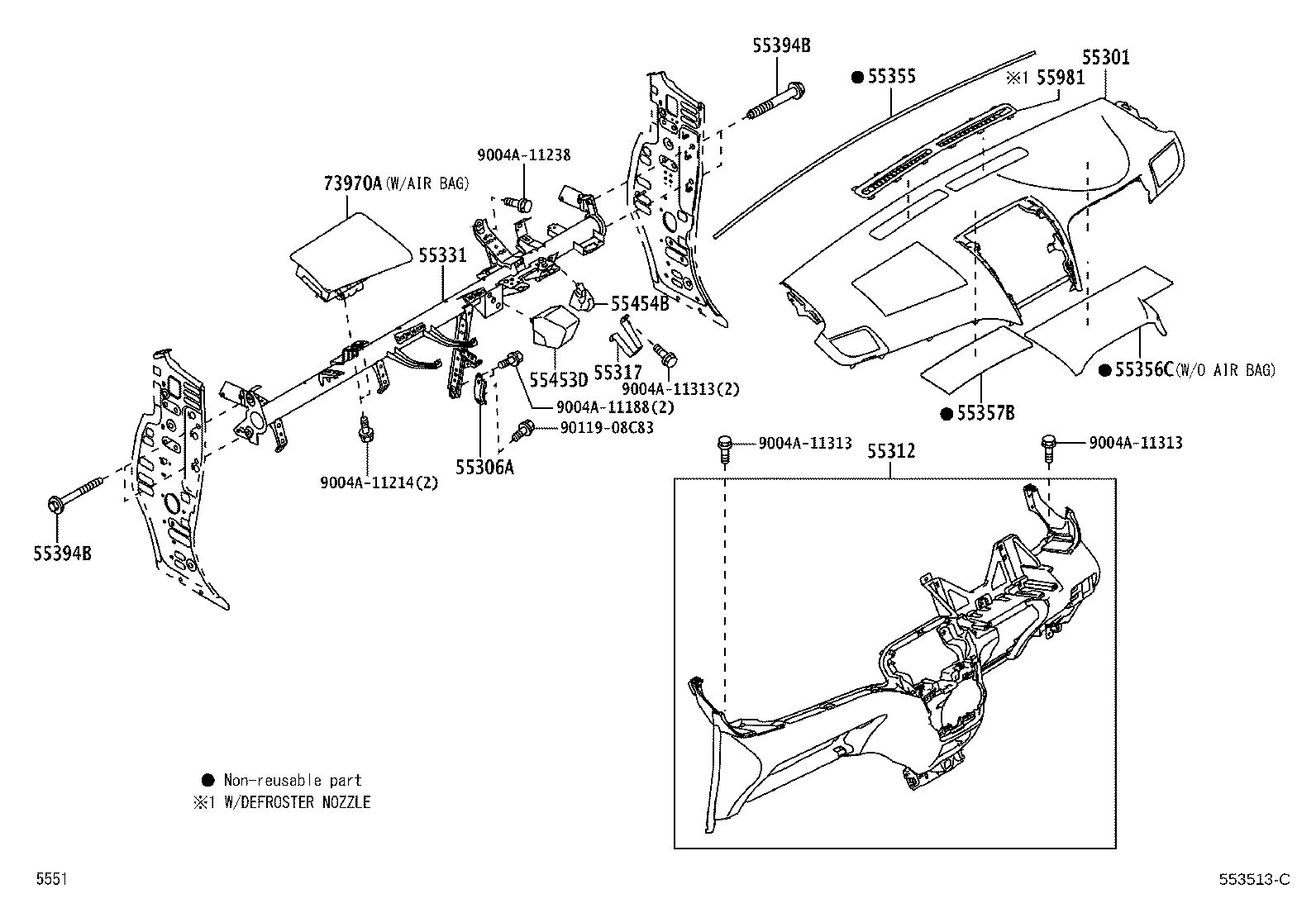

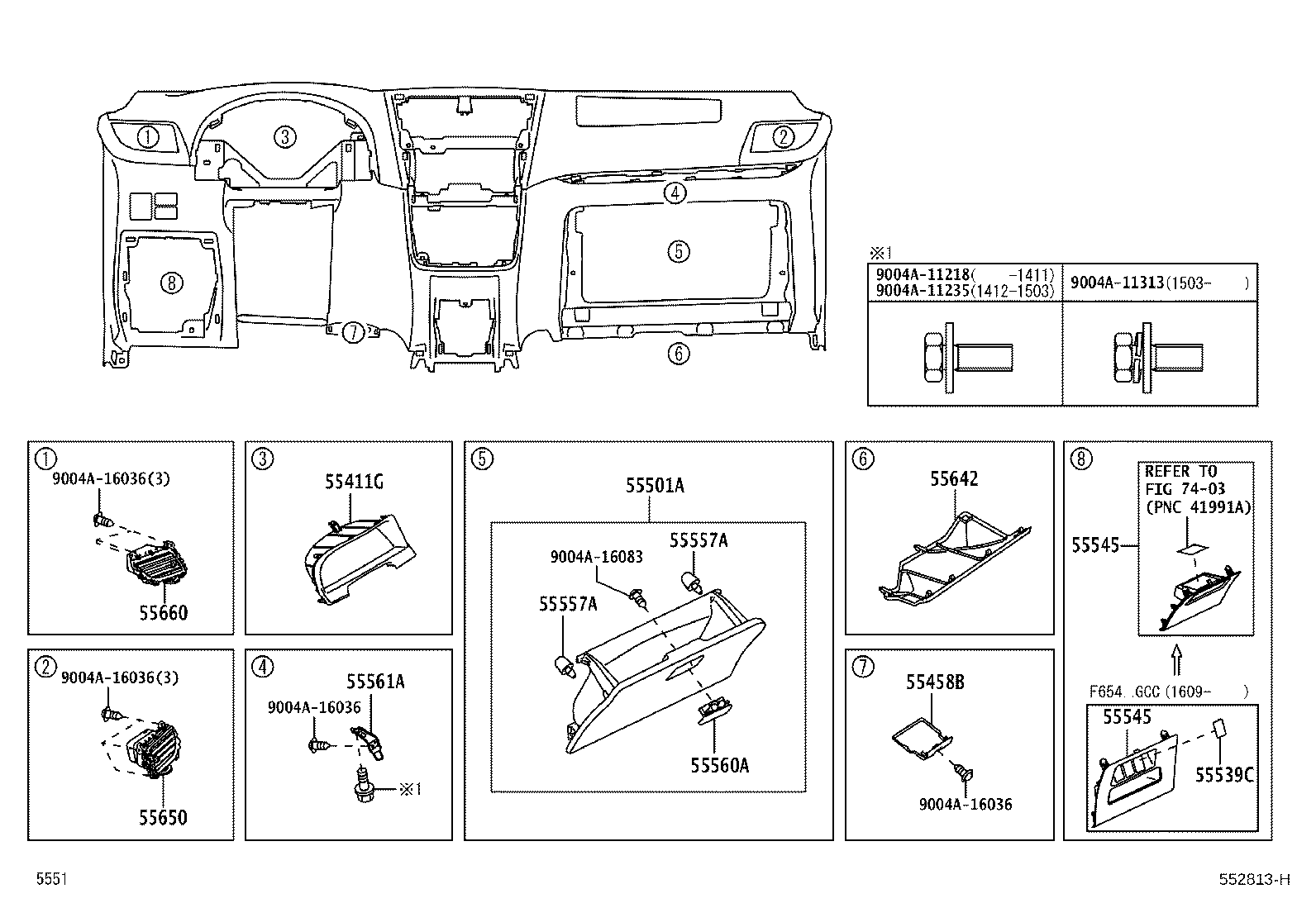

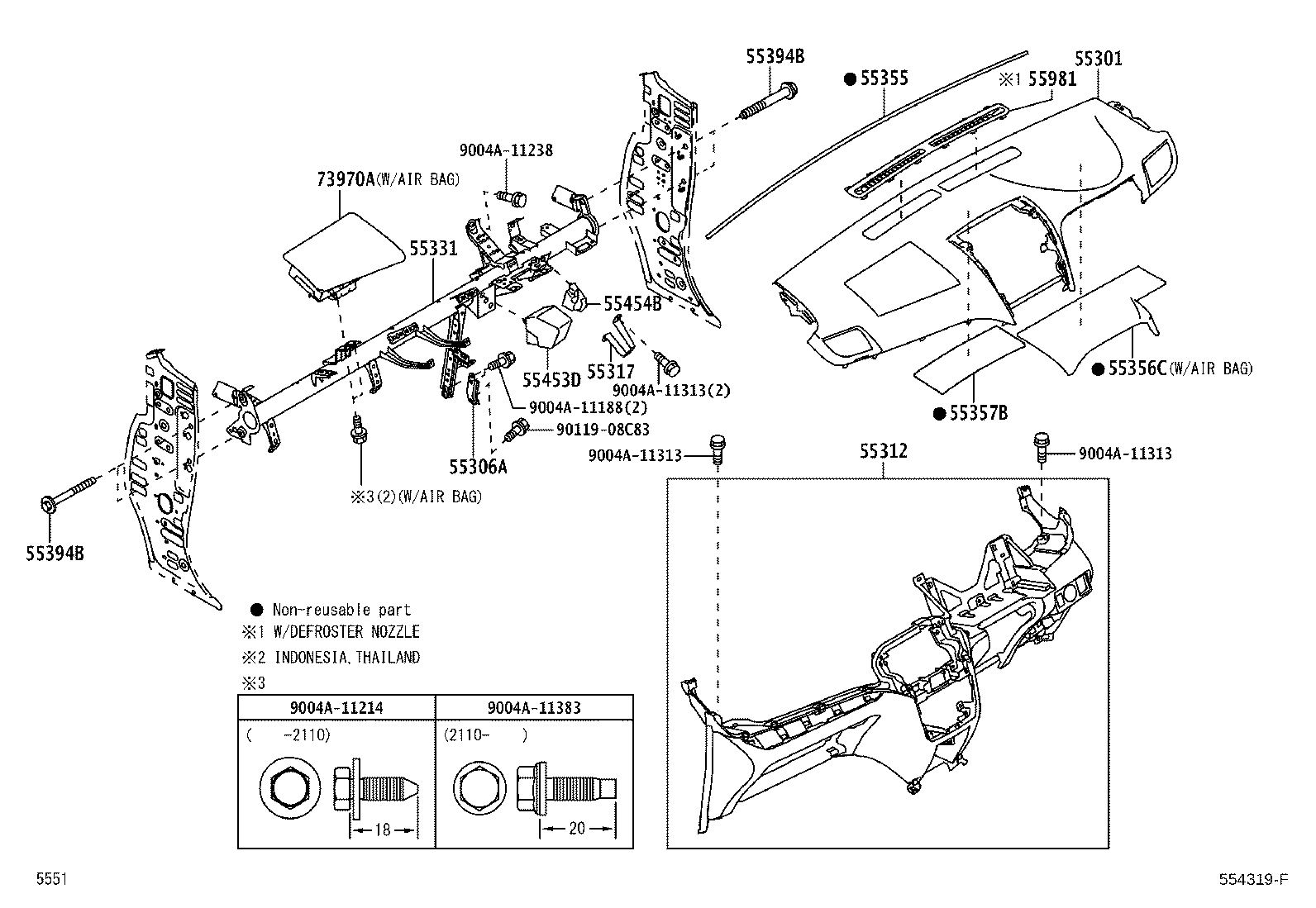

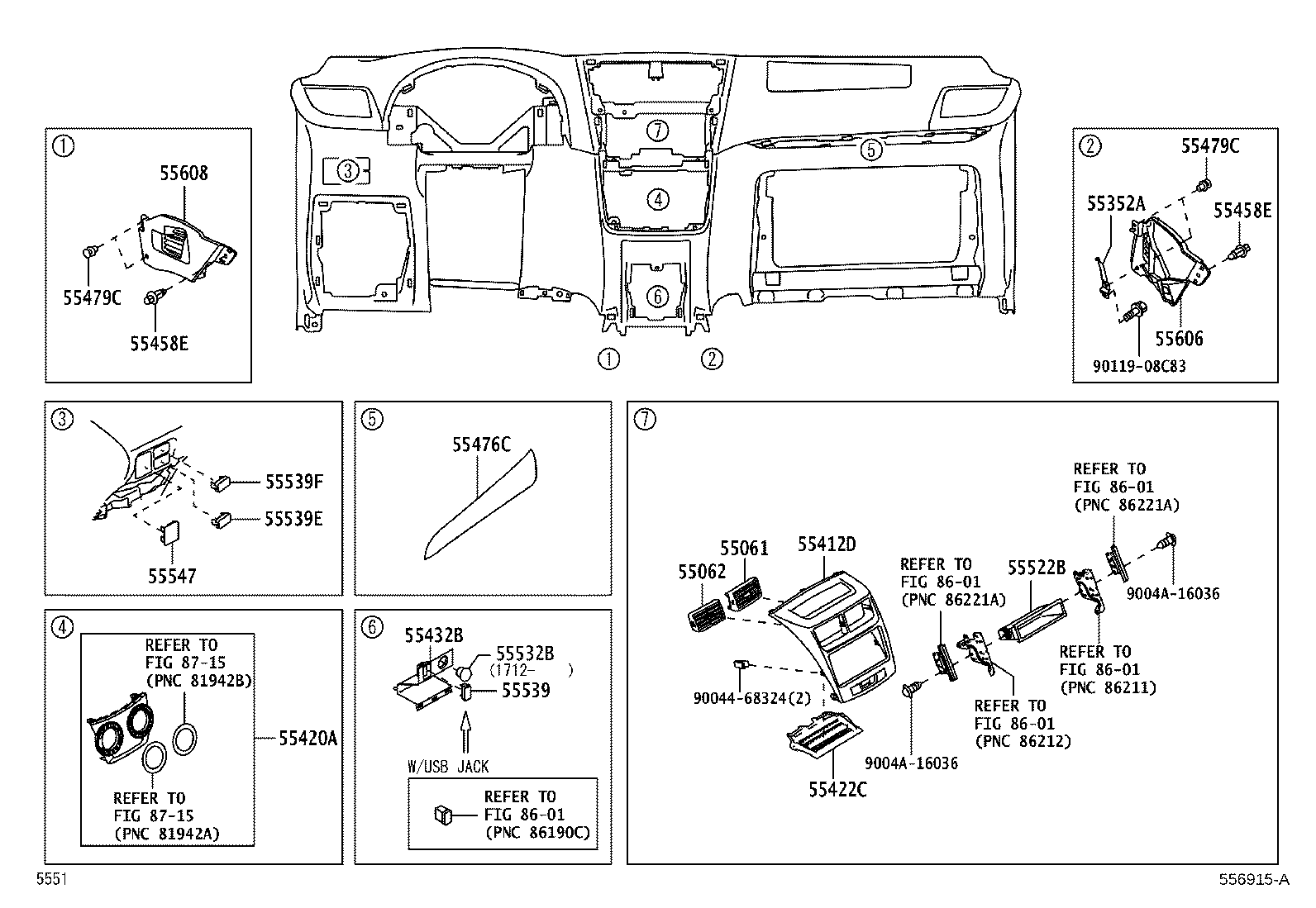

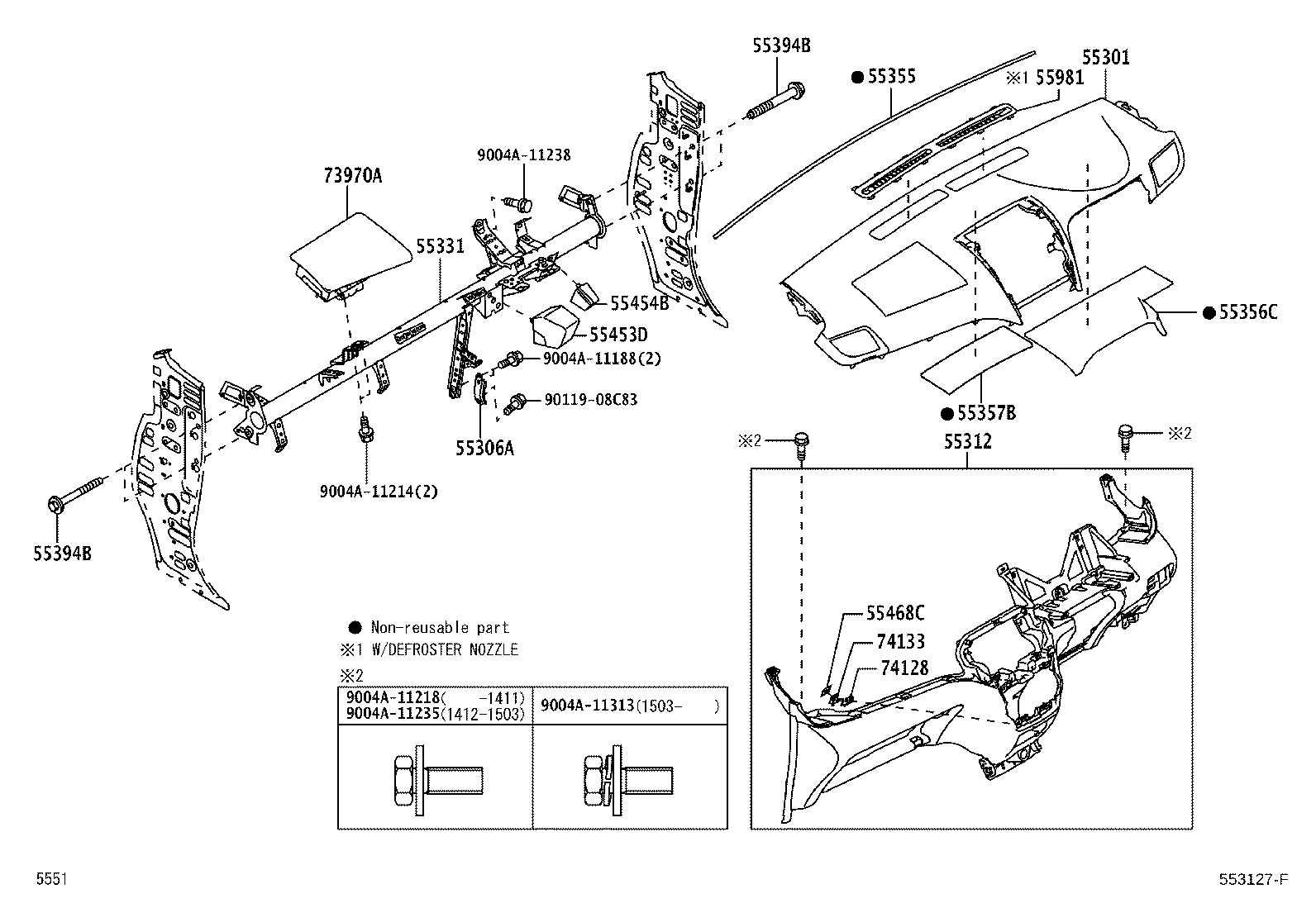

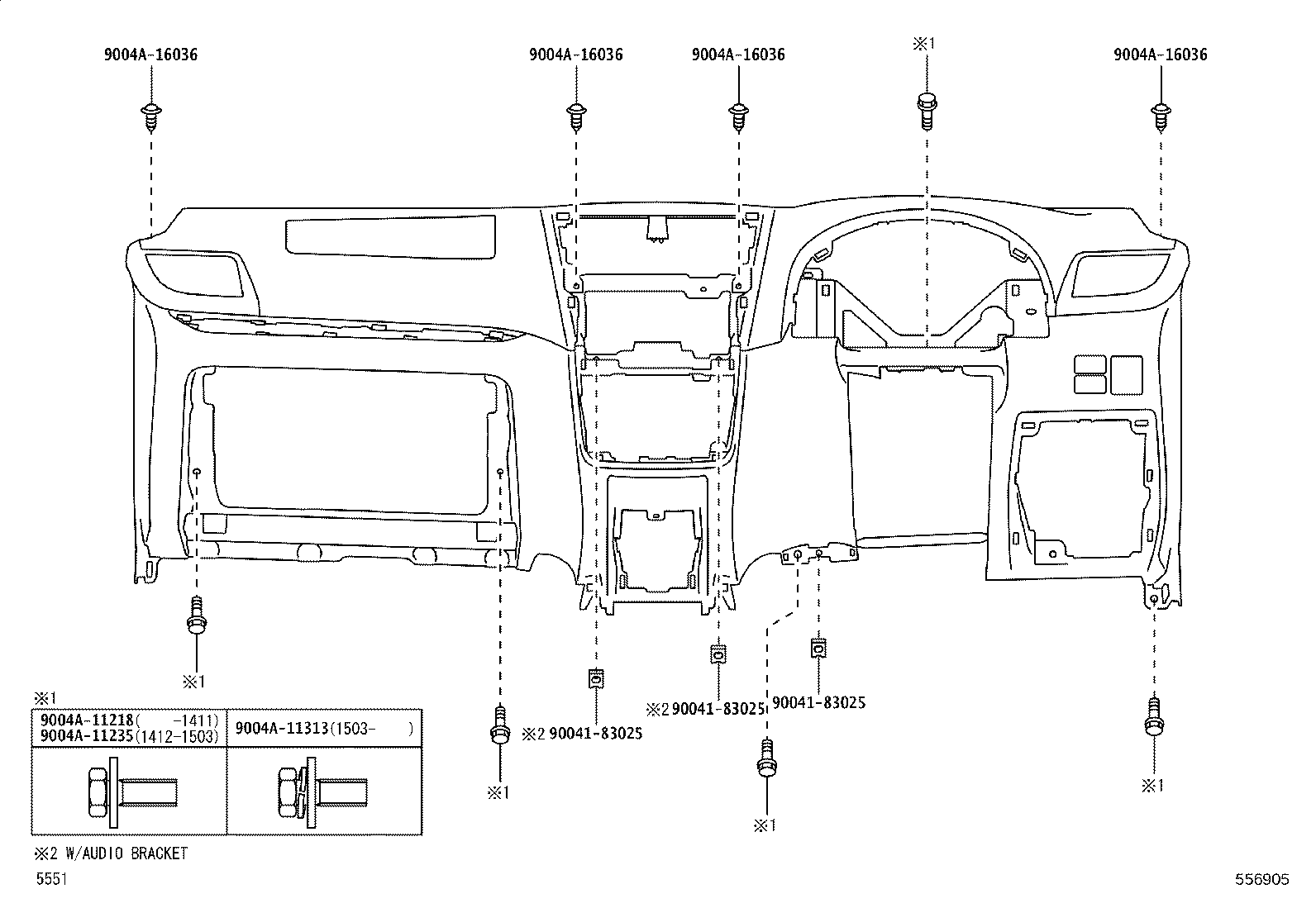

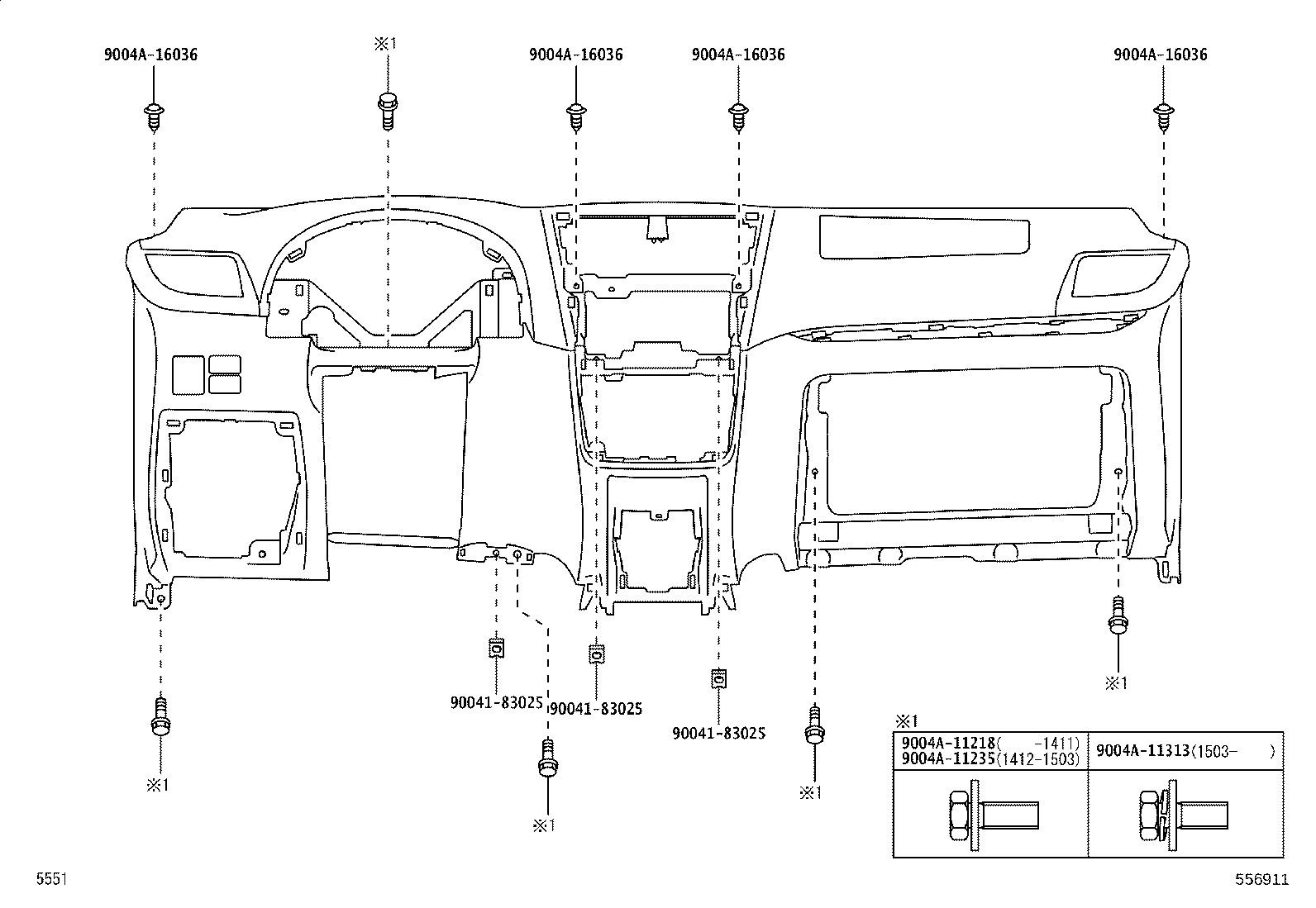

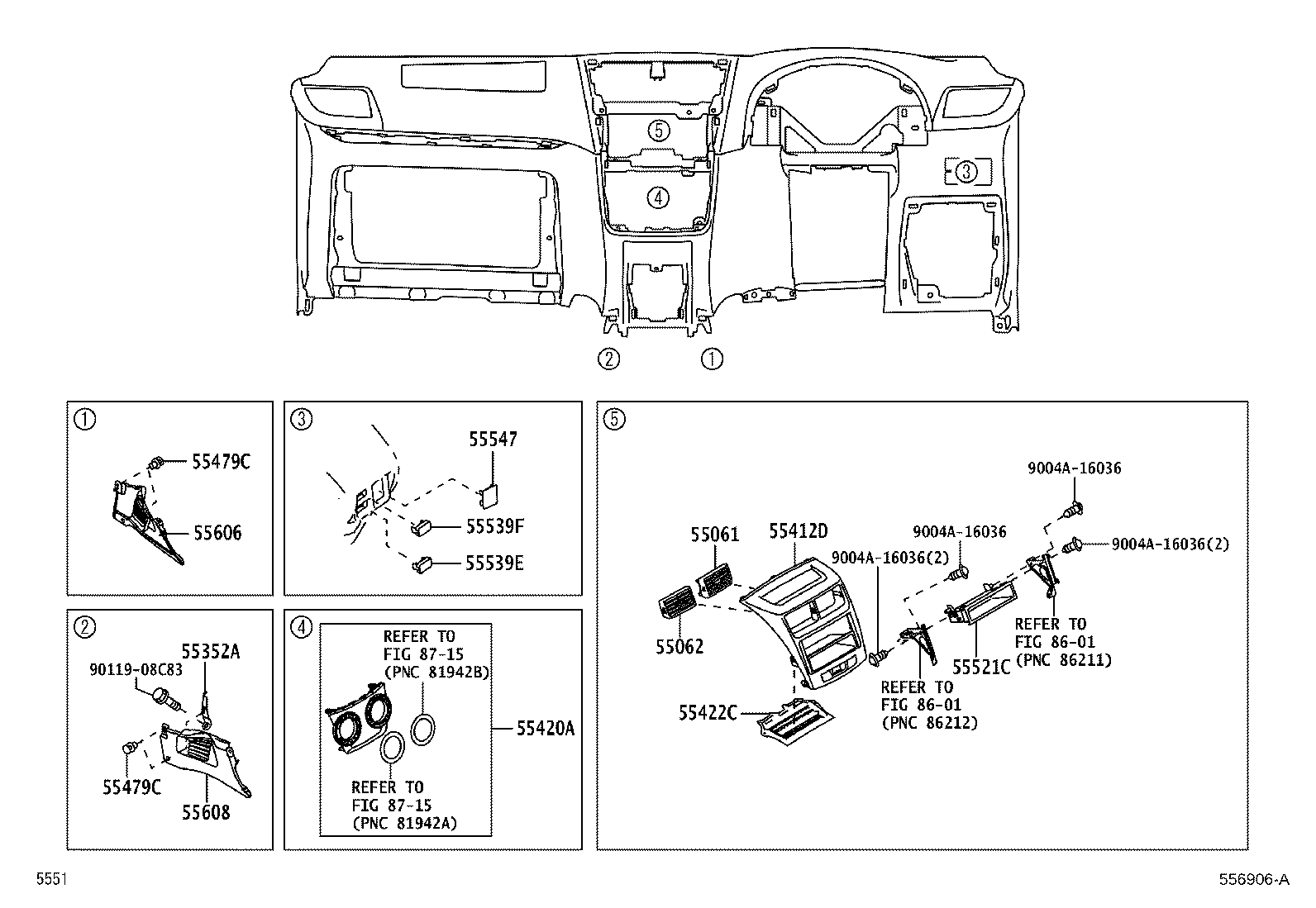

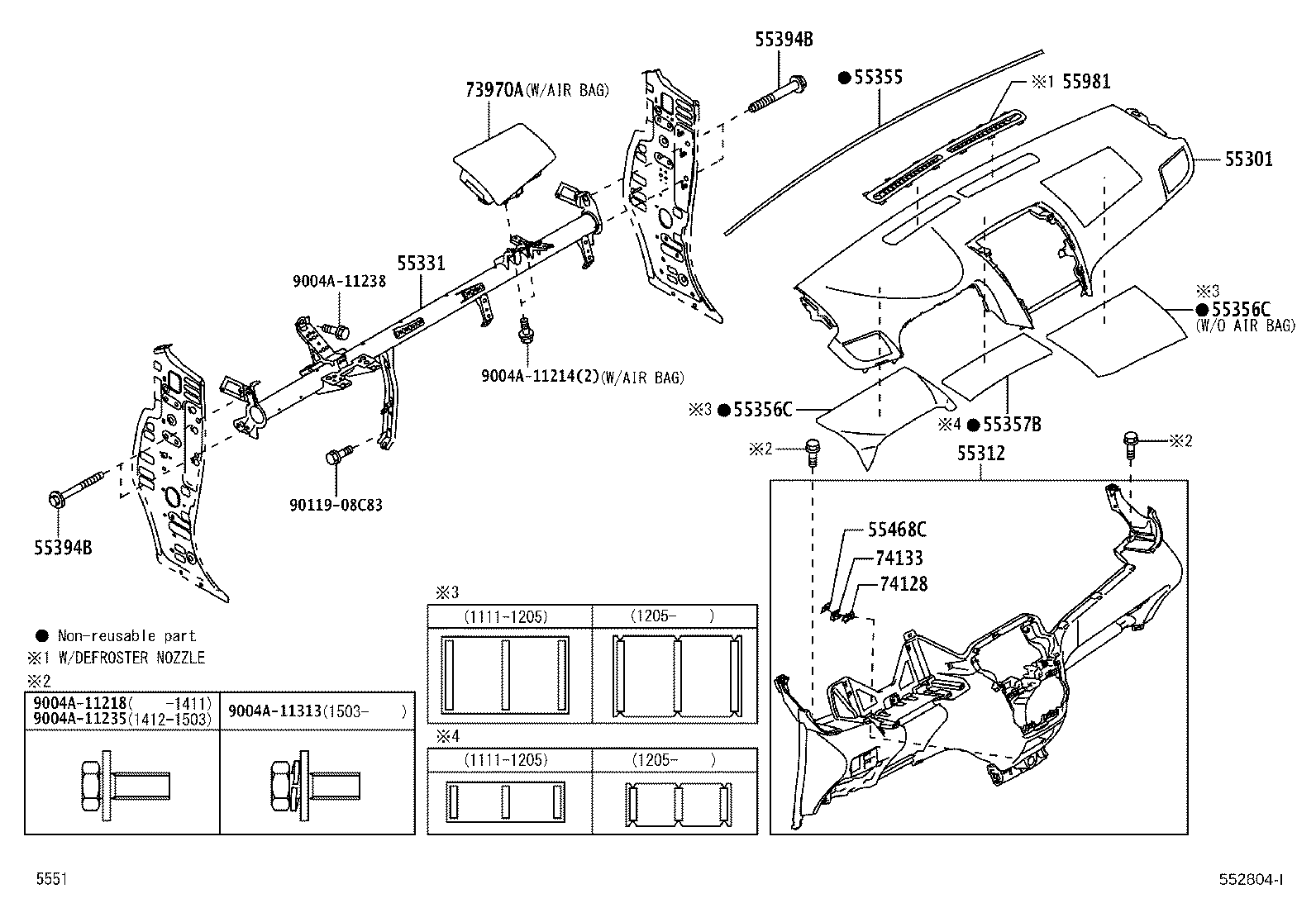

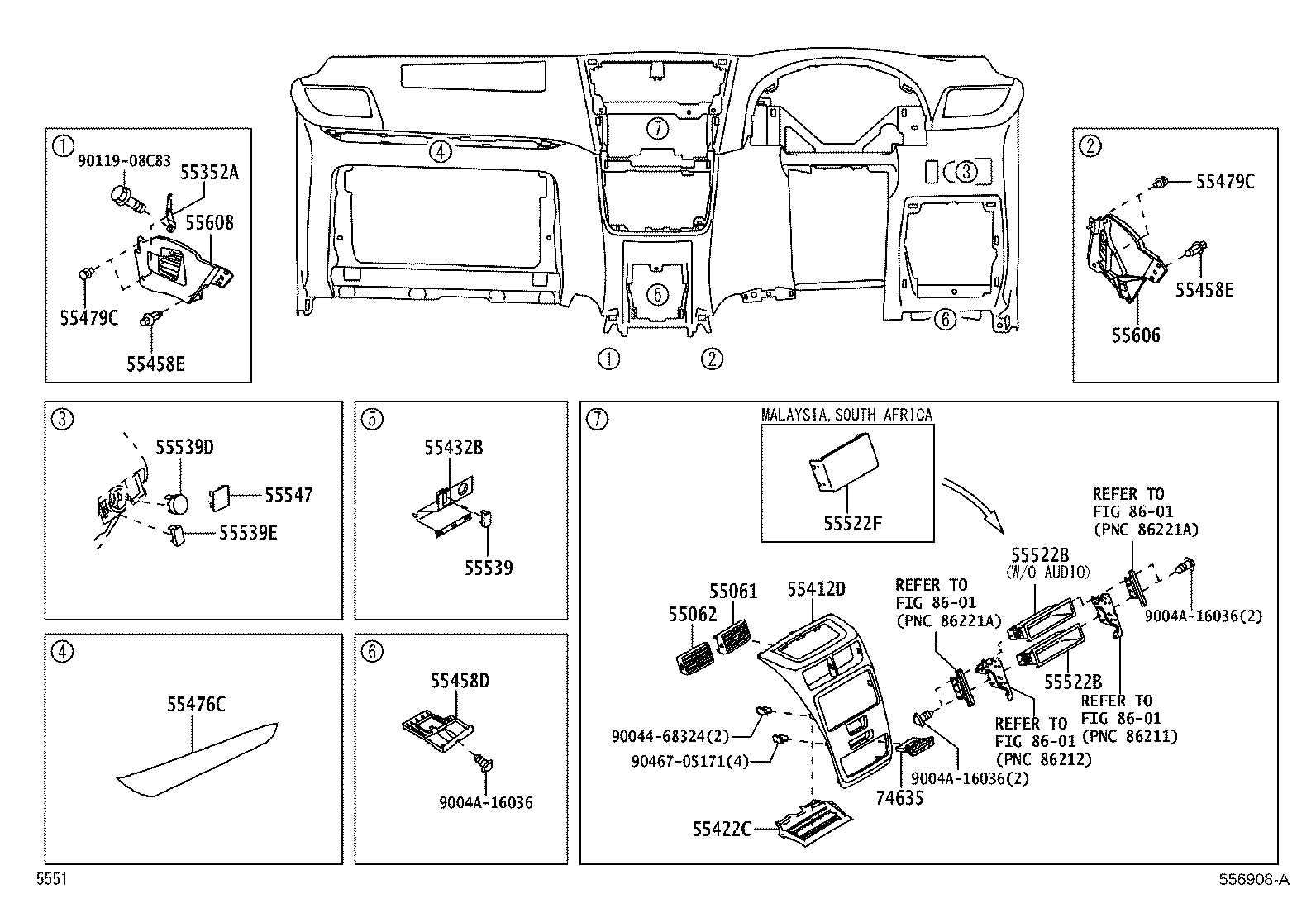

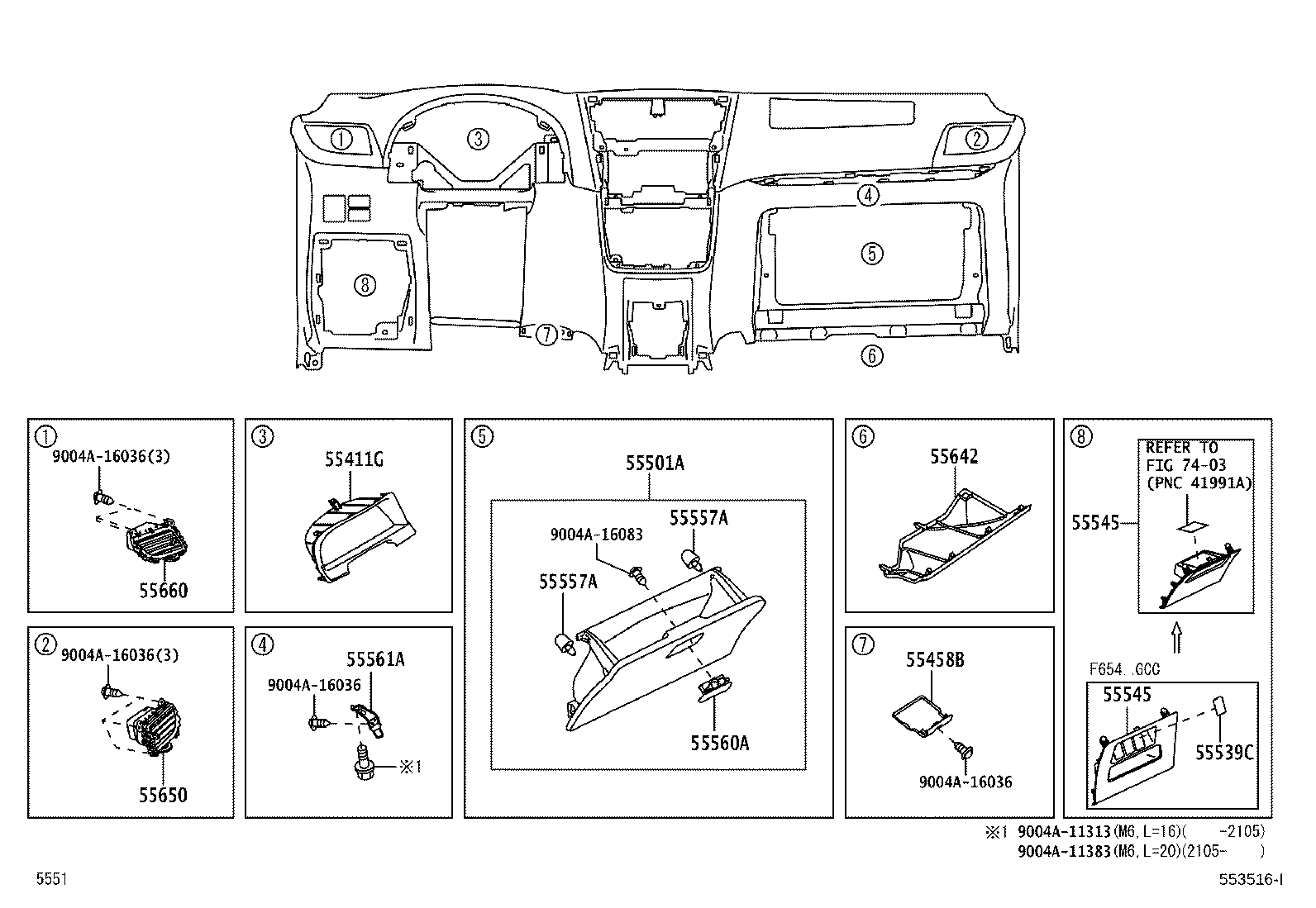

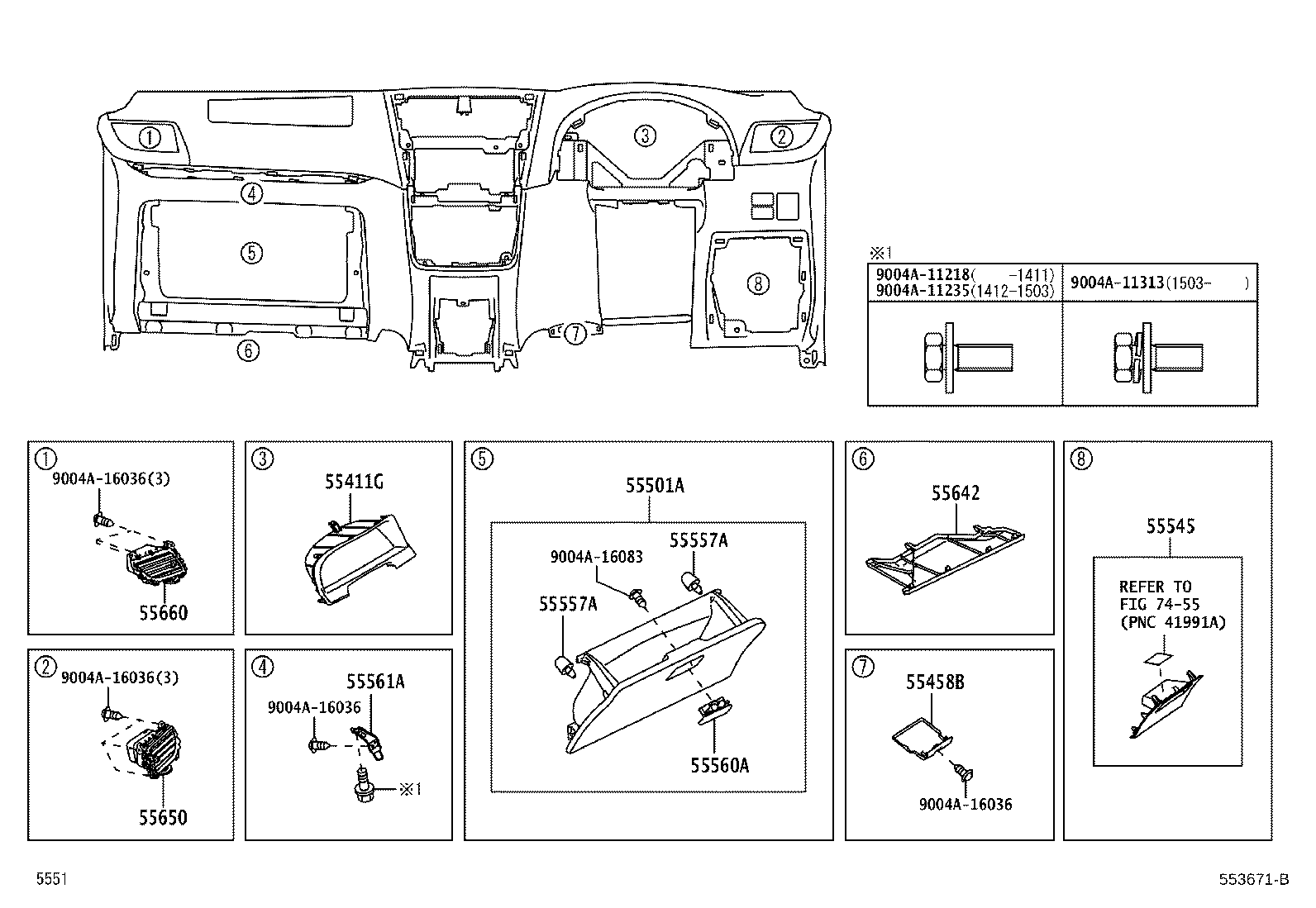

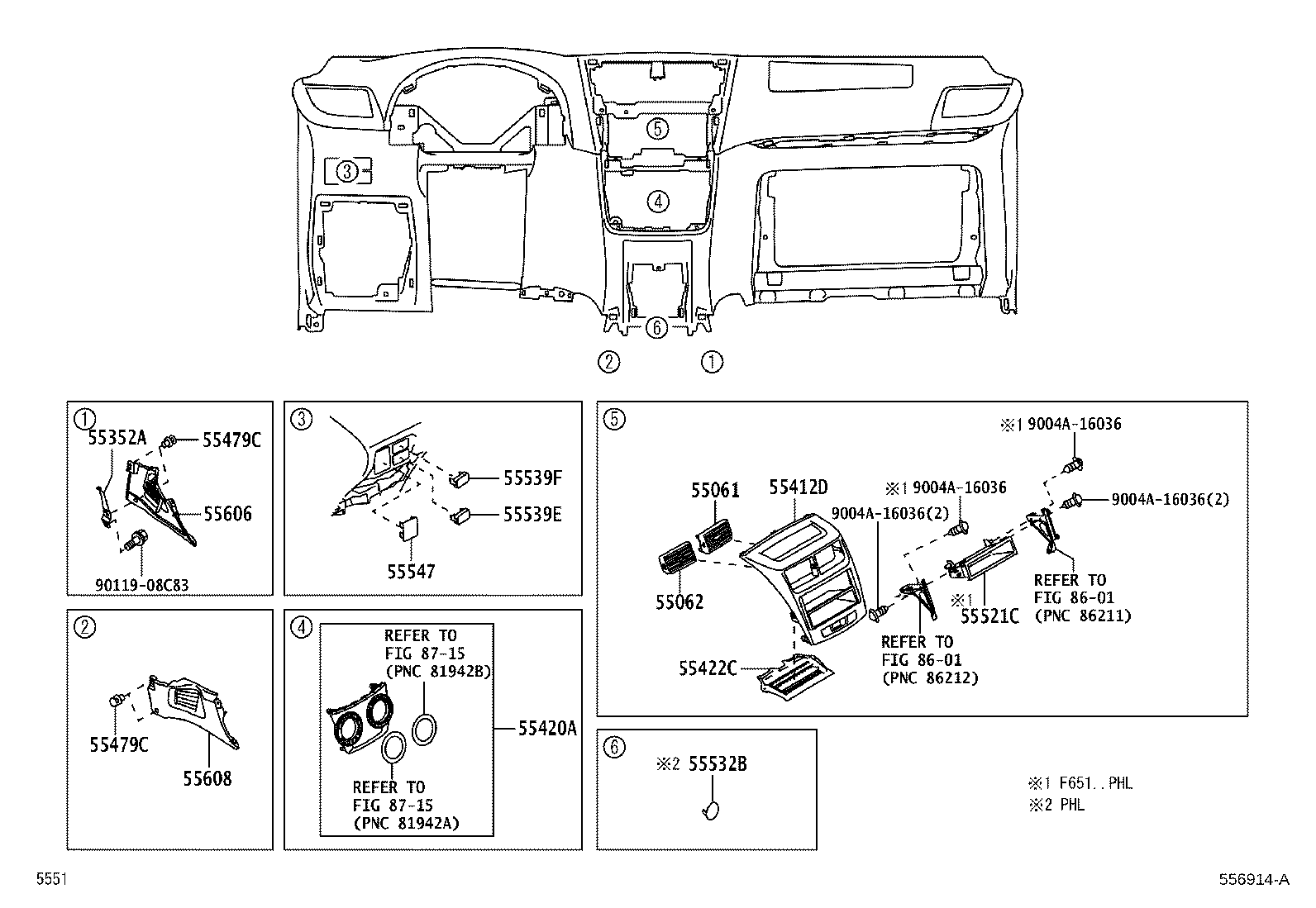

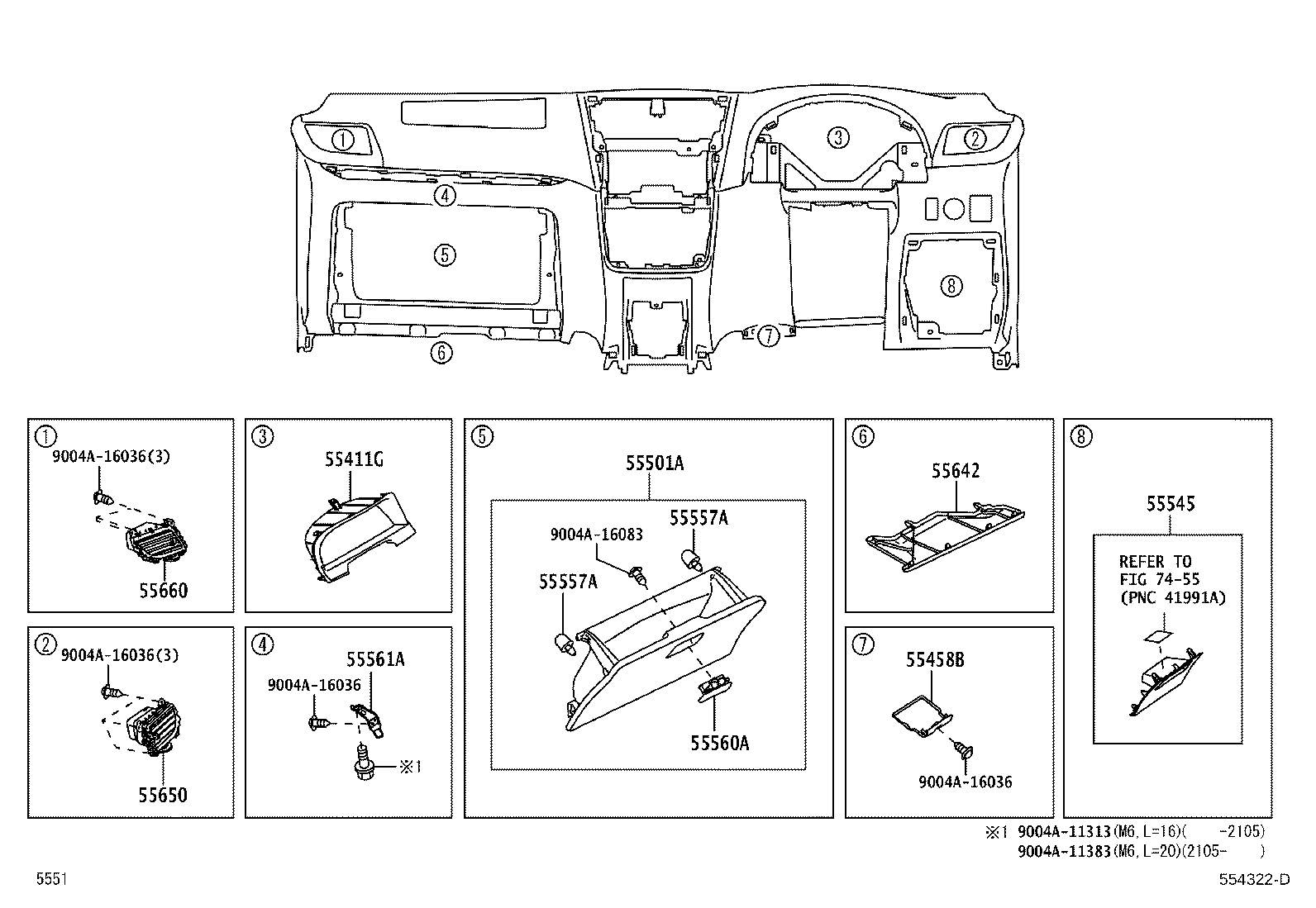

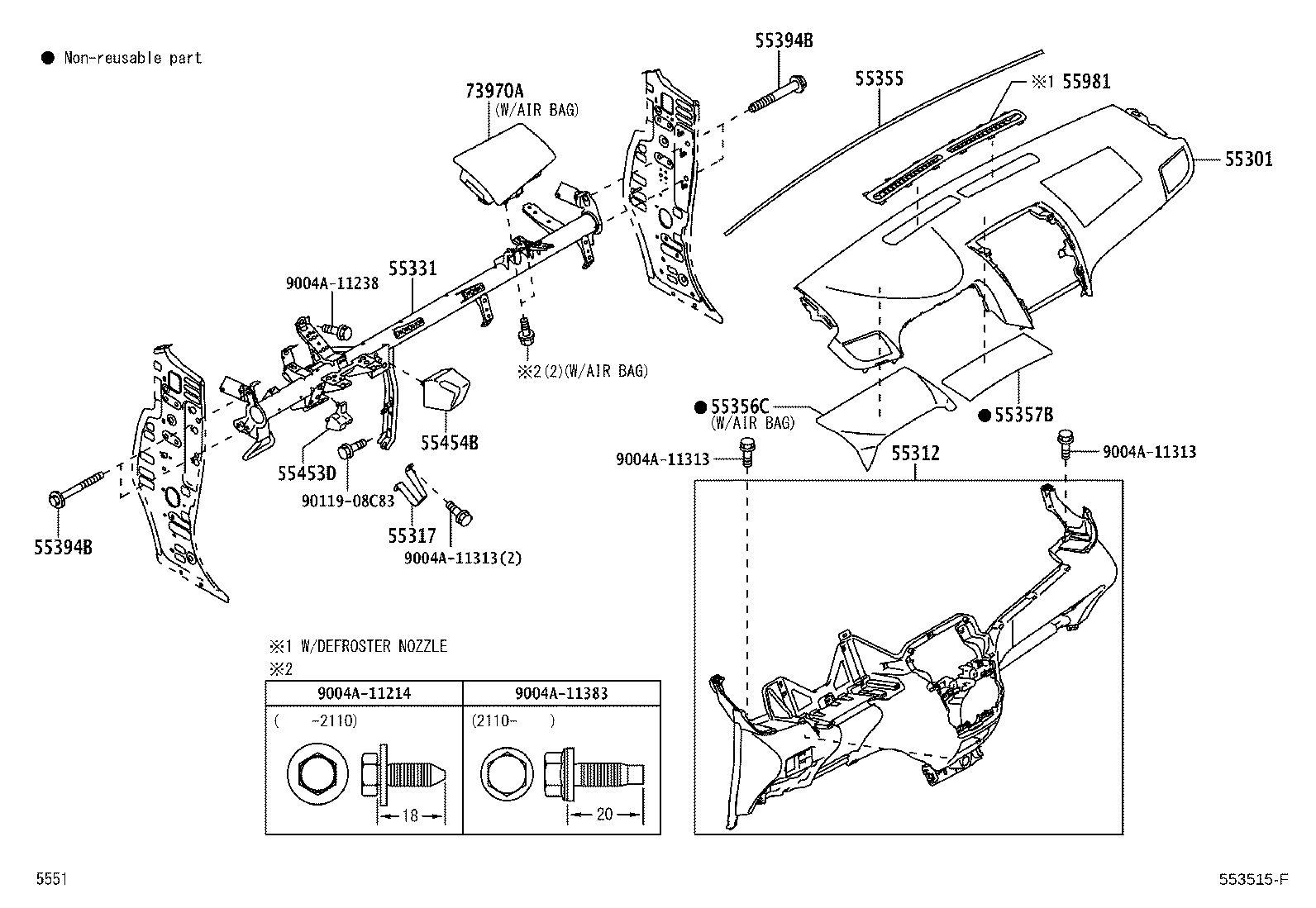

Figure 552798N 552798N 2011-11 → 2013-05 Figure 553127F 553127F 2013-05 → 2015-07 Figure 553127F 553127F 2013-05 → 2015-08 Figure 553513C 553513C 2015-07 → 2019-01 Figure 553513C 553513C 2015-08 → 2019-04 Figure 554319F 554319F 2019-01 → — Figure 554319F 554319F 2019-04 → — Figure 556905 556905 2011-11 → — Figure 553671B 553671B 2011-11 → 2019-01 Figure 553671B 553671B 2011-11 → 2019-04 Figure 554322D 554322D 2019-01 → — Figure 554322D 554322D 2019-04 → — Figure 556906A 556906A 2011-11 → 2015-07 Figure 556906A 556906A 2011-11 → 2015-08 Figure 556907A 556907A 2015-07 → 2019-01 Figure 556907A 556907A 2015-08 → 2019-04 Figure 556908A 556908A 2019-01 → — Figure 556908A 556908A 2019-04 → — Figure 552804I 552804I 2011-12 → 2015-08 Figure 553515F 553515F 2015-08 → — Figure 556911 556911 2011-12 → — Figure 552813H 552813H 2011-12 → 2019-04 Figure 553516I 553516I 2019-04 → — Figure 556914A 556914A 2011-12 → 2015-08 Figure 556915A 556915A 2015-08 → 2019-04 Figure 554321E 554321E 2019-04 → —

Part groups

PNCDescription
55061 Register Sub-assy, Instrument Panel, NO.1
55062 Register Sub-assy, Instrument Panel, N0.2
55301 Panel Sub-assy, Instrument
55306A Brace Sub-assy, Instrument Panel, NO.1
55312 Panel, Instrument, Lower
55317 Patch, Instrument Panel
55331 Reinforcement, Instrument Panel
55352A Brace, Instrument Panel TO Floor, NO.2
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55357B Cushion, Instrument Panel, NO.3
55394B Bolt, Instrument Panel
55411G Panel, Instrument Cluster Finish, NO.1
55412D Panel, Instrument Cluster Finish, Center
55420A Panel Assy, Instrument Cluster Finish, Center
55422C Panel, Instrument Cluster Finish, Center Upper
55432B Panel, Instrument Panel Finish, Lower
55453D Pad, Instrument Panel Safety, NO.1
55454B Pad, Instrument Panel Safety, NO.2
55458B Cover, Instrument, Lwr
55458D Cover, Instrument Lower, RH
55458E Clip(FOR INSTRUMENT LOWER COVER)
55468C Seal, Instrument Cluster Finish Panel, NO.1
55476C Garnish, Instrument Panel Finish Plate
55479C Clip(FOR INSTRUMENT LOWER COVER)
55501A Door Sub-assy, Glove Compartment
55521C Cover, Stereo Opening
55522B Cover, Radio Tuner Opening
55522F Cover, Radio Tuner Opening
55532B Cover, Cigar Lighter Hole
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55539E Cover, Spare Switch Hole
55539F Cover, Spare Switch Hole
55545 Cover, Fuse Box Opening
55547 Cover, Remote Control Mirror Hole
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55561A Striker, Glove Compartment Door Lock
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55608 Cover Sub-assy, Instrument Panel Under, NO.3
55642 Cover, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55981 Garnish, Defroster Nozzle, NO.1
73970A Airbag Assy, Instrument Panel Passenger
74128 Support, Front Ash Receptacle Retainer
74133 Seal, Front Ash Receptacle
74635 Holder, Card
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
