Toyota Pickup
1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States
Discontinued model
Data version 1984-03

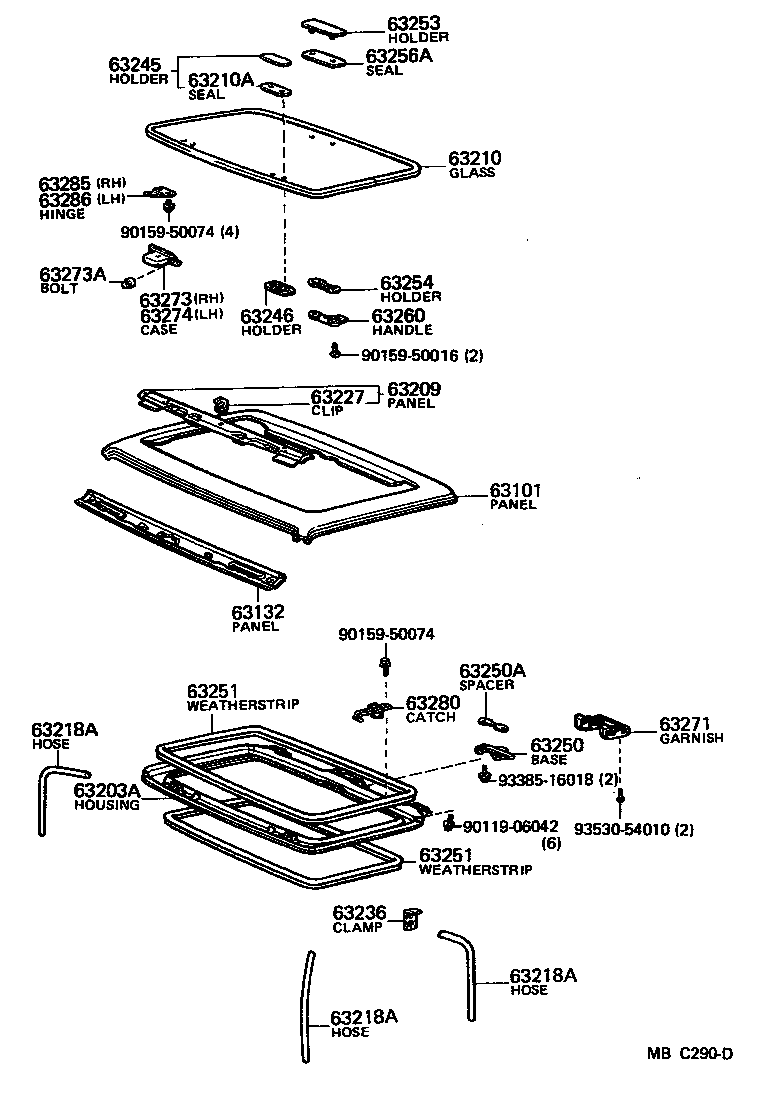

Roof Panel & Back Panel
42 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63101 | Panel Sub-assy, Roof |
| 63132 | Panel, Windshield Header, Inner |
| 63203A | Housing Sub-assy, Sliding Roof OR Removable Roof |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63210 | Glass Sub-assy, Sliding Roof OR Removable Roof |
| 63210A | Seal, Removable Roof Glass, Outer |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63227 | Clip, Roof Wind Deflector Panel |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63245 | Holder, Removable Roof Glass, Outer Front |
| 63246 | Holder, Removable Roof Glass, Inner Front |
| 63250 | Base Assy, Removable Roof Lock |
| 63250A | Spacer, Removable Roof Lock Base |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63253 | Holder, Removable Roof Glass, Outer Rear |
| 63254 | Holder, Removable Roof Glass, Inner Rear |
| 63256A | Seal, Removable Roof Glass |
| 63260 | Handle Assy, Removable Roof Lock |
| 63271 | Garnish, Removable Roof Lock |
| 63273 | Case, Removable Roof Hinge, RH |
| 63273A | Bolt, Removable Roof Hinge Case |
| 63274 | Case, Removable Roof Hinge, LH |
| 63280 | Catch Assy, Removable Roof Auxiliary, LH |
| 63285 | Hinge, Removable Roof, RH |
| 63286 | Hinge, Removable Roof, LH |
| 64110 | Panel Assy, Front Body Back |
| 64292 | Clamp, Jack Handle |
| 64802 | Frame Sub-assy, Back Window Fix |
| 64808 | Channel Sub-assy, Back Window Slide Glass |
| 64810 | Window Assy, Back |
| 64811 | Glass, Back Window |
| 64811B | Lock Assy, Back Window |
| 64811C | Catch, Back Window Lock |
| 64811D | Retainer, Back Window |
| 64811E | Packing, Back Window Lock |
| 64812 | Weatherstrip, Back Window Glass, NO.1 |
| 64812A | Weatherstrip, Back Window Glass, NO.2 |
| 64831 | Weatherstrip, Back Window Glass |
| 64833 | Weatherstrip, Back Window Channel |
| 64833A | Weatherstrip, Back Window Center Channel |
| 64839A | Packing, Back Window |
| 64851 | Stop, Back Window Slide Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
