Toyota Pickup
1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States
Discontinued model
Data version 1984-03

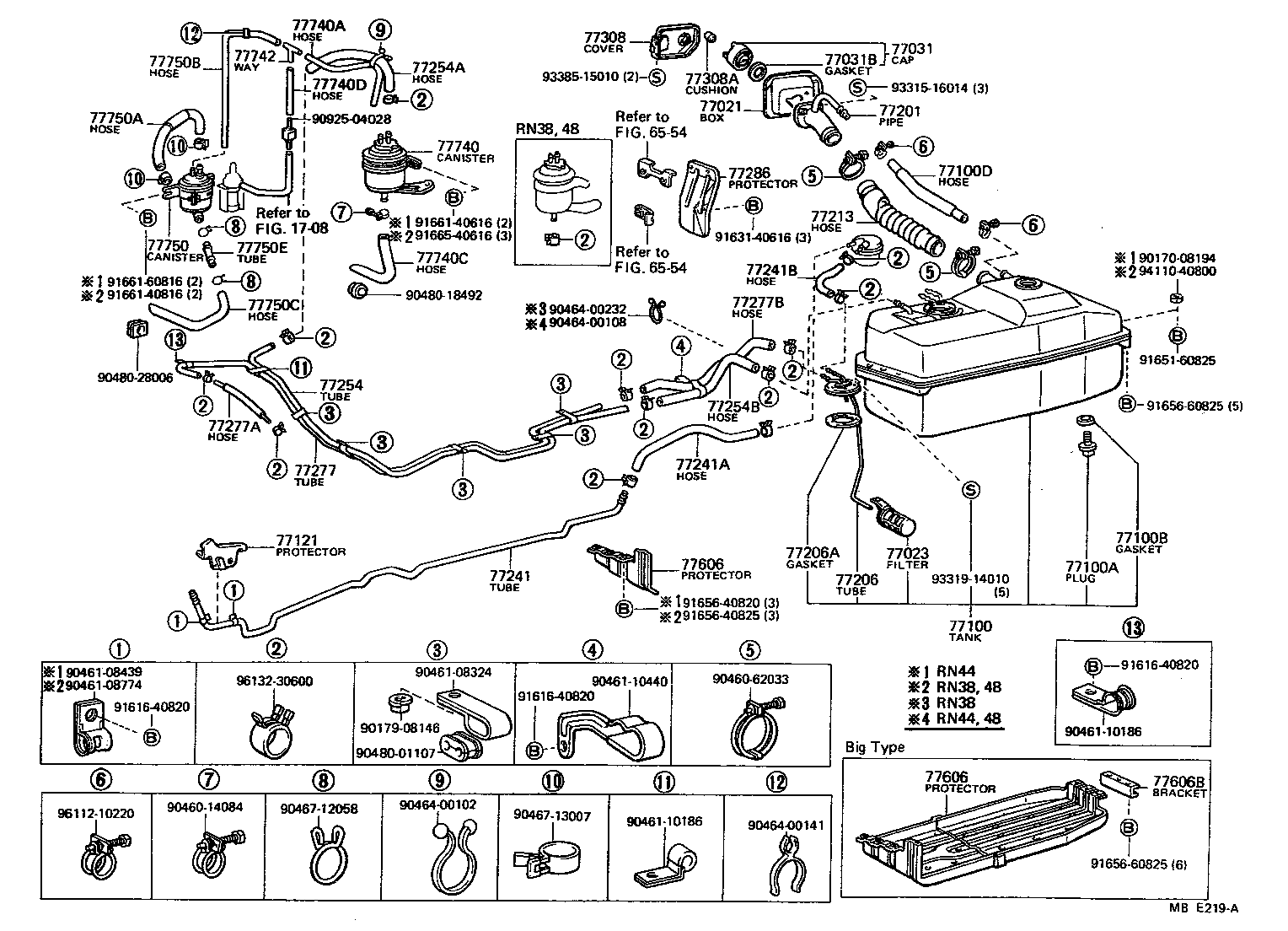

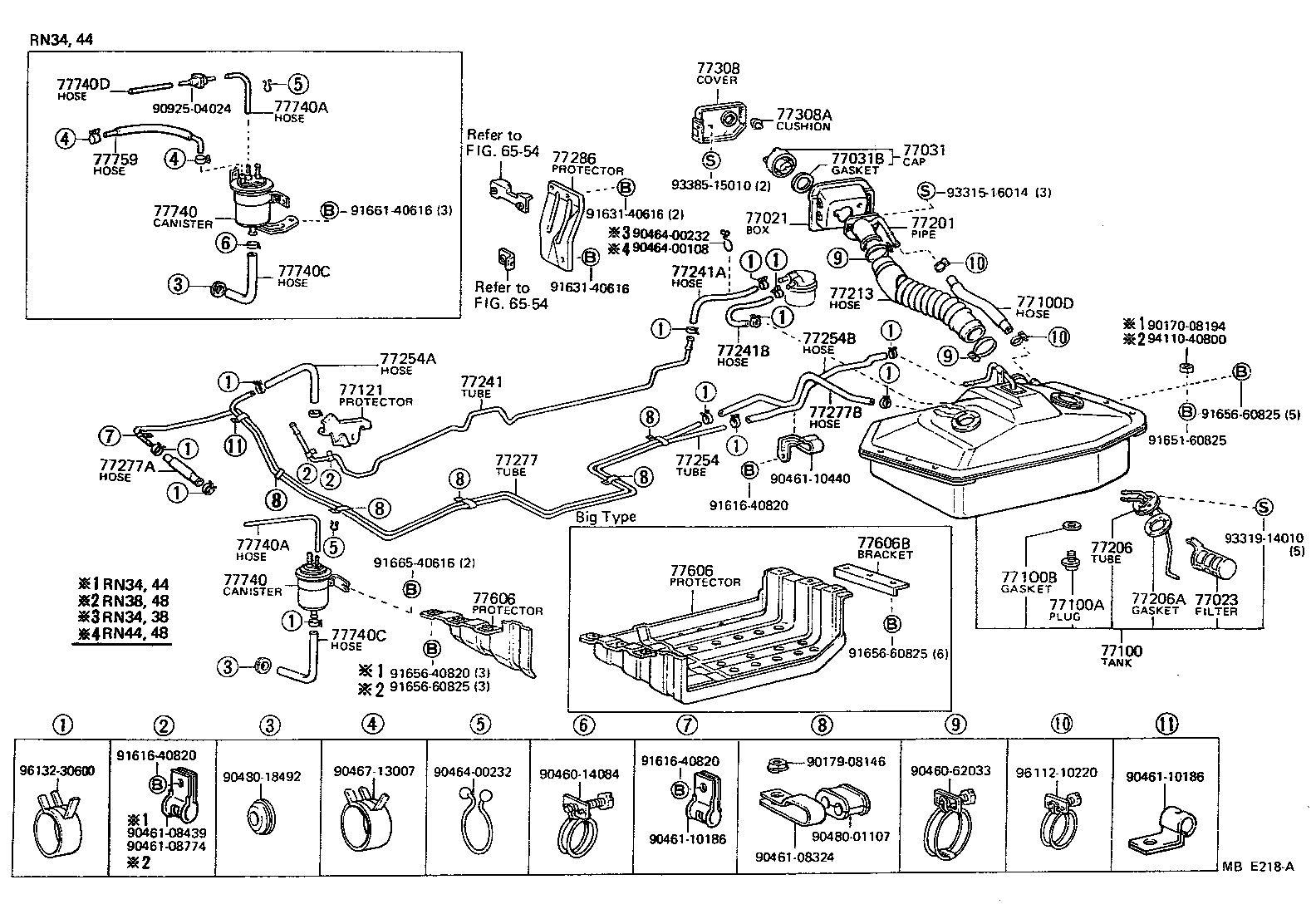

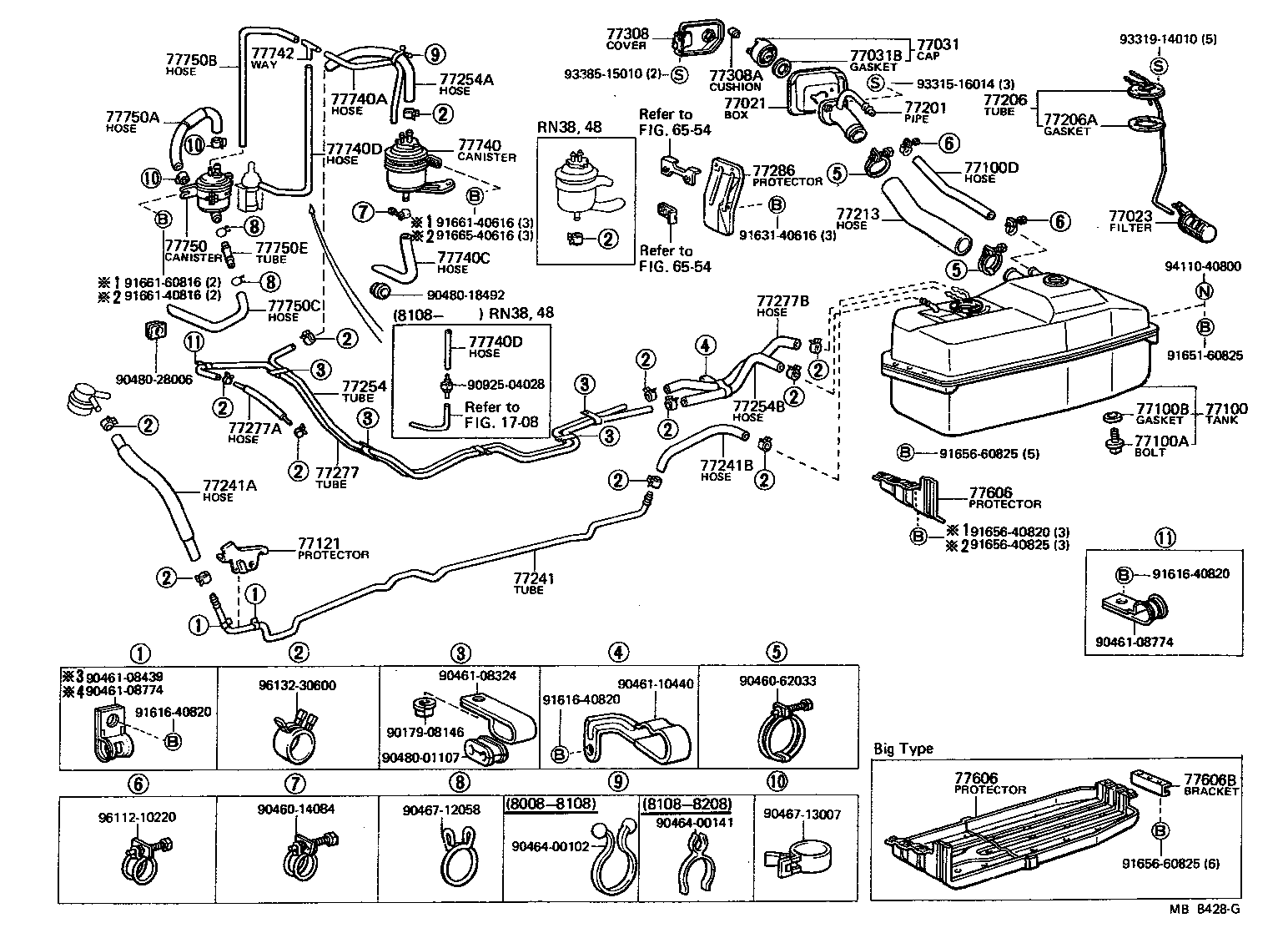

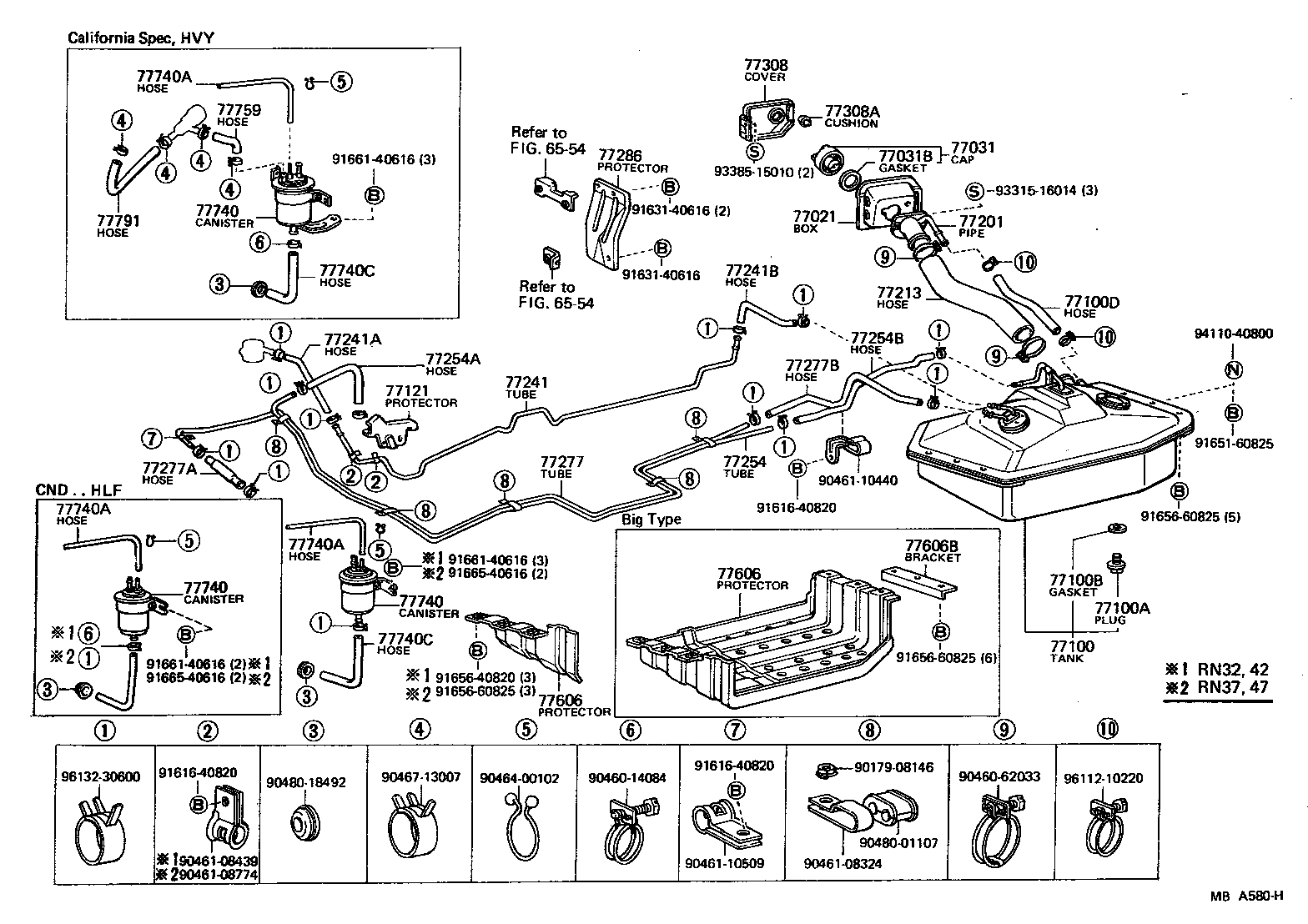

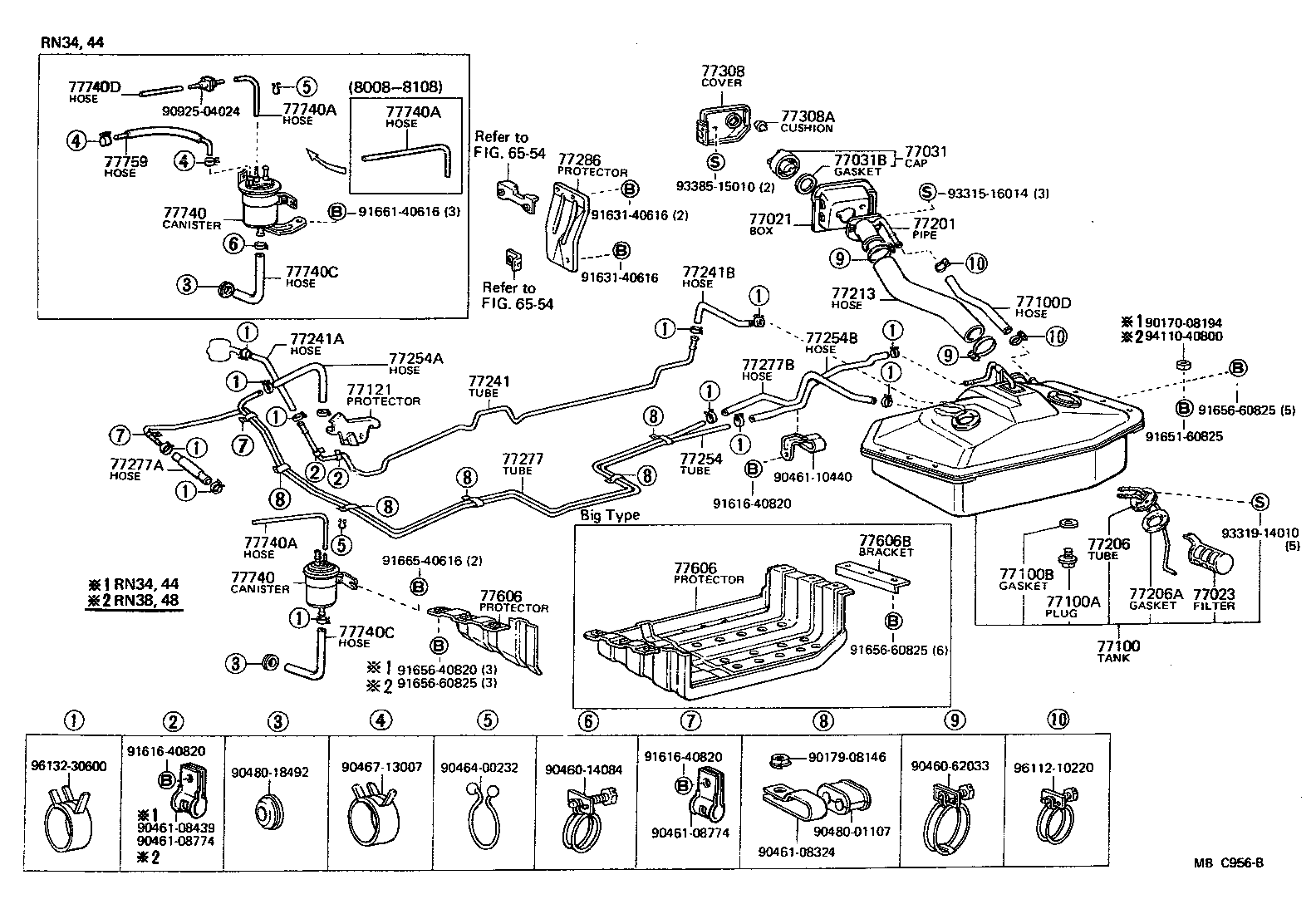

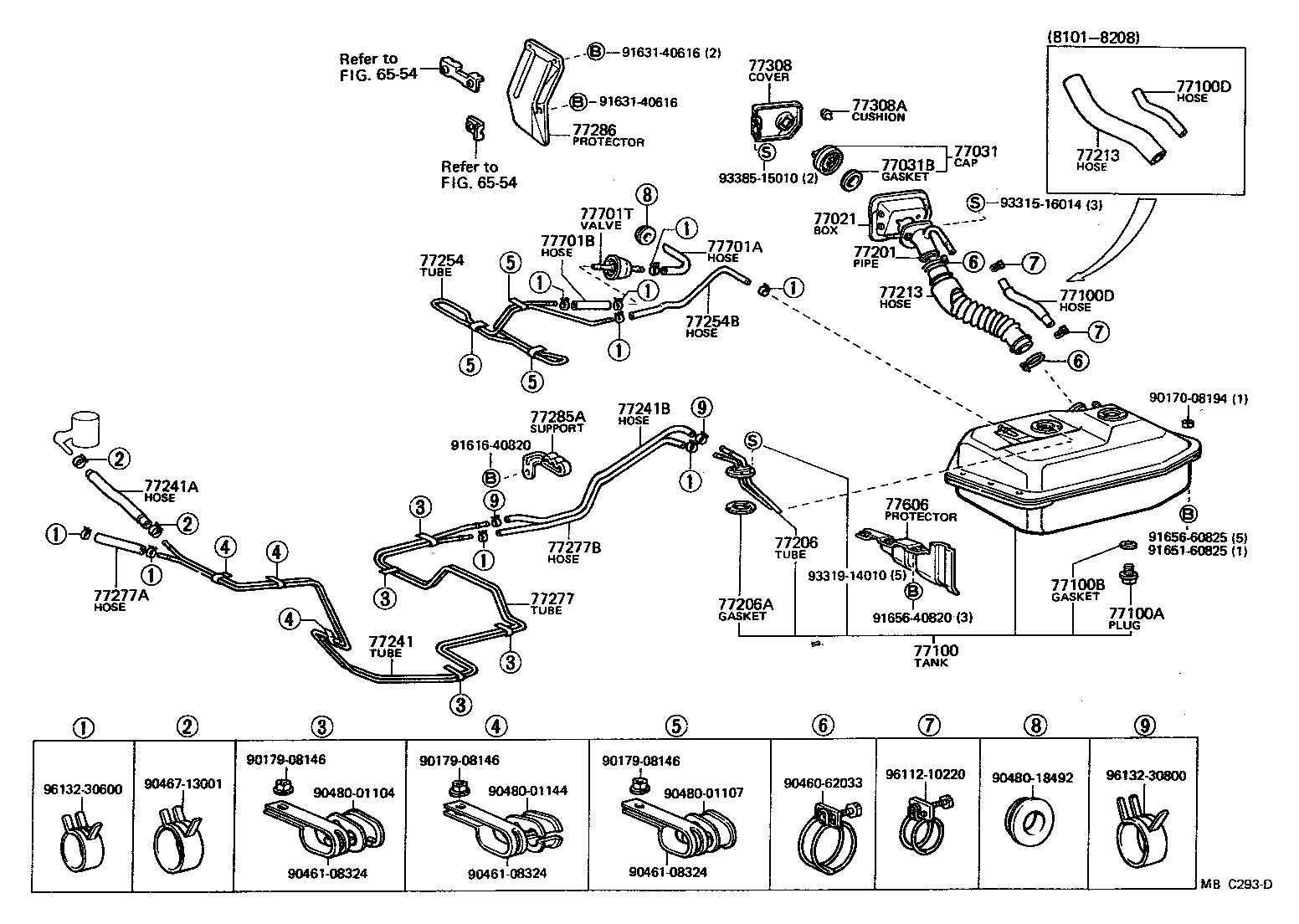

Fuel Tank & Tube
43 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 77021 | Box Assy, Fuel Tank Inlet |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77121 | Protector, Fuel Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77206 | Tube Sub-assy, Fuel Tank Suction |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77285A | Support, Fuel Return And Main Tube |
| 77286 | Protector, Fuel Tank Inlet Pipe |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77606B | Bracket, Fuel Tank Protector, Side |
| 77701A | Hose, Fuel, NO.1 (FOR BREATHER VALVE) |
| 77701B | Hose, Fuel, NO.2 (FOR BREATHER VALVE) |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77740D | Hose, Fuel, NO.4(FOR CHARCOAL CANISTER) |
| 77742 | Way, 3(FOR CANISTER) |
| 77750 | Canister Assy, Charcoal |
| 77750A | Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER) |
| 77750B | Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER) |
| 77750C | Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER) |
| 77750E | Tube, Fuel, NO.1 (FOR CHARCOAL CANISTER) |
| 77759 | Hose, Charcoal Canister |
| 77791 | Hose, Outer Vent Valve TO Carburetor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
