Toyota Pickup
1978-08 → 1983-07 · chassis RN3#,4#,LN40 · catalogue 671430 · United States
Discontinued model
Data version 1984-03
Wiring & Clamp
21 part groups · 4 illustrations
Part groups

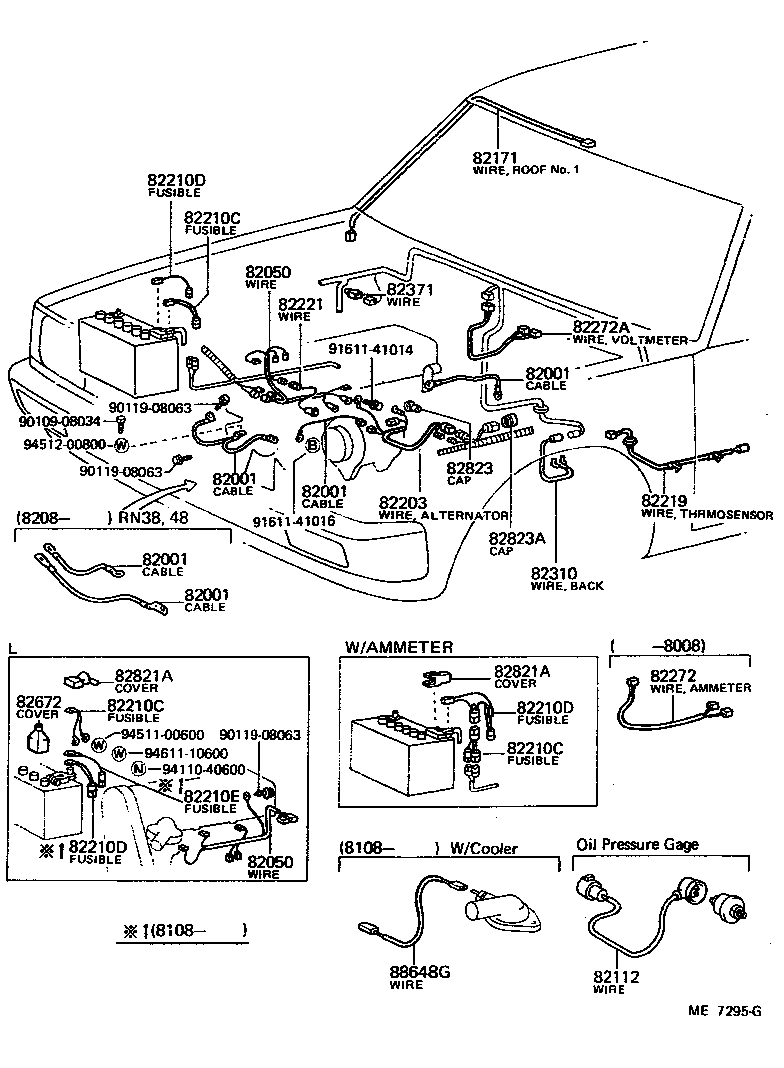

| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82050 | Wire Assy, Engine |
| 82112 | Wire, Engine Room, NO.2 |
| 82131 | Wire, Cowl |
| 82164 | Wire, Frame |
| 82171 | Wire, Roof, NO.1 |
| 82203 | Wire Sub-assy, Alternator |
| 82210C | Fusible Link |
| 82210D | Fusible Link |
| 82210E | Fusible Link |
| 82219 | Wire, Thermo Sensor |
| 82221 | Wire, Oil Pressure Switch |
| 82272 | Wire, Ammeter |
| 82272A | Wire, Voltmeter |
| 82310 | Wiring Assy, TO Back UP Lamp Switch |
| 82371 | Wire, Wiper Relay |
| 82672 | Cover, Junktion Block |
| 82821A | Cover, Connector |
| 82823 | Cap, Terminal, NO.1 |
| 82823A | Cap, Terminal, NO.2 |
| 88648G | Wire, Air Conditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
