Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

74 part groups · 23 illustrations

Illustrations

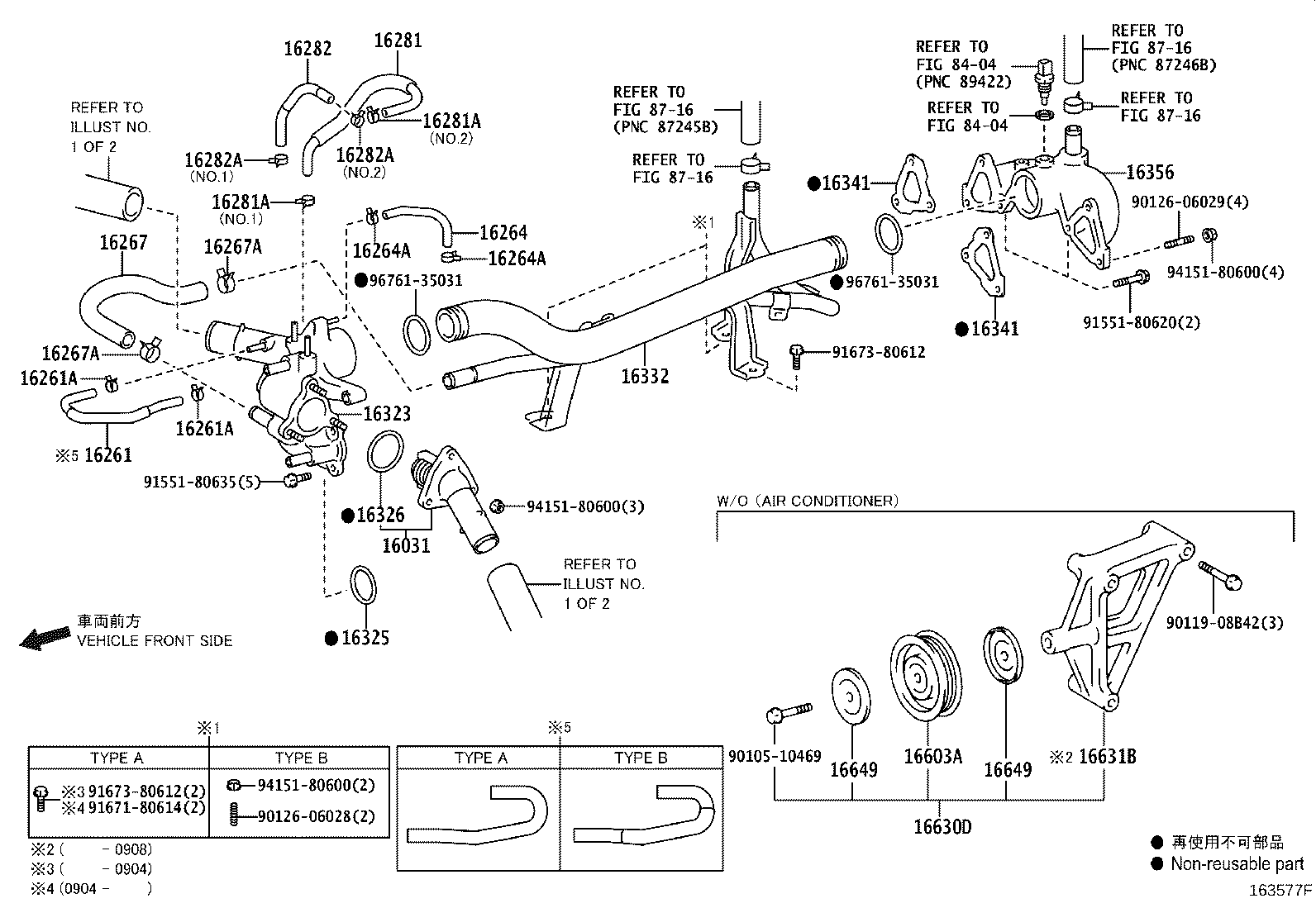

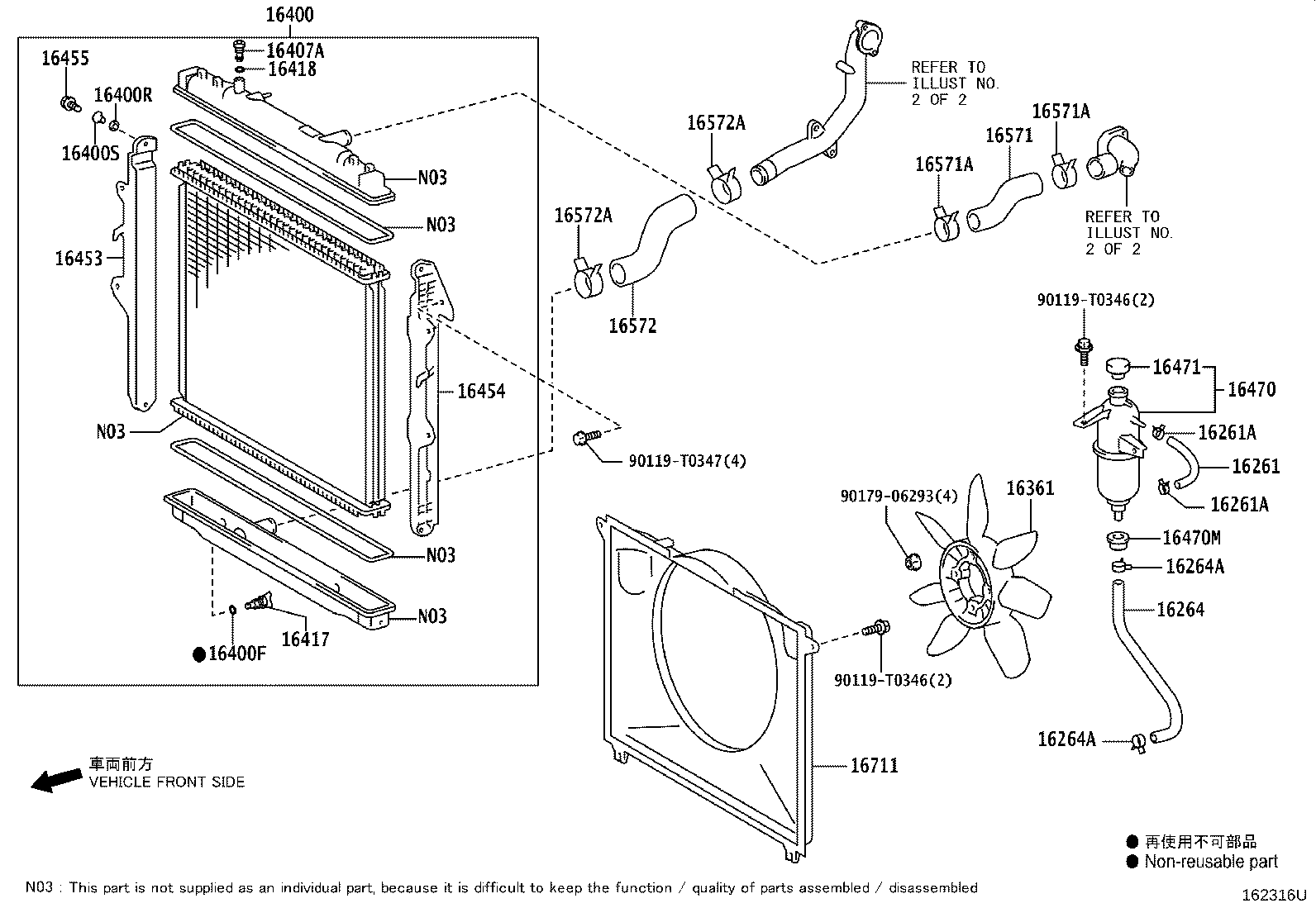

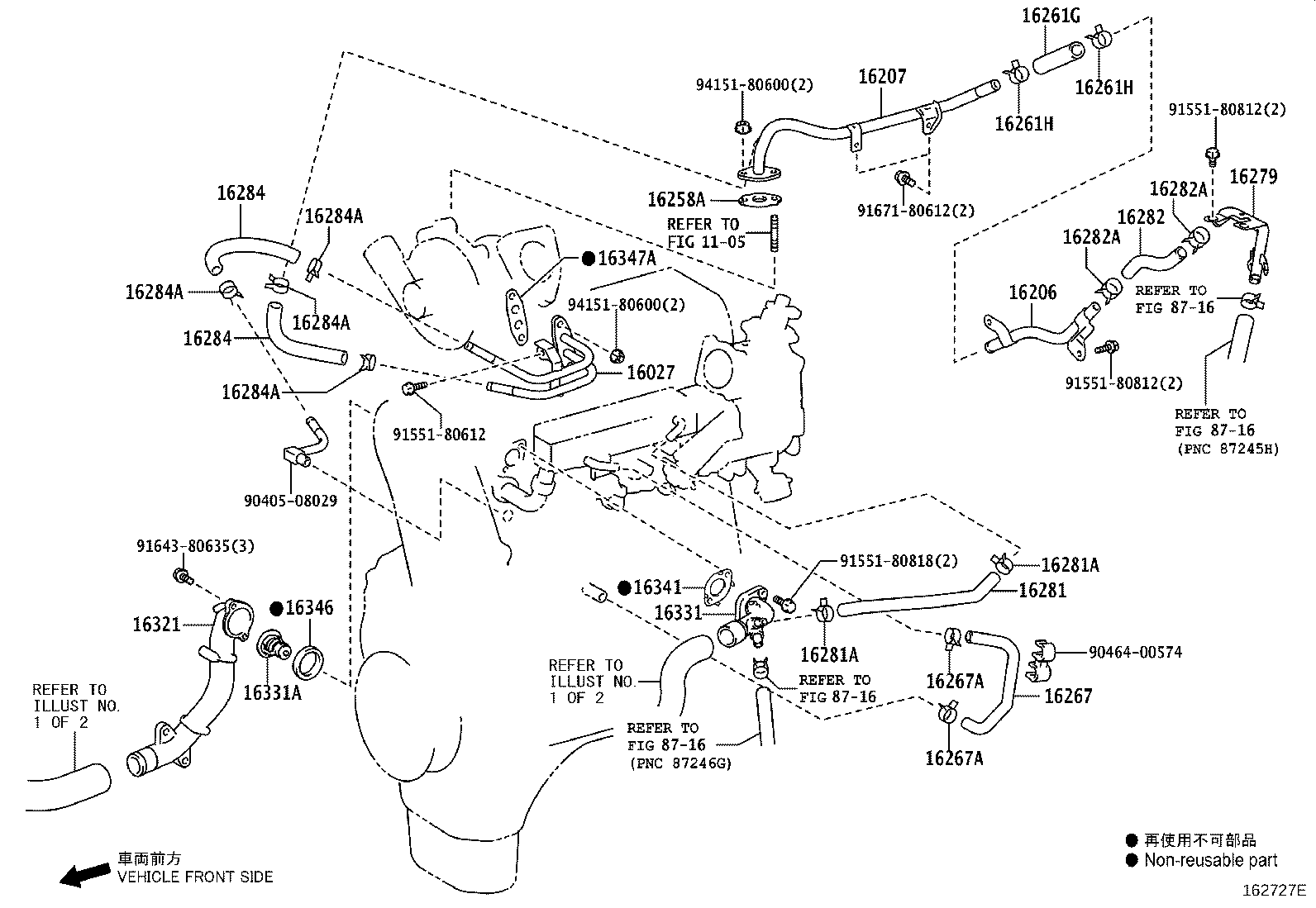

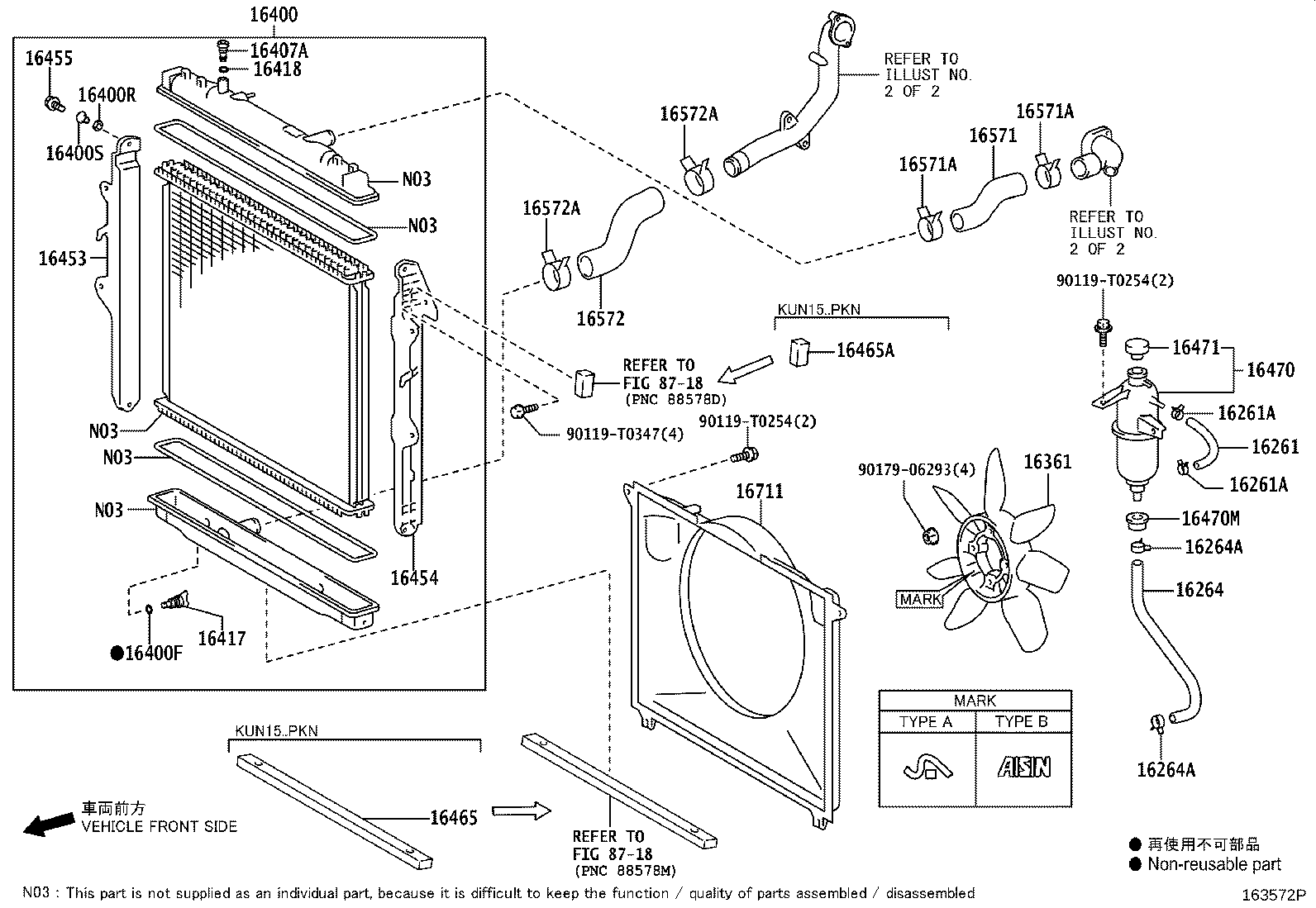

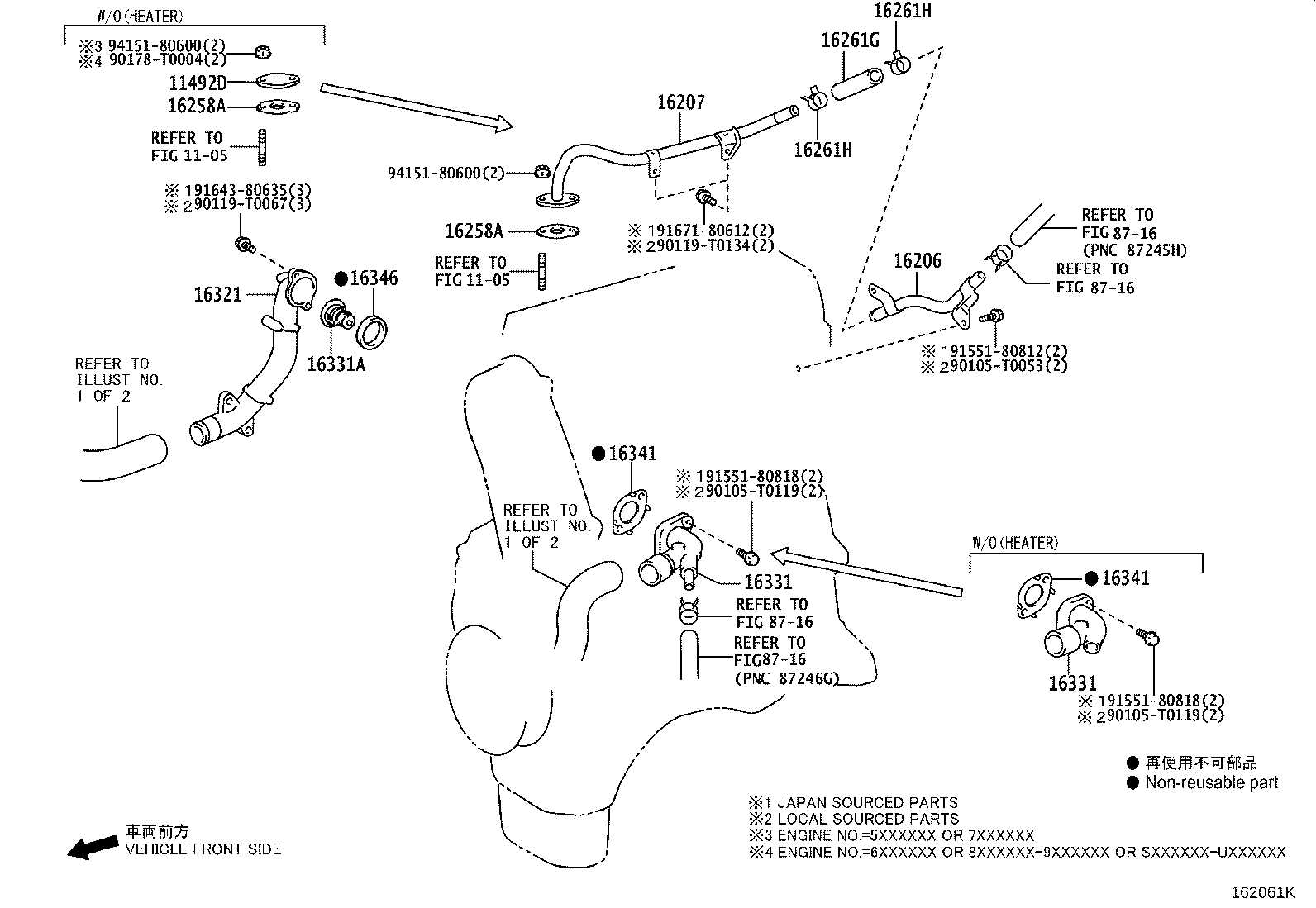

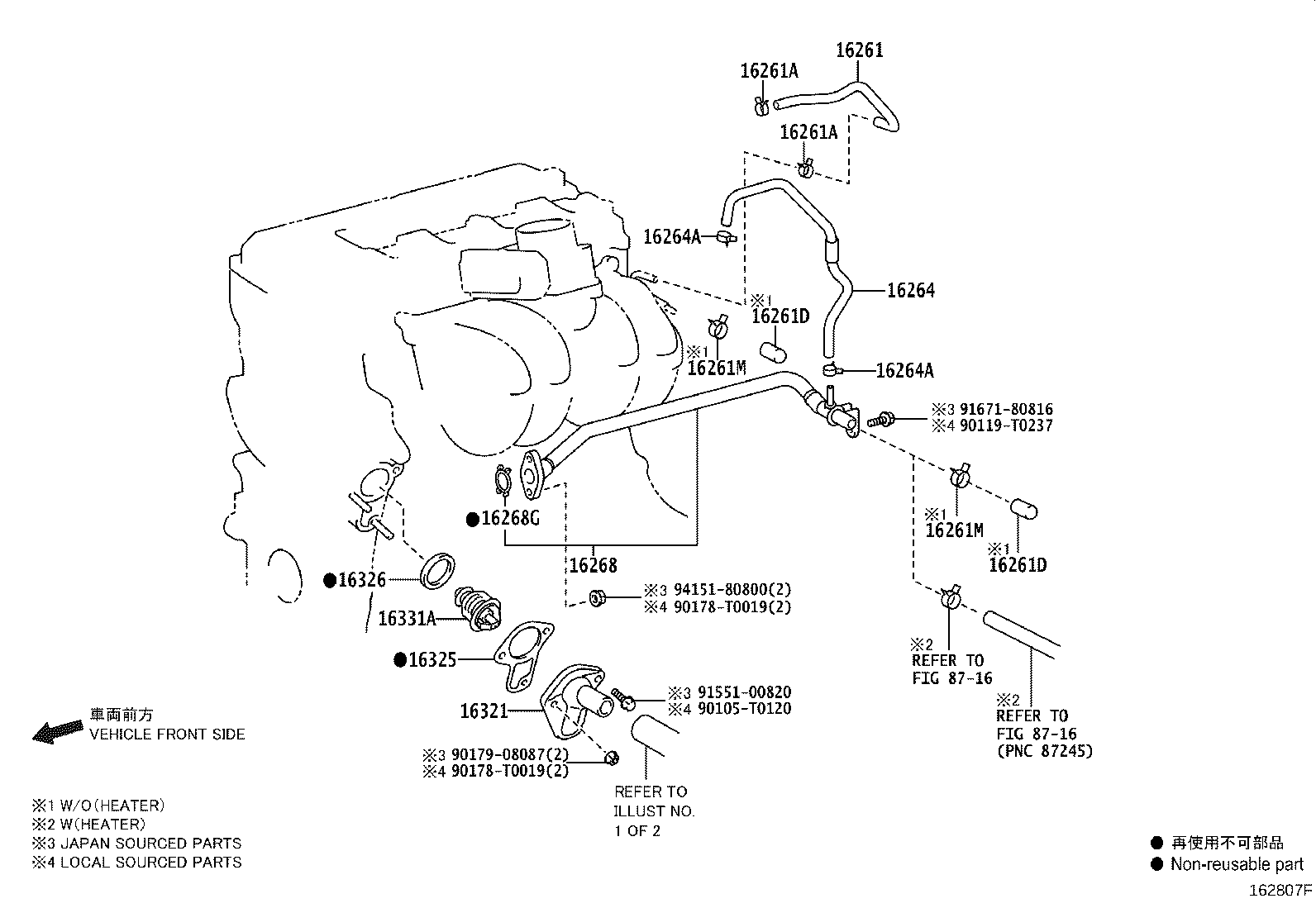

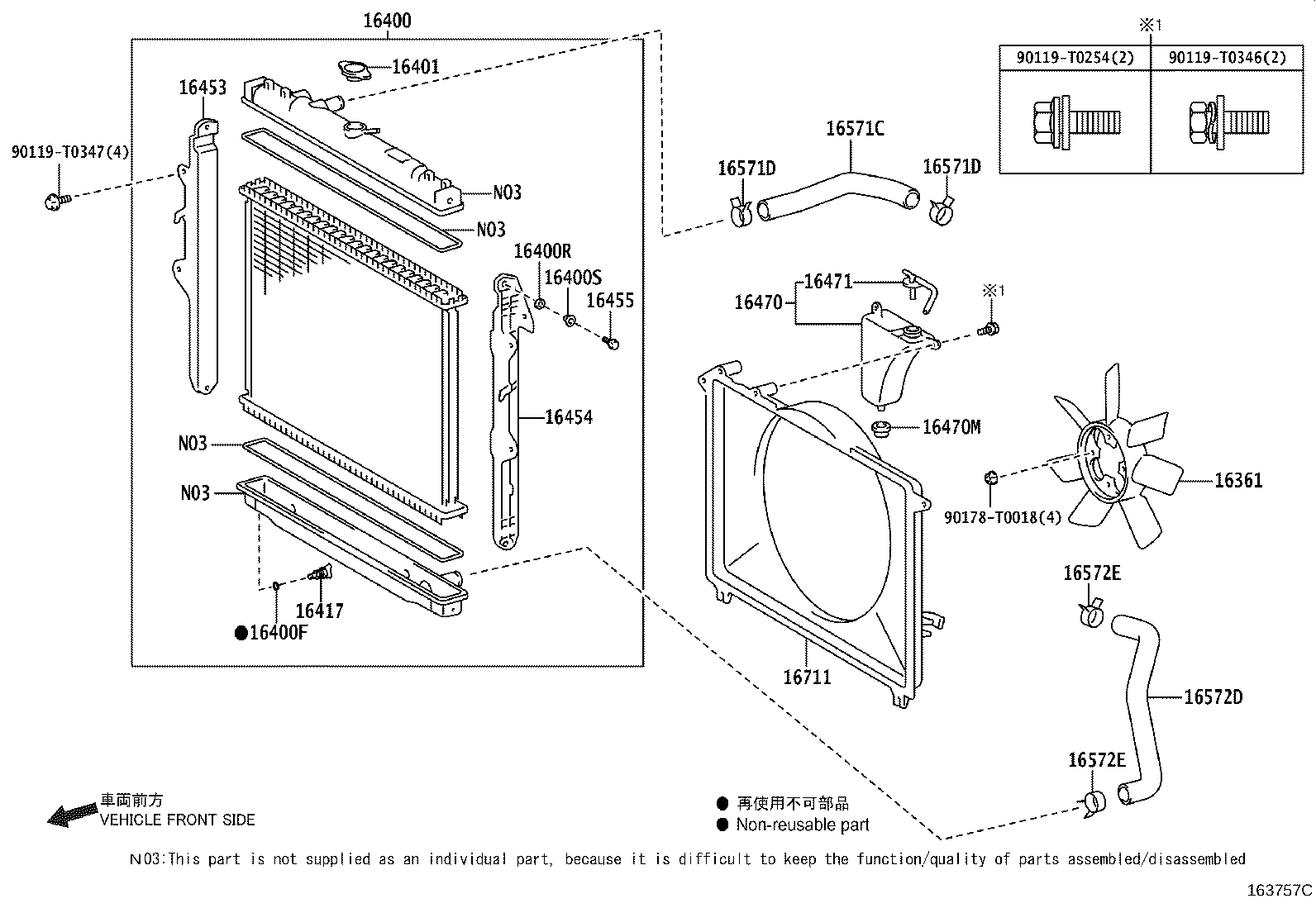

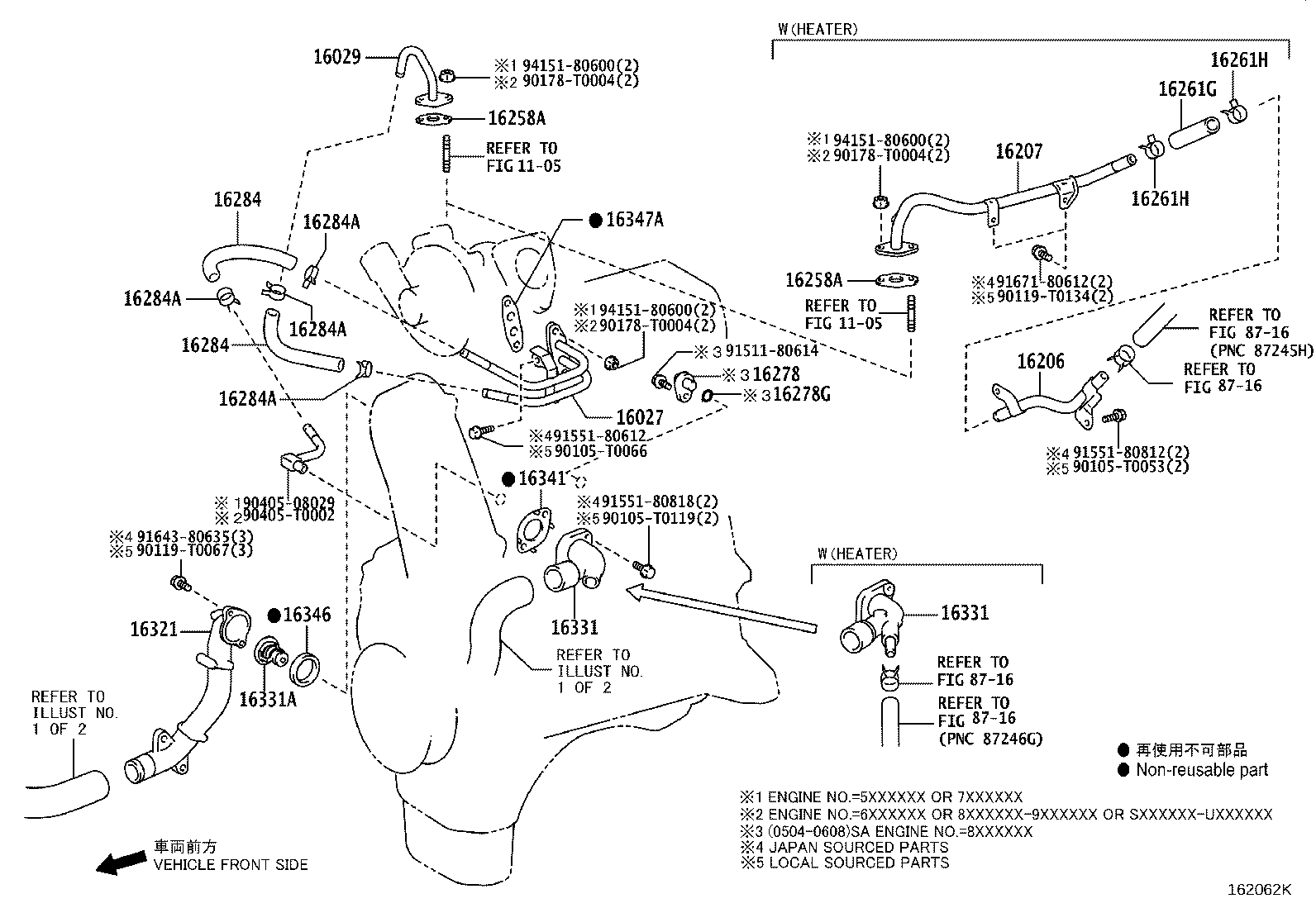

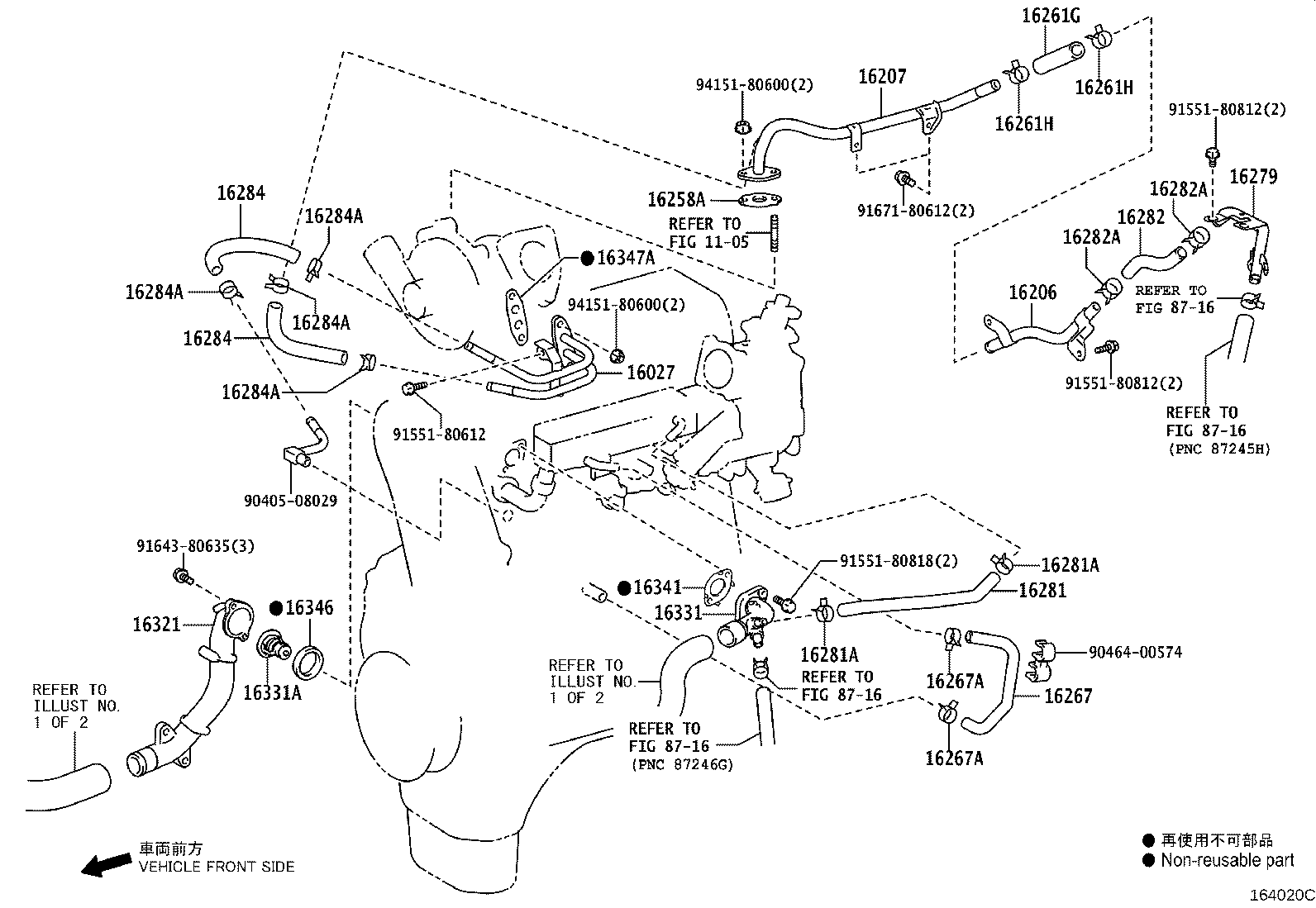

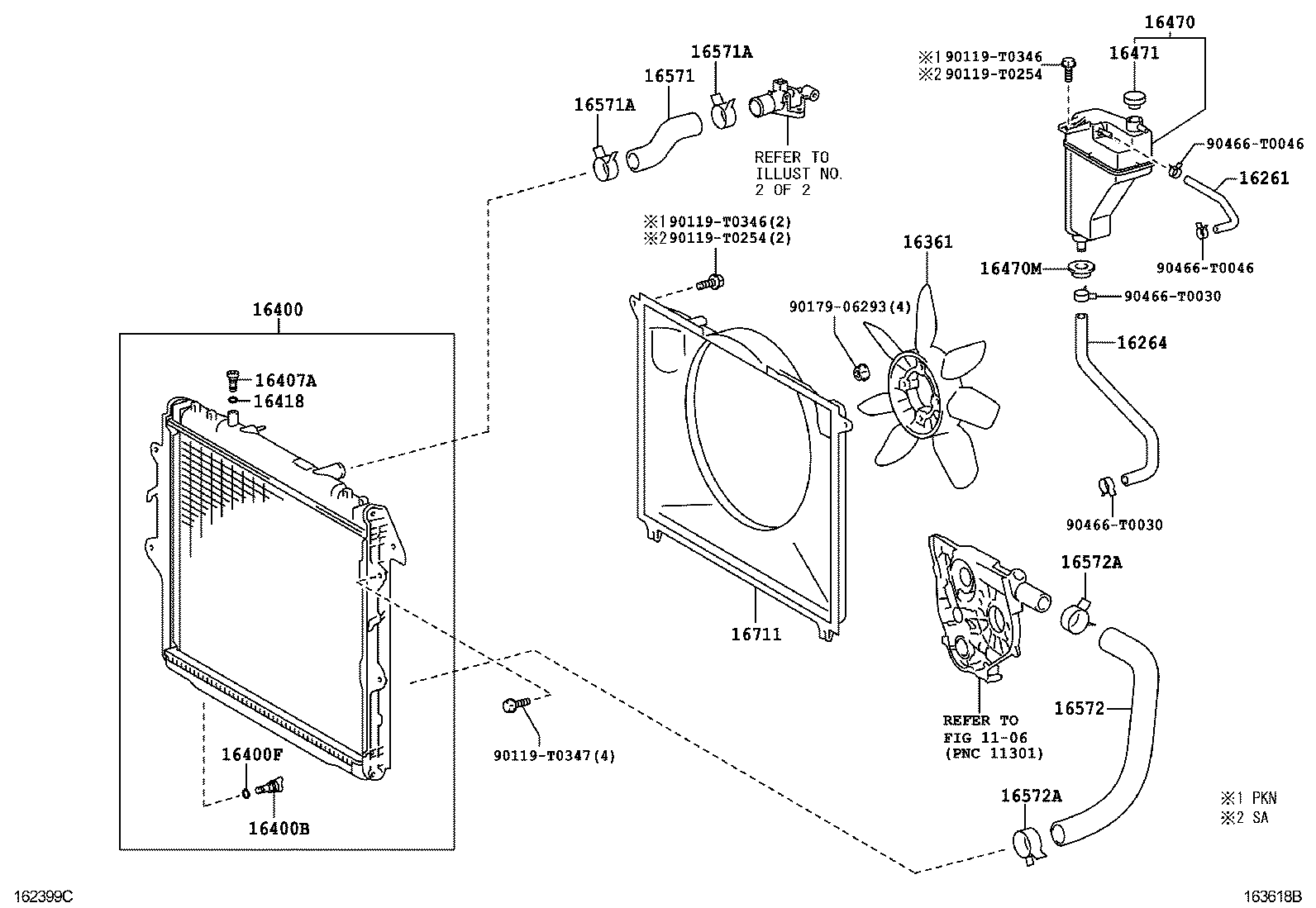

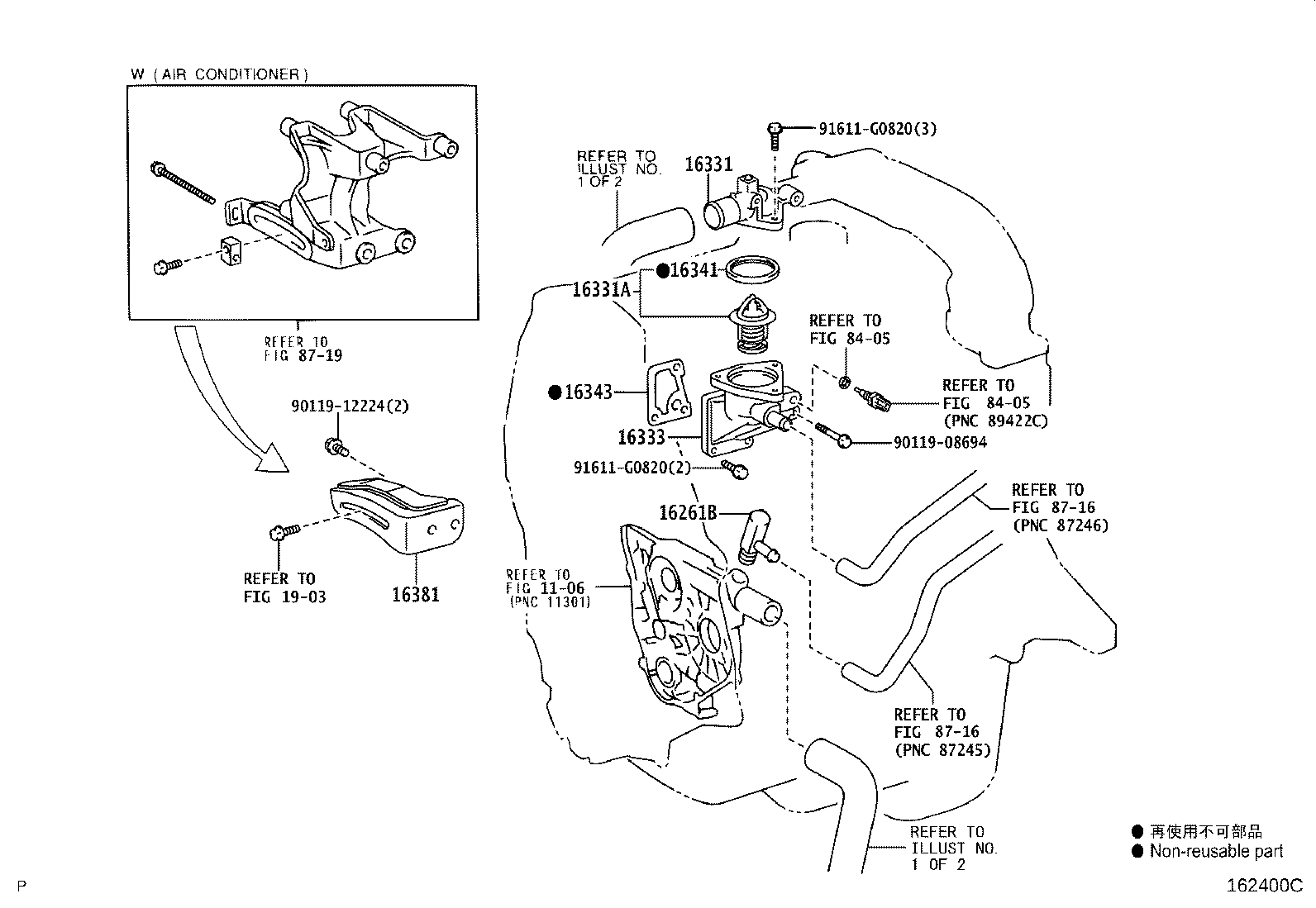

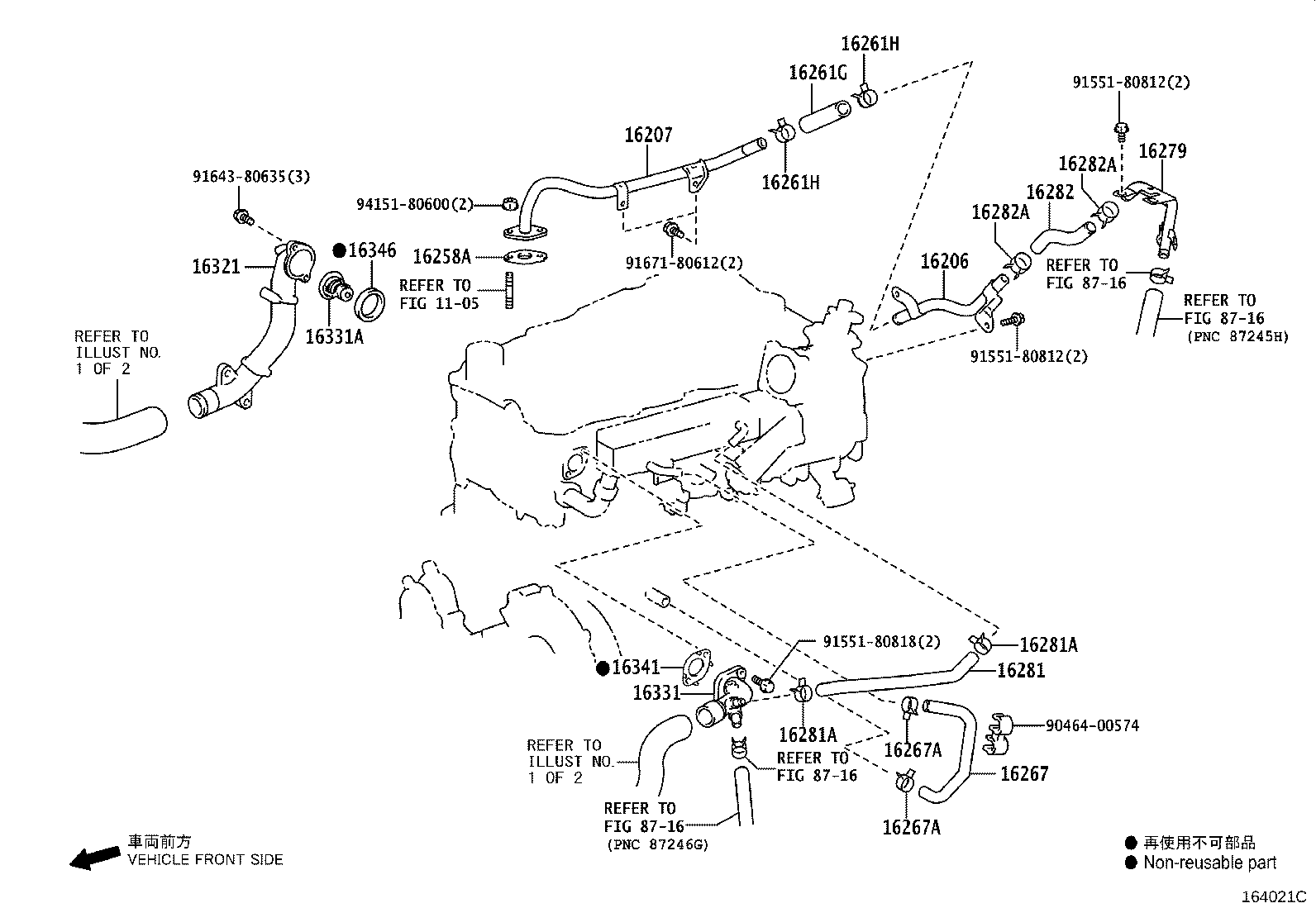

Figure 163601G 163601G 2005-02 → — Figure 163577F 163577F 2005-02 → — Figure 162316U 162316U 2004-08 → 2008-08 Figure 162316U 162316U 2008-08 → 2008-09 Figure 162316U 162316U 2008-09 → 2008-10 Figure 162316U 162316U 2008-10 → 2008-12 Figure 163572P 163572P 2008-08 → — Figure 163572P 163572P 2008-10 → — Figure 163572P 163572P 2008-12 → — Figure 162062K 162062K 2004-08 → 2006-08 Figure 162062K 162062K 2006-08 → — Figure 162062K 162062K 2009-08 → — Figure 162727E 162727E 2006-08 → — Figure 162061K 162061K 2004-08 → 2009-08 Figure 162061K 162061K 2009-08 → — Figure 162061K 162061K 2009-08 → — Figure 164020C 164020C 2009-10 → — Figure 164021C 164021C 2009-10 → — Figure 164021C 164021C 2010-08 → — Figure 163618B 163618B 2005-07 → — Figure 162400C 162400C 2005-07 → — Figure 163757C 163757C 2005-01 → — Figure 162807F 162807F 2005-01 → —

Part groups

PNCDescription
11492D Plate, Seal, NO.1
16027 Pipe Sub-assy, Turbo Water, NO.1
16029 Pipe Sub-assy, Turbo Water, NO.3
16031 Water Inlet Sub-assy, W/Thermostat
16206 Pipe Sub-assy, Water By-pass
16207 Pipe Sub-assy, Water By-pass, NO.2
16258A Gasket(FOR HEATER RETURN)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16261D Plug, W/O Heater
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261M Clip, W/O Heater Plug
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16278G Ring, O(FOR WATER BY-PASS NO.2 PIPE)
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16333 Housing, Water Outlet
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16356 Joint, Water By-pass, Rear
16361 Fan
16381 Bar, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16400R Bushing(FOR RADIATOR)
16400S Collar(FOR RADIATOR)
16401 Cap Sub-assy, Radiator
16407A Cock Sub-assy, Radiator Drain
16417 Cock
16418 Packing
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16465 Packing, Radiator
16465A Packing, Radiator, NO.1
16470 Tank Assy, Radiator Reserve
16470M Grommet
16471 Cap Sub-assy, Reserve Tank
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16603A Pulley Sub-assy, Idler, NO.1
16630D Pulley Assy, Idler
16631B Bracket, Idler Pulley
16649 Plate, Idler Pulley Cover
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
