Toyota Hilux

2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

23 part groups · 53 illustrations

Illustrations

Figure 311630B 311630B 2004-08 → 2010-08 Figure 311630B 311630B 2004-08 → — Figure 311630B 311630B 2004-08 → — Figure 311630B 311630B 2004-11 → 2010-09 Figure 311630B 311630B 2005-04 → 2010-10 Figure 312076A 312076A 2004-08 → 2010-08 Figure 312076A 312076A 2004-08 → 2010-08 Figure 312076A 312076A 2004-08 → — Figure 312076A 312076A 2004-11 → 2010-09 Figure 312076A 312076A 2005-01 → 2010-09 Figure 312076A 312076A 2005-02 → 2008-08 Figure 312076A 312076A 2005-02 → 2009-08 Figure 312076A 312076A 2005-02 → 2010-08 Figure 312076A 312076A 2005-02 → 2010-08 Figure 312076A 312076A 2005-02 → — Figure 312076A 312076A 2005-03 → 2010-09 Figure 312076A 312076A 2005-04 → 2010-10 Figure 312076A 312076A 2005-04 → — Figure 312076A 312076A 2005-07 → 2010-12 Figure 312076A 312076A 2007-10 → 2010-10 Figure 312063C 312063C 2008-08 → 2010-08 Figure 312063C 312063C 2008-10 → 2010-10 Figure 312063C 312063C 2009-08 → 2010-08 Figure 312334C 312334C 2010-08 → — Figure 312334C 312334C 2010-09 → — Figure 312334C 312334C 2010-10 → — Figure 312346C 312346C 2010-08 → — Figure 312346C 312346C 2010-09 → — Figure 312346C 312346C 2010-10 → — Figure 312345B 312345B 2010-08 → — Figure 312345B 312345B 2010-10 → — Figure 312344D 312344D 2010-08 → — Figure 312344D 312344D 2010-09 → — Figure 312344D 312344D 2010-10 → — Figure 312344D 312344D 2010-12 → — Figure 311466E 311466E 2004-08 → 2008-08 Figure 311466E 311466E 2005-03 → 2008-09 Figure 311466E 311466E 2005-04 → 2008-10 Figure 311466E 311466E 2008-08 → — Figure 311466E 311466E 2008-09 → — Figure 311466E 311466E 2008-10 → — Figure 311432F 311432F 2004-11 → 2008-08 Figure 311432F 311432F 2004-11 → — Figure 311432F 311432F 2005-01 → 2008-10 Figure 311260E 311260E 2005-01 → — Figure 313169 313169 2005-02 → — Figure 311467A 311467A 2005-02 → — Figure 311501C 311501C 2005-07 → — Figure 313170 313170 2005-07 → — Figure 312065B 312065B 2008-08 → — Figure 312065B 312065B 2008-10 → — Figure 312066B 312066B 2008-08 → — Figure 312066B 312066B 2008-10 → —

Part groups

PNCDescription

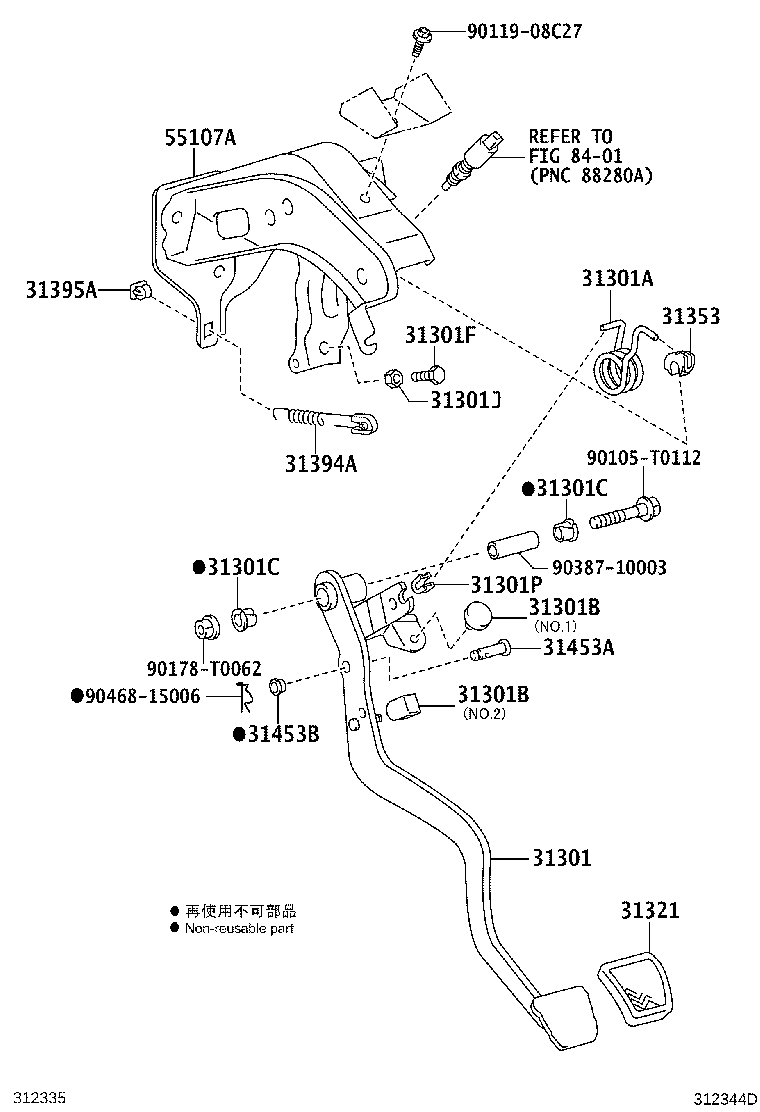

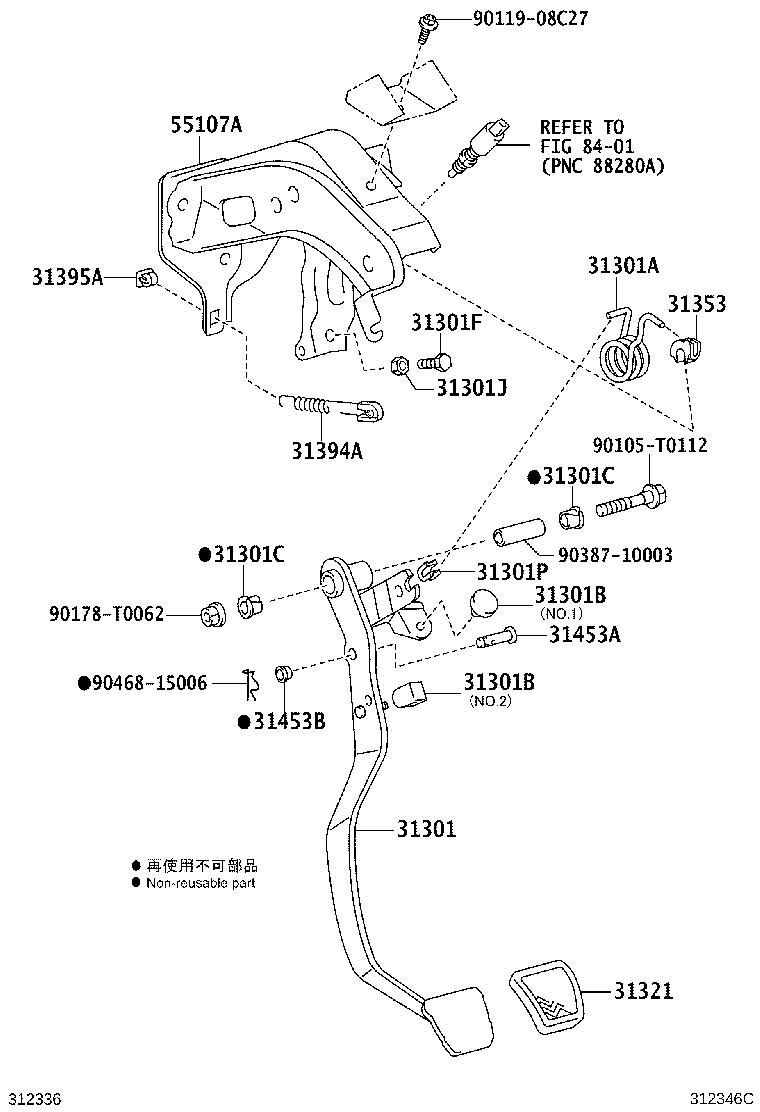

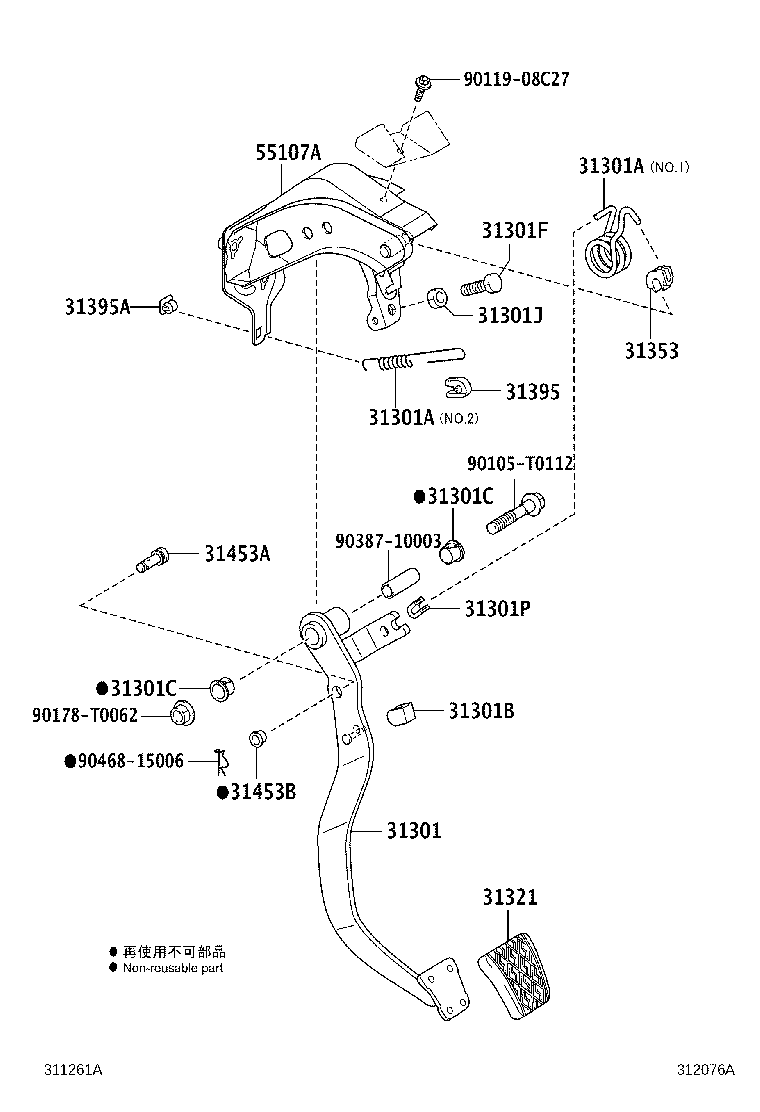

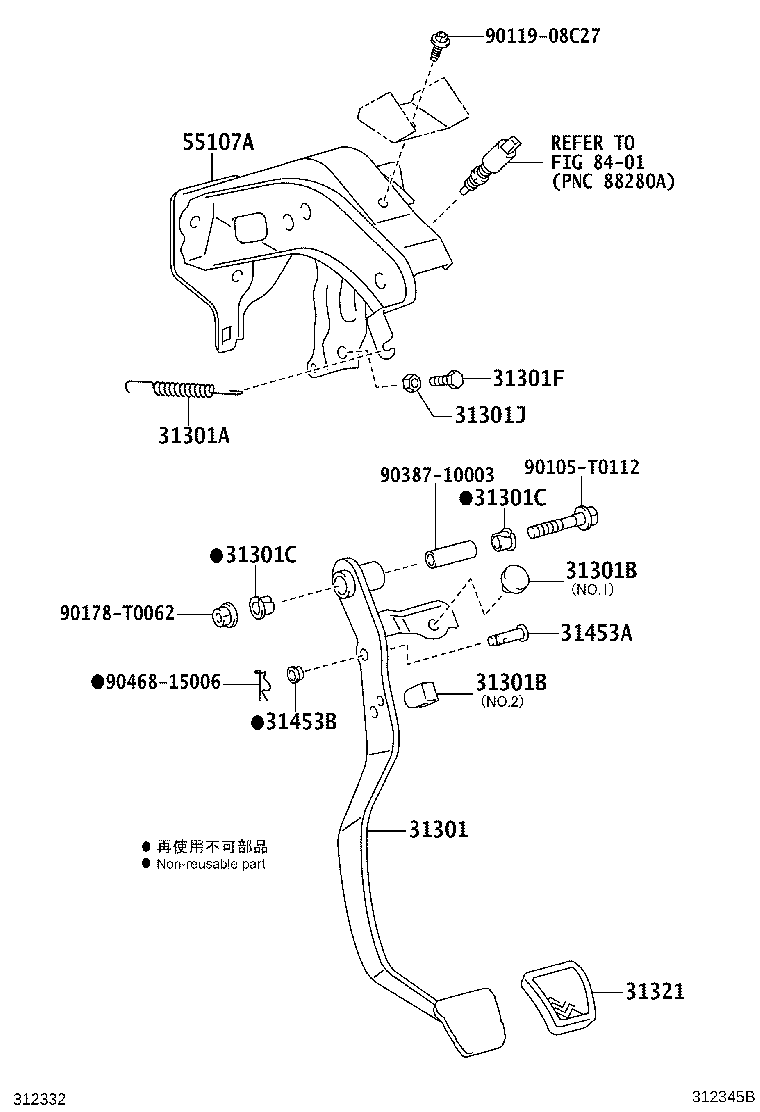

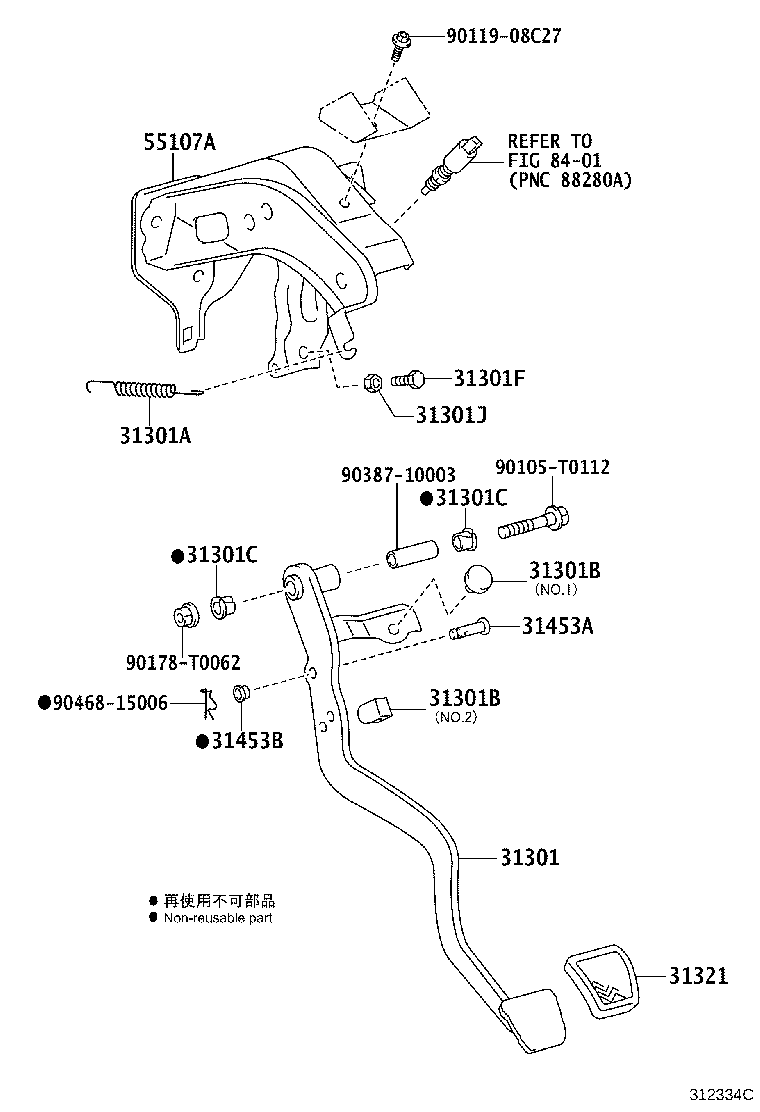

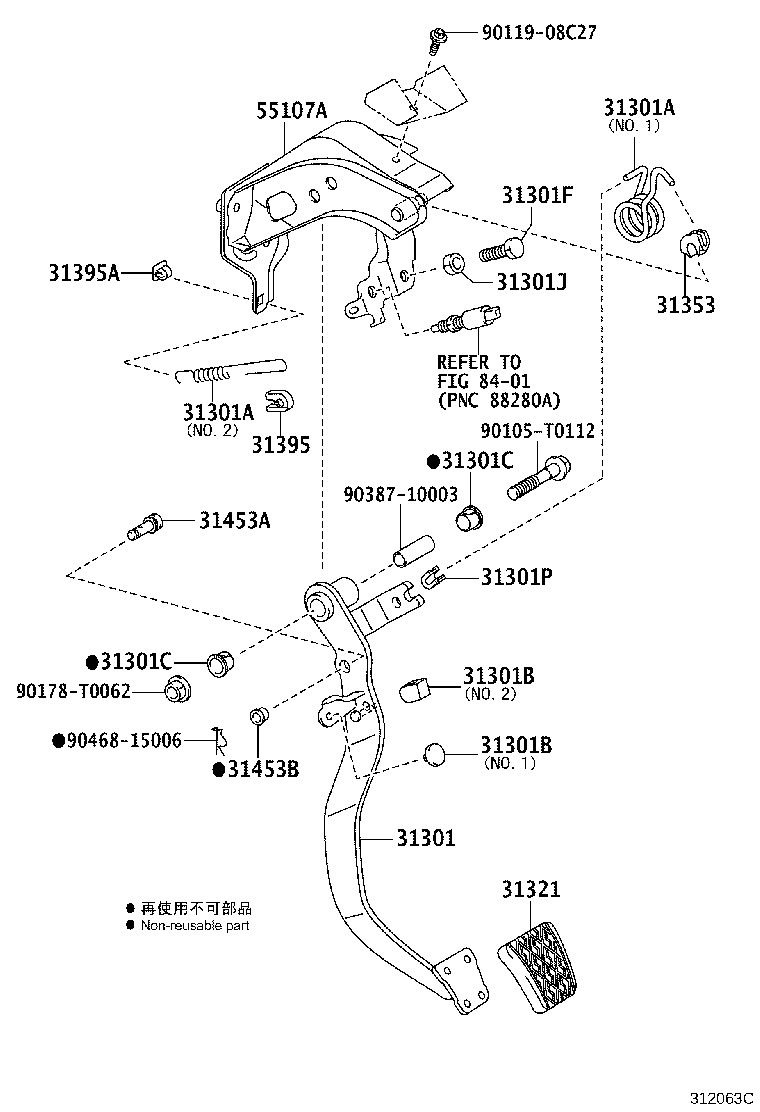

31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301J Nut(FOR CLUTCH PEDAL STOPPER)
31301P Bush(FOR CLUTCH PEDAL TURNOVER)
31321 Pad, Clutch Pedal
31353 Holder, Clutch Pedal Spring
31394A Spring, Pedal W/Hook
31395 Hook, Pedal Spring
31395A Hook, Pedal Spring, NO.1
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

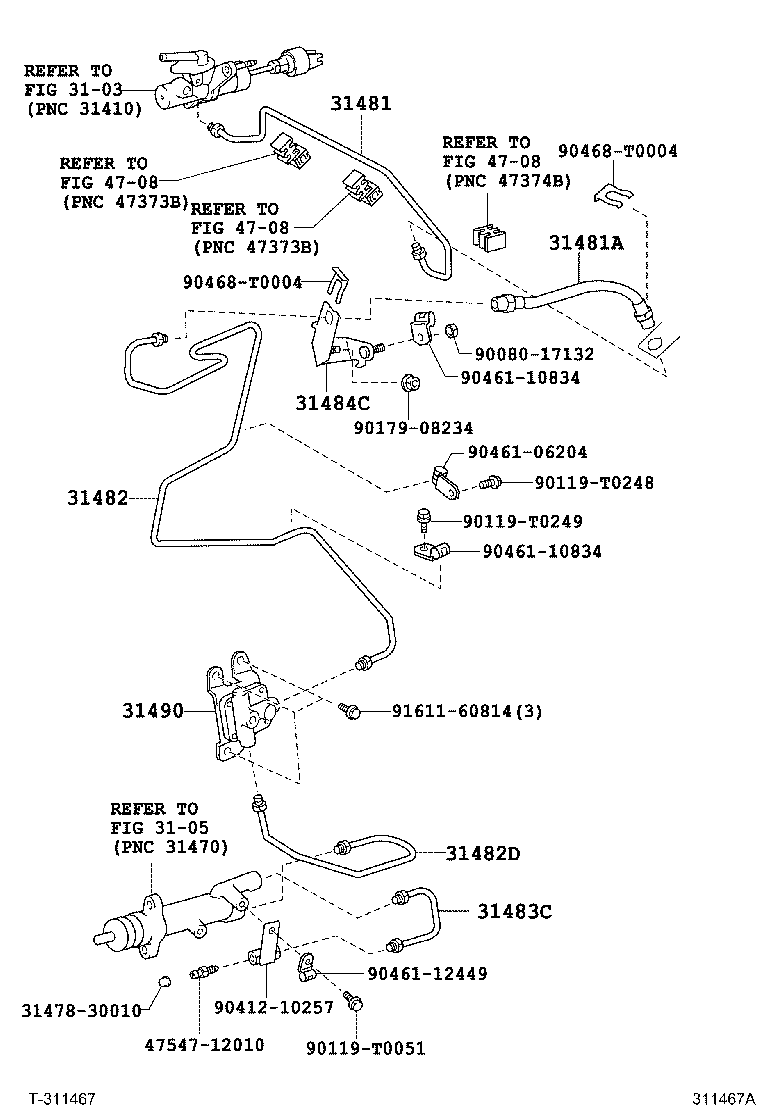

31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482D Tube, Clutch Release Cylinder TO Accumulator
31483B Tube, Accumulator TO Flexible Hose
31483C Tube, Clutch Actuator TO Release Cylinder
31484C Bracket, Clutch Tube, NO.1
31490 Accumulator Assy, Clutch
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
