Toyota Hilux
2004-08 → 2012-04 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672370 · United States
Supported model
Data version 2012-04

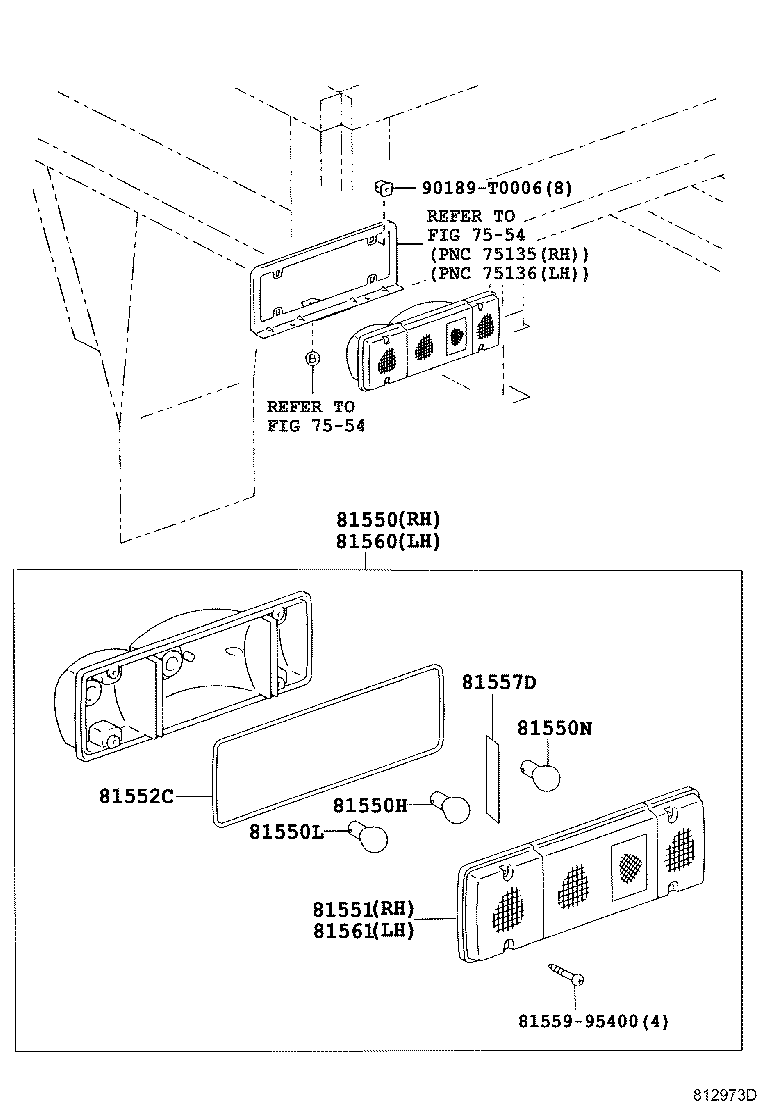

Rear Combination Lamp
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81552C | Gasket, Rear Combination Lamp |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81557D | Reflector, Rear Combination Lamp |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
