Heating & Air Conditioning - Cooler Piping

27 part groups · 26 illustrations

Illustrations

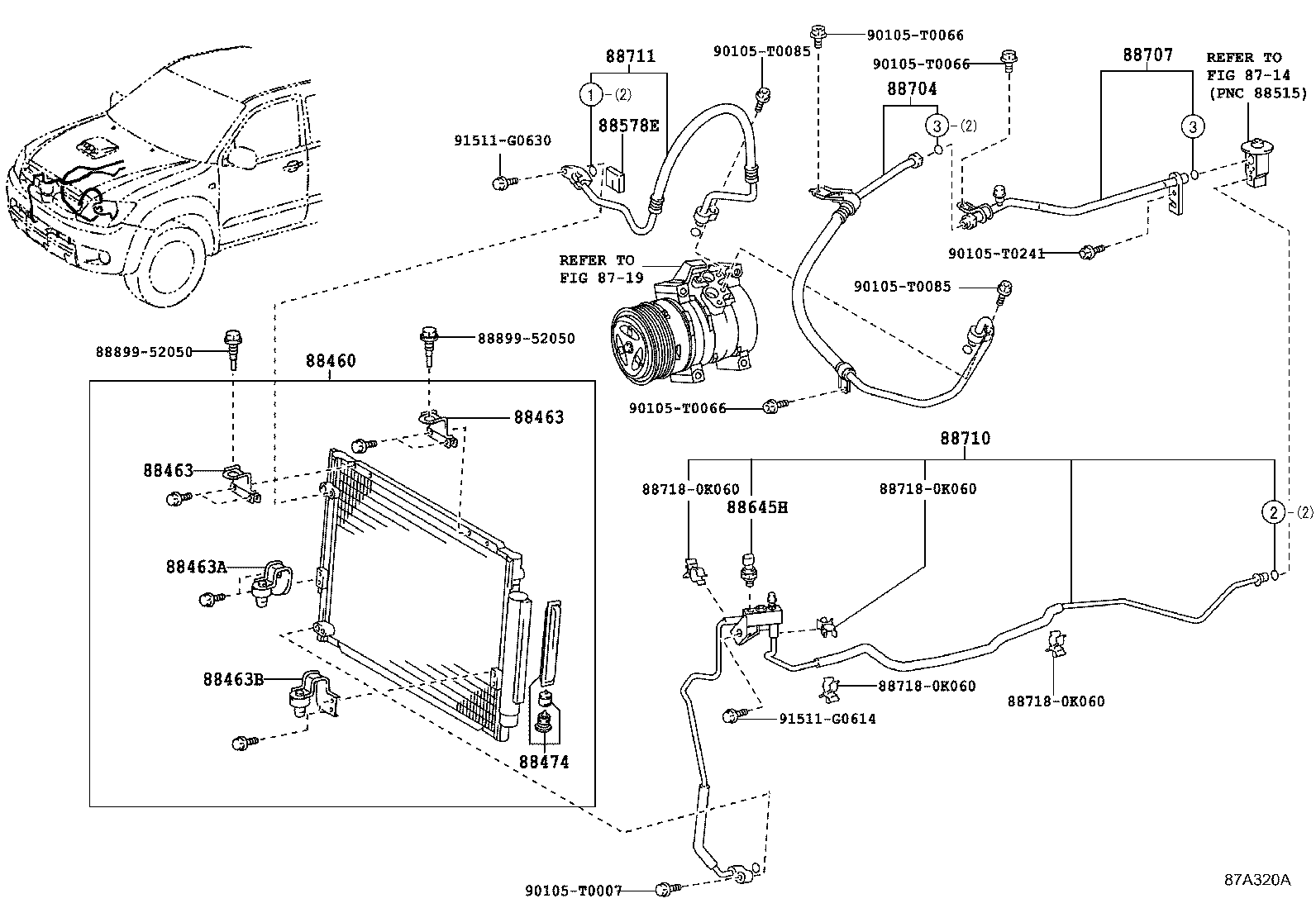

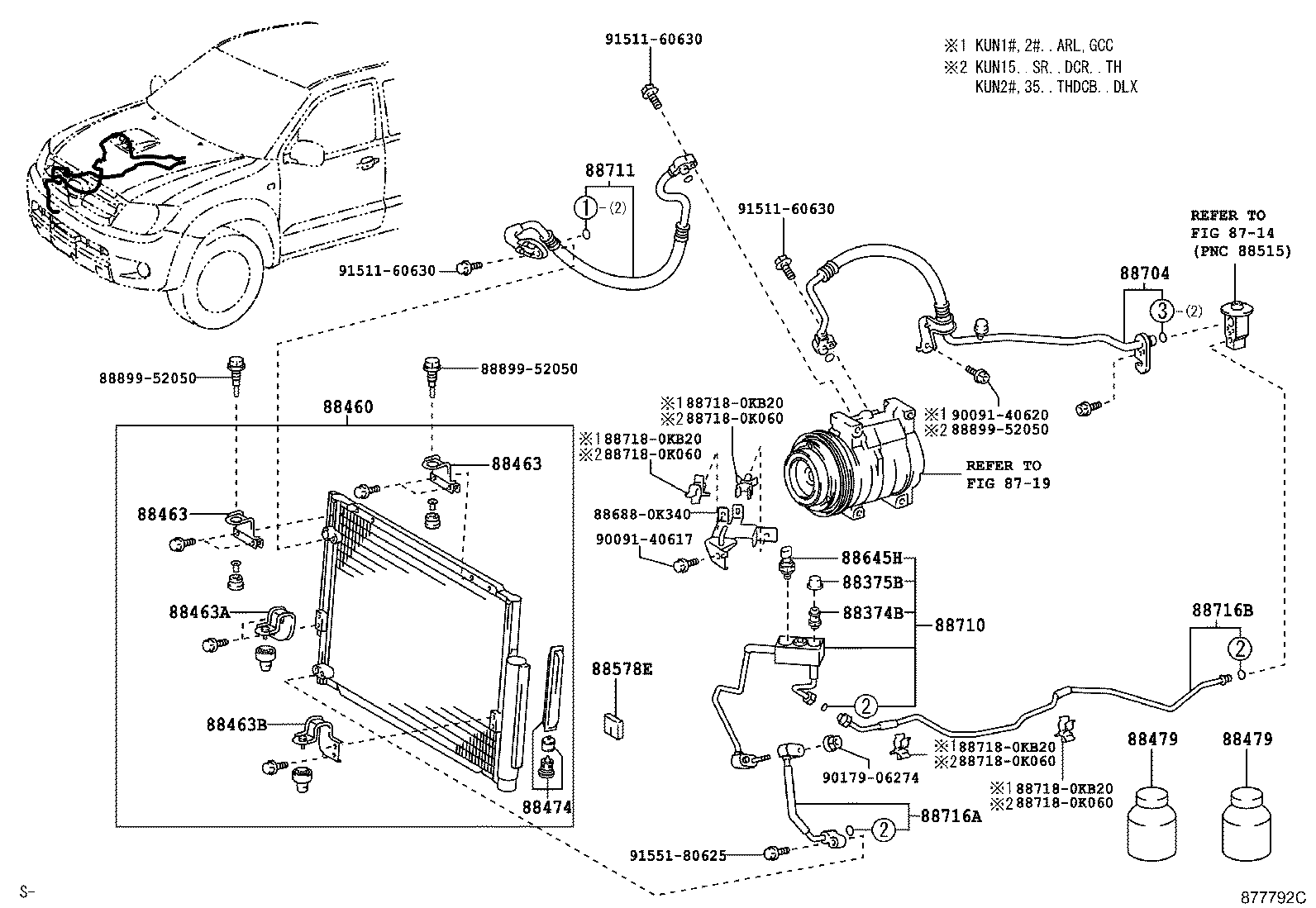

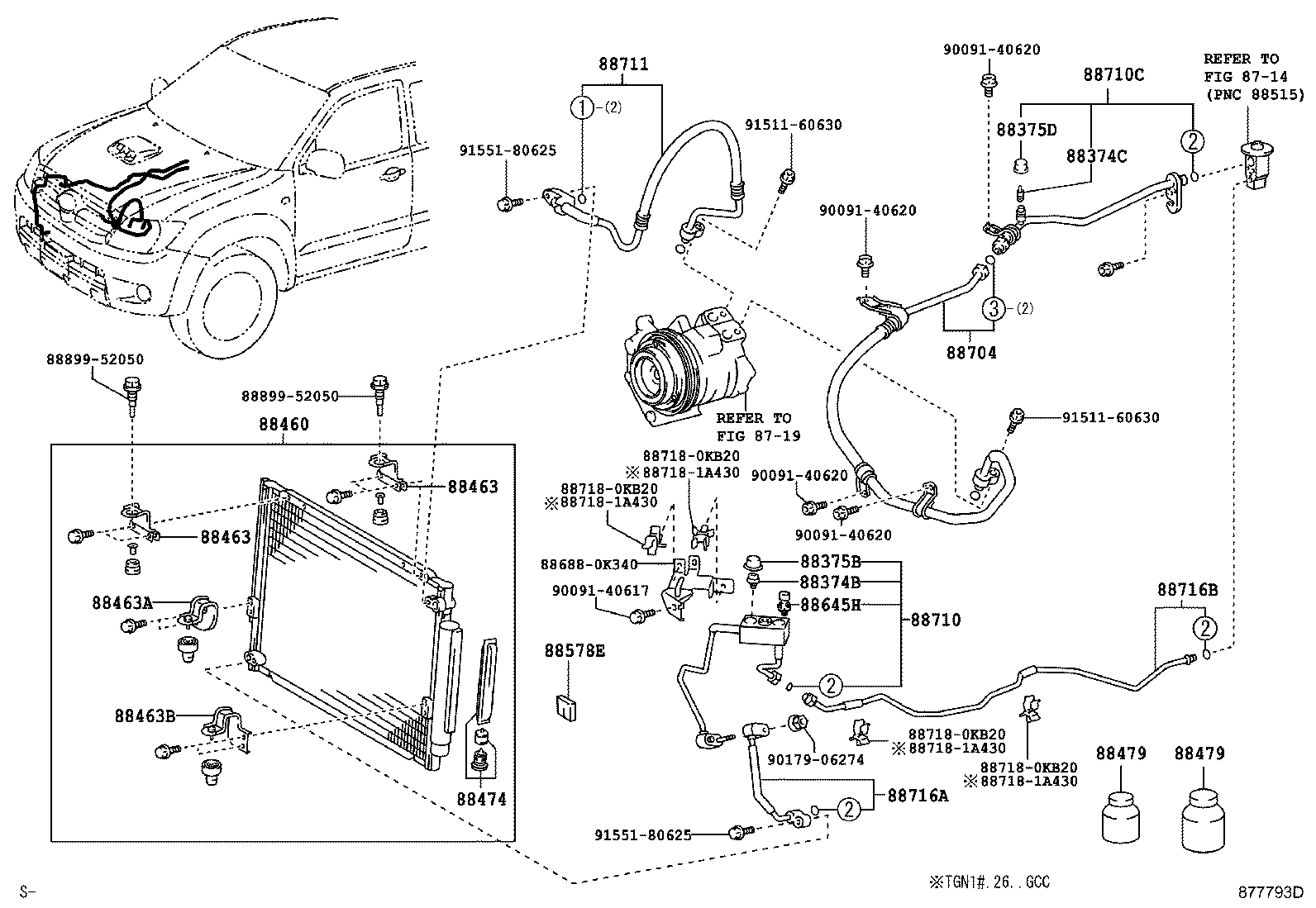

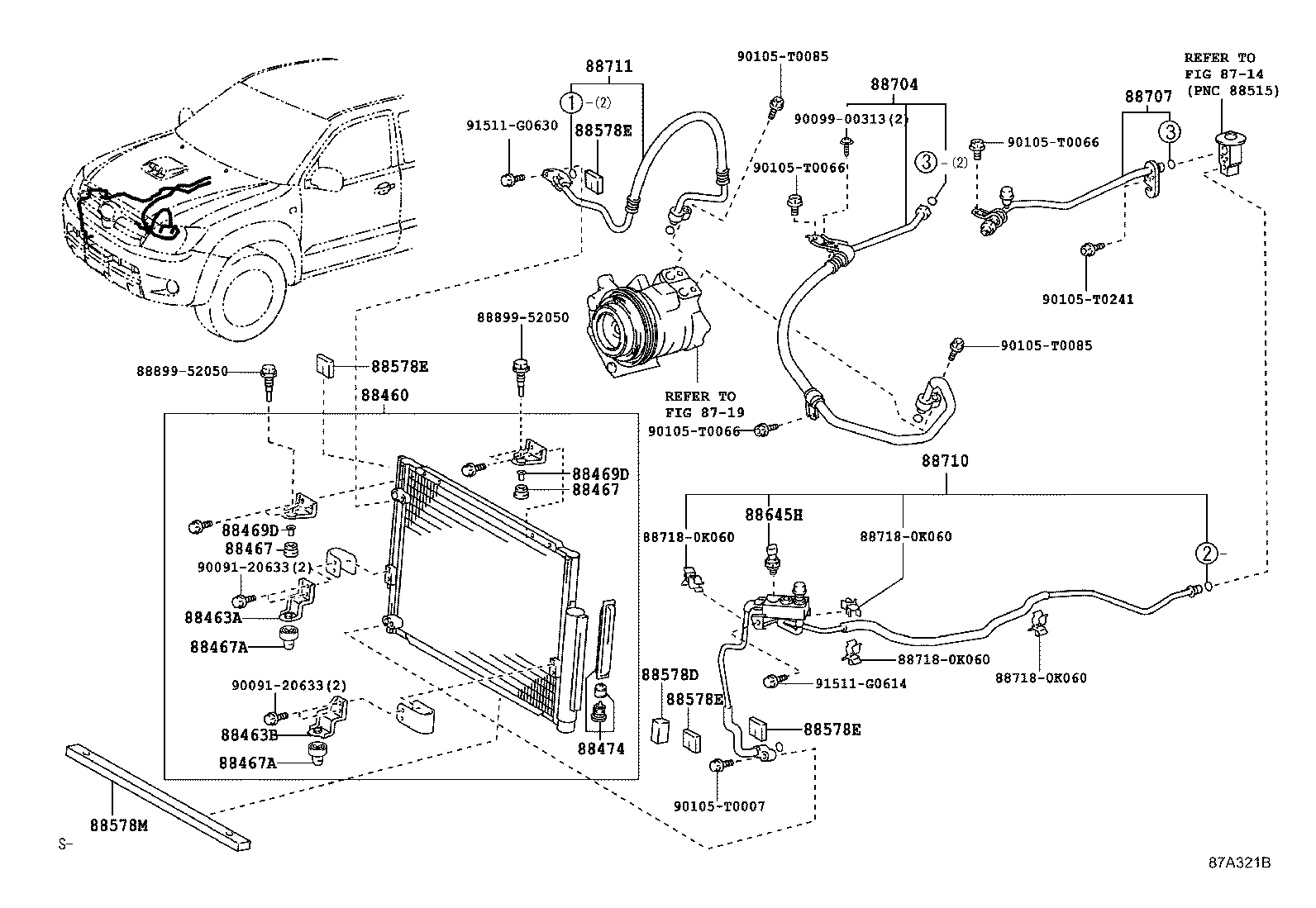

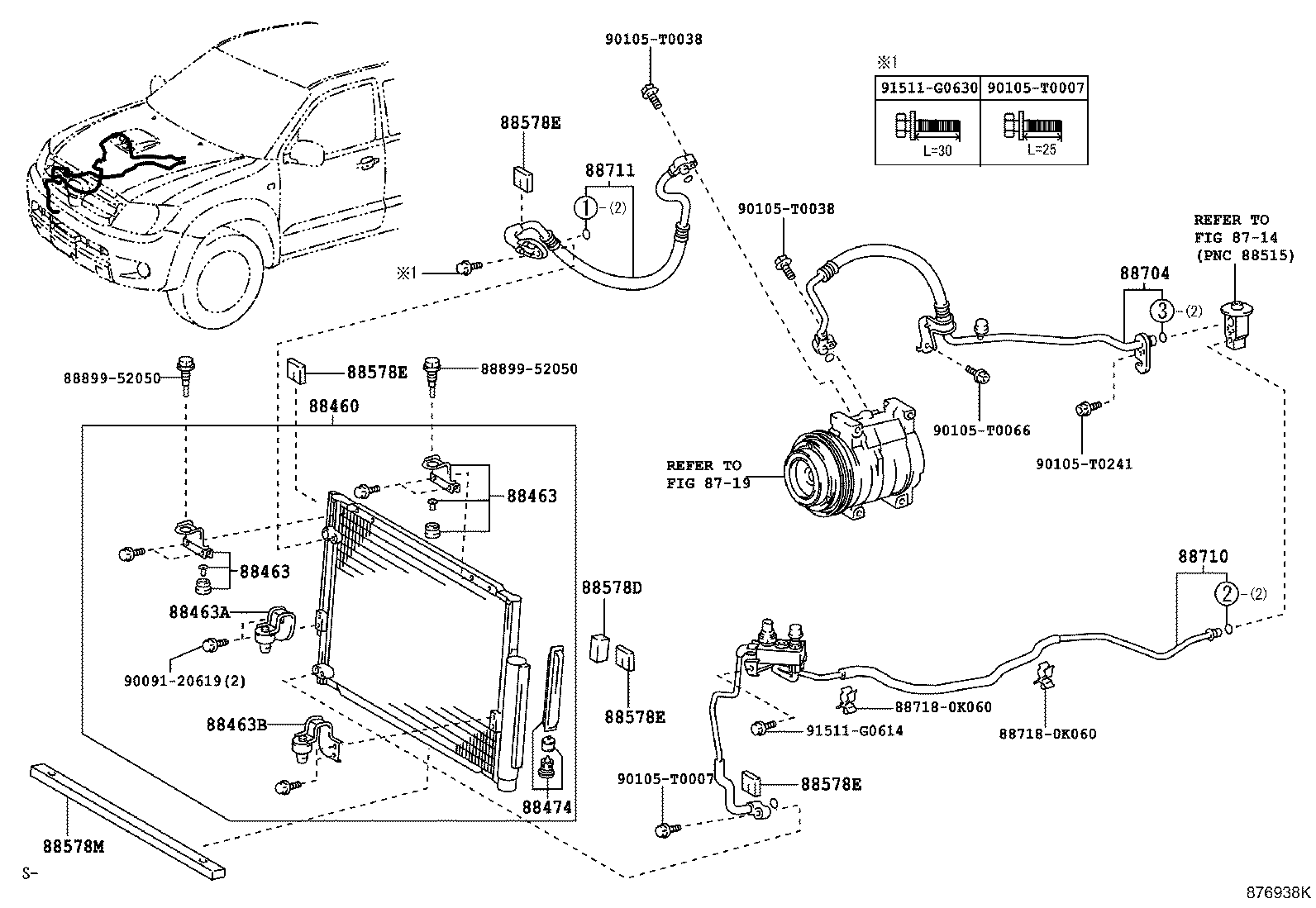

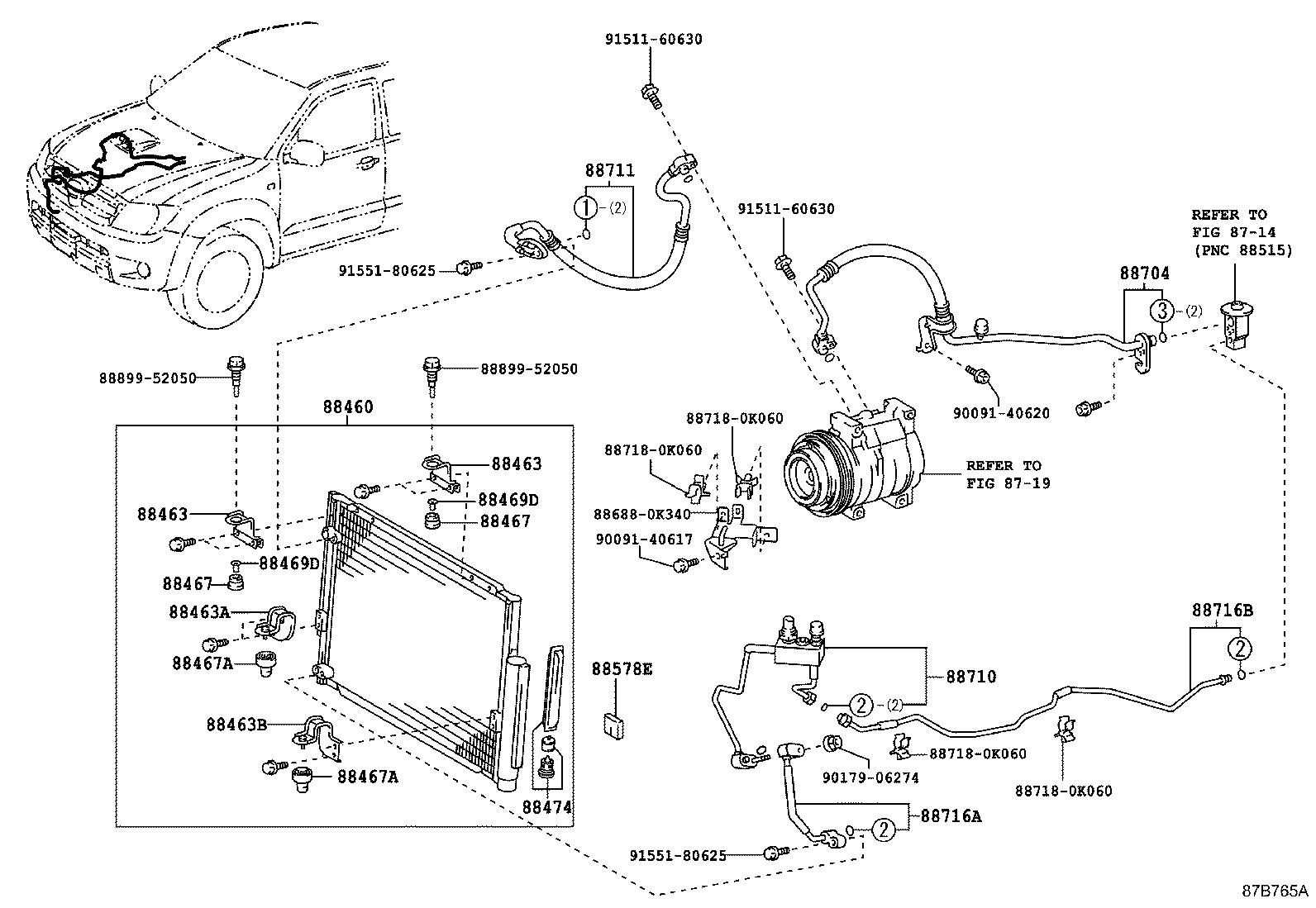

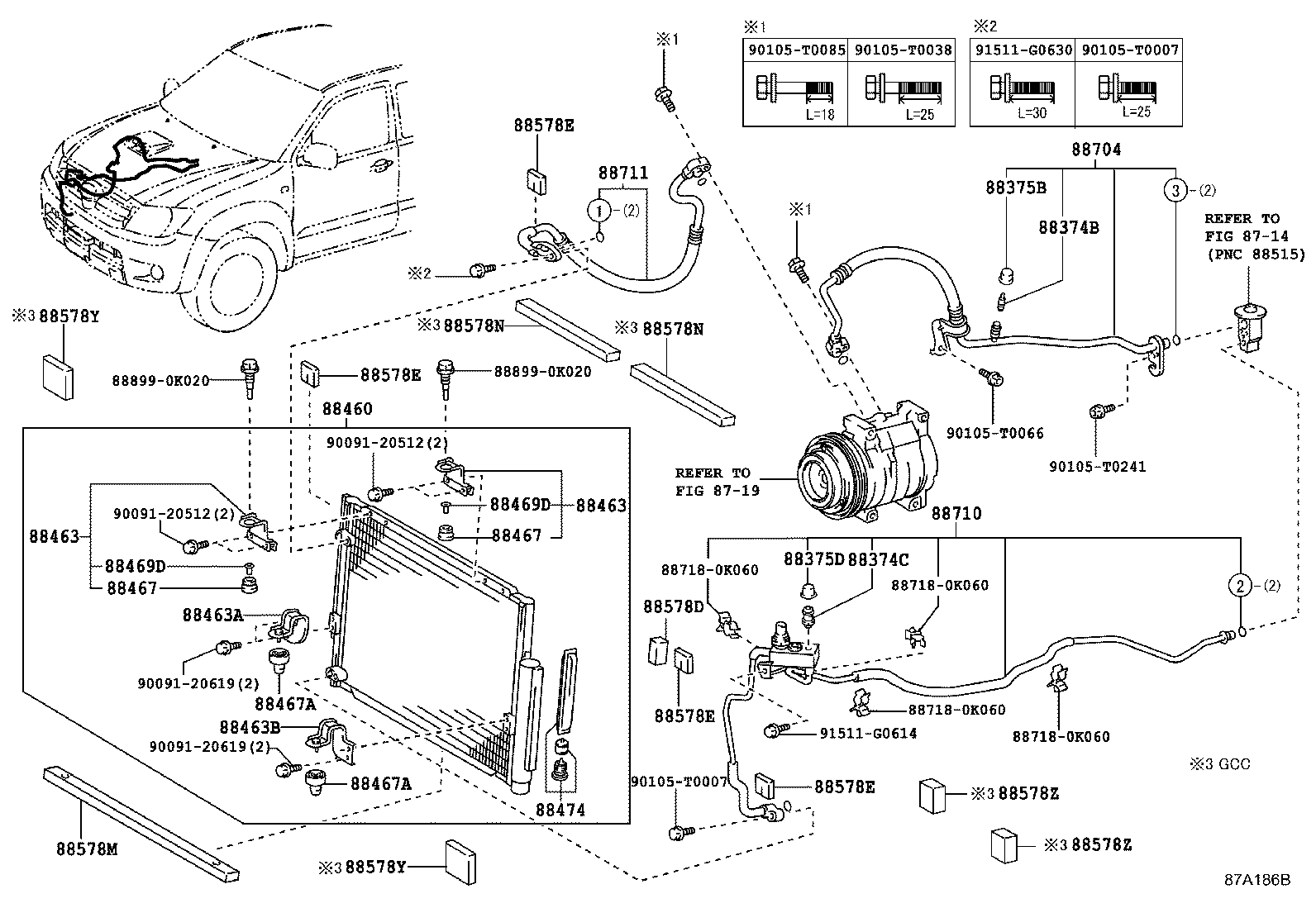

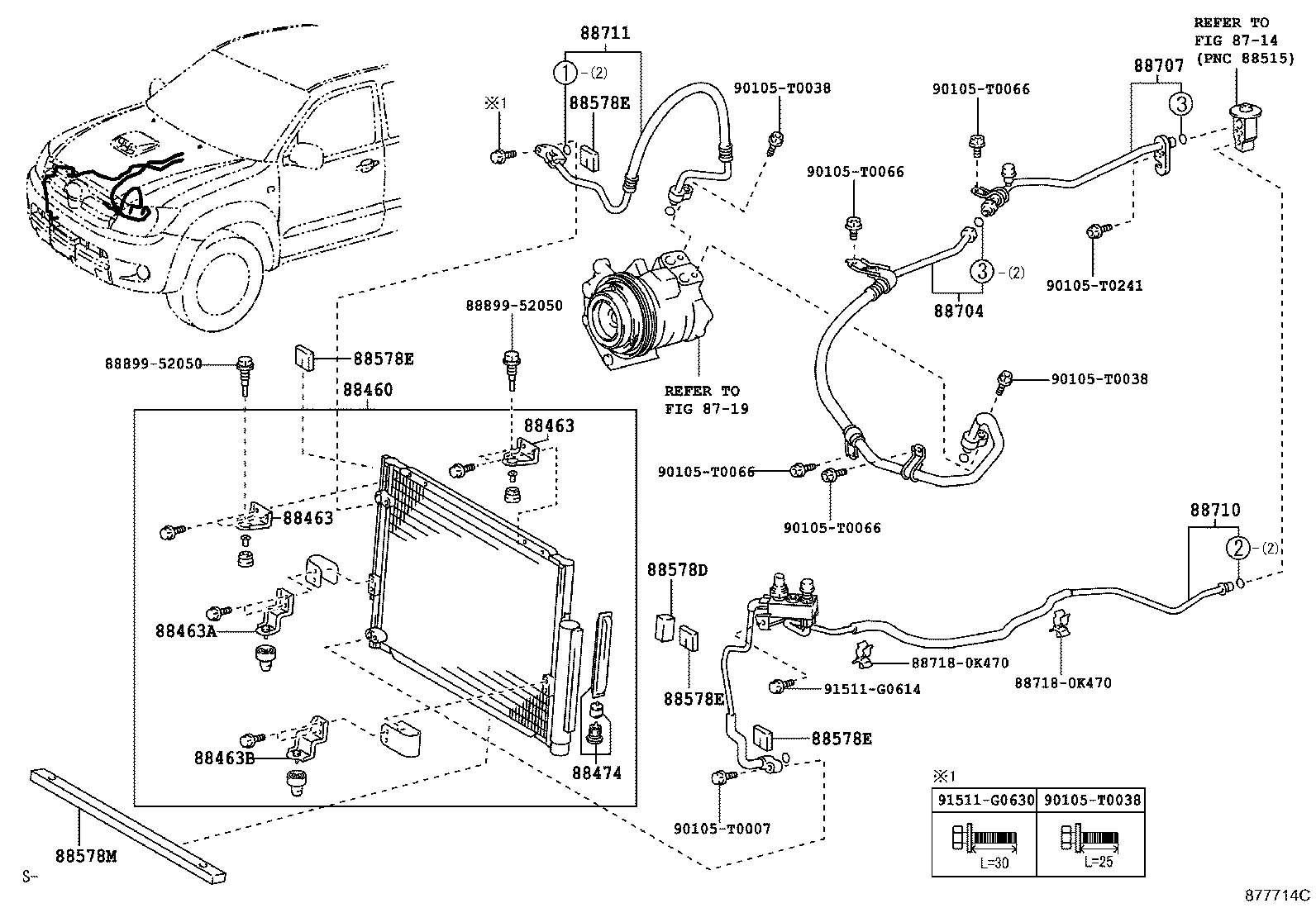

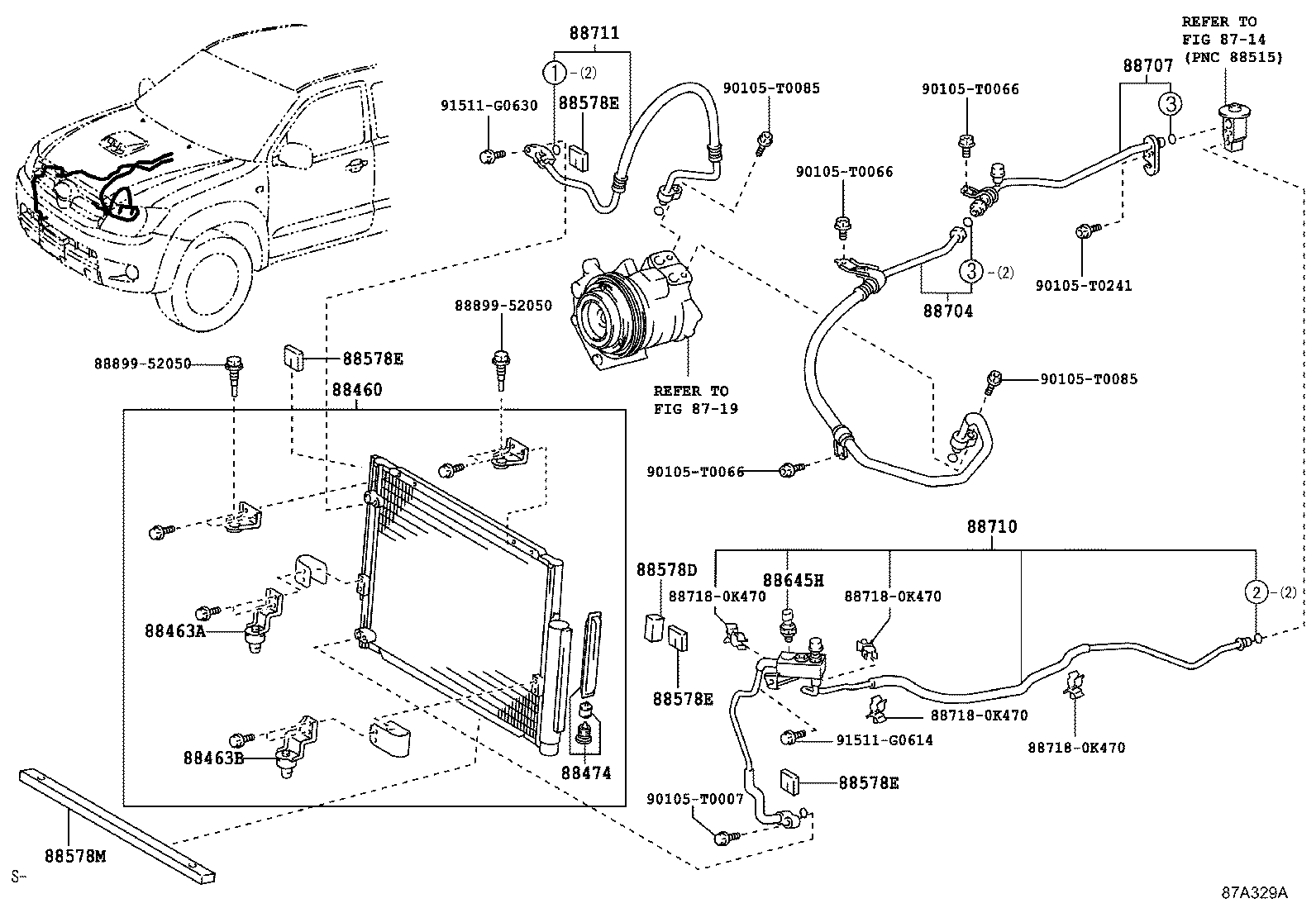

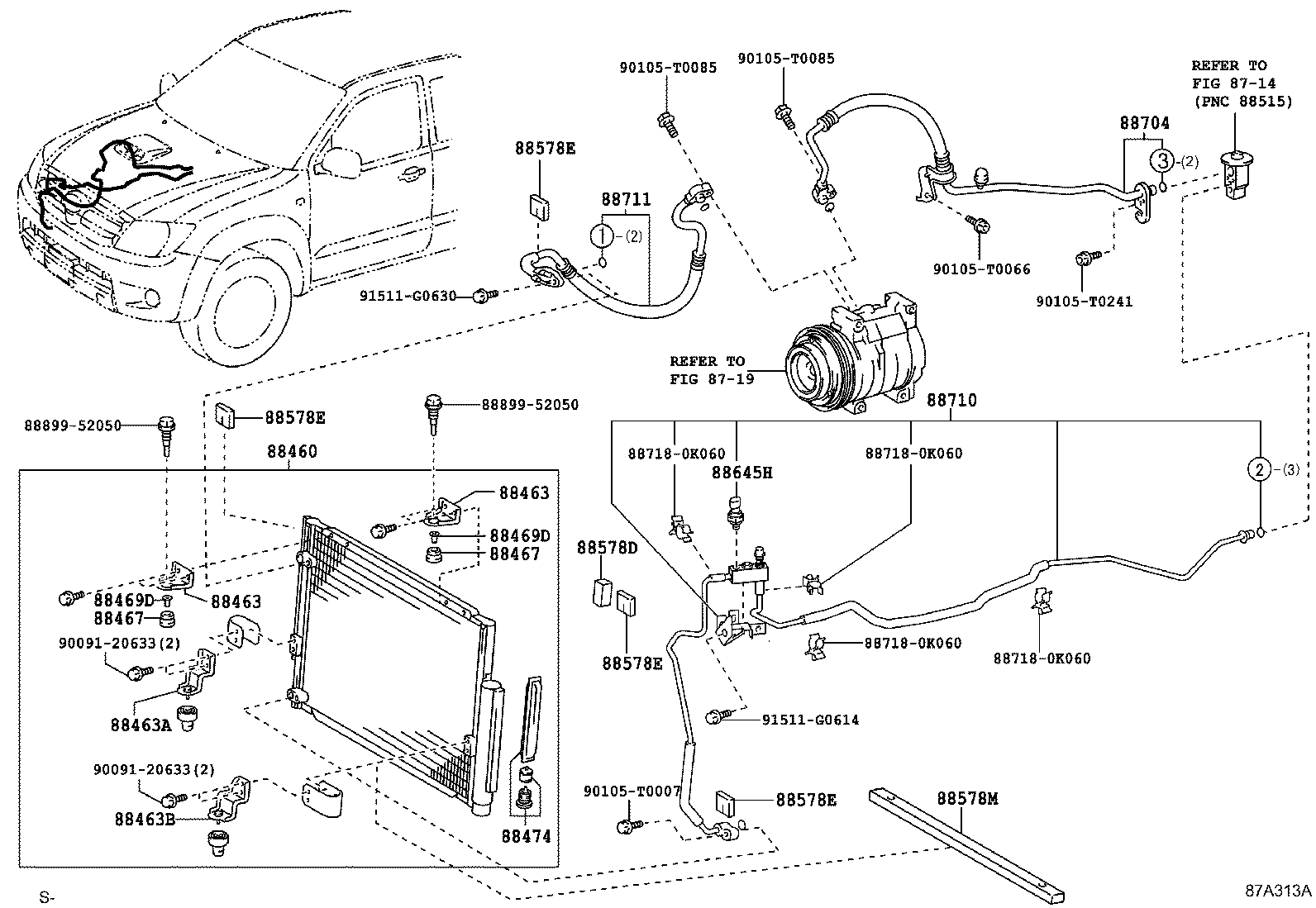

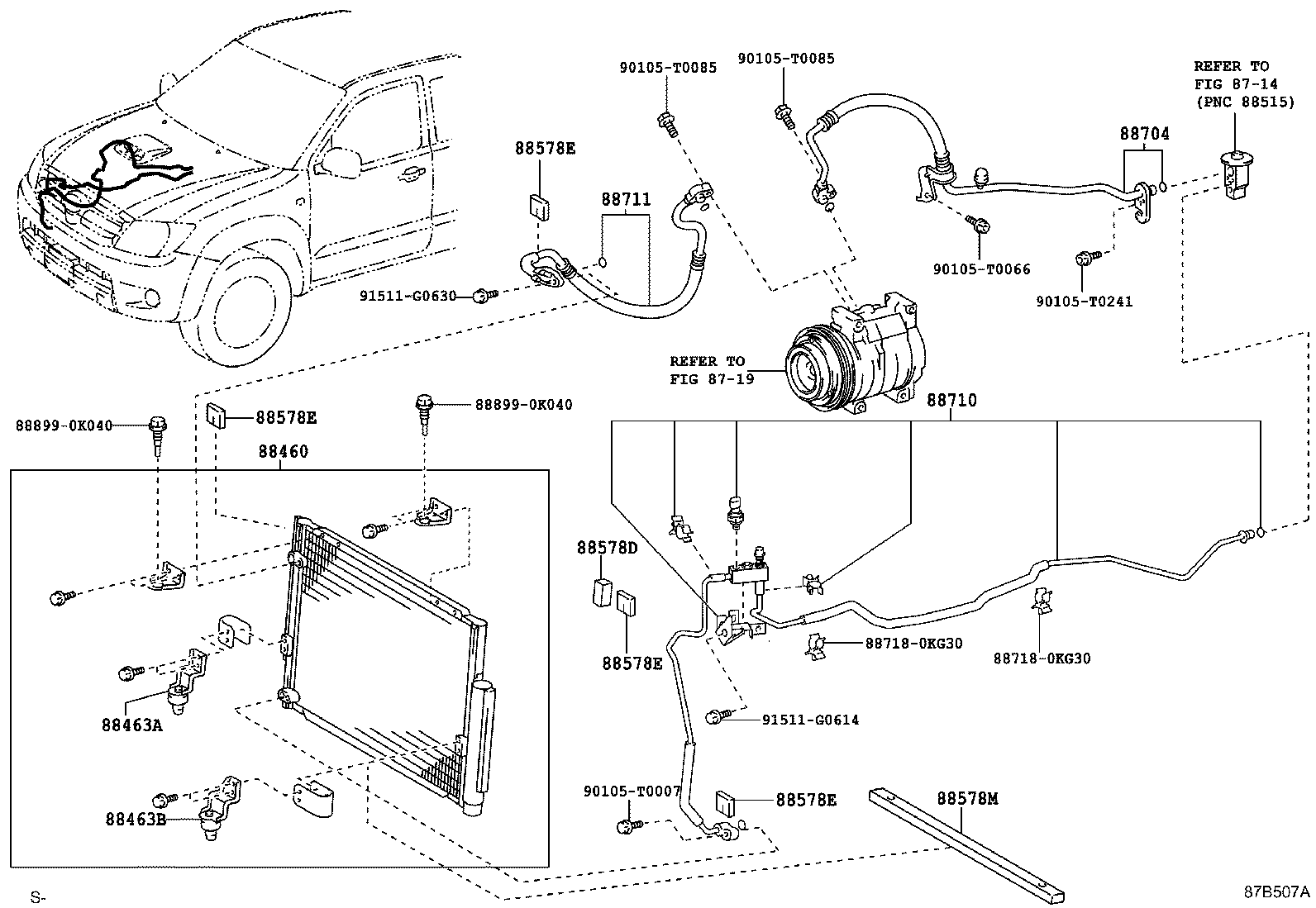

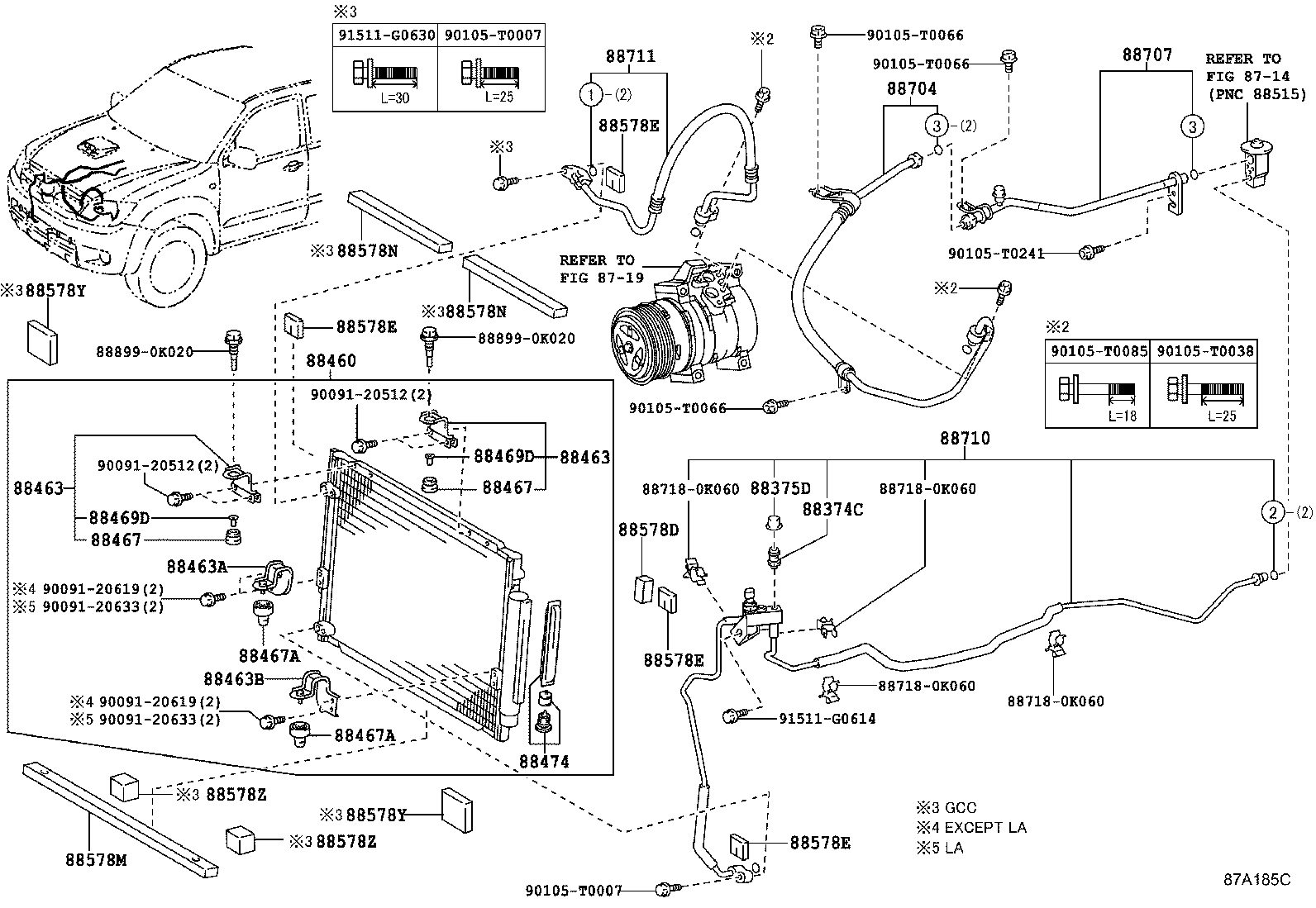

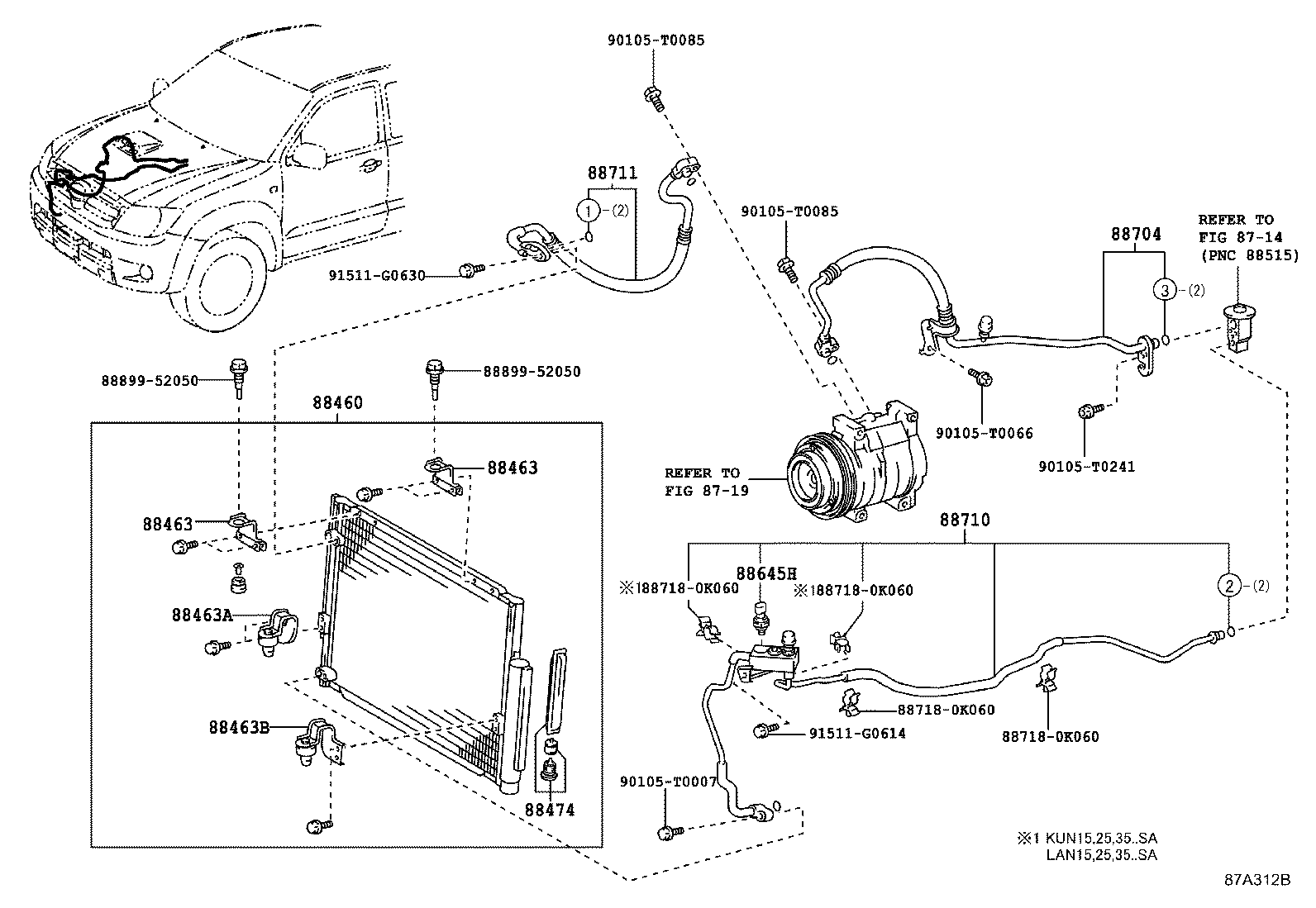

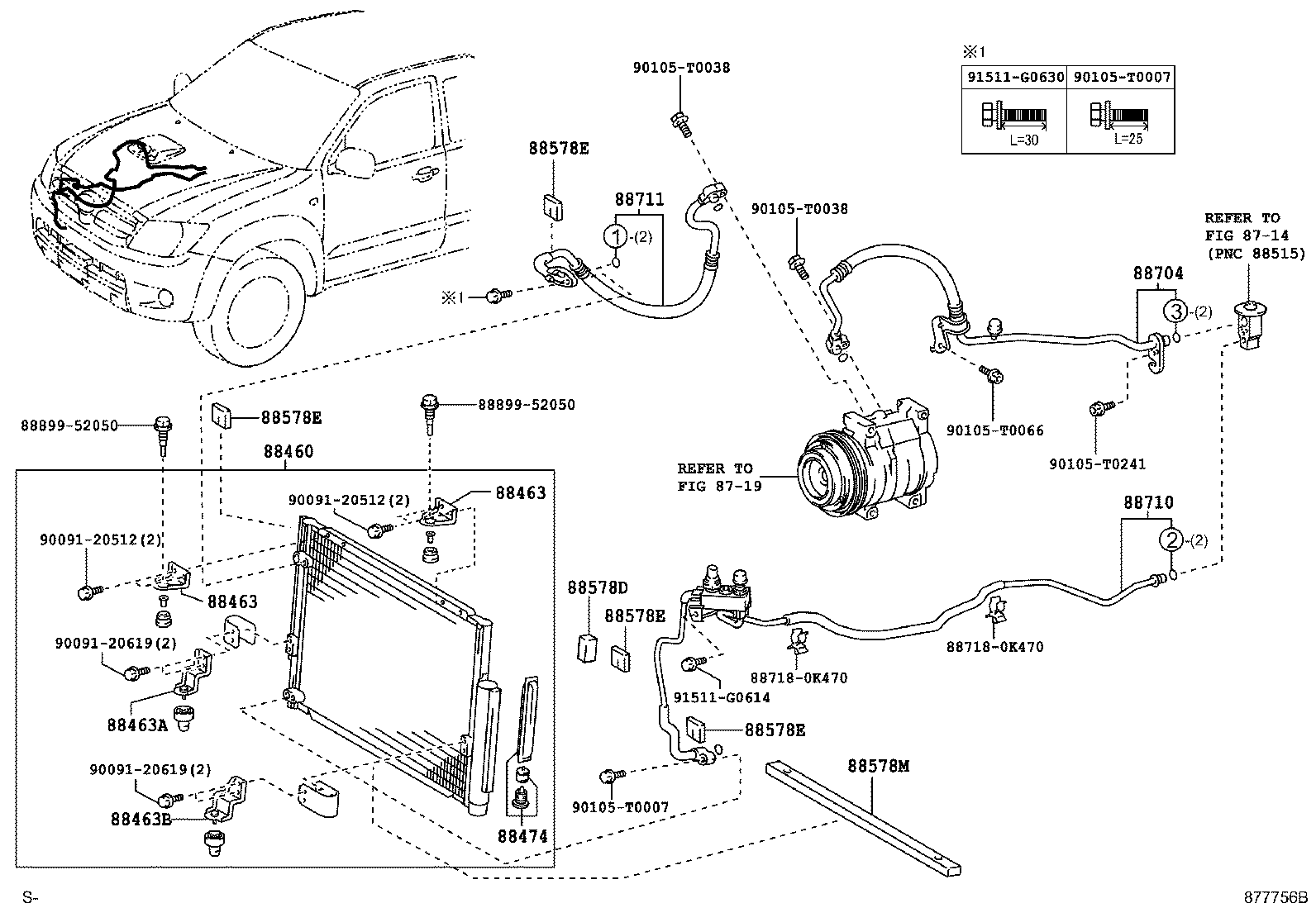

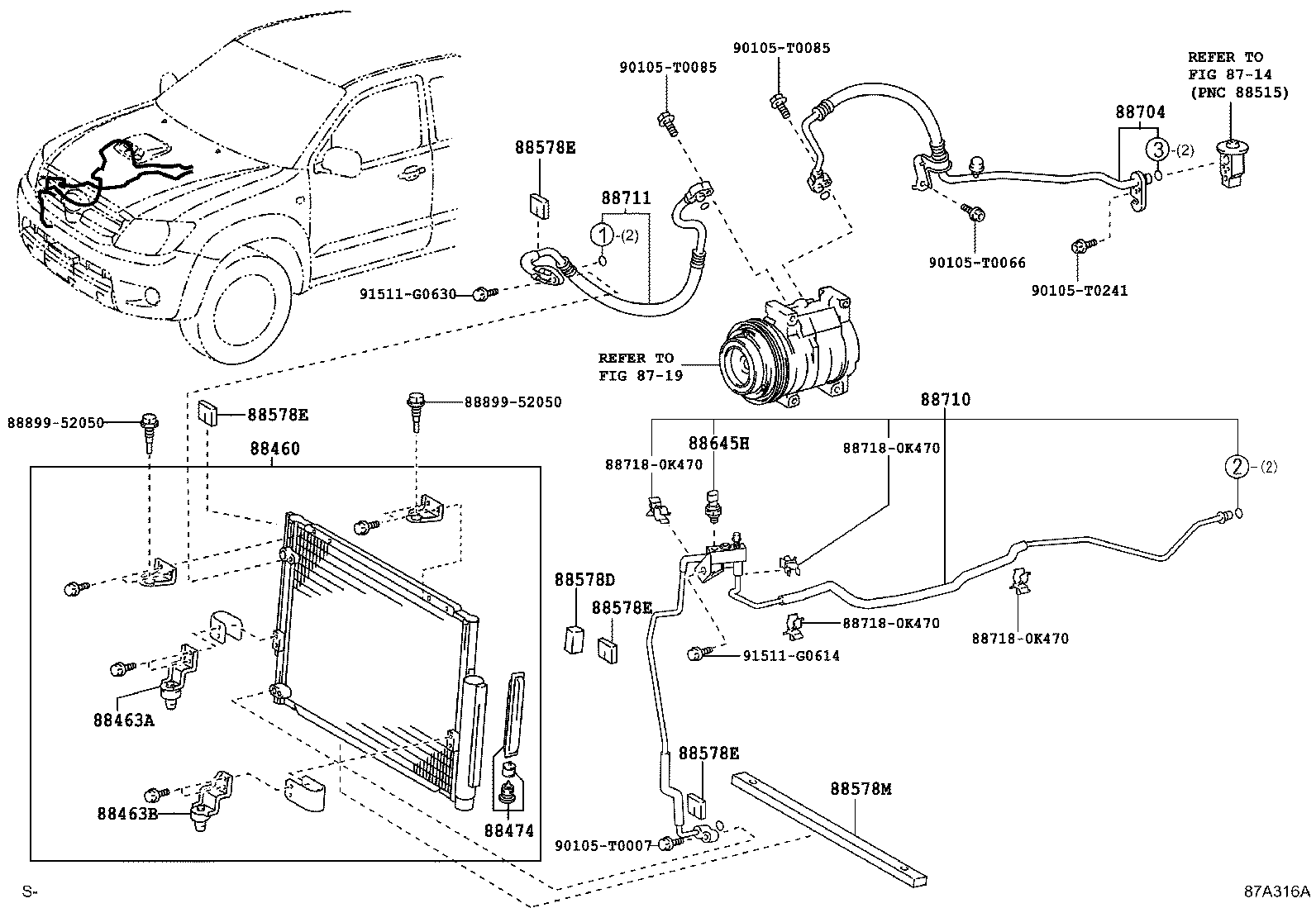

Figure 877405E 877405E 2005-01 → — Figure 87A186B 87A186B 2004-08 → 2008-10 Figure 87A186B 87A186B 2004-08 → — Figure 87A186B 87A186B 2004-08 → — Figure 87A186B 87A186B 2010-08 → — Figure 87A186B 87A186B 2010-08 → — Figure 877792C 877792C 2004-08 → — Figure 877792C 877792C 2004-08 → — Figure 877792C 877792C 2004-08 → — Figure 876938K 876938K 2005-07 → 2008-10 Figure 87A185C 87A185C 2005-01 → 2008-10 Figure 87A185C 87A185C 2005-01 → — Figure 877793D 877793D 2005-02 → — Figure 877793D 877793D 2005-02 → — Figure 877756B 877756B 2005-07 → 2008-12 Figure 877714C 877714C 2005-07 → 2008-12 Figure 877714C 877714C 2005-08 → — Figure 87A312B 87A312B 2008-10 → — Figure 87A313A 87A313A 2008-08 → — Figure 87A316A 87A316A 2008-12 → — Figure 87A320A 87A320A 2008-10 → — Figure 87A321B 87A321B 2008-08 → — Figure 87A329A 87A329A 2008-12 → — Figure 87B507A 87B507A 2010-10 → — Figure 87B765A 87B765A 2010-12 → — Figure 877126E 877126E 2004-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88578M Packing, Cooling Pipe, NO.3
88578N Packing, Cooling Pipe, NO.4
88578Y Packing, Cooling Pipe, NO.5
88578Z Packing, Cooler, NO.1
88645H Switch, Pressure NO.1
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
