Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

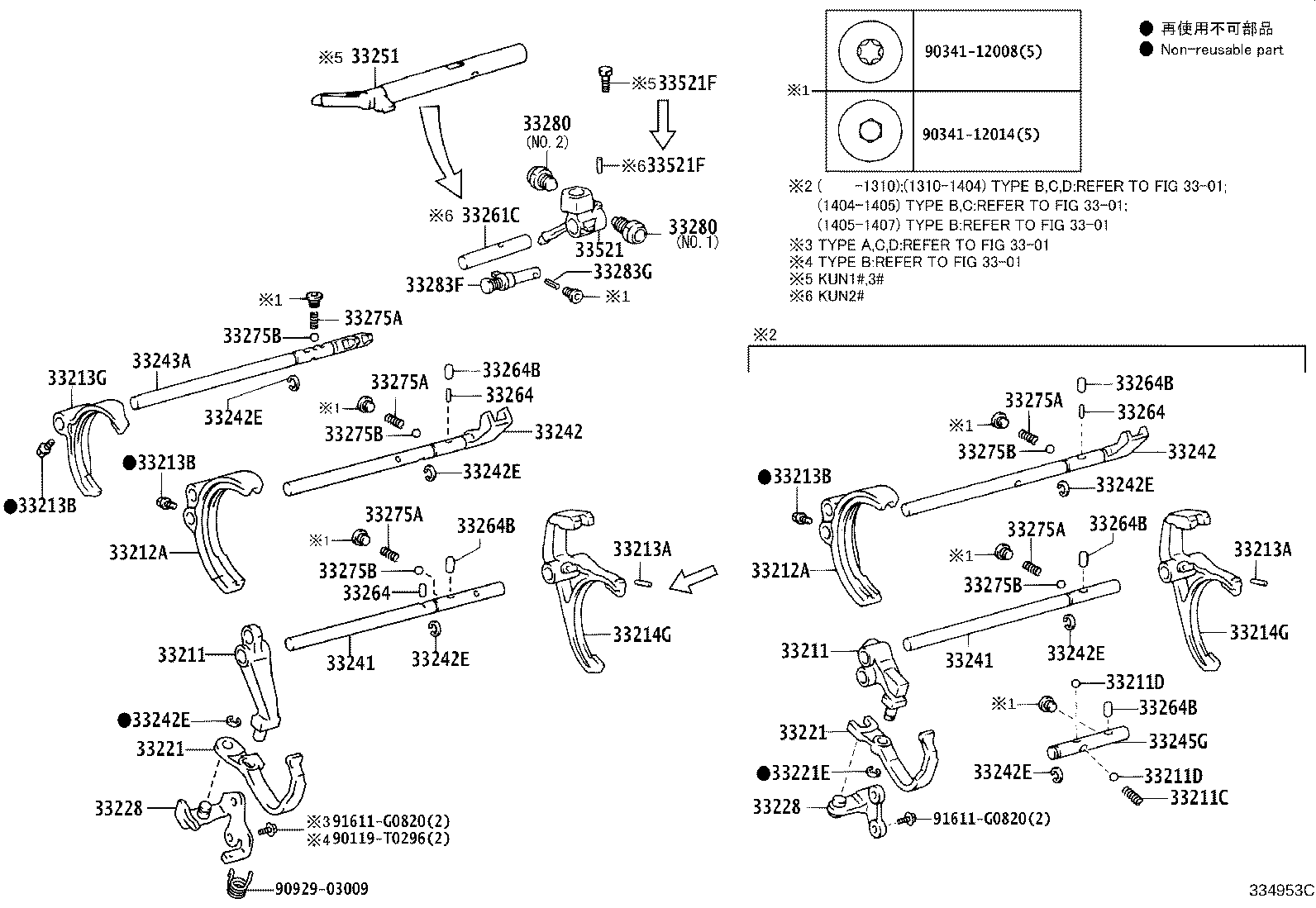

Exploded illustration 334953C 33264 — PIN, OR BALL, SHIFT INTERLOCK, NO.1 (36 parts) 33264B — ROLLER, NO.1 (FOR SHIFT INTERLOCK ) (41 parts) 33264B — ROLLER, NO.1 (FOR SHIFT INTERLOCK ) (41 parts) 33242 — SHAFT, GEAR SHIFT FORK, NO.1 (31 parts) 33275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) (22 parts) 33275B — BALL, SHAFT DETENT (25 parts) 33275B — BALL, SHAFT DETENT (25 parts) 33275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) (22 parts) 33275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) (22 parts) 33243A — SHAFT, GEAR SHIFT FORK, NO.2 (15 parts) 33213G — FORK, GEAR SHIFT, NO.2 (22 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (10 parts) 33213B — BOLT(FOR SHIFT FORK SET) (29 parts) 33213B — BOLT(FOR SHIFT FORK SET) (29 parts) 33212A — FORK, GEAR SHIFT, NO.1 (11 parts) 33211 — FORK, REVERSE SHIFT (26 parts) 33275B — BALL, SHAFT DETENT (25 parts) 33241 — SHAFT, REVERSE SHIFT FORK (31 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (10 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (10 parts) 33264B — ROLLER, NO.1 (FOR SHIFT INTERLOCK ) (41 parts) 33213A — PIN, SLOTTED SPRING(FOR SHIFT FORK SET) (20 parts) 33214G — FORK, GEAR SHIFT, NO.3 (22 parts) 33211D — BALL(FOR REVERSE SHIFT FORK) (16 parts) 33264B — ROLLER, NO.1 (FOR SHIFT INTERLOCK ) (41 parts) 33245G — SHAFT, GEAR SHIFT FORK, NO.4 (17 parts) 33211D — BALL(FOR REVERSE SHIFT FORK) (16 parts) 33211C — SPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN) (14 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (10 parts) 91611G0820 — not listed in this catalogue 33221 — ARM, REVERSE SHIFT (26 parts) 33221E — RING(FOR REVERSE SHIFT ARM END SHAFT) (9 parts) 33228 — BRACKET, REVERSE SHIFT ARM (38 parts) 9034112008 — not listed in this catalogue 9034112014 — not listed in this catalogue 33264 — PIN, OR BALL, SHIFT INTERLOCK, NO.1 (36 parts) 33242 — SHAFT, GEAR SHIFT FORK, NO.1 (31 parts) 33275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) (22 parts) 33275B — BALL, SHAFT DETENT (25 parts) 33275A — SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) (22 parts) 33213B — BOLT(FOR SHIFT FORK SET) (29 parts) 33212A — FORK, GEAR SHIFT, NO.1 (11 parts) 33211 — FORK, REVERSE SHIFT (26 parts) 33275B — BALL, SHAFT DETENT (25 parts) 33264 — PIN, OR BALL, SHIFT INTERLOCK, NO.1 (36 parts) 33241 — SHAFT, REVERSE SHIFT FORK (31 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (10 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (10 parts) 33242E — RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) (10 parts) 33264B — ROLLER, NO.1 (FOR SHIFT INTERLOCK ) (41 parts) 33213A — PIN, SLOTTED SPRING(FOR SHIFT FORK SET) (20 parts) 33214G — FORK, GEAR SHIFT, NO.3 (22 parts) 9092903009 — not listed in this catalogue 33221 — ARM, REVERSE SHIFT (26 parts) 33228 — BRACKET, REVERSE SHIFT ARM (38 parts) 91611G0820 — not listed in this catalogue 90119T0296 — not listed in this catalogue 33521 — HOUSING, SHIFT LEVER (31 parts) 33283G — PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) (15 parts) 33283F — PIN, REVERSE RESTRICT (13 parts) 33251 — LEVER, SHIFT & SELECT (19 parts) 33280 — PIN ASSY, REVERSE RESTRICT (44 parts) 33280 — PIN ASSY, REVERSE RESTRICT (44 parts) 33261C — SHAFT, SHIFT & SELECT LEVER (4 parts) 33521F — PIN OR BOLT (FOR SHIFT LEVER HOUSING) (19 parts) 33521F — PIN OR BOLT (FOR SHIFT LEVER HOUSING) (19 parts)
334953C · 60 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
606 parts on this figure
Part number Description Fitment Price
33211 — Fork, Reverse Shift
33211-0K010 note Fork, Reverse Shift
2011-07 → 2012-10 ended
TGN36 5F HTWCF —
33211-0K010 note Fork, Reverse Shift
2011-07 → 2014-01 ended
TGN36 ANCOM,ARL,CO,GCC,GEN,LA,SA) 5F HTWC;KUN25 +5 —
33211-0K010 note Fork, Reverse Shift
2013-08 → 2014-01 ended
TGN36 5F HTWCF —
33211-0K010 note Fork, Reverse Shift
2011-07 → 2014-05 ended
KUN15,35 5F HDCR;KUN16,26,36 5F +3 —
33211-0K020 note Fork, Reverse Shift
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33211-0K030 note Fork, Reverse Shift
2011-07 → 2014-07 ended
KUN15 B,XTR) HDCR 5F +3 —
33211-0K040 note Fork, Reverse Shift
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33211-0K040 note Fork, Reverse Shift
2014-04 → 2014-07 ended
KUN2# THDCB 5F —
33211-0K040 note Fork, Reverse Shift
2011-07 → 2014-07 ended
KUN16 5F TH;KUN26 5F +3 —
33211-0K040 note Fork, Reverse Shift
2011-07 → 2014-04 ended
KUN26,36 5F 5F (DCR,HDCR,HTWC) +4 —
33211-0K050 note Fork, Reverse Shift
2014-07 → 2015-04 ended
KUN15 F HDCR (ARL,GCC,GEN,IDN,PHL,TH) +3 —
33211-0K060 note Fork, Reverse Shift
2014-01 → 2020-03 ended
KUN25 GCC,GEN,LA,SA) 5F (IDN,MA,TH);KUN26,TGN11,16,26,36 +3 —
33211-0K060 note Fork, Reverse Shift
2014-05 → 2020-03 ended
KUN15 ,THDCB) HDCR;KUN16,26,36 5F +5 —
33211-0K060 note Fork, Reverse Shift
2014-01 → 2014-05 ended
KUN2# THDCB 5F —
33211-0K060 note Fork, Reverse Shift
2012-10 → 2020-03 ended
KUN35 XTR —
33211-0K060 note Fork, Reverse Shift
2012-10 → 2013-08 ended
TGN36 5F HTWCF —
33211-0K061 note Fork, Reverse Shift
2020-03 → —
TGN26 —
33211-0K070 note Fork, Reverse Shift
2014-04 → 2020-12 ended
KUN16,26,36,TGN36 ,16,26 5F 5F +4 —
33211-0K070 note Fork, Reverse Shift
2014-07 → 2020-12 ended
KUN26 5F IART;KUN25 5F +1 —
33211-0K071 note Fork, Reverse Shift
2020-12 → —
TGN26 —
33211-35050 note Fork, Reverse Shift
2011-07 → 2013-10 ended
TGN26 ;TGN26 CR,HTWC) DLX +16 —
33211-35050 note Fork, Reverse Shift
2012-04 → 2013-10 ended
TGN16 N);TGN26 CB,THDCB) XTR;TGN36 +19 —
33211-35060 note Fork, Reverse Shift
2013-10 → 2015-04 ended
KUN15,2#,3# 5F TH;TGN11,16,36 5F +2 —
33211-35060 note Fork, Reverse Shift
2013-10 → 2014-10 ended
TGN16,36 HTWC (LA,SA) —
33211-71010 note Fork, Reverse Shift
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33211-71010 note Fork, Reverse Shift
2015-08 → 2016-09 ended
KUN15 PKN —
33211C — Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2011-07 → 2016-09 ended
KUN1#,LAN15,25,35,TGN10,15 5F (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2015-08 → 2016-09 ended
KUN15 PKN —
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2011-07 → 2015-08 ended
KUN16 ,TH) 5F TH;GGN15,25,KUN10,15,TGN10,15 +3 —
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2014-04 → 2014-07 ended
KUN2# THDCB 5F —
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2011-07 → 2014-07 ended
KUN26 5F IART;KUN25 5F +1 —
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2011-07 → 2014-05 ended
KUN15,35 5F HDCR;KUN16,26,36 5F +3 —
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2013-08 → 2014-01 ended
TGN36 5F HTWCF —
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2011-07 → 2014-01 ended
TGN36 ANCOM,ARL,CO,GCC,GEN,LA,SA) 5F HTWC;KUN25 +5 —
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2012-04 → 2013-10 ended
TGN16 N);TGN26 CB,THDCB) XTR;TGN36 +19 —
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2011-07 → 2013-10 ended
KUN26,36 N26 HTWC) 5F +16 —
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2011-07 → 2012-10 ended
TGN36 5F HTWCF —
90501-12166 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2011-07 → 2014-04 ended
KUN26,36 5F 5F (DCR,HDCR,HTWC) +4 —
90501-T0022 note Spring, Compression(FOR REVERSE SHIFT FORK RETURN)
2011-07 → 2014-07 ended
KUN15 B,XTR) HDCR 5F +3 —
33211D — Ball(FOR REVERSE SHIFT FORK)
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2015-08 → 2016-09 ended
KUN15 PKN —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2014-04 → 2014-07 ended
KUN2# THDCB 5F —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2011-07 → 2014-07 ended
KUN16 5F TH;KUN26 5F +3 —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2011-07 → 2014-07 ended
KUN15 B,XTR) HDCR 5F +3 —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2011-07 → 2014-05 ended
KUN15,35 5F HDCR;KUN16,26,36 5F +3 —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2013-08 → 2014-01 ended
TGN36 DCB 5F HTWCF —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2013-08 → 2014-01 ended
TGN36 SCB HTWCF —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2011-07 → 2014-01 ended
TGN36 ANCOM,ARL,CO,GCC,GEN,LA,SA) 5F HTWC;KUN25 +5 —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2012-04 → 2013-10 ended
TGN16 N);TGN26 CB,THDCB) XTR;TGN36 +19 —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2011-07 → 2013-10 ended
TGN26 ;TGN26 CR,HTWC) DLX +16 —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2011-07 → 2012-10 ended
TGN36 5F HTWCF —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
90360-10003 note Ball(FOR REVERSE SHIFT FORK)
2011-07 → 2014-04 ended
KUN26,36 5F 5F (DCR,HDCR,HTWC) +4 —
90360-T0008 note Ball(FOR REVERSE SHIFT FORK)
2013-04 → 2014-07 ended
KUN15 B,XTR) HDCR 5F +3 —
33212A — Fork, Gear Shift, NO.1
33212-0K020 note Fork, Gear Shift, NO.1
2011-07 → 2015-04 ended
KUN15 B,XTR) HDCR 5F +3 —
33212-0K030 note Fork, Gear Shift, NO.1
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33212-0K030 note Fork, Gear Shift, NO.1
2011-07 → —
KUN16,26,36,TGN36 HDCR,HTWC,HTWCF) 5F (DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26 +2 —
33212-0K050 note Fork, Gear Shift, NO.1
2014-06 → —
KUN16,26,36 C,HTWCF) 5F;TGN16 (ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) +4 —
33212-35032 note Fork, Gear Shift, NO.1
2011-07 → 2015-04 ended
TGN26 DCB ANCOM —
33212-35032 note Fork, Gear Shift, NO.1
2011-07 → 2015-08 ended
KUN16,26,36 6 5F 5F +7 —
33212-35032 note Fork, Gear Shift, NO.1
2012-04 → 2015-04 ended
TGN16 GCC,TH) XTR;TGN11,36 GCC,GEN;TGN26 +6 —
33212-35032 note Fork, Gear Shift, NO.1
2012-04 → 2014-10 ended
TGN36 16,26 SCB 5F +12 —
33212-35032 note Fork, Gear Shift, NO.1
2011-07 → 2014-10 ended
TGN26 DLX HTWCF;TGN26,36 SR +2 —
33212-35032 note Fork, Gear Shift, NO.1
2011-07 → 2014-06 ended
KUN15,35 5F HDCR;KUN16,26,36 5F +3 —
33212-35032 note Fork, Gear Shift, NO.1
2011-07 → 2014-05 ended
KUN25 GCC,GEN,LA,SA) 5F (IDN,MA,TH);KUN26,TGN11,16,26,36 +3 —
33213A — Pin, Slotted Spring(FOR SHIFT FORK SET)
90254-05001 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
90254-05001 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2015-08 → 2016-09 ended
KUN15 PKN —
90254-05001 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → —
KUN25 XTR;KUN25 5F (IDN,TH);KUN26 +4 —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2012-03 → —
KUN26 .RHD 5F (DCB,SCB,SMT,XTR) +8 —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → —
KUN16,36,TGN36 TWCF) 5F (DCR,HTWC);GGN15,25,KUN15,35,TGN11,16,26 +2 —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → —
KUN16,36 F) 5F;TGN16 5F +3 —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → —
KUN2# 5F —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → —
KUN15 HDCR (GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36 5F +1 —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → —
KUN2# 5F (ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → 2015-08 ended
KUN16,36 .(HDCR,HTWC) 5F (ANCOM,TH) +6 —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → 2012-03 ended
KUN25 GCC,GEN;KUN26 5F (ARL,GEN,PHL,TH) —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → 2012-03 ended
KUN2# (THDCB,THSCB) 5F —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → 2014-10 ended
TGN26 DLX HTWCF;TGN26,36 SR +2 —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2011-07 → 2015-04 ended
TGN26 DCB ANCOM —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2012-04 → 2015-04 ended
TGN16 GCC,TH) XTR;TGN11,36 GCC,GEN;TGN26 +6 —
90254-05016 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2012-04 → 2014-10 ended
TGN36 16,26 SCB 5F +12 —
90254-T0004 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2013-04 → —
KUN2# (DCB,SCB,SMT,THDCB,THSCB,XTR) 5F (ARL,GCC,GEN,IDN,PHL,TH) —
90254-T0004 note Pin, Slotted Spring(FOR SHIFT FORK SET)
2013-04 → —
KUN15 HDCR (GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36 5F +1 —
33213B — Bolt(FOR SHIFT FORK SET)
90105-06077 note Bolt(FOR SHIFT FORK SET)
2012-04 → 2015-04 ended
TGN16 XTR;TGN11,36 GCC,GEN;TGN16 5F +2 —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2011-07 → 2021-05 ended
KUN16,25 GEN,PHL,TH);KUN15,TGN36 ,16,26 5F +13 —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2014-04 → 2015-04 ended
KUN35 SMT 5F SR —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2014-04 → 2015-04 ended
KUN2#,35 THDCB 5F —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2014-05 → 2015-04 ended
KUN35 SMT DLX —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2014-08 → 2015-04 ended
KUN35 THDCB —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2011-07 → —
KUN35 6,TGN11,26 C,GEN,LA,SA) LHD +13 —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2014-10 → 2021-05 ended
KUN35 CO —
90105-06077 Bolt(FOR SHIFT FORK SET)
2013-10 → 2016-09 ended
KUN35 XTR;KUN25 SCB PKN;KUN35 +3 —
90105-06077 Bolt(FOR SHIFT FORK SET)
2014-01 → 2016-09 ended
KUN25 5F (IDN,MA,TH);KUN26,TGN36 5F +1 —
90105-06077 Bolt(FOR SHIFT FORK SET)
2014-04 → 2016-09 ended
KUN35 (CO,LA,SA);KUN15,25 LHD (DCB,THDCB,THSCB,XTR) +10 —
90105-06077 Bolt(FOR SHIFT FORK SET)
2014-05 → 2016-09 ended
KUN15 (GEN,PHL,TH) (DCB,SCB,SMT) HDCR;KUN35 +6 —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2011-07 → 2015-04 ended
KUN35 N15,25,TGN36 DLX 5F +11 —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2011-07 → 2015-04 ended
KUN15 B,XTR) HDCR 5F +3 —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2012-04 → 2014-10 ended
TGN16 SA;TGN36 DCB SA;TGN36 +7 —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2011-07 → 2014-10 ended
TGN36 SR HTWC LA —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2011-07 → 2014-10 ended
KUN35 CO —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2013-10 → 2014-05 ended
KUN35 SMT DLX —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2011-07 → 2014-05 ended
KUN15 (GEN,PHL,TH) (DCB,SCB,SMT) HDCR;KUN35 +6 —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2014-01 → 2014-04 ended
KUN2# THDCB 5F —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2011-07 → 2014-04 ended
KUN35 (CO,LA,SA);KUN16,25 LHD 5F +10 —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2011-07 → 2014-01 ended
KUN25 5F (IDN,MA,TH);KUN26,TGN36 5F +1 —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2012-04 → 2013-10 ended
TGN26 (DCB,THDCB) 5F (CO,GEN);TGN26 +4 —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2011-07 → 2013-10 ended
TGN26 );TGN26 DLX SR +11 —
90105-06077 note Bolt(FOR SHIFT FORK SET)
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
90105-06143 note Bolt(FOR SHIFT FORK SET)
2015-08 → 2016-09 ended
KUN15 PKN —
90105-06143 note Bolt(FOR SHIFT FORK SET)
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
90105-06143 note Bolt(FOR SHIFT FORK SET)
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
90105-T0157 note Bolt(FOR SHIFT FORK SET)
2021-05 → —
TGN26 —
33213G — Fork, Gear Shift, NO.2
33213-0K010 note Fork, Gear Shift, NO.2
2011-07 → 2013-02 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33213-0K011 note Fork, Gear Shift, NO.2
2013-02 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN) —
33213-0K030 note Fork, Gear Shift, NO.2
2014-07 → 2015-04 ended
KUN15 F HDCR (ARL,GCC,GEN,IDN,PHL,TH) +3 —
33213-0K040 note Fork, Gear Shift, NO.2
2014-07 → —
KUN26 5F IART;KUN25 5F +1 —
33213-0K040 note Fork, Gear Shift, NO.2
2014-05 → —
KUN16,26,36 C,HTWCF) 5F;TGN16 (ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) +4 —
33213-0K040 note Fork, Gear Shift, NO.2
2014-04 → —
KUN25 26 5F 5F +4 —
33213-0K040 note Fork, Gear Shift, NO.2
2014-04 → 2016-09 ended
KUN25 5F PKN —
33213-35033 note Fork, Gear Shift, NO.2
2011-07 → 2012-11 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33213-35034 note Fork, Gear Shift, NO.2
2015-08 → 2016-09 ended
KUN15 PKN —
33213-35034 note Fork, Gear Shift, NO.2
2012-11 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA) —
33213-35040 note Fork, Gear Shift, NO.2
2012-04 → 2014-10 ended
TGN16 SA;TGN36 DCB SA;TGN36 +7 —
33213-35040 note Fork, Gear Shift, NO.2
2012-04 → 2015-04 ended
TGN16 XTR;TGN11,36 GCC,GEN;TGN16 5F +2 —
33213-35040 note Fork, Gear Shift, NO.2
2011-07 → 2015-04 ended
KUN16,26,36 OM,TH) 5F TH;TGN16 +5 —
33213-35040 note Fork, Gear Shift, NO.2
2011-07 → 2014-10 ended
TGN36 SR HTWC LA —
33213-35040 note Fork, Gear Shift, NO.2
2014-04 → 2014-07 ended
KUN2# THDCB 5F —
33213-35040 note Fork, Gear Shift, NO.2
2011-07 → 2014-07 ended
KUN16 5F TH;KUN26 5F +3 —
33213-35040 note Fork, Gear Shift, NO.2
2011-07 → 2014-07 ended
KUN15 B,XTR) HDCR 5F +3 —
33213-35040 note Fork, Gear Shift, NO.2
2011-07 → 2014-05 ended
KUN16,26,36 C,HTWCF) 5F;TGN16 (ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) +4 —
33213-35040 note Fork, Gear Shift, NO.2
2011-07 → 2014-04 ended
KUN26,36 5F 5F (DCR,HDCR,HTWC) +4 —
33213-35040 note Fork, Gear Shift, NO.2
2012-04 → 2013-10 ended
TGN26 (DCB,THDCB) 5F (CO,GEN);TGN26 +4 —
33213-35040 note Fork, Gear Shift, NO.2
2011-07 → 2013-10 ended
TGN26 (ANCOM,LA) DLX HTWCF;TGN26 +7 —
33213-35040 note Fork, Gear Shift, NO.2
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33214G — Fork, Gear Shift, NO.3
33214-0K010 note Fork, Gear Shift, NO.3
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33214-35040 note Fork, Gear Shift, NO.3
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33214-35040 note Fork, Gear Shift, NO.3
2015-08 → 2016-09 ended
KUN15 PKN —
33230-0K030 note Fork, Gear Shift, NO.3
2015-06 → 2015-12 ended
KUN26,36 5F;KUN15,25,35,TGN16,26,36 5F (HDCR,HTWC,HTWCF) +1 —
33230-0K030 note Fork, Gear Shift, NO.3
2015-06 → 2015-12 ended
KUN26,36,TGN36 5F (DCR,HTWC,IART);KUN15,25,35,TGN16,26 5F +1 —
33230-35011 note Fork, Gear Shift, NO.3
2012-04 → 2014-10 ended
TGN36 16,26 SCB 5F +12 —
33230-35011 note Fork, Gear Shift, NO.3
2011-07 → 2015-01 ended
KUN16,26,36 C,HTWCF) 5F;TGN16 (ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) +4 —
33230-35011 note Fork, Gear Shift, NO.3
2011-07 → 2015-01 ended
KUN16,26,36,TGN36 HDCR,HTWC,HTWCF) 5F (DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26 +2 —
33230-35011 note Fork, Gear Shift, NO.3
2011-07 → 2015-01 ended
TGN26 (HDCR,HTWC) SCB (ANCOM,TH) +6 —
33230-35011 note Fork, Gear Shift, NO.3
2012-04 → 2015-01 ended
TGN16 GCC,TH) XTR;TGN11,36 GCC,GEN;TGN26 +6 —
33230-35011 note Fork, Gear Shift, NO.3
2011-07 → 2014-10 ended
TGN26 DLX HTWCF;TGN26,36 SR +2 —
33230-35011 note Fork, Gear Shift, NO.3
2011-07 → 2014-07 ended
KUN15 B,XTR) HDCR 5F +3 —
33230-35011 note Fork, Gear Shift, NO.3
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33230-35012 note Fork, Gear Shift, NO.3
2015-12 → —
KUN25,TGN26 5F (ANCOM,MA) —
33230-35012 note Fork, Gear Shift, NO.3
2015-01 → —
KUN15 MT,THDCB,THSCB,XTR) HDCR 5F +5 —
33230-35012 note Fork, Gear Shift, NO.3
2015-01 → —
KUN15 F HDCR (ARL,GCC,GEN,IDN,PHL,TH) +3 —
33230-35012 note Fork, Gear Shift, NO.3
2015-12 → 2016-09 ended
KUN25 5F PKN —
33230-35012 note Fork, Gear Shift, NO.3
2015-01 → 2015-05 ended
KUN26 ,TGN16,26 SADCB 5F +6 —
33230-35012 note Fork, Gear Shift, NO.3
2015-01 → 2015-09 ended
TGN26 WC SCB,THDCB;KUN15,2#,3# (ARL,GCC,GEN,TH) +7 —
33230-35012 note Fork, Gear Shift, NO.3
2014-07 → 2015-04 ended
KUN15 F HDCR (ARL,GCC,GEN,IDN,PHL,TH) +3 —
33230-35012 note Fork, Gear Shift, NO.3
2015-01 → 2015-04 ended
TGN36 5F ANCOM;TGN26 DCB +1 —
33230-35012 note Fork, Gear Shift, NO.3
2015-01 → 2015-05 ended
KUN26 HTWCF) SADCB (ANCOM,CO,LA,MA,SA) +5 —
33221 — Arm, Reverse Shift
33221-0K010 note Arm, Reverse Shift
2011-07 → 2012-10 ended
TGN36 5F HTWCF —
33221-0K010 note Arm, Reverse Shift
2011-07 → 2014-01 ended
TGN36 ANCOM,ARL,CO,GCC,GEN,LA,SA) 5F HTWC;KUN25 +5 —
33221-0K010 note Arm, Reverse Shift
2013-08 → 2014-01 ended
TGN36 5F HTWCF —
33221-0K010 note Arm, Reverse Shift
2011-07 → 2014-05 ended
KUN15,35 5F HDCR;KUN16,26,36 5F +3 —
33221-0K020 note Arm, Reverse Shift
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33221-0K030 note Arm, Reverse Shift
2011-07 → 2014-07 ended
KUN15 B,XTR) HDCR 5F +3 —
33221-0K040 note Arm, Reverse Shift
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33221-0K040 note Arm, Reverse Shift
2014-04 → 2014-07 ended
KUN2# THDCB 5F —
33221-0K040 note Arm, Reverse Shift
2011-07 → 2014-04 ended
KUN26,36 5F 5F (DCR,HDCR,HTWC) +4 —
33221-0K040 note Arm, Reverse Shift
2011-07 → 2014-07 ended
KUN16 5F TH;KUN26 5F +3 —
33221-0K050 note Arm, Reverse Shift
2014-07 → 2015-04 ended
KUN15 F HDCR (ARL,GCC,GEN,IDN,PHL,TH) +3 —
33221-0K060 note Arm, Reverse Shift
2012-10 → 2013-08 ended
TGN36 5F HTWCF —
33221-0K060 note Arm, Reverse Shift
2012-10 → 2015-11 ended
KUN35 XTR —
33221-0K060 note Arm, Reverse Shift
2014-01 → 2015-11 ended
KUN25 GCC,GEN,LA,SA) 5F (IDN,MA,TH);KUN26,TGN11,16,26,36 +3 —
33221-0K060 note Arm, Reverse Shift
2014-05 → 2015-11 ended
KUN15 ,THDCB) HDCR;KUN16,26,36 5F +5 —
33221-0K060 note Arm, Reverse Shift
2014-01 → 2014-05 ended
KUN2# THDCB 5F —
33221-0K070 note Arm, Reverse Shift
2014-04 → —
KUN16,26,36,TGN36 ,16,26 5F 5F +4 —
33221-0K070 note Arm, Reverse Shift
2014-07 → —
KUN26 5F IART;KUN25 5F +1 —
33221-0K080 note Arm, Reverse Shift
2015-12 → —
KUN25,TGN26 5F (ANCOM,MA) —
33221-35050 note Arm, Reverse Shift
2012-04 → 2013-10 ended
TGN16 N);TGN26 CB,THDCB) XTR;TGN36 +19 —
33221-35050 note Arm, Reverse Shift
2011-07 → 2013-10 ended
TGN26 ;TGN26 CR,HTWC) DLX +16 —
33221-35060 note Arm, Reverse Shift
2013-10 → 2014-10 ended
TGN36 HTWC (LA,SA);TGN16,26 5F +1 —
33221-35060 note Arm, Reverse Shift
2013-10 → 2015-04 ended
TGN26 DCB ANCOM —
33221-35060 note Arm, Reverse Shift
2013-10 → 2015-08 ended
TGN26 WC SCB,THDCB;KUN15,2#,3# (ANCOM,ARL,GCC,GEN,TH) +7 —
33221-71010 note Arm, Reverse Shift
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33221-71010 note Arm, Reverse Shift
2015-08 → 2016-09 ended
KUN15 PKN —
33221E — Ring(FOR REVERSE SHIFT ARM END SHAFT)
96160-01000 note Ring(FOR REVERSE SHIFT ARM END SHAFT)
2011-07 → 2014-01 ended
KUN25 GCC,GEN,LA,SA) 5F (IDN,MA,TH);KUN26,TGN11,16,26,36 +3 —
96160-01000 note Ring(FOR REVERSE SHIFT ARM END SHAFT)
2014-04 → 2014-07 ended
KUN2# THDCB 5F —
96160-01000 note Ring(FOR REVERSE SHIFT ARM END SHAFT)
2011-07 → 2014-07 ended
KUN16 5F TH;KUN26 5F +3 —
96160-01000 note Ring(FOR REVERSE SHIFT ARM END SHAFT)
2011-07 → 2014-07 ended
KUN15 B,XTR) HDCR 5F +3 —
96160-01000 note Ring(FOR REVERSE SHIFT ARM END SHAFT)
2011-07 → 2014-05 ended
KUN15,35 5F HDCR;KUN16,26,36 5F +3 —
96160-01000 note Ring(FOR REVERSE SHIFT ARM END SHAFT)
2011-07 → 2014-04 ended
KUN26,36 5F 5F (DCR,HDCR,HTWC) +4 —
96160-01000 note Ring(FOR REVERSE SHIFT ARM END SHAFT)
2012-04 → 2013-10 ended
TGN16 N);TGN26 CB,THDCB) XTR;TGN36 +19 —
96160-01000 note Ring(FOR REVERSE SHIFT ARM END SHAFT)
2011-07 → 2013-10 ended
TGN26 ;TGN26 CR,HTWC) DLX +16 —
96160-01000 note Ring(FOR REVERSE SHIFT ARM END SHAFT)
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33228 — Bracket, Reverse Shift Arm
33228-0K010 note Bracket, Reverse Shift Arm
2013-08 → 2014-01 ended
TGN36 5F HTWCF —
33228-0K010 note Bracket, Reverse Shift Arm
2011-07 → 2014-05 ended
KUN15,35 5F HDCR;KUN16,26,36 5F +3 —
33228-0K010 note Bracket, Reverse Shift Arm
2011-07 → 2014-01 ended
TGN36 ANCOM,ARL,CO,GCC,GEN,LA,SA) 5F HTWC;KUN25 +5 —
33228-0K010 note Bracket, Reverse Shift Arm
2011-07 → 2012-10 ended
TGN36 5F HTWCF —
33228-0K020 note Bracket, Reverse Shift Arm
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33228-0K030 note Bracket, Reverse Shift Arm
2013-05 → 2013-10 ended
TGN36 5F HTWC;KUN15,2#,3# 5F +3 —
33228-0K030 note Bracket, Reverse Shift Arm
2011-07 → 2014-07 ended
KUN15 B,XTR) HDCR 5F +3 —
33228-0K040 note Bracket, Reverse Shift Arm
2011-07 → 2014-04 ended
KUN26,36 5F 5F (DCR,HDCR,HTWC) +4 —
33228-0K040 note Bracket, Reverse Shift Arm
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33228-0K040 note Bracket, Reverse Shift Arm
2011-07 → 2014-07 ended
KUN16 5F TH;KUN26 5F +3 —
33228-0K040 note Bracket, Reverse Shift Arm
2014-04 → 2014-07 ended
KUN2# THDCB 5F —
33228-0K050 note Bracket, Reverse Shift Arm
2017-11 → —
TGN26 —
33228-0K060 note Bracket, Reverse Shift Arm
2017-04 → —
TGN26 —
33228-35030 note Bracket, Reverse Shift Arm
2011-07 → 2013-10 ended
TGN26 ;TGN26 CR,HTWC) DLX +16 —
33228-35030 note Bracket, Reverse Shift Arm
2012-04 → 2013-10 ended
TGN16 N);TGN26 CB,THDCB) XTR;TGN36 +19 —
33228-35050 note Bracket, Reverse Shift Arm
2014-09 → 2015-04 ended
KUN36 SMT;KUN36 GEN —
33228-35050 Bracket, Reverse Shift Arm
2014-01 → 2015-12 ended
TGN11,16,36 5F HTWC (ANCOM,ARL,GCC,GEN,LA,SA) —
33228-35050 Bracket, Reverse Shift Arm
2014-04 → 2015-12 ended
KUN35 SMT 5F SR —
33228-35050 Bracket, Reverse Shift Arm
2014-05 → 2015-12 ended
KUN15 (GEN,PHL,TH) (DCB,SCB,SMT) HDCR;KUN35 +6 —
33228-35050 Bracket, Reverse Shift Arm
2014-10 → 2015-12 ended
KUN35 CO —
33228-35050 note Bracket, Reverse Shift Arm
2014-04 → 2017-03 ended
KUN35 UN25 SMT 5F +8 —
33228-35050 note Bracket, Reverse Shift Arm
2014-01 → 2017-10 ended
TGN36 5F HTWCF;KUN25 5F +3 —
33228-35050 note Bracket, Reverse Shift Arm
2014-05 → 2017-10 ended
KUN26 5F DCR;KUN35 SMT +4 —
33228-35050 note Bracket, Reverse Shift Arm
2014-07 → 2017-03 ended
KUN26 5F IART;KUN25 5F +1 —
33228-35050 note Bracket, Reverse Shift Arm
2014-07 → 2015-04 ended
KUN36 THDCB,THSCB,XTR) DCB 5F +6 —
33228-35050 note Bracket, Reverse Shift Arm
2014-08 → 2015-04 ended
KUN35 THDCB —
33228-35050 note Bracket, Reverse Shift Arm
2012-10 → 2013-08 ended
TGN36 5F HTWCF —
33228-35050 note Bracket, Reverse Shift Arm
2014-01 → 2014-05 ended
KUN2# THDCB 5F —
33228-35050 note Bracket, Reverse Shift Arm
2014-04 → 2014-05 ended
KUN35 SMT DLX —
33228-35050 note Bracket, Reverse Shift Arm
2014-07 → 2014-09 ended
KUN36 SMT;KUN36 GEN —
33228-35050 note Bracket, Reverse Shift Arm
2013-10 → 2014-10 ended
TGN16,36 HTWC (LA,SA) —
33228-35050 note Bracket, Reverse Shift Arm
2013-10 → 2015-04 ended
KUN15,2#,3# 5F TH;TGN11,16,36 5F +2 —
33228-35050 note Bracket, Reverse Shift Arm
2014-04 → 2015-04 ended
KUN35 THDCB —
33228-35050 note Bracket, Reverse Shift Arm
2014-05 → 2015-04 ended
KUN35 THDCB —
33228-35050 note Bracket, Reverse Shift Arm
2014-05 → 2015-04 ended
KUN35 THDCB —
33228-35050 note Bracket, Reverse Shift Arm
2014-05 → 2015-04 ended
KUN35 SMT DLX —
33228-71010 note Bracket, Reverse Shift Arm
2015-08 → 2016-09 ended
KUN15 PKN —
33228-71010 note Bracket, Reverse Shift Arm
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33241 — Shaft, Reverse Shift Fork
33244-0K010 note Shaft, Reverse Shift Fork
2011-07 → 2012-10 ended
TGN36 5F HTWCF —
33244-0K010 note Shaft, Reverse Shift Fork
2011-07 → 2014-05 ended
KUN15,35 5F HDCR;KUN16,26,36 5F +3 —
33244-0K010 note Shaft, Reverse Shift Fork
2013-08 → 2014-01 ended
TGN36 5F HTWCF —
33244-0K010 note Shaft, Reverse Shift Fork
2011-07 → 2014-01 ended
TGN36 ANCOM,ARL,CO,GCC,GEN,LA,SA) 5F HTWC;KUN25 +5 —
33244-0K020 note Shaft, Reverse Shift Fork
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33244-0K030 note Shaft, Reverse Shift Fork
2011-07 → 2014-07 ended
TGN11,16,26,36 5F (ARL,GCC,GEN,TH) —
33244-0K030 note Shaft, Reverse Shift Fork
2011-07 → 2014-07 ended
KUN15 L,GCC,GEN,IDN,PHL,TH) HDCR (GEN,TH);GGN15,25,KUN16,2#,3# +3 —
33244-0K040 Shaft, Reverse Shift Fork
2011-07 → 2013-11 ended
GGN15 5F —
33244-0K040 note Shaft, Reverse Shift Fork
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33244-0K040 note Shaft, Reverse Shift Fork
2011-07 → 2014-04 ended
KUN26,36 5F 5F (DCR,HDCR,HTWC) +4 —
33244-0K040 note Shaft, Reverse Shift Fork
2011-07 → 2014-07 ended
KUN16 5F TH;KUN26 5F +3 —
33244-0K040 note Shaft, Reverse Shift Fork
2014-04 → 2014-07 ended
KUN2# THDCB 5F —
33244-0K050 note Shaft, Reverse Shift Fork
2014-07 → 2015-04 ended
KUN15 F HDCR (ARL,GCC,GEN,IDN,PHL,TH) +3 —
33244-0K060 note Shaft, Reverse Shift Fork
2012-10 → 2020-03 ended
KUN35 XTR —
33244-0K060 note Shaft, Reverse Shift Fork
2014-01 → 2020-03 ended
KUN25 GCC,GEN,LA,SA) 5F (IDN,MA,TH);KUN26,TGN11,16,26,36 +3 —
33244-0K060 note Shaft, Reverse Shift Fork
2014-05 → 2020-03 ended
KUN15 ,THDCB) HDCR;KUN16,26,36 5F +5 —
33244-0K060 note Shaft, Reverse Shift Fork
2014-01 → 2014-05 ended
KUN2# THDCB 5F —
33244-0K060 note Shaft, Reverse Shift Fork
2012-10 → 2013-08 ended
TGN36 5F HTWCF —
33244-0K061 note Shaft, Reverse Shift Fork
2020-03 → 2021-08 ended
TGN26 —
33244-0K062 note Shaft, Reverse Shift Fork
2021-09 → —
TGN26 —
33244-0K070 note Shaft, Reverse Shift Fork
2014-04 → 2020-12 ended
KUN16,26,36,TGN36 ,16,26 5F 5F +4 —
33244-0K070 note Shaft, Reverse Shift Fork
2014-07 → 2020-12 ended
KUN26 5F IART;KUN25 5F +1 —
33244-0K071 note Shaft, Reverse Shift Fork
2020-12 → —
TGN26 —
33244-35090 note Shaft, Reverse Shift Fork
2011-07 → 2012-01 ended
KUN16,26,36 5F TH;KUN15,25,35 HDCR +1 —
33244-35091 note Shaft, Reverse Shift Fork
2012-04 → 2013-10 ended
TGN16 N);TGN26 CB,THDCB) XTR;TGN36 +19 —
33244-35091 note Shaft, Reverse Shift Fork
2012-01 → 2013-10 ended
TGN26 ;TGN26 CR,HTWC) DLX +16 —
33244-35110 note Shaft, Reverse Shift Fork
2013-10 → 2015-04 ended
KUN15,2#,3# 5F TH;TGN11,16,36 5F +2 —
33244-35110 note Shaft, Reverse Shift Fork
2013-10 → 2014-10 ended
TGN16,36 HTWC (LA,SA) —
33244-35110 note Shaft, Reverse Shift Fork
2014-07 → 2015-04 ended
KUN15 F HDCR (ARL,GCC,GEN,IDN,PHL,TH) +3 —
33244-71010 note Shaft, Reverse Shift Fork
2015-08 → 2016-09 ended
KUN15 PKN —
33244-71010 note Shaft, Reverse Shift Fork
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33242 — Shaft, Gear Shift Fork, NO.1
33242-0K010 note Shaft, Gear Shift Fork, NO.1
2011-07 → 2014-05 ended
KUN15,35 5F HDCR;KUN16,26,36 5F +3 —
33242-0K010 note Shaft, Gear Shift Fork, NO.1
2013-08 → 2014-01 ended
TGN36 5F HTWCF —
33242-0K010 note Shaft, Gear Shift Fork, NO.1
2011-07 → 2014-01 ended
TGN36 ANCOM,ARL,CO,GCC,GEN,LA,SA) 5F HTWC;KUN25 +5 —
33242-0K010 note Shaft, Gear Shift Fork, NO.1
2011-07 → 2012-10 ended
TGN36 5F HTWCF —
33242-0K020 note Shaft, Gear Shift Fork, NO.1
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33242-0K030 note Shaft, Gear Shift Fork, NO.1
2011-07 → 2011-12 ended
GGN15,25 5F —
33242-0K030 note Shaft, Gear Shift Fork, NO.1
2011-07 → 2014-07 ended
KUN15 F HDCR (ARL,GCC,GEN,IDN,PHL,TH) +3 —
33242-0K030 note Shaft, Gear Shift Fork, NO.1
2011-12 → 2014-07 ended
GGN15,25 5F —
33242-0K040 note Shaft, Gear Shift Fork, NO.1
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33242-0K040 note Shaft, Gear Shift Fork, NO.1
2011-07 → 2014-04 ended
KUN26,36 5F 5F (DCR,HDCR,HTWC) +4 —
33242-0K040 note Shaft, Gear Shift Fork, NO.1
2011-07 → 2014-07 ended
KUN16 5F TH;KUN26 5F +3 —
33242-0K040 note Shaft, Gear Shift Fork, NO.1
2014-04 → 2014-07 ended
KUN2# THDCB 5F —
33242-0K050 note Shaft, Gear Shift Fork, NO.1
2014-07 → 2015-04 ended
KUN15 F HDCR (ARL,GCC,GEN,IDN,PHL,TH) +3 —
33242-0K060 note Shaft, Gear Shift Fork, NO.1
2014-05 → 2015-10 ended
KUN15 ,THDCB) HDCR;KUN16,26,36 5F +5 —
33242-0K060 note Shaft, Gear Shift Fork, NO.1
2014-01 → 2015-10 ended
KUN25 GCC,GEN,LA,SA) 5F (IDN,MA,TH);KUN26,TGN11,16,26,36 +3 —
33242-0K060 note Shaft, Gear Shift Fork, NO.1
2012-10 → 2015-10 ended
KUN35 XTR —
33242-0K060 note Shaft, Gear Shift Fork, NO.1
2014-01 → 2014-05 ended
KUN2# THDCB 5F —
33242-0K060 note Shaft, Gear Shift Fork, NO.1
2012-10 → 2013-08 ended
TGN36 5F HTWCF —
33242-0K070 note Shaft, Gear Shift Fork, NO.1
2014-07 → 2020-12 ended
KUN26 5F IART;KUN25 5F +1 —
33242-0K070 note Shaft, Gear Shift Fork, NO.1
2014-04 → 2020-12 ended
KUN16,26,36,TGN36 ,16,26 5F 5F +4 —
33242-0K071 note Shaft, Gear Shift Fork, NO.1
2020-12 → —
TGN26 —
33242-0K110 note Shaft, Gear Shift Fork, NO.1
2015-11 → 2020-03 ended
KUN26,36 5F;KUN15,25,35,TGN16,26,36 5F (HDCR,HTWC) +1 —
33242-0K111 note Shaft, Gear Shift Fork, NO.1
2020-03 → —
TGN26 —
33242-35070 note Shaft, Gear Shift Fork, NO.1
2011-07 → 2013-10 ended
TGN26 ;TGN26 CR,HTWC) DLX +16 —
33242-35070 note Shaft, Gear Shift Fork, NO.1
2011-12 → 2014-07 ended
KUN15 B,XTR) HDCR 5F +3 —
33242-35070 note Shaft, Gear Shift Fork, NO.1
2012-04 → 2013-10 ended
TGN16 N);TGN26 CB,THDCB) XTR;TGN36 +19 —
33242-35090 note Shaft, Gear Shift Fork, NO.1
2014-07 → 2015-04 ended
KUN15 F HDCR (ARL,GCC,GEN,IDN,PHL,TH) +3 —
33242-35090 note Shaft, Gear Shift Fork, NO.1
2013-10 → 2015-04 ended
KUN15,2#,3# 5F TH;TGN11,16,36 5F +2 —
33242-35090 note Shaft, Gear Shift Fork, NO.1
2013-10 → 2014-10 ended
TGN16,36 HTWC (LA,SA) —
33242-71010 note Shaft, Gear Shift Fork, NO.1
2015-08 → 2016-09 ended
KUN15 PKN —
33242-71030 note Shaft, Gear Shift Fork, NO.1
2011-07 → 2015-12 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33242E — Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
90520-12003 note Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2011-07 → 2015-08 ended
KUN16,26,36 6 5F 5F +7 —
90520-12003 note Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2012-04 → 2015-04 ended
TGN16 GCC,TH) XTR;TGN11,36 GCC,GEN;TGN26 +6 —
90520-12003 note Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2011-07 → —
KUN16,26,36,TGN36 HDCR,HTWC,HTWCF) 5F (DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26 +2 —
90520-12003 note Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2011-07 → —
KUN16,26,36 C,HTWCF) 5F;TGN16 (ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) +4 —
90520-12003 note Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2012-04 → 2014-10 ended
TGN36 16,26 SCB 5F +12 —
90520-12003 note Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2011-07 → 2015-04 ended
TGN26 DCB ANCOM —
90520-12003 note Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
90520-12003 note Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2011-07 → 2014-07 ended
KUN15 B,XTR) HDCR 5F +3 —
90520-12003 note Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2011-07 → 2014-10 ended
TGN26 DLX HTWCF;TGN26,36 SR +2 —
90520-T0135 note Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
2014-07 → 2015-04 ended
KUN15 F HDCR (ARL,GCC,GEN,IDN,PHL,TH) +3 —
33243A — Shaft, Gear Shift Fork, NO.2
33243-0K010 note Shaft, Gear Shift Fork, NO.2
2011-07 → 2015-10 ended
KUN16,26,36 C,HTWCF) 5F;TGN16 (ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) +4 —
33243-0K020 note Shaft, Gear Shift Fork, NO.2
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33243-0K030 note Shaft, Gear Shift Fork, NO.2
2011-07 → 2011-12 ended
GGN15,25 5F —
33243-0K030 note Shaft, Gear Shift Fork, NO.2
2011-07 → 2015-04 ended
KUN15 F HDCR (ARL,GCC,GEN,IDN,PHL,TH) +3 —
33243-0K030 note Shaft, Gear Shift Fork, NO.2
2011-12 → 2015-04 ended
GGN15,25 5F —
33243-0K040 note Shaft, Gear Shift Fork, NO.2
2011-07 → —
KUN16,26,36,TGN36 HDCR,HTWC,HTWCF) 5F (DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26 +2 —
33243-0K040 note Shaft, Gear Shift Fork, NO.2
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33243-35100 note Shaft, Gear Shift Fork, NO.2
2011-12 → 2015-04 ended
KUN15 B,XTR) HDCR 5F +3 —
33243-35100 note Shaft, Gear Shift Fork, NO.2
2012-04 → 2015-04 ended
TGN16 GCC,TH) XTR;TGN11,36 GCC,GEN;TGN26 +6 —
33243-35100 note Shaft, Gear Shift Fork, NO.2
2012-04 → 2014-10 ended
TGN36 16,26 SCB 5F +12 —
33243-35100 note Shaft, Gear Shift Fork, NO.2
2011-07 → 2015-08 ended
KUN16,26,36 6 5F 5F +7 —
33243-35100 note Shaft, Gear Shift Fork, NO.2
2011-07 → 2014-10 ended
TGN26 DLX HTWCF;TGN26,36 SR +2 —
33243-35100 note Shaft, Gear Shift Fork, NO.2
2011-07 → 2015-04 ended
TGN26 DCB ANCOM —
33243-71010 note Shaft, Gear Shift Fork, NO.2
2015-08 → 2016-09 ended
KUN15 PKN —
33243-71020 note Shaft, Gear Shift Fork, NO.2
2011-07 → 2015-12 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33245G — Shaft, Gear Shift Fork, NO.4
33245-0K010 note Shaft, Gear Shift Fork, NO.4
2011-07 → 2014-05 ended
KUN15,35 5F HDCR;KUN16,26,36 5F +3 —
33245-0K010 note Shaft, Gear Shift Fork, NO.4
2011-07 → 2012-10 ended
TGN36 5F HTWCF —
33245-0K010 note Shaft, Gear Shift Fork, NO.4
2013-08 → 2014-01 ended
TGN36 5F HTWCF —
33245-0K010 note Shaft, Gear Shift Fork, NO.4
2011-07 → 2014-01 ended
TGN36 ANCOM,ARL,CO,GCC,GEN,LA,SA) 5F HTWC;KUN25 +5 —
33245-0K020 note Shaft, Gear Shift Fork, NO.4
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33245-0K030 note Shaft, Gear Shift Fork, NO.4
2011-07 → 2014-07 ended
TGN26 B,SCB,SMT,THDCB,THSCB,XTR) SCB 5F +8 —
33245-0K030 note Shaft, Gear Shift Fork, NO.4
2011-12 → 2014-07 ended
TGN16 GN11,36 XTR;TGN26 5F +7 —
33245-0K030 note Shaft, Gear Shift Fork, NO.4
2011-07 → 2011-12 ended
GGN15,25,TGN11,16,26,36 5F (ARL,GCC,GEN,TH) —
33245-0K040 note Shaft, Gear Shift Fork, NO.4
2011-07 → 2014-07 ended
KUN16 5F TH;KUN26 5F +3 —
33245-0K040 note Shaft, Gear Shift Fork, NO.4
2014-04 → 2014-07 ended
KUN2# THDCB 5F —
33245-0K040 note Shaft, Gear Shift Fork, NO.4
2011-07 → 2014-04 ended
KUN26,36 5F 5F (DCR,HDCR,HTWC) +4 —
33245-0K040 note Shaft, Gear Shift Fork, NO.4
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33245-35090 note Shaft, Gear Shift Fork, NO.4
2011-07 → 2013-10 ended
TGN26 ;TGN26 CR,HTWC) DLX +16 —
33245-35090 note Shaft, Gear Shift Fork, NO.4
2011-12 → 2014-07 ended
KUN15 B,XTR) HDCR 5F +3 —
33245-35090 note Shaft, Gear Shift Fork, NO.4
2012-04 → 2013-10 ended
TGN16 N);TGN26 CB,THDCB) XTR;TGN36 +19 —
33245-71010 note Shaft, Gear Shift Fork, NO.4
2015-08 → 2016-09 ended
KUN15 PKN —
33245-71010 note Shaft, Gear Shift Fork, NO.4
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33251 — Lever, Shift & Select
33251-0K010 note Lever, Shift & Select
2011-07 → 2015-12 ended
KUN16,36 5F;TGN16 5F (ARL,GCC,GEN,SA);KUN15,35,TGN11,36 +2 —
33251-0K020 note Lever, Shift & Select
2011-07 → 2015-04 ended
TGN26 5F —
33251-0K030 note Lever, Shift & Select
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33251-0K070 note Lever, Shift & Select
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33251-0K070 note Lever, Shift & Select
2011-07 → 2015-12 ended
KUN16,36 5F;GGN15,KUN15,35,TGN11,16,36 5F (CNG,HDCR,HTWC) —
33251-0K080 note Lever, Shift & Select
2011-07 → —
GGN25,TGN26 5F —
33251-0K090 note Lever, Shift & Select
2011-07 → 2015-04 ended
KUN15 HDCR (GEN,TH);GGN15,KUN16,3#,TGN11,16,36 5F +1 —
33251-0K100 note Lever, Shift & Select
2011-07 → 2015-04 ended
GGN25,TGN26 5F (ARL,GCC,GEN) —
33251-0K140 note Lever, Shift & Select
2015-05 → —
TGN26 5F —
33251-24012 note Lever, Shift & Select
2011-07 → 2015-04 ended
KUN16,36 5F TH;TGN16 (DCB,SCB) +4 —
33251-24012 note Lever, Shift & Select
2012-04 → 2015-04 ended
TGN16 XTR;TGN11,36 GCC,GEN;TGN16 5F +2 —
33251-24012 note Lever, Shift & Select
2012-04 → 2014-10 ended
TGN16 SA;TGN36 DCB SA;TGN36 +7 —
33251-24012 note Lever, Shift & Select
2011-07 → 2014-10 ended
TGN36 SR HTWC LA —
33251-35152 note Lever, Shift & Select
2012-04 → 2015-04 ended
TGN26 DCB ANCOM —
33251-35152 note Lever, Shift & Select
2012-04 → 2015-09 ended
TGN26 SCB,THDCB;TGN26 DCB 5F +1 —
33251-35152 note Lever, Shift & Select
2012-04 → 2014-10 ended
TGN26 5F (CO,LA,SA) —
33251-71010 note Lever, Shift & Select
2011-07 → 2016-09 ended
KUN10,15,LAN15,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33251-71010 note Lever, Shift & Select
2015-08 → 2016-09 ended
KUN15 PKN —
33251-71021 note Lever, Shift & Select
2011-08 → 2015-12 ended
LAN25 —
33261C — Shaft, Shift & Select Lever
33261-0K010 note Shaft, Shift & Select Lever
2011-07 → 2016-01 ended
KUN2# 5F (ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) —
33261-0K020 note Shaft, Shift & Select Lever
2011-07 → 2015-04 ended
KUN2# (DCB,SCB,SMT,THDCB,THSCB,XTR) 5F (ARL,GCC,GEN,IDN,PHL,TH) —
33261-0K030 note Shaft, Shift & Select Lever
2011-07 → 2016-09 ended
KUN2# 5F —
33261-35131 note Shaft, Shift & Select Lever
2011-07 → 2015-04 ended
KUN2# 5F TH —
33264 — Pin, OR Ball, Shift Interlock, NO.1
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2014-10 ended
TGN36 SR HTWC LA —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2014-10 → —
KUN35 CO —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → —
KUN16 ,SMT) 5F DLX +11 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → —
KUN35 .(ARL,GCC,GEN,SA);KUN15,TGN36 11,26 LHD +13 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2014-07 → 2016-09 ended
KUN26 5F IART;KUN25 5F +1 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2014-05 → 2016-09 ended
KUN15 (GEN,PHL,TH) (DCB,SCB,SMT) HDCR;KUN35 +6 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2014-04 → 2016-09 ended
KUN35 N35 ,GEN,LA,PKN,SA) LHD +15 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2014-01 → 2016-09 ended
KUN35 XTR;KUN25 SCB PKN;TGN36 +3 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2014-01 → 2015-10 ended
TGN36 DCB 5F HTWCF —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2014-08 → 2015-04 ended
KUN35 THDCB —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2014-05 → 2015-04 ended
KUN35 SMT DLX —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2014-04 → 2015-04 ended
KUN35 THDCB —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2012-04 → 2015-04 ended
TGN16 XTR;TGN11,36 GCC,GEN;TGN16 5F +2 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2015-04 ended
KUN16,26,36 OM,TH) 5F TH;TGN16 +5 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2012-04 → 2014-10 ended
TGN16 SA;TGN36 DCB SA;TGN36 +7 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2014-10 ended
KUN35 CO —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2014-04 → 2014-07 ended
KUN2# THDCB 5F —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2013-10 ended
TGN26 (ANCOM,LA) DLX HTWCF;TGN26 +7 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2012-04 → 2013-10 ended
TGN26 (DCB,THDCB) 5F (CO,GEN);TGN26 +4 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2014-07 ended
KUN26 5F IART;KUN25 5F +1 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2014-01 ended
TGN36 DCB 5F HTWCF —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2014-04 ended
KUN35 (CO,LA,SA);KUN16,25 LHD 5F +10 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2014-05 ended
KUN15 (GEN,PHL,TH) (DCB,SCB,SMT) HDCR;KUN35 +6 —
90250-05029 note Pin, OR Ball, Shift Interlock, NO.1
2014-04 → 2014-05 ended
KUN35 SMT DLX —
90250-06032 note Pin, OR Ball, Shift Interlock, NO.1
2012-10 → 2013-08 ended
TGN36 5F HTWCF —
90250-T0022 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2015-04 ended
KUN15 B,XTR) HDCR 5F +3 —
90360-10003 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
90360-10003 note Pin, OR Ball, Shift Interlock, NO.1
2015-08 → 2016-09 ended
KUN15 PKN —
90360-10003 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
90361-10002 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
90361-10002 note Pin, OR Ball, Shift Interlock, NO.1
2015-08 → 2016-09 ended
KUN15 PKN —
90361-10002 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
90361-10003 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
90361-10003 note Pin, OR Ball, Shift Interlock, NO.1
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
90361-10003 note Pin, OR Ball, Shift Interlock, NO.1
2015-08 → 2016-09 ended
KUN15 PKN —
33264B — Roller, NO.1 (FOR SHIFT INTERLOCK )
90250-06032 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2020-03 → —
TGN26 —
90250-06032 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2020-12 → —
TGN26 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-10 → 2020-12 ended
KUN35 CO —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2012-04 → 2015-04 ended
TGN16 XTR;TGN11,36 GCC,GEN;TGN16 5F +2 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2013-10 → 2015-04 ended
TGN26 DCB ANCOM —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-04 → 2015-04 ended
KUN35 SMT DLX —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-04 → 2015-04 ended
KUN2#,35 THDCB 5F —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2011-07 → 2020-03 ended
KUN35 5F N,IDN,LA,MA,PHL,SA,TH) LHD +12 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-05 → 2015-04 ended
KUN35 THDCB —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-05 → 2015-04 ended
KUN35 SMT DLX —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-08 → 2015-04 ended
KUN35 THDCB —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-08 → 2015-04 ended
KUN35 THDCB —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2011-07 → 2020-12 ended
KUN16,25 GEN,PHL,TH);KUN15,TGN36 ,16,26 5F +13 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2013-10 → 2015-09 ended
TGN26 SCB,THDCB;TGN26 DCB 5F +1 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-01 → 2015-12 ended
TGN36 5F HTWCF —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-05 → 2015-12 ended
KUN15 (GEN,PHL,TH) (DCB,SCB,SMT) HDCR;KUN35 +6 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-10 → 2015-12 ended
KUN35 CO —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-04 → 2016-09 ended
KUN15 .DCR;KUN25 XTR;KUN35 5F +9 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-04 → 2014-10 ended
KUN35 CO —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2011-07 → 2012-10 ended
TGN36 5F HTWCF —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2012-10 → 2013-08 ended
TGN36 5F HTWCF —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2011-07 → 2013-10 ended
TGN26 (ANCOM,LA) DLX HTWCF;TGN26 +7 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2012-04 → 2013-10 ended
TGN26 (DCB,THDCB) 5F (CO,GEN);TGN26 +4 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2013-08 → 2014-01 ended
TGN36 5F HTWCF —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2011-07 → 2014-04 ended
KUN35 (CO,LA,SA);KUN16,25 LHD 5F +10 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2011-07 → 2014-05 ended
KUN15 (GEN,PHL,TH) (DCB,SCB,SMT) HDCR;KUN35 +6 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2020-12 → —
TGN26 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2020-03 → —
TGN26 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2011-07 → 2014-10 ended
KUN35 CO —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2011-07 → 2014-10 ended
TGN36 SR HTWC LA —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2012-04 → 2014-10 ended
TGN16 SA;TGN36 DCB SA;TGN36 +7 —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2013-10 → 2014-10 ended
TGN26 5F (CO,LA,SA) —
90361-10003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2011-07 → 2015-04 ended
KUN16,26,36 OM,TH) 5F TH;TGN16 +5 —
90361-T0003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-08 → 2014-09 ended
KUN35 THDCB —
90361-T0003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-09 → 2015-04 ended
KUN15 N,PHL,TH) (DCB,SCB,SMT) HDCR;KUN35 +7 —
90361-T0003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2011-07 → 2015-04 ended
KUN35 TGN11,16,26,36 SMT (DCB,SCB,SMT,THDCB,THSCB,XTR) +8 —
90361-T0003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-07 → 2014-09 ended
KUN35 SMT DLX —
90361-T0003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-07 → 2014-09 ended
KUN35 THDCB —
90361-T0003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2014-07 → 2014-09 ended
KUN15 N,PHL,TH) (DCB,SCB,SMT) HDCR;KUN35 +7 —
90361-T0003 note Roller, NO.1 (FOR SHIFT INTERLOCK )
2011-07 → 2014-07 ended
KUN15 N,PHL,TH) (DCB,SCB,SMT) HDCR;KUN35 +7 —
33275A — Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
90501-14183 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
90501-16143 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2011-07 → 2012-03 ended
KUN16,26,36 5F TH;KUN15,25,35 HDCR +1 —
90501-16143 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2011-07 → 2012-03 ended
KUN16,26,36 C,HTWCF) 5F;TGN16 (CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) +4 —
90501-16143 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2011-07 → 2012-03 ended
KUN16,26,36 CR,HTWC) 5F;TGN36 DCB +4 —
90501-16196 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2015-08 → 2016-09 ended
KUN15 PKN —
90501-16196 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
90501-16196 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
90501-16199 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2012-03 → 2015-04 ended
TGN26 DCB ANCOM —
90501-16199 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2012-03 → 2014-11 ended
KUN16,26,36 C,HTWCF) 5F;TGN16 (ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) +4 —
90501-16199 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2017-01 → —
TGN26 —
90501-16199 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2012-03 → —
TGN26 1,16,26 SCB 5F +5 —
90501-16199 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2012-03 → 2017-01 ended
KUN25 5F PKN;TGN26 DCB +1 —
90501-16199 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2012-03 → 2012-10 ended
TGN36 DCB 5F HTWCF —
90501-16199 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2012-03 → 2014-10 ended
TGN26 DLX HTWCF;TGN26,36 SR +2 —
90501-16199 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2012-04 → 2014-10 ended
TGN36 16,26 SCB 5F +12 —
90501-16199 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2012-04 → 2015-04 ended
TGN16 GCC,TH) XTR;TGN11,36 GCC,GEN;TGN26 +6 —
90501-16199 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2012-03 → 2015-08 ended
KUN16,26,36 6 5F 5F +7 —
90501-18134 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2011-07 → 2015-12 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
90501-T0021 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2011-07 → 2012-03 ended
KUN15 HDCR TH;GGN15,25,KUN16,2#,3#,TGN11,16,26,36 5F +1 —
90501-T0029 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2012-03 → 2015-04 ended
KUN15 B,XTR) HDCR 5F +3 —
90501-T0052 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2014-12 → —
KUN16,26,36 C,HTWCF) 5F;TGN16 (ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) +4 —
90501-T0062 note Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
2017-01 → —
TGN26 —
33275B — Ball, Shaft Detent
90360-10003 note Ball, Shaft Detent
2014-04 → 2015-04 ended
KUN35 SMT DLX —
90360-10003 note Ball, Shaft Detent
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
90360-10003 note Ball, Shaft Detent
2013-08 → 2015-10 ended
TGN36 DCB 5F HTWCF —
90360-10003 note Ball, Shaft Detent
2014-01 → 2015-10 ended
TGN36 DCB 5F HTWCF —
90360-10003 Ball, Shaft Detent
2014-04 → 2015-10 ended
KUN35 SMT 5F SR —
90360-10003 note Ball, Shaft Detent
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
90360-10003 note Ball, Shaft Detent
2015-08 → 2016-09 ended
KUN15 PKN —
90360-10003 note Ball, Shaft Detent
2011-07 → 2017-02 ended
KUN35 RT);GGN15,25,KUN15,25,TGN11,16,26 SMT 5F +6 —
90360-10003 note Ball, Shaft Detent
2011-07 → —
KUN16,26,36 KUN15,25,35,TGN11,26 ) 5F;TGN36 +9 —
90360-10003 note Ball, Shaft Detent
2017-02 → —
TGN26 —
90360-10003 note Ball, Shaft Detent
2014-04 → 2015-04 ended
KUN35 THDCB —
90360-10003 note Ball, Shaft Detent
2012-04 → 2015-04 ended
TGN16 XTR;TGN11,36 GCC,GEN;TGN16 5F +2 —
90360-10003 note Ball, Shaft Detent
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
90360-10003 note Ball, Shaft Detent
2011-07 → 2015-04 ended
KUN16,26,36 OM,TH) 5F TH;TGN16 +5 —
90360-10003 note Ball, Shaft Detent
2011-07 → 2015-04 ended
KUN15 B,XTR) HDCR 5F +3 —
90360-10003 note Ball, Shaft Detent
2012-04 → 2014-10 ended
TGN16 SA;TGN36 DCB SA;TGN36 +7 —
90360-10003 note Ball, Shaft Detent
2011-07 → 2014-10 ended
TGN36 SR HTWC LA —
90360-10003 note Ball, Shaft Detent
2011-07 → 2014-04 ended
KUN35 SMT 5F SR —
90360-10003 note Ball, Shaft Detent
2013-08 → 2014-01 ended
TGN36 DCB 5F HTWCF —
90360-10003 note Ball, Shaft Detent
2013-08 → 2013-10 ended
TGN36 SCB HTWCF —
90360-10003 note Ball, Shaft Detent
2012-04 → 2013-10 ended
TGN26 (DCB,THDCB) 5F (CO,GEN);TGN26 +4 —
90360-10003 note Ball, Shaft Detent
2011-07 → 2013-10 ended
TGN26 (ANCOM,LA) DLX HTWCF;TGN26 +7 —
90360-10003 note Ball, Shaft Detent
2011-07 → 2013-08 ended
TGN36 DCB 5F HTWCF —
90360-T0008 note Ball, Shaft Detent
2013-04 → 2015-04 ended
KUN15 B,XTR) HDCR 5F +3 —
90360-T0013 note Ball, Shaft Detent
2017-02 → —
TGN26 —
33280 — Pin Assy, Reverse Restrict
33280-0K050 note Pin Assy, Reverse Restrict
2014-09 → 2015-04 ended
KUN15 HDCR (GEN,TH);KUN16,3#,TGN11,16,36 5F +1 —
33280-0K060 note Pin Assy, Reverse Restrict
2014-09 → 2015-04 ended
KUN15 HDCR (GEN,TH);KUN16,3#,TGN11,16,36 5F +1 —
33280-0K070 note Pin Assy, Reverse Restrict
2014-09 → 2015-04 ended
KUN2#,TGN26 (DCB,SCB,SMT,THDCB,THSCB,XTR) 5F (ARL,GCC,GEN,IDN,PHL,TH) —
33280-0K080 note Pin Assy, Reverse Restrict
2014-09 → 2015-04 ended
KUN2#,TGN26 (DCB,SCB,SMT,THDCB,THSCB,XTR) 5F (ARL,GCC,GEN,IDN,PHL,TH) —
33280-35110 note Pin Assy, Reverse Restrict
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33280-35110 note Pin Assy, Reverse Restrict
2012-04 → 2015-04 ended
TGN16 XTR;TGN11,36 GCC,GEN;TGN16 5F +2 —
33280-35110 note Pin Assy, Reverse Restrict
2011-07 → 2015-04 ended
KUN16,36 5F TH;TGN16 (DCB,SCB) +4 —
33280-35110 note Pin Assy, Reverse Restrict
2012-04 → 2014-10 ended
TGN16 SA;TGN36 DCB SA;TGN36 +7 —
33280-35110 note Pin Assy, Reverse Restrict
2011-07 → 2015-12 ended
KUN16,36 5F;TGN16 5F (ARL,GCC,GEN,SA);KUN15,35,TGN11,36 +2 —
33280-35110 note Pin Assy, Reverse Restrict
2011-07 → 2014-10 ended
TGN36 SR HTWC LA —
33280-35110 note Pin Assy, Reverse Restrict
2011-07 → 2015-12 ended
KUN16,36 5F;GGN15,KUN15,35,TGN11,16,36 5F (CNG,HDCR,HTWC) —
33280-35110 note Pin Assy, Reverse Restrict
2011-07 → 2014-09 ended
KUN15 HDCR (GEN,TH);GGN15,KUN16,3#,TGN11,16,36 5F +1 —
33280-35120 note Pin Assy, Reverse Restrict
2012-04 → 2015-09 ended
TGN26 5F GCC;TGN26 (DCB,THDCB) +2 —
33280-35120 note Pin Assy, Reverse Restrict
2011-07 → 2015-09 ended
KUN2# 5F TH;TGN26 SCB +1 —
33280-35120 note Pin Assy, Reverse Restrict
2011-07 → 2016-09 ended
KUN25 5F PKN —
33280-35120 note Pin Assy, Reverse Restrict
2011-07 → —
KUN2#,TGN26 5F (ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) —
33280-35120 note Pin Assy, Reverse Restrict
2011-07 → —
GGN25,KUN2#,TGN26 5F (ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) —
33280-35120 note Pin Assy, Reverse Restrict
2011-07 → 2014-09 ended
GGN25,KUN2#,TGN26 (DCB,SCB,SMT,THDCB,THSCB,XTR) 5F (ARL,GCC,GEN,IDN,PHL,TH) —
33280-35120 note Pin Assy, Reverse Restrict
2011-07 → 2015-04 ended
TGN26 DCB ANCOM —
33280-35120 note Pin Assy, Reverse Restrict
2012-04 → 2014-10 ended
TGN26 CO;TGN26 5F DLX +2 —
33280-35120 note Pin Assy, Reverse Restrict
2011-07 → 2014-10 ended
TGN26 DLX HTWCF;TGN26 SR +2 —
33280-35130 note Pin Assy, Reverse Restrict
2011-07 → 2015-04 ended
KUN16,36 5F TH;TGN16 (DCB,SCB) +4 —
33280-35130 note Pin Assy, Reverse Restrict
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33280-35130 note Pin Assy, Reverse Restrict
2011-07 → 2014-09 ended
KUN15 HDCR (GEN,TH);GGN15,KUN16,3#,TGN11,16,36 5F +1 —
33280-35130 note Pin Assy, Reverse Restrict
2011-07 → 2015-12 ended
KUN16,36 5F;GGN15,KUN15,35,TGN11,16,36 5F (CNG,HDCR,HTWC) —
33280-35130 note Pin Assy, Reverse Restrict
2011-07 → 2015-12 ended
KUN16,36 5F;TGN16 5F (ARL,GCC,GEN,SA);KUN15,35,TGN11,36 +2 —
33280-35130 note Pin Assy, Reverse Restrict
2011-07 → 2014-10 ended
TGN36 SR HTWC LA —
33280-35130 note Pin Assy, Reverse Restrict
2012-04 → 2014-10 ended
TGN16 SA;TGN36 DCB SA;TGN36 +7 —
33280-35130 note Pin Assy, Reverse Restrict
2012-04 → 2015-04 ended
TGN16 XTR;TGN11,36 GCC,GEN;TGN16 5F +2 —
33280-35140 note Pin Assy, Reverse Restrict
2011-07 → 2014-10 ended
TGN26 DLX HTWCF;TGN26 SR +2 —
33280-35140 note Pin Assy, Reverse Restrict
2012-04 → 2015-09 ended
TGN26 5F GCC;TGN26 (DCB,THDCB) +2 —
33280-35140 note Pin Assy, Reverse Restrict
2011-07 → 2015-09 ended
KUN2# 5F TH;TGN26 SCB +1 —
33280-35140 note Pin Assy, Reverse Restrict
2011-07 → 2014-09 ended
GGN25,KUN2#,TGN26 (DCB,SCB,SMT,THDCB,THSCB,XTR) 5F (ARL,GCC,GEN,IDN,PHL,TH) —
33280-35140 note Pin Assy, Reverse Restrict
2012-04 → 2014-10 ended
TGN26 CO;TGN26 5F DLX +2 —
33280-35140 note Pin Assy, Reverse Restrict
2011-07 → 2016-09 ended
KUN25 5F PKN —
33280-35140 note Pin Assy, Reverse Restrict
2011-07 → —
GGN25,KUN2#,TGN26 5F (ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) —
33280-35140 note Pin Assy, Reverse Restrict
2011-07 → —
KUN2#,TGN26 5F (ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) —
33280-35140 note Pin Assy, Reverse Restrict
2011-07 → 2015-04 ended
TGN26 DCB ANCOM —
33280-71010 note Pin Assy, Reverse Restrict
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33280-71010 note Pin Assy, Reverse Restrict
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33280-71010 note Pin Assy, Reverse Restrict
2015-08 → 2016-09 ended
KUN15 PKN —
33280-71020 note Pin Assy, Reverse Restrict
2015-08 → 2016-09 ended
KUN15 PKN —
33280-71020 note Pin Assy, Reverse Restrict
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33280-71020 note Pin Assy, Reverse Restrict
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33283F — Pin, Reverse Restrict
33280-35040 note Pin, Reverse Restrict
2015-08 → 2016-09 ended
KUN15 PKN —
33280-35040 note Pin, Reverse Restrict
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33280-35040 note Pin, Reverse Restrict
2011-07 → 2016-09 ended
KUN10,15,LAN15,25,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33280-35100 note Pin, Reverse Restrict
2011-07 → 2014-10 ended
TGN26 DLX HTWCF;TGN26,36 SR +2 —
33280-35100 note Pin, Reverse Restrict
2011-07 → —
KUN16,26,36,TGN36 HDCR,HTWC,HTWCF) 5F (ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) +3 —
33280-35100 note Pin, Reverse Restrict
2011-07 → —
KUN16,26,36 C,HTWCF) 5F;TGN16 (ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) +4 —
33280-35100 note Pin, Reverse Restrict
2011-07 → 2016-09 ended
KUN25 5F PKN —
33280-35100 note Pin, Reverse Restrict
2012-04 → 2015-09 ended
TGN16 GCC,TH) XTR;TGN11,36 GCC,GEN;TGN26 +6 —
33280-35100 note Pin, Reverse Restrict
2011-07 → 2015-09 ended
KUN16,26,36 .HDCR 5F TH +6 —
33280-35100 note Pin, Reverse Restrict
2011-07 → 2015-04 ended
TGN36 5F ANCOM;TGN26 DCB +1 —
33280-35100 note Pin, Reverse Restrict
2011-07 → 2015-04 ended
KUN15 B,XTR) HDCR 5F +3 —
33280-35100 note Pin, Reverse Restrict
2012-04 → 2014-10 ended
TGN36 16,26 SCB 5F +12 —
33280-35100 note Pin, Reverse Restrict
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33283G — Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2011-07 → —
KUN15 #,TGN10,11,16,26 HDCR 5F +5 —
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2011-07 → —
KUN16,26,36 C,HTWCF) 5F;TGN16 (ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) +4 —
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2015-08 → 2016-09 ended
KUN15 PKN —
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2012-04 → 2016-09 ended
TGN16 GCC,TH) XTR;TGN11,36 GCC,GEN;TGN26 +6 —
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2011-07 → 2016-09 ended
KUN15 (ANCOM,GEN);KUN15 .(GCC,IDN,SA,TH) XTR +12 —
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2011-07 → 2016-09 ended
KUN25 5F PKN —
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2011-07 → 2015-08 ended
KUN15 PKN —
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2011-07 → 2015-04 ended
TGN36 5F ANCOM;TGN26 DCB +1 —
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2011-07 → 2015-04 ended
KUN15 TR) HDCR 5F +3 —
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2012-04 → 2014-10 ended
TGN36 16,26 SCB 5F +12 —
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2011-07 → 2014-10 ended
TGN26 DLX HTWCF;TGN26,36 SR +2 —
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2011-07 → 2013-11 ended
GGN25 5F —
90254-05001 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
90254-T0003 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2013-04 → 2013-11 ended
GGN25 5F —
90254-T0003 note Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
2013-04 → 2015-04 ended
KUN15 TR) HDCR 5F +3 —
33521 — Housing, Shift Lever
33521-0K030 note Housing, Shift Lever
2011-07 → 2015-05 ended
KUN16,36 5F;TGN16 5F (ARL,GCC,GEN,SA);KUN15,35,TGN11,36 +2 —
33521-0K040 note Housing, Shift Lever
2011-07 → 2016-04 ended
TGN26 5F —
33521-0K050 note Housing, Shift Lever
2011-07 → 2015-05 ended
KUN2# 5F (ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) —
33521-0K060 note Housing, Shift Lever
2011-07 → 2015-08 ended
KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,PKN,TH) —
33521-0K080 note Housing, Shift Lever
2012-02 → 2015-04 ended
KUN16,36 5F TH;TGN16 (DCB,SCB) +4 —
33521-0K080 note Housing, Shift Lever
2012-04 → 2015-04 ended
TGN16 XTR;TGN11,36 GCC,GEN;TGN16 5F +2 —
33521-0K080 note Housing, Shift Lever
2011-07 → 2015-04 ended
KUN15 HDCR (GEN,TH);GGN15,KUN16,3#,TGN11,16,36 5F +1 —
33521-0K080 note Housing, Shift Lever
2012-04 → 2014-10 ended
TGN16 SA;TGN36 DCB SA;TGN36 +7 —
33521-0K080 note Housing, Shift Lever
2012-02 → 2014-10 ended
TGN36 SR HTWC LA —
33521-0K090 note Housing, Shift Lever
2011-07 → 2015-04 ended
KUN2# (DCB,SCB,SMT,THDCB,THSCB,XTR) 5F (ARL,GCC,GEN,IDN,PHL,TH) —
33521-0K090 note Housing, Shift Lever
2011-07 → 2016-09 ended
KUN2# 5F —
33521-0K100 note Housing, Shift Lever
2011-07 → 2015-04 ended
GGN25,TGN26 5F (ARL,GCC,GEN) —
33521-0K110 note Housing, Shift Lever
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
33521-0K110 note Housing, Shift Lever
2011-07 → 2015-12 ended
KUN16,36 5F;GGN15,KUN15,35,TGN11,16,36 5F (CNG,HDCR,HTWC) —
33521-0K120 note Housing, Shift Lever
2011-07 → —
GGN25,TGN26 5F —
33521-0K260 note Housing, Shift Lever
2015-05 → 2015-12 ended
KUN36 5F;KUN15,35,TGN16,36 5F (HDCR,HTWC,HTWCF) —
33521-0K270 note Housing, Shift Lever
2015-05 → 2016-01 ended
KUN2# 5F (CO,GEN,LA,MA,SA) —
33521-0K280 note Housing, Shift Lever
2016-05 → —
TGN26 —
33521-35071 note Housing, Shift Lever
2011-07 → 2016-09 ended
KUN10,15,LAN15,35,TGN10,15 (DCR,DEFI,HTWC) (GCC,GEN,IDN,PHL,SA,TH) —
33521-35071 note Housing, Shift Lever
2015-08 → 2016-09 ended
KUN15 PKN —
33521-35250 note Housing, Shift Lever
2012-02 → 2014-10 ended
TGN36 SR HTWC LA —
33521-35250 note Housing, Shift Lever
2012-04 → 2015-04 ended
TGN16 XTR;TGN11,36 GCC,GEN;TGN16 5F +2 —
33521-35250 note Housing, Shift Lever
2012-04 → 2014-10 ended
TGN16 SA;TGN36 DCB SA;TGN36 +7 —
33521-35250 note Housing, Shift Lever
2012-02 → 2015-04 ended
KUN16,36 5F TH;TGN16 (DCB,SCB) +4 —
33521-35250 note Housing, Shift Lever
2011-07 → 2012-02 ended
KUN16,36 5F TH;KUN15,35 HDCR +1 —
33521-35260 note Housing, Shift Lever
2012-04 → 2015-09 ended
TGN26 SCB,THDCB;TGN26 DCB 5F +1 —
33521-35260 note Housing, Shift Lever
2012-04 → 2015-04 ended
TGN26 DCB ANCOM —
33521-35260 note Housing, Shift Lever
2012-04 → 2014-10 ended
TGN26 5F (CO,LA,SA) —
33521-35331 note Housing, Shift Lever
2011-07 → 2016-09 ended
KUN2# 5F —
33521-35331 note Housing, Shift Lever
2011-07 → 2015-04 ended
KUN2# 5F TH —
33521-60090 note Housing, Shift Lever
2011-08 → 2015-12 ended
LAN25 —
33521F — Pin OR Bolt (FOR SHIFT LEVER HOUSING)
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2011-07 → 2014-04 ended
KUN16,36 F) 5F;TGN16 5F +3 —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2011-07 → 2014-04 ended
KUN16,36,TGN36 TWCF) 5F (DCR,HTWC);GGN15,25,KUN15,35,TGN11,16,26 +2 —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2011-07 → 2014-10 ended
TGN26 DLX HTWCF;TGN26,36 SR +2 —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2012-04 → 2014-10 ended
TGN36 16,26 SCB 5F +12 —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2011-07 → 2015-04 ended
KUN15 HDCR (GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36 5F +1 —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2011-07 → 2015-04 ended
TGN36 5F ANCOM;TGN26 DCB +1 —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2011-07 → 2012-10 ended
TGN36 DCB 5F HTWCF —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2011-07 → 2015-08 ended
KUN15 PKN —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2011-07 → 2016-09 ended
KUN3# COM,GEN);KUN15 CC,IDN,SA,TH) 5F +14 —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2012-04 → 2016-09 ended
TGN16 GCC,TH) XTR;TGN11,36 GCC,GEN;TGN26 +6 —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2015-08 → 2016-09 ended
KUN15 PKN —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2011-07 → —
KUN35 XTR;KUN10,15,TGN10,15 (DCR,HTWC) (GCC,GEN,IDN,PHL,TH) —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2014-04 → —
KUN16,36,TGN36 F 5F (CNG,HDCR,HTWC,HTWCF) +4 —
90109-08305 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2014-04 → —
KUN16,36 F) 5F;TGN16 5F +3 —
90109-T0039 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2014-04 → —
KUN16,36,TGN36 F 5F (CNG,HDCR,HTWC,HTWCF) +4 —
90109-T0039 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2014-04 → —
KUN16,36 F) 5F;TGN16 5F +3 —
90109-T0039 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2011-07 → —
KUN35 XTR;KUN10,15 DCR (GCC,GEN,IDN,PHL,TH) —
90109-T0039 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2011-07 → 2015-08 ended
KUN15 PKN —
90109-T0039 note Pin OR Bolt (FOR SHIFT LEVER HOUSING)
2011-07 → 2015-04 ended
TGN10,15 GCC,IDN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
