Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

62 part groups · 67 illustrations

Illustrations

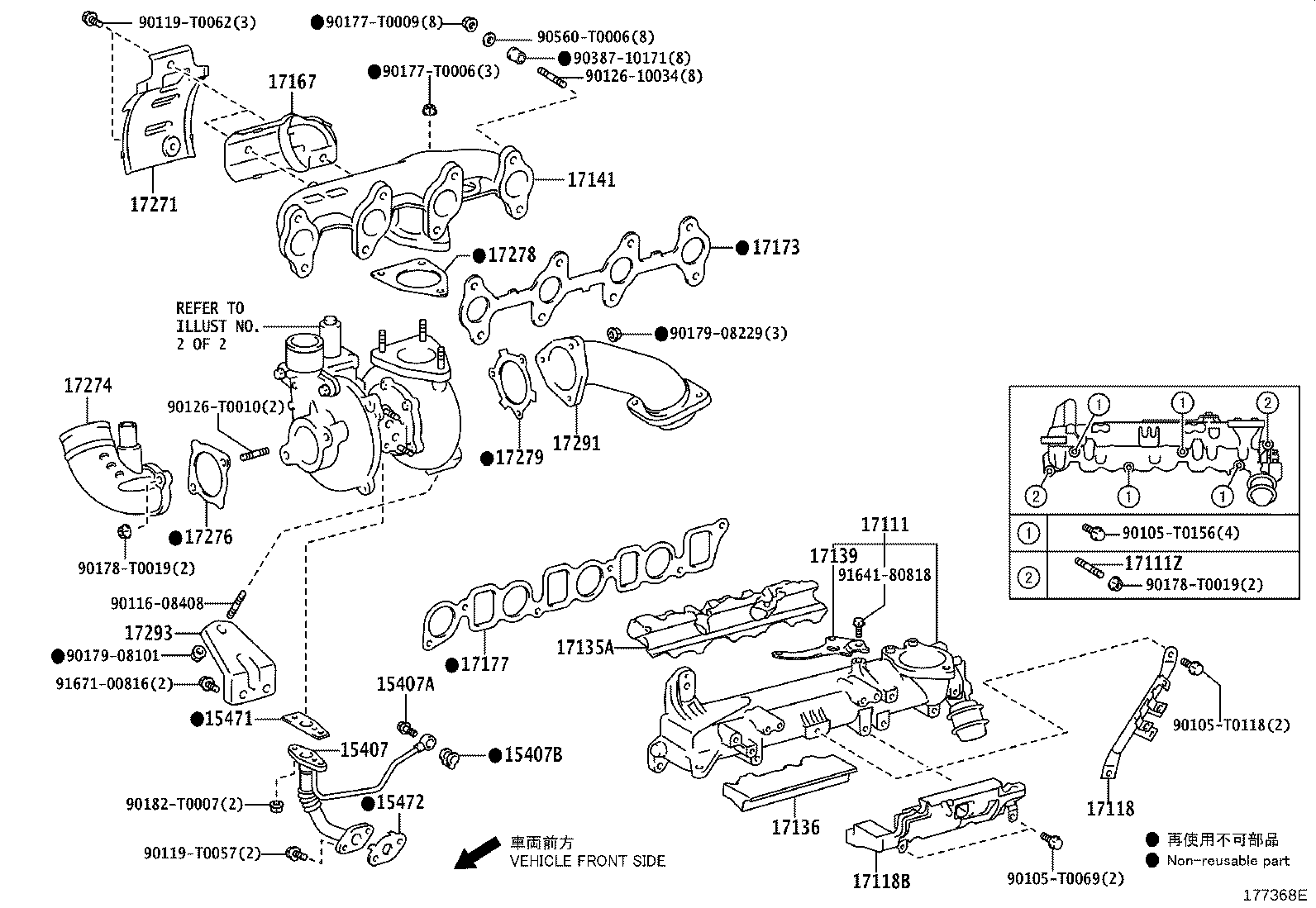

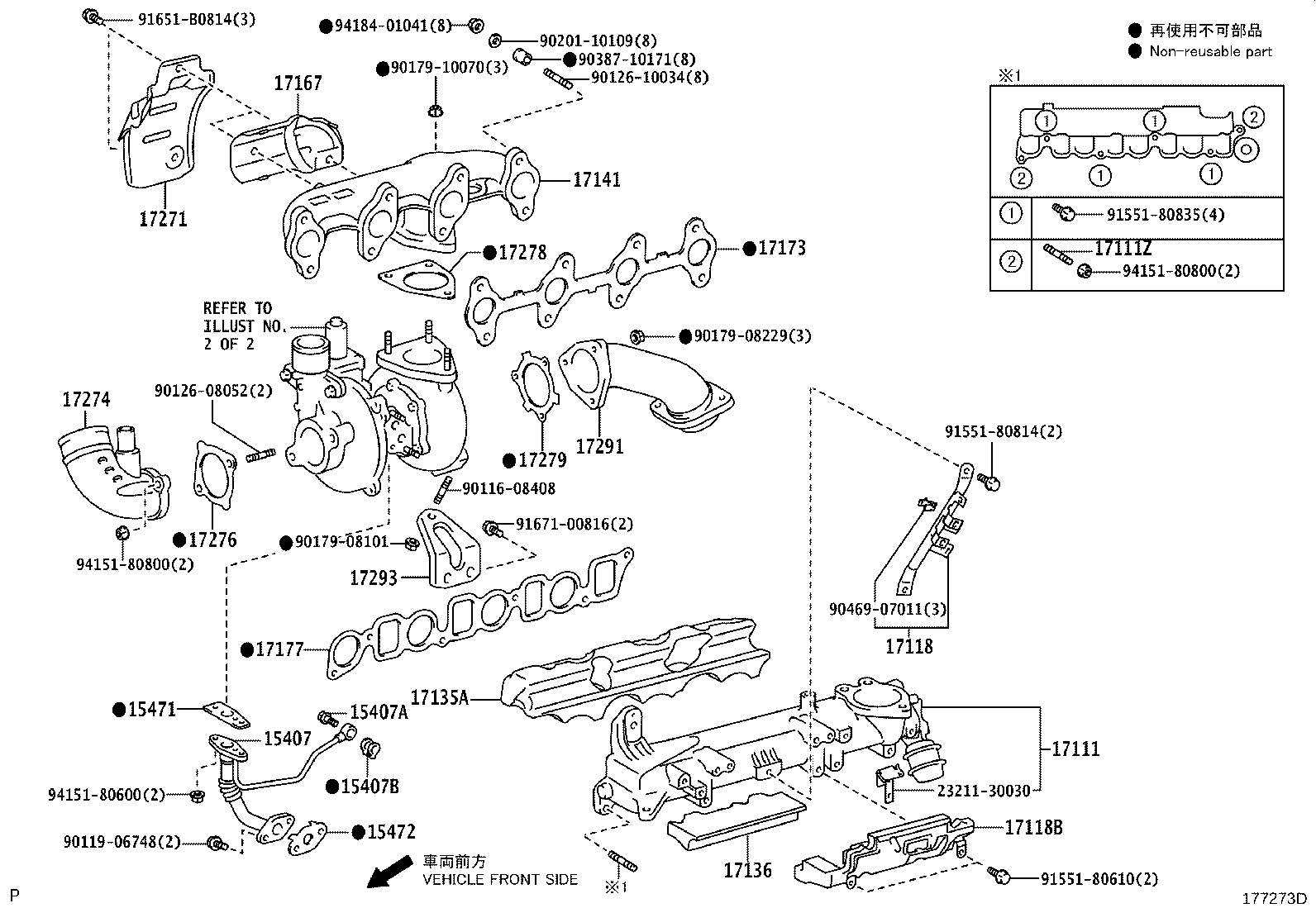

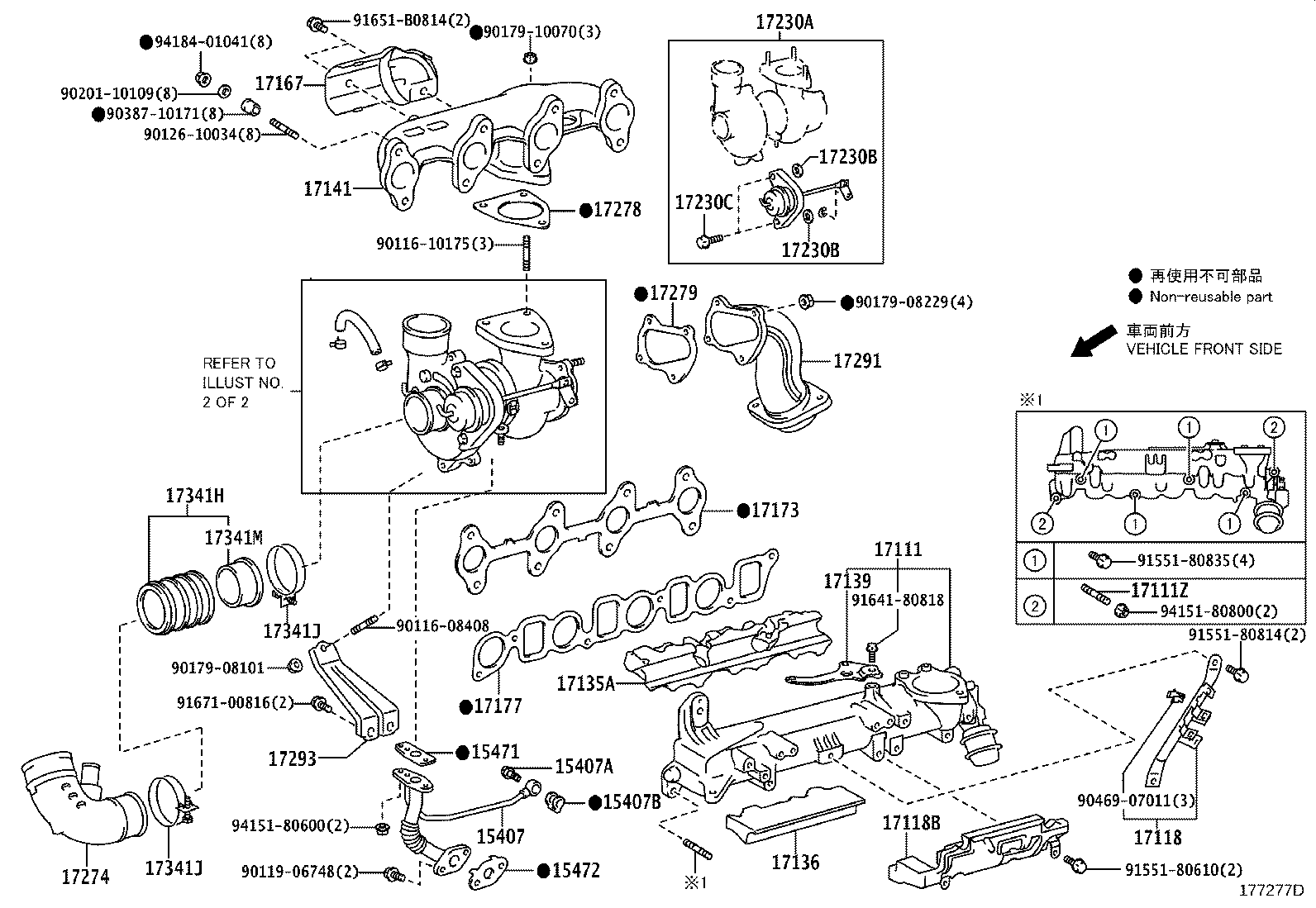

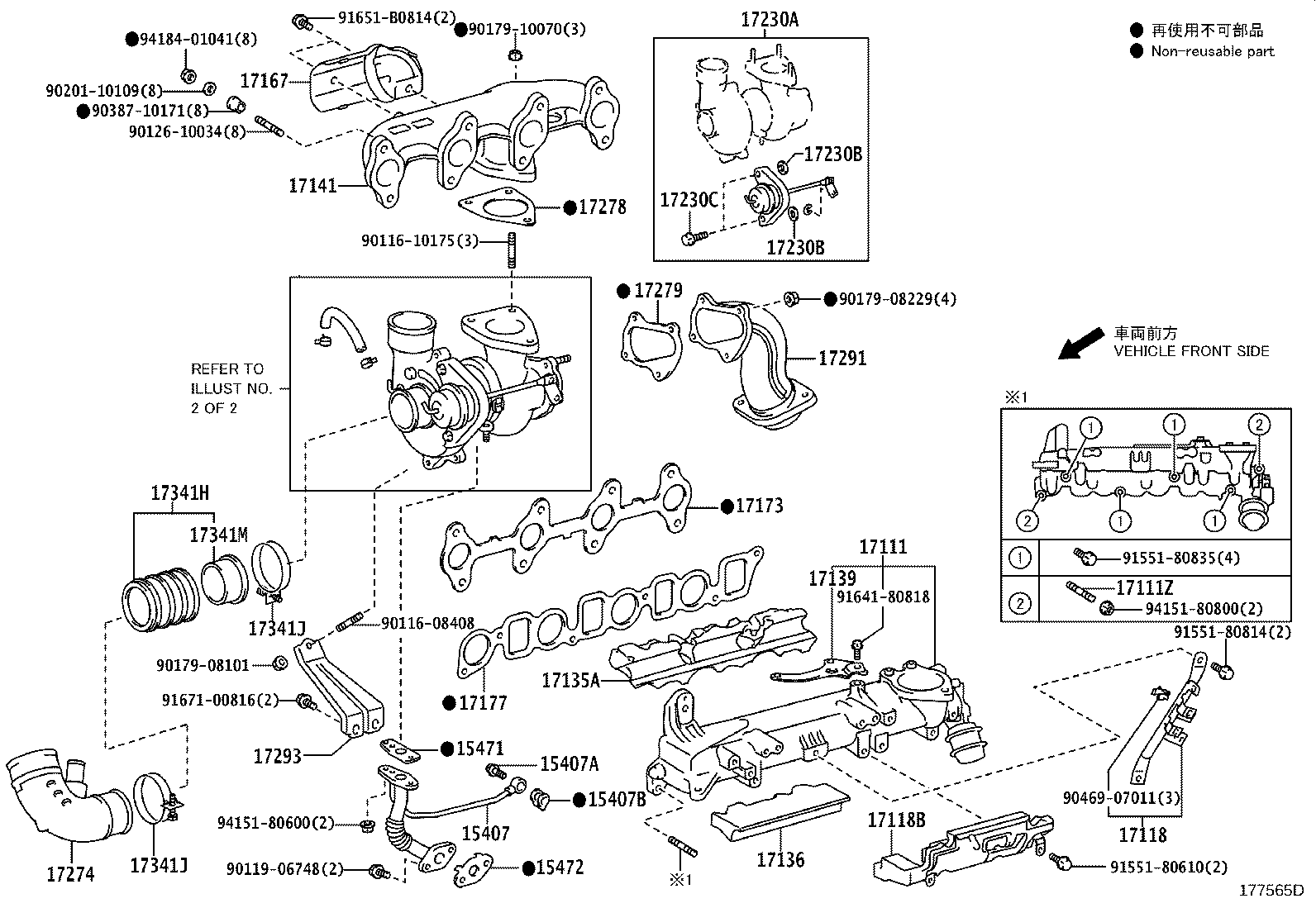

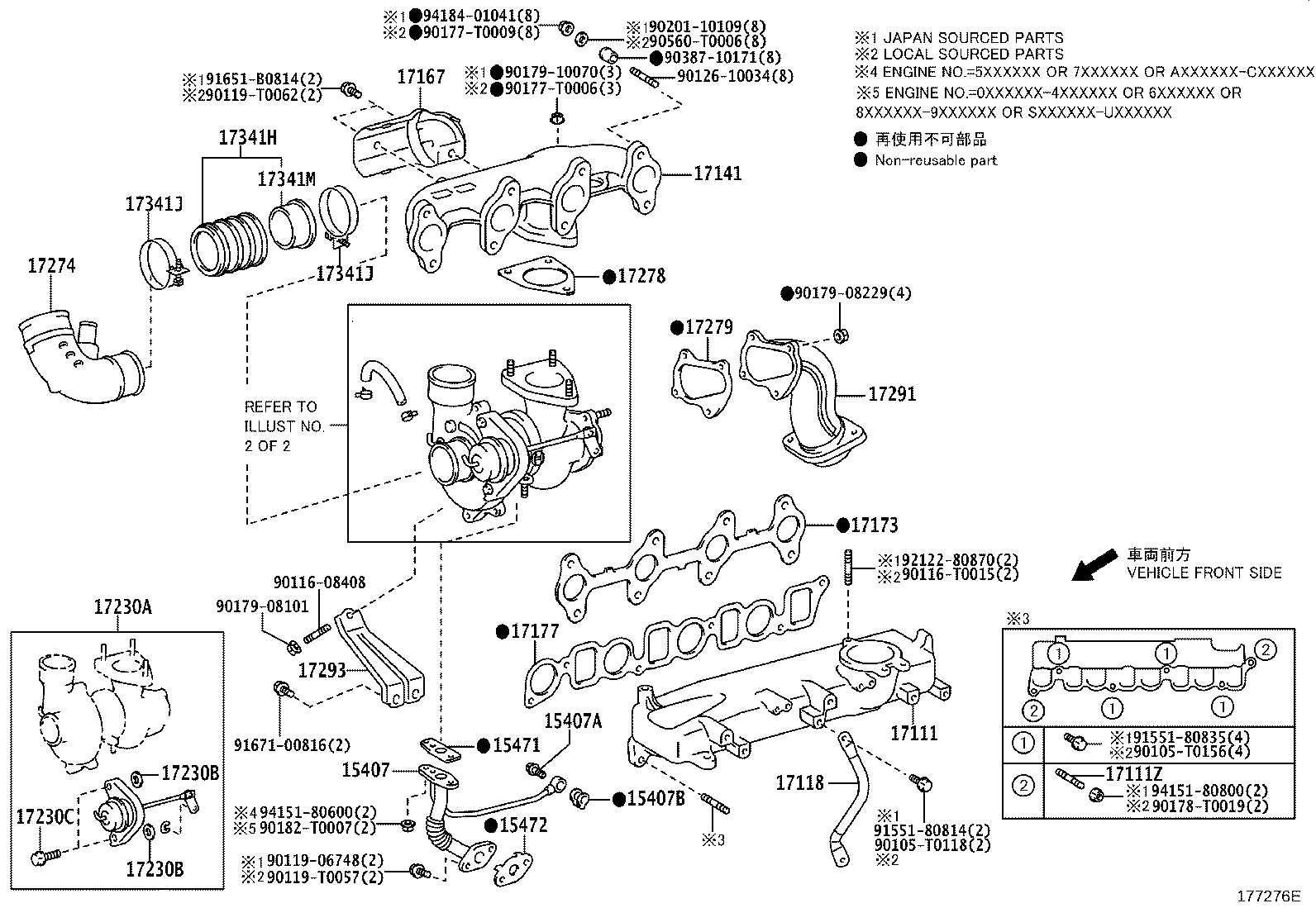

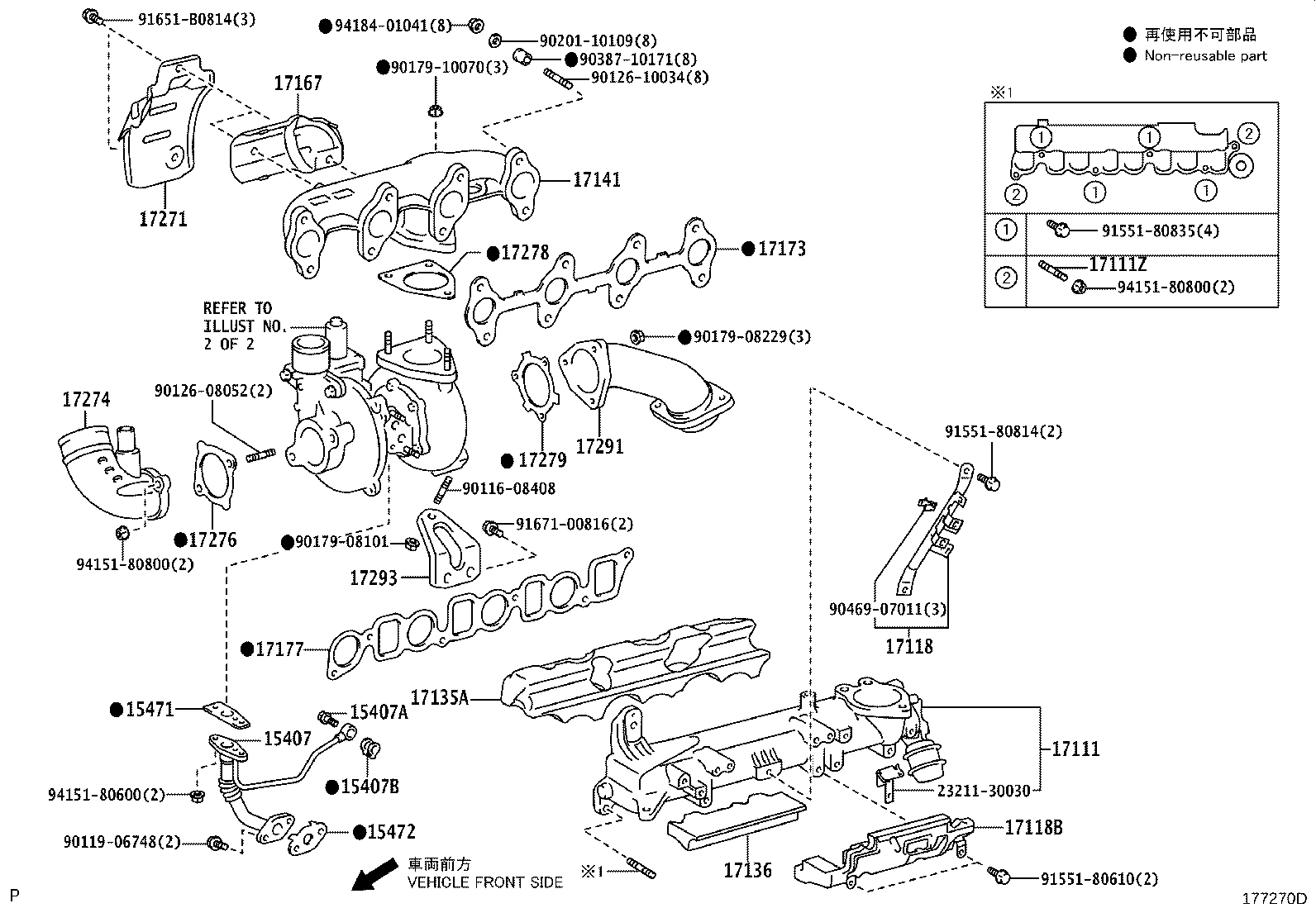

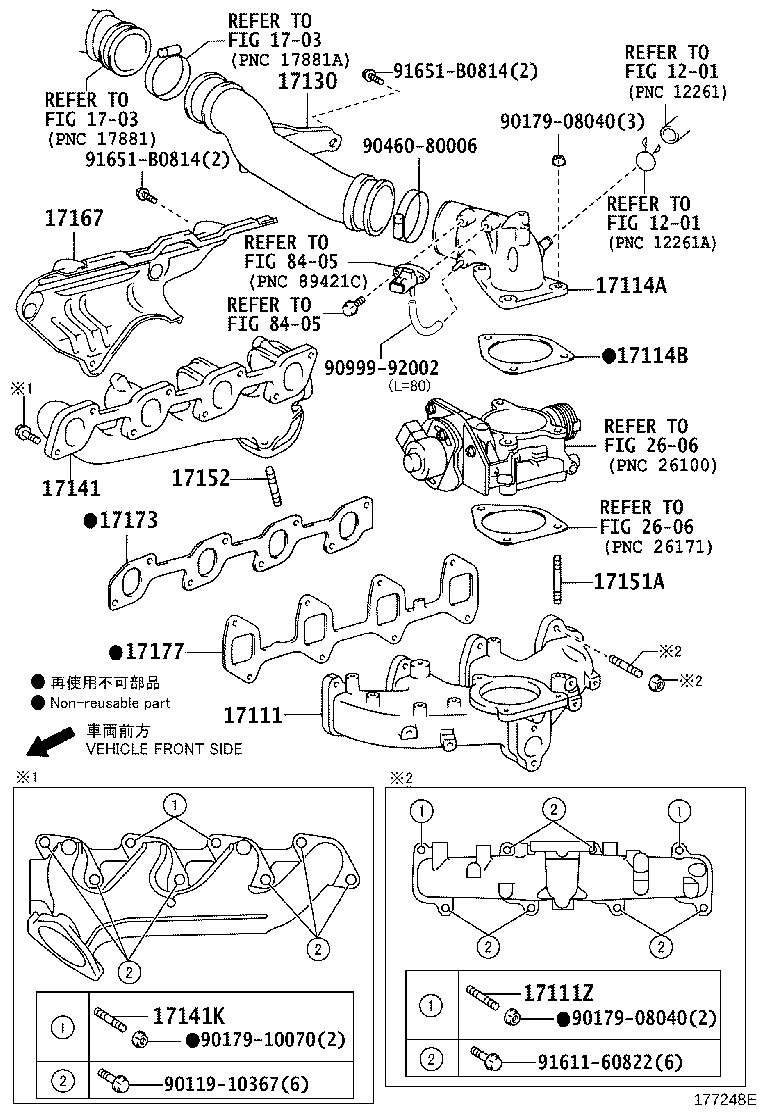

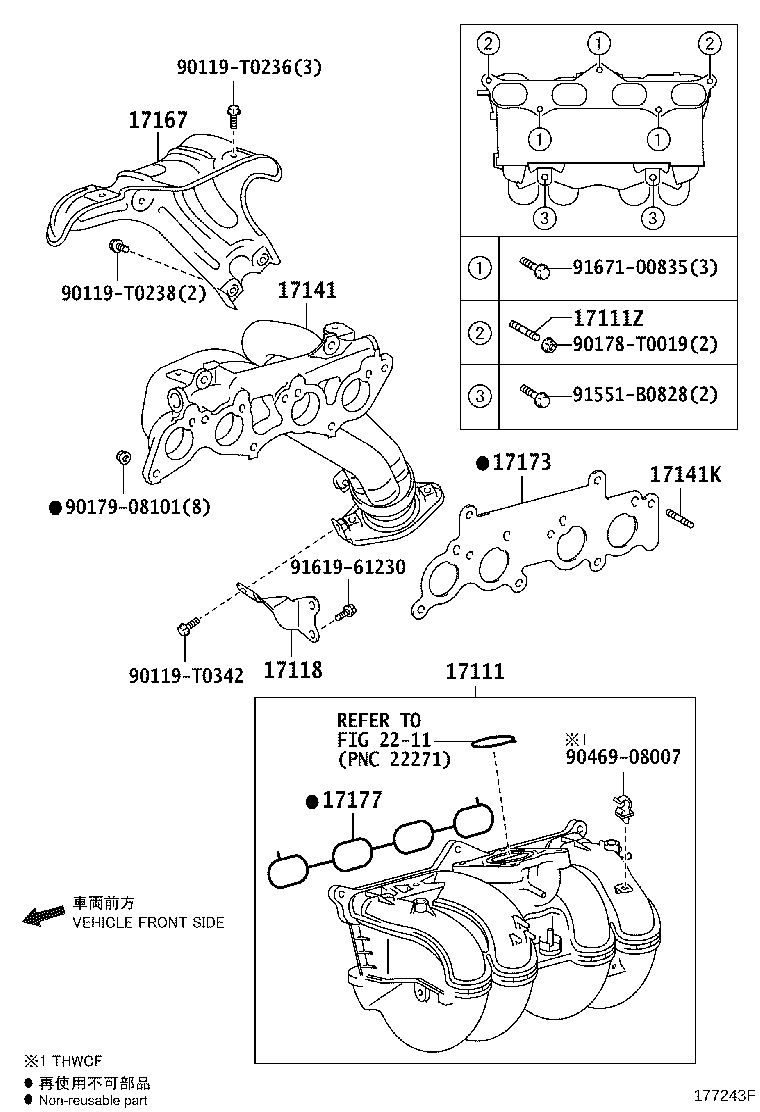

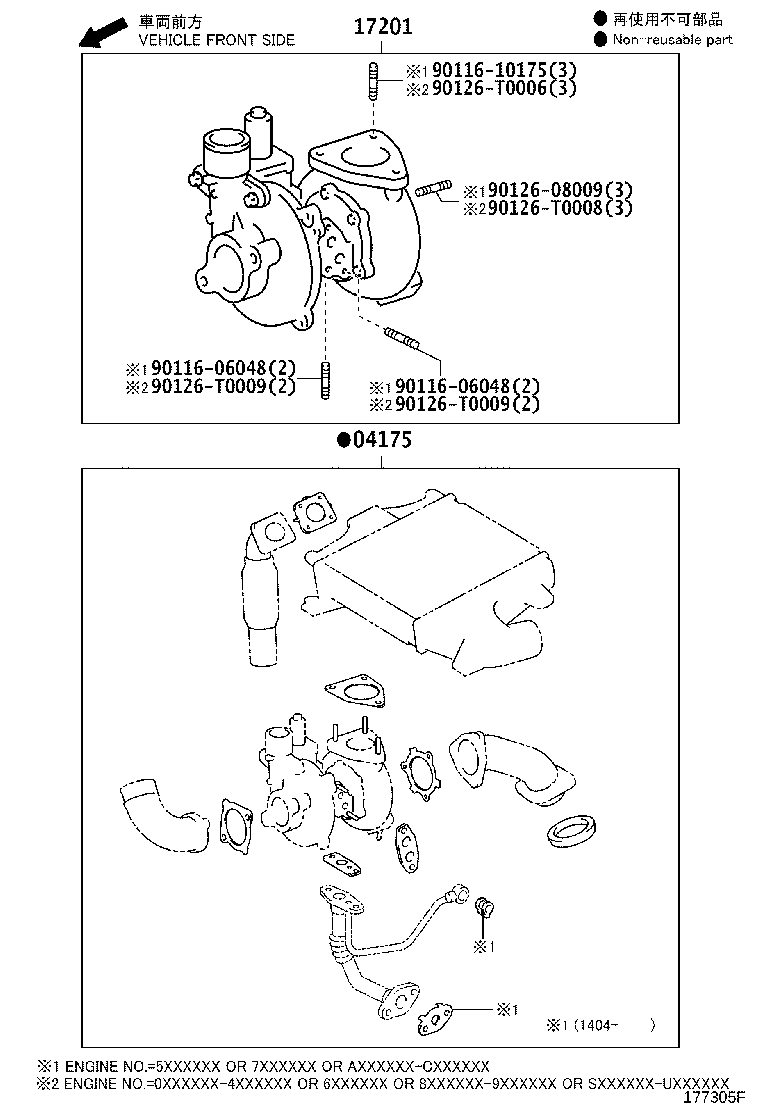

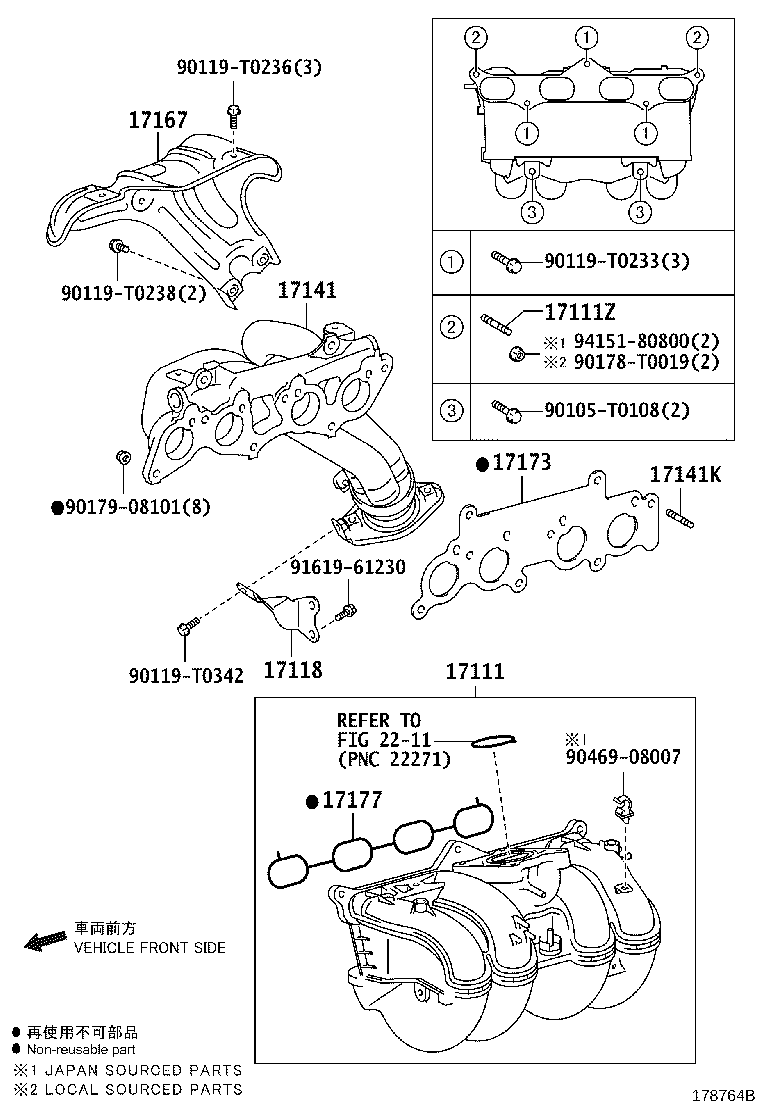

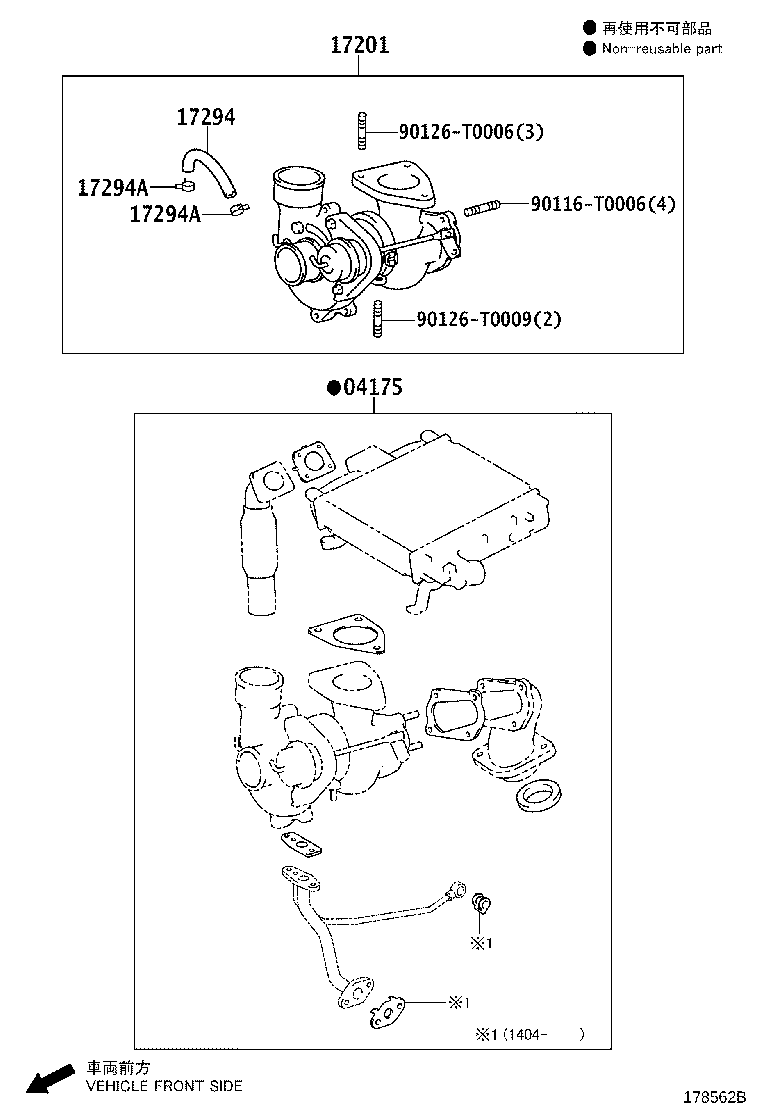

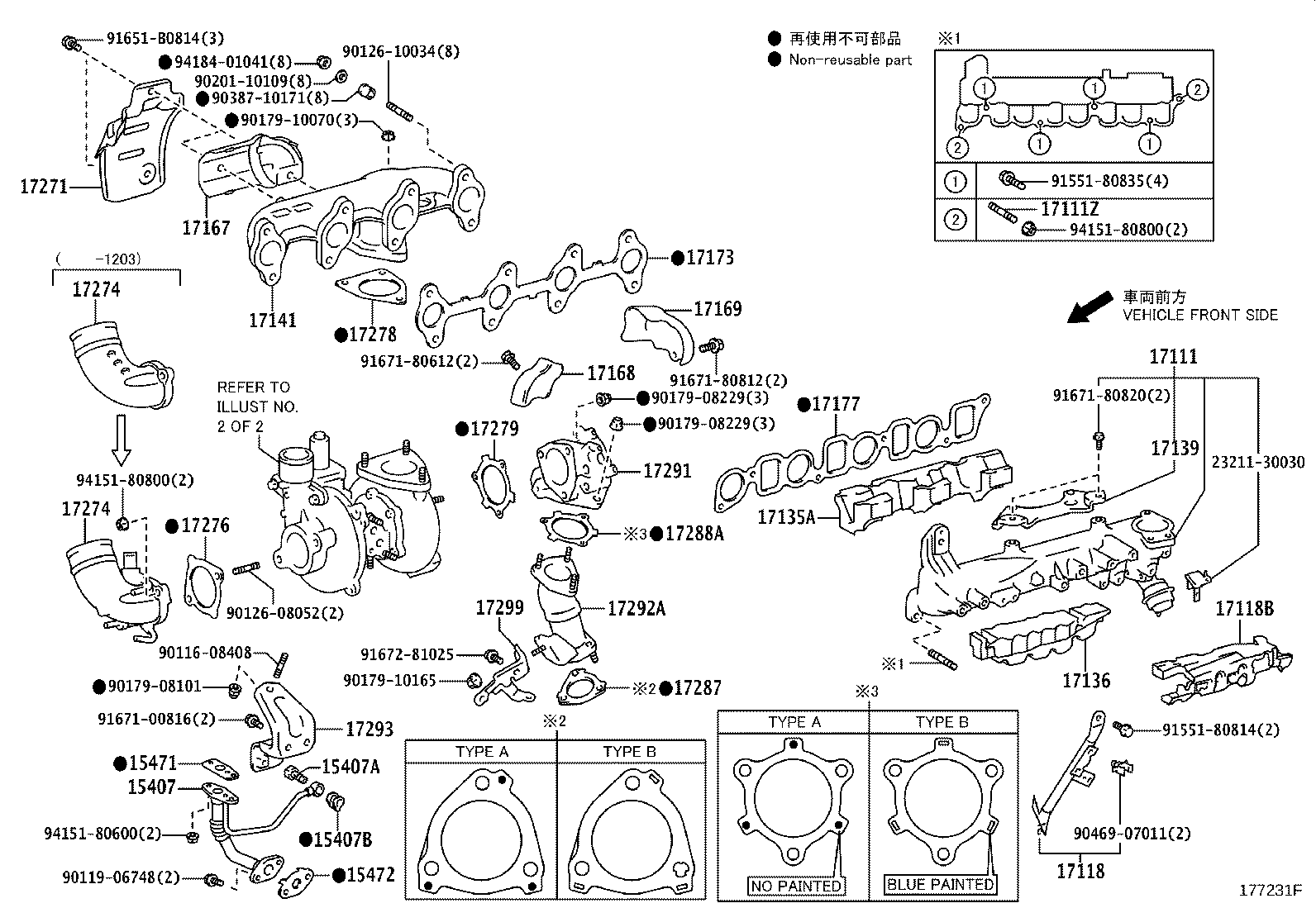

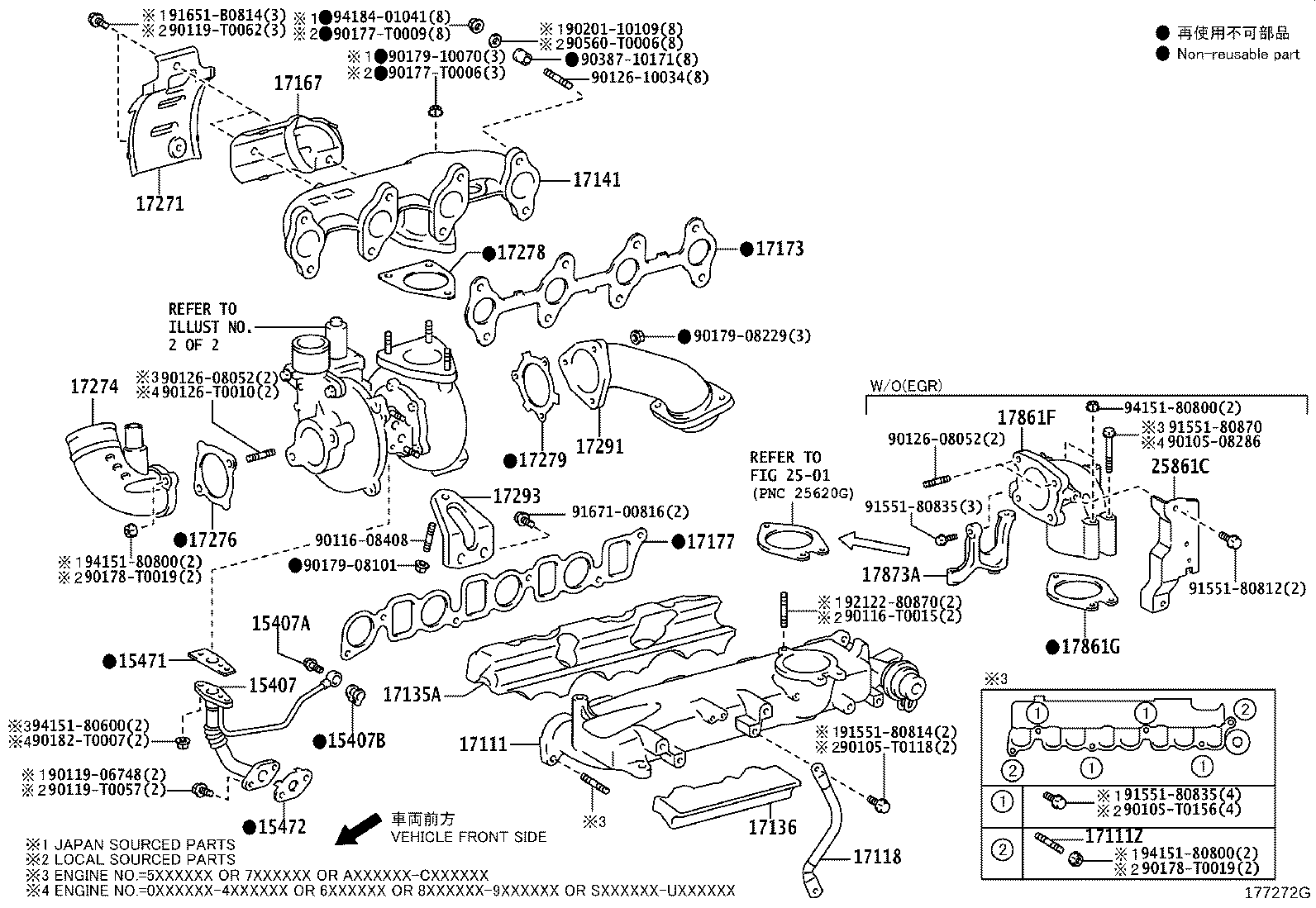

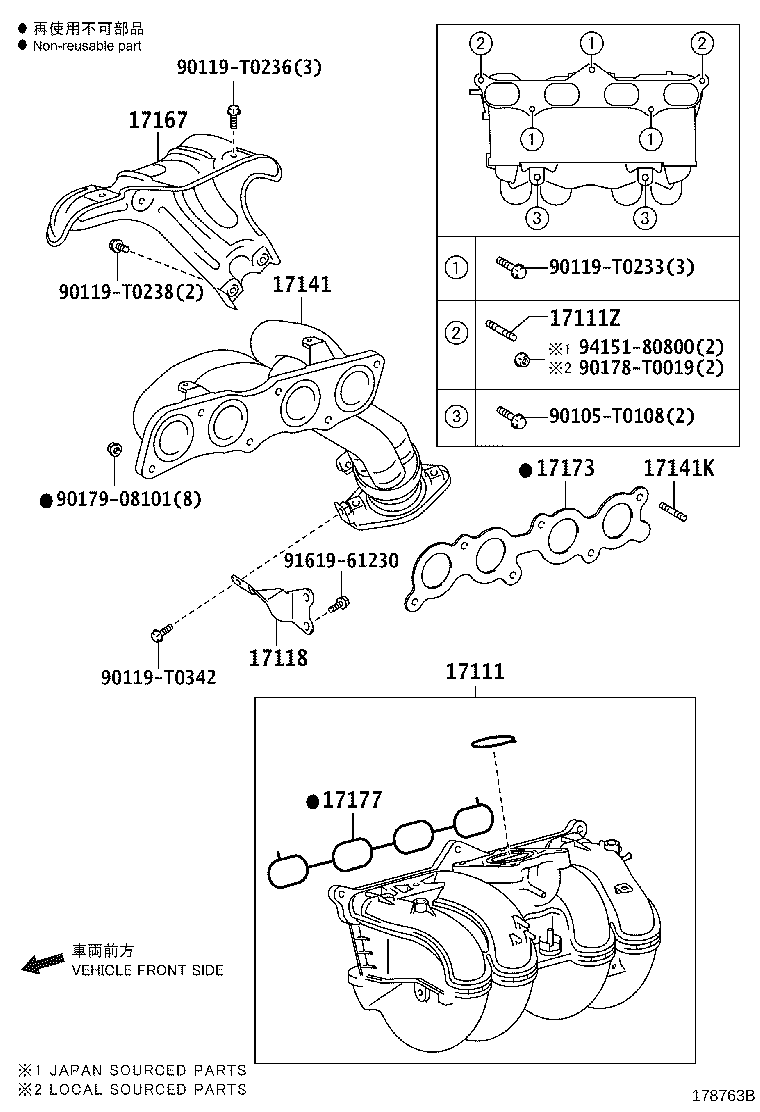

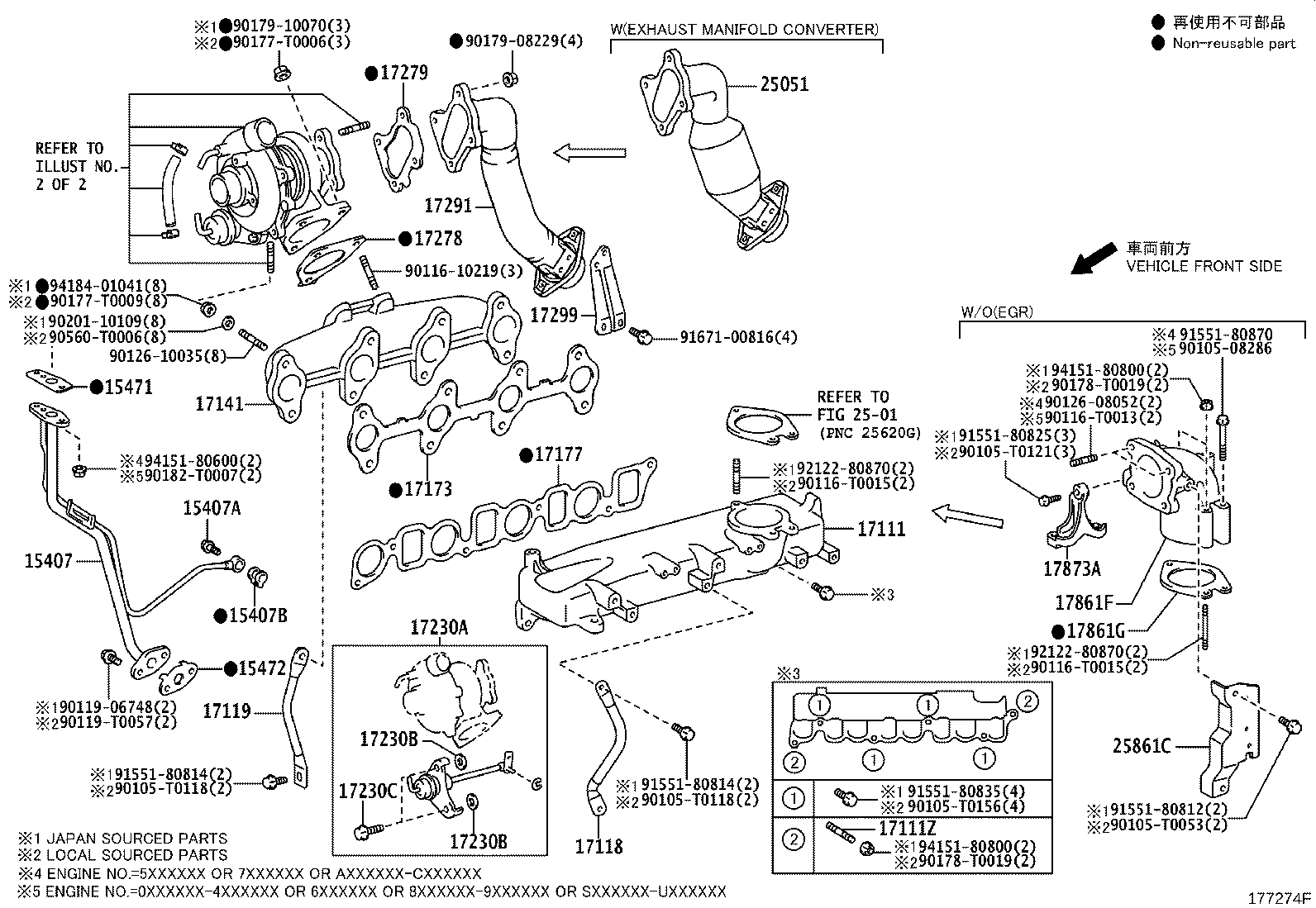

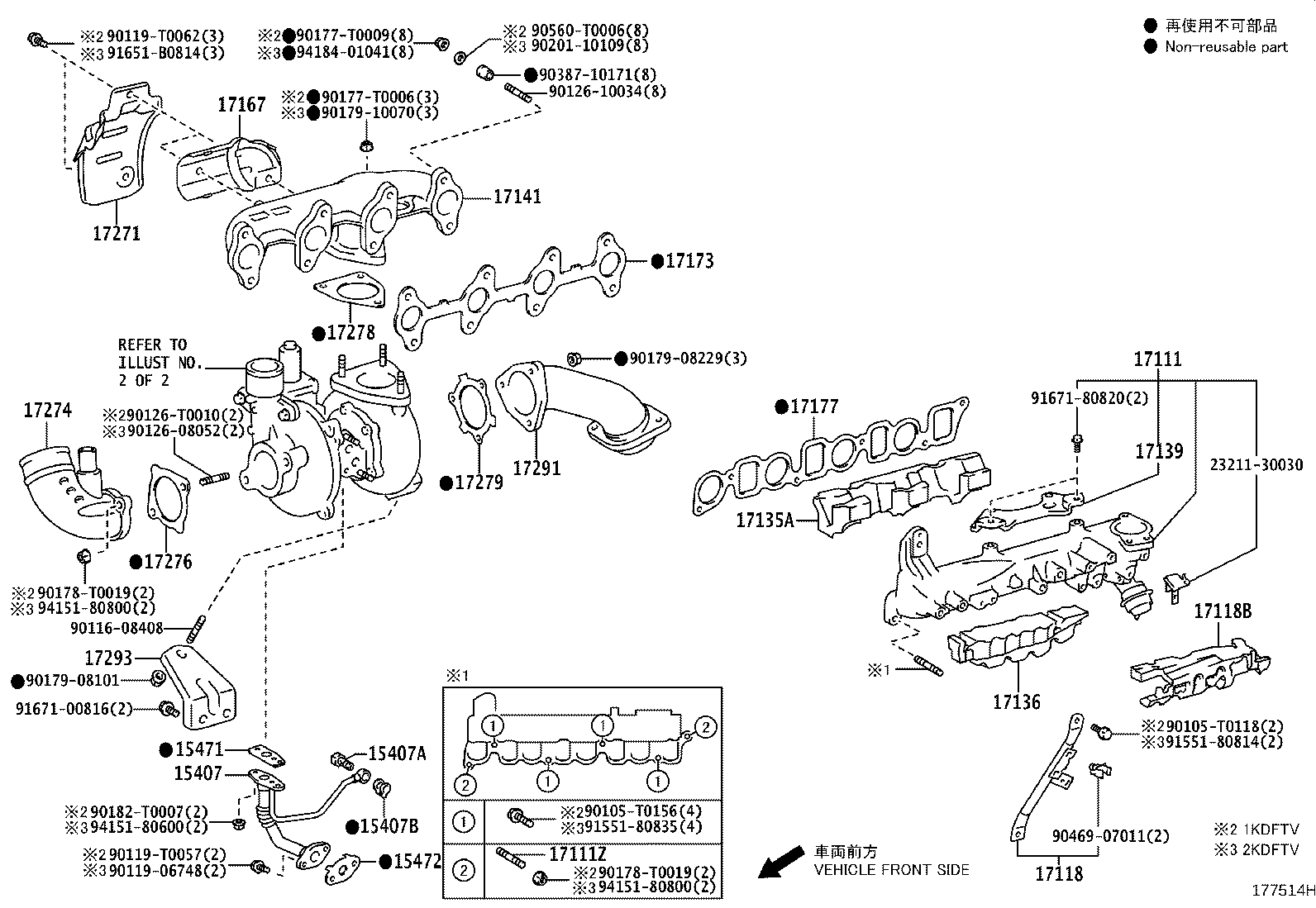

Figure 177212D 177212D 2011-07 → — Figure 177270D 177270D 2011-07 → — Figure 177270D 177270D 2014-08 → — Figure 177272G 177272G 2011-07 → — Figure 177273D 177273D 2011-07 → 2014-08 Figure 177273D 177273D 2011-07 → — Figure 177368E 177368E 2011-10 → — Figure 177368E 177368E 2012-08 → — Figure 177368E 177368E 2014-10 → — Figure 177514H 177514H 2012-04 → — Figure 177514H 177514H 2012-08 → — Figure 177305F 177305F 2011-07 → — Figure 177305F 177305F 2012-08 → — Figure 177231F 177231F 2011-07 → — Figure 178545B 178545B 2011-07 → — Figure 177274F 177274F 2011-07 → 2012-08 Figure 177274F 177274F 2011-07 → — Figure 177274F 177274F 2011-07 → — Figure 177274F 177274F 2011-08 → 2012-10 Figure 178625D 178625D 2011-07 → 2012-08 Figure 178625D 178625D 2011-07 → — Figure 178625D 178625D 2011-07 → — Figure 178625D 178625D 2011-08 → 2012-10 Figure 177268H 177268H 2011-07 → — Figure 177268H 177268H 2012-08 → — Figure 177268H 177268H 2012-08 → — Figure 177268H 177268H 2012-10 → — Figure 177268H 177268H 2013-08 → — Figure 177268H 177268H 2013-11 → — Figure 177268H 177268H 2014-08 → — Figure 177268H 177268H 2014-10 → — Figure 178548B 178548B 2011-07 → — Figure 178548B 178548B 2012-08 → — Figure 178548B 178548B 2012-08 → — Figure 178548B 178548B 2012-10 → — Figure 178548B 178548B 2013-08 → — Figure 178548B 178548B 2014-08 → — Figure 178548B 178548B 2014-10 → — Figure 177276E 177276E 2011-07 → — Figure 177276E 177276E 2012-08 → — Figure 178562B 178562B 2011-07 → — Figure 178562B 178562B 2012-08 → — Figure 177277D 177277D 2011-07 → — Figure 177277D 177277D 2012-10 → — Figure 177277D 177277D 2013-11 → — Figure 177277D 177277D 2013-11 → — Figure 178563B 178563B 2011-07 → — Figure 178563B 178563B 2012-10 → — Figure 178563B 178563B 2013-11 → — Figure 178563B 178563B 2013-11 → — Figure 177232G 177232G 2011-07 → — Figure 177232G 177232G 2013-08 → — Figure 178564B 178564B 2011-07 → — Figure 178564B 178564B 2013-08 → — Figure 177369D 177369D 2011-10 → — Figure 177369D 177369D 2013-11 → — Figure 178627B 178627B 2001-10 → — Figure 178627B 178627B 2013-11 → — Figure 177565D 177565D 2012-08 → — Figure 178561B 178561B 2012-08 → — Figure 177248E 177248E 2011-08 → — Figure 177254F 177254F 2011-07 → — Figure 178763B 178763B 2012-05 → — Figure 177243F 177243F 2011-07 → 2015-02 Figure 177243F 177243F 2011-07 → 2015-02 Figure 178764B 178764B 2015-02 → — Figure 178764B 178764B 2015-02 → —

Part groups

PNCDescription

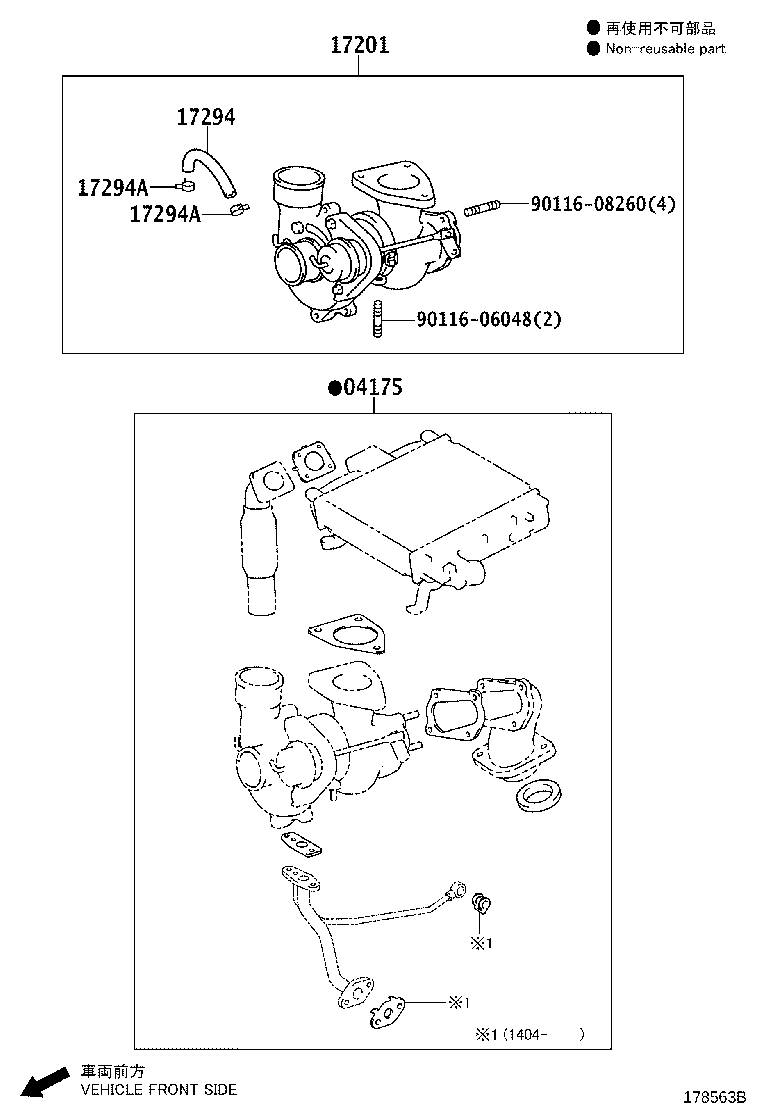

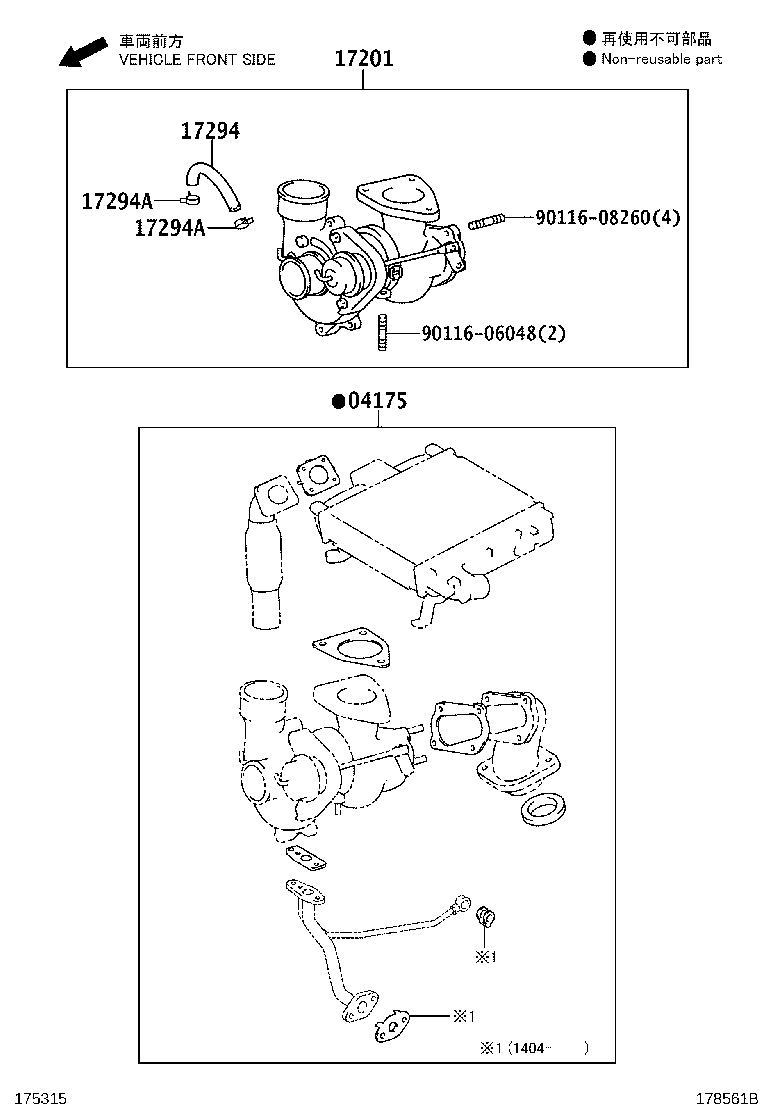

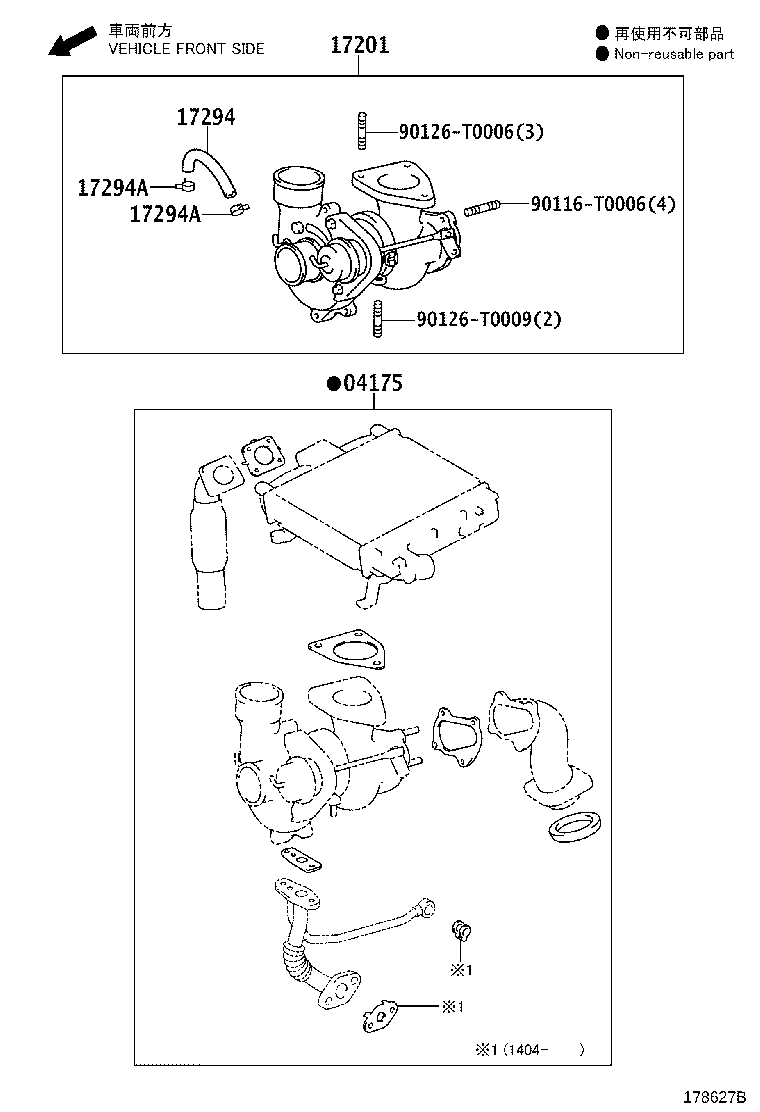

04175 Gasket Kit, Turbocharger
12216C Plate, Oil Baffle
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1

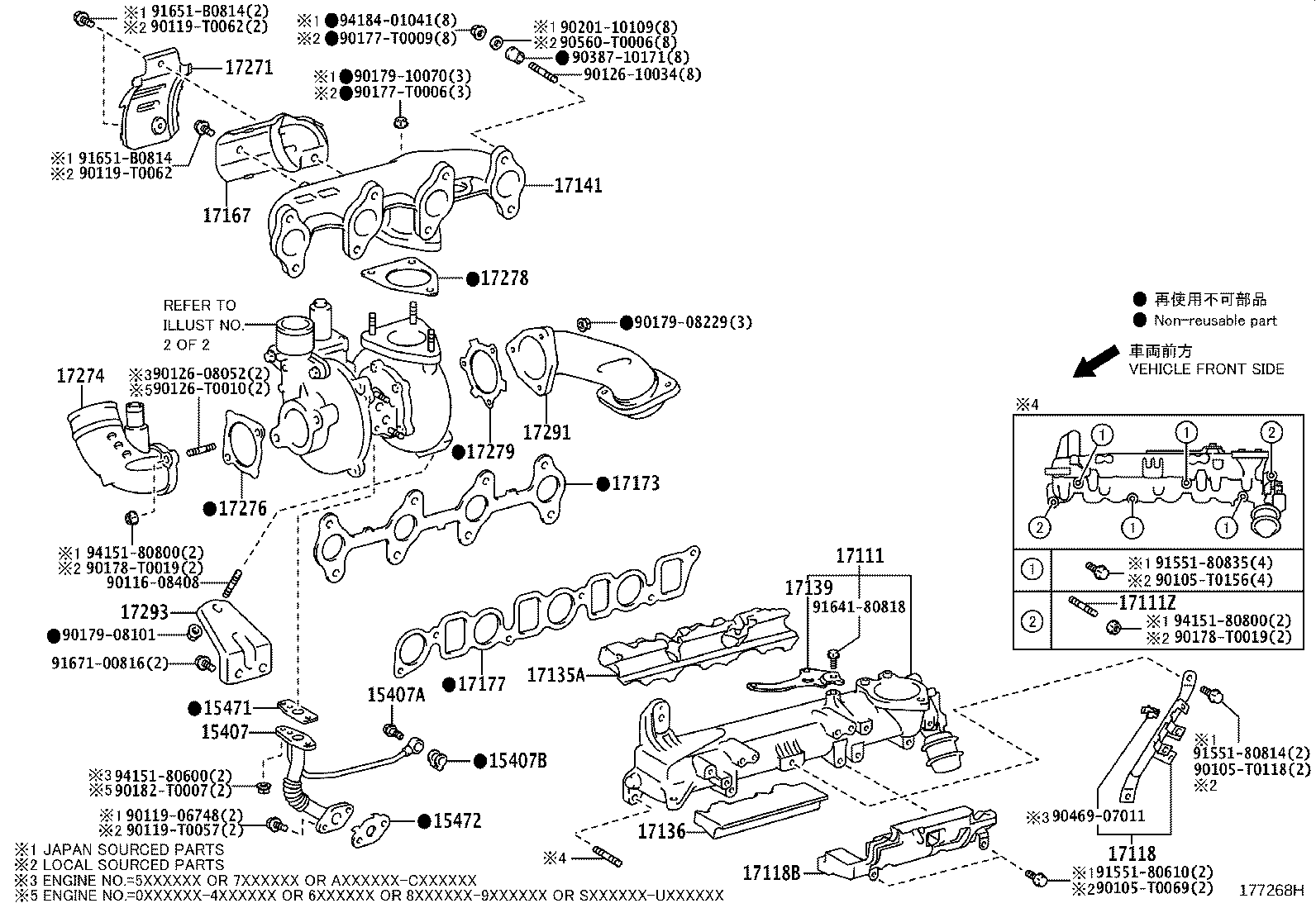

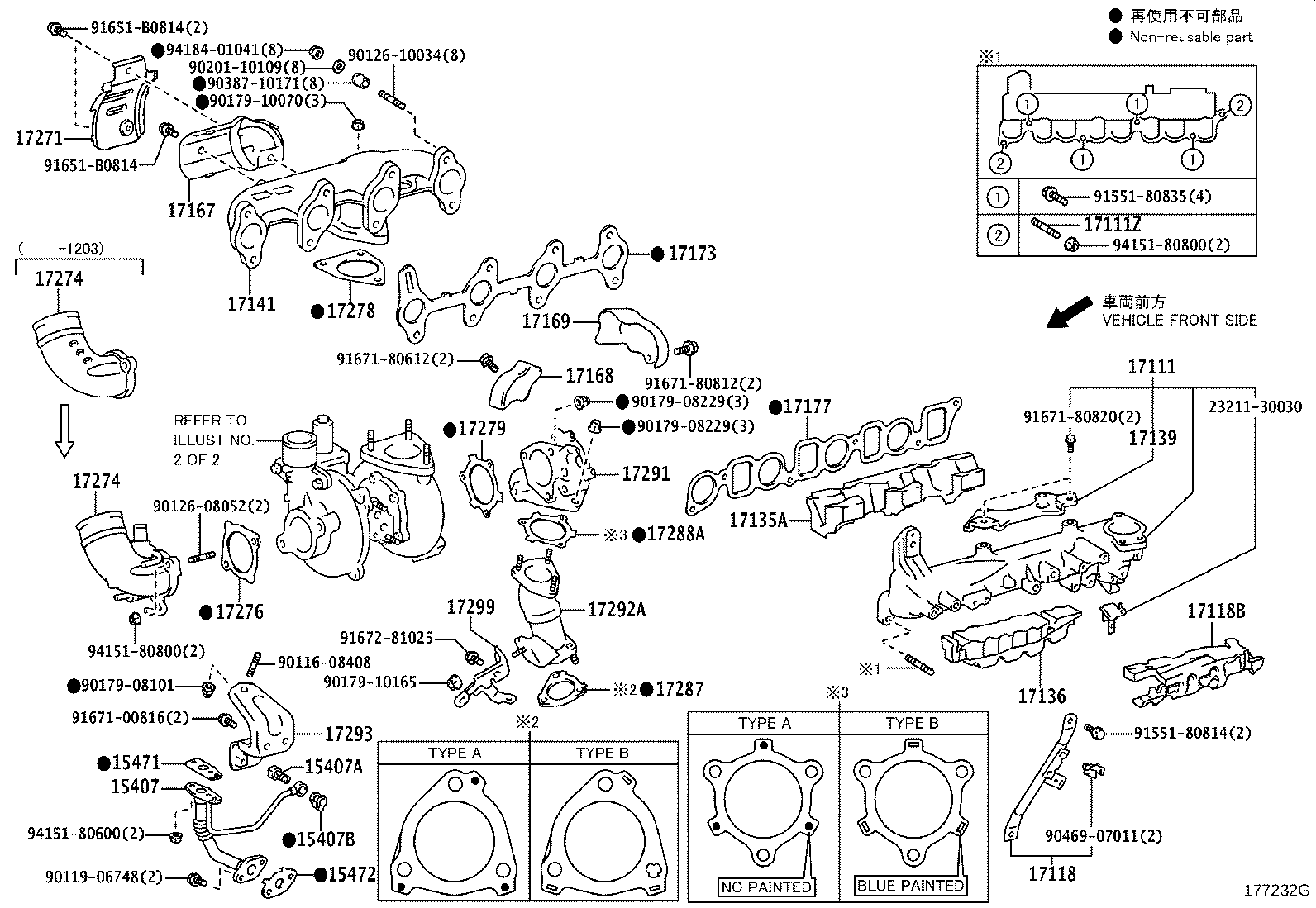

17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH

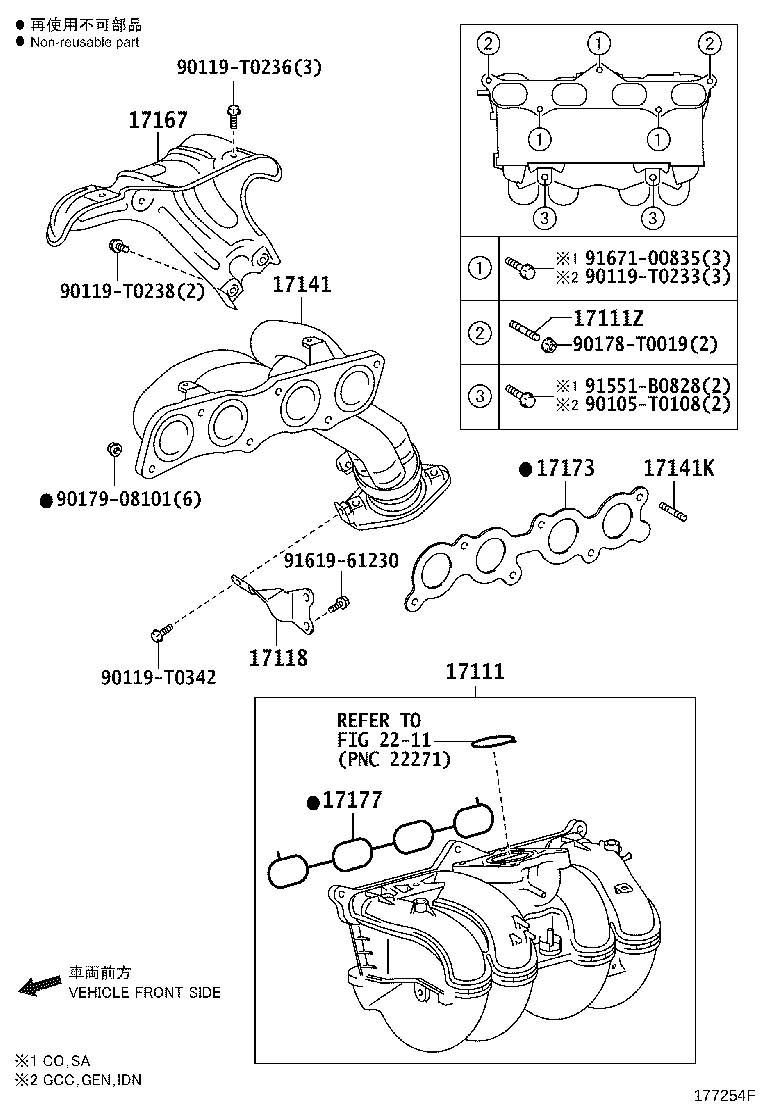

17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17114A Flange, Intake
17114B Gasket, Intake Flange
17118 Stay, Manifold
17118B Insulator, Intake Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17130 Pipe, Intake
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17139 Stay, Manifold, NO.2

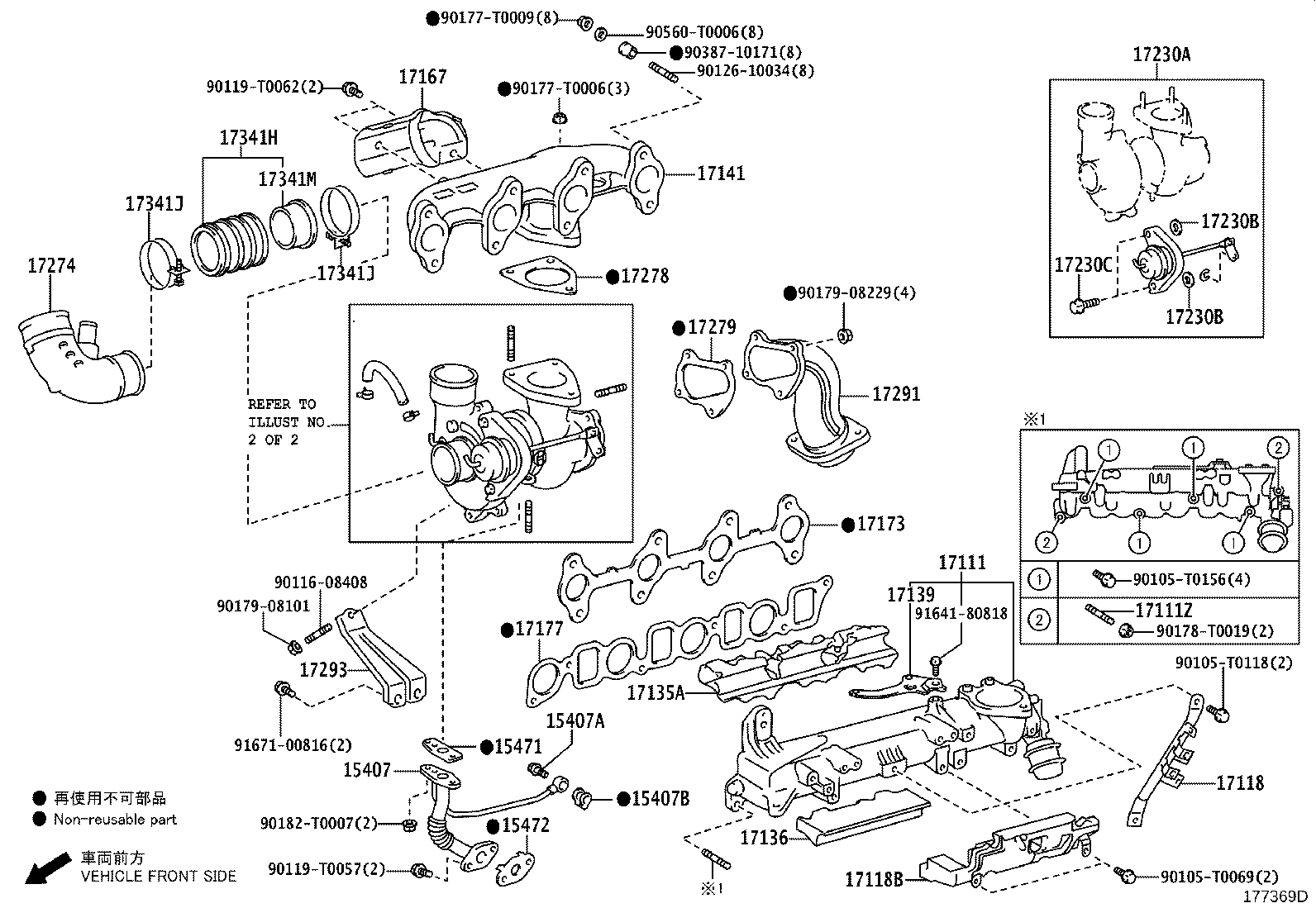

17141 Manifold, Exhaust
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2

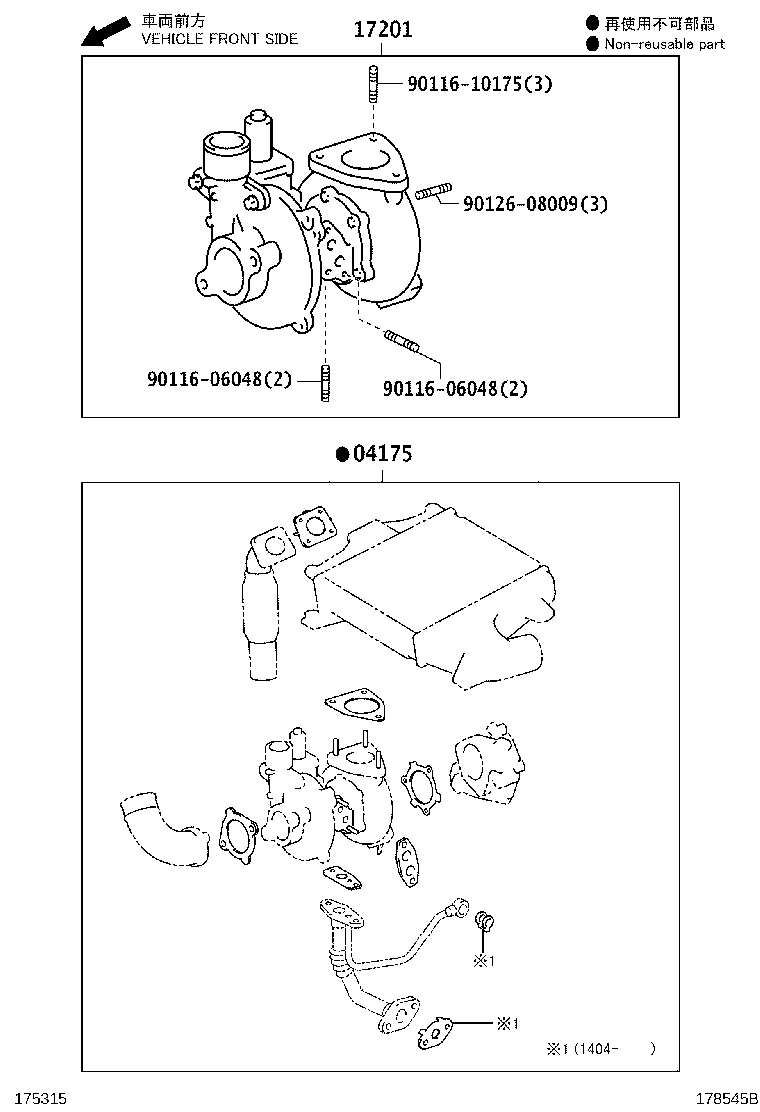

17201 Turbocharger Sub-assy
17230A Repair Actuaor Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17274 Elbow, Compressor Inlet
17276 Gasket, Compressor Inlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17287 Gasket, Turbine Outlet Elbow, NO.2
17288A Gasket, Turbine Outlet Elbow, NO.3
17291 Elbow, Turbine Outlet
17292A Elbow, Turbine Outlet, NO.2
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17299 Stay, Turbine Outlet Elbow
17341H Hose, Air
17341J Clamp, Hose
17341M Hose, Air, NO.1
17861F Connector, Intake Air
17861G Gasket, Intake Air Connector
17873A Bracket, Intake Air Connector, NO.2
22267A Bracket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25861C Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
