Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

11 part groups · 5 illustrations

Illustrations

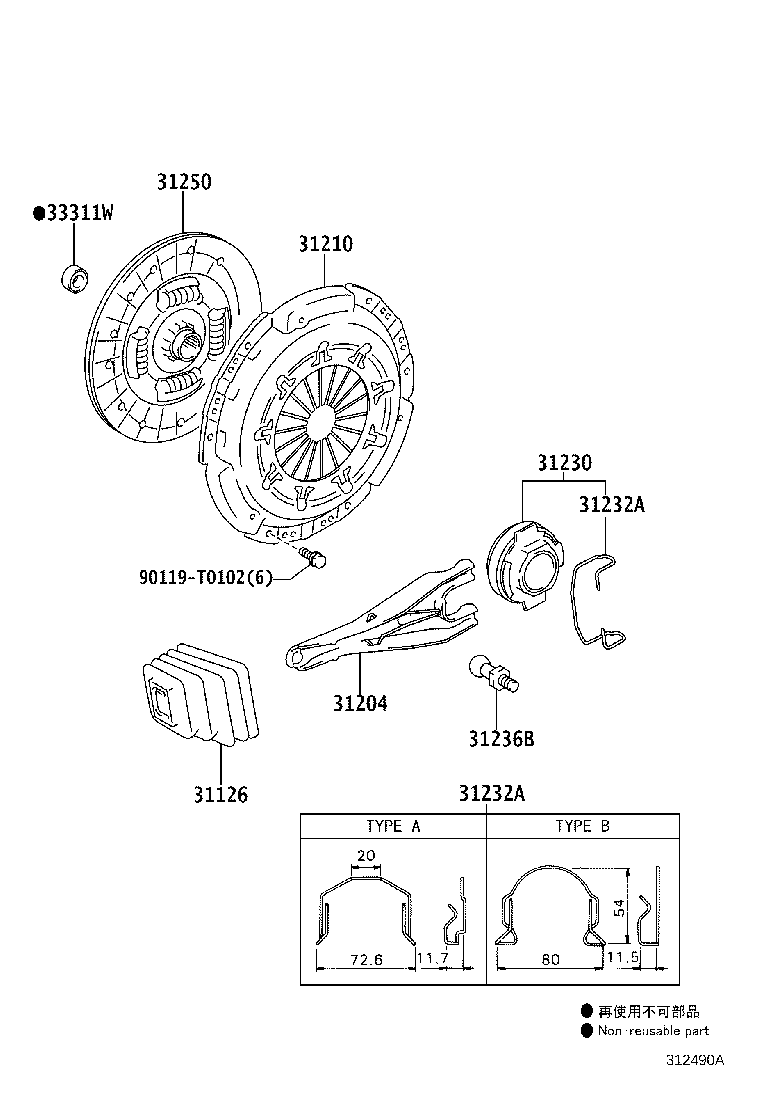

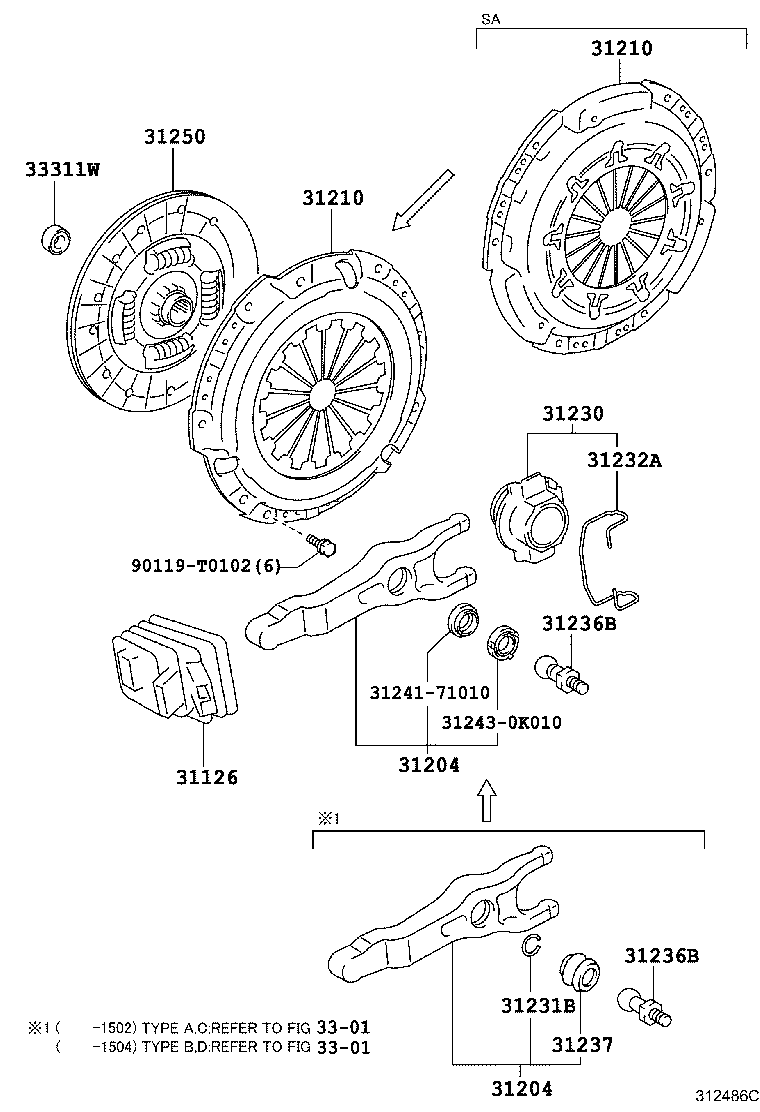

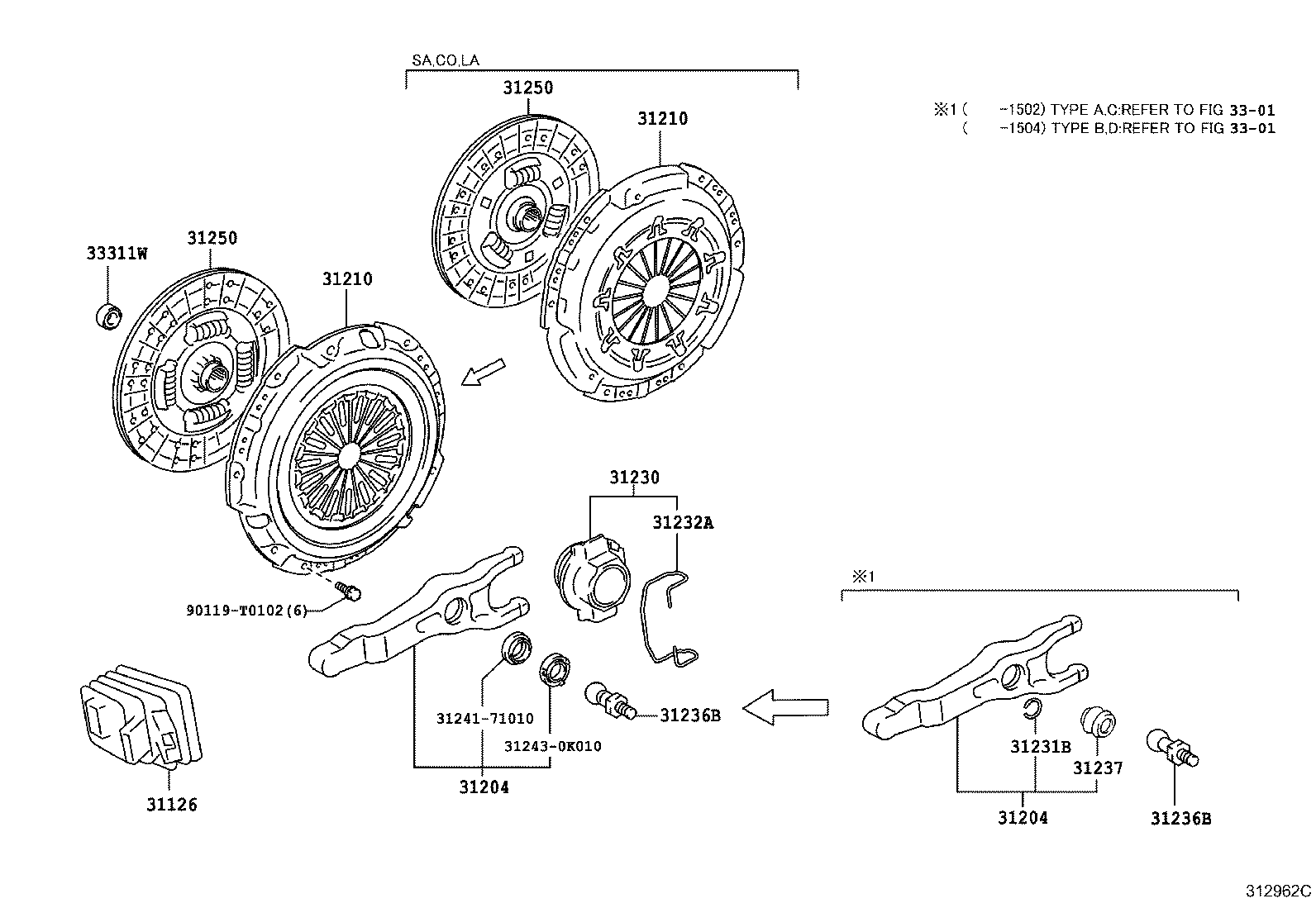

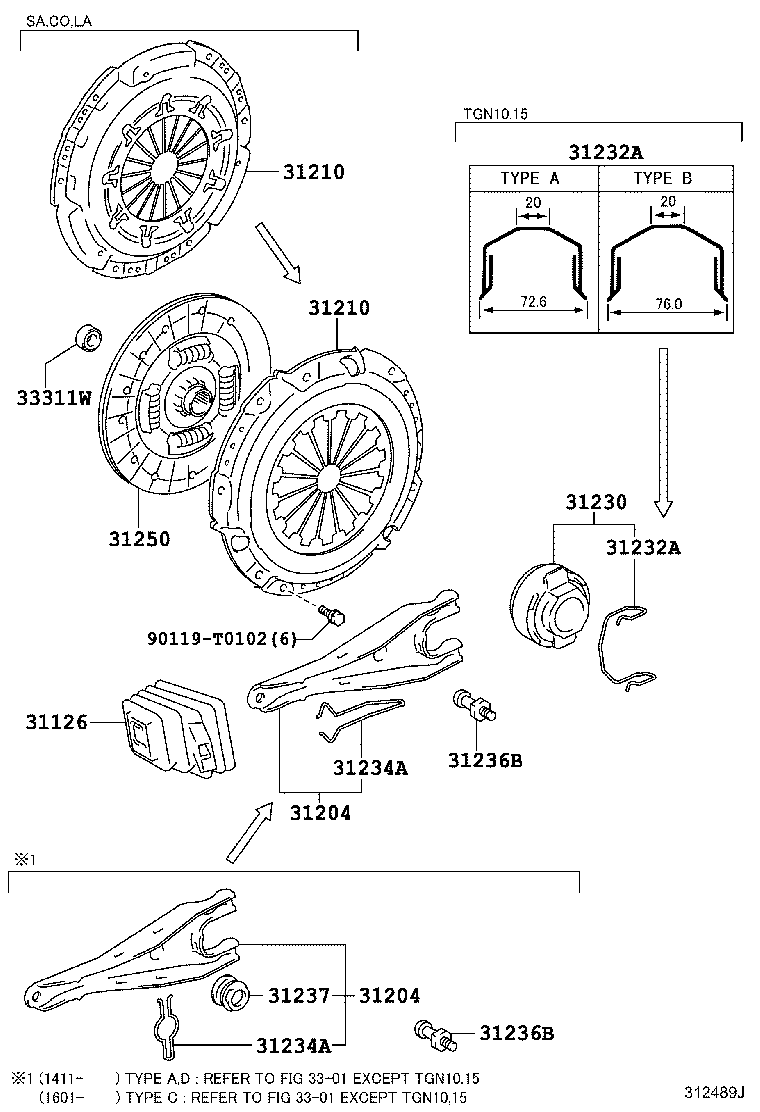

Figure 312485 312485 2011-07 → — Figure 312486C 312486C 2011-07 → — Figure 312962C 312962C 2011-07 → — Figure 312489J 312489J 2011-07 → — Figure 312490A 312490A 2011-08 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31231B Ring, Snap(FOR CLUTCH RELEASE HUB)
31232A Clip, Release Bearing Hub
31234A Spring, Release Fork Support
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
