Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

9 part groups · 7 illustrations

Illustrations

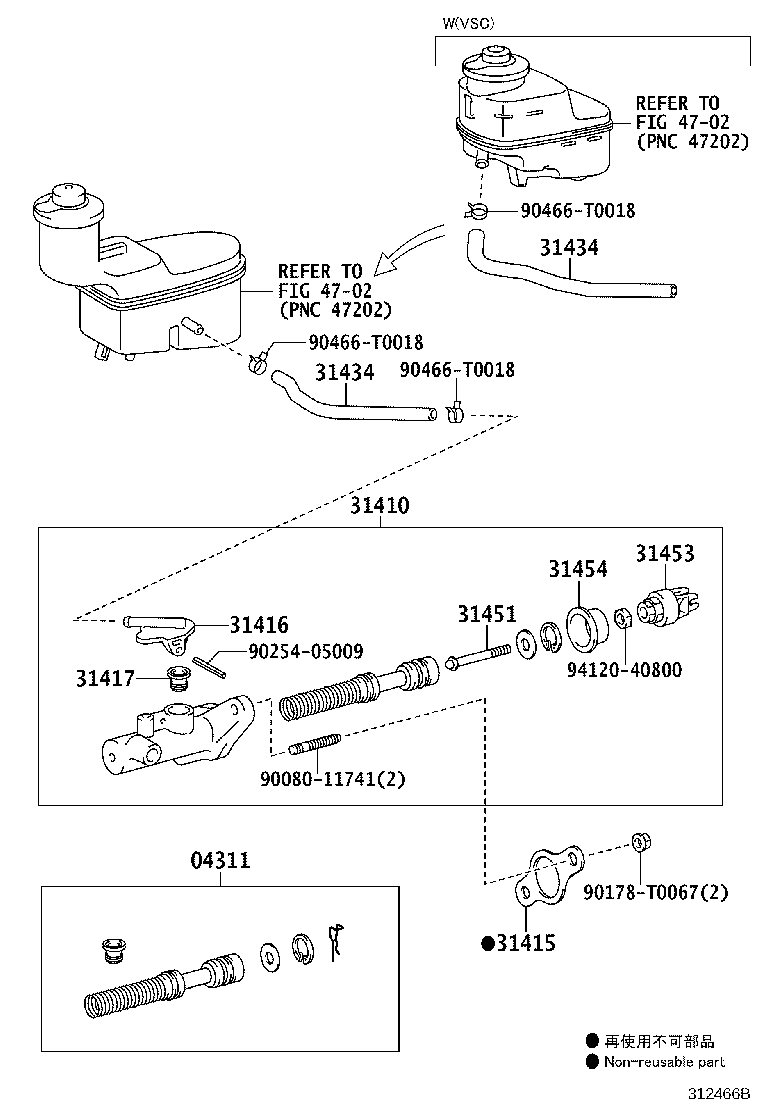

Figure 312465C 312465C 2011-07 → — Figure 312465C 312465C 2011-07 → — Figure 312465C 312465C 2011-07 → — Figure 312466B 312466B 2011-07 → — Figure 313098B 313098B 2011-07 → — Figure 313098B 313098B 2011-07 → — Figure 312467D 312467D 2011-07 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
31410 Cylinder Assy, Clutch Master
31415 Gasket, Clutch Master Cylinder
31416 Union, Clutch Master Cylinder Inlet
31417 Grommet, Clutch Reservoir
31434 Tube, Clutch Reservoir
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
