Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

20 part groups · 10 illustrations

Illustrations

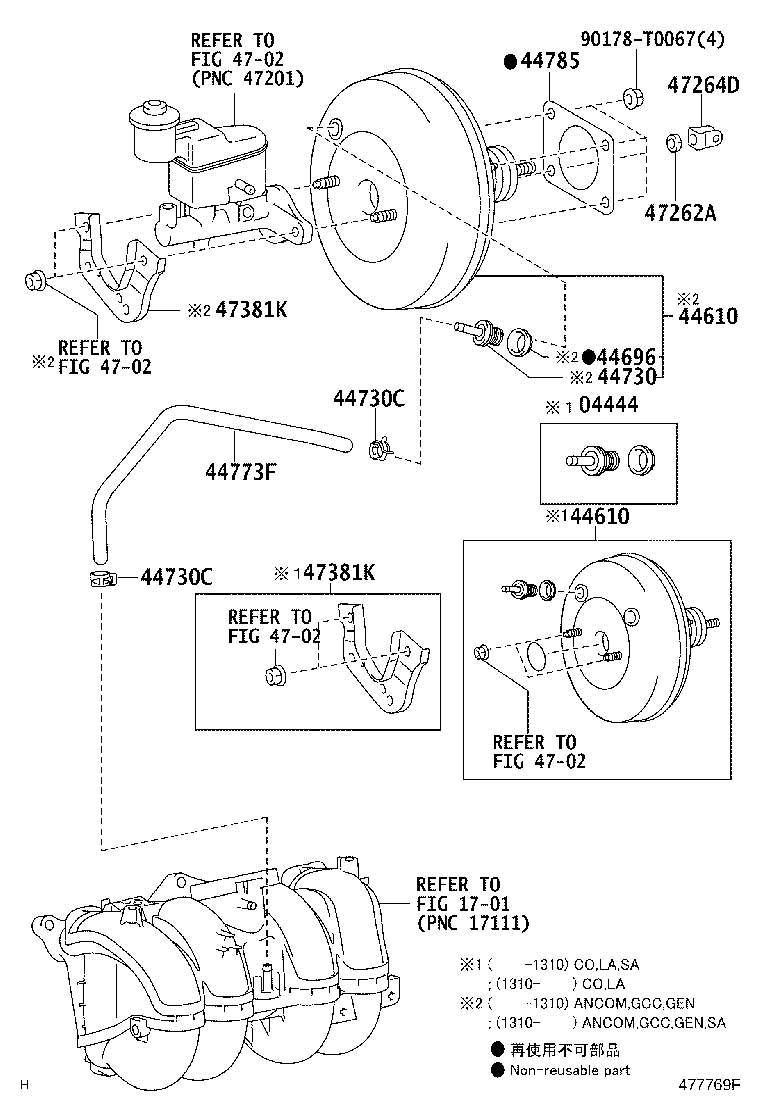

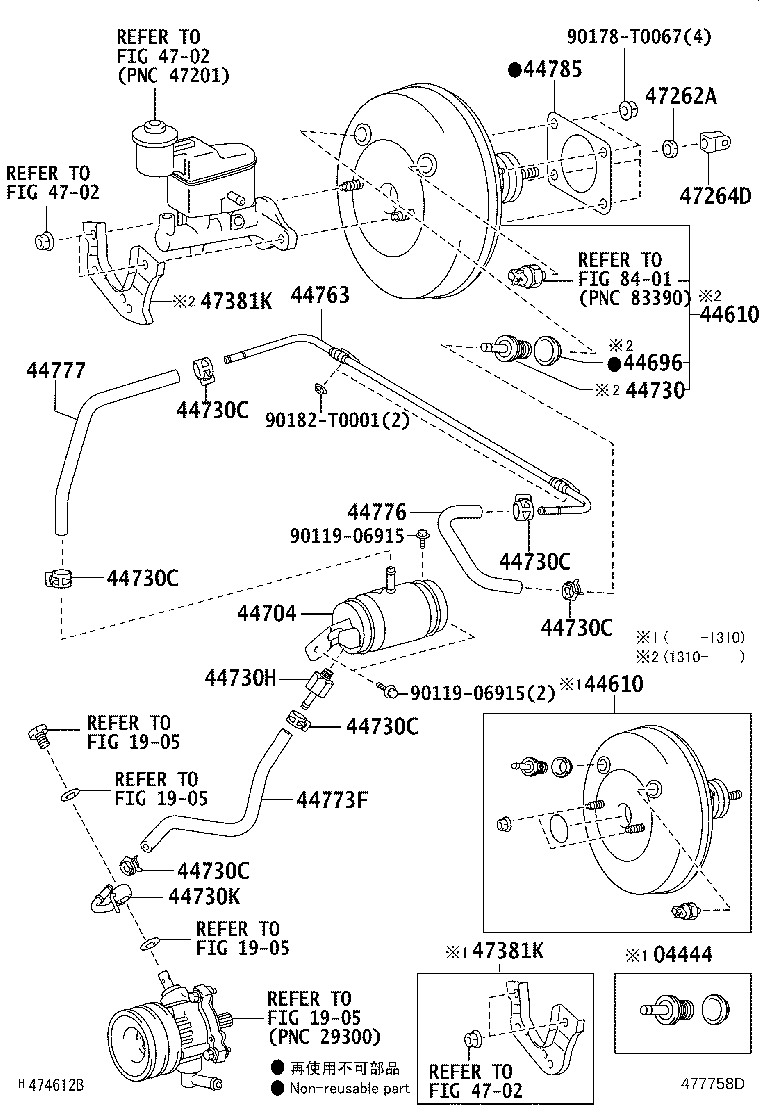

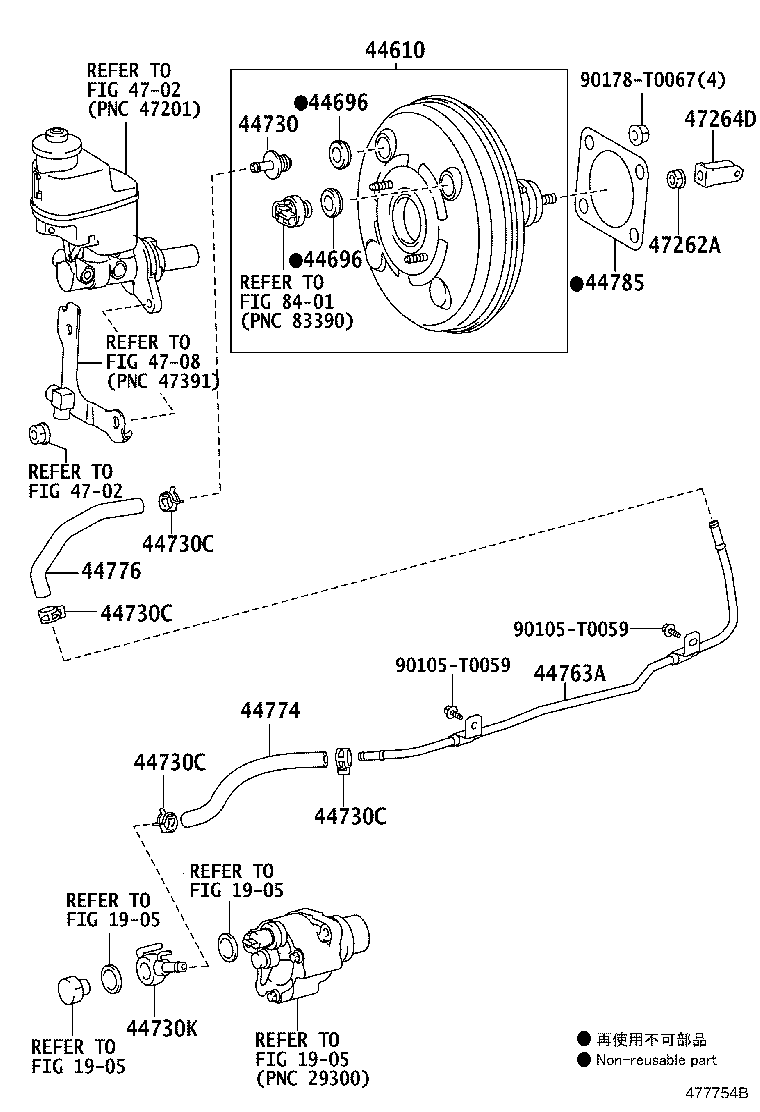

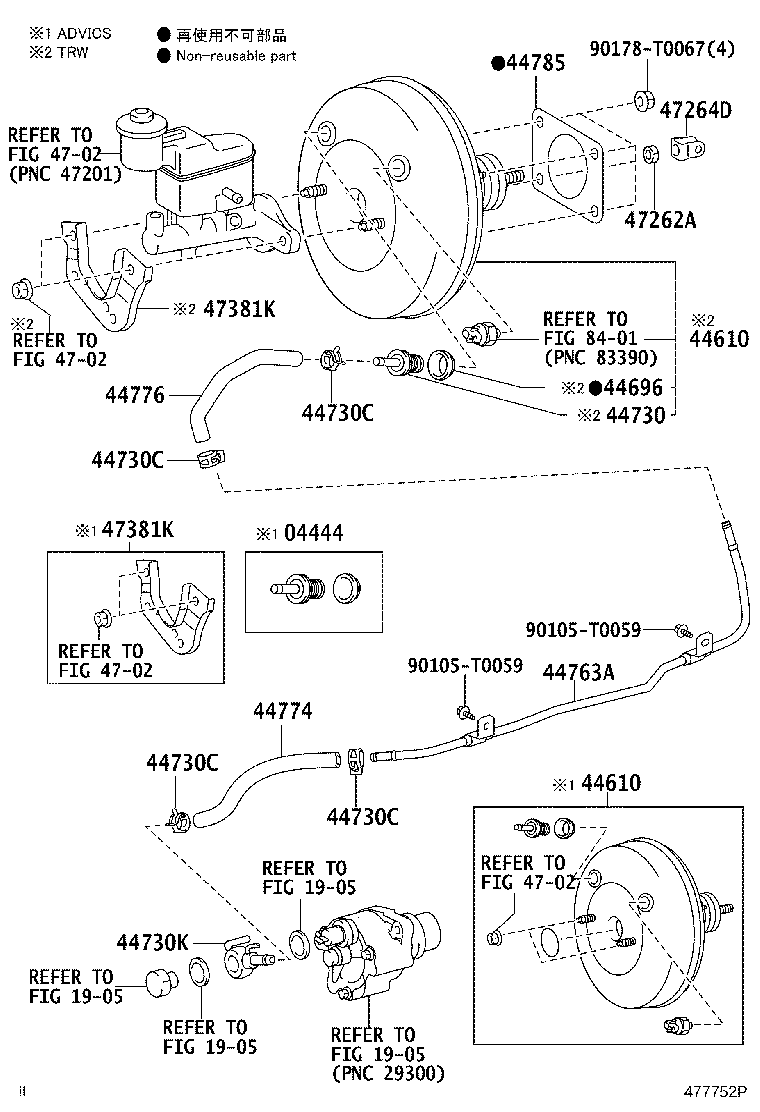

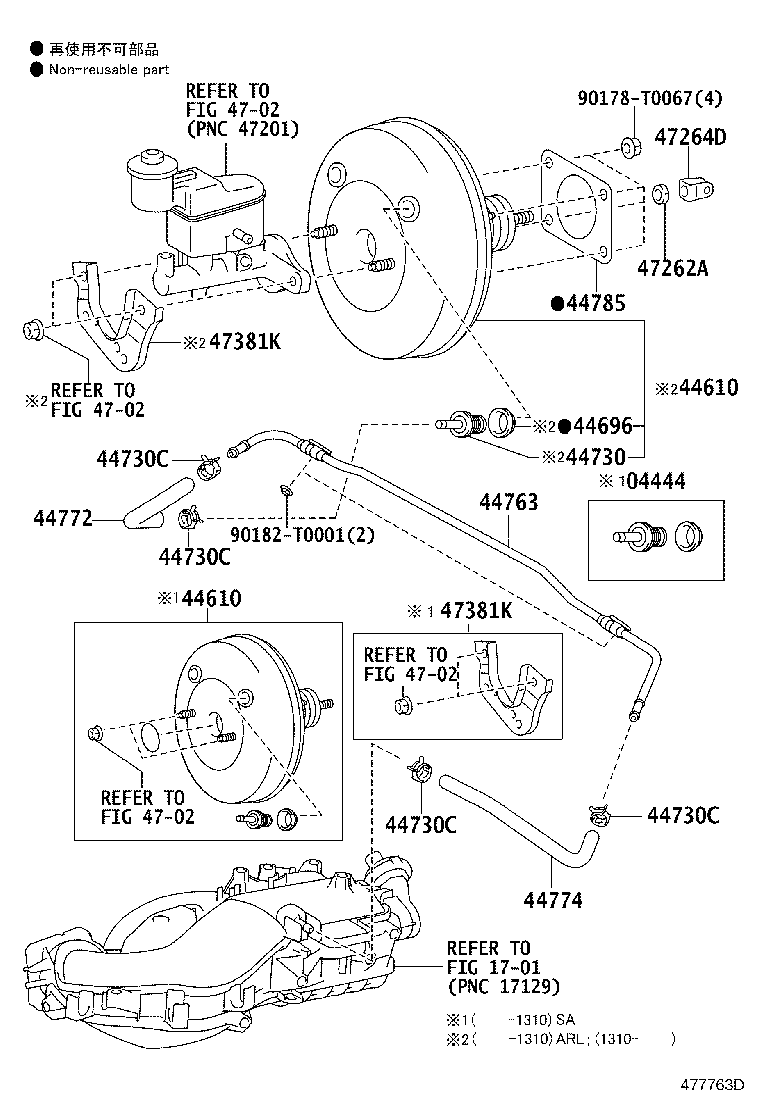

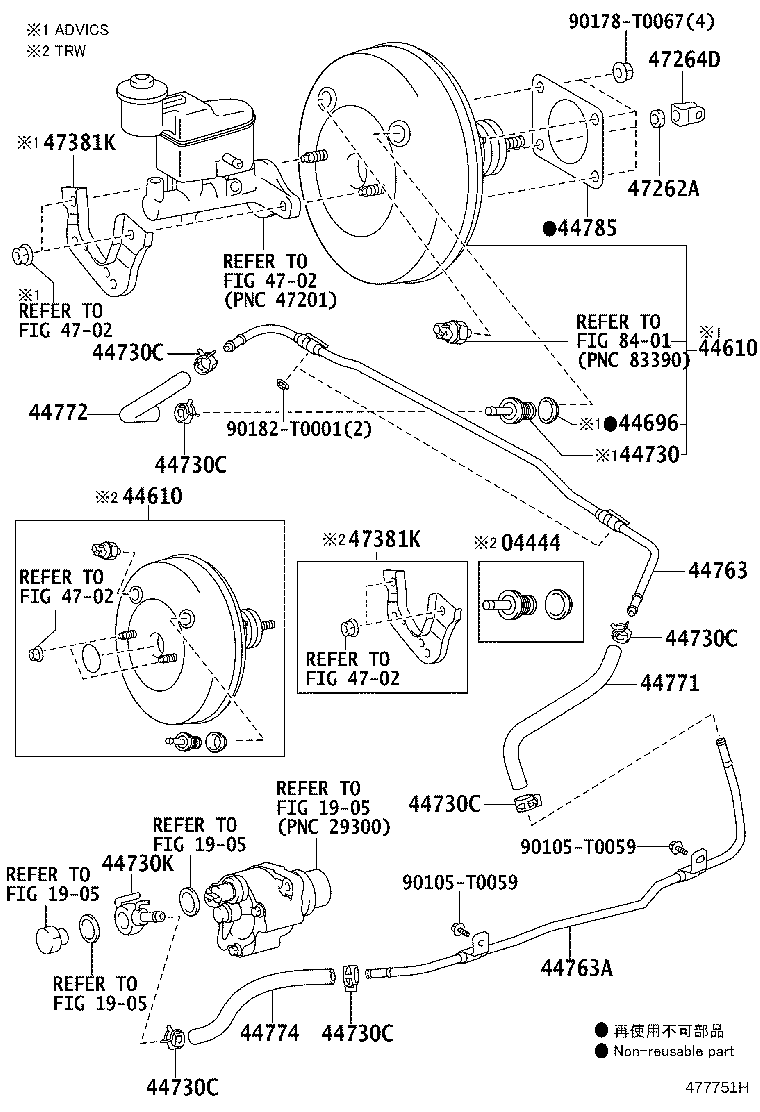

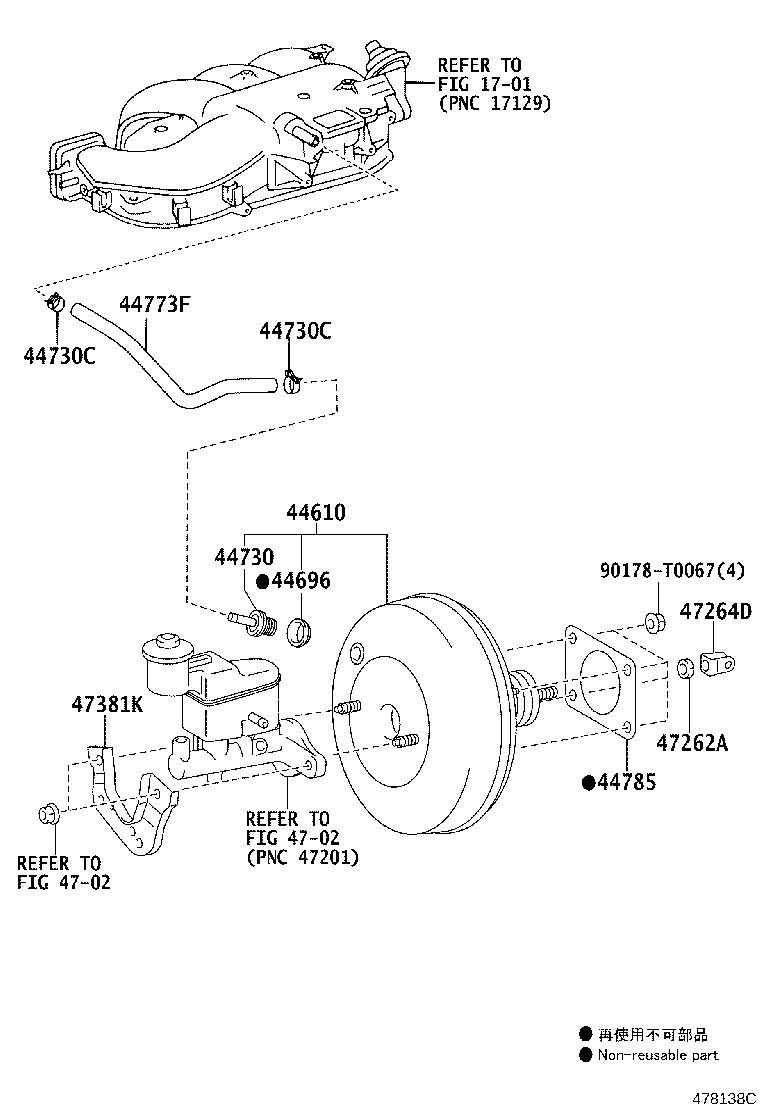

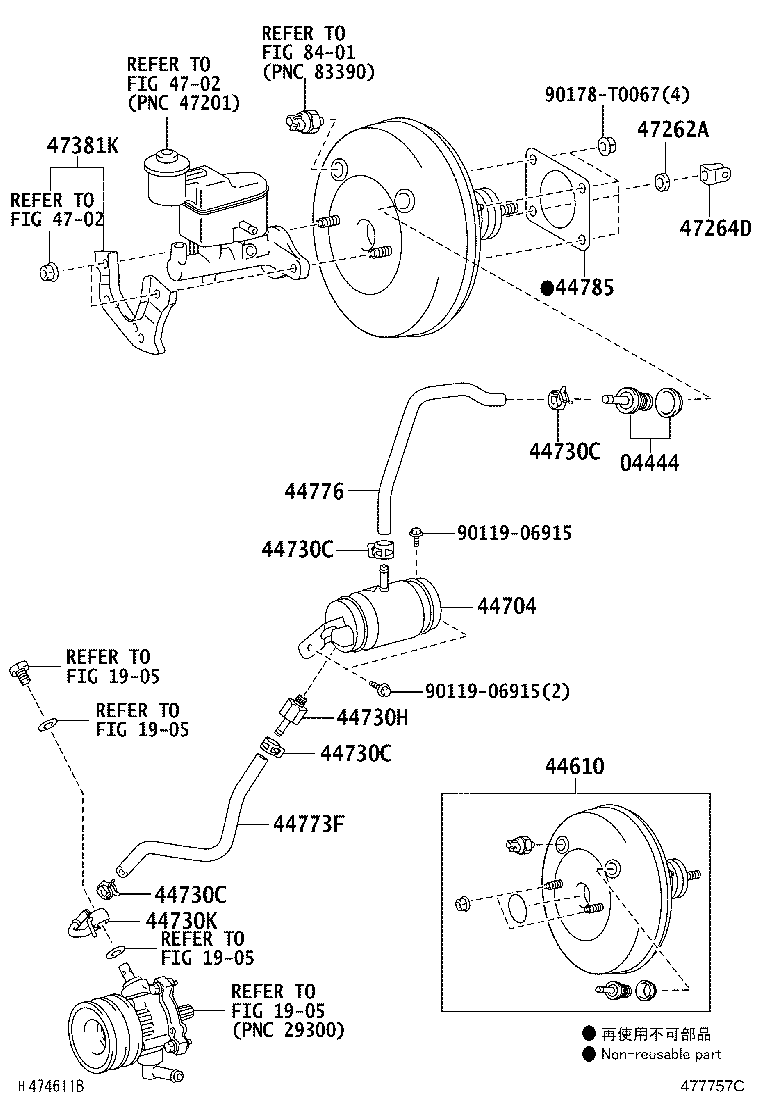

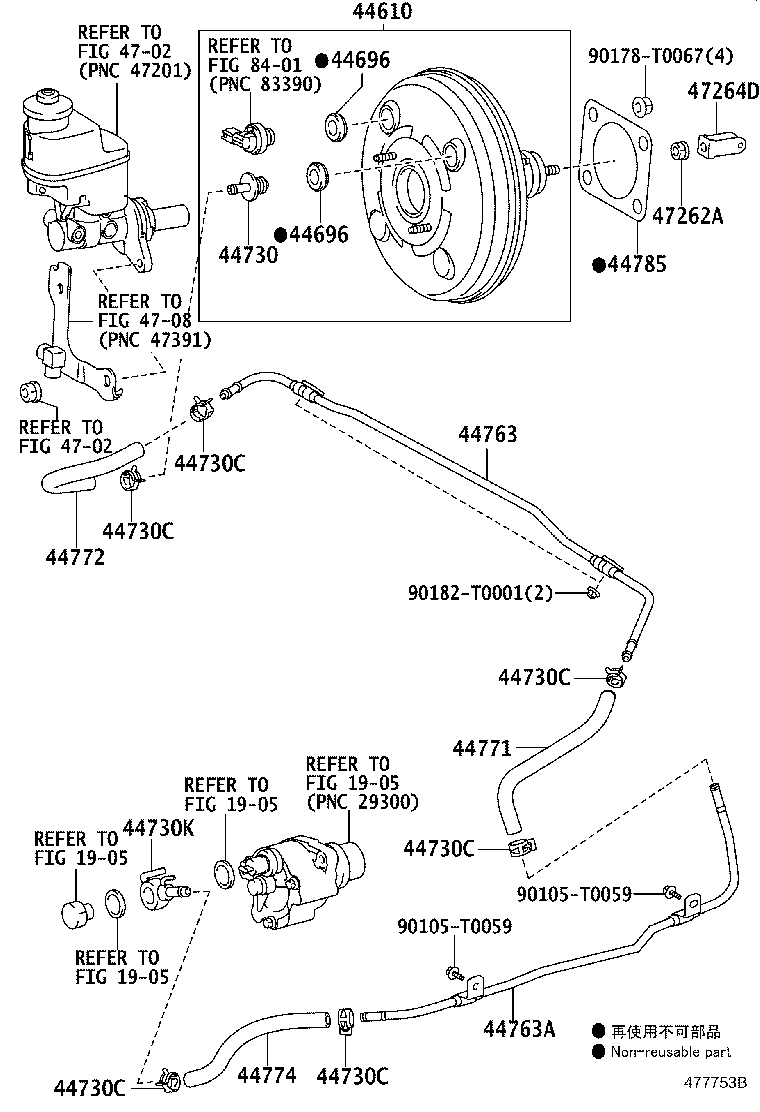

Figure 477762E 477762E 2011-07 → — Figure 477769F 477769F 2011-07 → — Figure 477754B 477754B 2011-07 → — Figure 477752P 477752P 2011-07 → — Figure 477753B 477753B 2011-07 → — Figure 477751H 477751H 2011-07 → — Figure 477763D 477763D 2011-07 → — Figure 477757C 477757C 2011-08 → — Figure 477758D 477758D 2011-08 → — Figure 478138C 478138C 2012-04 → —

Part groups

PNCDescription
04444 Valve Kit, Booster Control
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730C Clip(FOR VACUUM HOSE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44730K Union, Vacuum Hose(FOR VACUUM PUMP)
44763 Tube, Booster Vacuum
44763A Tube, Hose TO Hose, NO.1
44771 Hose, Vacuum Tube Connector
44772 Hose, Check Valve TO Connector Tube
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44777 Connector, Vacuum Hose, NO.1
44785 Gasket, Brake Booster
47262A Nut, Master Cylinder Push Rod Clevis Lock
47264D Clevis, Brake Master Cylinder Push Rod
47381K Bracket, Brake Booster Tube Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
