Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

133 part groups · 23 illustrations

Illustrations

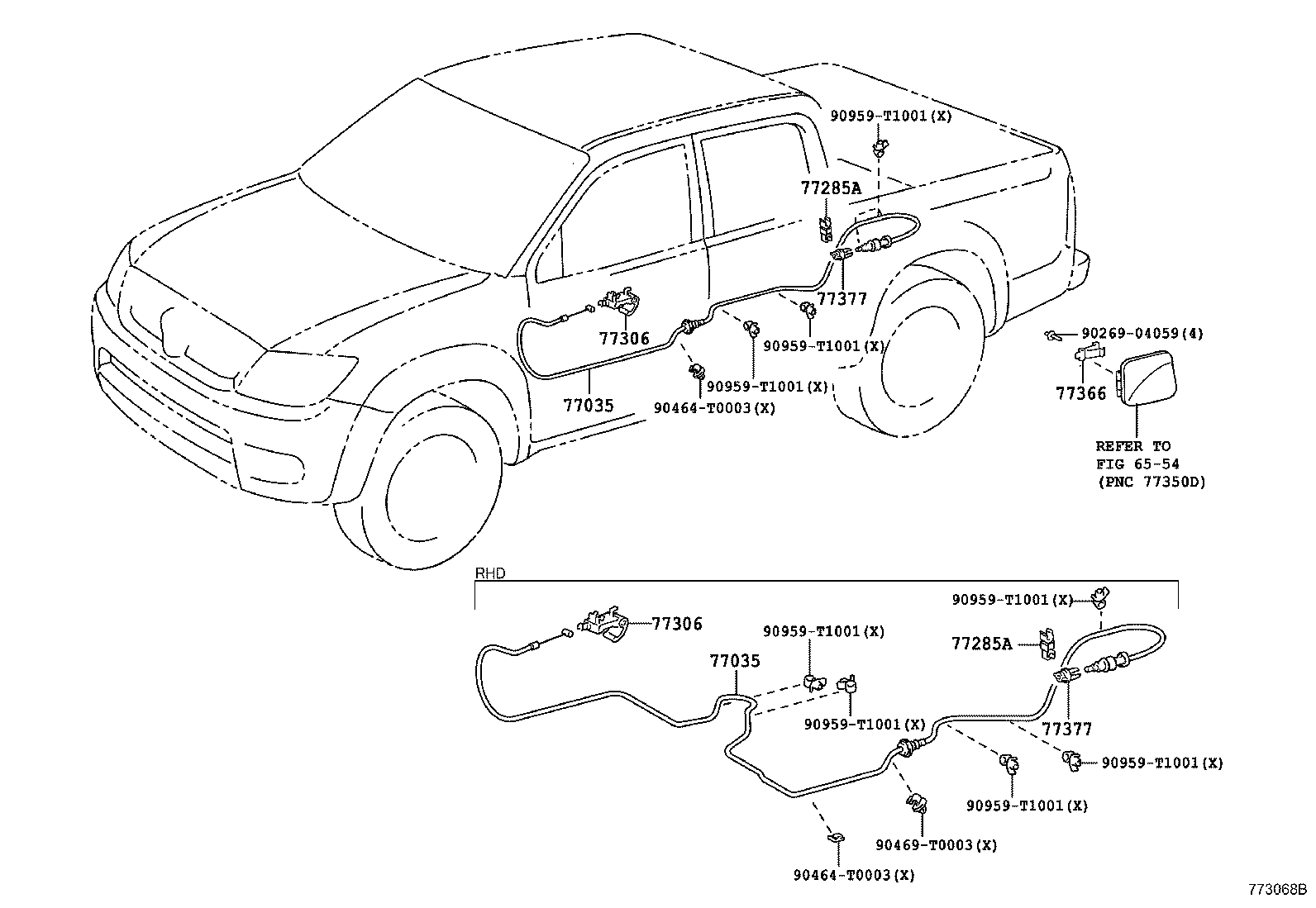

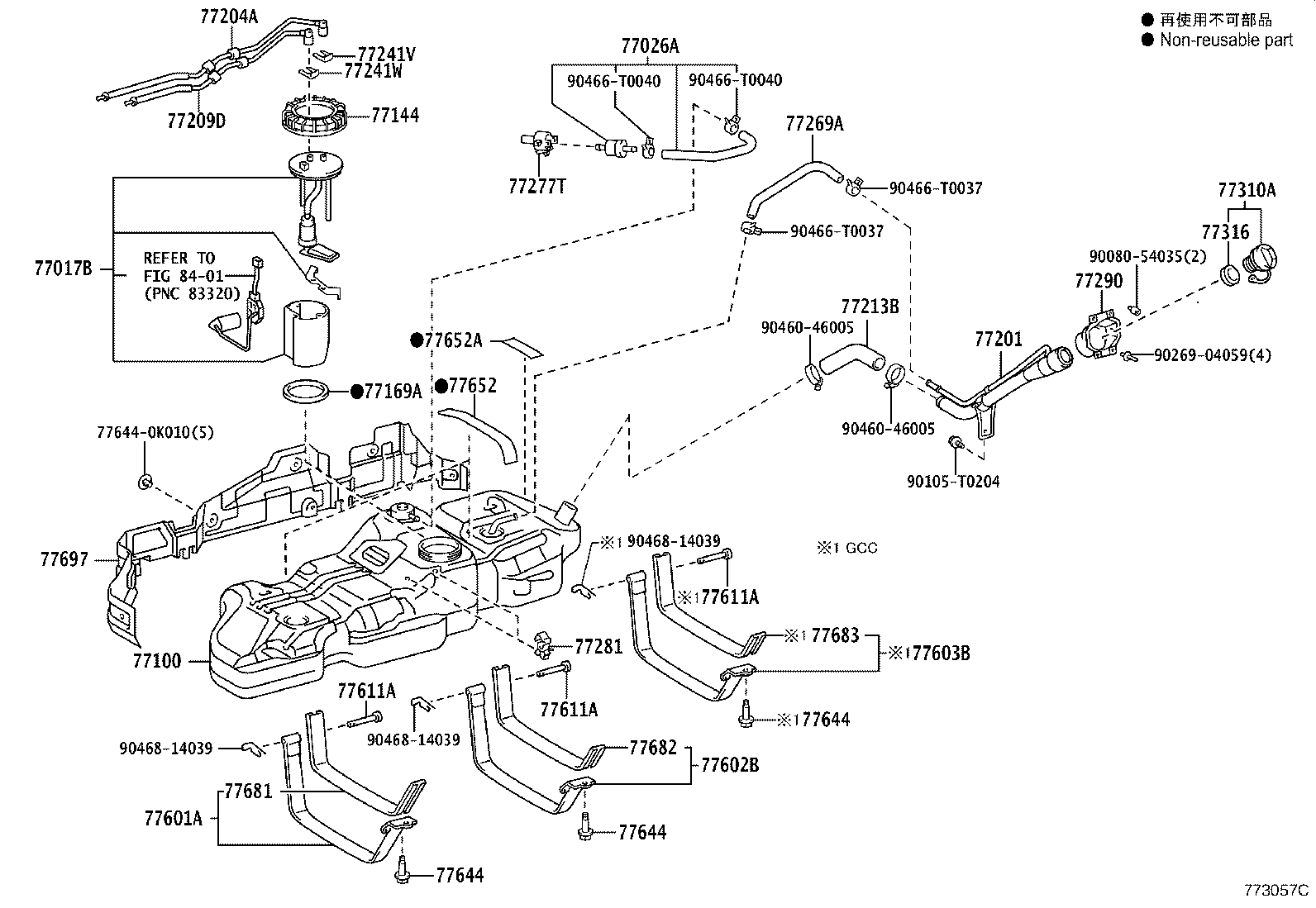

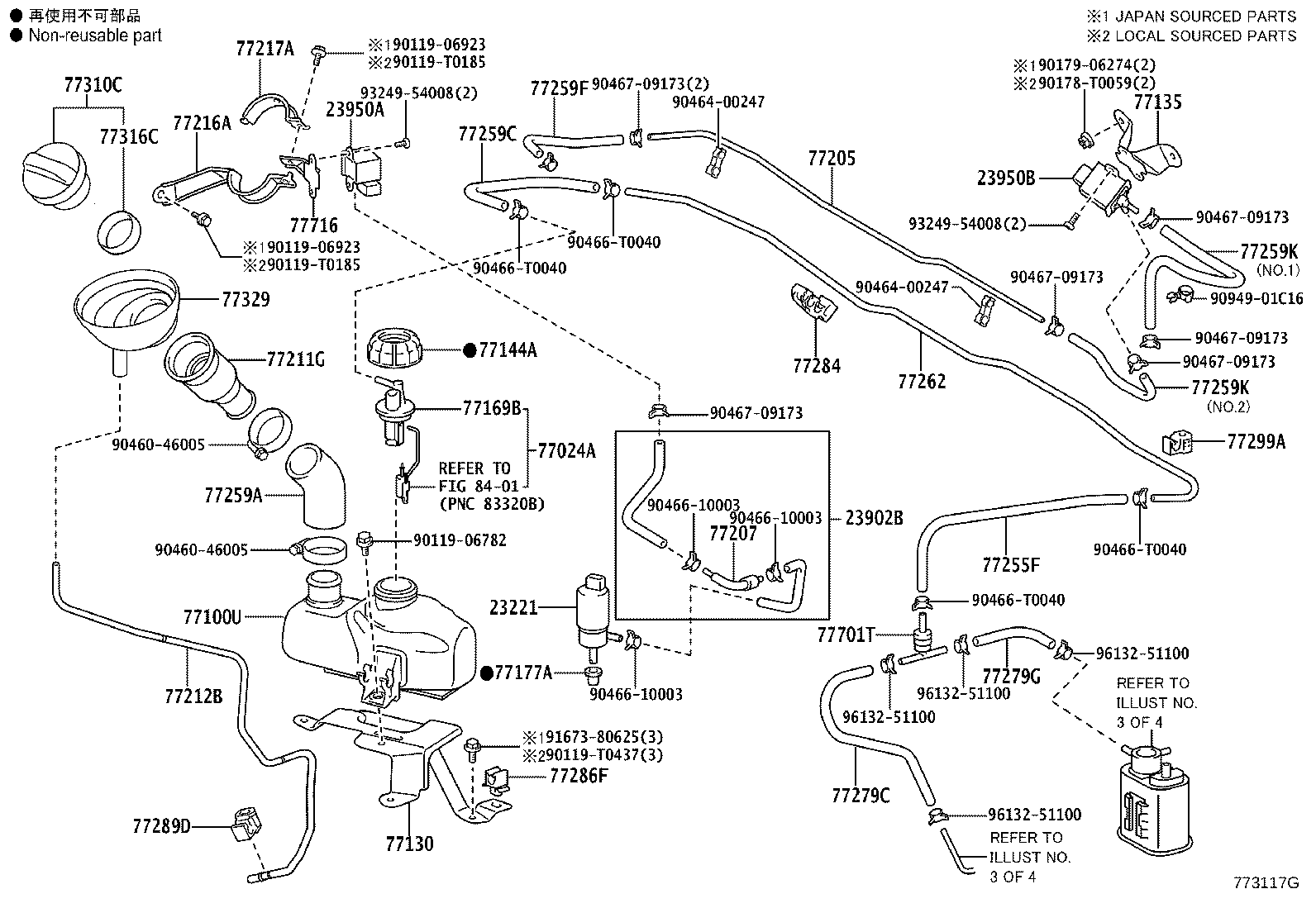

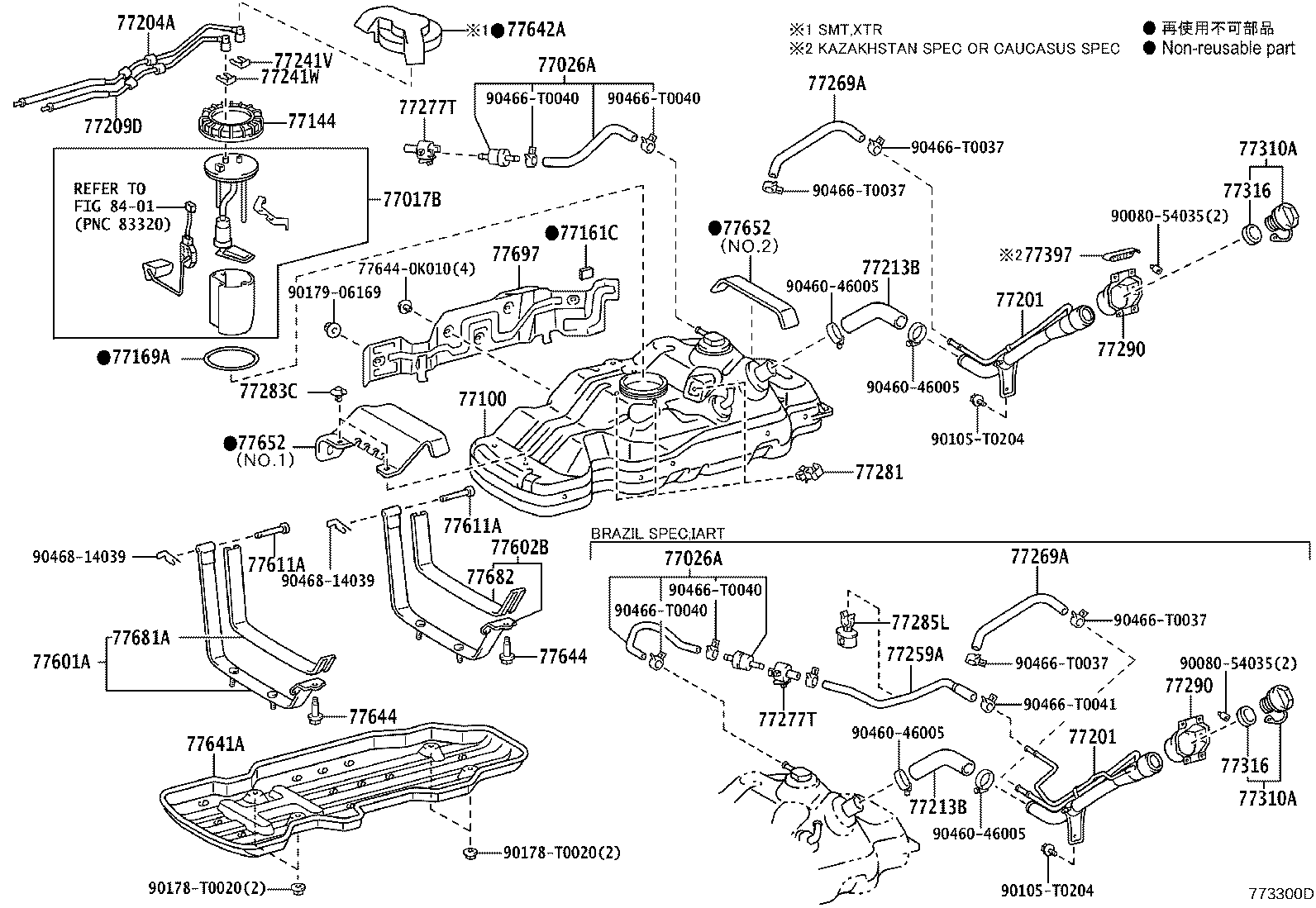

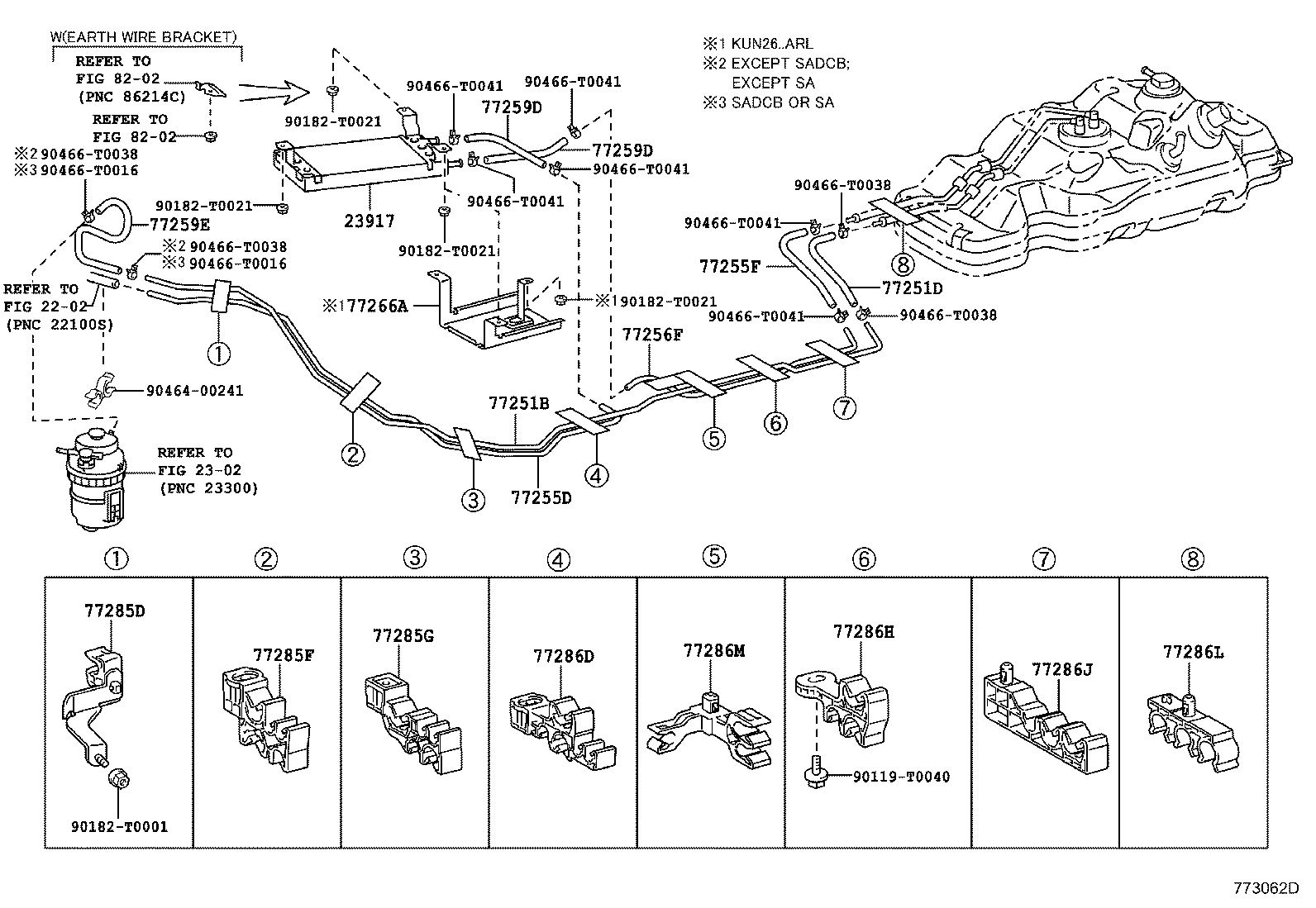

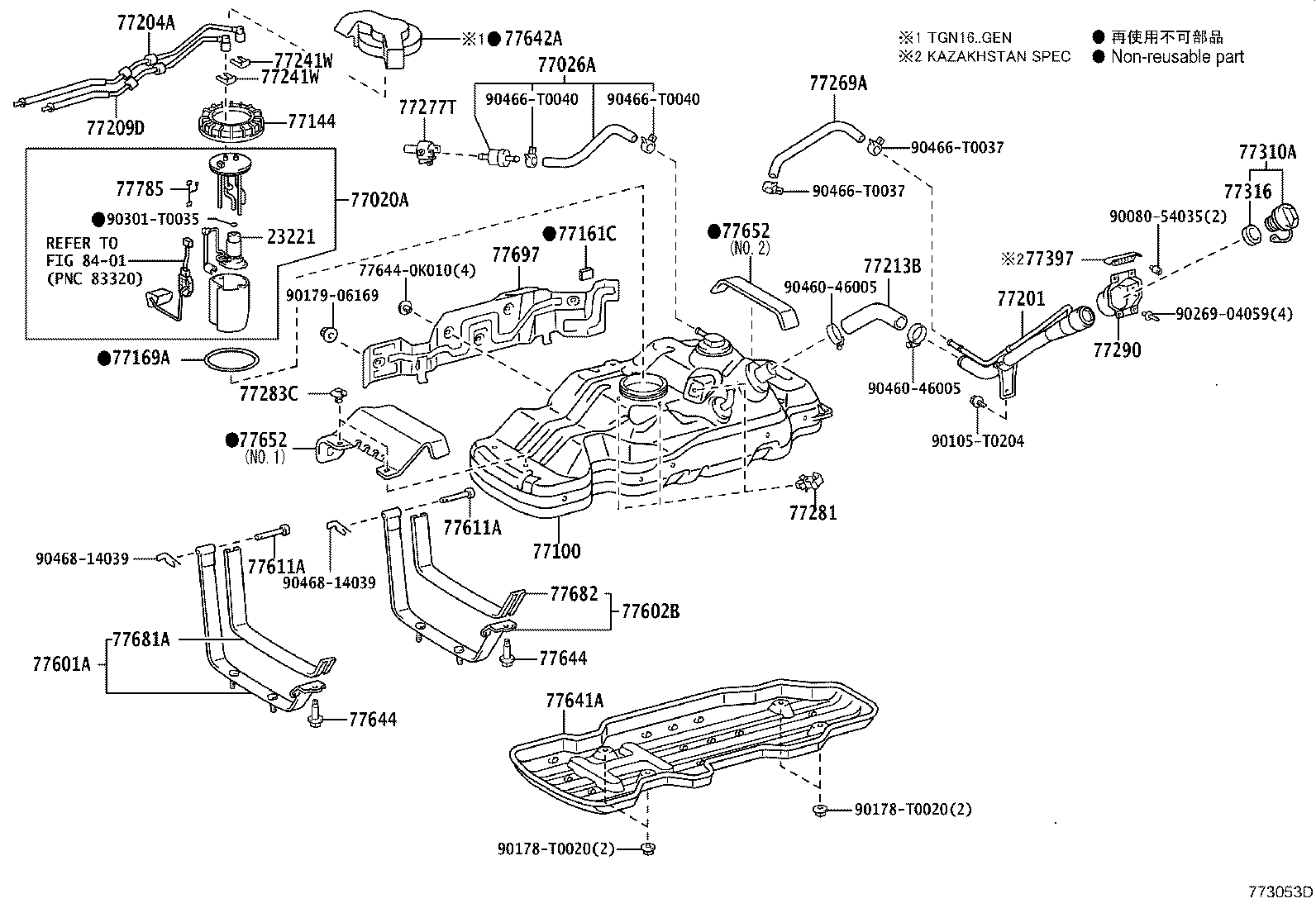

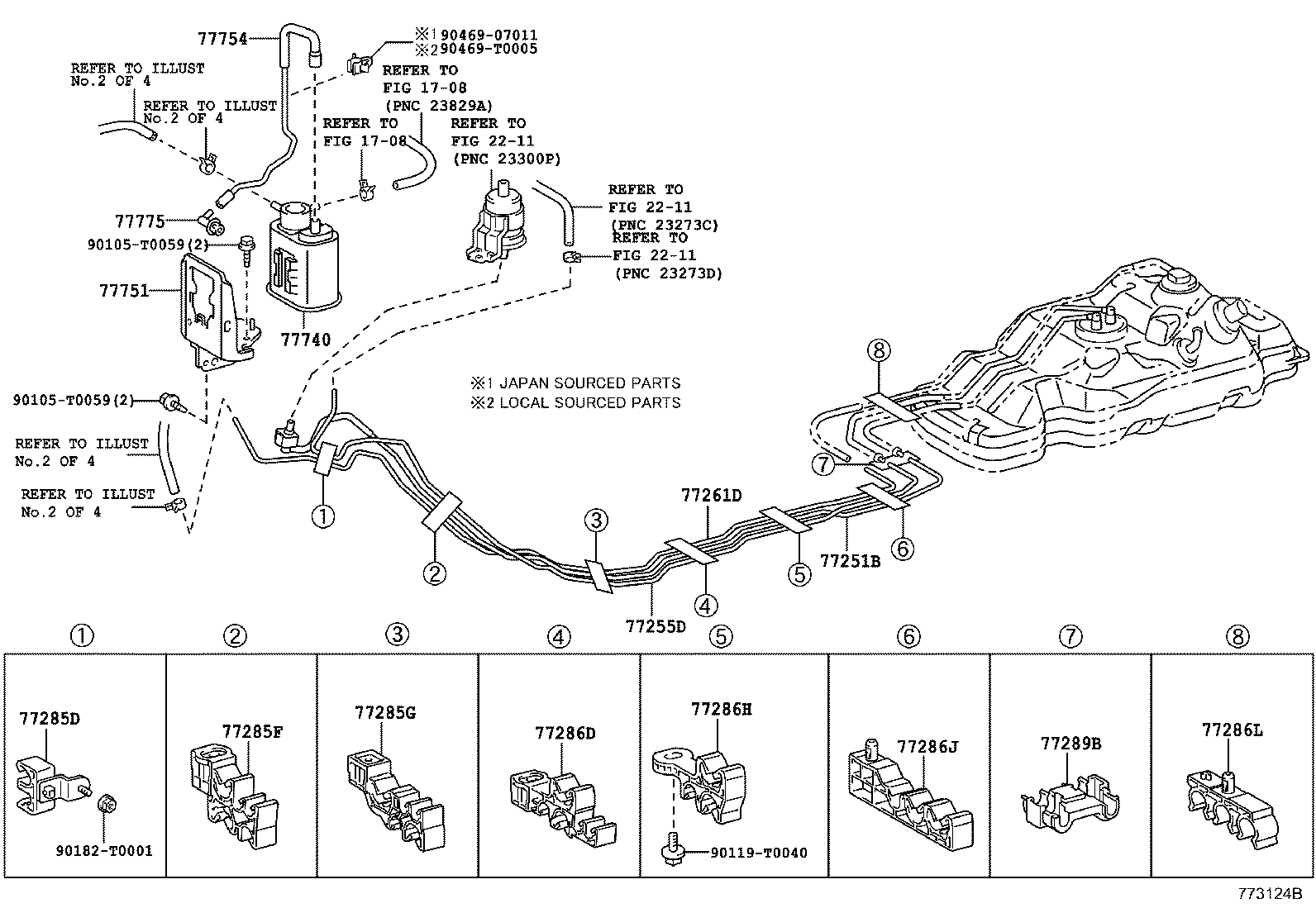

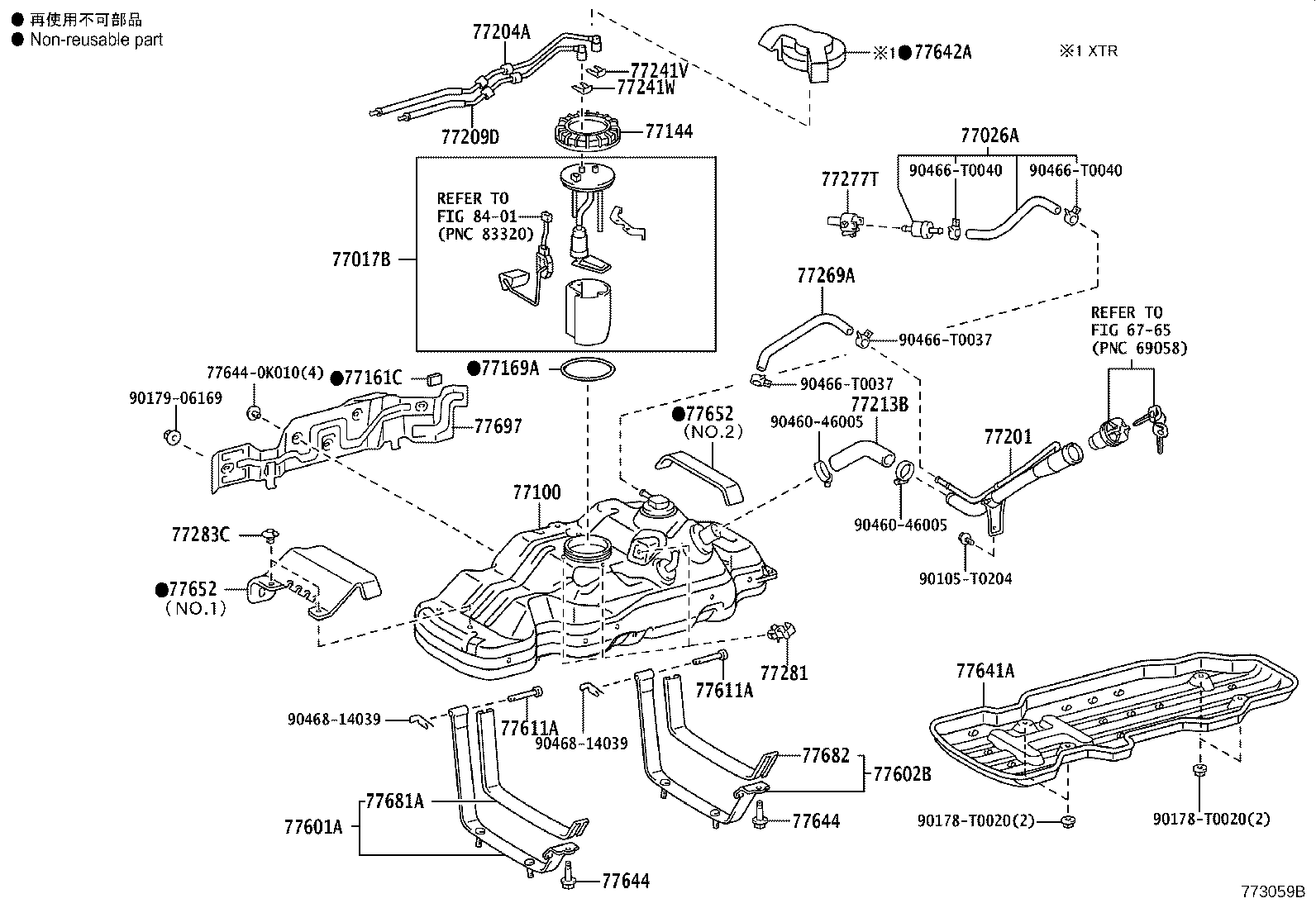

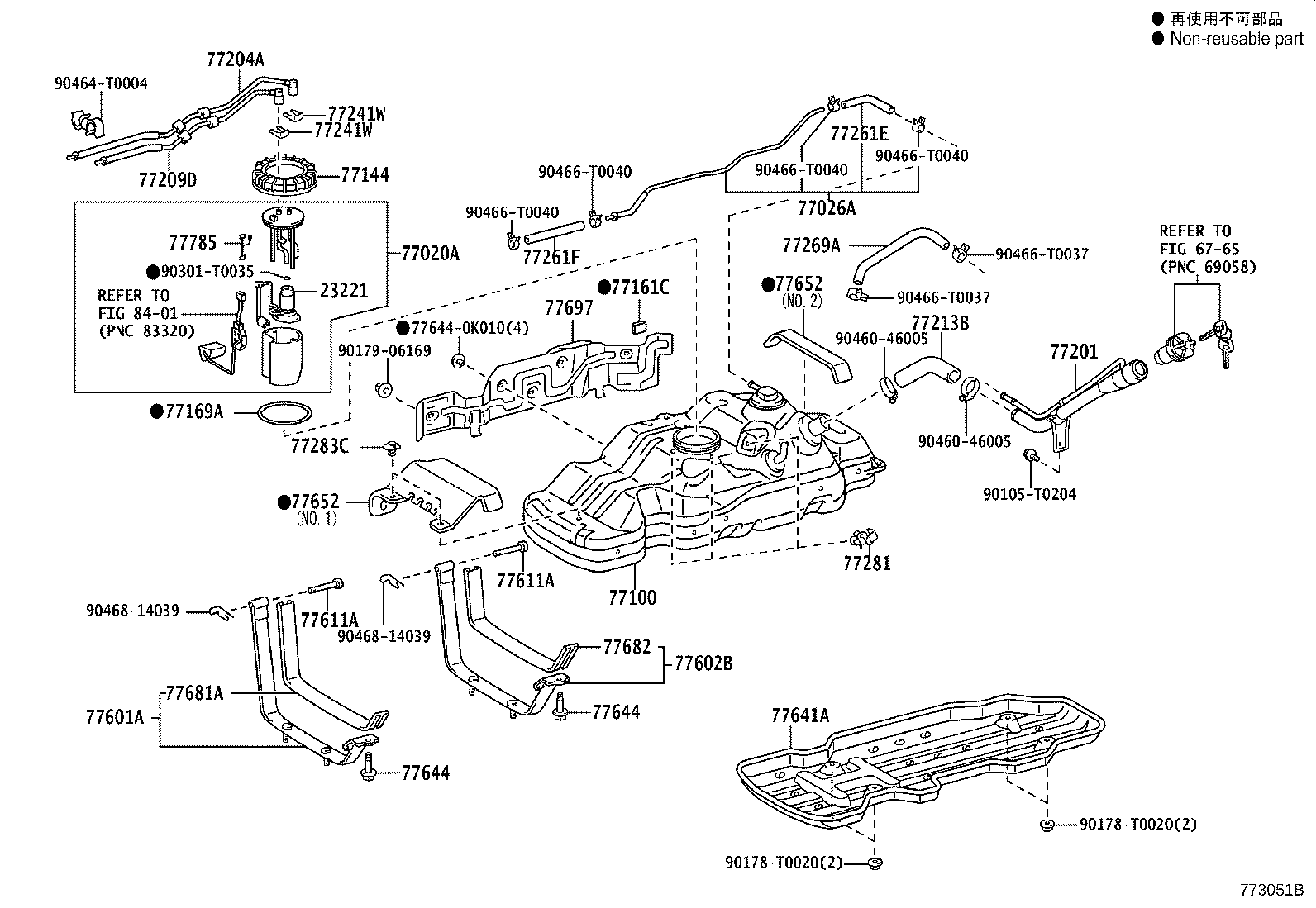

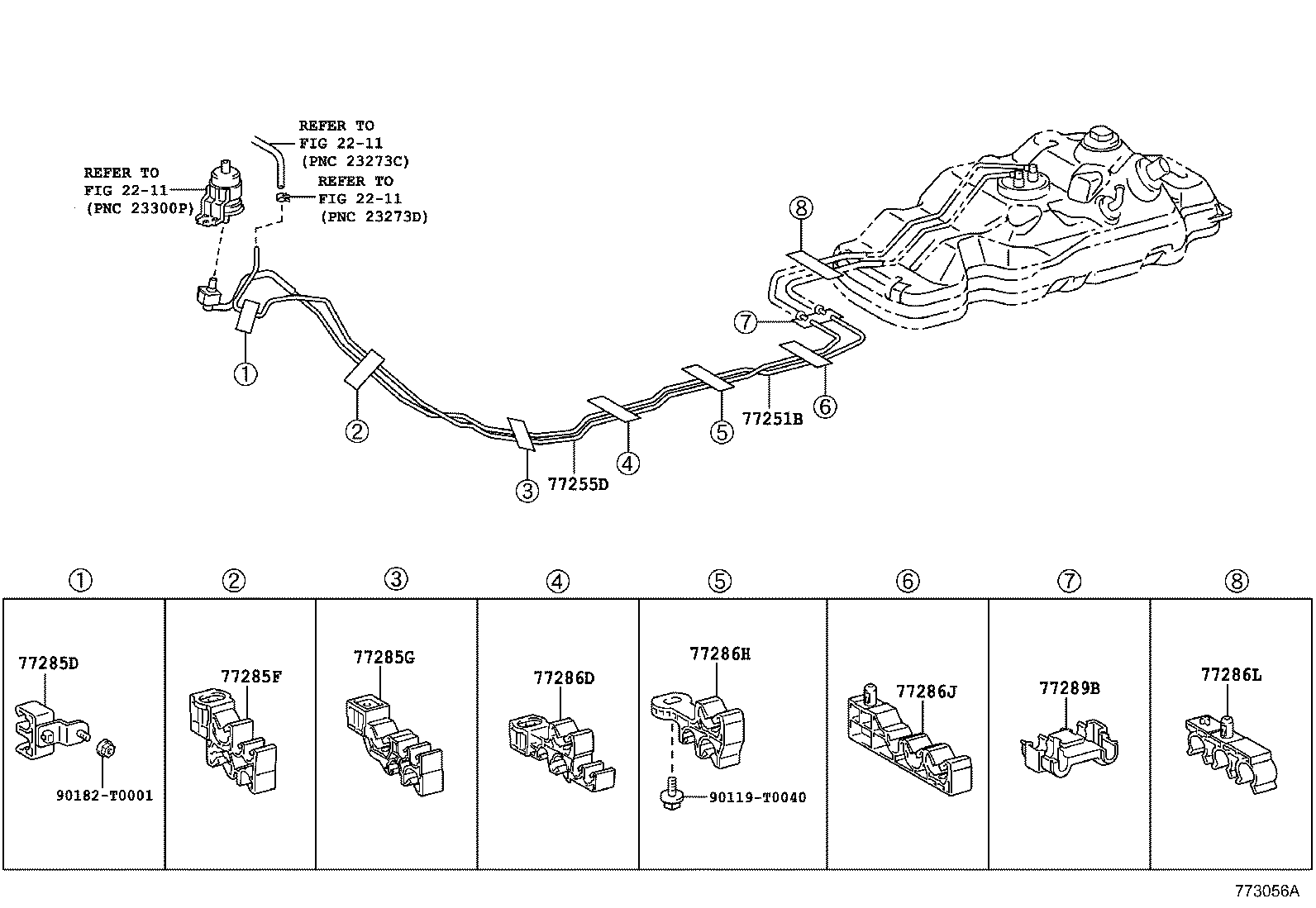

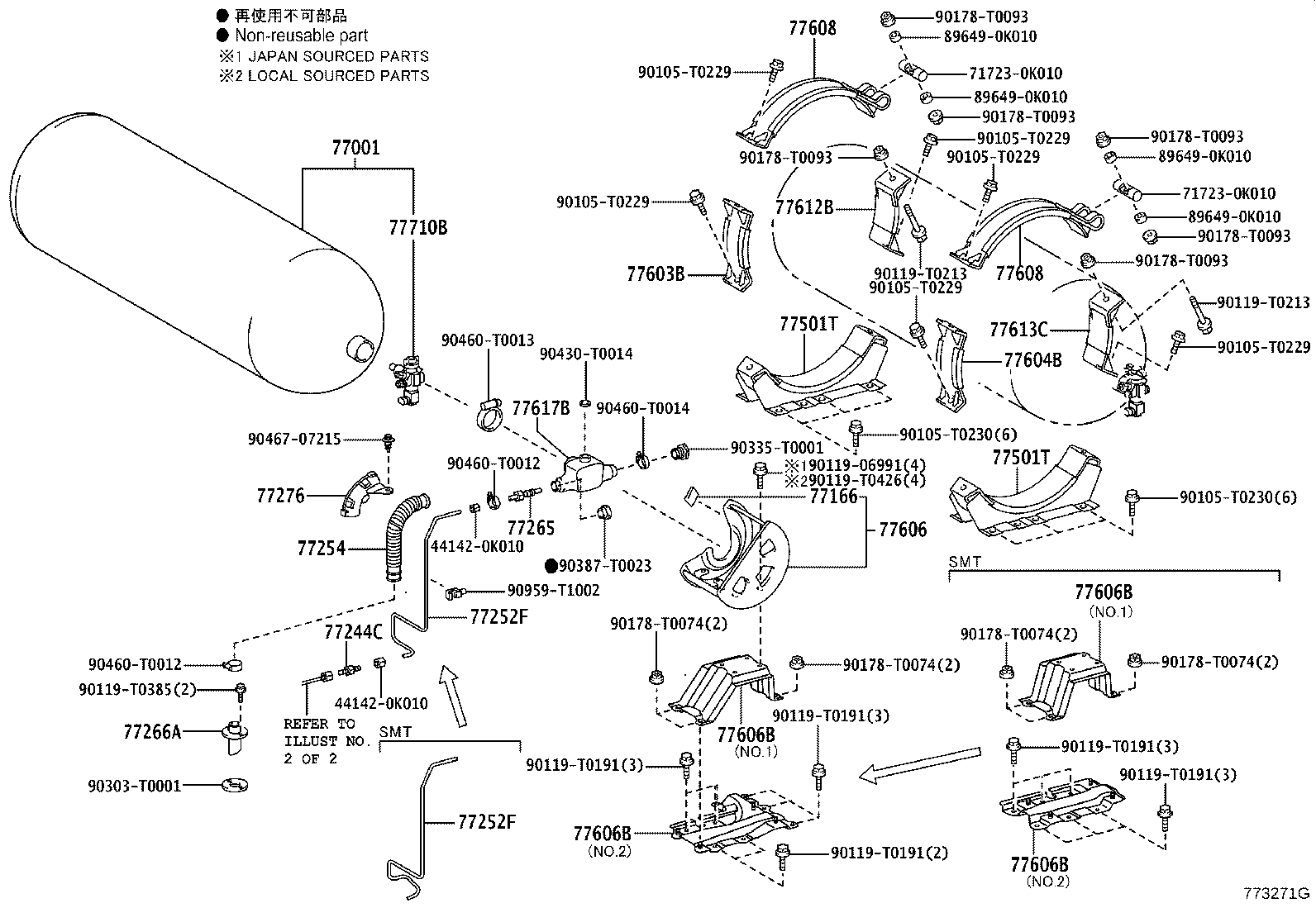

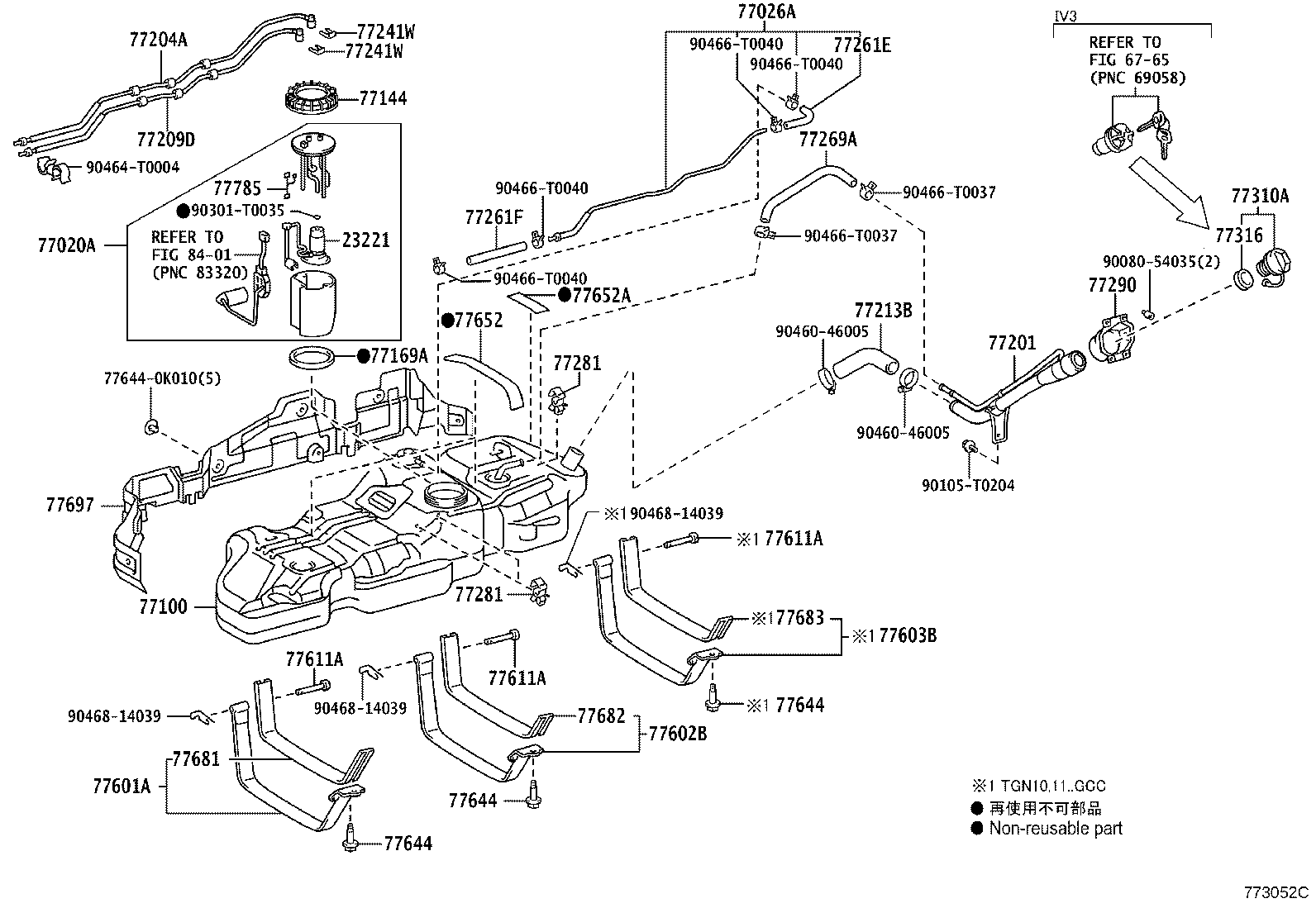

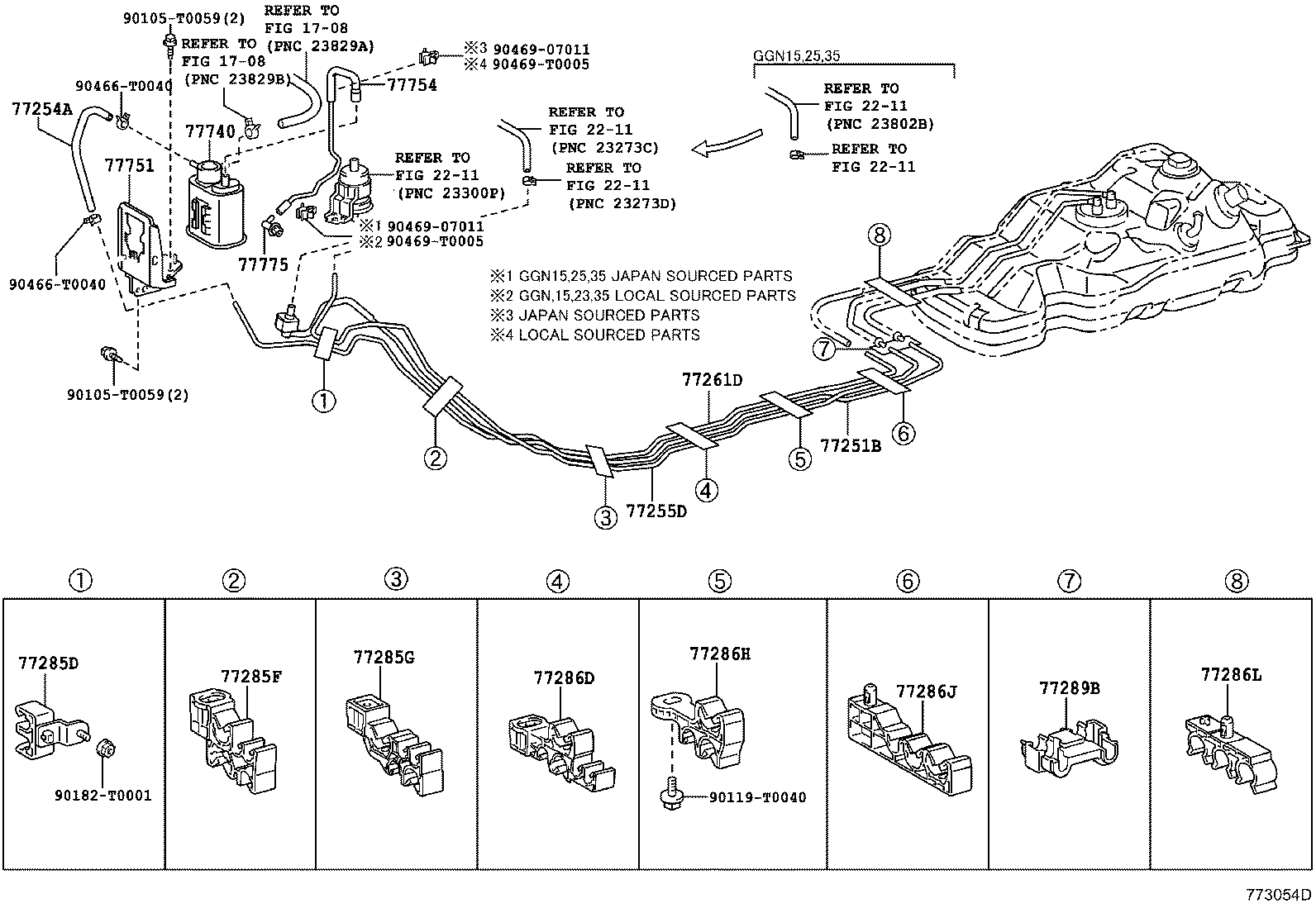

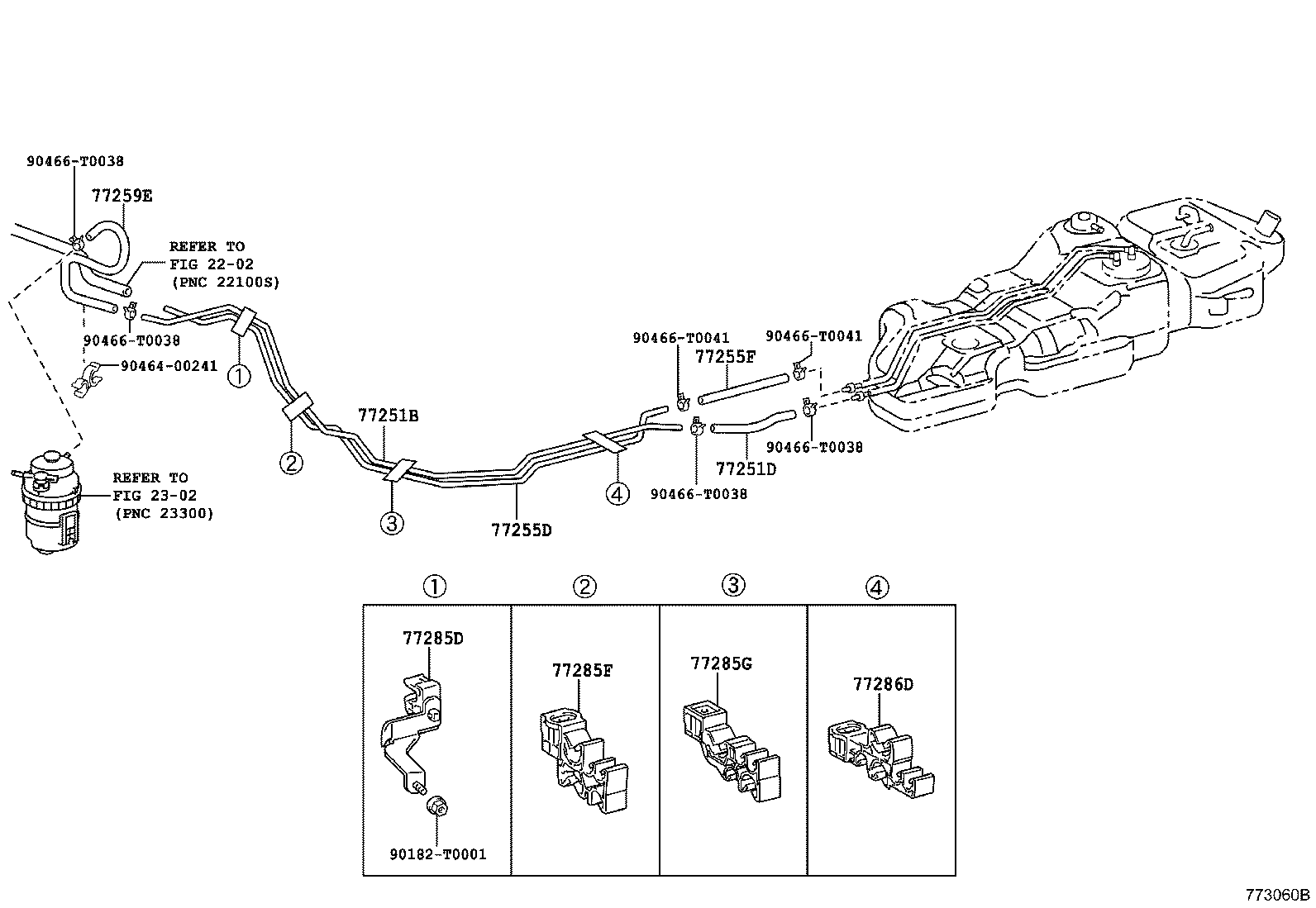

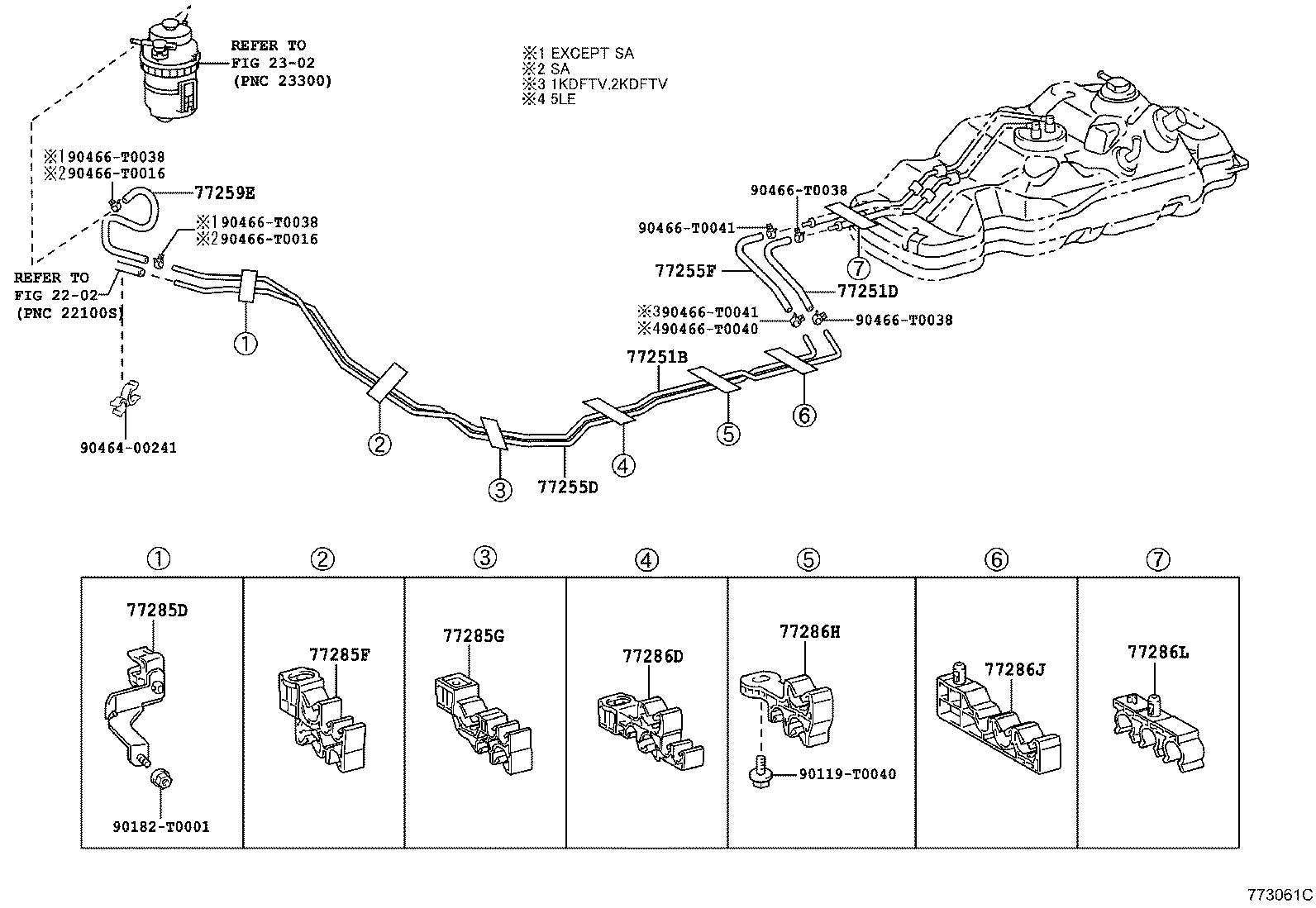

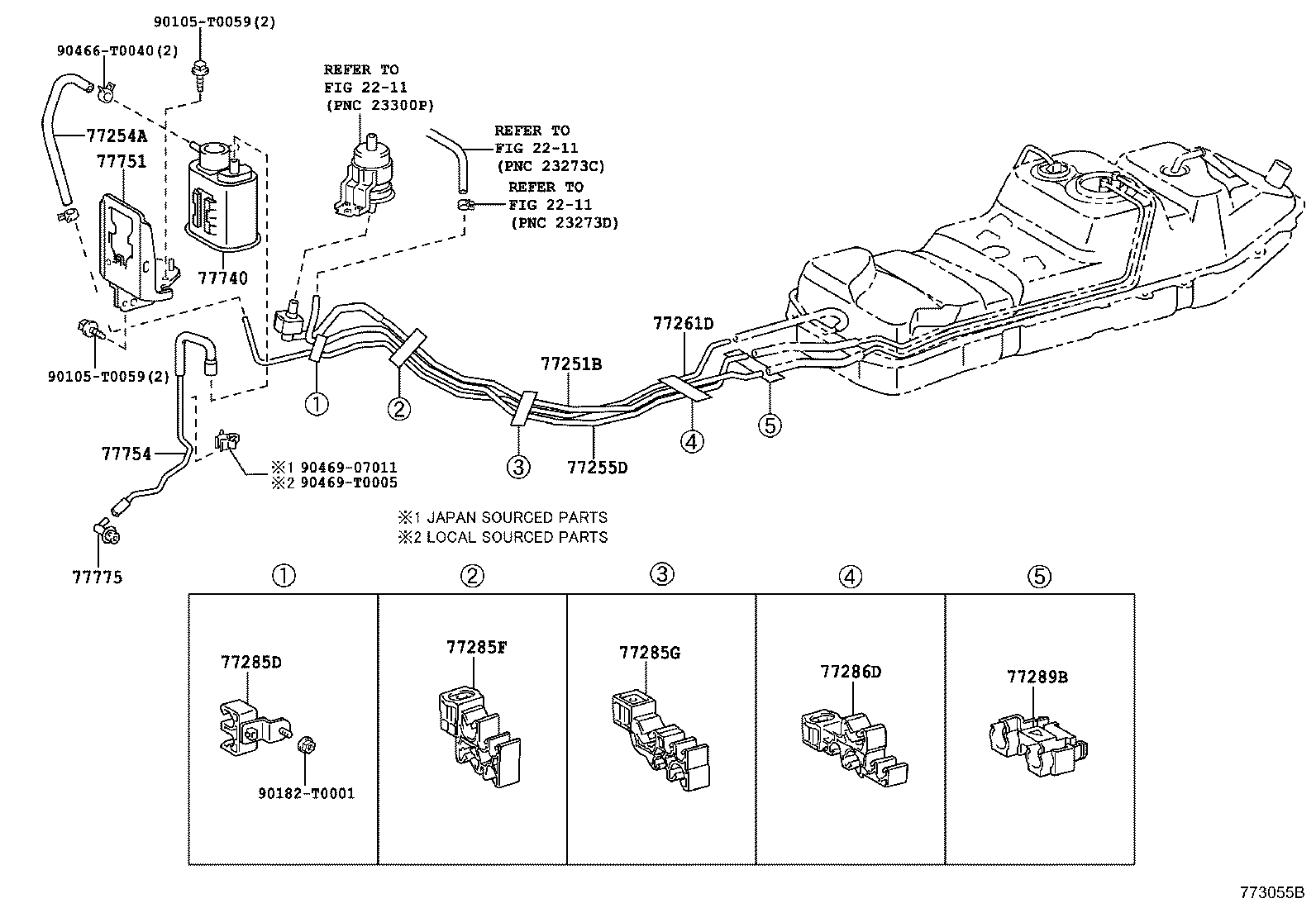

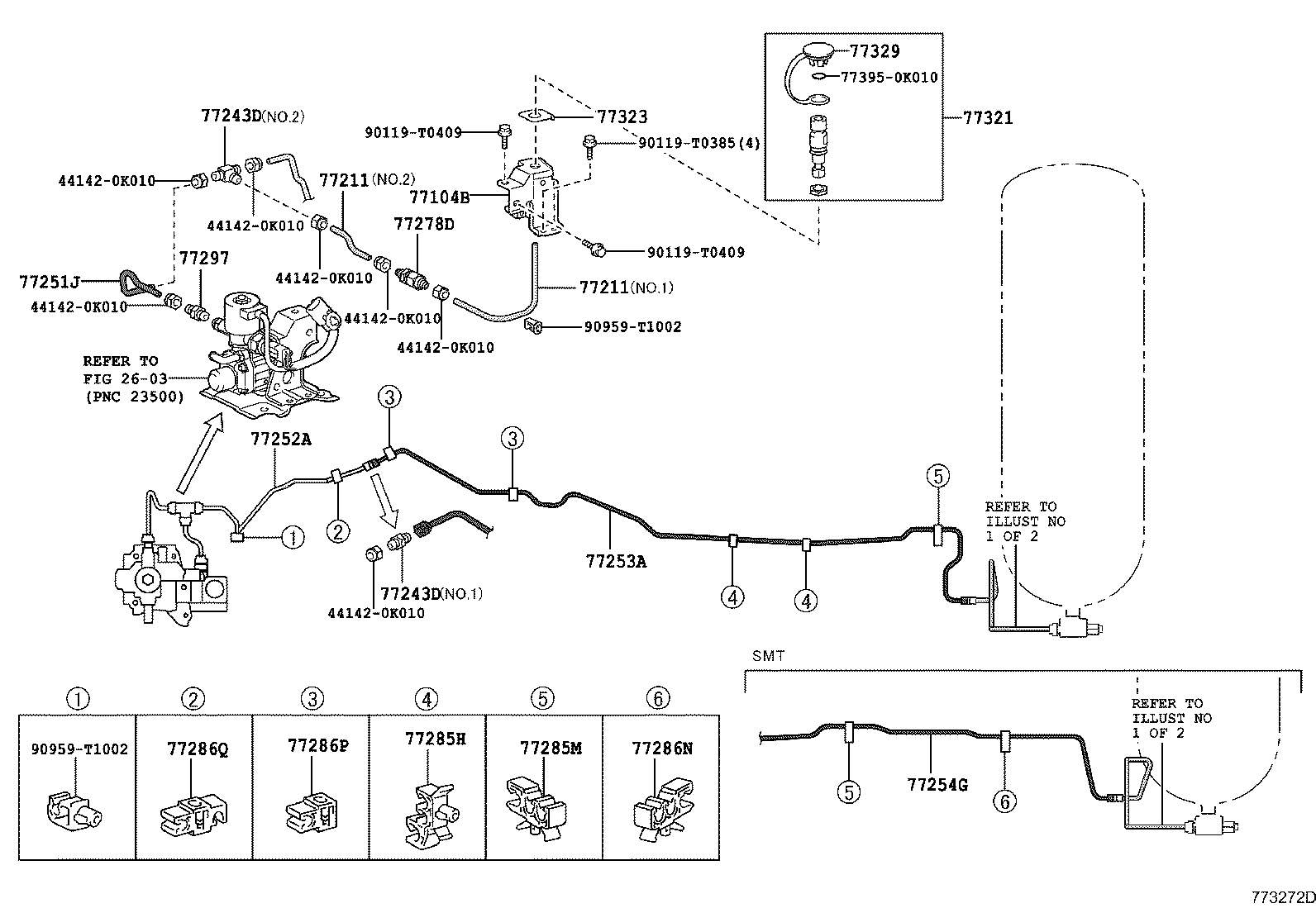

Figure 773050E 773050E 2011-07 → — Figure 773051B 773051B 2011-07 → — Figure 773052C 773052C 2011-07 → — Figure 773053D 773053D 2011-07 → — Figure 773053D 773053D 2011-07 → — Figure 773057C 773057C 2011-07 → — Figure 773300D 773300D 2011-07 → — Figure 773059B 773059B 2011-07 → — Figure 773117G 773117G 2011-10 → — Figure 773054D 773054D 2011-07 → — Figure 773055B 773055B 2011-07 → — Figure 773056A 773056A 2011-07 → — Figure 773056A 773056A 2011-07 → — Figure 773060B 773060B 2011-07 → — Figure 773061C 773061C 2011-07 → — Figure 773061C 773061C 2011-07 → — Figure 773062D 773062D 2011-07 → — Figure 773062D 773062D 2011-07 → — Figure 773062D 773062D 2011-07 → — Figure 773124B 773124B 2011-10 → — Figure 773068B 773068B 2011-07 → — Figure 773271G 773271G 2012-05 → — Figure 773272D 773272D 2012-05 → —

Part groups

PNCDescription
23221 Pump, Fuel
23902B Tube Sub-assy, Fuel, NO.2
23917 Cooler, Fuel
23950A Valve Assy, Solenoid
23950B Valve Assy, Solenoid
77001 Tank Assy, Fuel (LPG)
77017B Tube Sub-assy, Fuel Tank Vent
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77100U Tank Sub-assy, Fuel
77104B Support Sub-assy, Fuel Tank Filler
77130 Bracket Assy, Auxiliary Fuel Tank
77135 Bracket, Check Valve
77144 Retainer, Fuel Pump Gauge
77144A Retainer, Fuel Pump Gauge
77161C Protector, Fuel Tank, Lower
77166 Cushion, Fuel Tank Protector
77169A Gasket, Fuel Suction Tube Set
77169B Gasket, Fuel Suction Tube Set, NO.1
77177A Gasket, Check Valve
77201 Pipe Sub-assy, Fuel Tank Inlet
77204A Tube, Fuel Tank Return
77205 Tube Sub-assy, Fuel Main
77207 Tube Sub-assy, Fuel
77209D Tube Sub-assy, Fuel Tank Main
77211 Pipe, Fuel Tank Inlet
77211G Pipe, Fuel Tank Filler
77212B Tube, Fuel Tank Filler, NO.2
77213B Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77241V Clip, Tube Joint
77241W Clip, Tube Joint
77243D Joint, Fuel Tube, NO.1
77244C Joint, Fuel Tube, NO.2
77251B Tube, Fuel Main
77251D Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
77251J Tube, Fuel Main, NO.1
77252A Tube, Fuel Main, NO.2
77252F Tube, Fuel Main, Rear
77253A Tube, Fuel Main, NO.3
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254G Tube, Fuel Main, NO.4
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77256F Tube, Fuel Return, NO.2
77259A Hose, Fuel(FOR BREATHER TUBE)
77259C Hose, Fuel
77259D Hose, Fuel, NO.1
77259E Hose, Fuel
77259F Hose, Fuel
77259K Hose, Fuel
77261D Tube, Fuel Tank TO Canister
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77261F Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77262 Tube, Fuel Emission, NO.2
77265 Connector, Fuel Main Tube
77266A Protector, Fuel Tube, NO.1
77269A Hose, Fuel Tank Breather
77276 Protector, Fuel Hose
77277T Bracket, Check Valve
77278D Valve, Check W/Bracket
77279C Hose, Fuel
77279G Hose, Fuel, NO.2
77281 Bracket, Fuel Main Tube, NO.1
77283C Bracket, Fuel Tank Protector
77284 Clamp, Fuel Tube
77285A Support, Fuel Return And Main Tube
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77285H Clamp, Fuel Tube, NO.1
77285L Clamp, Fuel Tube, NO.1
77285M Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286J Clamp, Fuel Tube, NO.4
77286L Clamp, Fuel Tube, NO.5
77286M Clamp, Fuel Tube, NO.6
77286N Clamp, Fuel Tube, NO.7
77286P Clamp, Fuel Tube, NO.8
77286Q Clamp, Fuel Tube, NO.9
77289B Clamp, Fuel Tube, NO.3
77289D Clamp, Fuel Tube, NO.5
77290 Shield Assy, Fuel Tank Filler Pipe
77297 Connector, Fuel Tube
77299A Clamp, Fuel Tube, NO.5
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77310C Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77316C Gasket, Fuel Tank Cap
77321 Coupler, Fuel Inlet
77323 Washer, Fuel Inlet Coupler, NO.2
77329 Cover, Fuel Tank Cap
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77397 Plate, Fuel Inlet Pipe Seal
77501T Bracket Sub-assy, Fuel Tank
77601A Band Sub-assy, Fuel Tank, NO.1
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77603B Band Sub-assy, Fuel Tank, NO.2 RH
77604B Band Sub-assy, Fuel Tank, NO.2 LH
77606 Protector Sub-assy, Fuel Tank, NO.1
77606B Bracket, Fuel Tank Protector, Side
77608 Band Sub-assy, Fuel Tank, NO.2
77611A Pin (FOR FUEL TANK BAND)
77612B Band, Fuel Tank, NO.2
77613C Band, Fuel Tank, NO.3
77617B Cover, Fuel Tank Valve, Rear
77641A Protector, Fuel Tank, NO.1
77642A Protector, Fuel Tank, NO.2
77644 Bolt, Fuel Tank
77652 Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77681 Seat, Fuel Tank Band, RH
77681A Seat, Fuel Tank Band
77682 Seat, Fuel Tank Band, LH
77683 Seat, Fuel Tank Band, NO.3
77697 Insulator, Fuel Tank Heat, NO.1
77701T Valve, Check (FOR MAIN FUEL TANK)
77710B Valve Assy, Fuel Tank Solenoid Main
77716 Bracket, Fuel Solenoid Valve Main
77740 Canister Assy, Charcoal
77751 Bracket, Charcoal Canister Base
77754 Hose, Charcoal Canister Outlet, NO.1
77775 Guide, Charcoal Canister Outlet
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
