Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

122 part groups · 21 illustrations

Illustrations

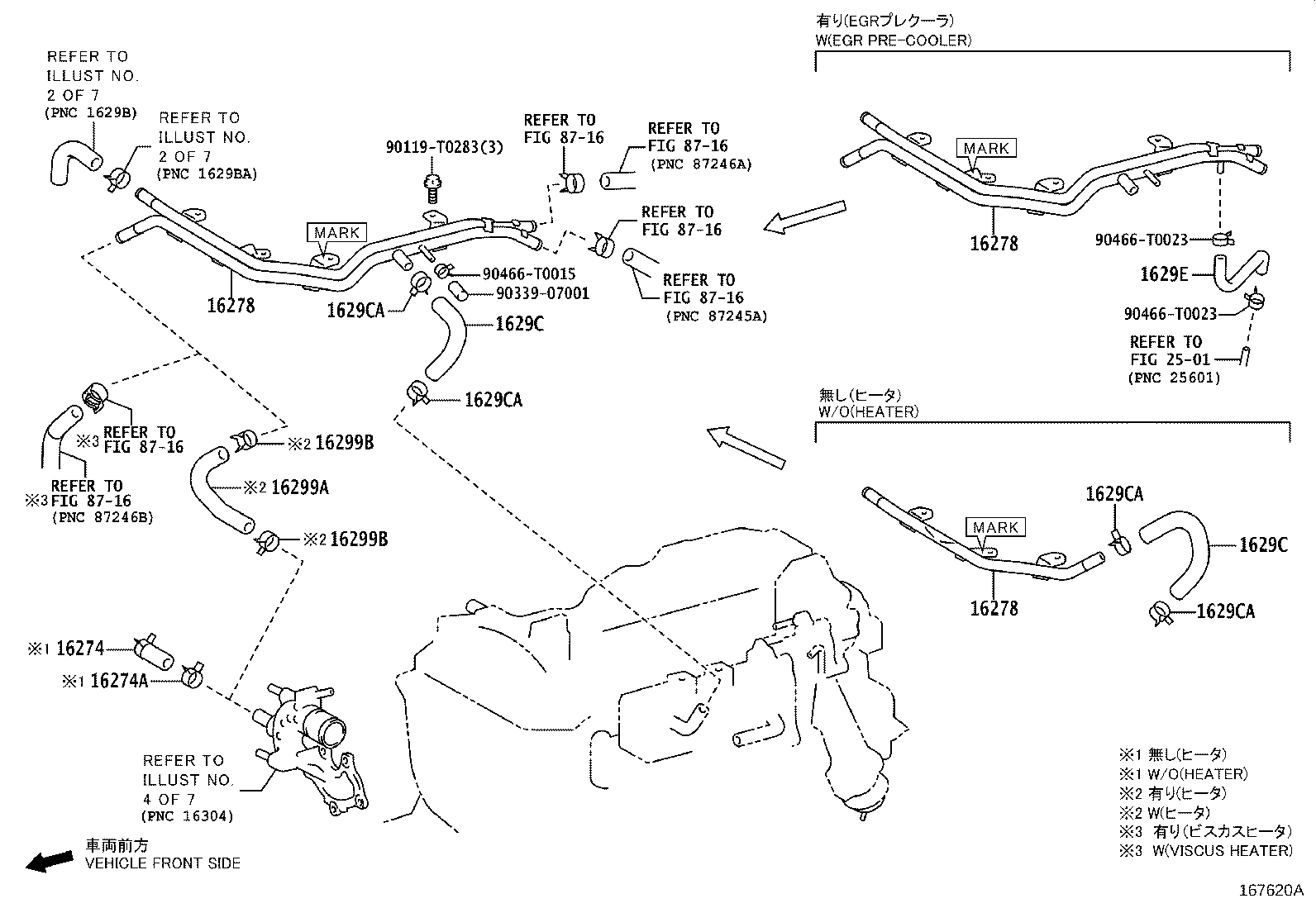

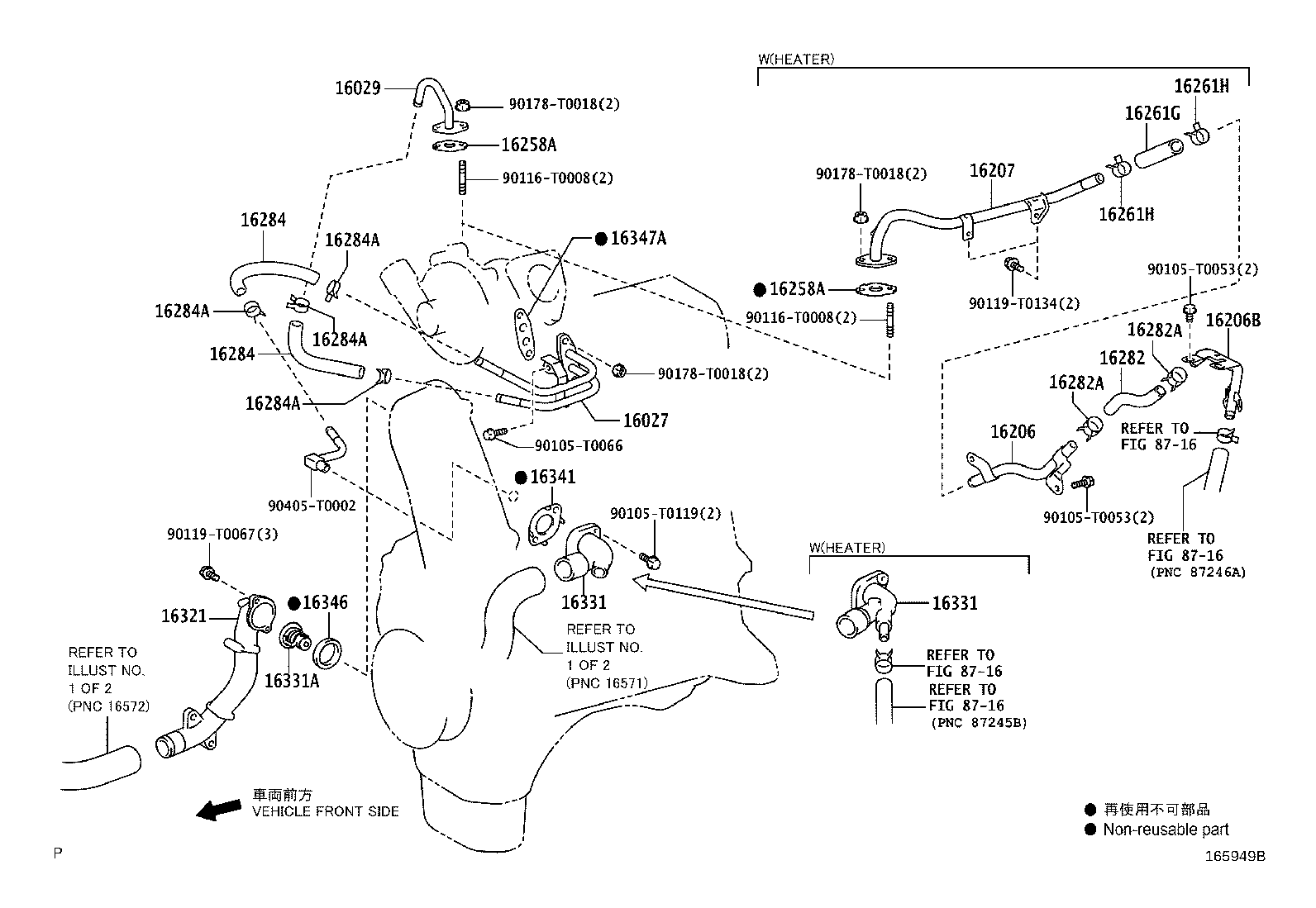

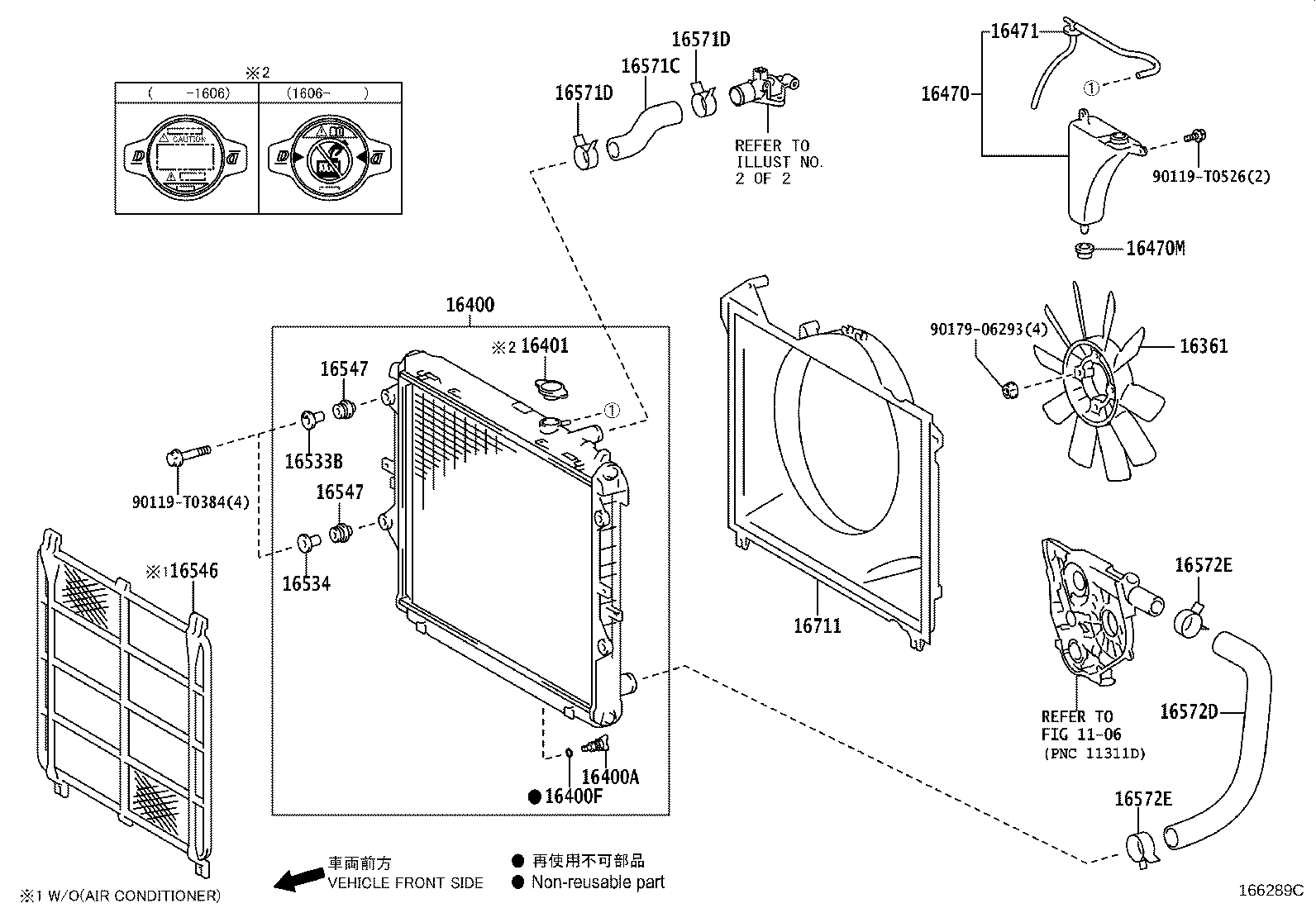

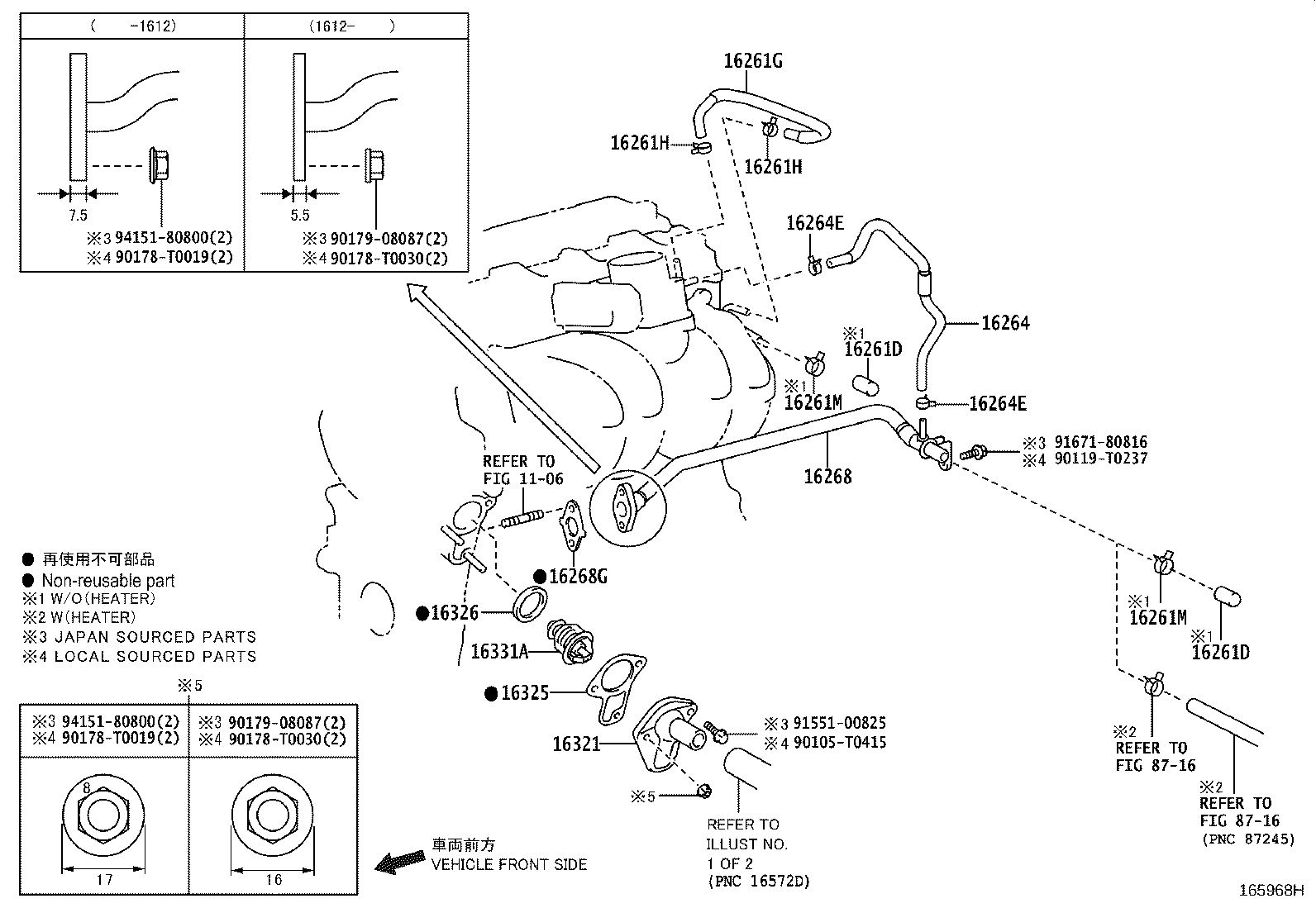

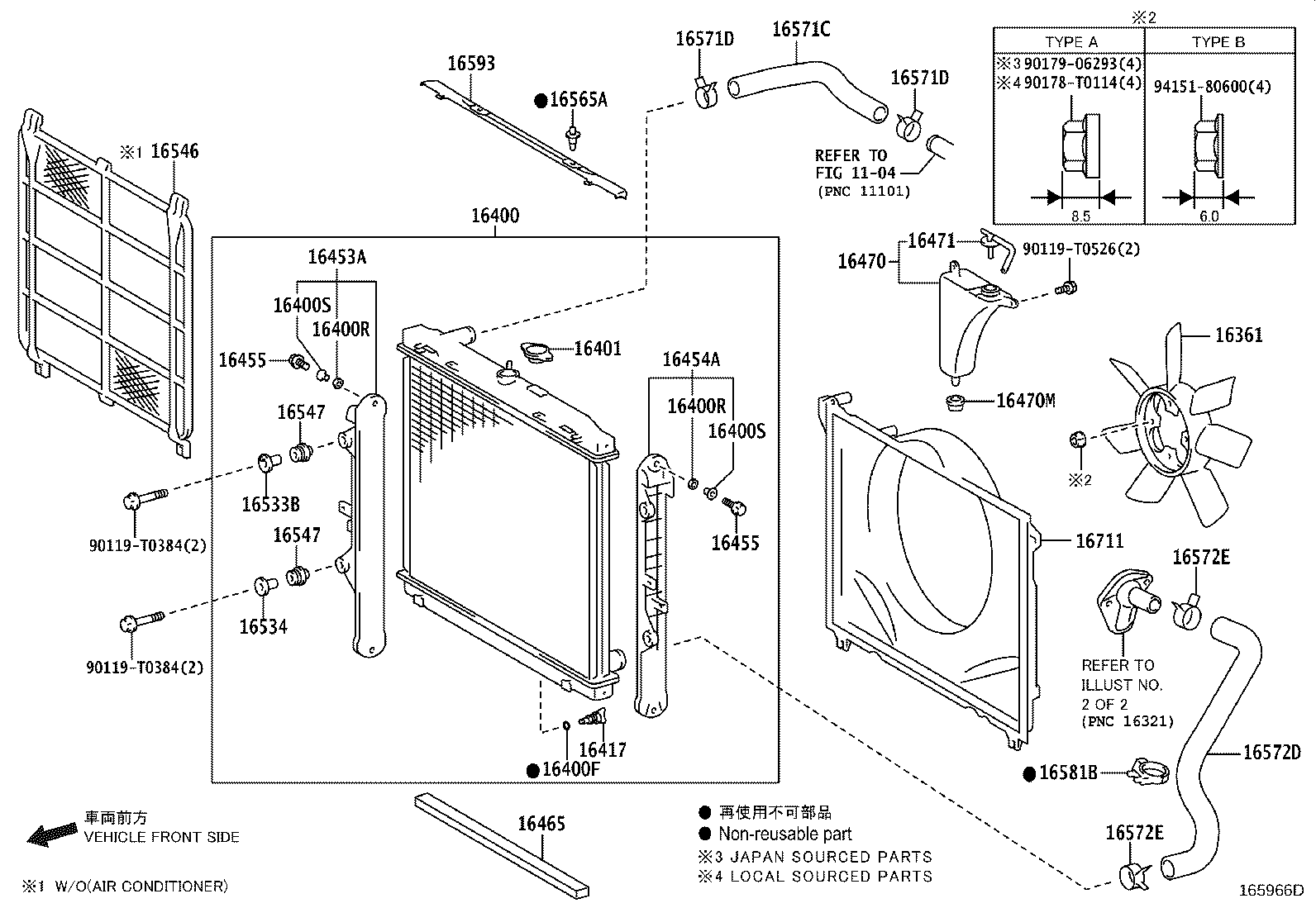

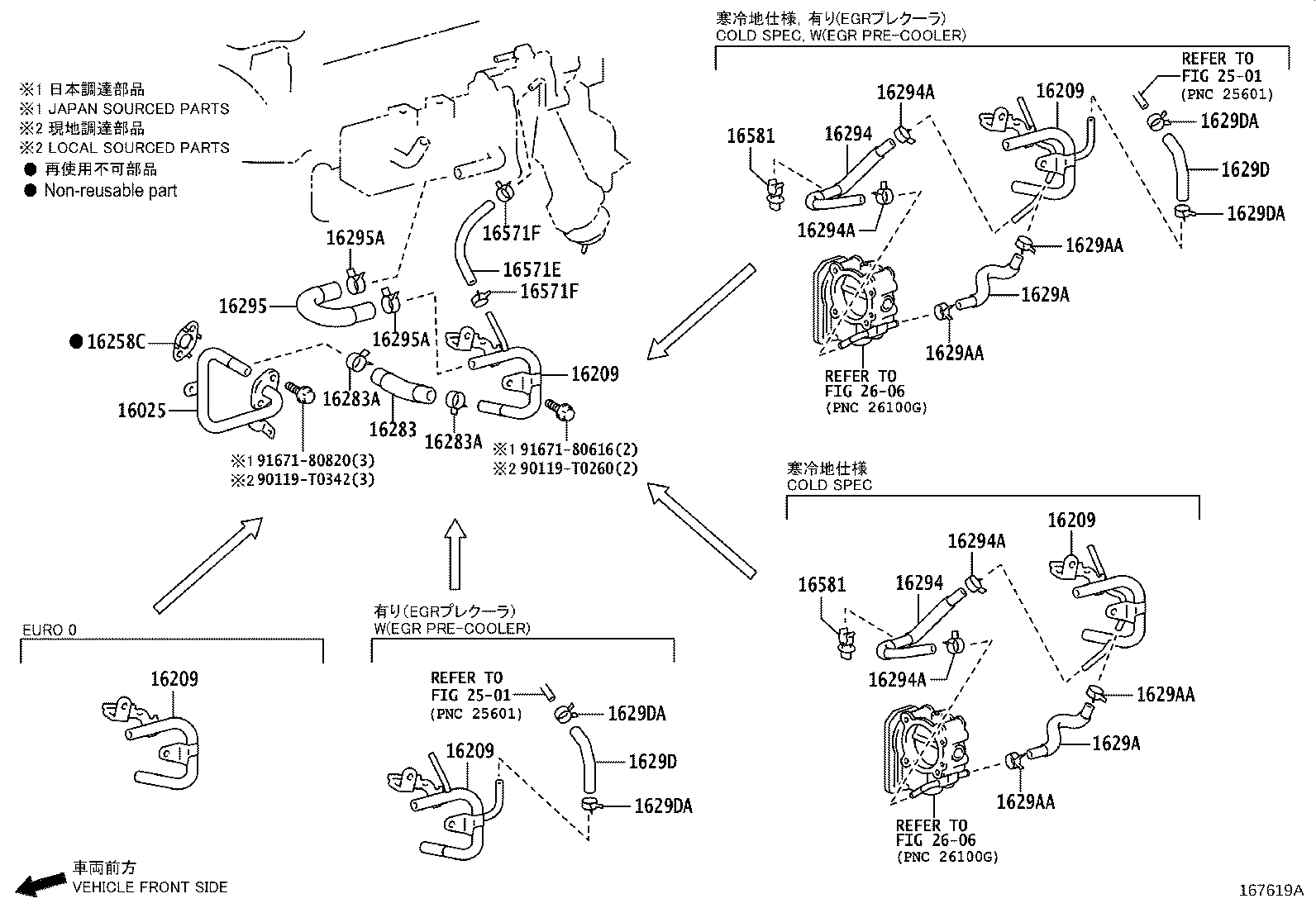

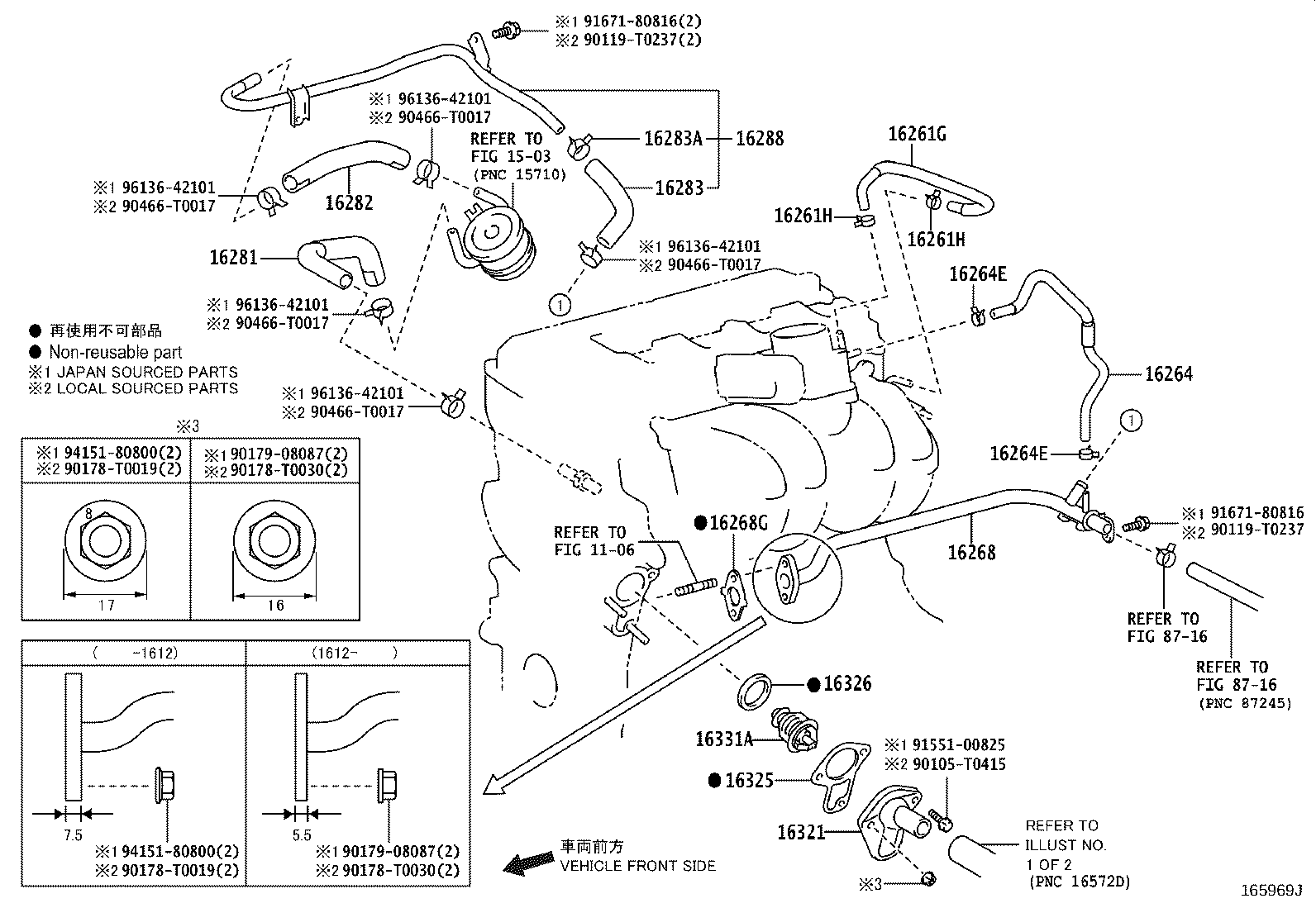

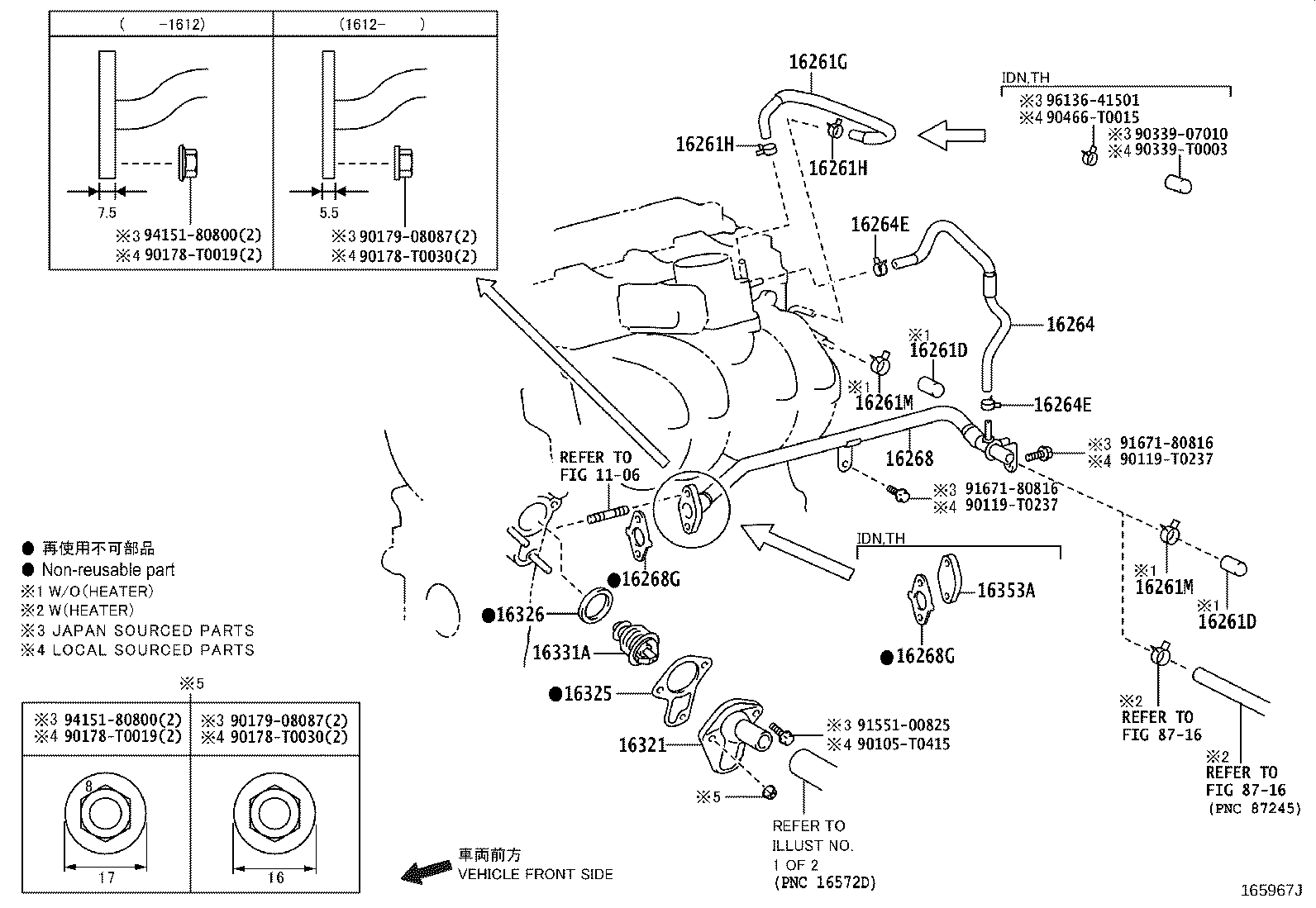

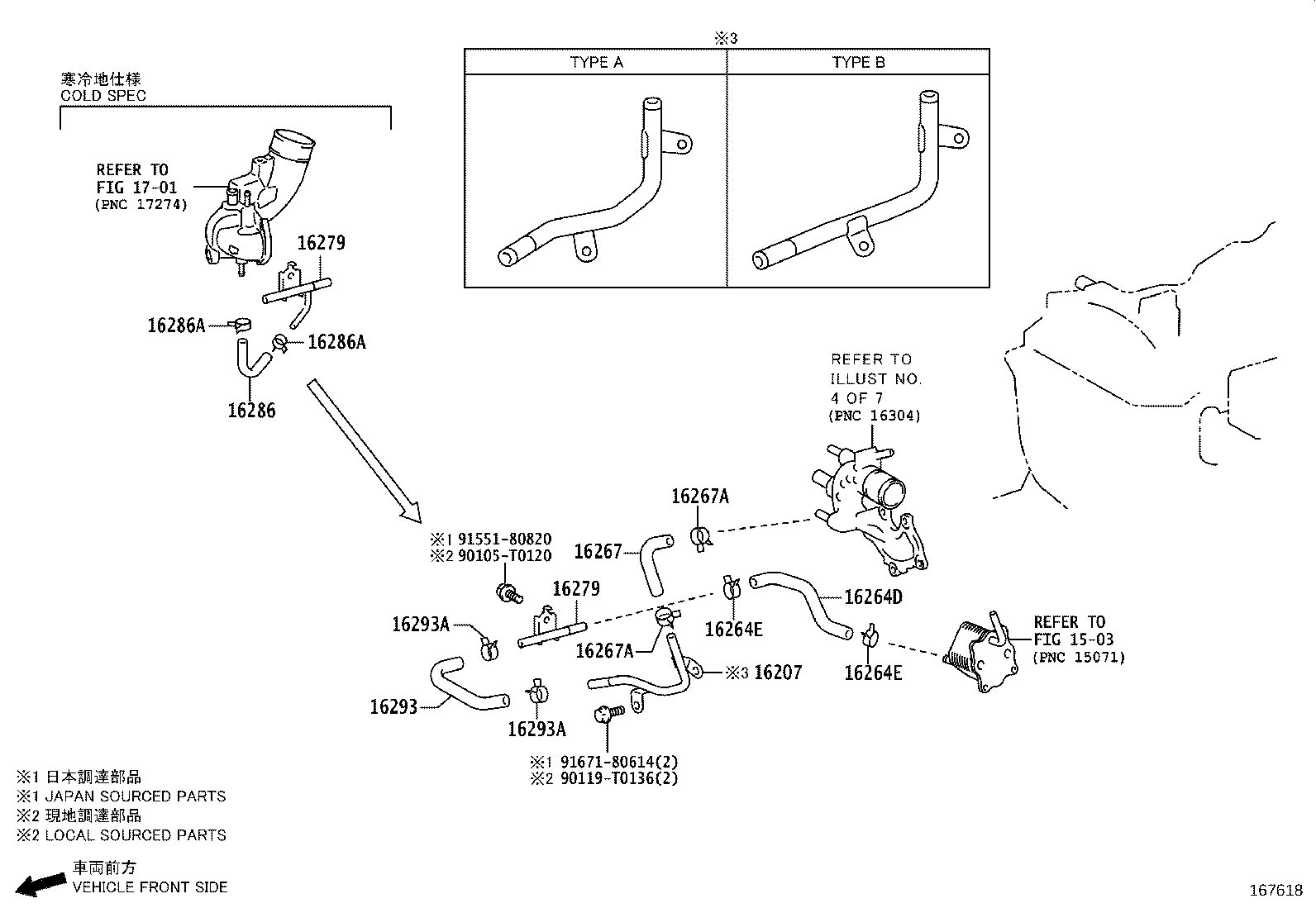

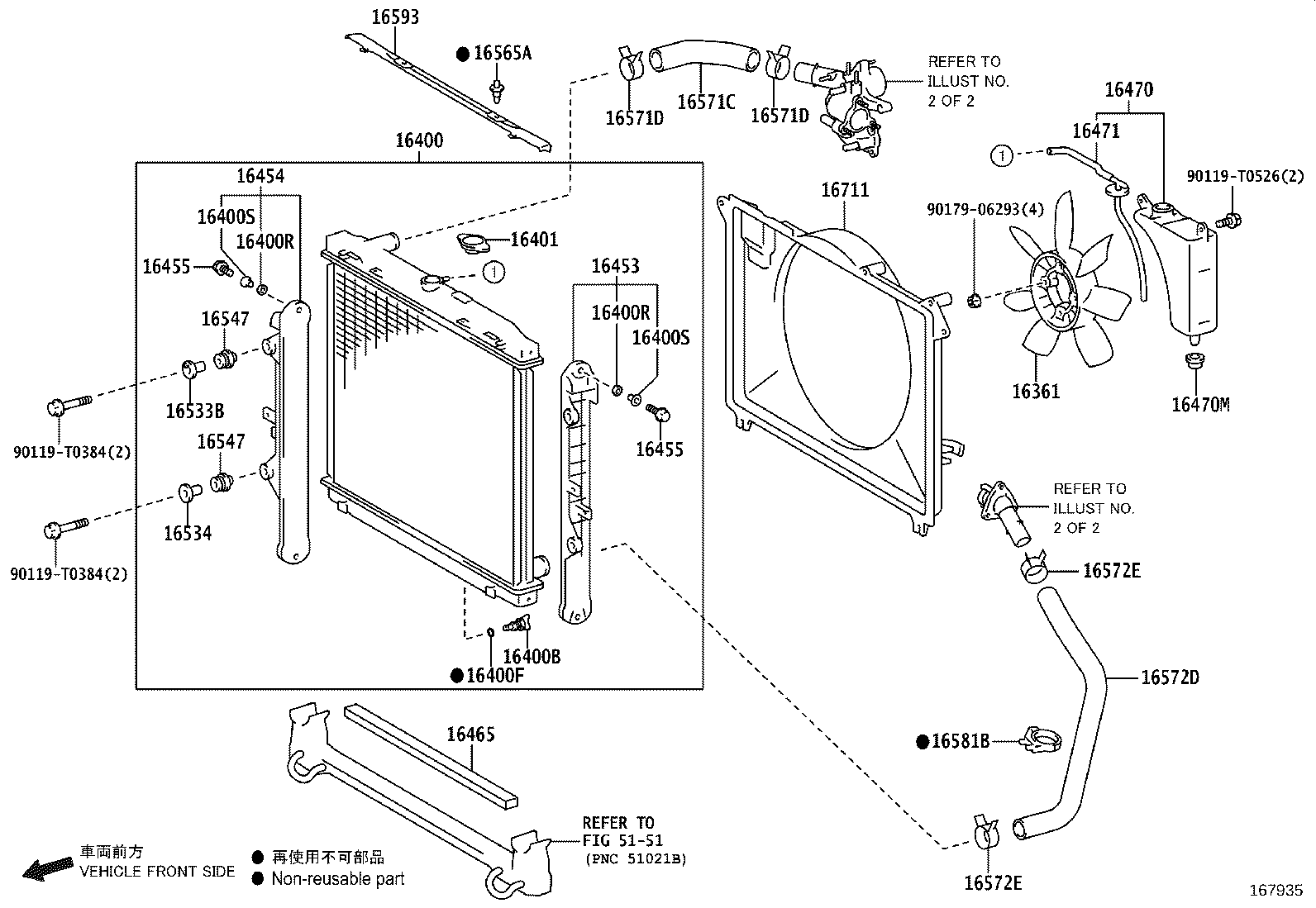

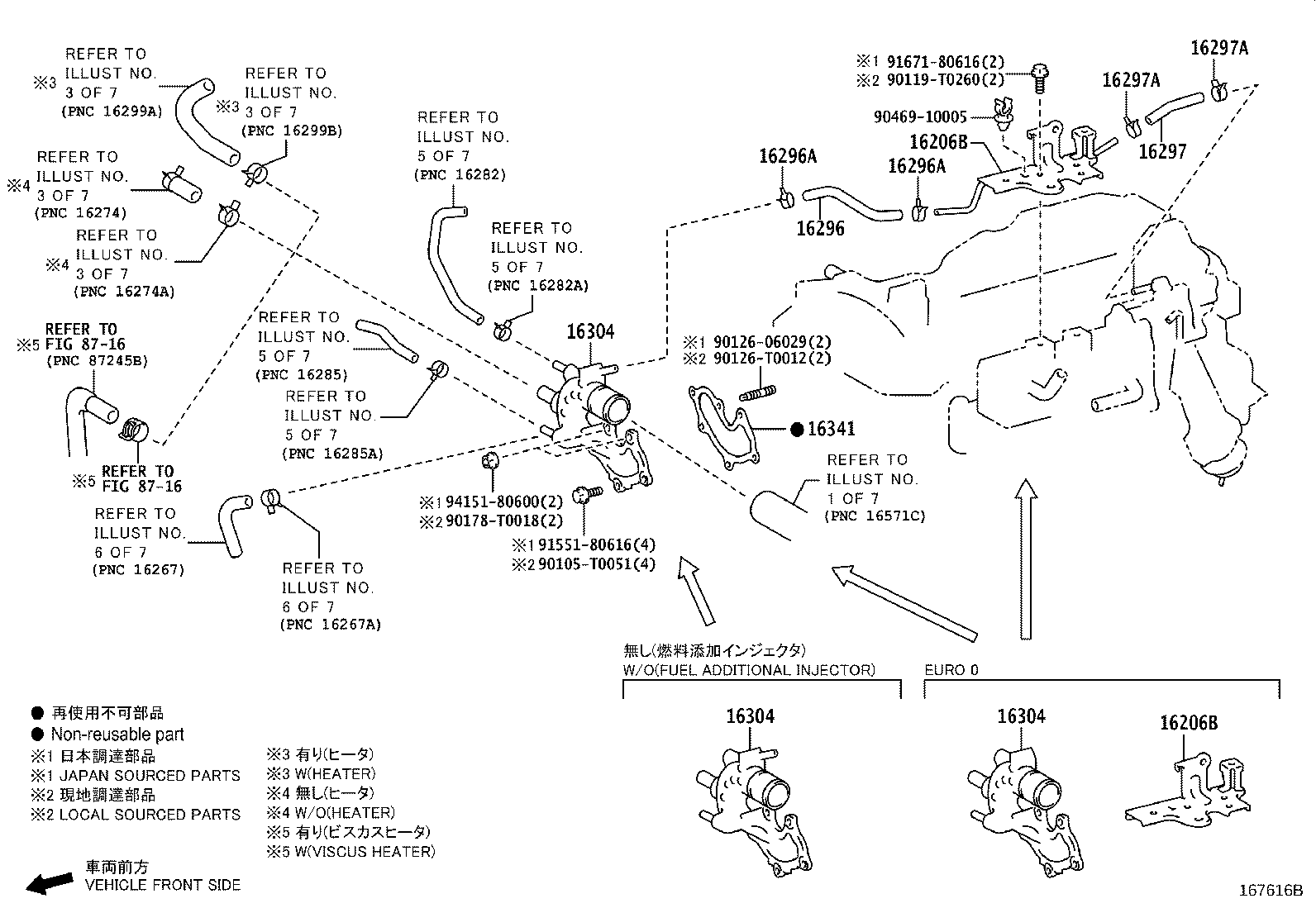

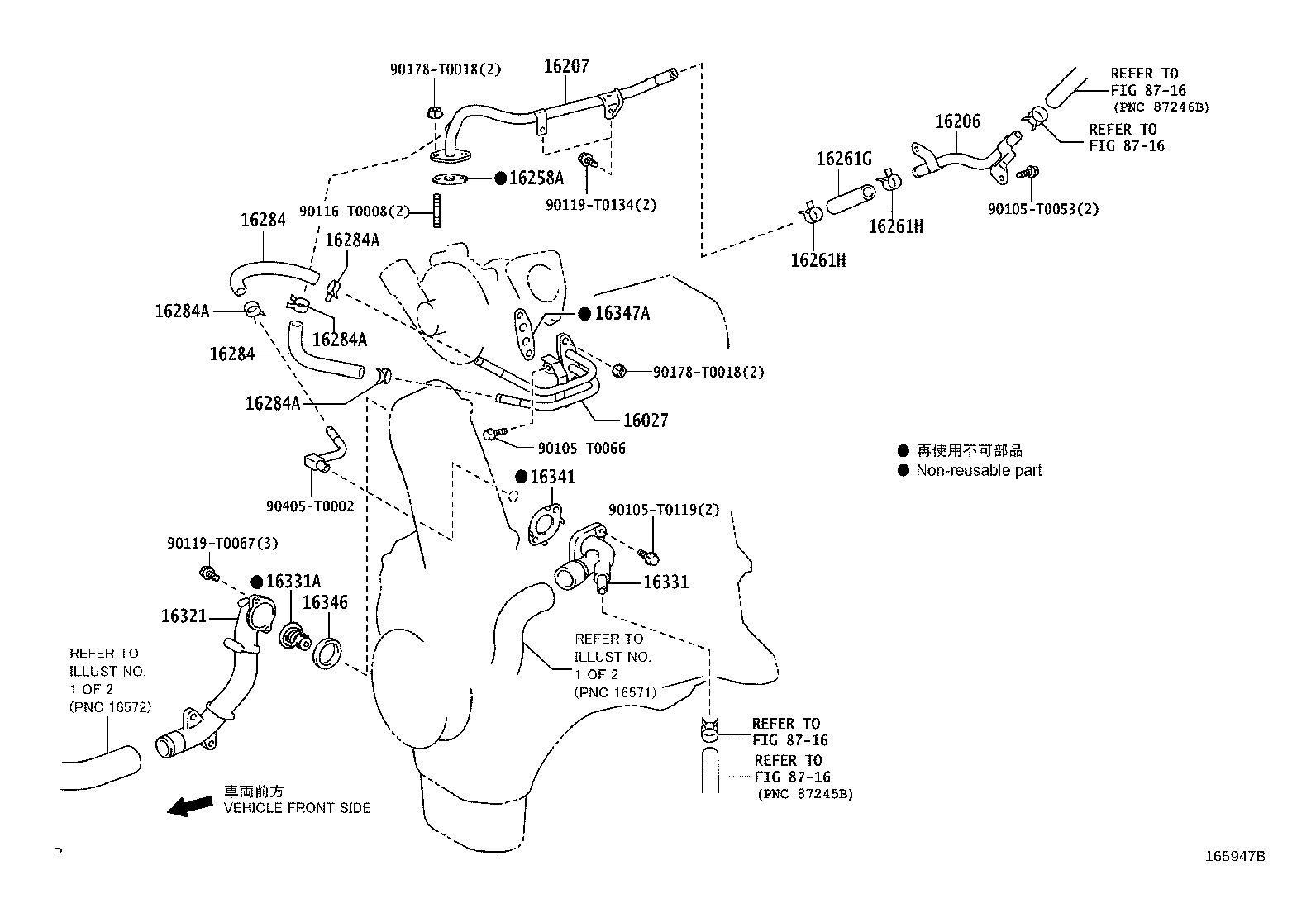

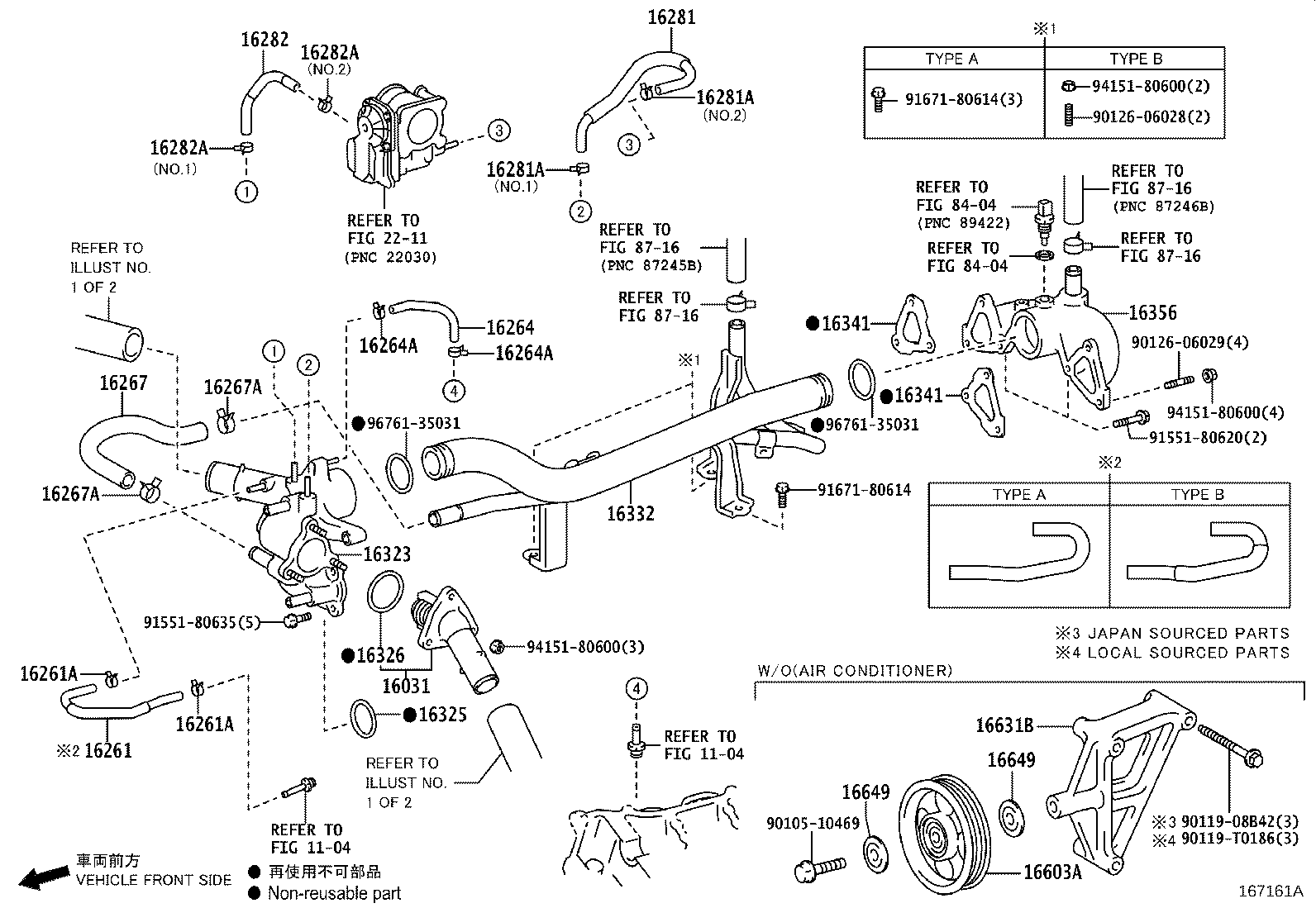

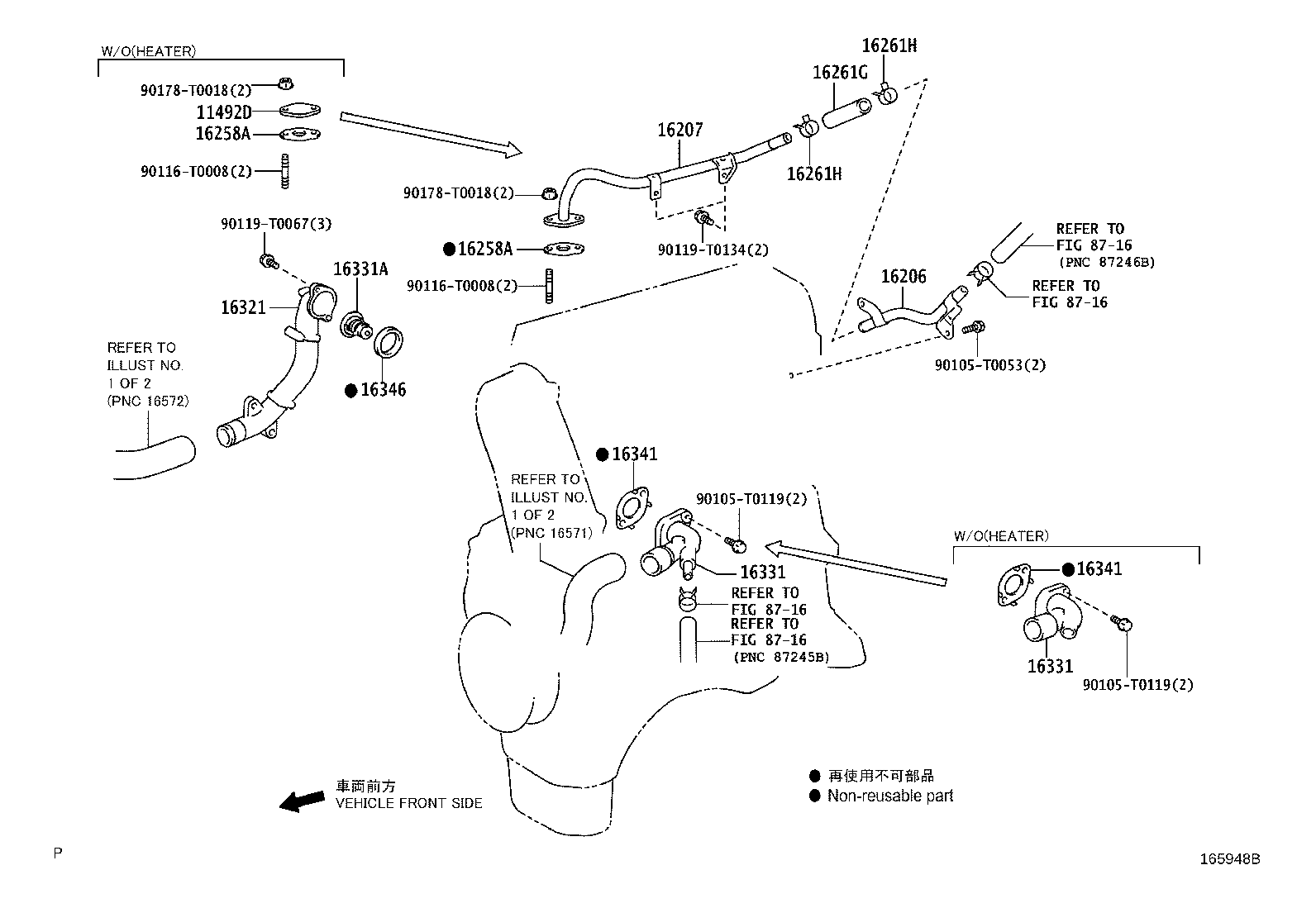

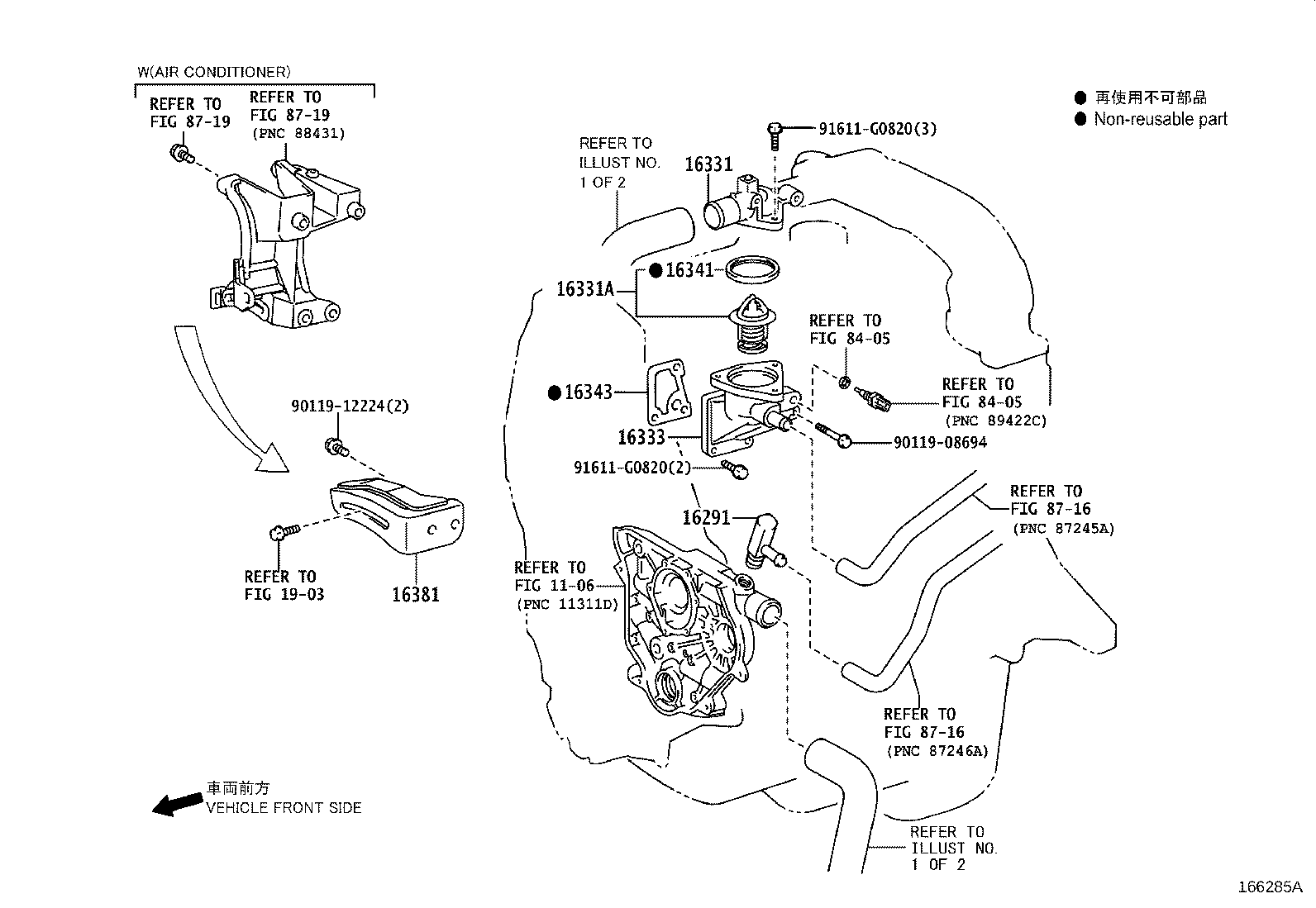

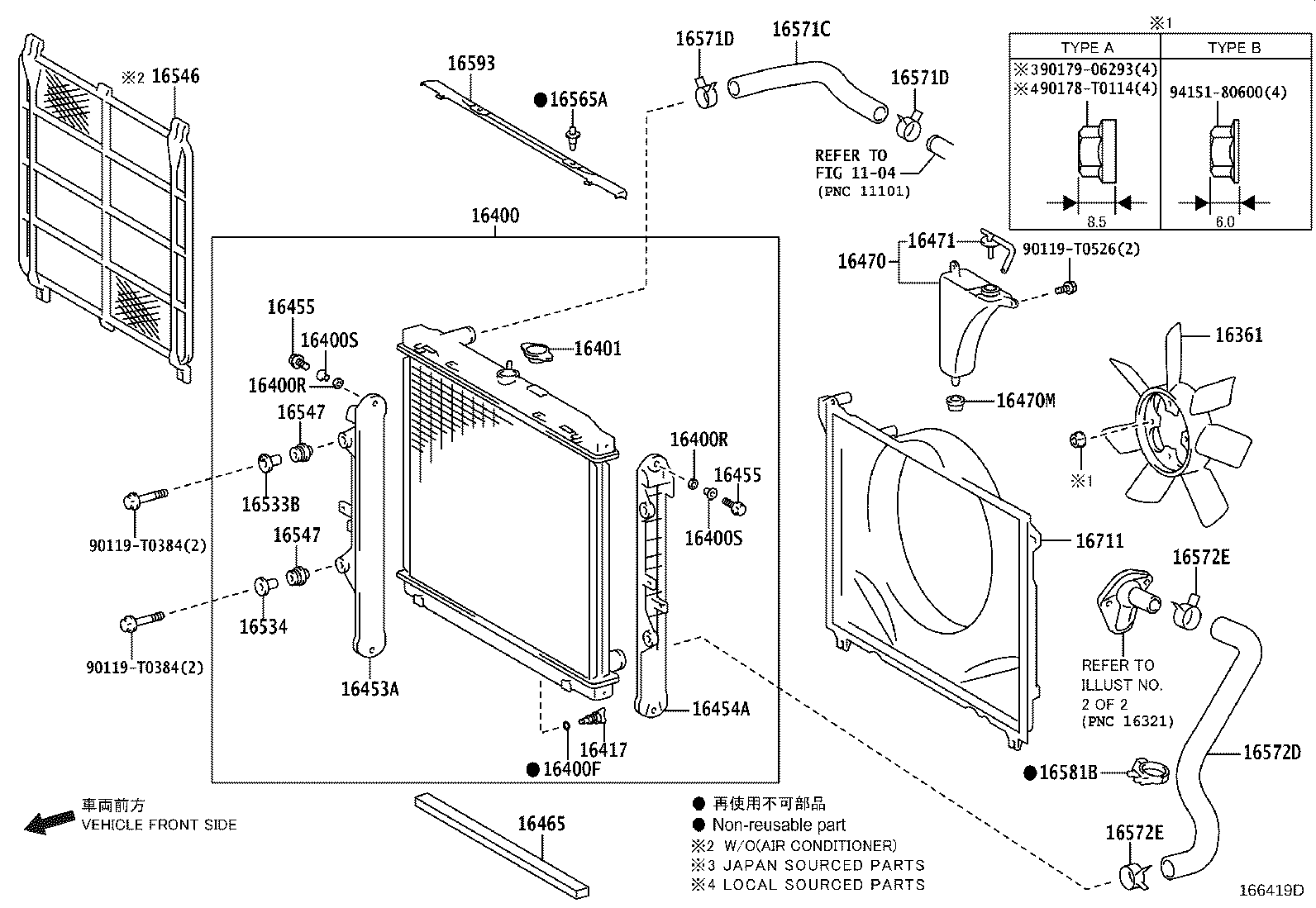

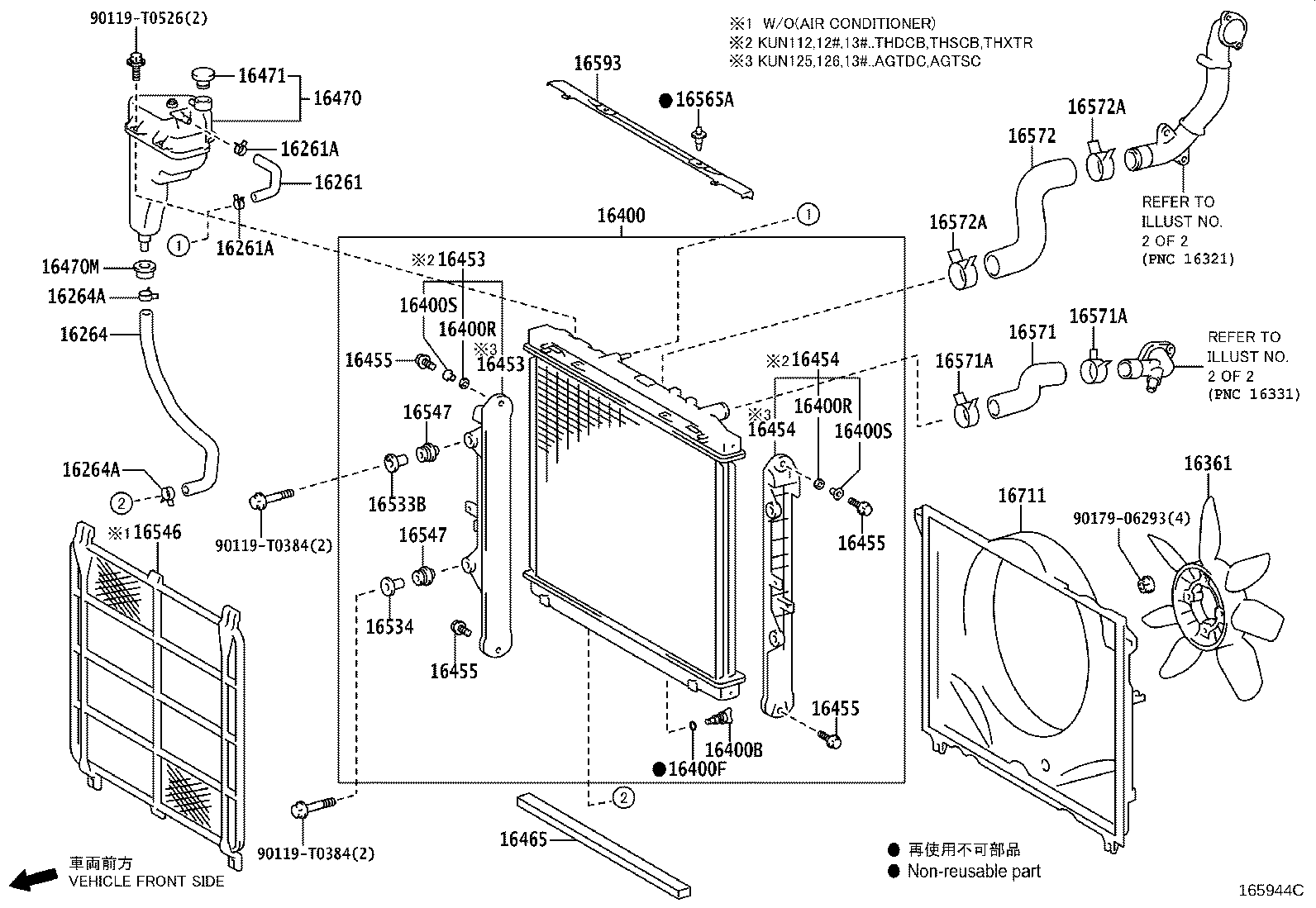

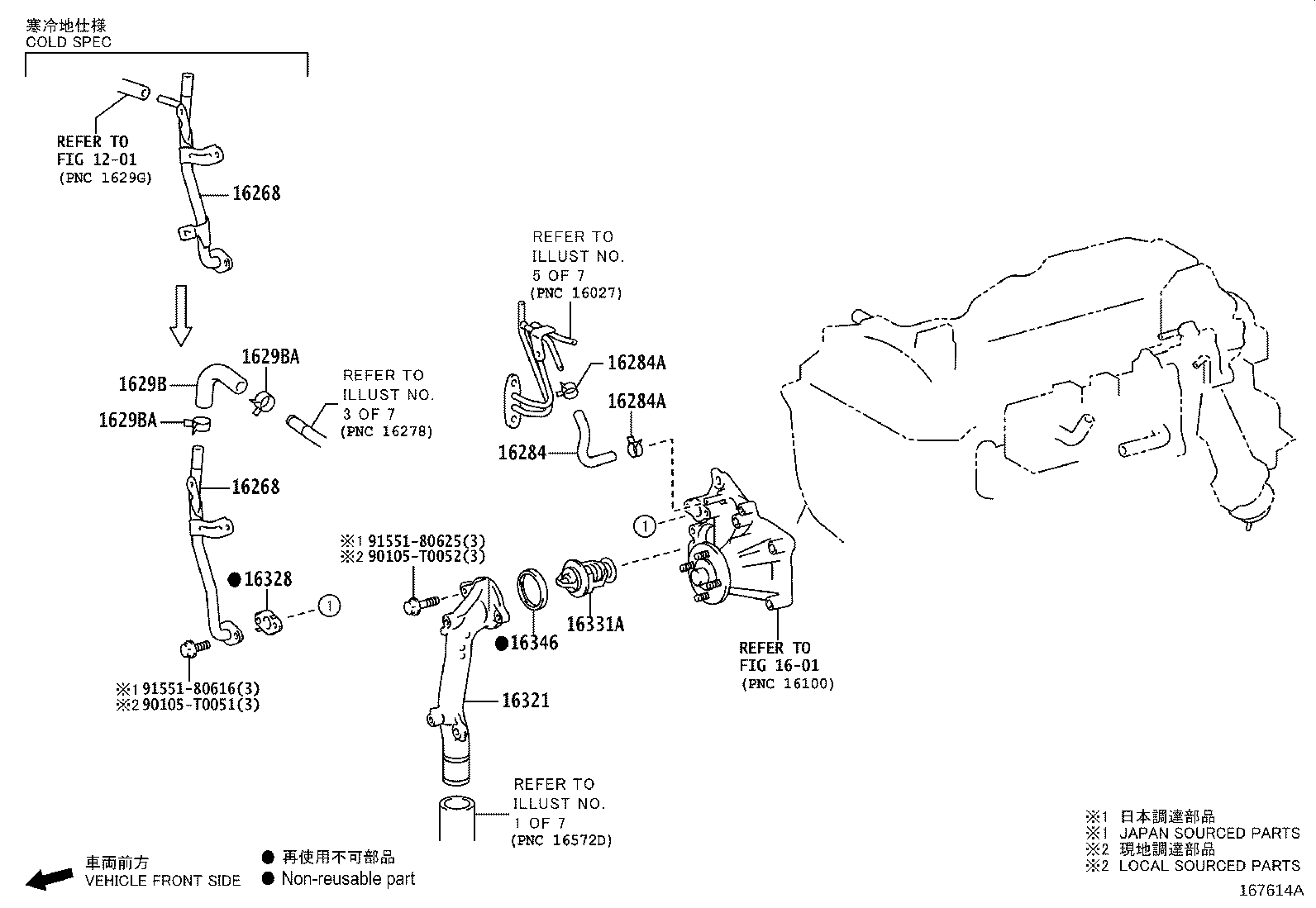

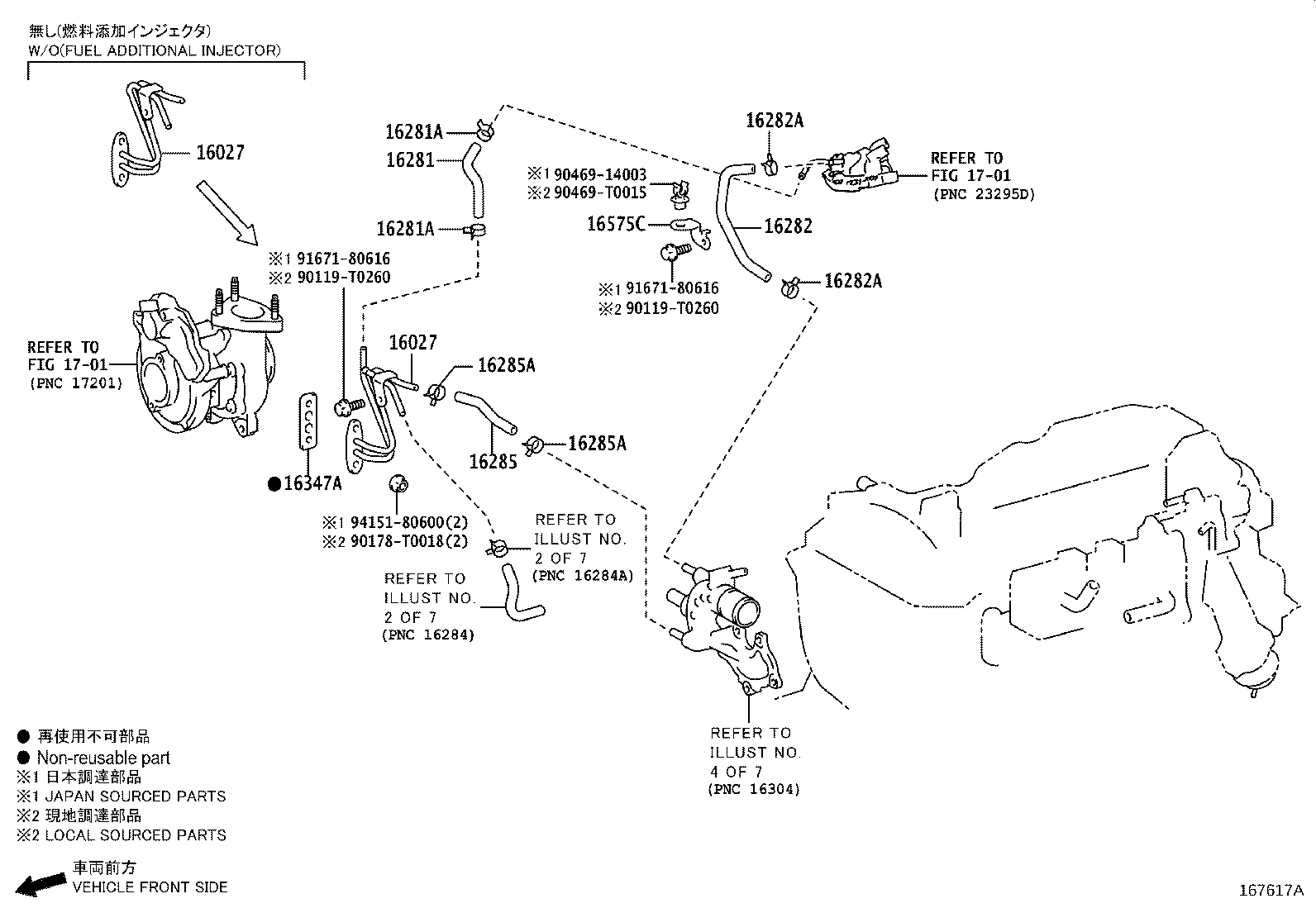

Figure 165971G 165971G 2015-05 → — Figure 167614A 167614A 2015-05 → — Figure 167620 167620 2015-05 → — Figure 167616B 167616B 2015-05 → — Figure 167617A 167617A 2015-05 → — Figure 167618 167618 2015-05 → — Figure 167619A 167619A 2015-05 → — Figure 167935 167935 2015-05 → — Figure 167161A 167161A 2015-05 → — Figure 165944C 165944C 2015-05 → — Figure 165947B 165947B 2015-05 → — Figure 165948B 165948B 2015-05 → — Figure 165949B 165949B 2015-05 → — Figure 166289C 166289C 2016-01 → — Figure 166285A 166285A 2016-01 → — Figure 165966D 165966D 2015-05 → — Figure 166419E 166419E 2015-11 → — Figure 165967J 165967J 2015-05 → — Figure 165968H 165968H 2015-05 → — Figure 165968H 165968H 2015-05 → — Figure 165969J 165969J 2015-05 → —

Part groups

PNCDescription
11492D Plate, Seal, NO.1
16025 Pipe Sub-assy, Water By-pass, NO.5
16027 Pipe Sub-assy, Turbo Water, NO.1
16029 Pipe Sub-assy, Turbo Water, NO.3
16031 Water Inlet Sub-assy, W/Thermostat
16206 Pipe Sub-assy, Water By-pass
16206B Pipe Sub-assy, Water By-pass, NO.3
16207 Pipe Sub-assy, Water By-pass, NO.2
16209 Pipe Sub-assy, Water By-pass, NO.4
16258A Gasket(FOR HEATER RETURN)
16258C Gasket(FOR WATER BY-PASS PIPE)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261D Plug, W/O Heater
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261M Clip, W/O Heater Plug
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16274 Plug, Water By-pass
16274A Clip(FOR WATER BY-PASS PLUG)
16278 Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16288 Pipe, Water By-pass, NO.4
16291 Joint, Water Hose
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16294 Hose, Water By-pass, NO.11
16294A Clip(FOR WATER BY-PASS HOSE NO.11)
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16299A Hose, Water By-pass, NO.13
16299B Clip(FOR WATER BY-PASS HOSE NO.13)
1629A Hose, Water By-pass, NO.14
1629AA Clip(FOR WATER BY-PASS HOSE NO.14)
1629B Hose, Water By-pass, NO.15
1629BA Clip(FOR WATER BY-PASS HOSE NO.15)
1629C Hose, Water By-pass, NO.16
1629CA Clip(FOR WATER BY-PASS HOSE NO.16)
1629D Hose, Water By-pass, NO.17
1629DA Clip(FOR WATER BY-PASS HOSE NO.17)
1629E Hose, Water By-pass, NO.18
16304 Outlet Sub-assy, Water
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16328 Gasket, Water Inlet Pipe
16331 Outlet, Water
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16333 Housing, Water Outlet
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16353A Flange, Water By-pass
16356 Joint, Water By-pass, Rear
16361 Fan
16381 Bar, Fan Belt Adjusting
16400 Radiator Assy
16400A Cock Sub-assy, Radiator Drain
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16400R Bushing(FOR RADIATOR)
16400S Collar(FOR RADIATOR)
16401 Cap Sub-assy, Radiator
16417 Cock
16453 Plate, Radiator Side
16453A Plate, Radiator Side Support, RH
16454 Plate, Radiator Side
16454A Plate, Radiator Side Support, LH
16455 Bolt, Radiator Side Support Plate
16465 Packing, Radiator
16470 Tank Assy, Radiator Reserve
16470M Grommet
16471 Cap Sub-assy, Reserve Tank
16533B Support, Radiator, NO.1
16534 Support, Radiator, NO.2
16546 Protector, Radiator
16547 Bush, Radiator Support, NO.1
16565A Clip
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16571E Hose, Water
16571F Clamp OR Clip(FOR WATER HOSE)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16575C Bracket, Water Hose Clamp, NO.1
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16593 Guide, Radiator Air, NO.1
16603A Pulley Sub-assy, Idler, NO.1
16631B Bracket, Idler Pulley
16649 Plate, Idler Pulley Cover
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
