Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 3 illustrations

Illustrations

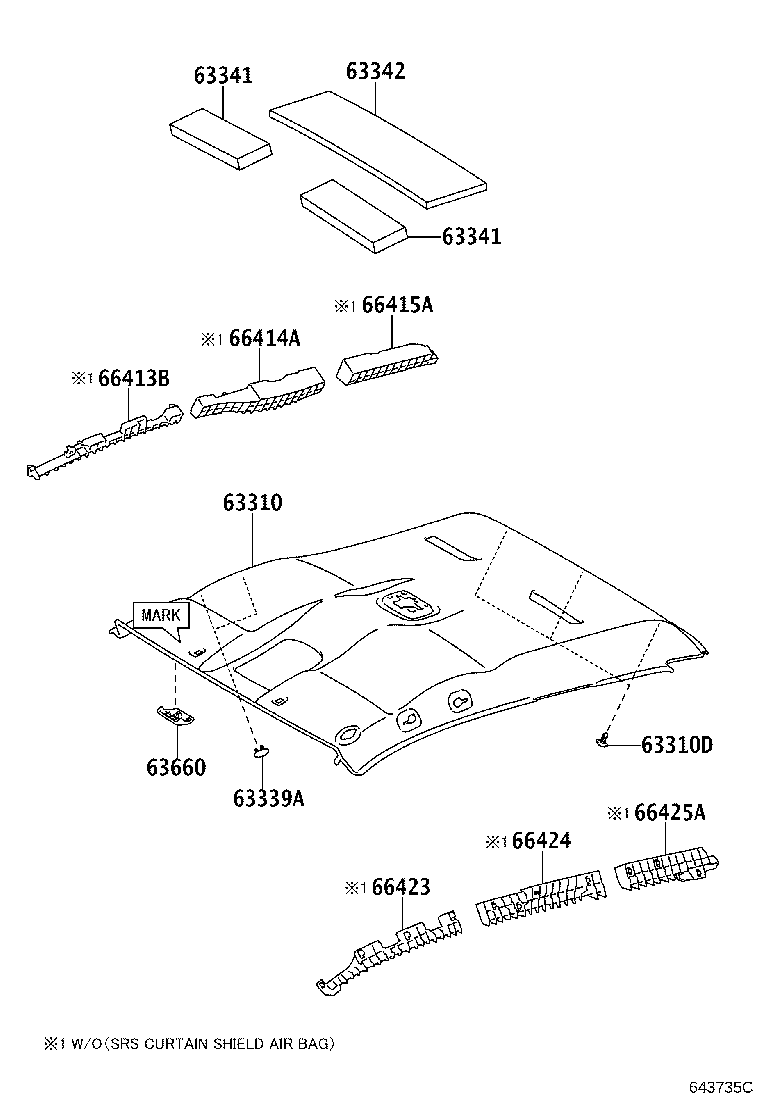

Figure 643733C 643733C 2015-05 → — Figure 643734C 643734C 2015-05 → — Figure 643735C 643735C 2015-06 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63660 Cover Assy, Roof Headlining Trim, NO.1
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415A Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425A Spacer, Side Rail, Rear NO.2 LH
74605A Hook Sub-assy, Coat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
