Toyota Hilux

2015-05 → 2021-05 · chassis GGN1##,GUN1##,KUN1##,LAN125,TGN1## · catalogue 672390 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

12 part groups · 9 illustrations

Illustrations

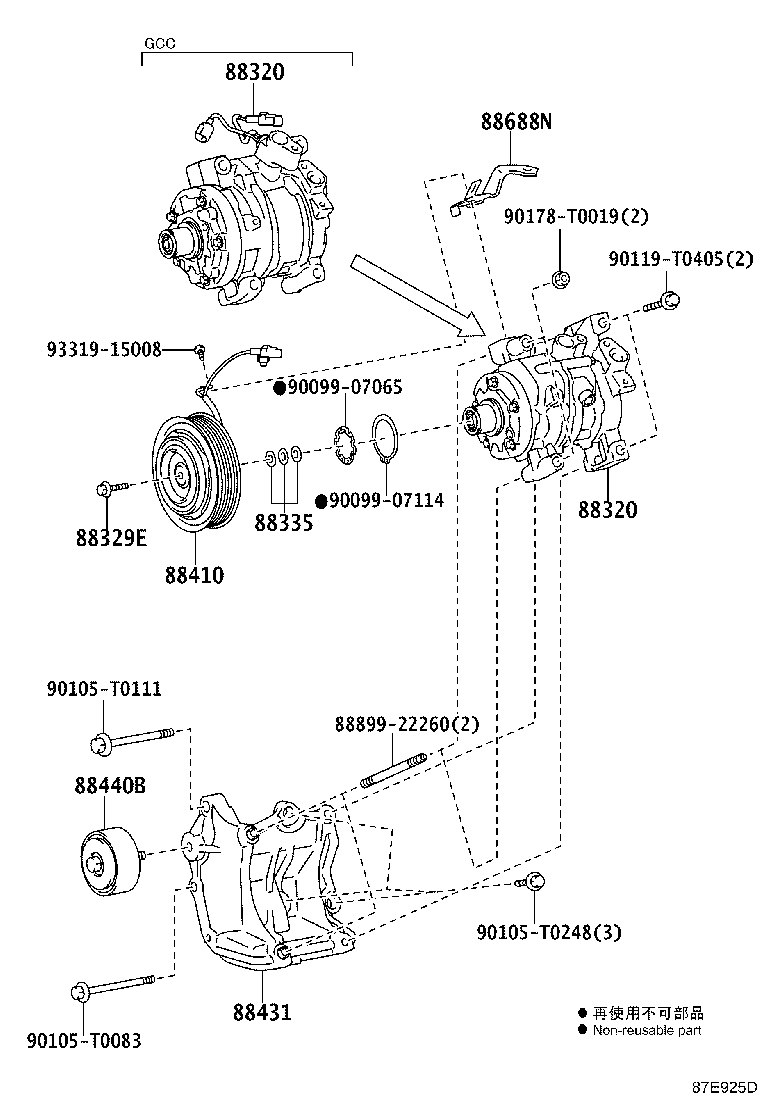

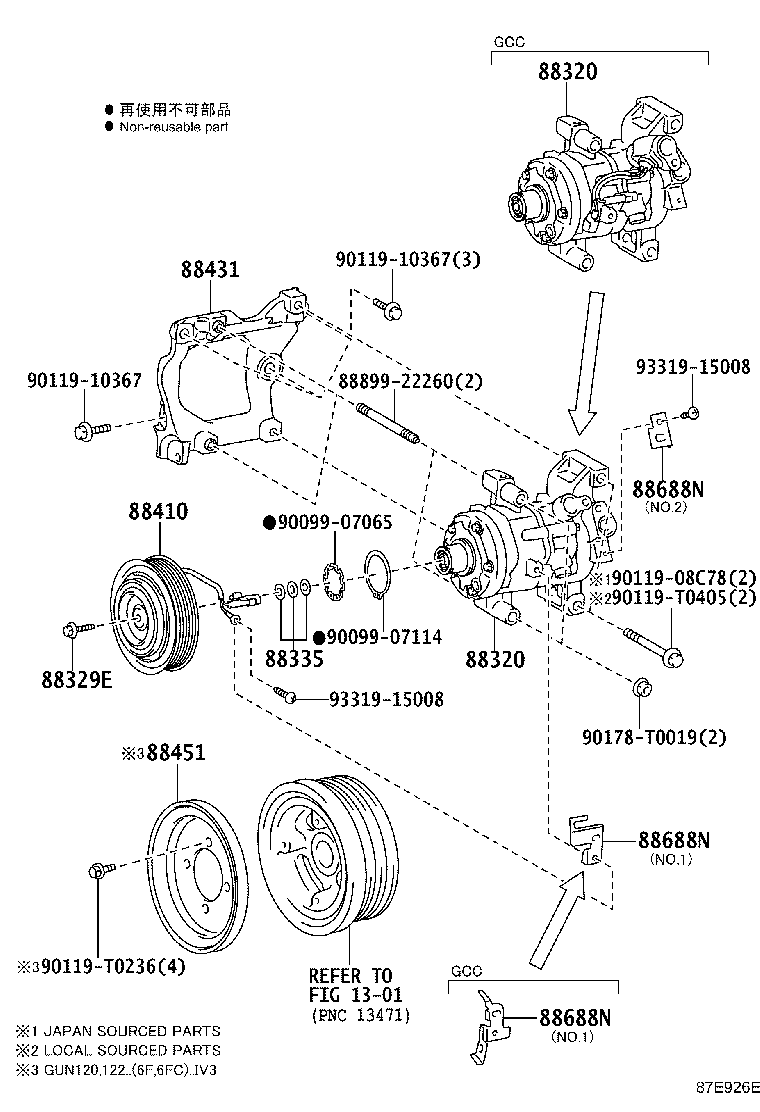

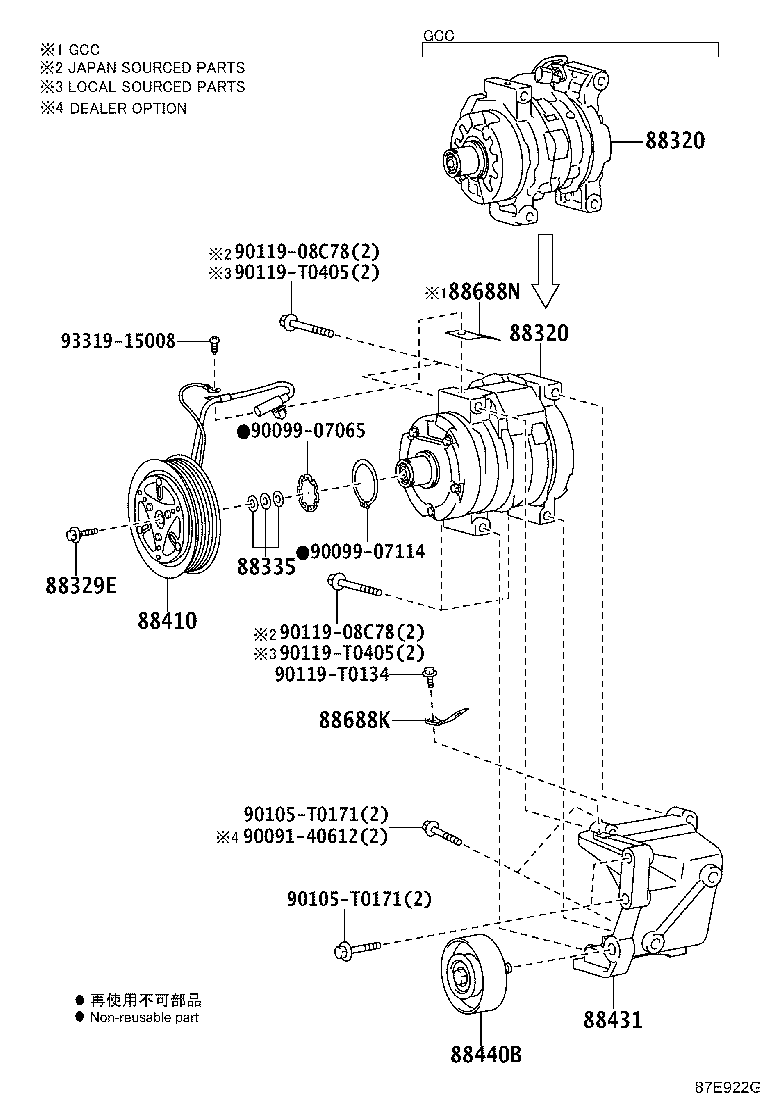

Figure 87E920E 87E920E 2015-05 → — Figure 87E926E 87E926E 2015-05 → — Figure 87E922G 87E922G 2015-05 → — Figure 87E925D 87E925D 2015-05 → — Figure 87F539 87F539 2016-01 → — Figure 87F537 87F537 2016-01 → — Figure 87E921D 87E921D 2016-01 → — Figure 87F481A 87F481A 2016-01 → — Figure 87F538 87F538 2016-01 → —

Part groups

PNCDescription
88310E Compressor, W/Magnet Clutch
88320 Compressor Assy, Cooler
88329E Bolt, Compressor, NO.1
88335 Gasket Kit, Overhaul
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88446 Bolt, Idle Pulley
88451 Pulley, Crankshaft
88469B Collar
88688K Bracket, Cooler Compressor
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
