Toyota Hilux (SCB/XTR)

2022-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136 · catalogue 6723C0 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

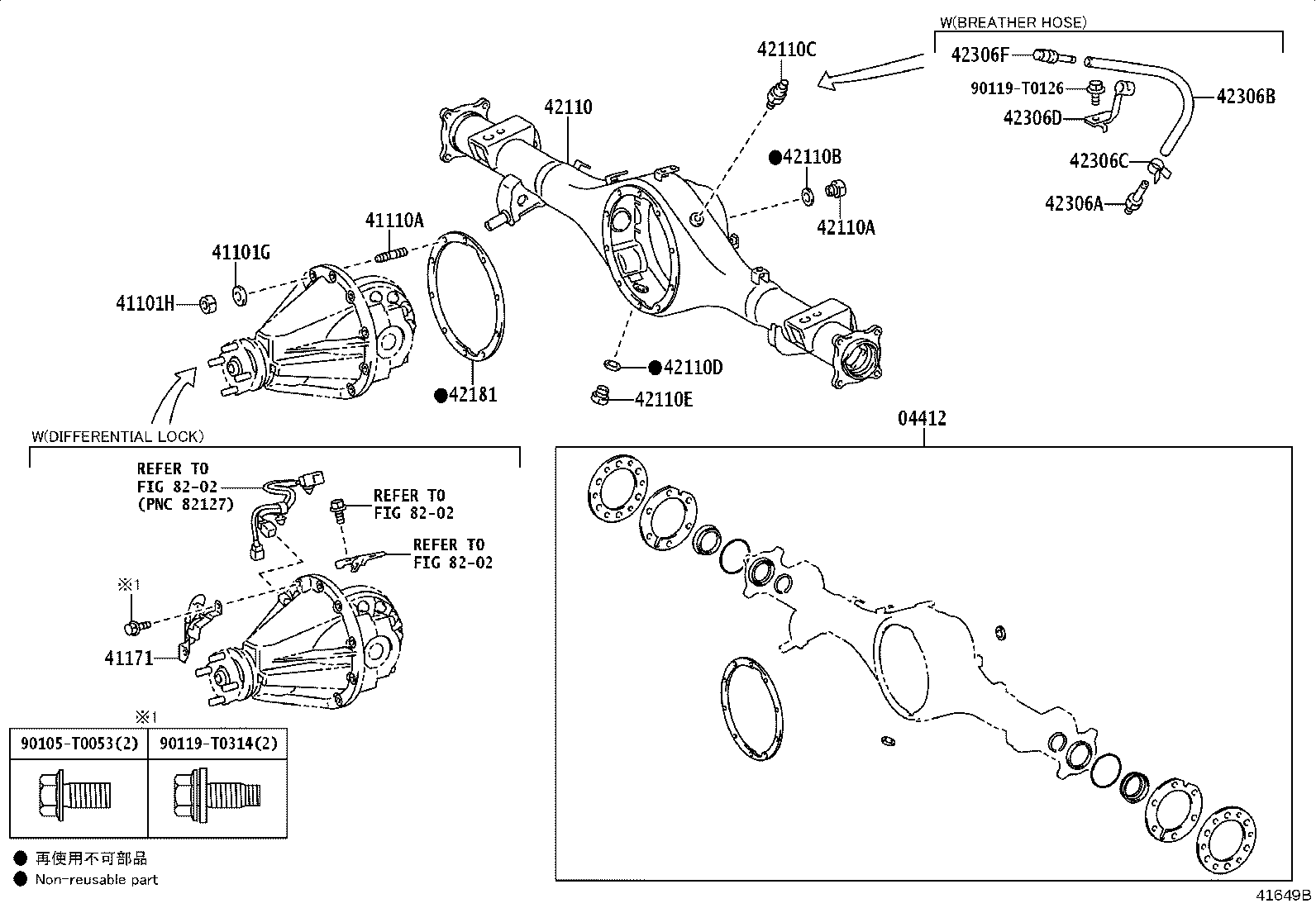

Exploded illustration 41649B 41101G — WASHER, SPRING(FOR REAR DIFFERENTIAL CARRIER SET) (8 parts) 41101H — NUT, HEXAGON(FOR REAR DIFFERENTIAL CARRIER SET) (8 parts) 41110A — BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) (10 parts) 42110 — HOUSING ASSY, REAR AXLE (17 parts) 42110A — PLUG (FOR REAR AXLE HOUSING FILLER) (6 parts) 42110B — GASKET (FOR REAR AXLE HOUSING FILLER PLUG) (6 parts) 42110D — GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) (6 parts) 42110E — PLUG (FOR REAR AXLE HOUSING DRAIN) (6 parts) 42181 — GASKET, REAR DIFFERENTIAL CARRIER (8 parts) 41171 — PROTECTOR, DIFFERENTIAL, REAR (9 parts) 04412 — GASKET KIT, REAR DIFFERENTIAL CARRIER (4 parts) 90105T0053 — not listed in this catalogue 90119T0314 — not listed in this catalogue 42306A — UNION (FOR REAR AXLE BREATHER HOUSE) (4 parts) 42306B — HOSE (FOR REAR AXLE BREATHER) (4 parts) 42306C — CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) (4 parts) 42306D — CLAMP (FOR REAR AXLE BRATHER HOSE) (4 parts) 42306F — PLUG, BREATHER (FOR REAR AXLE) (4 parts) 90119T0126 — not listed in this catalogue 42110C — PLUG, BREATHER (FOR REAR AXLE HOUSING) (6 parts) 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue
41649B · 17 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
114 parts on this figure
Part number Description Fitment Price
04412 — Gasket Kit, Rear Differential Carrier
04412-0K500 Gasket Kit, Rear Differential Carrier
2022-08 → 2024-01 ended
TGN110,120;GUN112,122,TGN121 5F (IDN,PH,TH) —
04412-0K540 Gasket Kit, Rear Differential Carrier
2022-08 → —
GUN125,126,13#,TGN126,136 —
04412-0K550 Gasket Kit, Rear Differential Carrier
2022-08 → —
GUN120,121,122 GCC,GEN,PKN,SA,TH;GUN11#,TGN111,121 ARL,GCC,GEN,PKN,SA —
04412-0K560 Gasket Kit, Rear Differential Carrier
2023-01 → 2024-01 ended
LAN125 —
41101G — Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
90201-08002 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01 ended
LAN125,TGN120 SA —
90201-08002 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07 ended
TGN110,120 THP;GUN112,122,TGN121 5F (IDN,PH,TH) —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07 ended
GUN12#,135 GEN,LA) THP (ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126 +2 —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-08 ended
GUN125 MA —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01 ended
GUN122,125,126,13#,TGN121,136 SA —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-03 ended
GUN125,135 KEN —
94621-11000 Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → —
GUN122,126,TGN121 PKN —
41101H — Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
90170-T0009 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07 ended
TGN110,120 THP;GUN112,122,TGN121 5F (IDN,PH,TH) —
90170-T0009 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01 ended
LAN125,TGN120 SA —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07 ended
GUN12#,135 GEN,LA) THP (ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126 +2 —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → —
GUN122,126,TGN121 PKN —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-03 ended
GUN125,135 KEN —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01 ended
GUN122,125,126,13#,TGN121,136 SA —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
90170-T0017 Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-08 ended
GUN125 MA —
41110A — Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-08233 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07 ended
TGN110,120 THP;GUN112,122,TGN121 5F (IDN,PH,TH) —
90116-08233 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01 ended
LAN125,TGN120 SA —
90116-08329 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07 ended
TGN110,120 THP;GUN112,122,TGN121 5F (IDN,PH,TH) —
90116-08329 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01 ended
LAN125,TGN120 SA —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → —
GUN122,126,TGN121 PKN —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-03 ended
GUN125,135 KEN —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2024-01 ended
GUN122,125,126,13#,TGN121,136 SA —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-08 ended
GUN125 MA —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-07 ended
GUN12#,135 GEN,LA) THP (ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126 +2 —
90116-10074 note Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2022-08 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
41171 — Protector, Differential, Rear
41171-0K010 Protector, Differential, Rear
2022-08 → —
GUN126 PKN —
41171-0K010 note Protector, Differential, Rear
2022-08 → 2023-10 ended
GUN125,126,135 AGTP LA —
41171-0K010 Protector, Differential, Rear
2022-08 → 2023-10 ended
TGN136 LA;GUN125,126 BZAG —
41171-0K010 note Protector, Differential, Rear
2022-08 → 2023-07 ended
GUN125 THP LA;GUN125 RHD +2 —
41171-0K010 Protector, Differential, Rear
2022-08 → 2023-08 ended
GUN125 MA —
41171-0K010 Protector, Differential, Rear
2022-08 → 2023-07 ended
GUN125 THP IDN,TH;GUN126,136 (H,S) +6 —
41171-0K030 Protector, Differential, Rear
2023-01 → 2024-01 ended
GUN125 XTR SA;GUN125 LHD +6 —
41171-0K030 note Protector, Differential, Rear
2023-01 → 2024-01 ended
GUN125 SA IV3;GUN125 LHD +6 —
41171-0K030 Protector, Differential, Rear
2023-01 → 2024-03 ended
GUN125,135 KEN —
42110 — Housing Assy, Rear Axle
42110-KK031 Housing Assy, Rear Axle
2022-08 → 2023-07 ended
GUN112,122,TGN110,121 5F (IDN,PH,TH) —
42110-KK041 Housing Assy, Rear Axle
2022-08 → 2023-12 ended
TGN120 SA —
42110-KK041 Housing Assy, Rear Axle
2022-08 → 2023-07 ended
TGN110,120 GCC —
42110-KK042 Housing Assy, Rear Axle
2023-12 → 2024-01 ended
TGN120 SA —
42110-KK051 Housing Assy, Rear Axle
2022-08 → 2023-07 ended
GUN120,121,122 TH —
42110-KK061 Housing Assy, Rear Axle
2022-08 → 2023-07 ended
GUN11#,122,TGN111,121 ARL,GCC,GEN —
42110-KK061 Housing Assy, Rear Axle
2022-08 → 2023-12 ended
GUN122,TGN121 PKN,SA —
42110-KK062 Housing Assy, Rear Axle
2023-12 → —
GUN122,TGN121 PKN —
42110-KK062 Housing Assy, Rear Axle
2023-12 → 2024-01 ended
GUN122,TGN121 SA —
42110-KK080 Housing Assy, Rear Axle
2023-01 → 2024-01 ended
LAN125 —
42110-KK090 Housing Assy, Rear Axle
2022-08 → 2023-07 ended
GUN125,126,135 IDN,TH —
42110-KK090 Housing Assy, Rear Axle
2022-08 → 2023-08 ended
GUN125 MA —
42110-KK100 Housing Assy, Rear Axle
2022-08 → 2024-01 ended
GUN125,126,13#,TGN136 SA —
42110-KK100 Housing Assy, Rear Axle
2022-08 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
42110-KK100 Housing Assy, Rear Axle
2022-08 → 2024-03 ended
GUN125,135 KEN —
42110-KK100 Housing Assy, Rear Axle
2022-08 → —
GUN126 PKN —
42110-KK100 Housing Assy, Rear Axle
2022-08 → 2023-07 ended
GUN125,126,13#,TGN126 THP (ARL,GCC,GEN,LA) —
42110A — Plug (FOR REAR AXLE HOUSING FILLER)
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → —
GUN122,126,TGN121 PKN —
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2023-08 ended
GUN125 MA —
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2024-03 ended
GUN125,135 KEN —
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2023-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
90341-18006 Plug (FOR REAR AXLE HOUSING FILLER)
2022-08 → 2024-01 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 SA —
42110B — Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2023-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2023-08 ended
GUN125 MA —
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2024-01 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 SA —
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → 2024-03 ended
GUN125,135 KEN —
12157-10010 Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2022-08 → —
GUN122,126,TGN121 PKN —
42110C — Plug, Breather (FOR REAR AXLE HOUSING)
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → —
GUN122,126,TGN121 PKN —
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2024-03 ended
GUN135 KEN —
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2024-01 ended
GUN122,13#,TGN120,121,136 SA —
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2023-08 ended
GUN125 MA —
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2023-07 ended
GUN135 THP;GUN11#,12#,136,TGN11#,12# ARL,GCC,GEN,IDN,PH,TH —
90930-03031 Plug, Breather (FOR REAR AXLE HOUSING)
2022-08 → 2023-10 ended
GUN135,TGN136 AGTP —
42110D — Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → —
GUN122,126,TGN121 PKN —
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2024-03 ended
GUN125,135 KEN —
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2024-01 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 SA —
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2023-08 ended
GUN125 MA —
12157-10010 Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2022-08 → 2023-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
42110E — Plug (FOR REAR AXLE HOUSING DRAIN)
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2023-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2023-08 ended
GUN125 MA —
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2024-01 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 SA —
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → 2024-03 ended
GUN125,135 KEN —
90341-18057 Plug (FOR REAR AXLE HOUSING DRAIN)
2022-08 → —
GUN122,126,TGN121 PKN —
42181 — Gasket, Rear Differential Carrier
42181-0K030 Gasket, Rear Differential Carrier
2022-08 → 2023-07 ended
TGN110,120 THP;GUN112,122,TGN121 5F (IDN,PH,TH) —
42181-0K030 Gasket, Rear Differential Carrier
2022-08 → 2024-01 ended
LAN125,TGN120 SA —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → 2023-10 ended
GUN125,126,135,TGN126,136 AGTP —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → 2023-07 ended
GUN12#,135 GEN,LA) THP (ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126 +2 —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → 2024-01 ended
GUN122,125,126,13#,TGN121,136 SA —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → 2024-03 ended
GUN125,135 KEN —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → —
GUN122,126,TGN121 PKN —
42181-KK010 Gasket, Rear Differential Carrier
2022-08 → 2023-08 ended
GUN125 MA —
42306A — Union (FOR REAR AXLE BREATHER HOUSE)
90404-51052 Union (FOR REAR AXLE BREATHER HOUSE)
2022-08 → 2023-07 ended
GUN125,TGN126 THP LA —
90404-51052 Union (FOR REAR AXLE BREATHER HOUSE)
2022-08 → 2023-10 ended
GUN125,126,TGN126 AGTP —
90404-51052 Union (FOR REAR AXLE BREATHER HOUSE)
2022-08 → 2024-01 ended
GUN125,126,LAN125 SA —
90404-51052 Union (FOR REAR AXLE BREATHER HOUSE)
2022-08 → 2024-03 ended
GUN125 KEN —
42306B — Hose (FOR REAR AXLE BREATHER)
42316-KK010 Hose (FOR REAR AXLE BREATHER)
2022-08 → 2024-03 ended
GUN125 KEN —
42316-KK010 Hose (FOR REAR AXLE BREATHER)
2022-08 → 2024-01 ended
GUN125,126,LAN125 SA —
42316-KK010 Hose (FOR REAR AXLE BREATHER)
2022-08 → 2023-10 ended
GUN125,126,TGN126 AGTP —
42316-KK010 Hose (FOR REAR AXLE BREATHER)
2022-08 → 2023-07 ended
GUN125,TGN126 THP LA —
42306C — Clip, Hose (FOR REAR AXLE BREATHER HOSE)
90466-T0040 Clip, Hose (FOR REAR AXLE BREATHER HOSE)
2022-08 → 2023-07 ended
GUN125,TGN126 THP LA —
90466-T0040 Clip, Hose (FOR REAR AXLE BREATHER HOSE)
2022-08 → 2023-10 ended
GUN125,126,TGN126 AGTP —
90466-T0040 Clip, Hose (FOR REAR AXLE BREATHER HOSE)
2022-08 → 2024-01 ended
GUN125,126,LAN125 SA —
90466-T0040 Clip, Hose (FOR REAR AXLE BREATHER HOSE)
2022-08 → 2024-03 ended
GUN125 KEN —
42306D — Clamp (FOR REAR AXLE BRATHER HOSE)
90461-T0008 Clamp (FOR REAR AXLE BRATHER HOSE)
2022-08 → 2023-07 ended
GUN125,TGN126 THP LA —
90461-T0008 Clamp (FOR REAR AXLE BRATHER HOSE)
2022-08 → 2023-10 ended
GUN125,126,TGN126 AGTP —
90461-T0008 Clamp (FOR REAR AXLE BRATHER HOSE)
2022-08 → 2024-01 ended
GUN125,126,LAN125 SA —
90461-T0008 Clamp (FOR REAR AXLE BRATHER HOSE)
2022-08 → 2024-03 ended
GUN125 KEN —
42306F — Plug, Breather (FOR REAR AXLE)
90930-03097 Plug, Breather (FOR REAR AXLE)
2022-08 → 2023-07 ended
GUN125,TGN126 THP LA —
90930-03097 Plug, Breather (FOR REAR AXLE)
2022-08 → 2023-10 ended
GUN125,126,TGN126 AGTP —
90930-03097 Plug, Breather (FOR REAR AXLE)
2022-08 → 2024-01 ended
GUN125,126,LAN125 SA —
90930-03097 Plug, Breather (FOR REAR AXLE)
2022-08 → 2024-03 ended
GUN125 KEN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
