Toyota Hilux (SCB/XTR)

2023-08 → present · chassis GUN11#,12#,13#,LAN125,TGN11#,12#,136,XPN135 · catalogue 6723D0 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

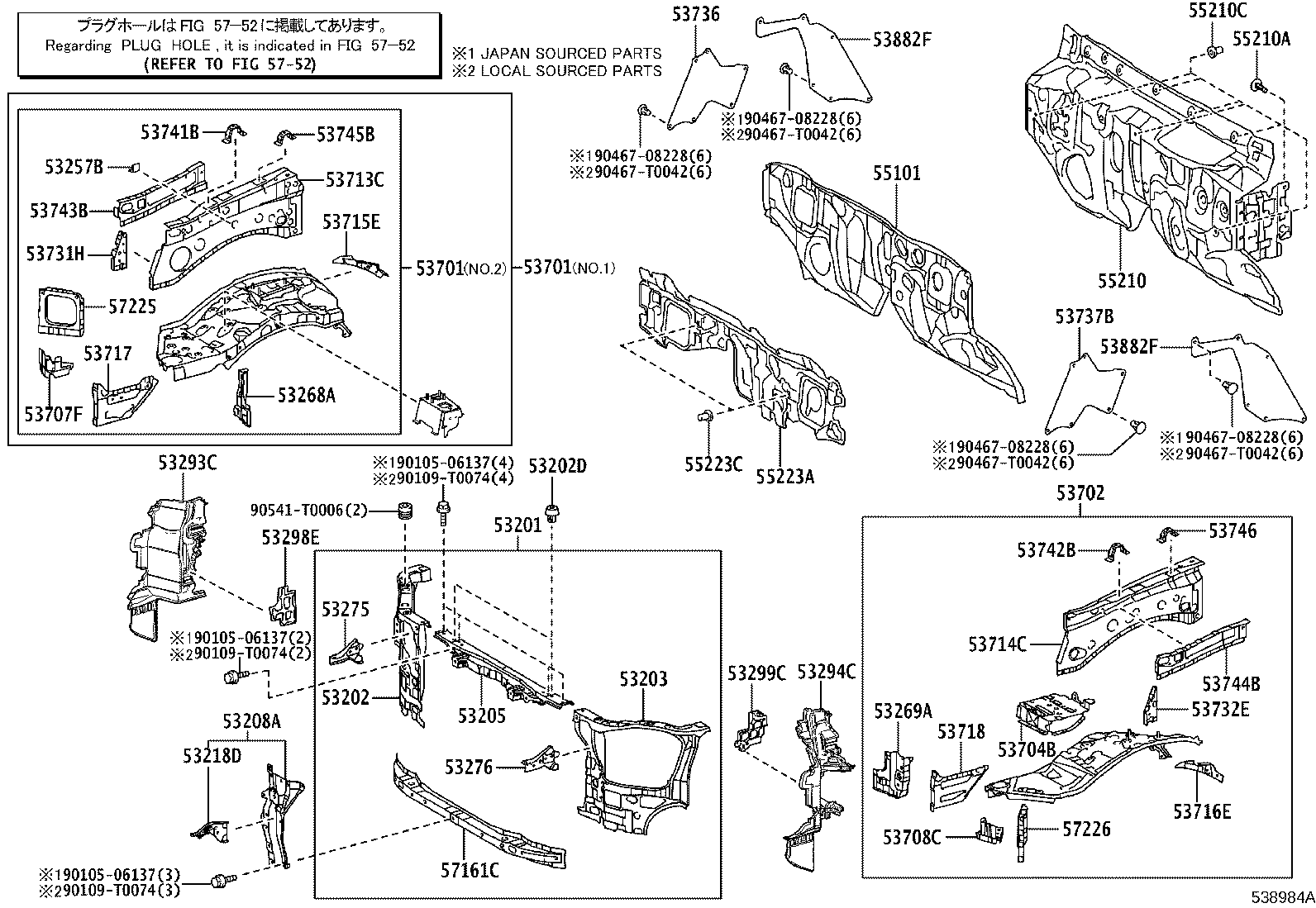

Exploded illustration 538984A 53201 — SUPPORT SUB-ASSY, RADIATOR (5 parts) 53202 — SUPPORT SUB-ASSY, RADIATOR, RH (5 parts) 53202D — CUSHION, RADIATOR SUPPORT (4 parts) 53203 — SUPPORT SUB-ASSY, RADIATOR, LH (5 parts) 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (4 parts) 53208A — SUPPORT SUB-ASSY, HOOD LOCK (4 parts) 53218D — EXTENSION, HOOD LOCK BRACE (5 parts) 53257B — BRACKET, RADIATOR SUPPORT TO FRONT FENDER (5 parts) 53268A — REINFORCEMENT, RADIATOR MOUNTING, RH (4 parts) 53269A — REINFORCEMENT, RADIATOR MOUNTING, LH (5 parts) 53275 — BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH (4 parts) 53276 — BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH (4 parts) 53293C — DEFLECTOR, RADIATOR SIDE, RH (37 parts) 53294C — DEFLECTOR, RADIATOR SIDE, LH (37 parts) 53701 — APRON SUB-ASSY, FRONT FENDER, RH (18 parts) 53702 — APRON SUB-ASSY, FRONT FENDER, LH (9 parts) 53704B — SUPPORT SUB-ASSY, BATTERY, LH (6 parts) 53707F — GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH (4 parts) 53708C — GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH (5 parts) 53713C — EXTENSION, FRONT FENDER APRON, FRONT RH (5 parts) 53714C — EXTENSION, FRONT FENDER APRON, FRONT LH (10 parts) 53715E — EXTENSION, FRONT FENDER APRON, REAR RH (4 parts) 53716E — EXTENSION, FRONT FENDER APRON, REAR LH (5 parts) 53717 — PLATE, FENDER APRON, RH (4 parts) 53718 — PLATE, FENDER APRON, LH (6 parts) 53731H — PATCH, FRONT FENDER APRON, RH (4 parts) 53732E — REINFORCEMENT, FRONT FENDER APRON, LH (5 parts) 53737B — SEAL, FRONT FENDER APRON, LH (10 parts) 53741B — PLATE, FENDER APRON REINFORCE, RH (4 parts) 53742B — PLATE, FENDER APRON REINFORCE, LH (5 parts) 53743B — REINFORCEMENT, FRONT FENDER APRON, FRONT RH (4 parts) 53744B — REINFORCEMENT, FRONT FENDER APRON, FRONT LH (6 parts) 53745B — REINFORCEMENT, FRONT FENDER APRON, REAR RH (4 parts) 53746 — REINFORCEMENT, FRONT FENDER APRON, REAR LH (5 parts) 53882F — SEAL, FRONT FENDER (10 parts) 57161C — MEMBER, FRONT CROSS (5 parts) 57225 — BRACE, FRONT MOUNTING BRACKET, RH (4 parts) 57226 — BRACE, FRONT MOUNTING BRACKET, LH (5 parts) 90541T0006 — not listed in this catalogue 5752 — not listed in this catalogue 53736 — SEAL, FRONT FENDER APRON, RH (10 parts) 53882F — SEAL, FRONT FENDER (10 parts) 9046708228 — not listed in this catalogue 90467T0042 — not listed in this catalogue 9046708228 — not listed in this catalogue 90467T0042 — not listed in this catalogue 55210 — INSULATOR ASSY, DASH PANEL (12 parts) 55210A — CLIP (5 parts) 55210C — CLIP (7 parts) 9046708228 — not listed in this catalogue 90467T0042 — not listed in this catalogue 9046708228 — not listed in this catalogue 90467T0042 — not listed in this catalogue 53298E — SEAL, RADIATOR SIDE, RH (3 parts) 53299C — SEAL, RADIATOR SIDE, LH (3 parts) 55101 — PANEL SUB-ASSY, DASH (27 parts) 55223A — INSULATOR, DASH PANEL, OUTER (10 parts) 55223C — CLIP (7 parts) 9010506137 — not listed in this catalogue 90109T0074 — not listed in this catalogue 9010506137 — not listed in this catalogue 90109T0074 — not listed in this catalogue 9010506137 — not listed in this catalogue 90109T0074 — not listed in this catalogue 53701 — APRON SUB-ASSY, FRONT FENDER, RH (18 parts)
538984A · 49 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
359 parts on this figure
Part number Description Fitment Price
53201 — Support Sub-assy, Radiator
53201-KK040 Support Sub-assy, Radiator
2023-09 → 2024-08 ended
GUN125 MA —
53201-KK050 Support Sub-assy, Radiator
2023-11 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53201-KK060 Support Sub-assy, Radiator
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
53201-KK100 Support Sub-assy, Radiator
2023-11 → 2024-07 ended
XPN135 —
53201-KK220 Support Sub-assy, Radiator
2024-12 → —
GUN122,126,TGN121 PKN —
53202 — Support Sub-assy, Radiator, RH
53202-KK020 Support Sub-assy, Radiator, RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
53202-KK020 Support Sub-assy, Radiator, RH
2023-08 → 2024-08 ended
GUN125 MA —
53202-KK020 Support Sub-assy, Radiator, RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53202-KK020 Support Sub-assy, Radiator, RH
2023-08 → —
GUN122,126,TGN121 PKN —
53202-KK040 Support Sub-assy, Radiator, RH
2023-11 → 2024-07 ended
XPN135 —
53202D — Cushion, Radiator Support
53384-0K040 Cushion, Radiator Support
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53384-0K040 Cushion, Radiator Support
2023-08 → 2024-08 ended
GUN125 MA —
53384-0K040 Cushion, Radiator Support
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53384-0K040 Cushion, Radiator Support
2023-08 → —
GUN122,126,TGN121 PKN —
53203 — Support Sub-assy, Radiator, LH
53203-KK020 Support Sub-assy, Radiator, LH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
53203-KK020 Support Sub-assy, Radiator, LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53203-KK020 Support Sub-assy, Radiator, LH
2023-08 → 2024-08 ended
GUN125 MA —
53203-KK040 Support Sub-assy, Radiator, LH
2023-11 → 2024-07 ended
XPN135 —
53203-KK060 Support Sub-assy, Radiator, LH
2024-12 → —
GUN122,126,TGN121 PKN —
53205 — Support Sub-assy, Radiator, Upper
53205-KK020 Support Sub-assy, Radiator, Upper
2023-09 → 2024-08 ended
GUN125 MA —
53205-KK040 Support Sub-assy, Radiator, Upper
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53205-KK050 Support Sub-assy, Radiator, Upper
2023-11 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53205-KK050 Support Sub-assy, Radiator, Upper
2023-11 → —
GUN122,126,TGN121 PKN —
53208A — Support Sub-assy, Hood Lock
53208-KK020 Support Sub-assy, Hood Lock
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53208-KK020 Support Sub-assy, Hood Lock
2023-08 → 2024-08 ended
GUN125 MA —
53208-KK020 Support Sub-assy, Hood Lock
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53208-KK020 Support Sub-assy, Hood Lock
2023-08 → —
GUN122,126,TGN121 PKN —
53218D — Extension, Hood Lock Brace
53218-KK010 Extension, Hood Lock Brace
2023-09 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53218-KK010 Extension, Hood Lock Brace
2023-09 → —
GUN122,126,TGN121 PKN —
53218-KK010 Extension, Hood Lock Brace
2023-09 → 2024-08 ended
GUN125 MA —
53218-KK010 Extension, Hood Lock Brace
2023-09 → 2024-07 ended
XPN135 —
53218-KK010 Extension, Hood Lock Brace
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
53257B — Bracket, Radiator Support TO Front Fender
53257-35030 Bracket, Radiator Support TO Front Fender
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53257-35030 Bracket, Radiator Support TO Front Fender
2023-08 → 2024-08 ended
GUN125 MA —
53257-35030 Bracket, Radiator Support TO Front Fender
2023-08 → 2024-10 ended
GUN122,125,126,13#,TGN12#,136 AGTP,KENP,SAP —
53257-35030 Bracket, Radiator Support TO Front Fender
2024-02 → 2024-10 ended
LAN125 —
53257-35030 Bracket, Radiator Support TO Front Fender
2023-08 → —
GUN122,126,TGN121 PKN —
53268A — Reinforcement, Radiator Mounting, RH
53268-KK010 Reinforcement, Radiator Mounting, RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53268-KK010 Reinforcement, Radiator Mounting, RH
2023-08 → 2024-08 ended
GUN125 MA —
53268-KK010 Reinforcement, Radiator Mounting, RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53268-KK010 Reinforcement, Radiator Mounting, RH
2023-08 → —
GUN122,126,TGN121 PKN —
53269A — Reinforcement, Radiator Mounting, LH
53269-KK010 Reinforcement, Radiator Mounting, LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,SAP —
53269-KK010 Reinforcement, Radiator Mounting, LH
2023-08 → —
GUN122,126,TGN121 PKN —
53269-KK010 Reinforcement, Radiator Mounting, LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53269-KK010 Reinforcement, Radiator Mounting, LH
2023-08 → 2024-08 ended
GUN125 MA —
53269-KK010 Reinforcement, Radiator Mounting, LH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53275 — Bracket, Headlamp Door Mounting, NO.1 RH
53275-KK010 Bracket, Headlamp Door Mounting, NO.1 RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53275-KK010 Bracket, Headlamp Door Mounting, NO.1 RH
2023-08 → 2024-08 ended
GUN125 MA —
53275-KK010 Bracket, Headlamp Door Mounting, NO.1 RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53275-KK010 Bracket, Headlamp Door Mounting, NO.1 RH
2023-08 → —
GUN122,126,TGN121 PKN —
53276 — Bracket, Headlamp Door Mounting, NO.1 LH
53276-KK010 Bracket, Headlamp Door Mounting, NO.1 LH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53276-KK010 Bracket, Headlamp Door Mounting, NO.1 LH
2023-08 → 2024-08 ended
GUN125 MA —
53276-KK010 Bracket, Headlamp Door Mounting, NO.1 LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53276-KK010 Bracket, Headlamp Door Mounting, NO.1 LH
2023-08 → —
GUN122,126,TGN121 PKN —
53293C — Deflector, Radiator Side, RH
53293-KK030 Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN125,126,135,TGN121 SCB ARL —
53293-KK040 Deflector, Radiator Side, RH
2023-08 → 2024-08 ended
GUN125 MA —
53293-KK040 Deflector, Radiator Side, RH
2023-08 → 2024-10 ended
GUN125,126 SCB (AGTP,SAP) (L,S);GUN122,135,LAN125,TGN12#,136 +2 —
53293-KK040 note Deflector, Radiator Side, RH
2024-02 → 2024-10 ended
GUN135,TGN136 SCB MTM S —
53293-KK040 Deflector, Radiator Side, RH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53293-KK040 Deflector, Radiator Side, RH
2023-08 → —
GUN122,126,TGN121 PKN —
53293-KK040 Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
TGN121 ,120,126 L SCB +5 —
53293-KK040 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
TGN121 S;TGN121 GCC IV3;GUN11#,122,TGN111 +1 —
53293-KK040 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN120,122 XTR —
53293-KK100 Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN125,126,136 XTR ARL —
53293-KK100 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN125,126,136 XTR ARL —
53293-KK110 Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN135,XPN135 TH;GUN125,126 XTR (GEN,TH) —
53293-KK110 note Deflector, Radiator Side, RH
2024-02 → 2024-10 ended
GUN125 RHD 6F S +1 —
53293-KK110 note Deflector, Radiator Side, RH
2024-02 → 2024-10 ended
GUN126 S SA;GUN125 6FC +4 —
53293-KK110 note Deflector, Radiator Side, RH
2024-02 → 2024-10 ended
GUN125 LHD SCB S —
53293-KK110 Deflector, Radiator Side, RH
2023-08 → 2024-10 ended
GUN126 H SA;GUN125 XTR +3 —
53293-KK110 note Deflector, Radiator Side, RH
2023-08 → 2024-09 ended
GUN135 XTR SA —
53293-KK110 note Deflector, Radiator Side, RH
2023-08 → 2024-09 ended
GUN126,136 XTR SA —
53293-KK110 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN126,135 6FC H TH —
53293-KK110 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN126,135 6FC H TH —
53293-KK110 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN135 (L,S) TH;GUN125,126 XTR +2 —
53293-KK110 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN125 S GEN —
53293-KK110 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN120,122,126 (L,S) TH CBU —
53293-KK110 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN120,122 XTR —
53293-KK110 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN120,122 TH IV3 —
53293-KK110 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN120,122 TH IV3;GUN112,121,TGN121 TH —
53293-KK110 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN120,122 TH IV3 —
53293-KK120 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
TGN126 S;GUN125,126 GCC —
53293-KK120 Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
TGN121 S;TGN121 GCC IV3;GUN11#,122,TGN111 +1 —
53293-YP091 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN126,135 6FC H TH —
53293-YP091 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN126,135 6FC H TH —
53293-YP091 note Deflector, Radiator Side, RH
2023-08 → 2024-10 ended
GUN126,136 XTR SA —
53293-YP091 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN135 (L,S) TH;GUN125,126 XTR +2 —
53293-YP270 note Deflector, Radiator Side, RH
2024-01 → 2024-07 ended
GUN125 S GEN —
53293-YP270 note Deflector, Radiator Side, RH
2023-08 → 2024-07 ended
GUN120,122 XTR —
53293-YP280 note Deflector, Radiator Side, RH
2024-01 → 2024-07 ended
GUN125,126,136 XTR ARL —
53293-YP290 note Deflector, Radiator Side, RH
2024-05 → 2024-10 ended
GUN135 XTR SA —
53294C — Deflector, Radiator Side, LH
53294-KK030 Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN125,126,135,TGN121 SCB ARL —
53294-KK040 Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
TGN121 ,120,126 L SCB +5 —
53294-KK040 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
TGN121 S;TGN121 GCC IV3;GUN11#,122,TGN111 +1 —
53294-KK040 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN120,122 XTR —
53294-KK040 Deflector, Radiator Side, LH
2023-08 → 2024-10 ended
GUN125,126 SCB (AGTP,SAP) (L,S);GUN122,135,LAN125,TGN12#,136 +2 —
53294-KK040 Deflector, Radiator Side, LH
2023-08 → 2024-08 ended
GUN125 MA —
53294-KK040 note Deflector, Radiator Side, LH
2024-02 → 2024-10 ended
GUN135,TGN136 SCB MTM S —
53294-KK040 Deflector, Radiator Side, LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53294-KK040 Deflector, Radiator Side, LH
2023-08 → —
GUN122,126,TGN121 PKN —
53294-KK100 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN125,126,136 XTR ARL —
53294-KK100 Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN125,126,136 XTR ARL —
53294-KK110 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN120,122 TH IV3;GUN112,121,TGN121 TH —
53294-KK110 Deflector, Radiator Side, LH
2023-08 → 2024-10 ended
GUN126 H SA;GUN125 XTR +3 —
53294-KK110 note Deflector, Radiator Side, LH
2023-08 → 2024-09 ended
GUN135 XTR SA —
53294-KK110 note Deflector, Radiator Side, LH
2023-08 → 2024-09 ended
GUN126,136 XTR SA —
53294-KK110 Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN135,XPN135 TH;GUN125,126 XTR (GEN,TH) —
53294-KK110 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN126,135 6FC H TH —
53294-KK110 note Deflector, Radiator Side, LH
2024-02 → 2024-10 ended
GUN125 LHD SCB S —
53294-KK110 note Deflector, Radiator Side, LH
2024-02 → 2024-10 ended
GUN126 S SA;GUN125 6FC +4 —
53294-KK110 note Deflector, Radiator Side, LH
2024-02 → 2024-10 ended
GUN125 RHD 6F S +1 —
53294-KK110 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN126,135 6FC H TH —
53294-KK110 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN135 (L,S) TH;GUN125,126 XTR +2 —
53294-KK110 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN120,122,126 (L,S) TH CBU —
53294-KK110 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN120,122 XTR —
53294-KK110 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN120,122 TH IV3 —
53294-KK110 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN120,122 TH IV3 —
53294-KK110 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN125 S GEN —
53294-KK120 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
TGN126 S;GUN125,126 GCC —
53294-KK120 Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
TGN121 S;TGN121 GCC IV3;GUN11#,122,TGN111 +1 —
53294-YP091 note Deflector, Radiator Side, LH
2023-08 → 2024-10 ended
GUN126,136 XTR SA —
53294-YP091 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN135 (L,S) TH;GUN125,126 XTR +2 —
53294-YP091 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN126,135 6FC H TH —
53294-YP091 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN126,135 6FC H TH —
53294-YP270 note Deflector, Radiator Side, LH
2024-01 → 2024-07 ended
GUN125 S GEN —
53294-YP270 note Deflector, Radiator Side, LH
2023-08 → 2024-07 ended
GUN120,122 XTR —
53294-YP280 note Deflector, Radiator Side, LH
2024-01 → 2024-07 ended
GUN125,126,136 XTR ARL —
53294-YP290 note Deflector, Radiator Side, LH
2024-05 → 2024-10 ended
GUN135 XTR SA —
53298E — Seal, Radiator Side, RH
53298-KK010 Seal, Radiator Side, RH
2023-08 → 2024-07 ended
TGN11#,12#,XPN135 THP —
53298-KK010 Seal, Radiator Side, RH
2023-08 → 2024-10 ended
LAN125,TGN12#,136 AGTP,SAP —
53298-KK010 Seal, Radiator Side, RH
2023-08 → —
TGN121 PKN —
53299C — Seal, Radiator Side, LH
53299-KK010 Seal, Radiator Side, LH
2023-08 → —
TGN121 PKN —
53299-KK010 Seal, Radiator Side, LH
2023-08 → 2024-10 ended
LAN125,TGN12#,136 AGTP,SAP —
53299-KK010 Seal, Radiator Side, LH
2023-08 → 2024-07 ended
TGN11#,12#,XPN135 THP —
53701 — Apron Sub-assy, Front Fender, RH
53701-KK040 Apron Sub-assy, Front Fender, RH
2024-02 → 2024-10 ended
TGN121 SA —
53701-KK050 Apron Sub-assy, Front Fender, RH
2024-02 → 2024-10 ended
TGN120,136 SA —
53701-KK070 Apron Sub-assy, Front Fender, RH
2024-02 → 2024-10 ended
GUN122,125 LHD SA —
53701-KK150 Apron Sub-assy, Front Fender, RH
2024-02 → 2024-10 ended
LAN125 —
53701-KK280 Apron Sub-assy, Front Fender, RH
2023-08 → 2024-07 ended
TGN110,121 RHD —
53701-KK280 Apron Sub-assy, Front Fender, RH
2023-08 → —
TGN121 PKN —
53701-KK290 Apron Sub-assy, Front Fender, RH
2024-02 → 2024-10 ended
GUN122,125,126,13# RHD (KEN,SA) —
53701-KK350 Apron Sub-assy, Front Fender, RH
2023-08 → 2024-07 ended
TGN121 LHD THP;GUN11#,122,TGN11#,120,126 THP +1 —
53701-KK350 note Apron Sub-assy, Front Fender, RH
2023-08 → 2024-07 ended
GUN125,126 GCC —
53701-KK370 Apron Sub-assy, Front Fender, RH
2023-08 → 2024-07 ended
GUN122 LHD (GEN,PH);GUN125,126,135 LHD +1 —
53701-KK370 note Apron Sub-assy, Front Fender, RH
2023-08 → 2024-07 ended
GUN11#,122 GCC —
53701-KK450 Apron Sub-assy, Front Fender, RH
2023-08 → —
GUN122,126 PKN —
53701-KK450 Apron Sub-assy, Front Fender, RH
2023-08 → 2024-08 ended
GUN125 MA —
53701-KK450 note Apron Sub-assy, Front Fender, RH
2023-11 → 2024-07 ended
XPN135 —
53701-KK450 Apron Sub-assy, Front Fender, RH
2023-08 → 2024-07 ended
GUN112,12#,13# RHD THP —
53701-KK650 note Apron Sub-assy, Front Fender, RH
2023-11 → 2024-07 ended
XPN135 —
53701-KK820 Apron Sub-assy, Front Fender, RH
2023-11 → 2024-10 ended
TGN126,136 AGTP —
53701-KK830 Apron Sub-assy, Front Fender, RH
2023-11 → 2024-10 ended
GUN125,126,135 AGTP —
53702 — Apron Sub-assy, Front Fender, LH
53702-KK040 Apron Sub-assy, Front Fender, LH
2023-09 → 2024-08 ended
GUN125 MA —
53702-KK100 Apron Sub-assy, Front Fender, LH
2023-08 → 2024-07 ended
GUN11#,122,125,126,135,TGN11#,12# LHD THP —
53702-KK100 Apron Sub-assy, Front Fender, LH
2023-08 → 2024-10 ended
GUN122,125,LAN125,TGN121 LHD SA —
53702-KK230 Apron Sub-assy, Front Fender, LH
2023-08 → 2024-07 ended
GUN112,12#,13#,TGN110,121 RHD THP —
53702-KK230 Apron Sub-assy, Front Fender, LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,TGN120,136 RHD SA —
53702-KK230 Apron Sub-assy, Front Fender, LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53702-KK230 Apron Sub-assy, Front Fender, LH
2023-08 → —
GUN122,126,TGN121 PKN —
53702-KK280 Apron Sub-assy, Front Fender, LH
2023-11 → 2024-07 ended
XPN135 —
53702-KK330 Apron Sub-assy, Front Fender, LH
2023-11 → 2024-10 ended
GUN125,126,135,TGN126,136 AGTP —
53704B — Support Sub-assy, Battery, LH
53704-KK010 Support Sub-assy, Battery, LH
2023-09 → 2024-08 ended
GUN125 MA —
53704-KK020 Support Sub-assy, Battery, LH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
53704-KK020 Support Sub-assy, Battery, LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 SA —
53704-KK020 Support Sub-assy, Battery, LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53704-KK020 Support Sub-assy, Battery, LH
2023-08 → —
GUN122,126,TGN121 PKN —
53704-KK030 Support Sub-assy, Battery, LH
2023-11 → 2024-07 ended
XPN135 —
53707F — Gusset Sub-assy, Front Fender Apron, Lower RH
53707-KK010 Gusset Sub-assy, Front Fender Apron, Lower RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53707-KK010 Gusset Sub-assy, Front Fender Apron, Lower RH
2023-08 → 2024-08 ended
GUN125 MA —
53707-KK010 Gusset Sub-assy, Front Fender Apron, Lower RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53707-KK010 Gusset Sub-assy, Front Fender Apron, Lower RH
2023-08 → —
GUN122,126,TGN121 PKN —
53708C — Gusset Sub-assy, Front Fender Apron, Lower LH
53708-KK010 Gusset Sub-assy, Front Fender Apron, Lower LH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53708-KK010 Gusset Sub-assy, Front Fender Apron, Lower LH
2023-08 → —
GUN122,126,TGN121 PKN —
53708-KK010 Gusset Sub-assy, Front Fender Apron, Lower LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53708-KK010 Gusset Sub-assy, Front Fender Apron, Lower LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,SAP —
53708-KK010 Gusset Sub-assy, Front Fender Apron, Lower LH
2023-08 → 2024-08 ended
GUN125 MA —
53713C — Extension, Front Fender Apron, Front RH
53713-KK020 Extension, Front Fender Apron, Front RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53713-KK020 Extension, Front Fender Apron, Front RH
2023-08 → 2024-08 ended
GUN125 MA —
53713-KK020 Extension, Front Fender Apron, Front RH
2023-08 → 2024-10 ended
GUN125,126,135,TGN126,136 AGTP —
53713-KK020 Extension, Front Fender Apron, Front RH
2023-08 → —
GUN122,126,TGN121 PKN —
53713-KK040 Extension, Front Fender Apron, Front RH
2024-02 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 KEN,SA —
53714C — Extension, Front Fender Apron, Front LH
53714-KK020 Extension, Front Fender Apron, Front LH
2023-08 → 2024-07 ended
GUN112,12#,13#,TGN110,121 RHD THP —
53714-KK020 Extension, Front Fender Apron, Front LH
2023-08 → 2024-08 ended
GUN125 MA —
53714-KK020 note Extension, Front Fender Apron, Front LH
2023-08 → 2024-10 ended
GUN122,125,LAN125,TGN121 LHD SA —
53714-KK020 Extension, Front Fender Apron, Front LH
2023-08 → 2024-10 ended
GUN125 AGTP;GUN122,125 RHD SA;GUN126,13#,TGN120,126,136 +1 —
53714-KK020 Extension, Front Fender Apron, Front LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53714-KK020 Extension, Front Fender Apron, Front LH
2023-08 → —
GUN122,126,TGN121 PKN —
53714-KK020 note Extension, Front Fender Apron, Front LH
2023-08 → 2024-07 ended
GUN11#,122,125,126,135,TGN11#,12# LHD THP —
53714-KK030 note Extension, Front Fender Apron, Front LH
2023-08 → 2024-07 ended
GUN11#,122,125,126,135,TGN11#,12# LHD THP —
53714-KK030 note Extension, Front Fender Apron, Front LH
2023-08 → 2024-10 ended
GUN122,125,LAN125,TGN121 LHD SA —
53714-KK050 Extension, Front Fender Apron, Front LH
2023-11 → 2024-07 ended
XPN135 —
53715E — Extension, Front Fender Apron, Rear RH
53715-0K030 Extension, Front Fender Apron, Rear RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53715-0K030 Extension, Front Fender Apron, Rear RH
2023-08 → —
GUN122,126,TGN121 PKN —
53715-0K030 Extension, Front Fender Apron, Rear RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53715-0K030 Extension, Front Fender Apron, Rear RH
2023-08 → 2024-08 ended
GUN125 MA —
53716E — Extension, Front Fender Apron, Rear LH
53716-0K030 Extension, Front Fender Apron, Rear LH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53716-0K030 Extension, Front Fender Apron, Rear LH
2023-08 → 2024-08 ended
GUN125 MA —
53716-0K030 Extension, Front Fender Apron, Rear LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,SAP —
53716-0K030 Extension, Front Fender Apron, Rear LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53716-0K030 Extension, Front Fender Apron, Rear LH
2023-08 → —
GUN122,126,TGN121 PKN —
53717 — Plate, Fender Apron, RH
53717-KK010 Plate, Fender Apron, RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53717-KK010 Plate, Fender Apron, RH
2023-08 → —
GUN122,126,TGN121 PKN —
53717-KK010 Plate, Fender Apron, RH
2023-08 → 2024-08 ended
GUN125 MA —
53717-KK010 Plate, Fender Apron, RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53718 — Plate, Fender Apron, LH
53718-KK010 Plate, Fender Apron, LH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
53718-KK010 Plate, Fender Apron, LH
2023-08 → 2024-08 ended
GUN125 MA —
53718-KK010 Plate, Fender Apron, LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,SAP —
53718-KK010 Plate, Fender Apron, LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53718-KK010 Plate, Fender Apron, LH
2023-08 → —
GUN122,126,TGN121 PKN —
53718-KK020 Plate, Fender Apron, LH
2023-11 → 2024-07 ended
XPN135 —
53731H — Patch, Front Fender Apron, RH
53731-KK010 Patch, Front Fender Apron, RH
2023-08 → —
GUN122,126,TGN121 PKN —
53731-KK010 Patch, Front Fender Apron, RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53731-KK010 Patch, Front Fender Apron, RH
2023-08 → 2024-08 ended
GUN125 MA —
53731-KK010 Patch, Front Fender Apron, RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53732E — Reinforcement, Front Fender Apron, LH
53732-KK010 Reinforcement, Front Fender Apron, LH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53732-KK010 Reinforcement, Front Fender Apron, LH
2023-08 → 2024-08 ended
GUN125 MA —
53732-KK010 Reinforcement, Front Fender Apron, LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,SAP —
53732-KK010 Reinforcement, Front Fender Apron, LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53732-KK010 Reinforcement, Front Fender Apron, LH
2023-08 → —
GUN122,126,TGN121 PKN —
53736 — Seal, Front Fender Apron, RH
53735-KK010 note Seal, Front Fender Apron, RH
2023-08 → 2024-07 ended
TGN126 GCC —
53735-KK010 note Seal, Front Fender Apron, RH
2024-04 → 2024-07 ended
TGN126 GCC —
53735-KK020 note Seal, Front Fender Apron, RH
2023-08 → —
GUN126 PKN —
53735-KK020 note Seal, Front Fender Apron, RH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53735-KK020 note Seal, Front Fender Apron, RH
2023-08 → 2024-10 ended
GUN125,126,13#,LAN125,TGN126,136 AGTP,SAP —
53735-KK020 note Seal, Front Fender Apron, RH
2023-08 → 2024-07 ended
GUN125,126,13#,TGN126,XPN135 THP —
53735-KK020 note Seal, Front Fender Apron, RH
2023-08 → 2024-08 ended
GUN125 MA —
53735-KK030 note Seal, Front Fender Apron, RH
2023-08 → 2024-10 ended
GUN122,TGN120,121 SA —
53735-KK030 note Seal, Front Fender Apron, RH
2023-08 → 2024-07 ended
GUN11#,120,121,122,TGN11#,120,121 THP —
53735-KK030 note Seal, Front Fender Apron, RH
2023-08 → —
GUN122,TGN121 PKN —
53737B — Seal, Front Fender Apron, LH
53735-KK020 note Seal, Front Fender Apron, LH
2023-08 → —
GUN126 PKN —
53735-KK020 note Seal, Front Fender Apron, LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53735-KK020 note Seal, Front Fender Apron, LH
2023-08 → 2024-10 ended
GUN125,126,13#,LAN125,TGN126,136 AGTP,SAP —
53735-KK020 note Seal, Front Fender Apron, LH
2023-08 → 2024-08 ended
GUN125 MA —
53735-KK020 note Seal, Front Fender Apron, LH
2023-08 → 2024-07 ended
TGN126 GCC —
53735-KK020 note Seal, Front Fender Apron, LH
2023-08 → 2024-07 ended
GUN125,126,13#,TGN126,XPN135 THP —
53735-KK020 note Seal, Front Fender Apron, LH
2024-04 → 2024-07 ended
TGN126 GCC —
53735-KK030 note Seal, Front Fender Apron, LH
2023-08 → 2024-07 ended
GUN11#,120,121,122,TGN11#,120,121 THP —
53735-KK030 note Seal, Front Fender Apron, LH
2023-08 → 2024-10 ended
GUN122,TGN120,121 SA —
53735-KK030 note Seal, Front Fender Apron, LH
2023-08 → —
GUN122,TGN121 PKN —
53741B — Plate, Fender Apron Reinforce, RH
53741-KK020 Plate, Fender Apron Reinforce, RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53741-KK020 Plate, Fender Apron Reinforce, RH
2023-08 → —
GUN122,126,TGN121 PKN —
53741-KK020 Plate, Fender Apron Reinforce, RH
2023-08 → 2024-08 ended
GUN125 MA —
53741-KK020 Plate, Fender Apron Reinforce, RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53742B — Plate, Fender Apron Reinforce, LH
53742-KK020 Plate, Fender Apron Reinforce, LH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53742-KK020 Plate, Fender Apron Reinforce, LH
2023-08 → 2024-08 ended
GUN125 MA —
53742-KK020 Plate, Fender Apron Reinforce, LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,SAP —
53742-KK020 Plate, Fender Apron Reinforce, LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53742-KK020 Plate, Fender Apron Reinforce, LH
2023-08 → —
GUN122,126,TGN121 PKN —
53743B — Reinforcement, Front Fender Apron, Front RH
53743-KK010 Reinforcement, Front Fender Apron, Front RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53743-KK010 Reinforcement, Front Fender Apron, Front RH
2023-08 → —
GUN122,126,TGN121 PKN —
53743-KK010 Reinforcement, Front Fender Apron, Front RH
2023-08 → 2024-08 ended
GUN125 MA —
53743-KK010 Reinforcement, Front Fender Apron, Front RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53744B — Reinforcement, Front Fender Apron, Front LH
53744-KK010 Reinforcement, Front Fender Apron, Front LH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12# THP —
53744-KK010 Reinforcement, Front Fender Apron, Front LH
2023-08 → 2024-08 ended
GUN125 MA —
53744-KK010 Reinforcement, Front Fender Apron, Front LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,SAP —
53744-KK010 Reinforcement, Front Fender Apron, Front LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53744-KK010 Reinforcement, Front Fender Apron, Front LH
2023-08 → —
GUN122,126,TGN121 PKN —
53744-KK040 Reinforcement, Front Fender Apron, Front LH
2023-11 → 2024-07 ended
XPN135 —
53745B — Reinforcement, Front Fender Apron, Rear RH
53745-KK020 Reinforcement, Front Fender Apron, Rear RH
2023-08 → —
GUN122,126,TGN121 PKN —
53745-KK020 Reinforcement, Front Fender Apron, Rear RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
53745-KK020 Reinforcement, Front Fender Apron, Rear RH
2023-08 → 2024-08 ended
GUN125 MA —
53745-KK020 Reinforcement, Front Fender Apron, Rear RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53746 — Reinforcement, Front Fender Apron, Rear LH
53746-KK020 Reinforcement, Front Fender Apron, Rear LH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
53746-KK020 Reinforcement, Front Fender Apron, Rear LH
2023-08 → 2024-08 ended
GUN125 MA —
53746-KK020 Reinforcement, Front Fender Apron, Rear LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,SAP —
53746-KK020 Reinforcement, Front Fender Apron, Rear LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
53746-KK020 Reinforcement, Front Fender Apron, Rear LH
2023-08 → —
GUN122,126,TGN121 PKN —
53882F — Seal, Front Fender
53885-KK010 note Seal, Front Fender
2023-08 → 2024-07 ended
GUN11#,120,121,122,TGN11#,120,121 THP —
53885-KK010 note Seal, Front Fender
2023-08 → —
GUN122,TGN121 PKN —
53885-KK010 note Seal, Front Fender
2023-08 → 2024-10 ended
GUN122,TGN120,121 SA —
53885-KK020 note Seal, Front Fender
2023-08 → —
GUN126 PKN —
53885-KK020 note Seal, Front Fender
2024-04 → 2024-07 ended
TGN126 GCC —
53885-KK020 note Seal, Front Fender
2023-08 → 2024-12 ended
GUN125,135 KEN —
53885-KK020 note Seal, Front Fender
2023-08 → 2024-08 ended
GUN125 MA —
53885-KK020 note Seal, Front Fender
2023-08 → 2024-10 ended
GUN125,126,13#,LAN125,TGN126,136 AGTP,SAP —
53885-KK020 note Seal, Front Fender
2023-08 → 2024-07 ended
GUN125,126,13#,TGN126,XPN135 THP —
53885-KK020 note Seal, Front Fender
2023-08 → 2024-07 ended
TGN126 GCC —
55101 — Panel Sub-assy, Dash
55101-KK050 Panel Sub-assy, Dash
2023-08 → 2023-09 ended
GUN11#,122,125,126,135,TGN11#,12# LHD MTM (GCC,GEN,LA) —
55101-KK050 Panel Sub-assy, Dash
2023-08 → 2024-10 ended
GUN122,125,126,135,LAN125,TGN121,126,136 LHD (AGTP,SAP) —
55101-KK080 Panel Sub-assy, Dash
2023-08 → 2023-09 ended
GUN126 6FC GCC —
55101-KK091 Panel Sub-assy, Dash
2024-02 → 2024-10 ended
GUN122,125,126,13#,TGN120,136 RHD MTM (KEN,SA) —
55101-KK121 Panel Sub-assy, Dash
2024-02 → 2024-10 ended
GUN125,126,13# 6FC SA —
55101-KK170 Panel Sub-assy, Dash
2023-08 → 2023-09 ended
GUN122 PH —
55101-KK210 Panel Sub-assy, Dash
2023-11 → 2024-07 ended
XPN135 —
55101-KK220 Panel Sub-assy, Dash
2023-09 → 2024-07 ended
GUN11#,122,125,126,135,TGN11#,12# LHD THP MTM +1 —
55101-KK230 Panel Sub-assy, Dash
2023-09 → 2024-07 ended
GUN122 PH —
55101-KK240 Panel Sub-assy, Dash
2023-09 → 2024-07 ended
GUN126 6FC GCC —
55101-KK260 note Panel Sub-assy, Dash
2023-08 → 2023-09 ended
GUN125,135 6F (L,S) TH —
55101-KK260 note Panel Sub-assy, Dash
2023-08 → 2023-09 ended
GUN125,135 6F (L,S) TH —
55101-KK260 Panel Sub-assy, Dash
2023-08 → 2023-09 ended
GUN135 6F H;GUN126 RHD +5 —
55101-KK261 Panel Sub-assy, Dash
2023-09 → 2024-07 ended
GUN135 N) 6F H;GUN126 +7 —
55101-KK261 note Panel Sub-assy, Dash
2023-09 → 2024-07 ended
GUN125,135 6F (L,S) TH —
55101-KK261 note Panel Sub-assy, Dash
2023-09 → 2024-07 ended
GUN125,135 6F (L,S) TH —
55101-KK261 Panel Sub-assy, Dash
2023-09 → —
GUN122,126,TGN121 PKN —
55101-KK261 Panel Sub-assy, Dash
2023-09 → 2024-08 ended
GUN125 MA —
55101-KK270 Panel Sub-assy, Dash
2023-08 → 2023-09 ended
GUN112,121,122,125,126,135,TGN110,121 MTM (L,S) (IDN,TH) —
55101-KK271 Panel Sub-assy, Dash
2023-09 → 2024-07 ended
GUN112,121,122,125,126,135,TGN110,121 MTM (L,S) (IDN,TH) —
55101-KK280 note Panel Sub-assy, Dash
2023-08 → 2023-09 ended
GUN135 6FC (L,S) —
55101-KK280 note Panel Sub-assy, Dash
2023-08 → 2023-09 ended
GUN126,135 6FC (L,S) TH —
55101-KK280 Panel Sub-assy, Dash
2023-08 → 2023-09 ended
GUN135 6FC H;GUN125,136,TGN121 6FC;GUN126 +3 —
55101-KK281 note Panel Sub-assy, Dash
2023-09 → 2024-07 ended
GUN126,135 6FC (L,S) TH —
55101-KK281 note Panel Sub-assy, Dash
2023-09 → 2024-07 ended
GUN135 6FC (L,S) TH —
55101-KK281 Panel Sub-assy, Dash
2023-09 → 2024-07 ended
GUN135 6FC H;GUN125,136,TGN121 6FC +5 —
55101-KK291 Panel Sub-assy, Dash
2023-08 → 2024-07 ended
GUN120,126,135 6FC (L,S) TH —
55210 — Insulator Assy, Dash Panel
55210-0K320 Insulator Assy, Dash Panel
2023-08 → 2024-07 ended
GUN11#,122,125,126,135,TGN11#,12# LHD SCB THP —
55210-0K340 Insulator Assy, Dash Panel
2023-08 → 2024-07 ended
GUN126 THP RHD SCB +5 —
55210-0K360 Insulator Assy, Dash Panel
2023-08 → 2024-07 ended
GUN125 XTR GEN —
55210-KK110 Insulator Assy, Dash Panel
2023-09 → 2024-08 ended
GUN125 MA —
55210-KK110 Insulator Assy, Dash Panel
2023-09 → —
GUN122,126,TGN121 PKN —
55210-KK151 Insulator Assy, Dash Panel
2023-08 → 2024-07 ended
GUN126,135 XTR THP (H,S);GUN125,136,XPN135 +2 —
55210-KK201 Insulator Assy, Dash Panel
2023-11 → 2024-10 ended
GUN125,126,135,TGN126,136 AGTP —
55210-KK212 Insulator Assy, Dash Panel
2024-02 → 2024-10 ended
GUN125 XTR S SA —
55210-KK221 Insulator Assy, Dash Panel
2024-02 → 2024-10 ended
GUN126,13# XTR SA —
55210-KK231 Insulator Assy, Dash Panel
2024-02 → 2024-10 ended
GUN122,125,LAN125,TGN121 LHD SCB SA —
55210-KK241 Insulator Assy, Dash Panel
2024-02 → 2024-10 ended
GUN125 RHD SA;GUN122,126,13#,TGN120,136 RHD +2 —
55210-KK241 Insulator Assy, Dash Panel
2024-02 → 2024-12 ended
GUN125,135 KEN —
55210A — Clip
90467-T0004-A0 note Clip
2023-08 → 2024-12 ended
GUN125,135 KEN —
90467-T0004-A0 note Clip
2023-08 → —
GUN122,126,TGN121 PKN —
90467-T0004-A0 note Clip
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
90467-T0004-A0 note Clip
2023-08 → 2024-08 ended
GUN125 MA —
90467-T0004-A0 note Clip
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,SAP —
55210C — Clip
90467-T0032 Clip
2023-08 → 2024-07 ended
GUN112,12#,13#,TGN110,121,XPN135 RHD THP —
90467-T0032 Clip
2023-08 → 2024-07 ended
GUN11#,122,125,126,135,TGN11#,12# LHD THP —
90467-T0032 Clip
2023-08 → 2024-08 ended
GUN125 MA —
90467-T0032 Clip
2023-08 → 2024-10 ended
GUN122,125,126,13#,TGN120,136 RHD SA —
90467-T0032 Clip
2023-08 → 2024-10 ended
GUN122,125,126,135,LAN125,TGN121,126,136 LHD (AGTP,SAP) —
90467-T0032 Clip
2023-08 → 2024-12 ended
GUN125,135 KEN —
90467-T0032 Clip
2023-08 → —
GUN122,126,TGN121 PKN —
55223A — Insulator, Dash Panel, Outer
55223-0K070 Insulator, Dash Panel, Outer
2023-11 → 2024-07 ended
XPN135 —
55223-KK030 Insulator, Dash Panel, Outer
2023-11 → 2024-10 ended
GUN122,125,126,135,LAN125,TGN121,126,136 LHD (AGTP,SAP) —
55223-KK030 note Insulator, Dash Panel, Outer
2024-02 → 2024-09 ended
TGN121 SA —
55223-KK040 Insulator, Dash Panel, Outer
2024-02 → 2024-12 ended
GUN125,135 KEN —
55223-KK040 Insulator, Dash Panel, Outer
2024-02 → 2024-10 ended
GUN122,125,126,13#,TGN120,136 RHD SA —
55223-KK051 note Insulator, Dash Panel, Outer
2023-08 → 2024-07 ended
TGN121,126 GCC CBU —
55223-KK051 Insulator, Dash Panel, Outer
2023-08 → 2024-07 ended
TGN126 THP LA;GUN11#,122,125,126,135 LHD +1 —
55223-KK061 Insulator, Dash Panel, Outer
2023-08 → —
GUN122,126,TGN121 PKN —
55223-KK061 Insulator, Dash Panel, Outer
2023-08 → 2024-07 ended
GUN112,12#,13#,TGN121 RHD THP —
55223-KK061 Insulator, Dash Panel, Outer
2023-08 → 2024-08 ended
GUN125 MA —
55223C — Clip
90467-T0032 Clip
2023-08 → —
GUN122,126,TGN121 PKN —
90467-T0032 note Clip
2023-08 → 2024-07 ended
TGN121,126 GCC CBU —
90467-T0032 Clip
2023-08 → 2024-12 ended
GUN125,135 KEN —
90467-T0032 Clip
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,SAP —
90467-T0032 Clip
2023-08 → 2024-08 ended
GUN125 MA —
90467-T0032 Clip
2023-08 → 2024-07 ended
GUN11#,12#,13#,XPN135 THP;TGN121,126 THP (ARL,LA,TH) —
90467-T0032 note Clip
2024-02 → 2024-09 ended
TGN121 SA —
57161C — Member, Front Cross
57161-KK010 Member, Front Cross
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
57161-KK010 Member, Front Cross
2023-08 → 2024-08 ended
GUN125 MA —
57161-KK010 note Member, Front Cross
2023-11 → 2024-10 ended
GUN125,126,135,TGN126,136 AGTP —
57161-KK010 Member, Front Cross
2023-08 → —
GUN122,126,TGN121 PKN —
57161-KK020 note Member, Front Cross
2024-02 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN120,121,136 KEN,SA —
57225 — Brace, Front Mounting Bracket, RH
57225-KK010 Brace, Front Mounting Bracket, RH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
57225-KK010 Brace, Front Mounting Bracket, RH
2023-08 → —
GUN122,126,TGN121 PKN —
57225-KK010 Brace, Front Mounting Bracket, RH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,KENP,SAP —
57225-KK010 Brace, Front Mounting Bracket, RH
2023-08 → 2024-08 ended
GUN125 MA —
57226 — Brace, Front Mounting Bracket, LH
57226-KK010 Brace, Front Mounting Bracket, LH
2023-08 → 2024-07 ended
GUN11#,12#,13#,TGN11#,12#,XPN135 THP —
57226-KK010 Brace, Front Mounting Bracket, LH
2023-08 → 2024-08 ended
GUN125 MA —
57226-KK010 Brace, Front Mounting Bracket, LH
2023-08 → 2024-10 ended
GUN122,125,126,13#,LAN125,TGN12#,136 AGTP,SAP —
57226-KK010 Brace, Front Mounting Bracket, LH
2023-08 → 2024-12 ended
GUN125,135 KEN —
57226-KK010 Brace, Front Mounting Bracket, LH
2023-08 → —
GUN122,126,TGN121 PKN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
