Heating & Air Conditioning - Cooler Unit

30 part groups · 8 illustrations

Illustrations

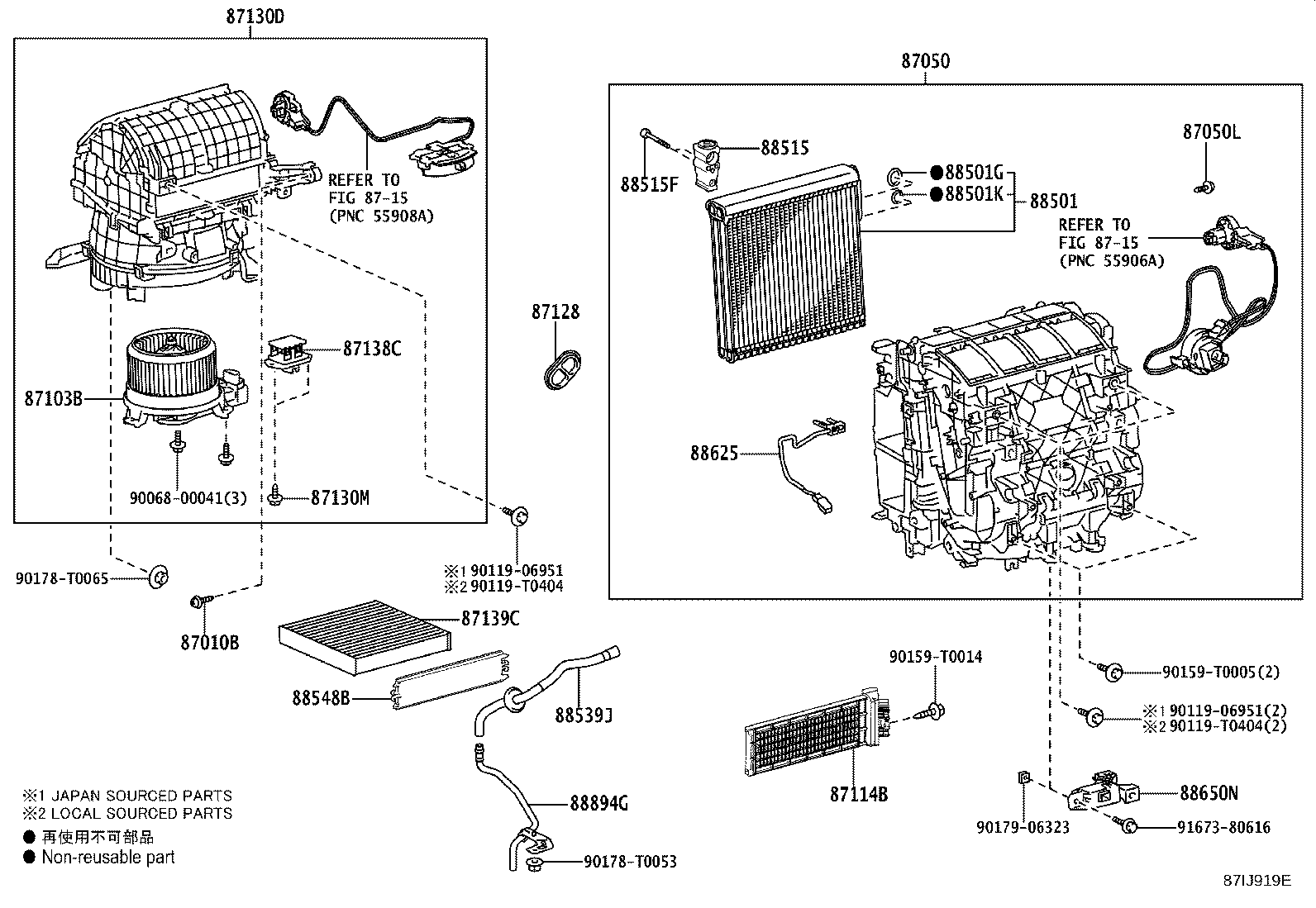

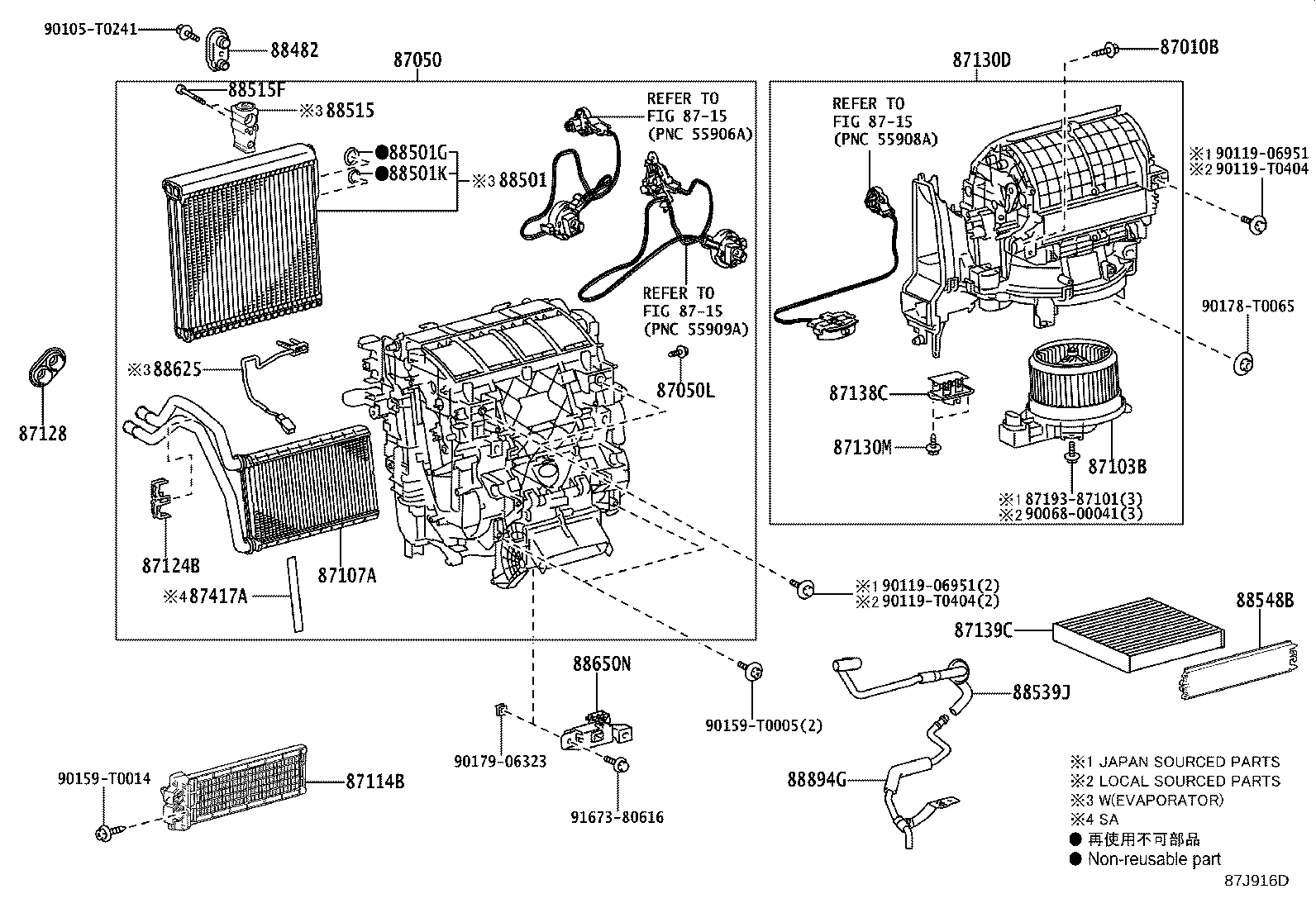

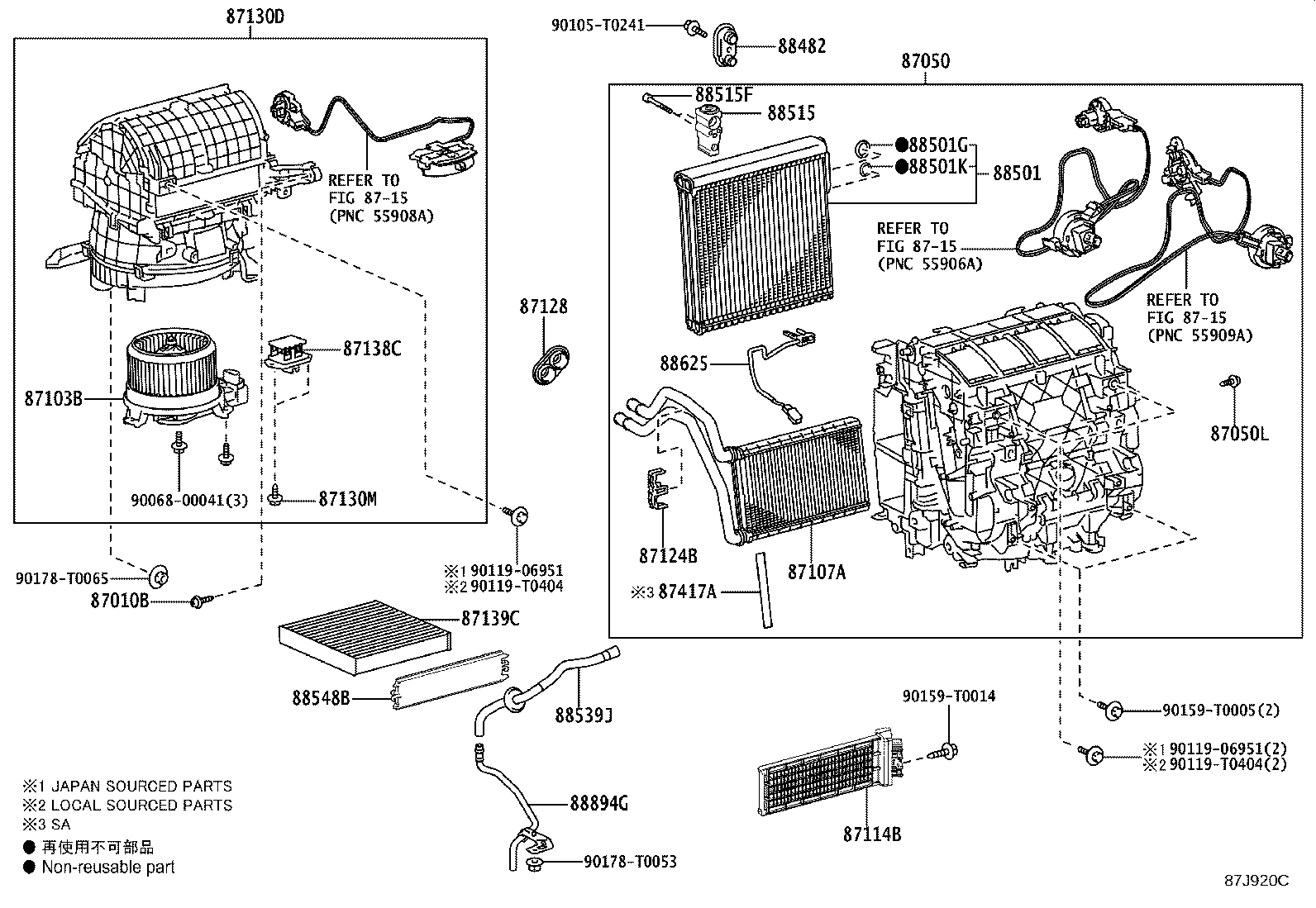

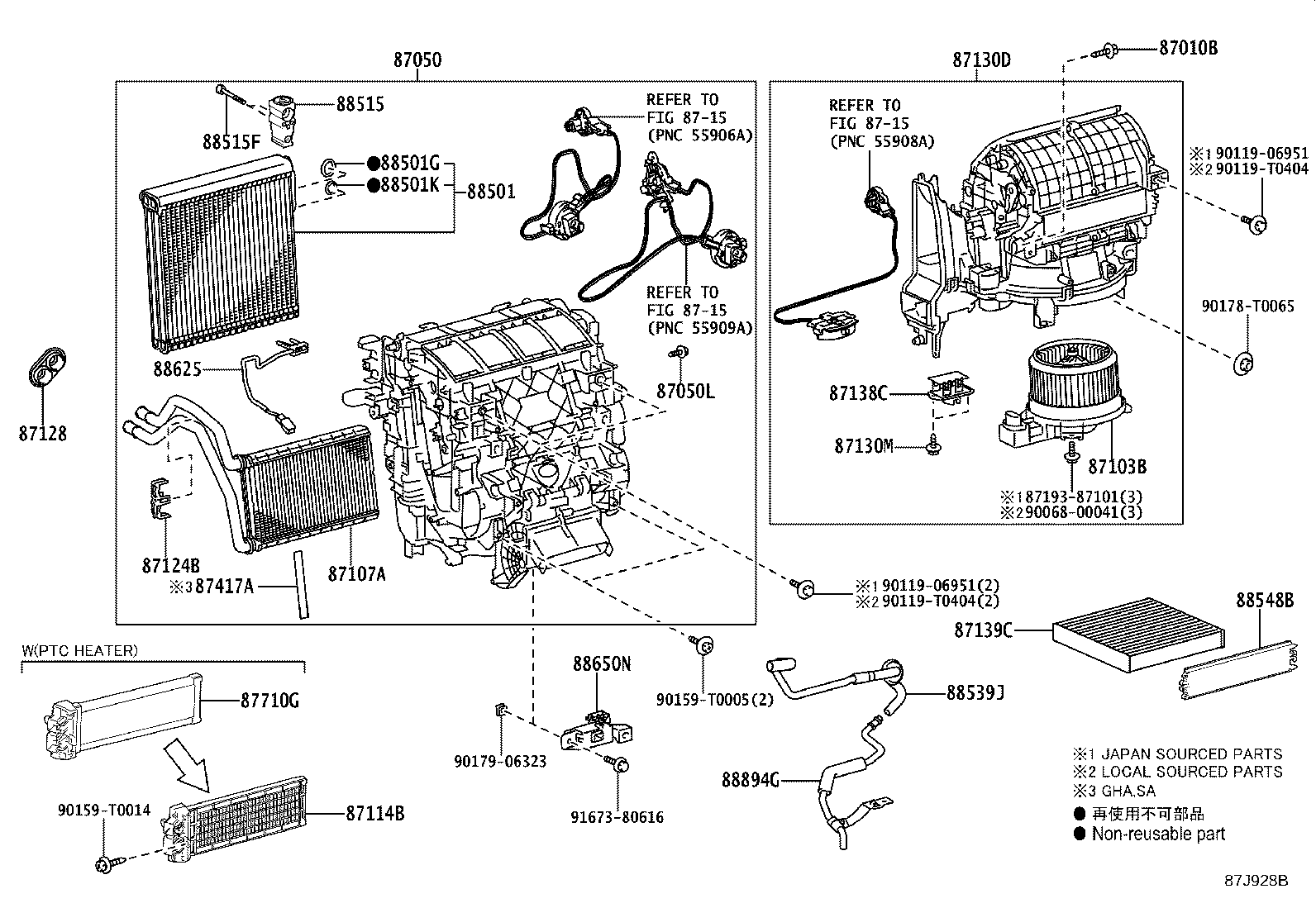

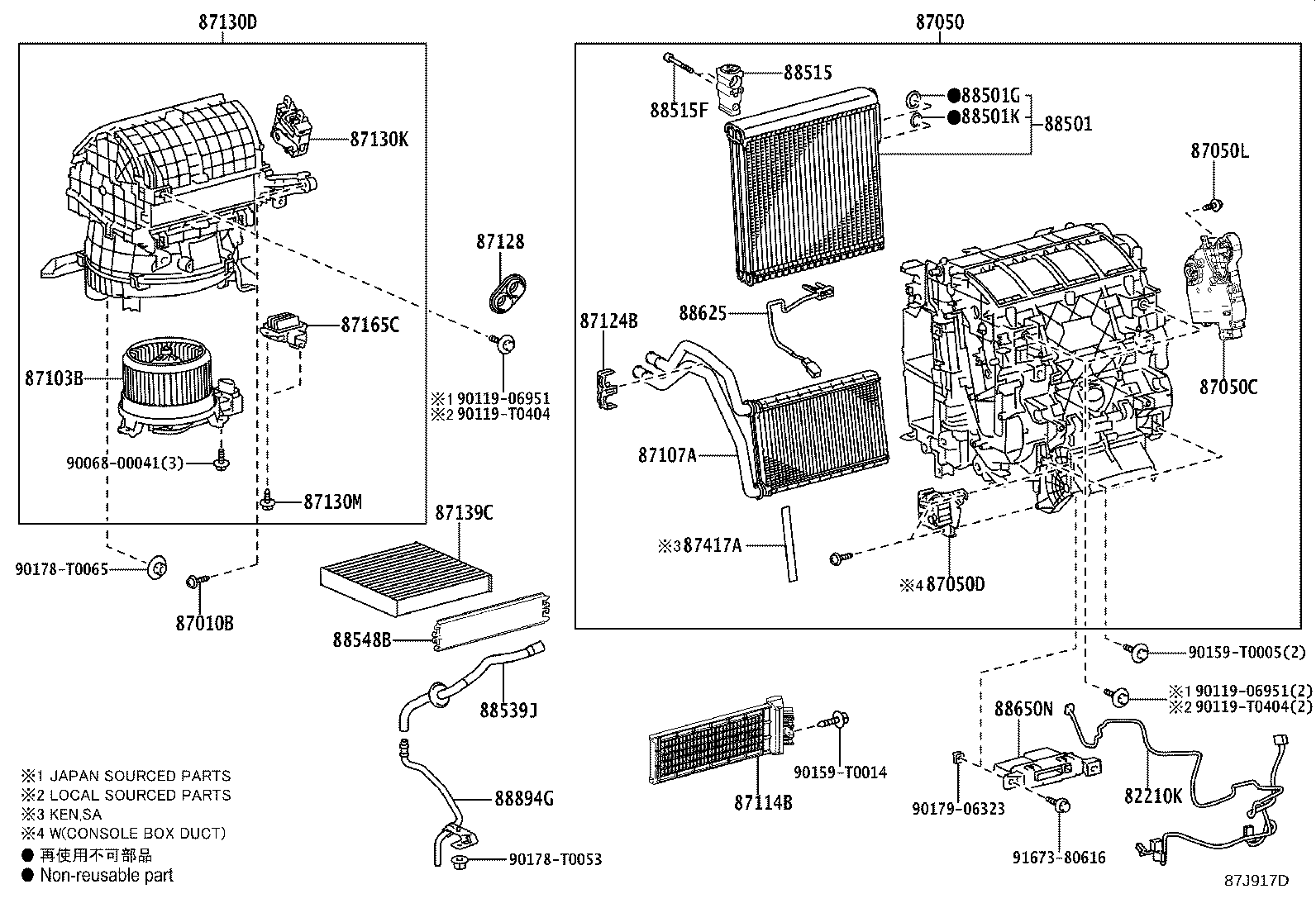

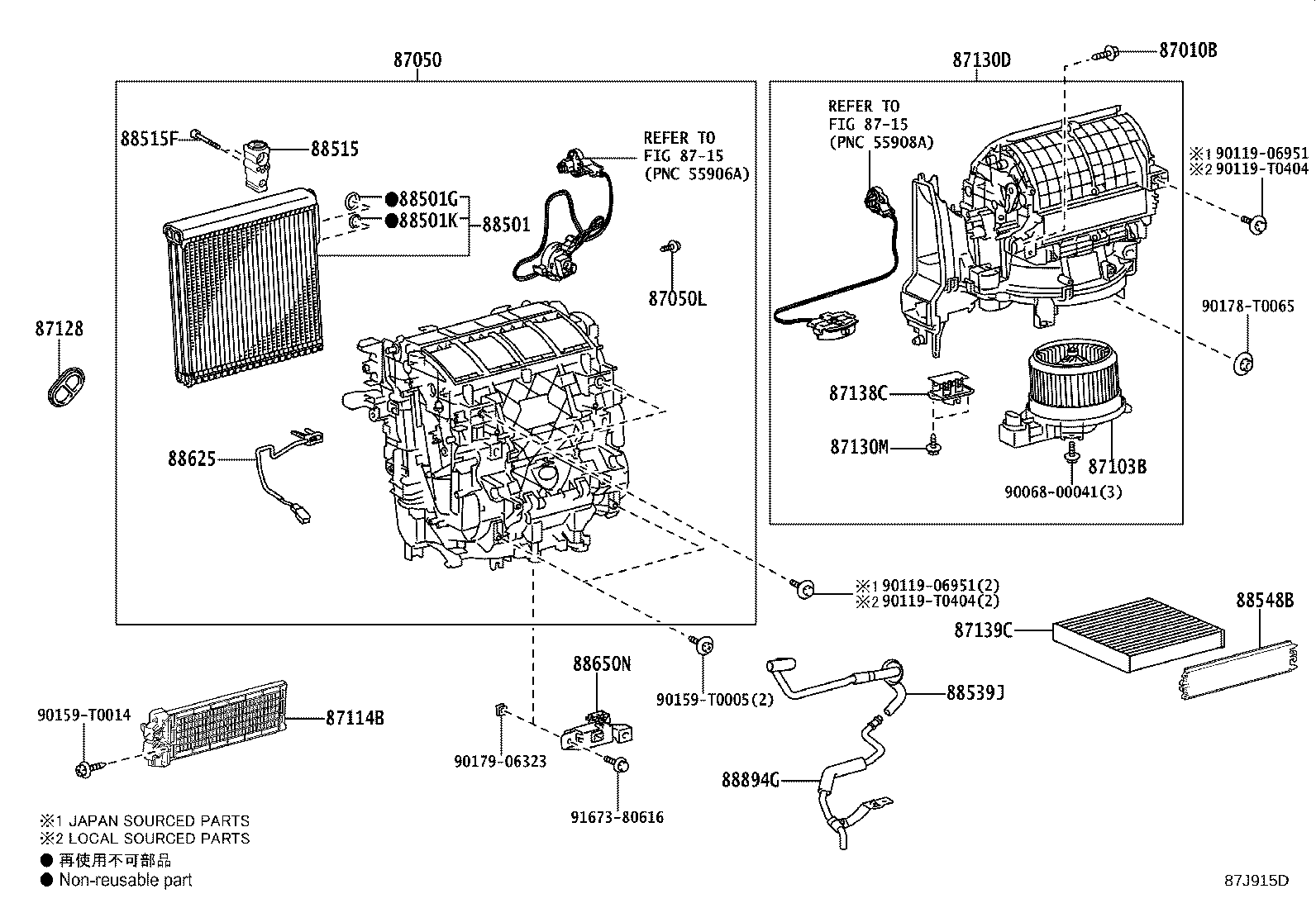

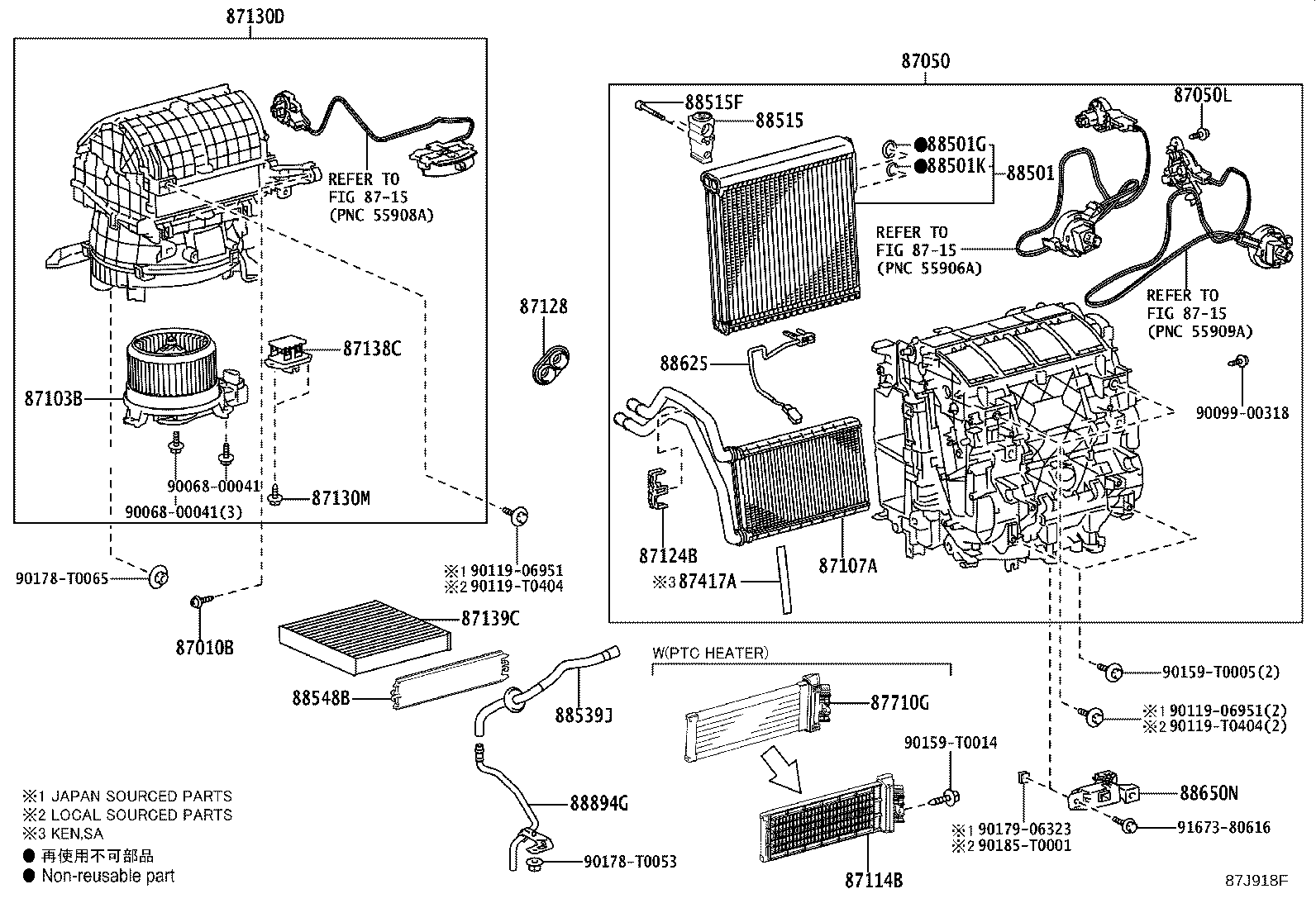

Figure 87J927A 87J927A 2021-08 → — Figure 87J928B 87J928B 2021-08 → — Figure 87J916D 87J916D 2021-08 → — Figure 87J915D 87J915D 2021-08 → — Figure 87J917D 87J917D 2021-08 → — Figure 87J918F 87J918F 2021-08 → — Figure 87J919E 87J919E 2021-08 → — Figure 87J920C 87J920C 2021-08 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87010B Screw(FOR AIR CONDITIONER UNIT)
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87050L Screw(FOR AIR CONDITIONER RADIATOR)
87103B Motor Sub-assy, Blower W/Fan
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87124B Clamp, Heater
87128 Grommet, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87130M Screw(FOR BLOWER)
87138C Resistor, Blower
87139C Filter, Clean Air
87165C Control, Blower Motor
87417A Packing, Air Duct
87710G Quick Heater Assy
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88501G O-ring, Cooler Evaporator NO.1(SUCTION)
88501K O-ring, Cooler Evaporator NO.1(LIQUID)
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539J Hose, Drain Cooler
88548B Case, Air Filter
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88894G Connector, Drain Hose
