Toyota Hilux (DOUBLE CAB)

2022-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733C0 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

15 part groups · 8 illustrations

Illustrations

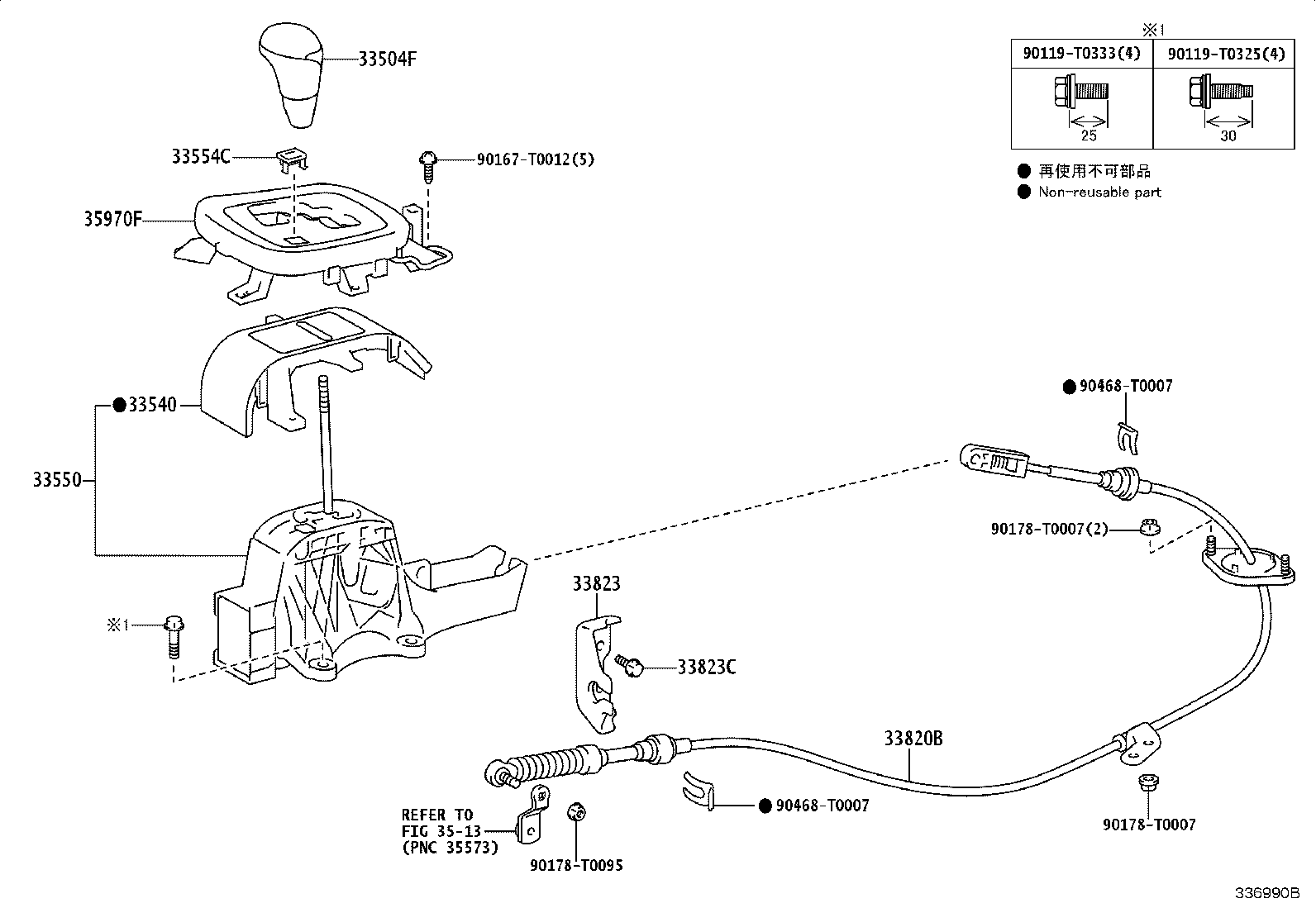

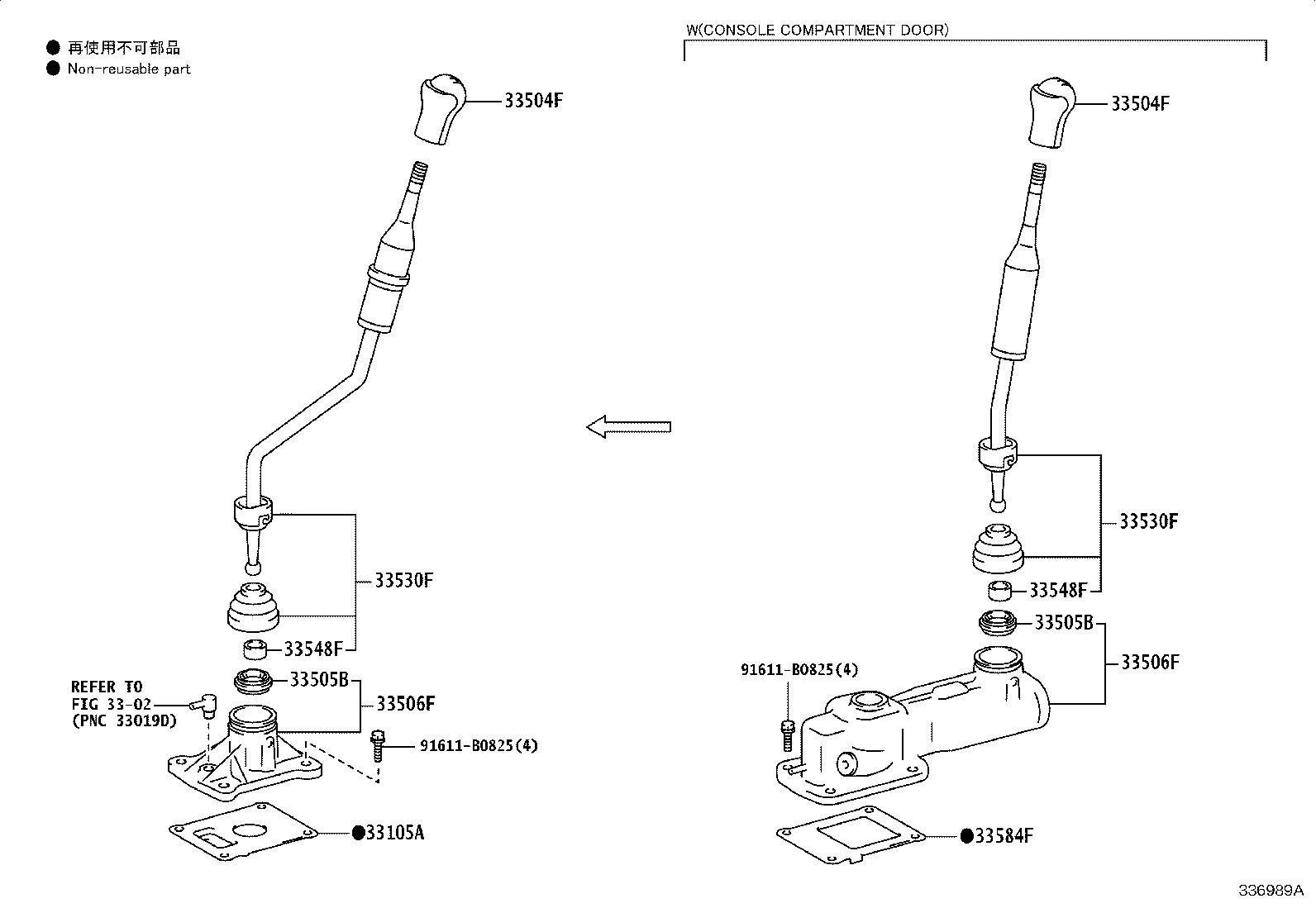

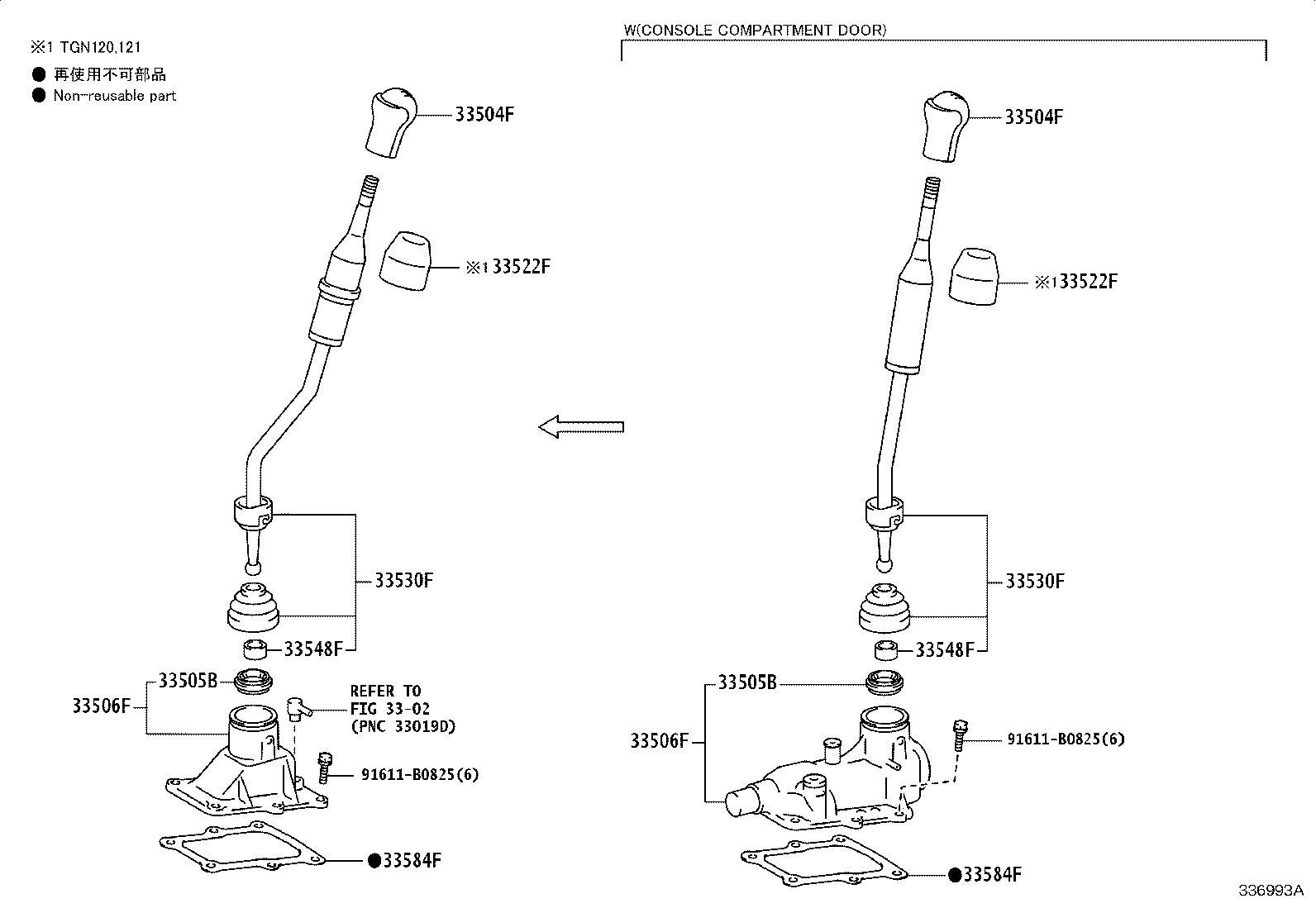

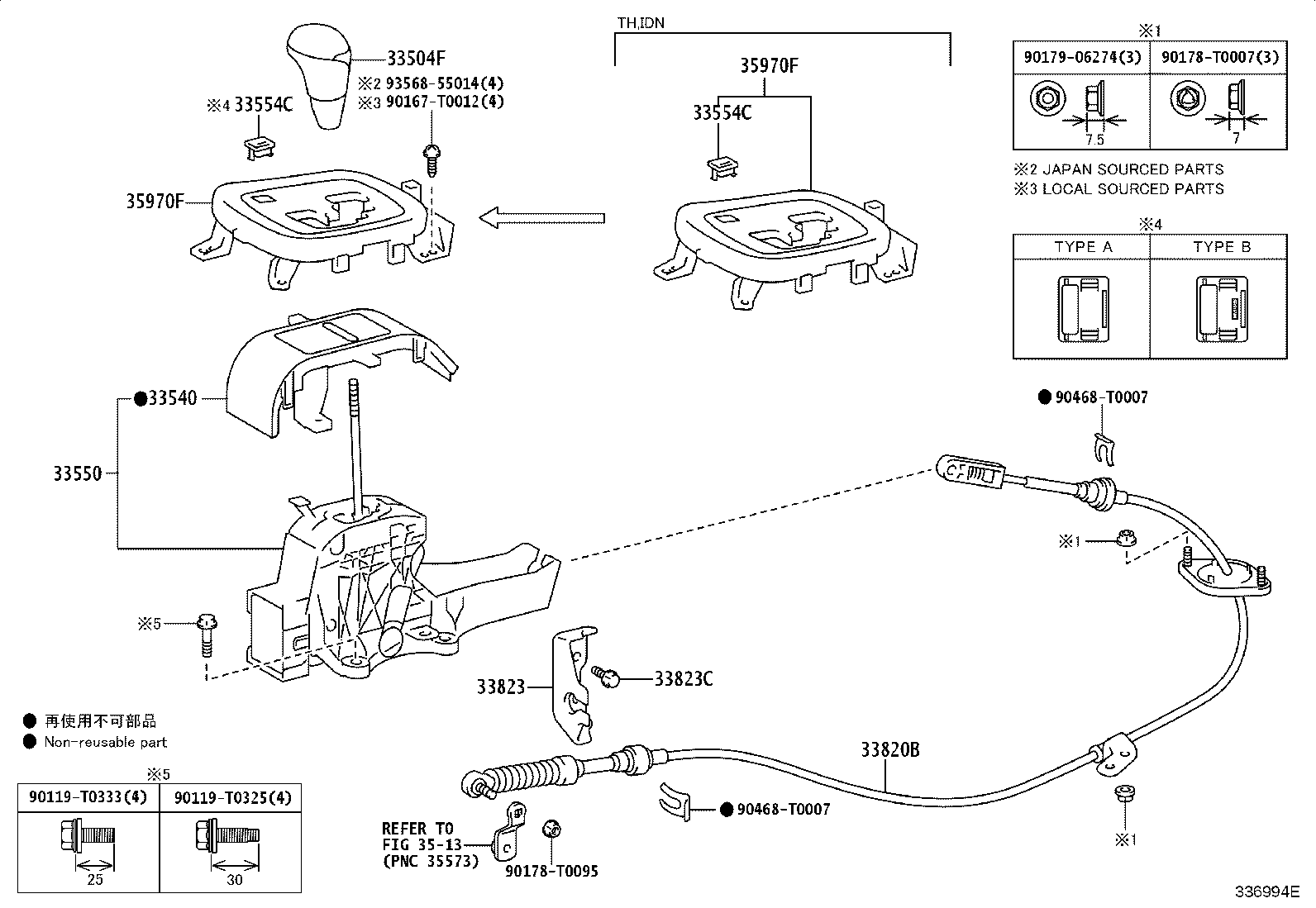

Figure 336986A 336986A 2022-08 → — Figure 336979A 336979A 2022-08 → — Figure 336992A 336992A 2022-08 → — Figure 336980A 336980A 2022-08 → — Figure 336993A 336993A 2022-08 → — Figure 336989A 336989A 2022-08 → — Figure 336990B 336990B 2022-08 → — Figure 336994E 336994E 2022-08 → —

Part groups

PNCDescription
33105A Deflector Sub-assy, Extension Housing Oil(MTM)
33504F Knob Sub-assy, Shift Lever
33505B Seat Sub-assy, Shift Lever
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33522F Seat, Shift Lever Plate (FOR FLOOR SHIFT)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33540 Plate Assy, Shift Lever
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33550 Floor Shift Assy, Transmission
33554C Cover, Shift Lock Release Button
33584F Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
35970F Housing Assy, Position Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
