Toyota Hilux (DOUBLE CAB)

2022-08 → present · chassis GGN125,GUN12#,13#,LAN125,TGN12#,136 · catalogue 6733C0 · United States

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

47 part groups · 16 illustrations

Illustrations

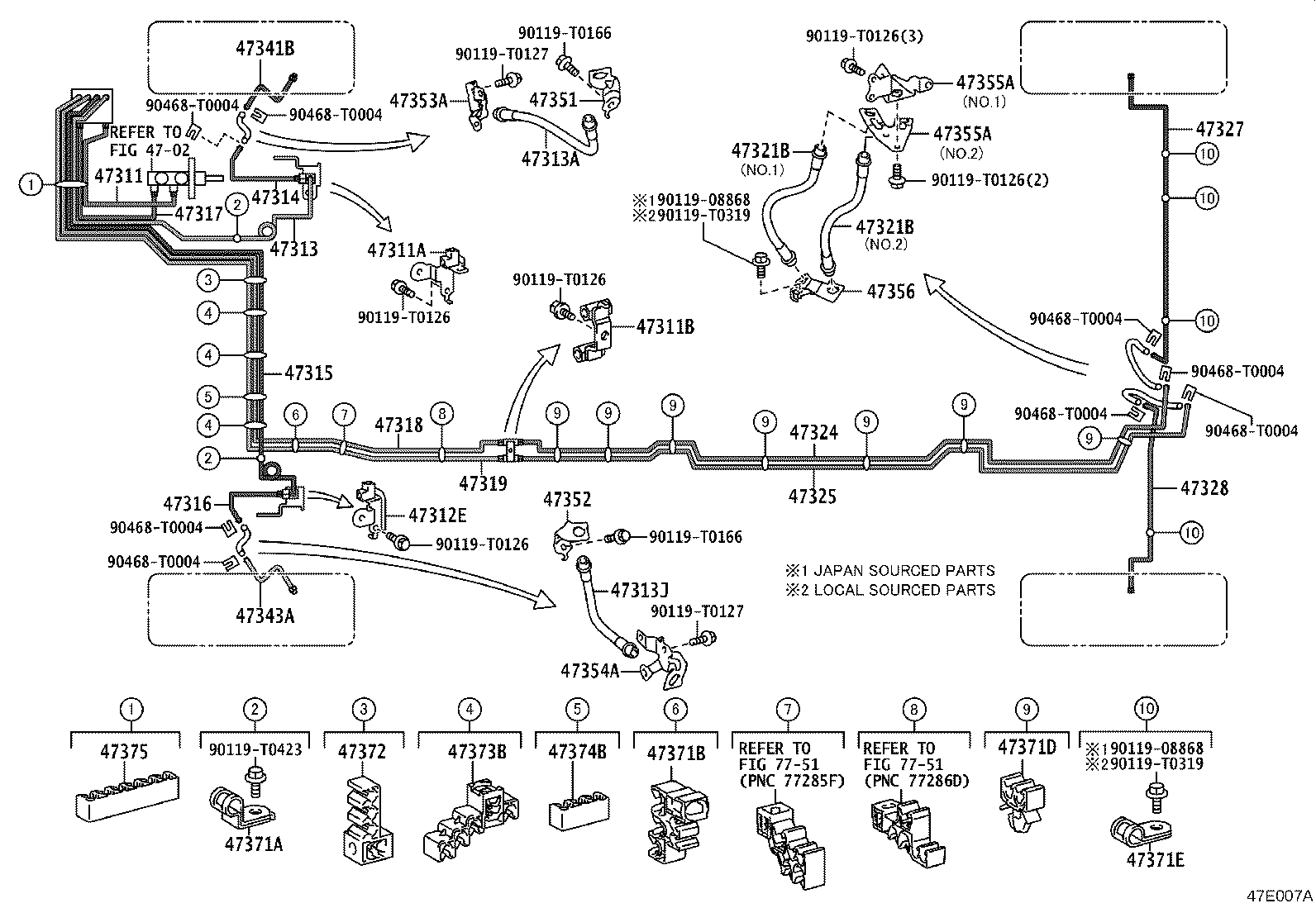

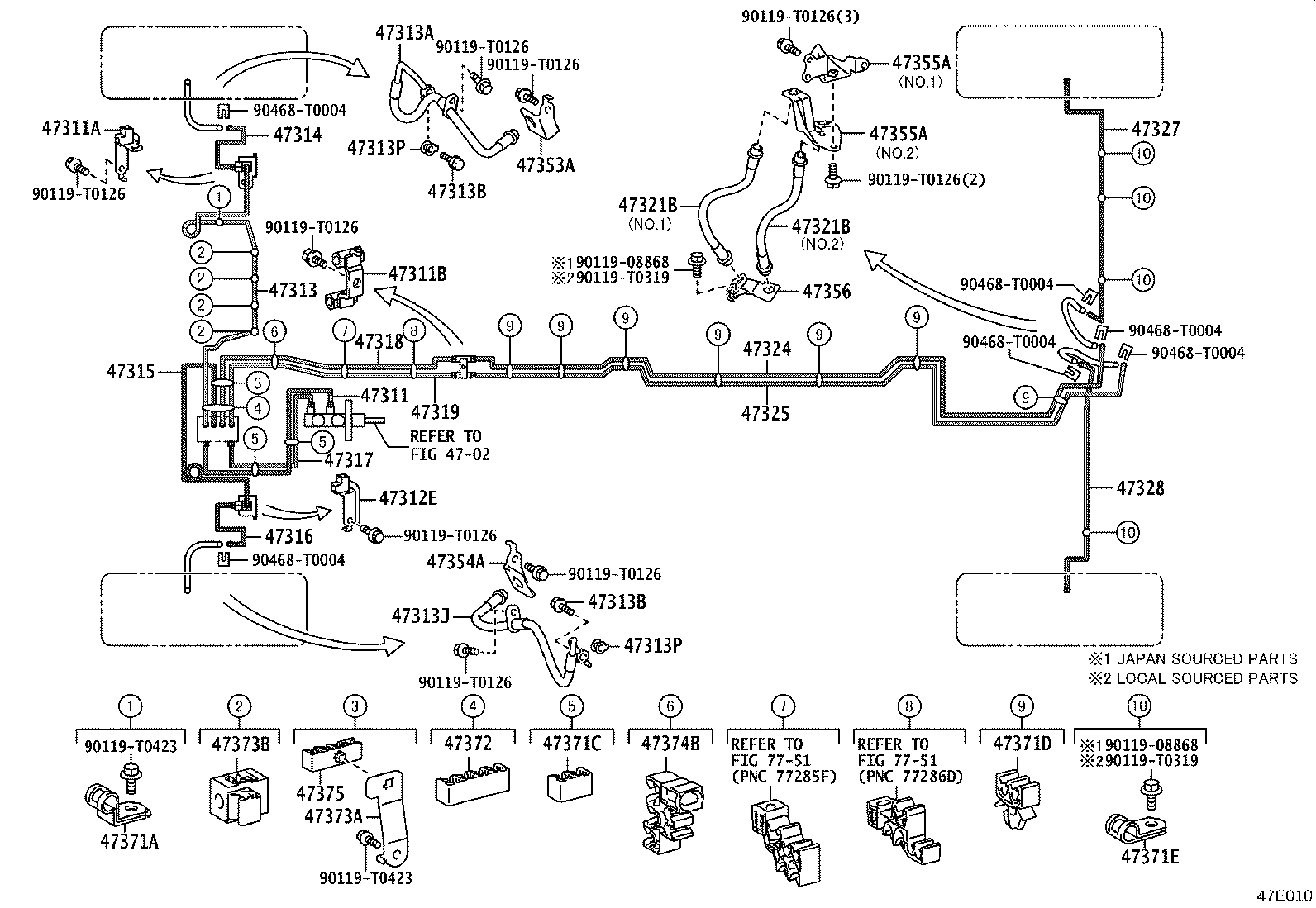

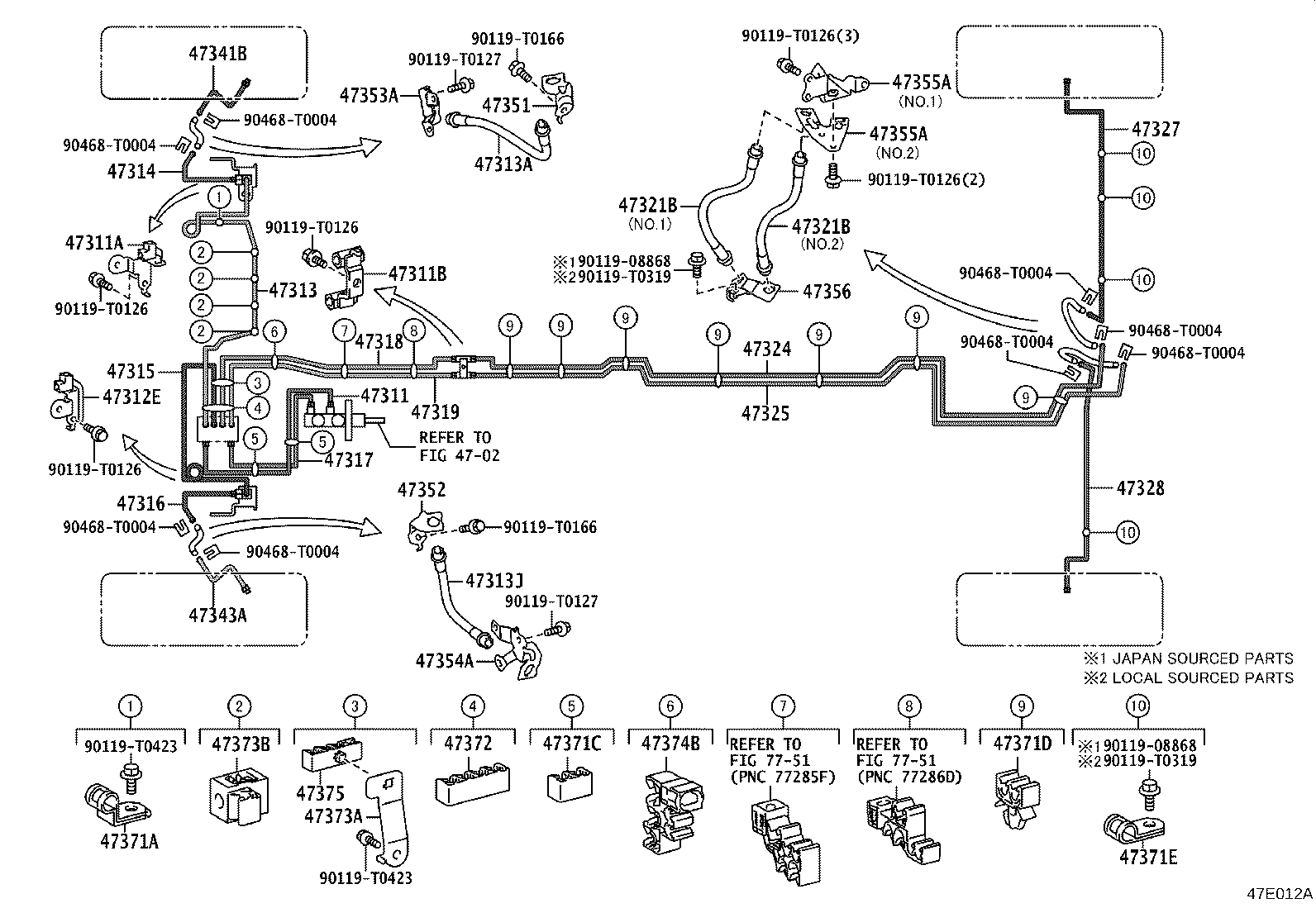

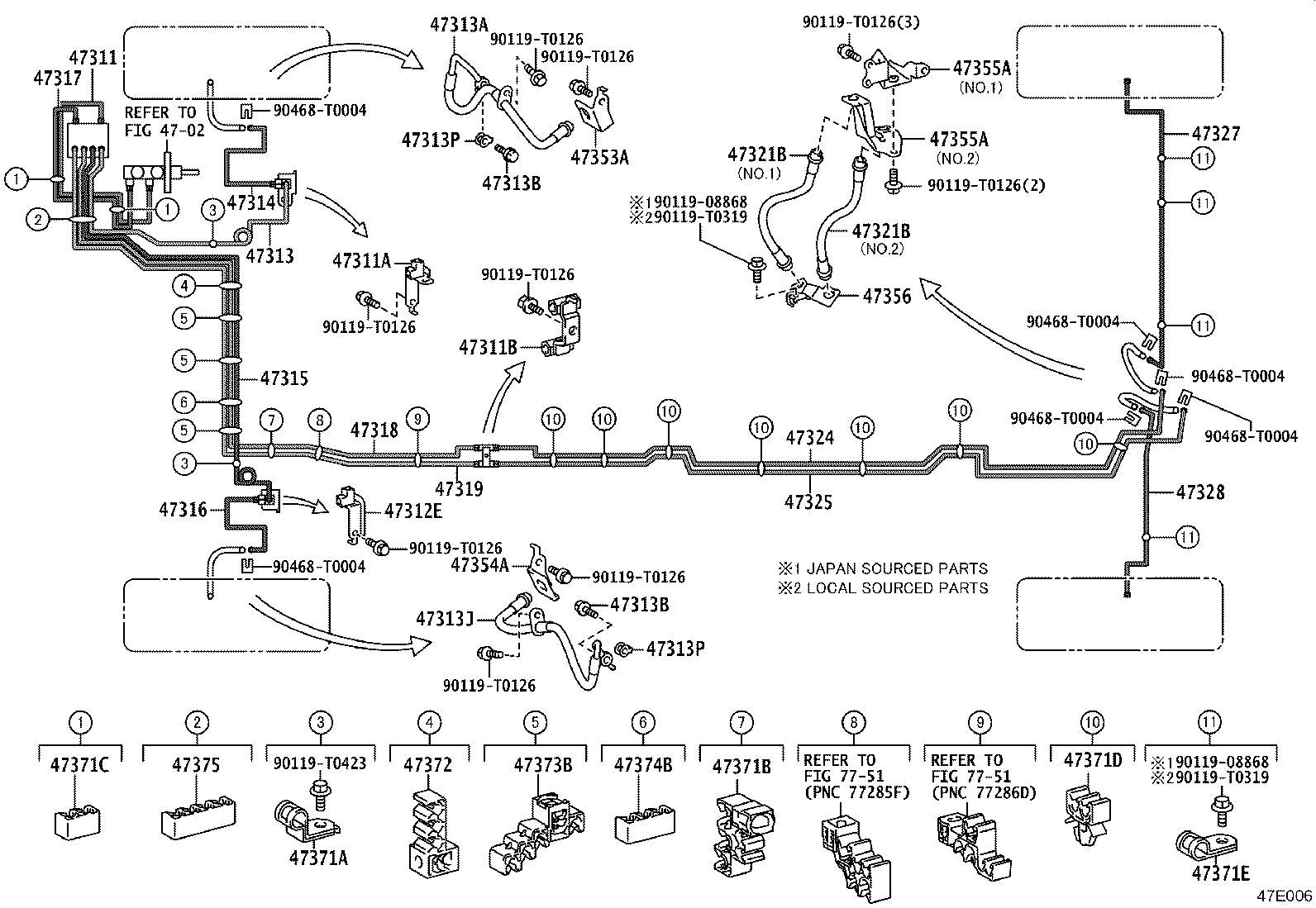

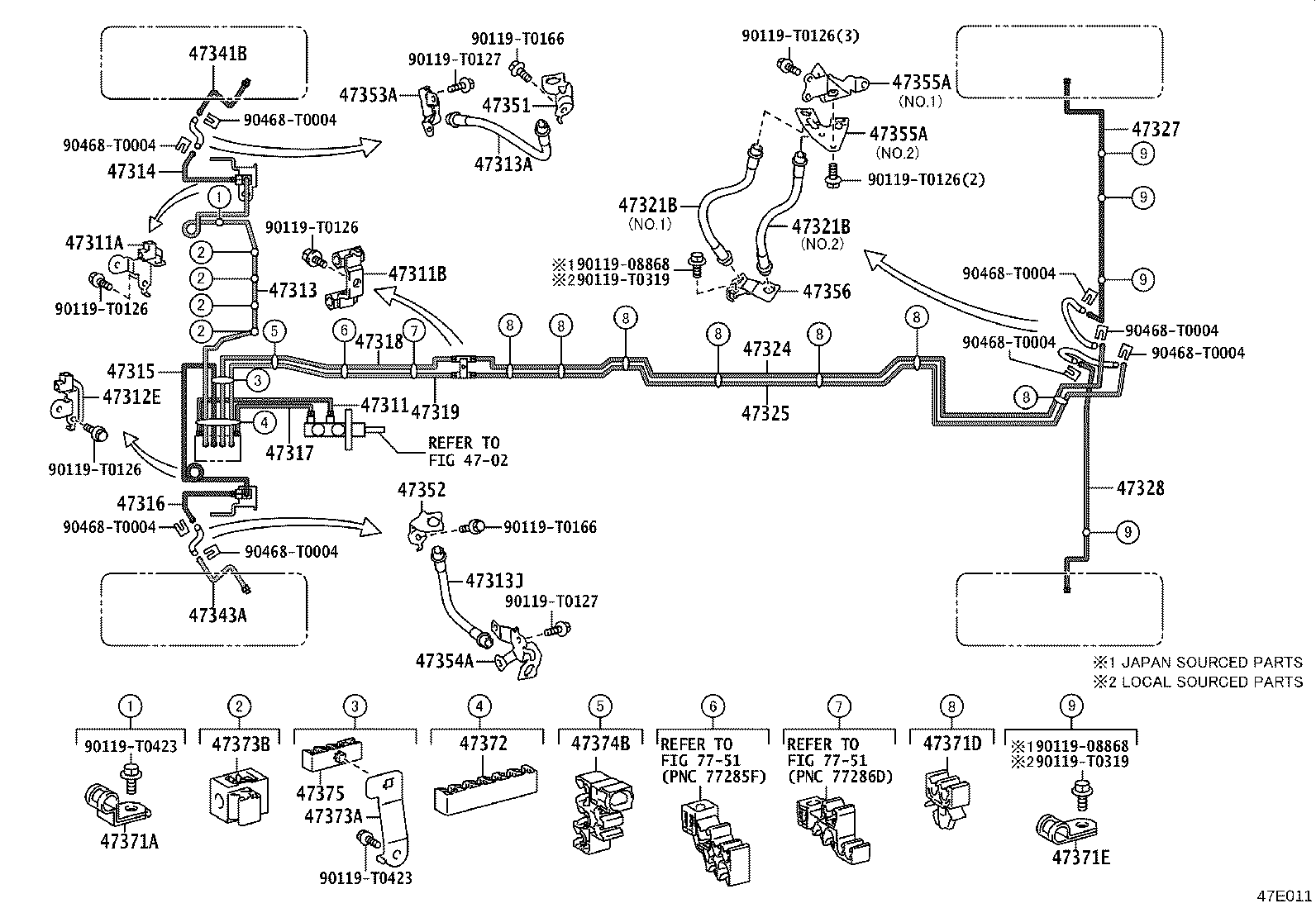

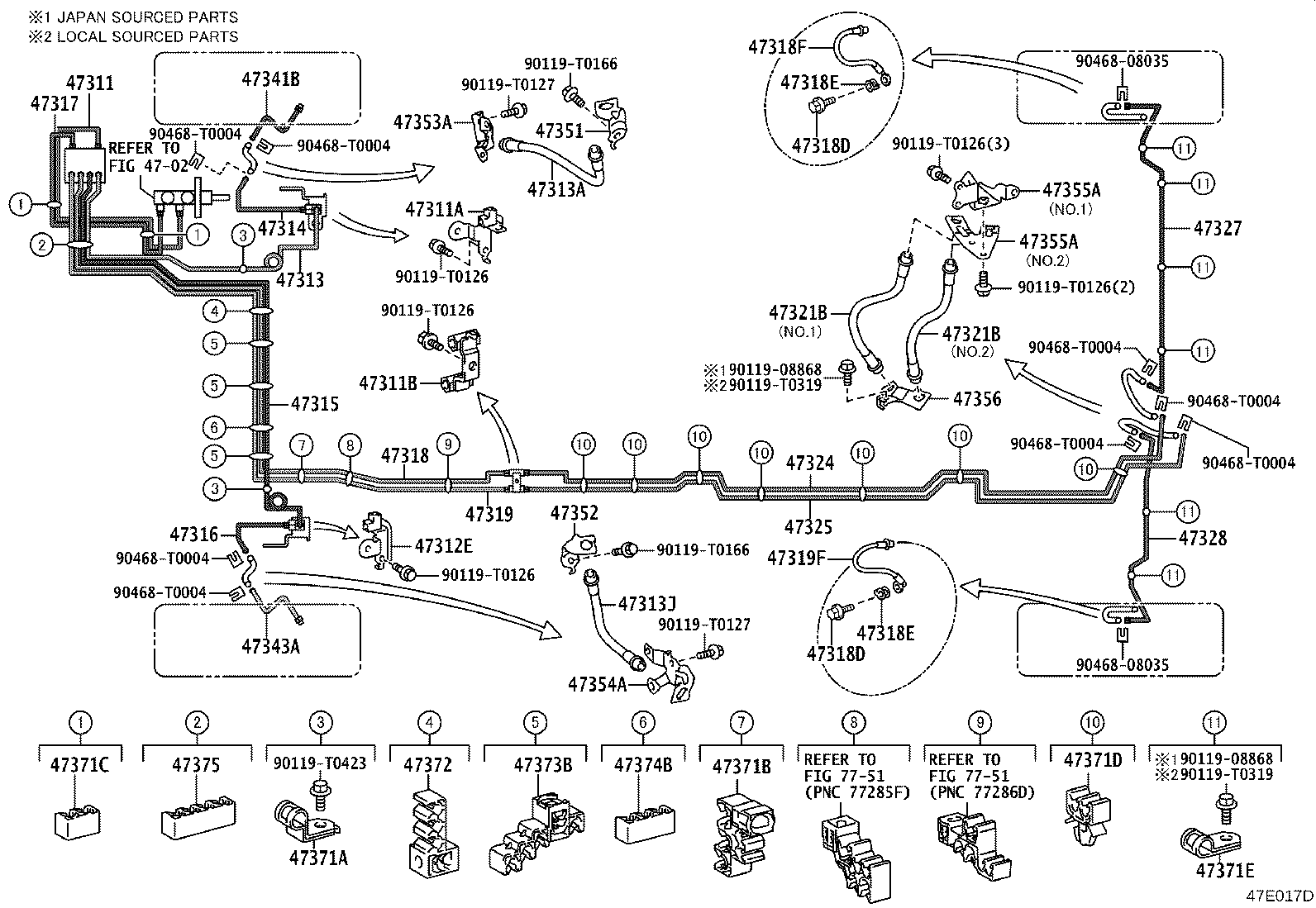

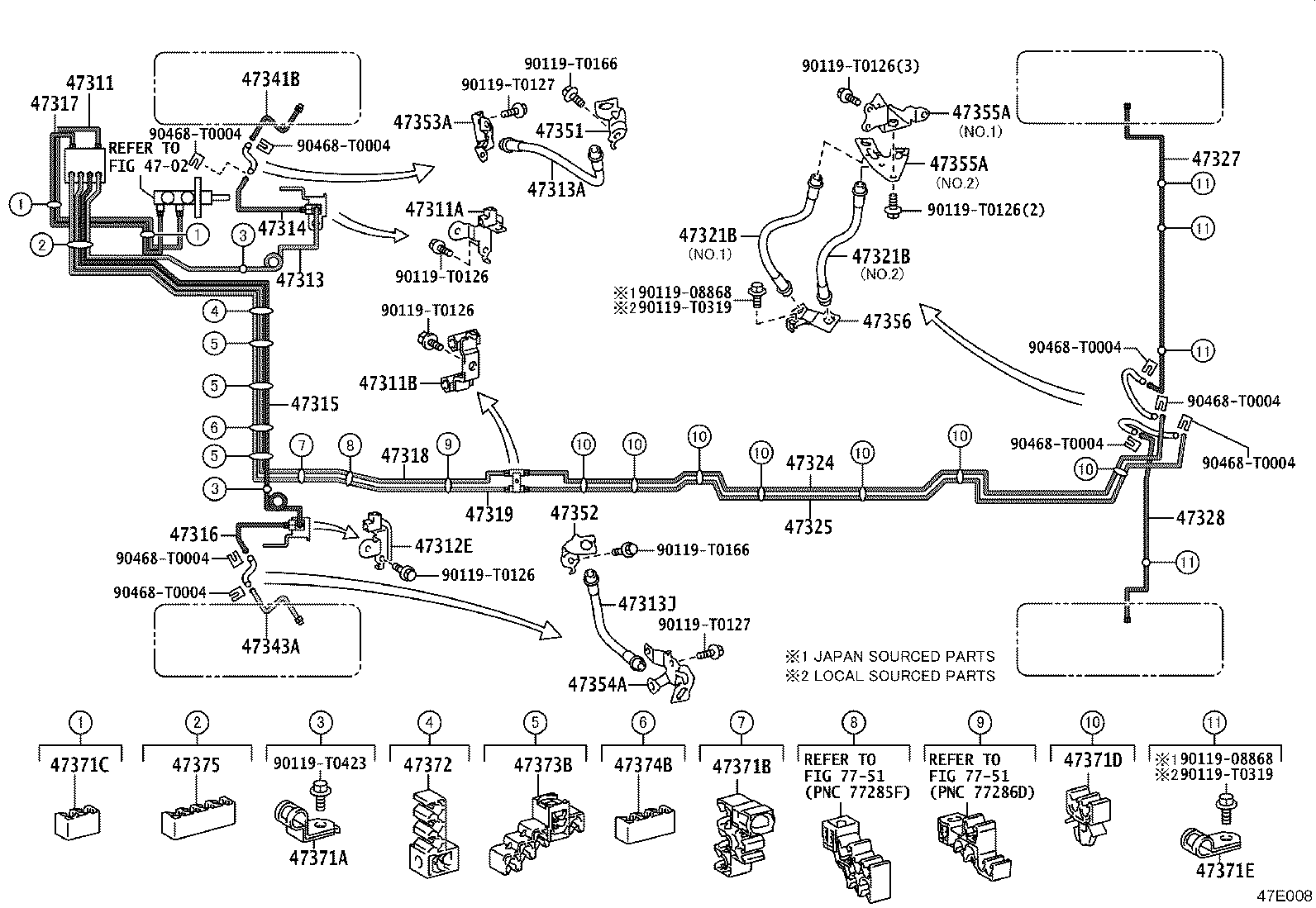

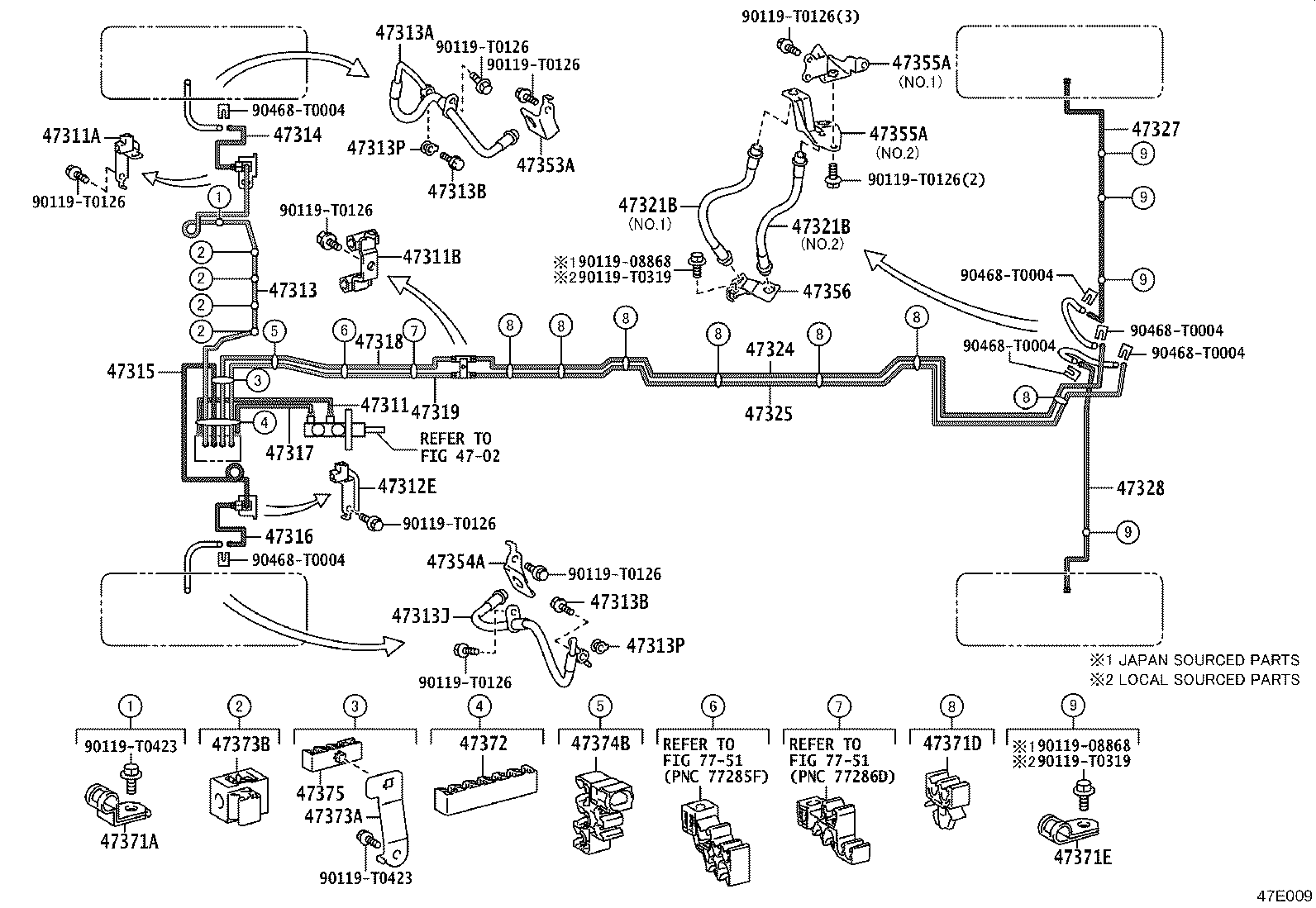

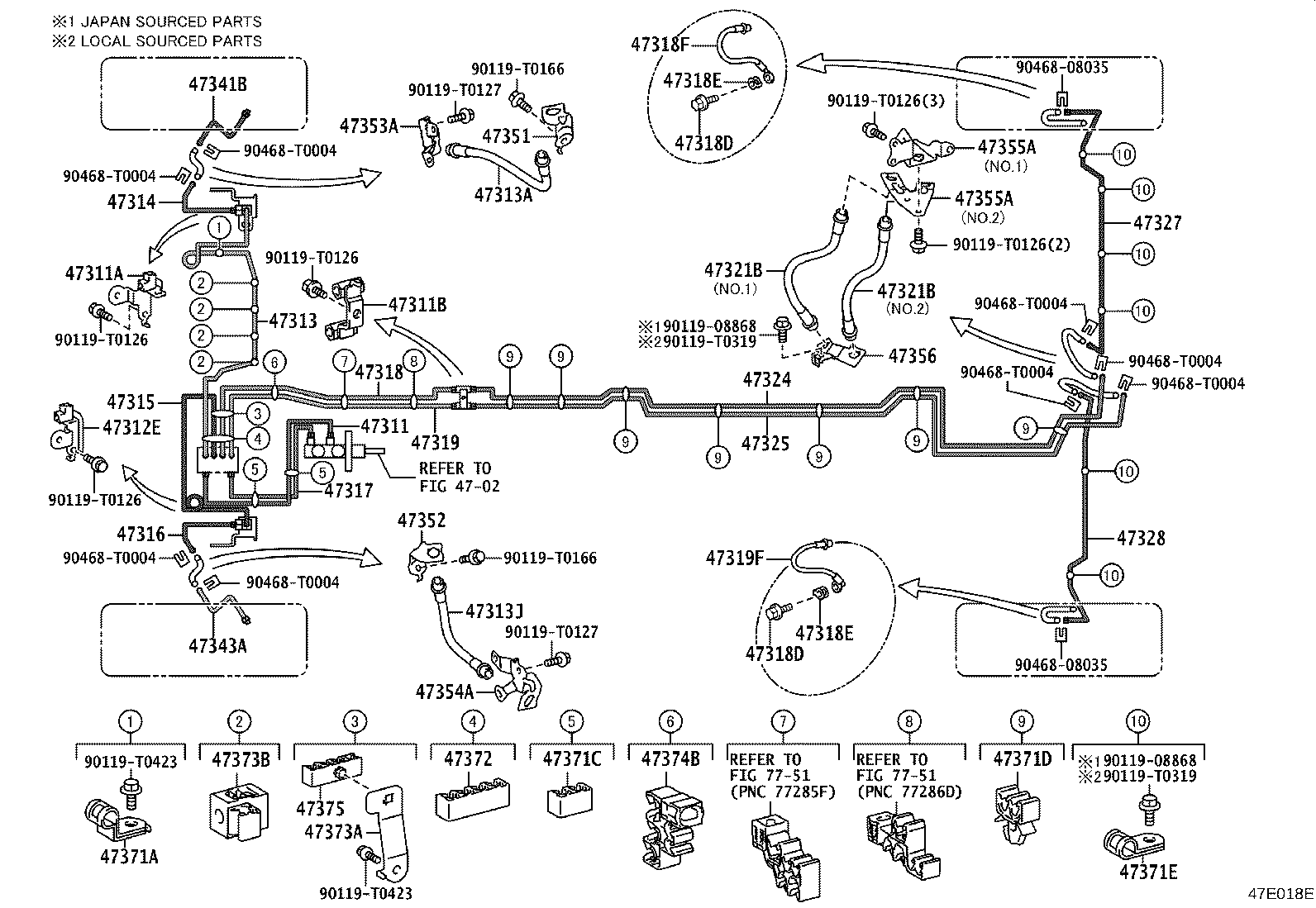

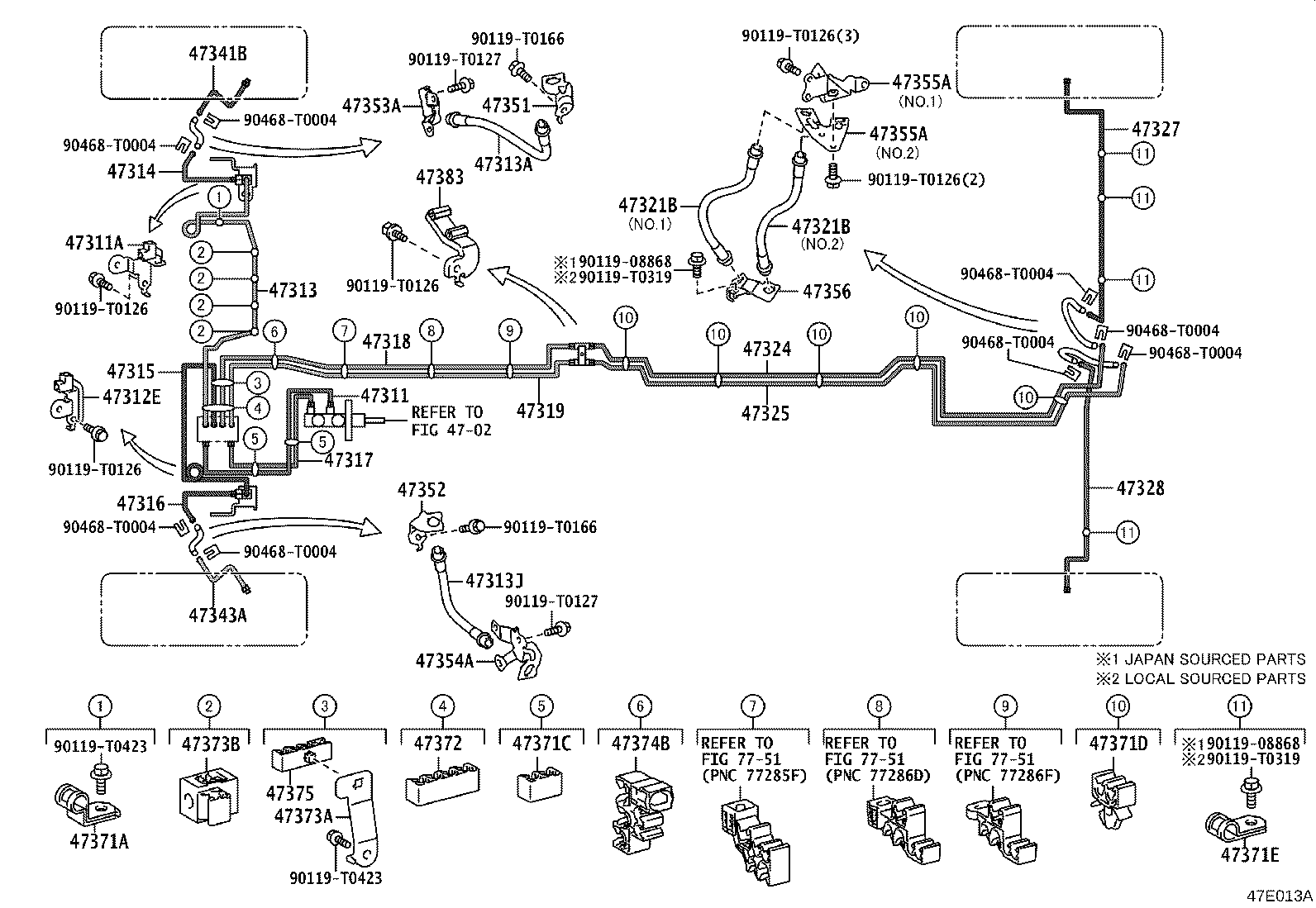

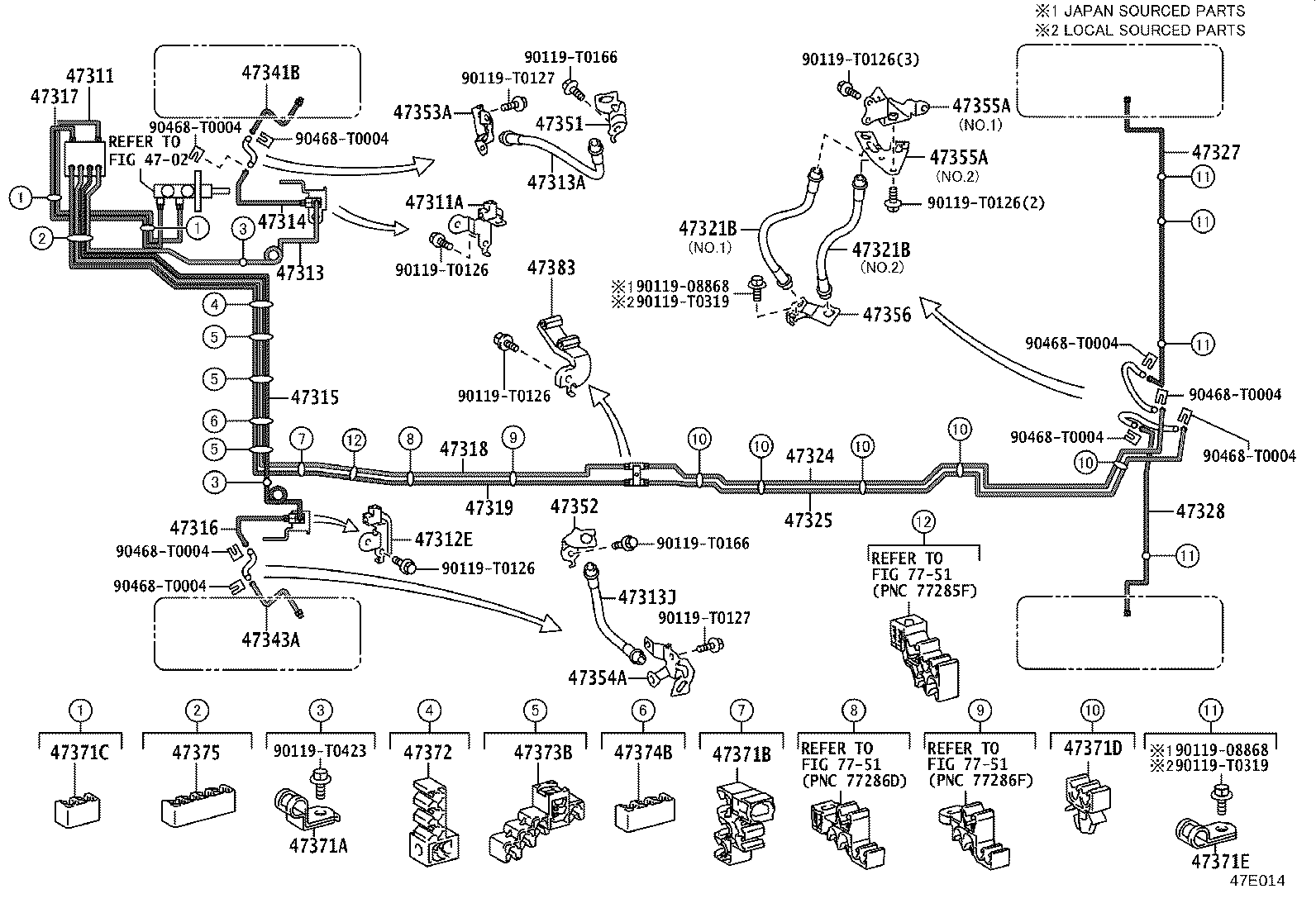

Figure 47E005 47E005 2022-08 → — Figure 47E006 47E006 2022-08 → — Figure 47E007A 47E007A 2022-08 → — Figure 47E008 47E008 2022-08 → — Figure 47E017D 47E017D 2022-08 → — Figure 47E009 47E009 2022-08 → — Figure 47E010 47E010 2022-08 → — Figure 47E011 47E011 2022-08 → — Figure 47E011 47E011 2022-08 → — Figure 47E012A 47E012A 2022-08 → — Figure 47E012A 47E012A 2022-08 → — Figure 47E018E 47E018E 2022-08 → — Figure 47E013A 47E013A 2022-08 → — Figure 47E014 47E014 2022-08 → — Figure 47E015 47E015 2022-08 → — Figure 47E016 47E016 2022-08 → —

Part groups

PNCDescription

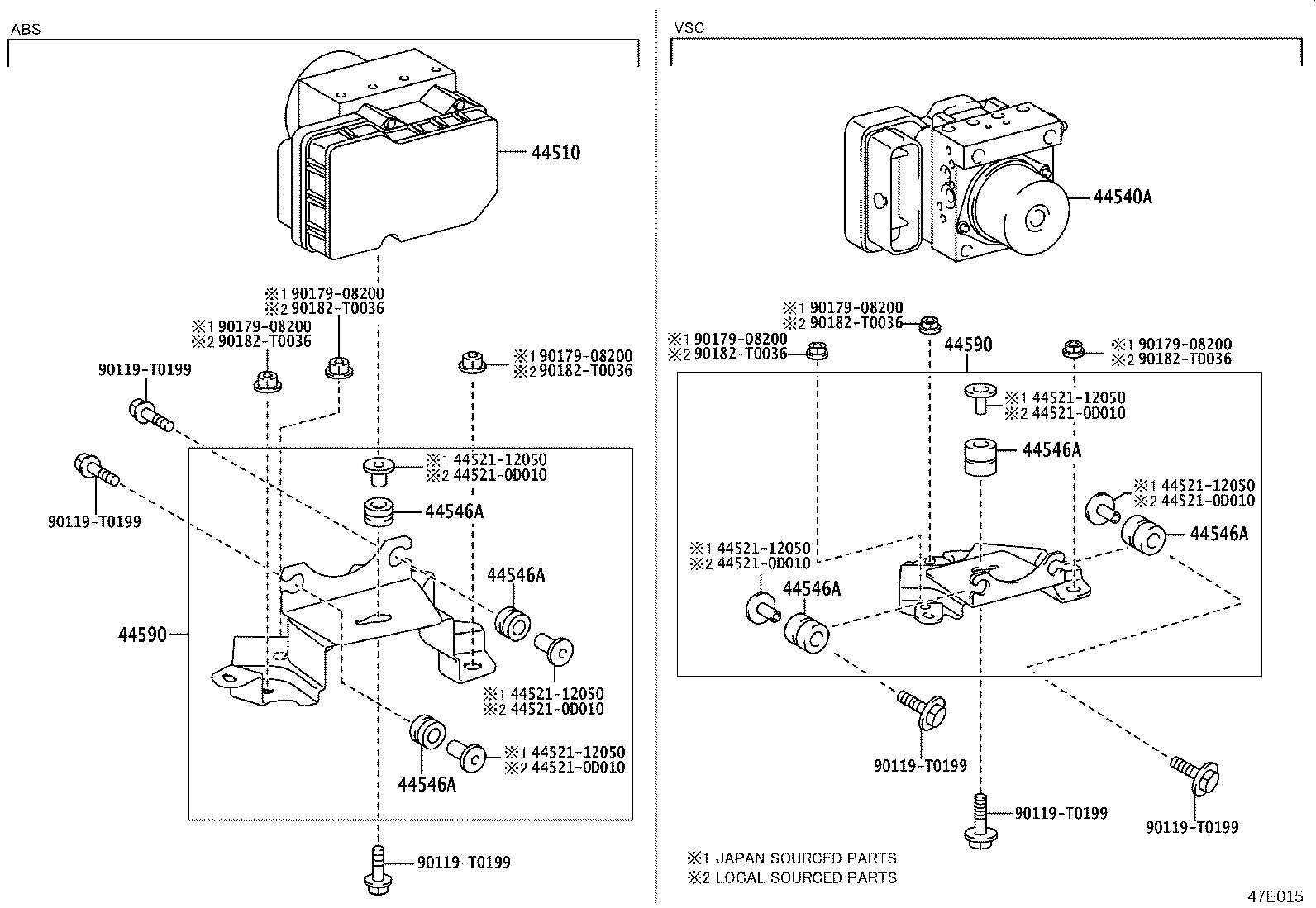

44510 Actuator Assy, Brake

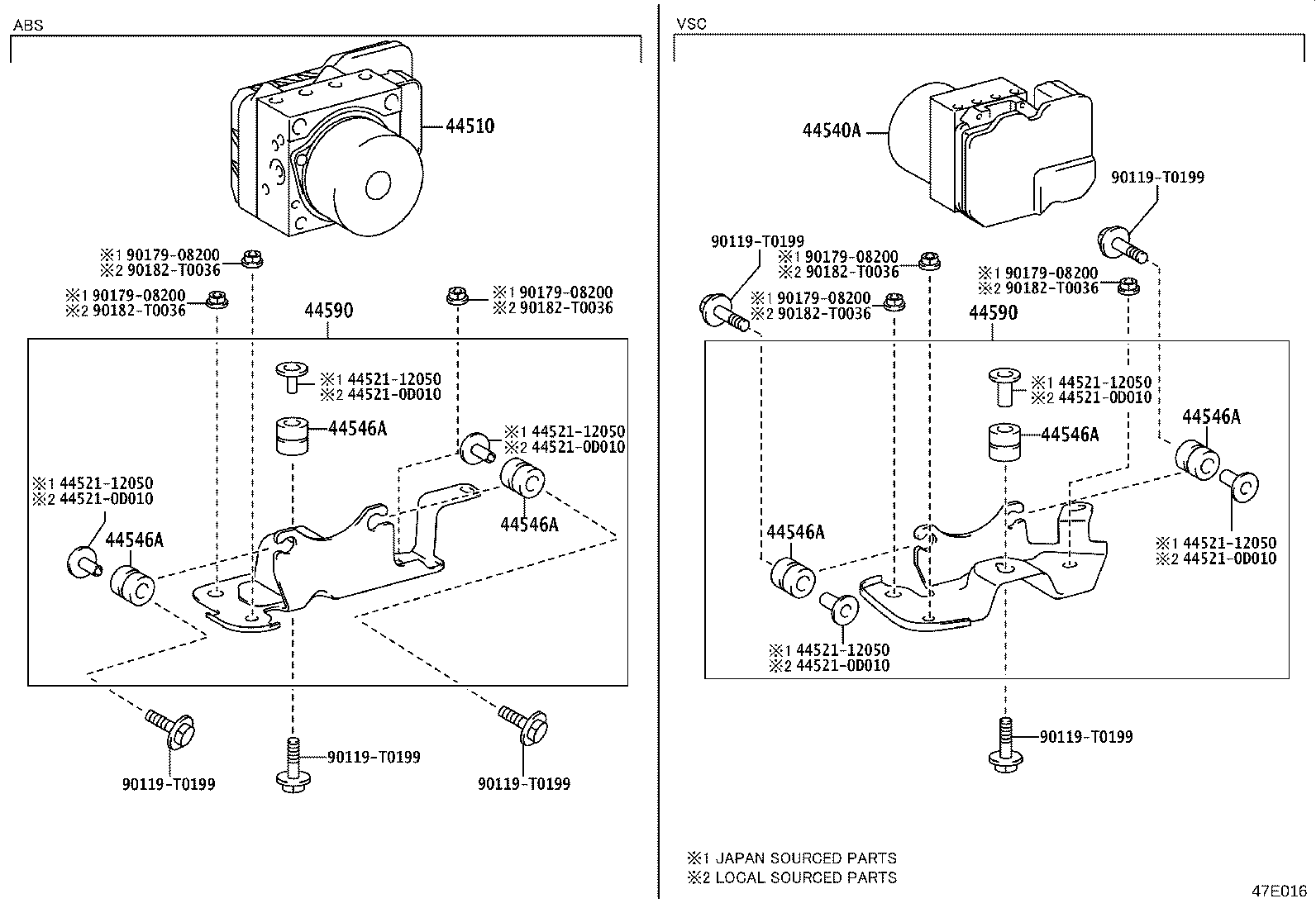

44540A Actuator Assy, Vsc
44546A Cushion, Brake Actuator Bolt
44590 Bracket Assy, Brake Actuator
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319 Tube, Front Brake, NO.9
47319F Hose, Flexible(FOR REAR LH)
47321B Hose, Flexible(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47341B Tube, Wheel Cylinder, Front RH NO.1
47343A Tube, Wheel Cylinder, Front LH NO.1
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353A Bracket, Flexible Hose, Front RH NO.2
47354A Bracket, Flexible Hose, Front LH NO.2
47355A Bracket, Flexible Hose, NO.5
47356 Bracket, Flexible Hose, NO.6
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47372 Clamp, Brake Tube, NO.2
47373A Bracket, Tube Clamp
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47383 Bracket, Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
