Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

54 part groups · 10 illustrations

Illustrations

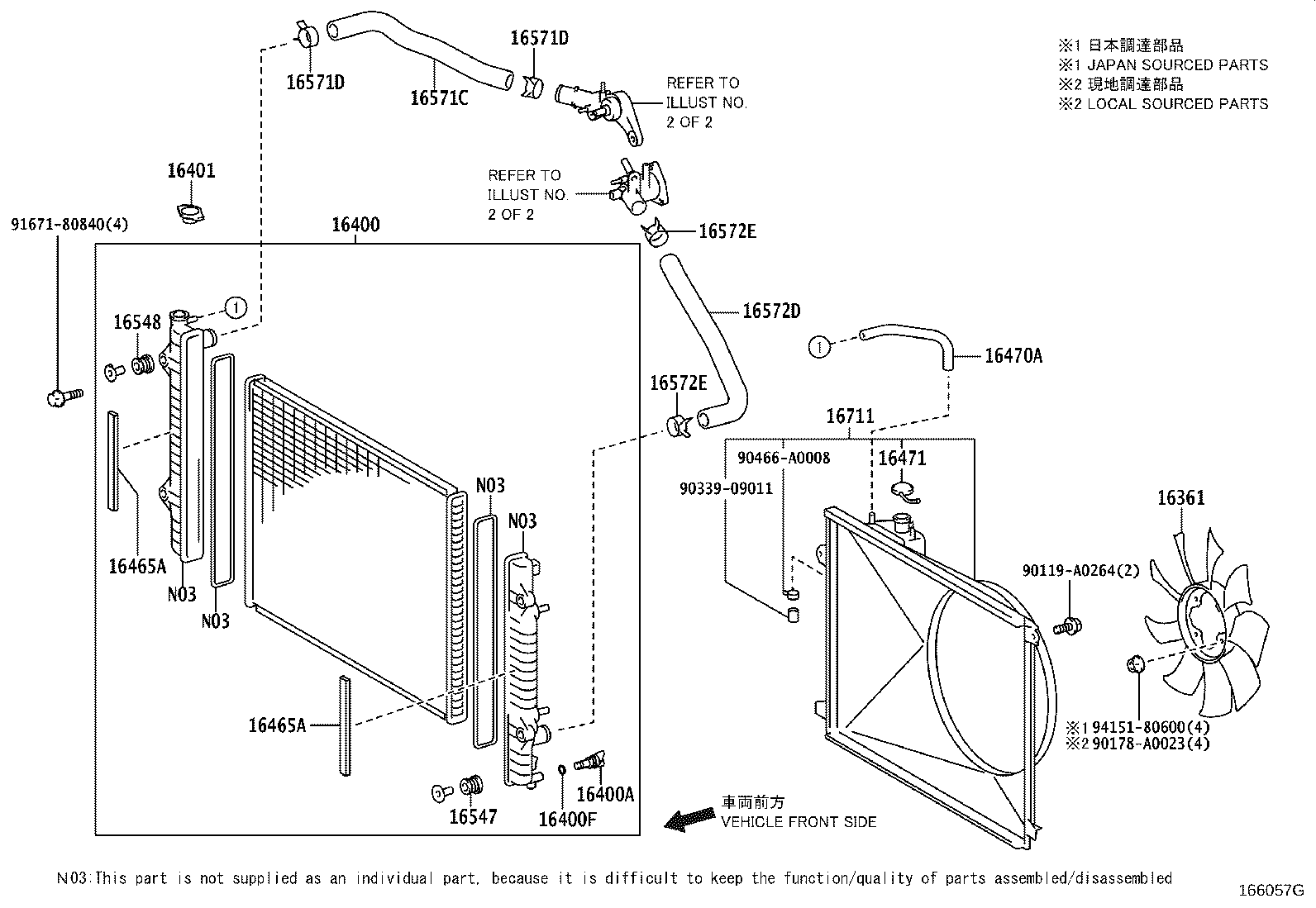

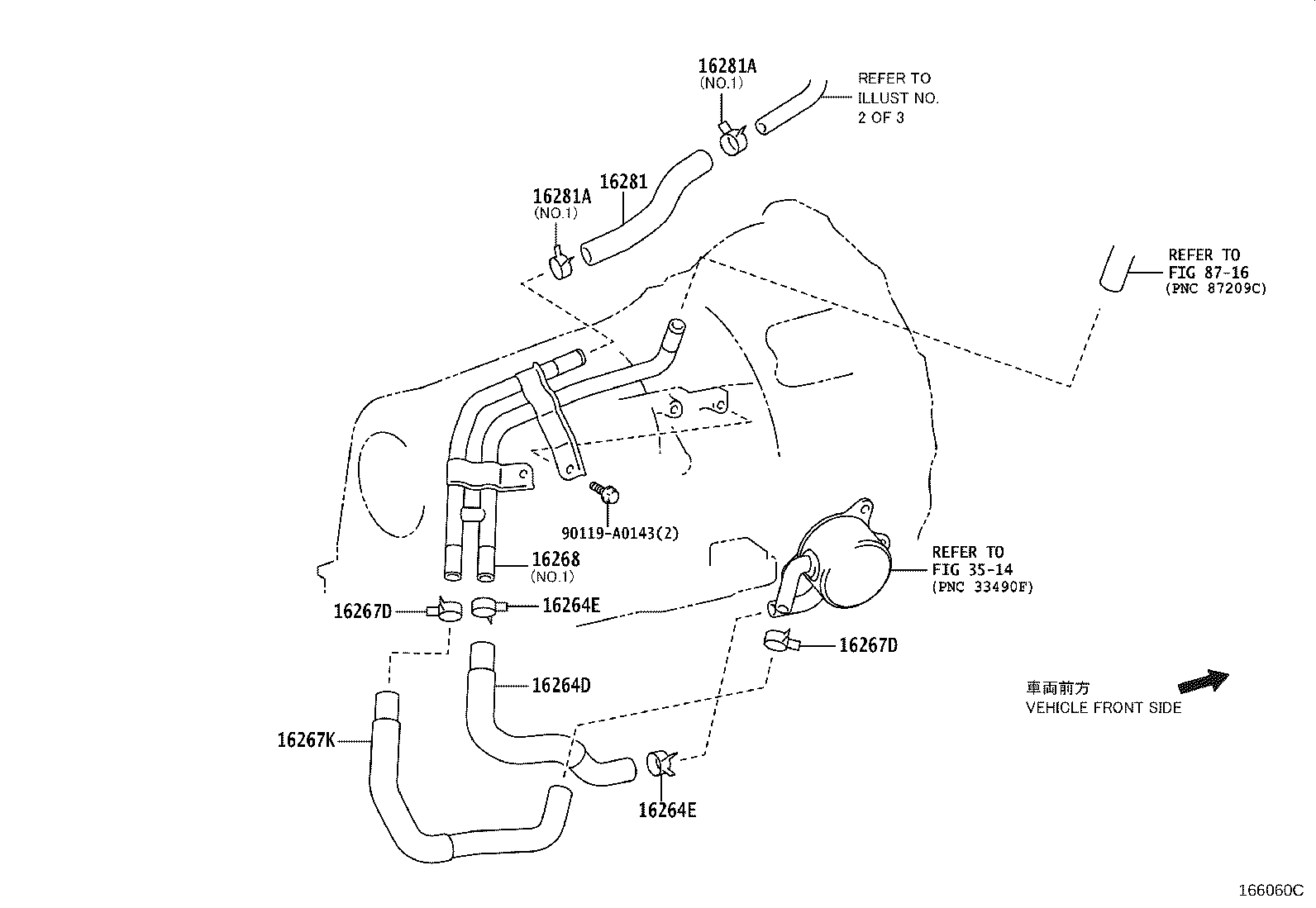

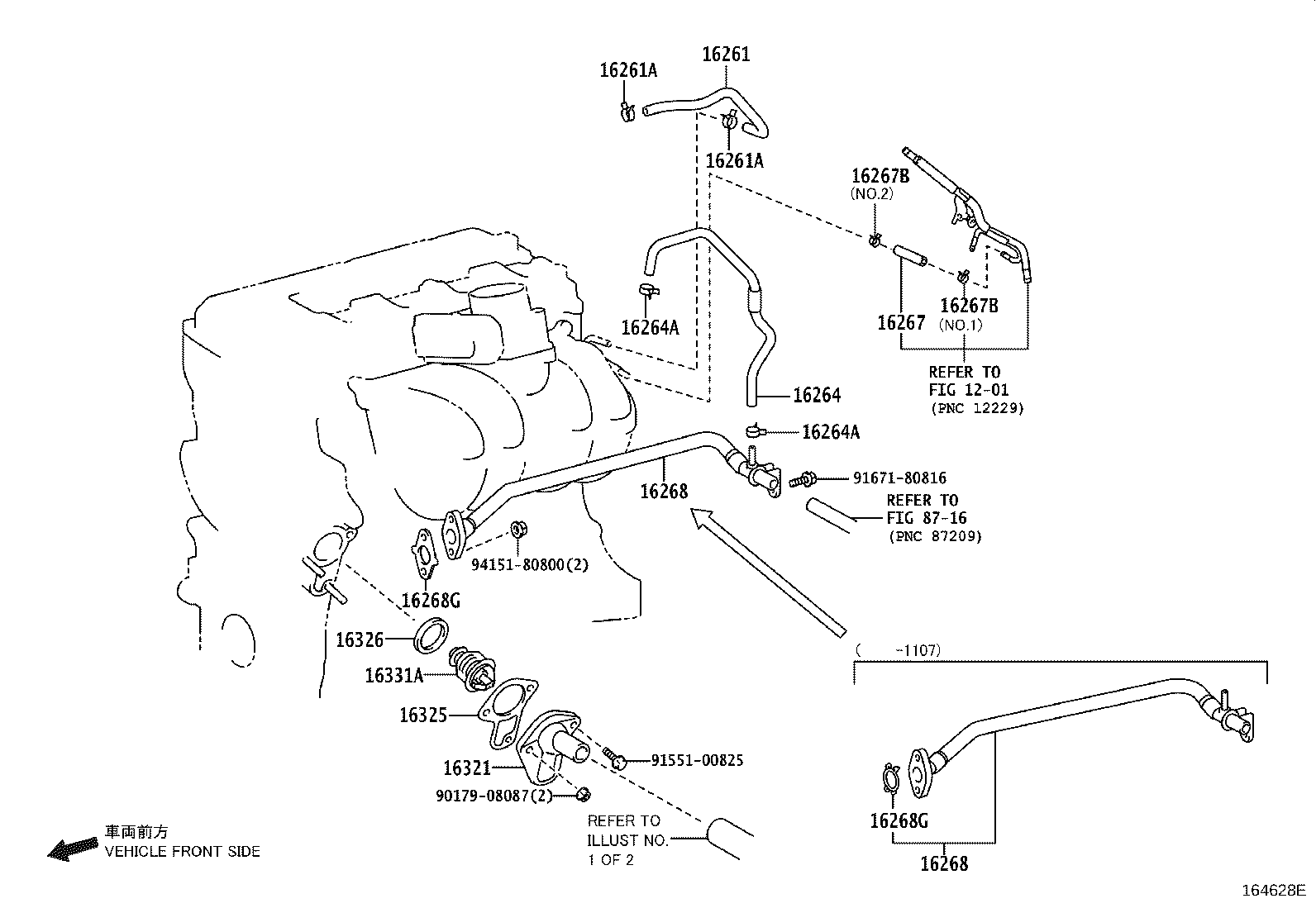

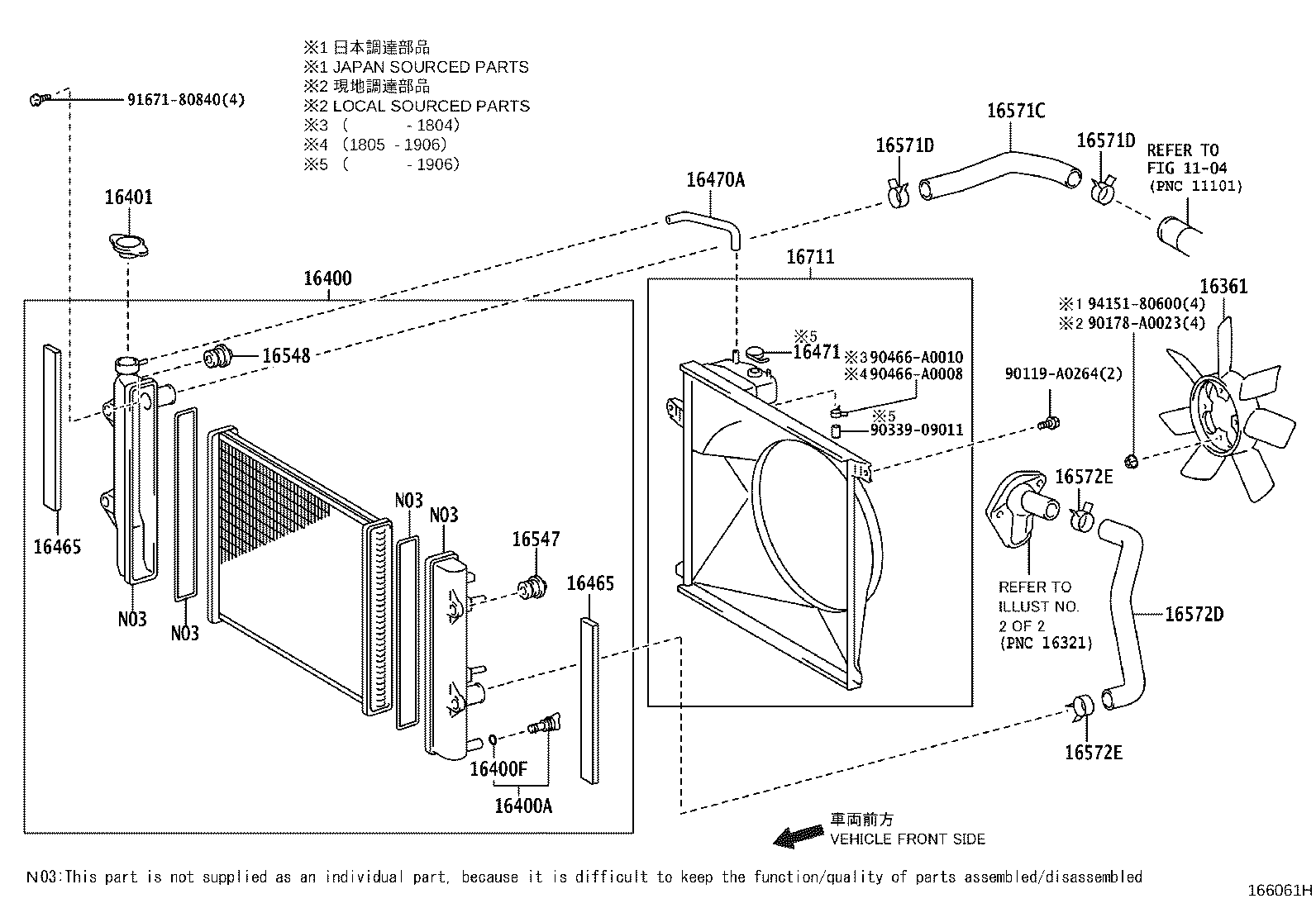

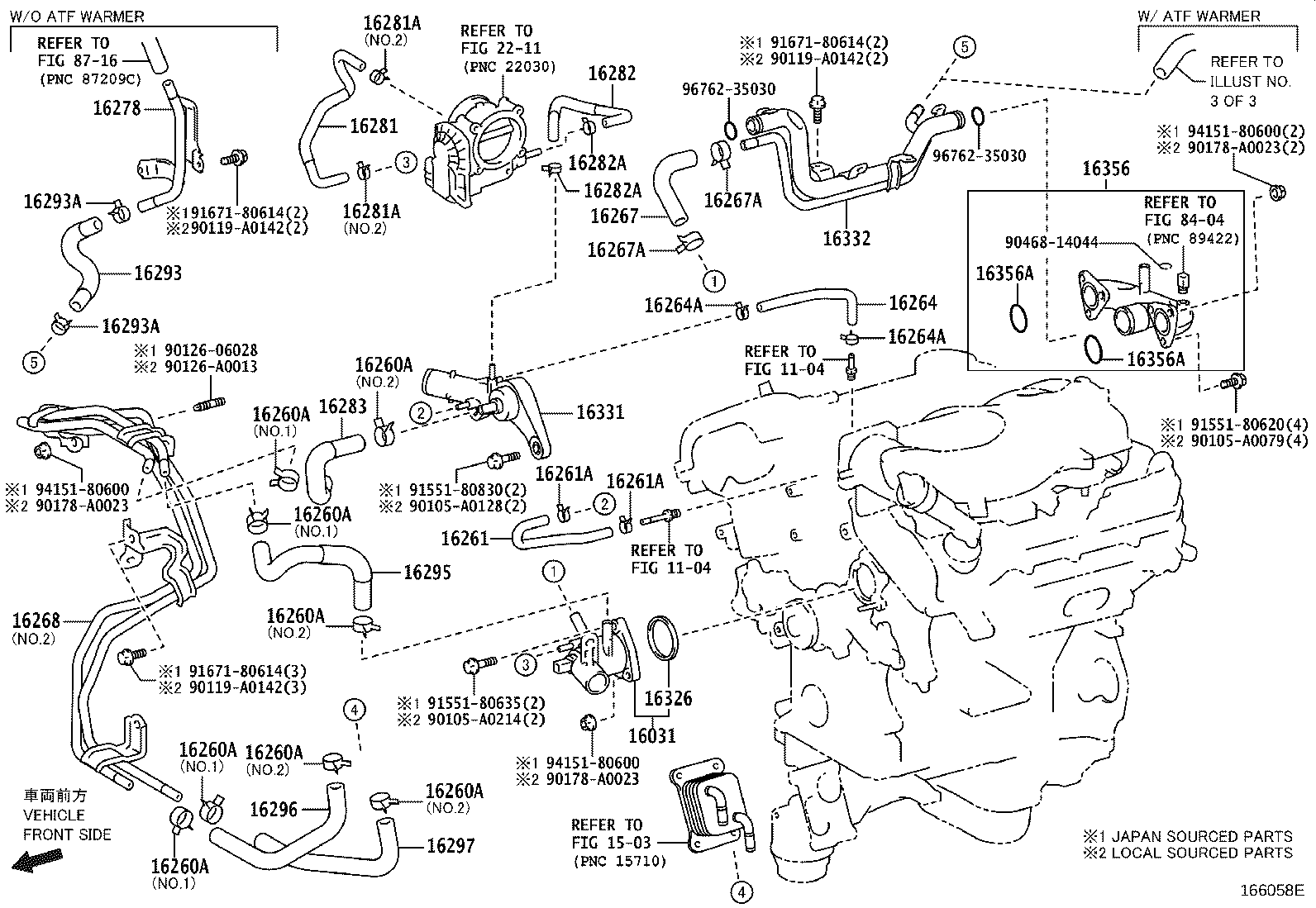

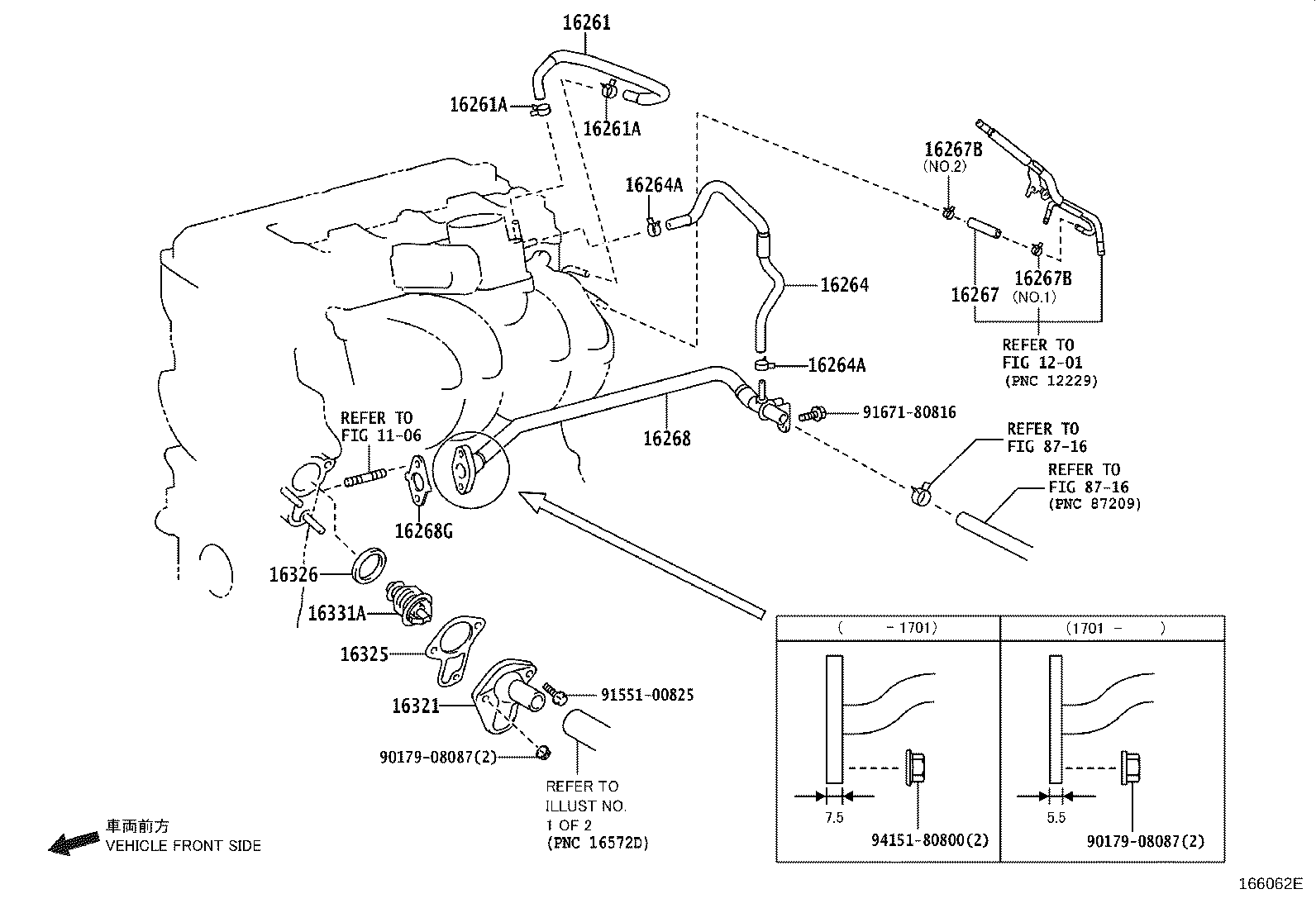

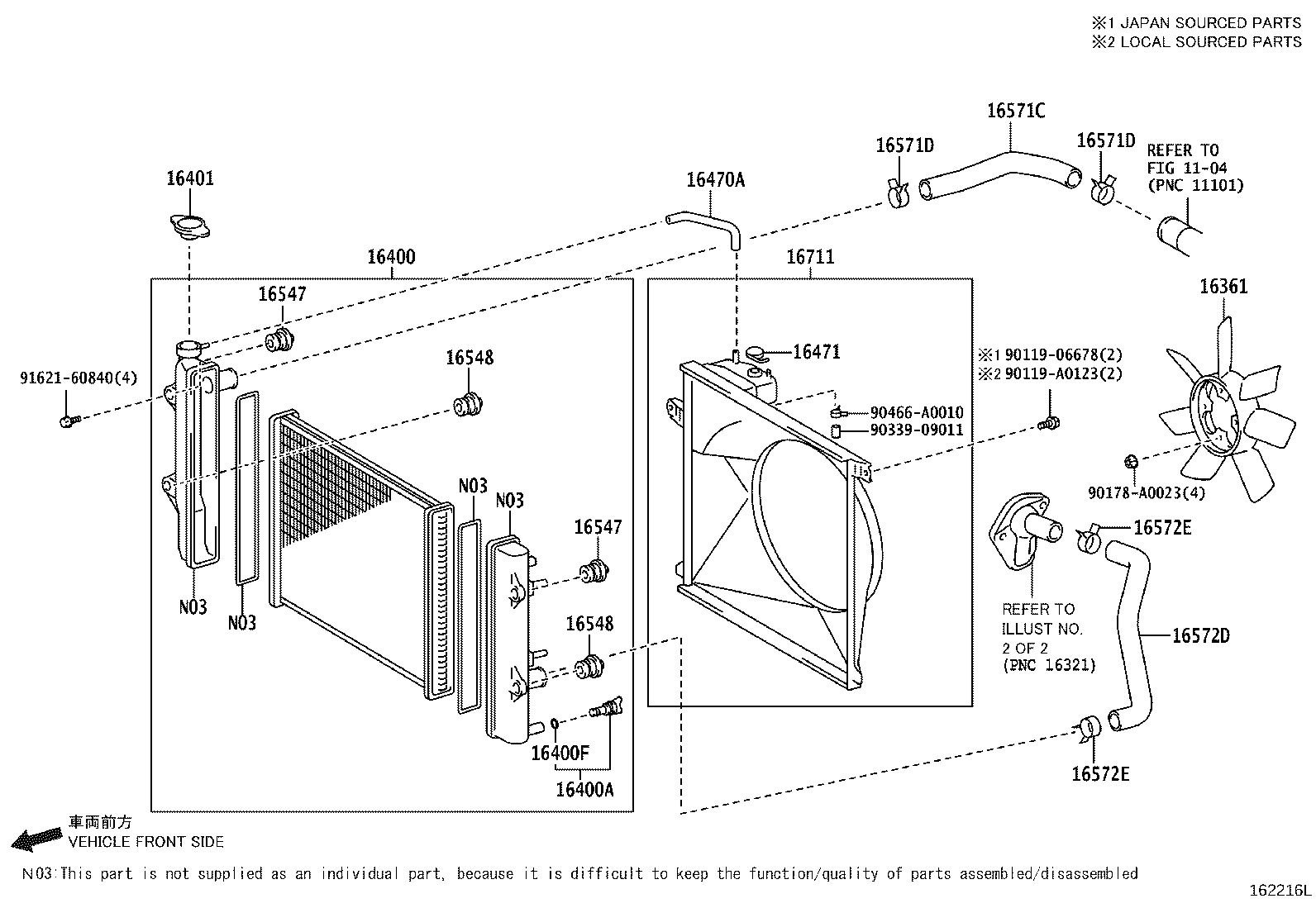

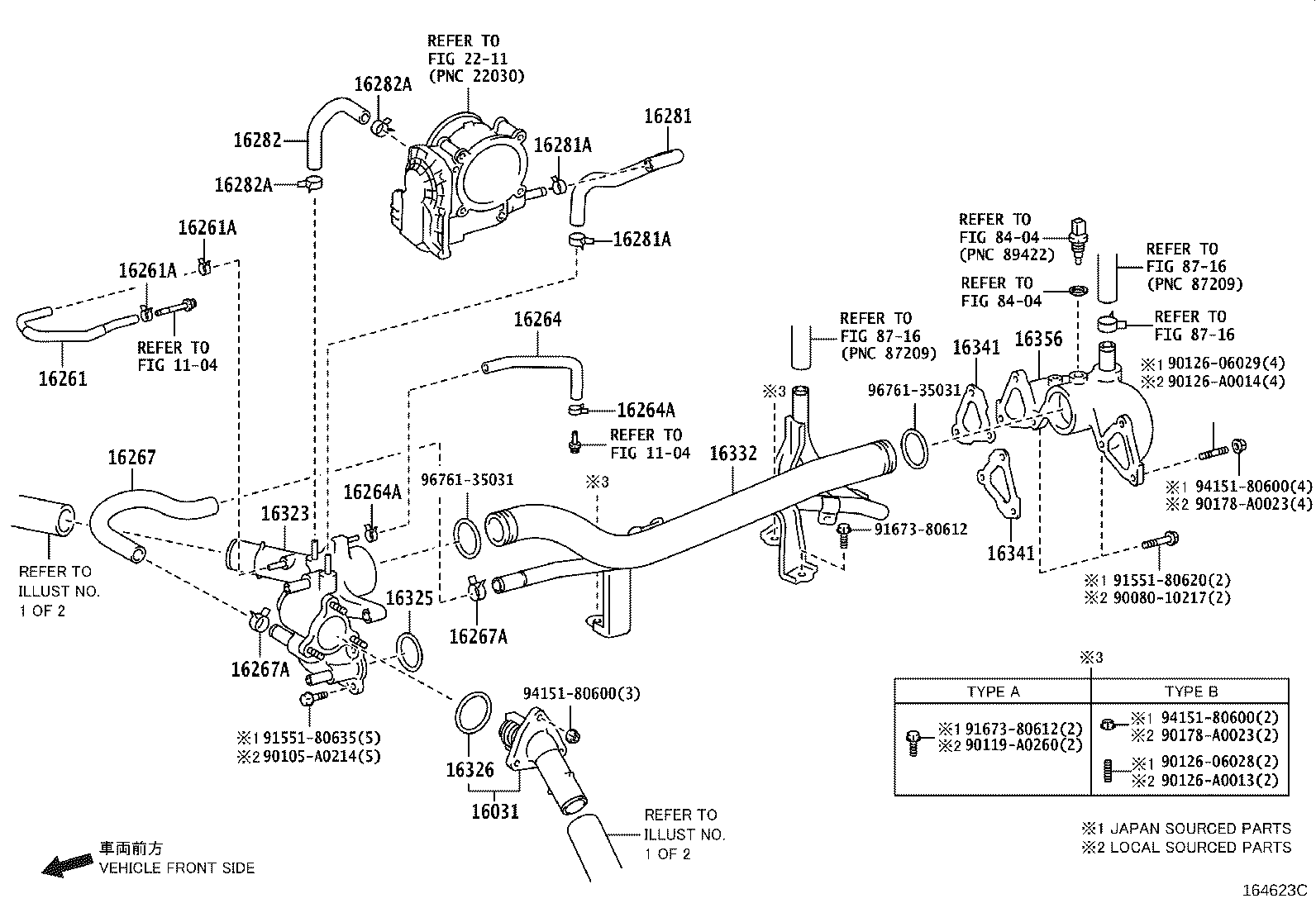

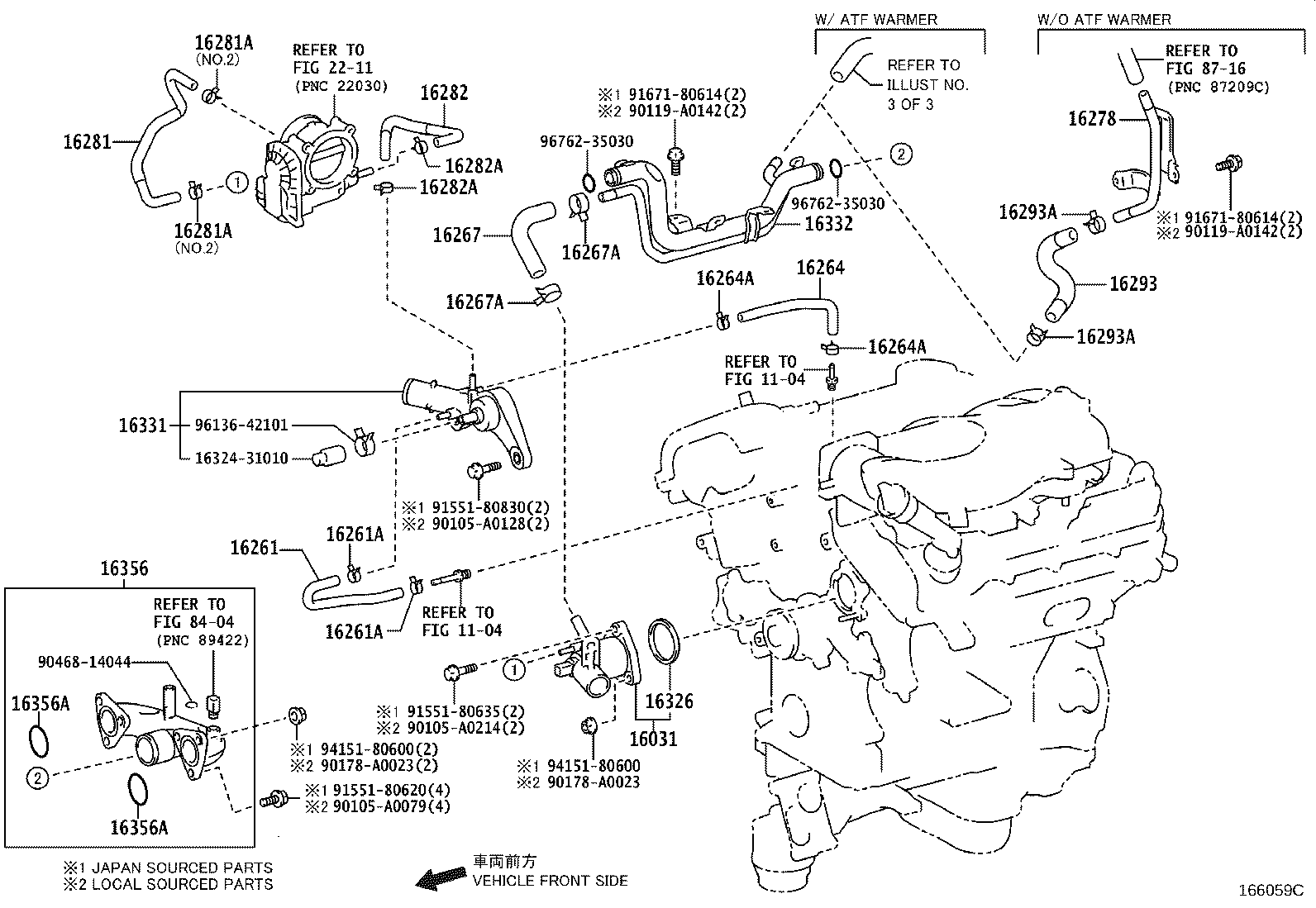

Figure 164622A 164622A 2004-09 → — Figure 164623C 164623C 2004-09 → — Figure 166057G 166057G 2015-08 → — Figure 166059C 166059C 2015-08 → — Figure 166058E 166058E 2015-08 → — Figure 166060C 166060C 2015-08 → — Figure 162216L 162216L 2004-09 → 2015-08 Figure 166061H 166061H 2015-08 → — Figure 164628E 164628E 2004-09 → 2015-08 Figure 166062E 166062E 2015-08 → —

Part groups

PNCDescription
16031 Water Inlet Sub-assy, W/Thermostat
16260A Clip(FOR WATER BY-PASS HOSE ASSY)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16295 Hose, Water By-pass, NO.7
16296 Hose, Water By-pass, NO.8
16297 Hose, Water By-pass, NO.9
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16341 Gasket, Water Outlet
16356 Joint, Water By-pass, Rear
16356A Gasket(WATER BY-PASS JOINT, REAR)
16361 Fan
16400 Radiator Assy
16400A Cock Sub-assy, Radiator Drain
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16441 Tank, Radiator, Upper
16461 Tank, Radiator, Lower
16465 Packing, Radiator
16465A Packing, Radiator, NO.1
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16547 Bush, Radiator Support, NO.1
16548 Bush, Radiator Support, NO.2
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
