Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 4 illustrations

Illustrations

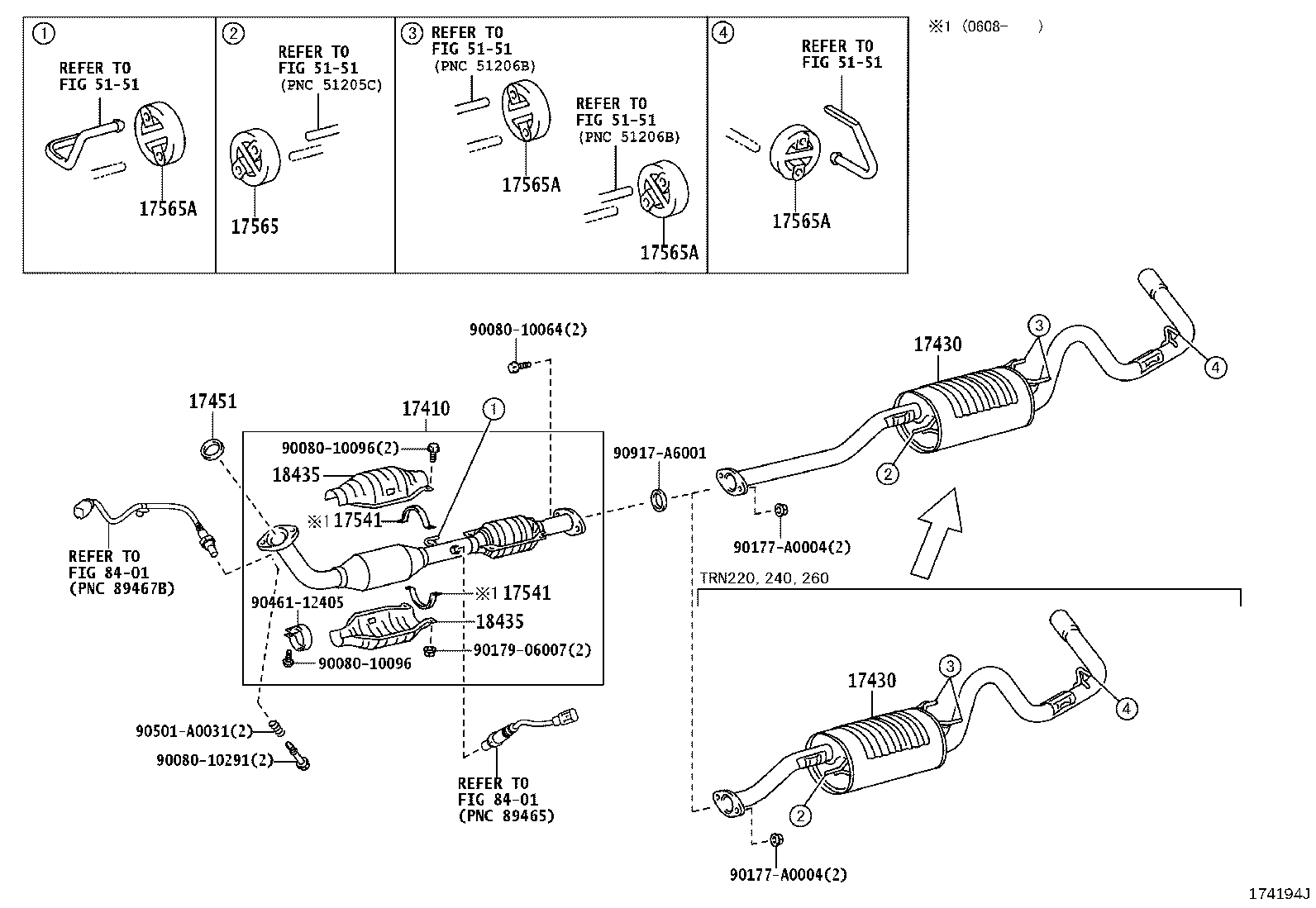

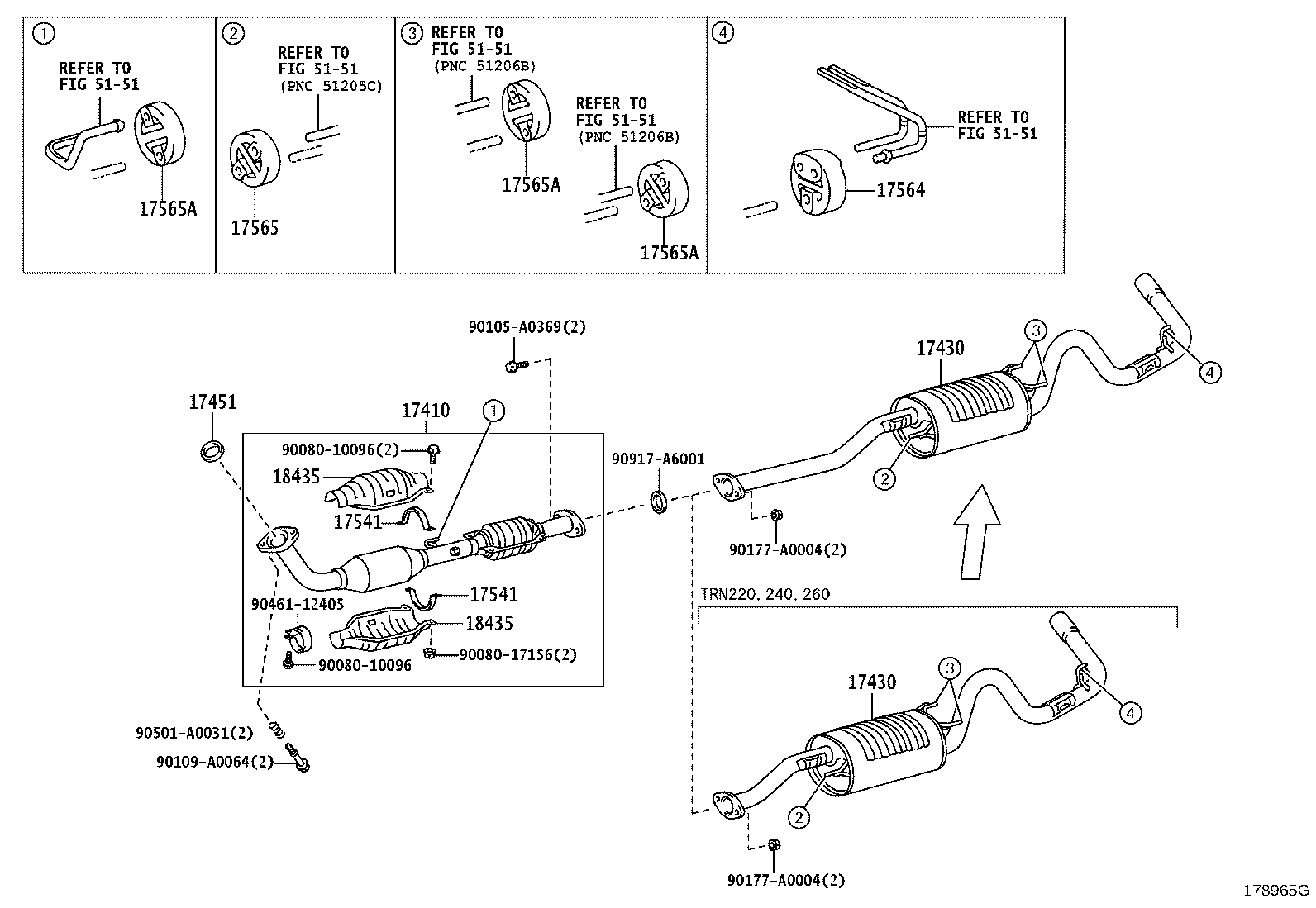

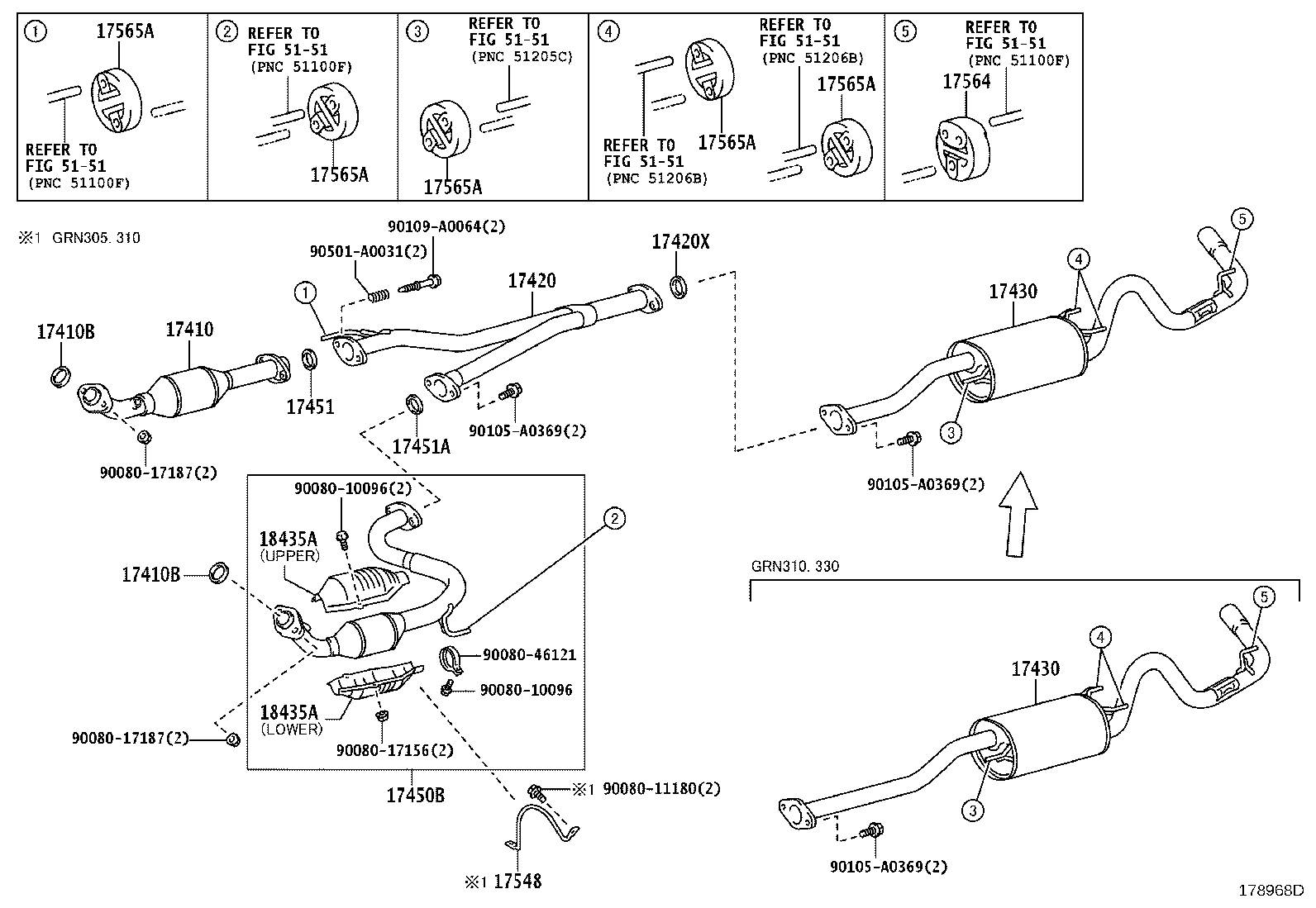

Figure 174193H 174193H 2004-09 → 2015-08 Figure 174194J 174194J 2004-09 → 2012-08 Figure 178965G 178965G 2012-08 → — Figure 178968D 178968D 2015-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17541 Stay, Exhust Pipe Protector, NO.1
17548 Bracket, Exhaust Pipe Stopper
17564 Support,Exhaust Pipe, NO.4
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
18435 Protector, Catalytic Converter
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
