Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

45 part groups · 7 illustrations

Illustrations

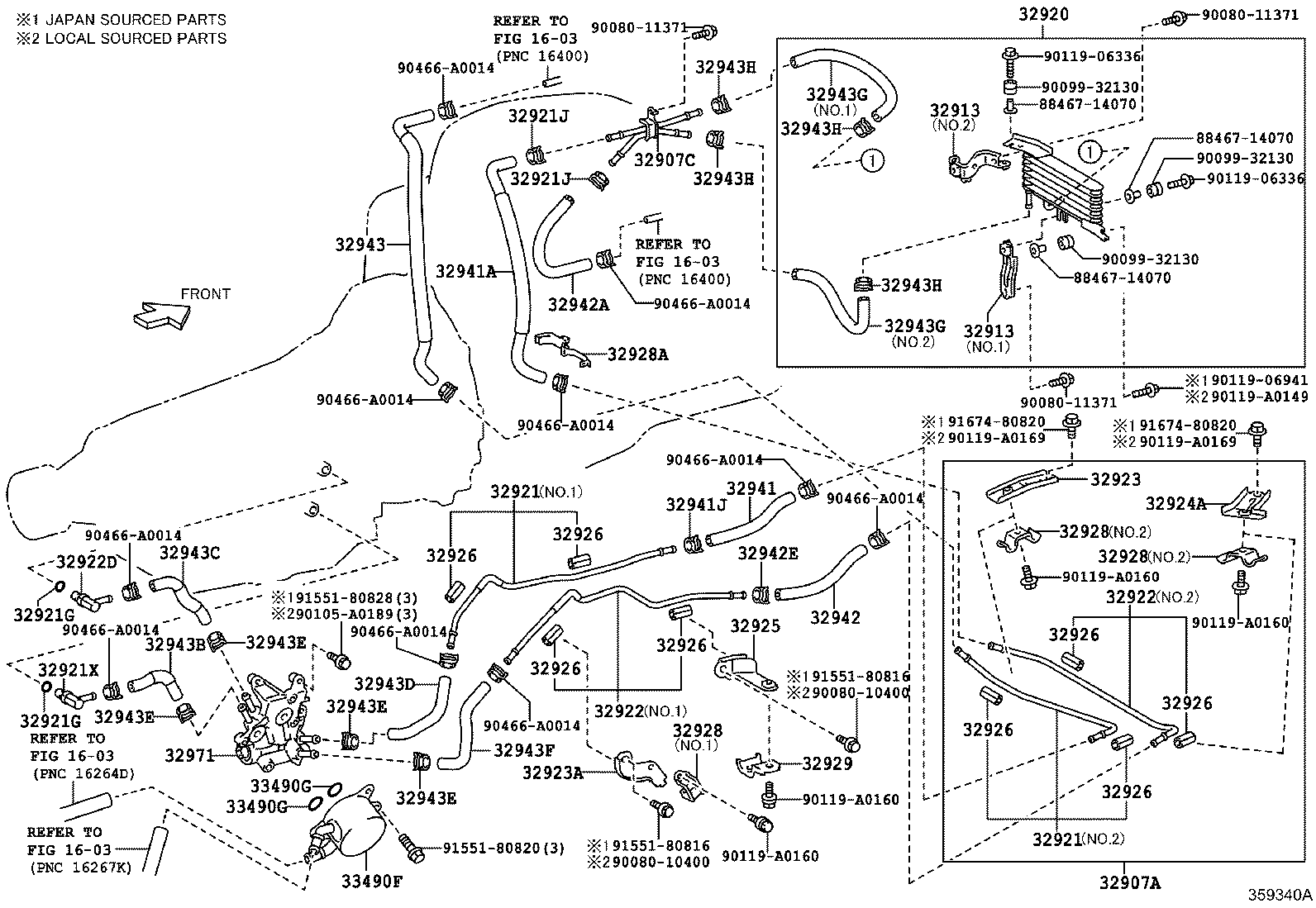

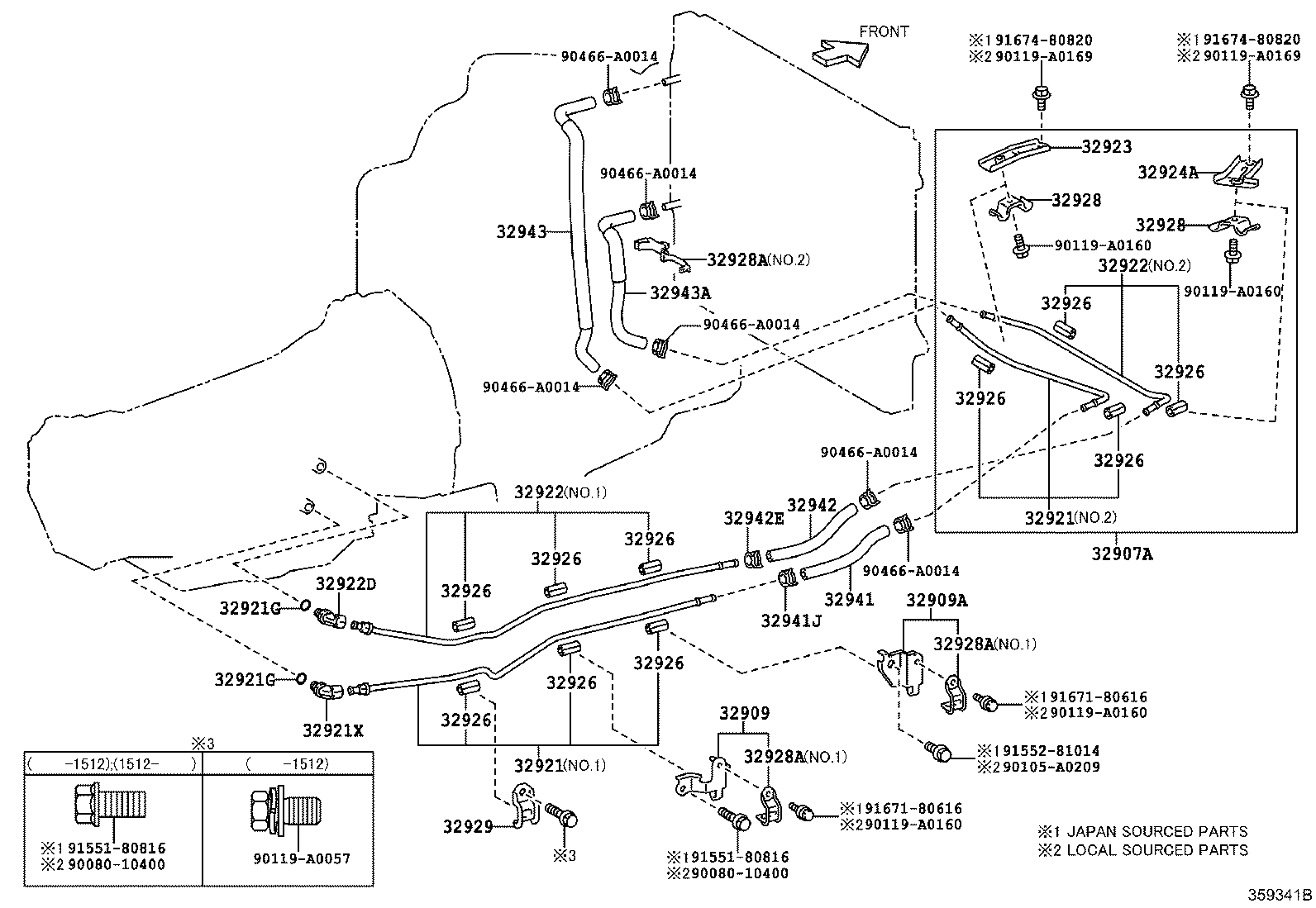

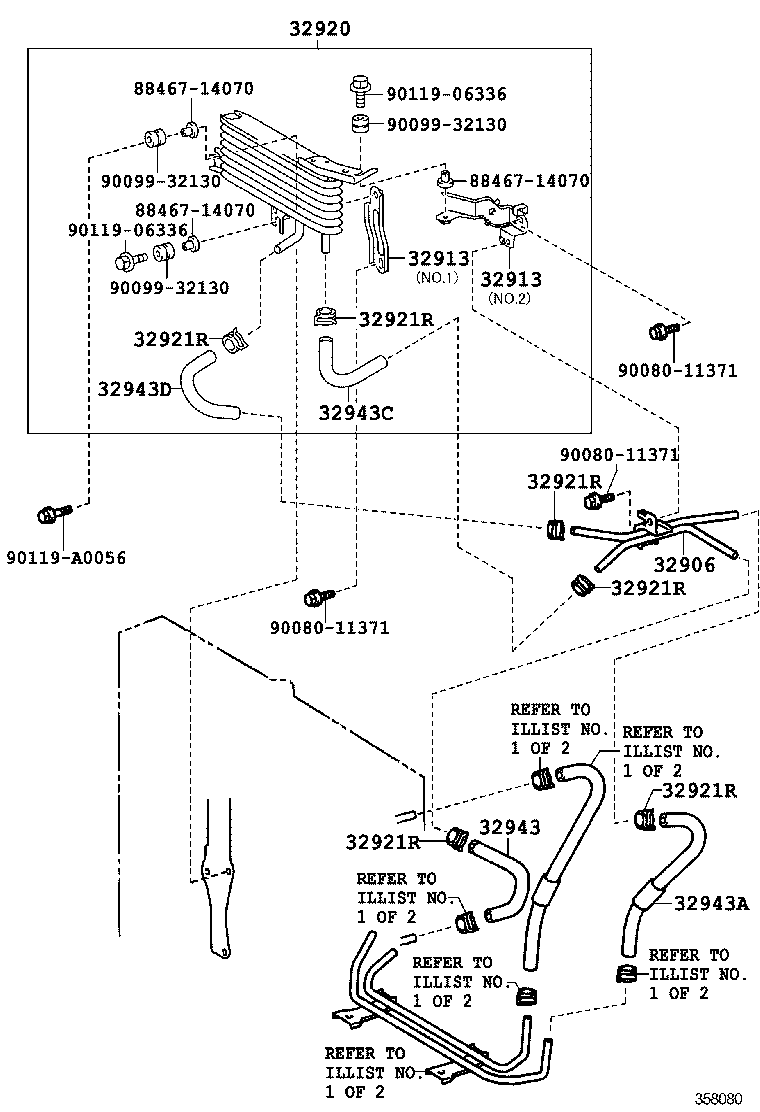

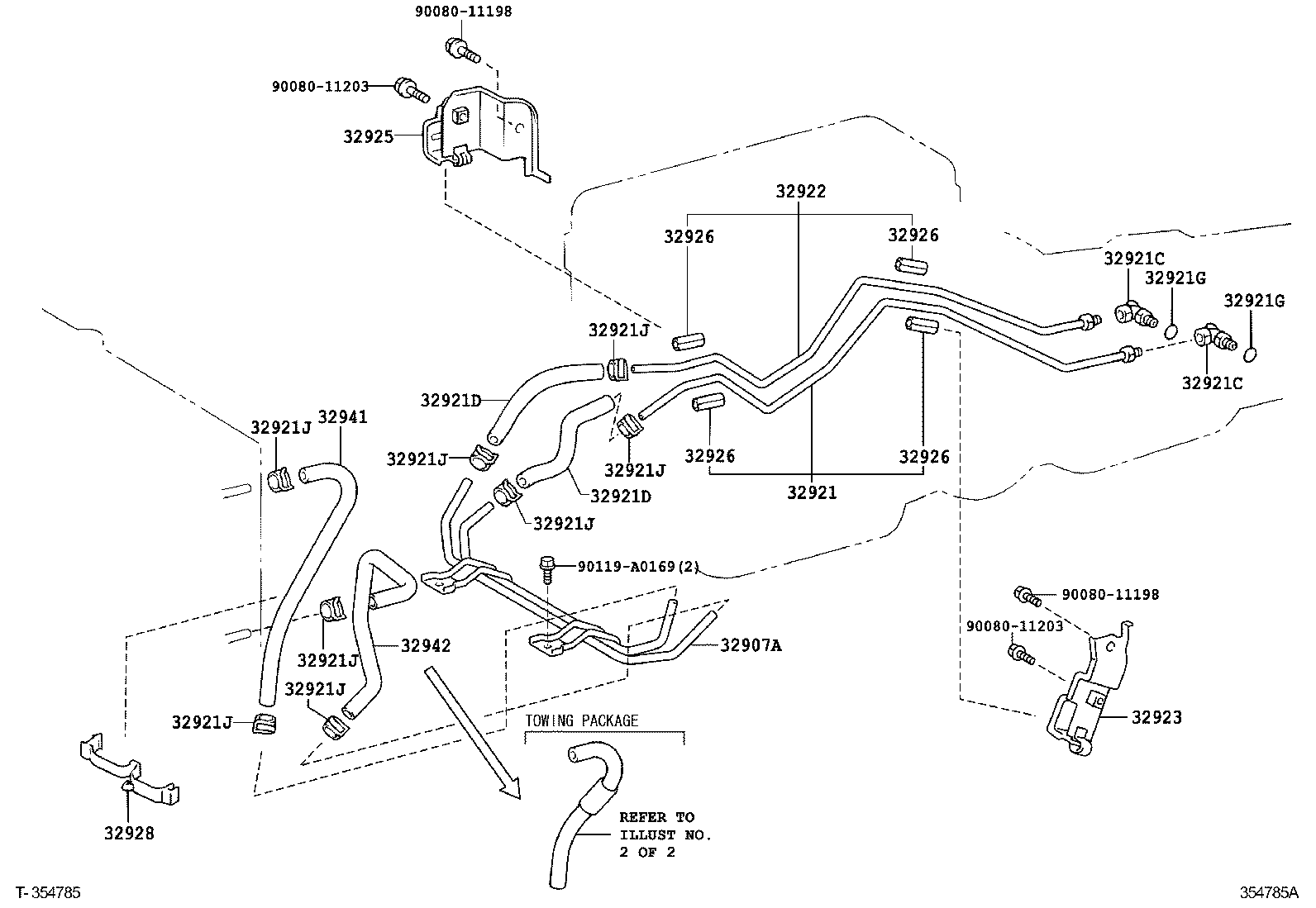

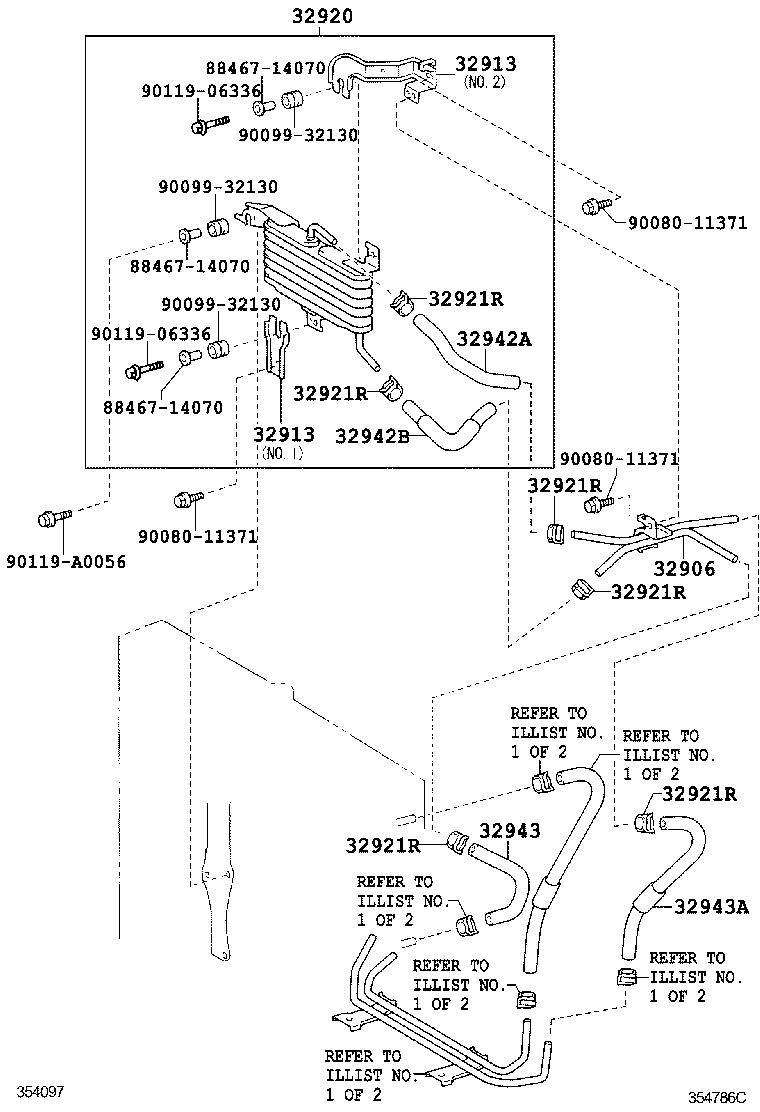

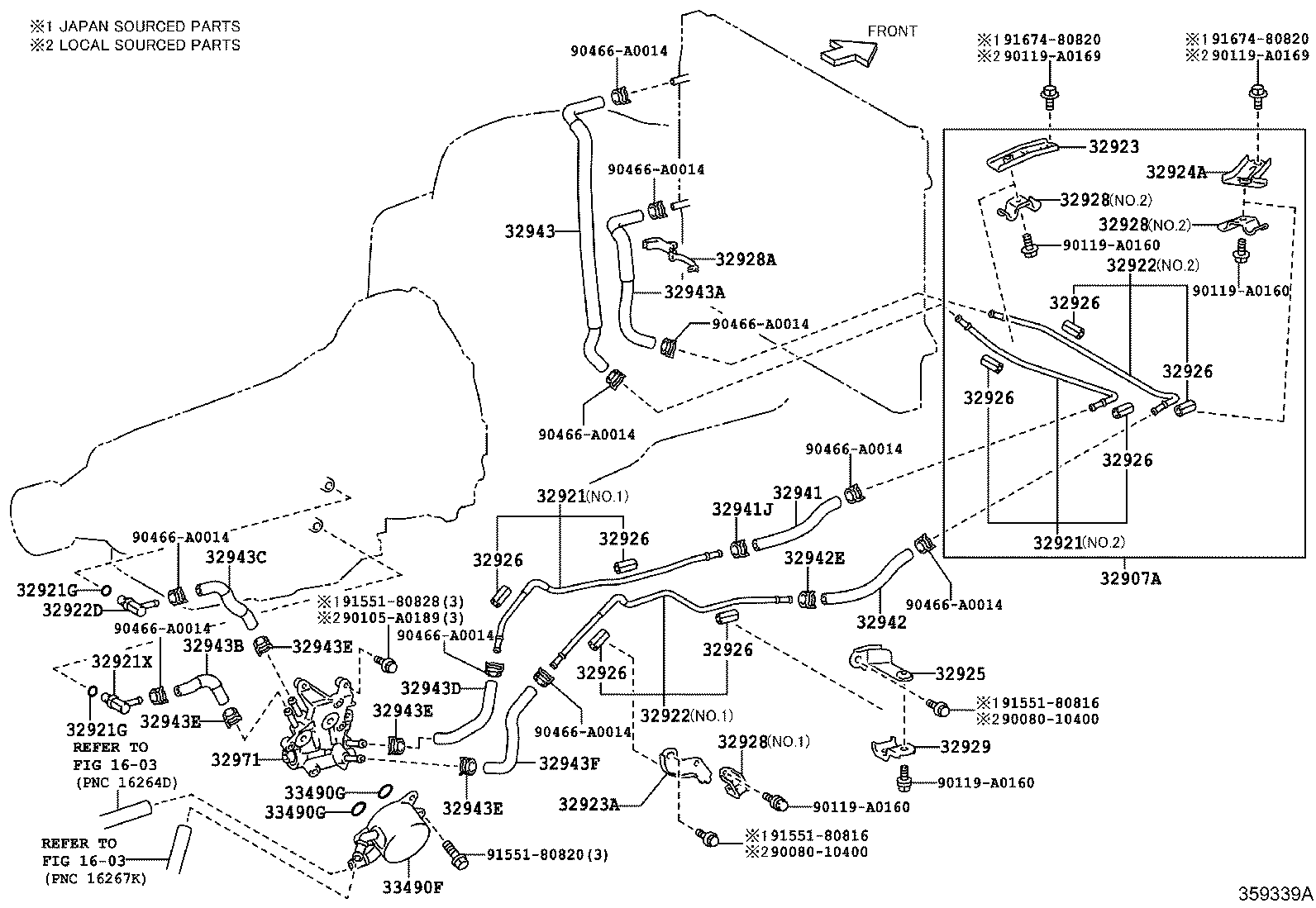

Figure 354784B 354784B 2004-09 → 2015-08 Figure 354785A 354785A 2004-09 → 2015-08 Figure 354786C 354786C 2004-09 → 2011-09 Figure 358080 358080 2011-09 → 2015-08 Figure 359339A 359339A 2015-08 → — Figure 359340A 359340A 2015-08 → — Figure 359341B 359341B 2015-08 → —

Part groups

PNCDescription
32906 Tube Sub-assy, Oil Cooler
32907A Tube, Oil Cooler
32907C Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32909 Clamp Sub-assy, Transmission Oil Cooler Tube, NO.1
32909A Clamp Sub-assy, Transmission Oil Cooler Tube, NO.2
32913 Bracket, Oil Cooler
32920 Cooler Assy, Oil W/Hose
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32921K Union, NO.2(FOR OIL COOLER TUBE)
32921R Clip, NO.2(FOR OIL COOLER HOSE)
32921X Union OR Elbow, Oil Cooler Inlet
32922 Tube, Oil Cooler Outlet, NO.1
32922D Union OR Elbow, Oil Cooler Outlet
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32925 Clamp, Oil Cooler Tube, NO.3
32926 Cushion, Oil Cooler Tube(ATM)
32928 Clamp, Flexible Hose, NO.1
32928A Clamp(FOR FLEXIBLE HOSE CLAMP)
32929 Clamp, Flexible Hose, NO.2
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942B Hose, Oil Cooler Outlet, NO.3
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
32943B Hose, Transmission Oil Cooler
32943C Hose, Transmission Oil Cooler, NO.3
32943D Hose, Transmission Oil Cooler, NO.4
32943E Clip, NO.3(FOR OIL COOLER HOSE)
32943F Hose, Transmission Oil Cooler, NO.5
32943G Hose, Transmission Oil Cooler, NO.6
32943H Clip, NO.4(FOR OIL COOLER HOSE)
32971 Thermostat, Transmission Oil
33490F Cooler Assy, Transmission Oil
33490G Ring, O (FOR TRANSMISSION OIL COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
