Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

32 part groups · 3 illustrations

Illustrations

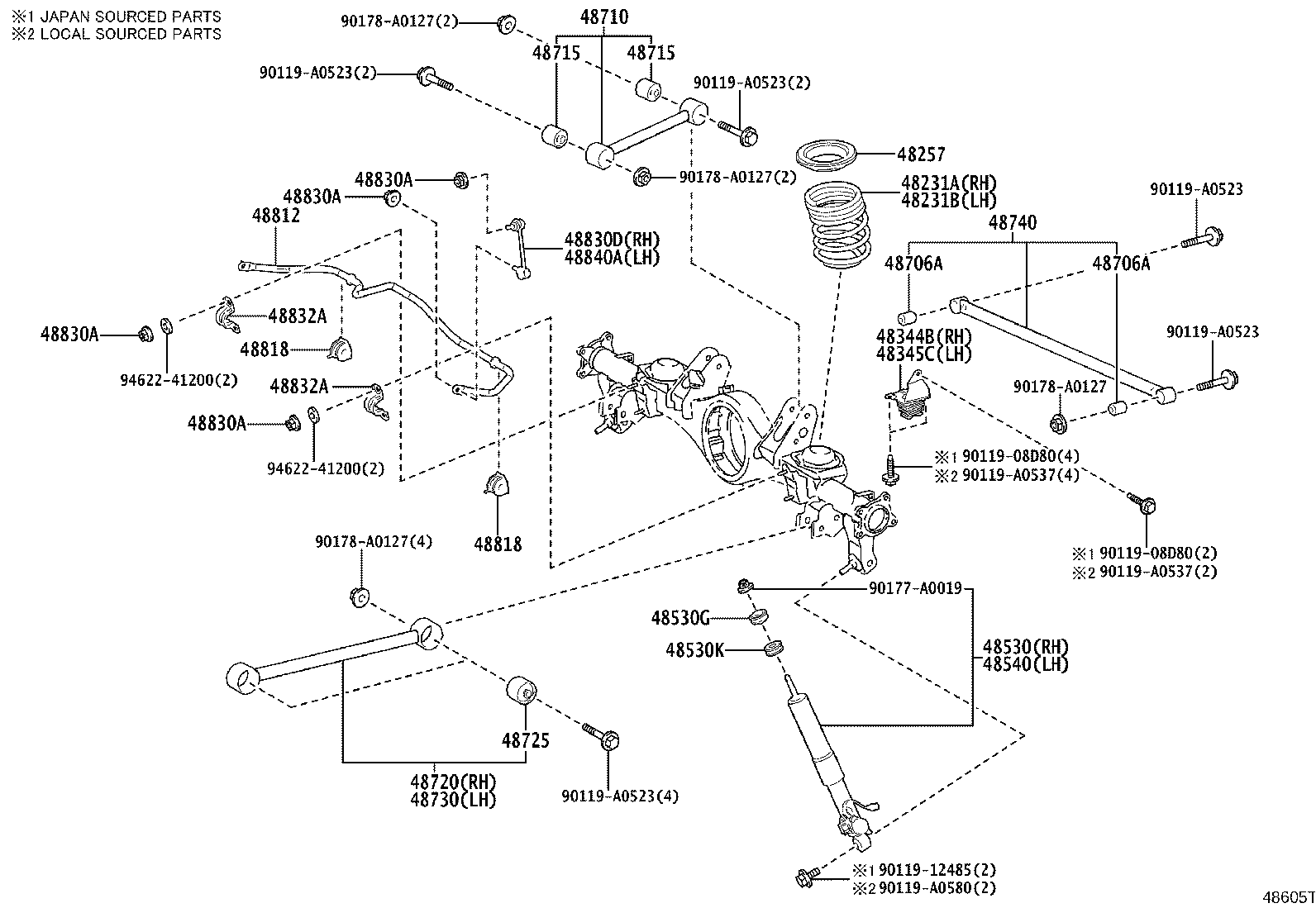

Figure 48605R 48605R 2023-12 → — Figure 48605S 48605S 2023-12 → — Figure 48605T 48605T 2023-12 → —

Part groups

PNCDescription
04483A Shackle Kit, Rear Spring, RH
04483B Shackle Kit, Rear Spring, LH
48046A Bolt, U(FOR REAR SPRING)
48046B Washer(FOR REAR SPRING U BOLT)
48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210J Bush, NO.2(FOR REAR SPRING LEAF)
48210Q Bush(FOR REAR SPRING SHACKLE)
48220 Spring Assy, Rear LH
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48257 Insulator, Rear Coil Spring
48344B Stopper, Bumper, Rear RH
48345C Stopper, Bumper, Rear LH
48473 Seat, Rear Spring U Bolt
48530 Absorber Assy, Shock, Rear RH
48530G Cushion, Rear Shock Absorber, NO.1
48530K Cushion, Rear Shock Absorber, NO.2
48540 Absorber Assy, Shock, Rear LH
48706A Bush Sub-assy, Rear Lateral Control Rod
48710 Arm Assy, Upper Control
48715 Bush, Upper Control Arm
48720 Arm Assy, Lower Control, RH
48725 Bush, Lower Control Arm
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48812 Bar, Stabilizer, Rear
48818 Bush, Stabilizer, Rear
48830A Nut(FOR REAR STABILIZER LINK)
48830D Link Assy, Rear Stabilizer, RH
48832A Bracket, Rear Stabilizer Bar, NO.1
48840A Link Assy, Rear Stabilizer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
