Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

23 part groups · 3 illustrations

Illustrations

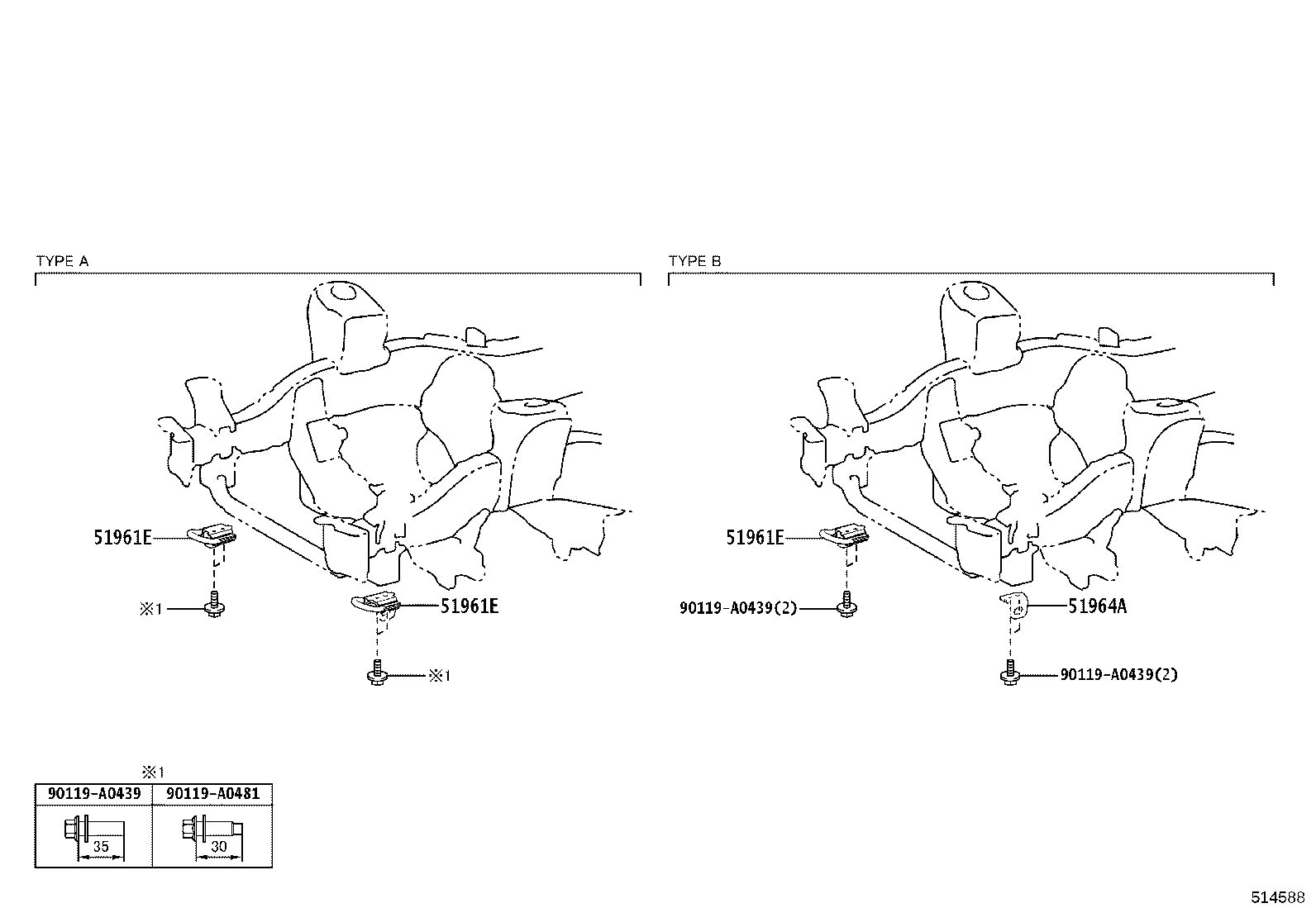

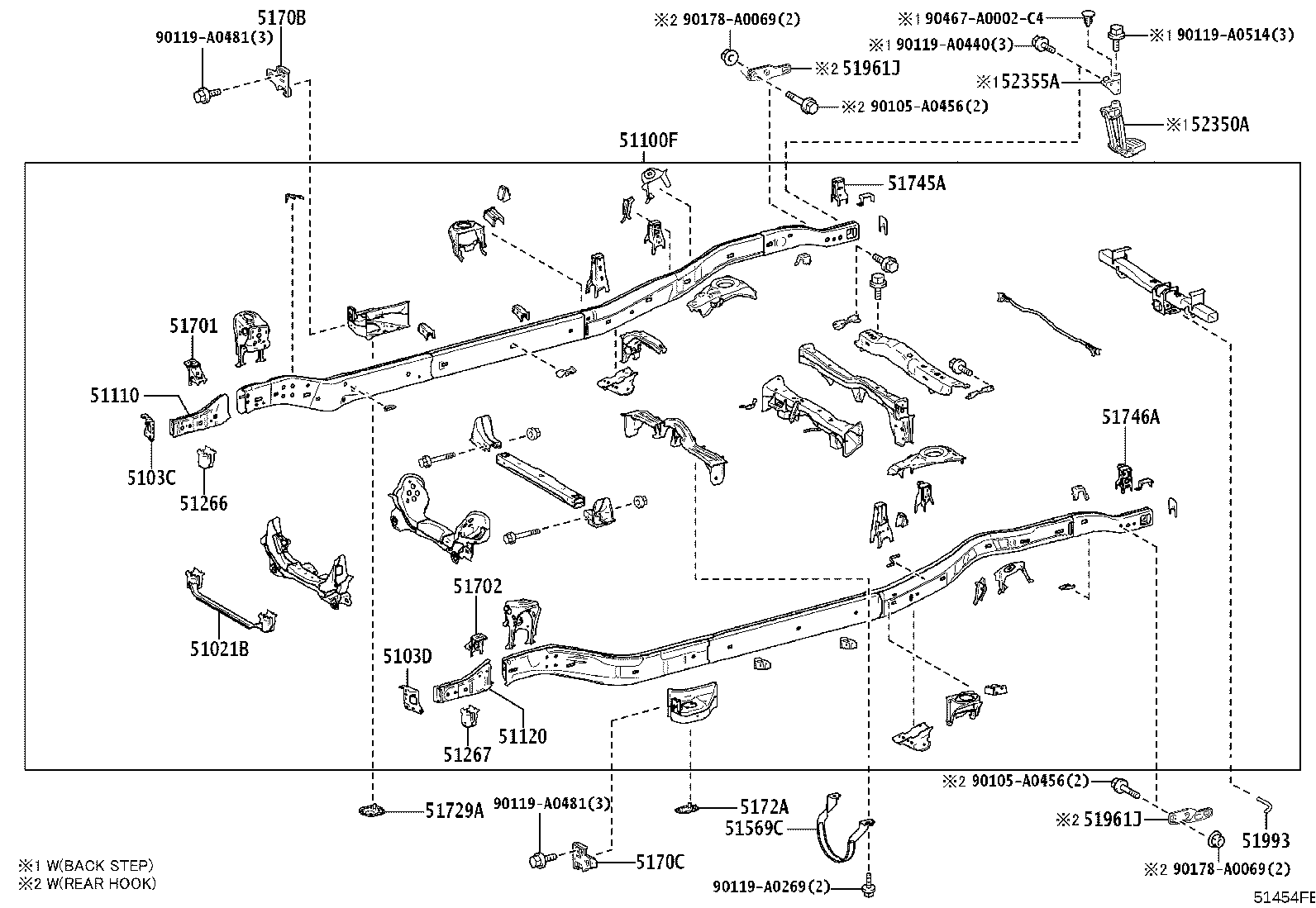

Figure 51454EF 51454EF 2023-12 → — Figure 51454FE 51454FE 2023-12 → — Figure 514588 514588 2023-12 → —

Part groups

PNCDescription
51021B Crossmember Sub-assy, Frame Auxiliary
5103C Plate Sub-assy, Side Rail Extension, RH
5103D Plate Sub-assy, Side Rail Extension, LH
51100F Frame Sub-assy
51110 Extension Assy, Side Rail, RH
51120 Extension Assy, Side Rail, LH
51266 Gusset, Frame Crossmember, RH
51267 Gusset, Frame Crossmember, LH
51569C Guard, Propeller Shaft
51701 Bracket Sub-assy, Cab Mounting, NO.1 RH
51702 Bracket Sub-assy, Cab Mounting, NO.1 LH
5170B Reinforce Sub-assy, Cab Mounting Bracket, NO.1 RH
5170C Reinforce Sub-assy, Cab Mounting Bracket, NO.1 LH
51729A Cover, NO.2 Cab Mounting, RH
5172A Cover, NO.2 Cab Mounting, LH
51745A Bracket, Rear Body Mounting, NO.5 RH
51746A Bracket, Rear Body Mounting, NO.5 LH
51961E Hook, Front
51961J Hook, Rear
51964A Hook, Transport, Front LH
51993 Retainer, Receiver Hitch Cotter Pin
52350A Step Assy, Back
52355A Bracket, Back Step
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
