Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

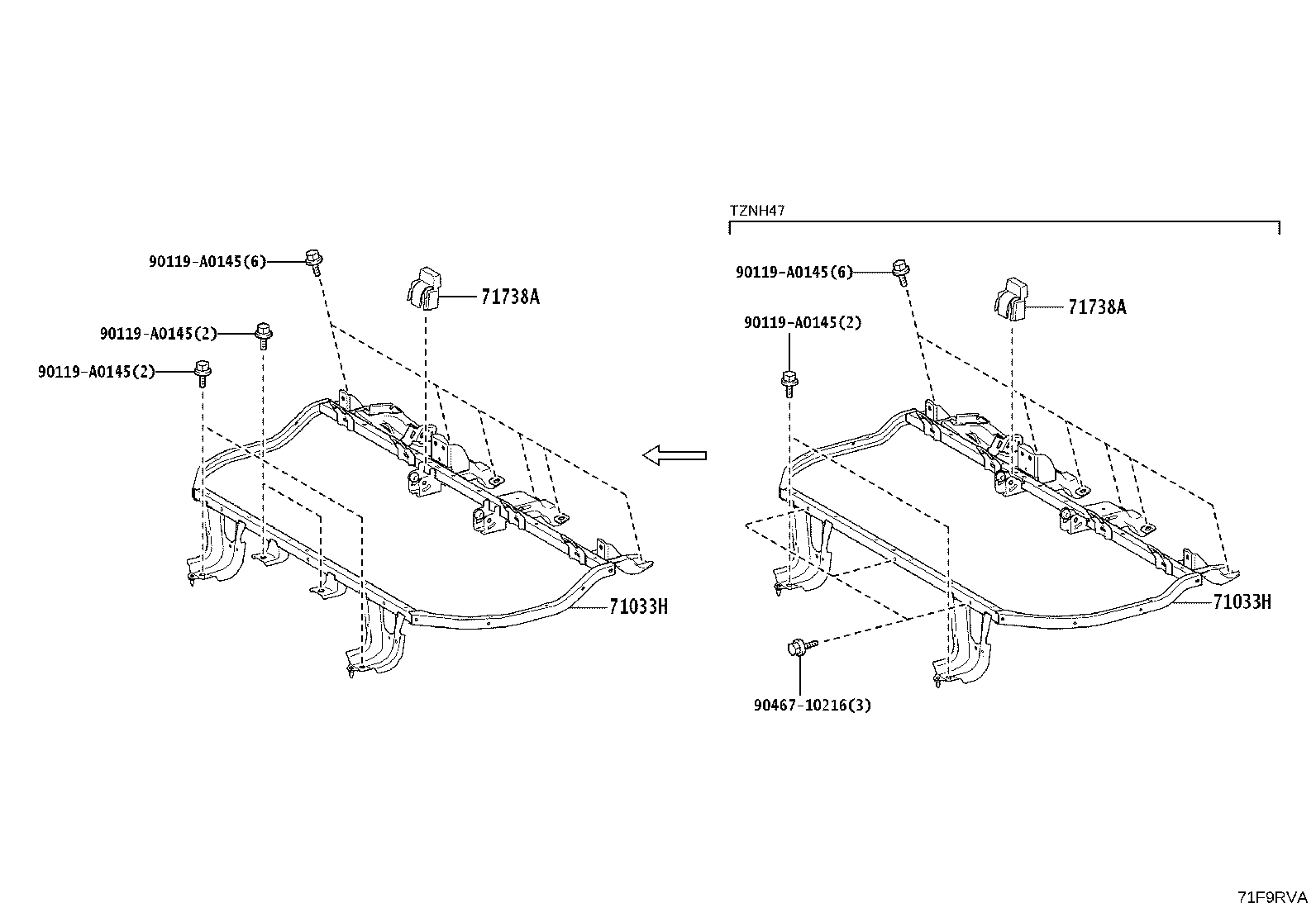

Rear Seat & Seat Track
54 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71015C | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 71016B | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 71033H | Leg Sub-assy, Rear Seat Cushion |
| 71075F | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 71076F | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 71077 | Cover Sub-assy, Rear NO.1 Seatback, RH |
| 71078A | Cover Sub-assy, Rear NO.1 Seatback, LH |
| 71211D | Panel, Rear Seat Cushion, RH |
| 71212D | Panel, Rear Seat Cushion, LH |
| 71243H | Bracket, Rear Seat Cushion Hinge, RH |
| 71243J | Bracket, Rear Seat Cushion Hinge, LH |
| 71321J | Hinge, Rear Seat Cushion |
| 71332F | Spacer, Rear Seatback Hinge |
| 71485F | Cover, Rear Seat Hinge, NO.1 RH |
| 71486E | Cover, Rear Seat Hinge, NO.2 RH |
| 71486G | Cover, Rear Seat Hinge, NO.2 LH |
| 71486H | Cover, Rear Seat Hinge, NO.1 LH |
| 71587Q | Protector, Rear Seatback Edge, RH |
| 71611H | Pad, Rear NO.1 Seat Cushion, RH |
| 71612G | Pad, Rear NO.1 Seat Cushion, LH |
| 71651A | Pad, Rear NO.1 Seatback, RH |
| 71652A | Pad, Rear NO.1 Seatback, LH |
| 71710E | Frame Assy, Rear Side Seat, RH |
| 71720D | Frame Assy, Rear Side Seat, LH |
| 71738A | Cover, Seat Fastener, RH |
| 71930H | Support Assy, NO.1 Seat Headrest, RH |
| 71930J | Support Assy, NO.1 Seat Headrest, LH |
| 71930S | Support Assy, Rear NO.1 Seat Headrest, Center |
| 71940F | Headrest Assy, NO.1 Seat, RH |
| 71940G | Headrest Assy, NO.1 Seat, LH |
| 71960J | Base Assy, Headrest Support |
| 72476B | Screw, Horizontal Jack, Inner |
| 72630H | Lock Assy, NO.1 Seatback |
| 72665J | Cover, Rear Seat Lock, RH |
| 72665L | Cover, Rear Seatback Lock, RH |
| 72666F | Cover, Rear Seat Lock, LH |
| 72666G | Cover, Rear Seatback Lock, LH |
| 72985 | Cover, Rear Headrest, RH |
| 72985A | Cover, Rear Headrest, LH |
| 72985B | Cover, Rear Headrest, Center |
| 74611P | Pad, Assist Grip |
| 74620E | Strap Assy, Assist, RH |
| 74620F | Strap Assy, Assist, LH |
| 74962 | Bracket, Lock Support Bar |
| 78937B | Bracket, Fold Seatback Hinge, RH |
| 78947B | Bracket, Fold Seatback Hinge, LH |
| 79103B | Frame Sub-assy, NO.1 Seatback, RH |
| 79104A | Frame Sub-assy, NO.1 Seatback, LH |
| 79172B | Bracket, Rear Seatback, Inside RH |
| 79182A | Bracket, Rear Seatback, Inside LH |
| 79815D | Bracket, Fold Seat Cushion Hinge, RH(FOR RH SEAT) |
| 79815E | Bracket, Fold Seat Cushion Hinge, RH(FOR LH SEAT) |
| 79825E | Bracket, Fold Seat Cushion Hinge, LH(FOR RH SEAT) |
| 79825F | Bracket, Fold Seat Cushion Hinge, LH(FOR LH SEAT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
