Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

73 part groups · 17 illustrations

Illustrations

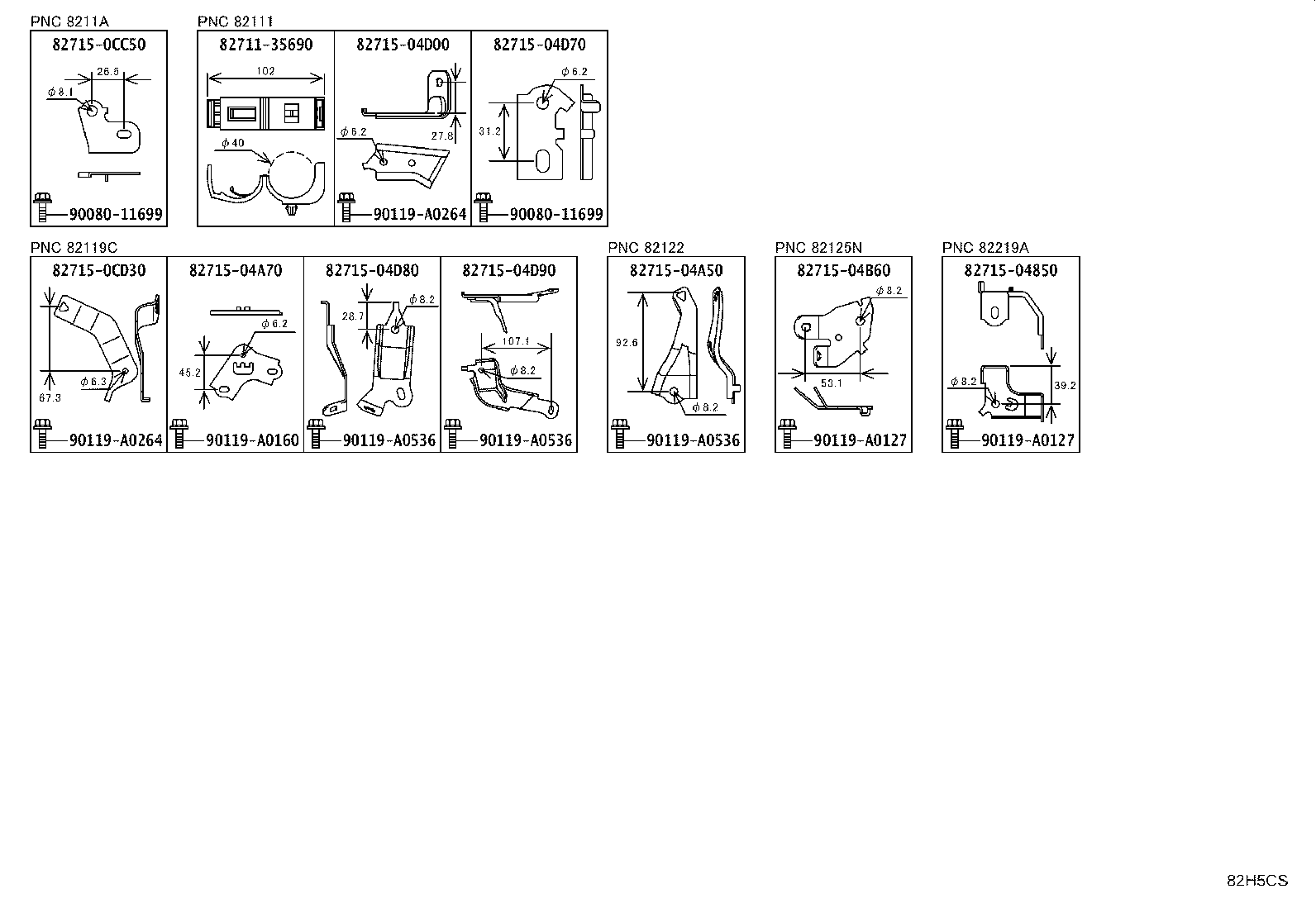

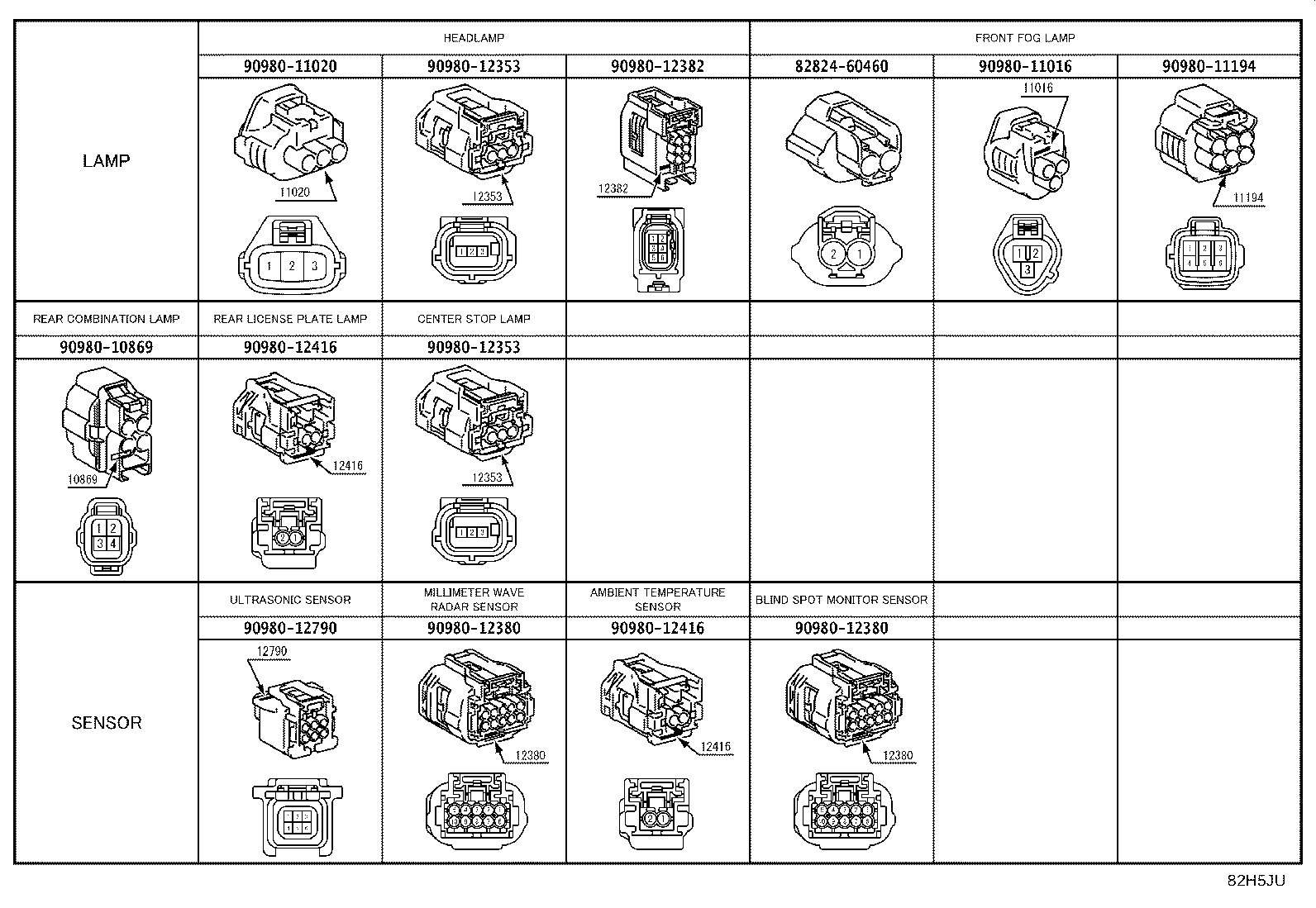

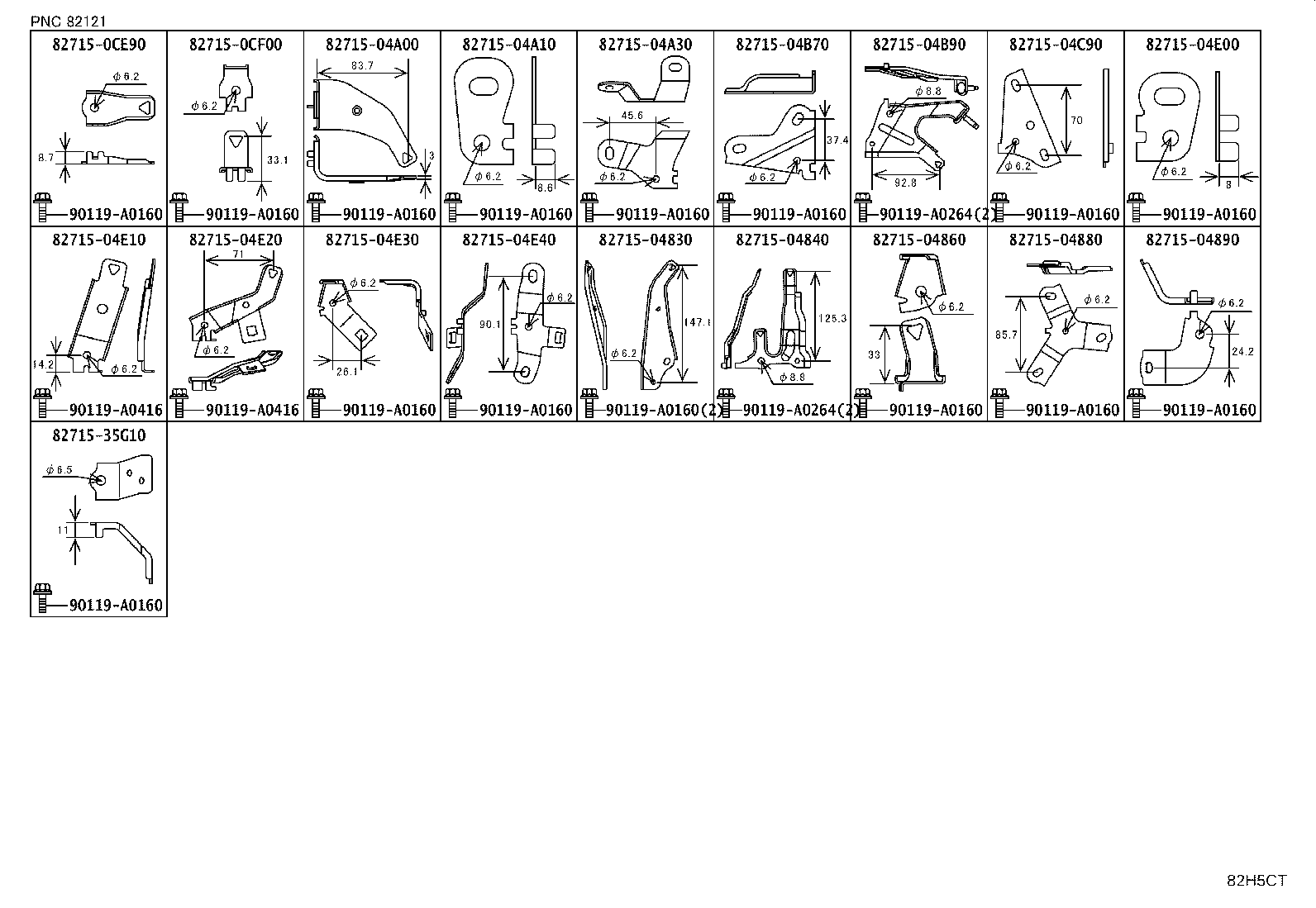

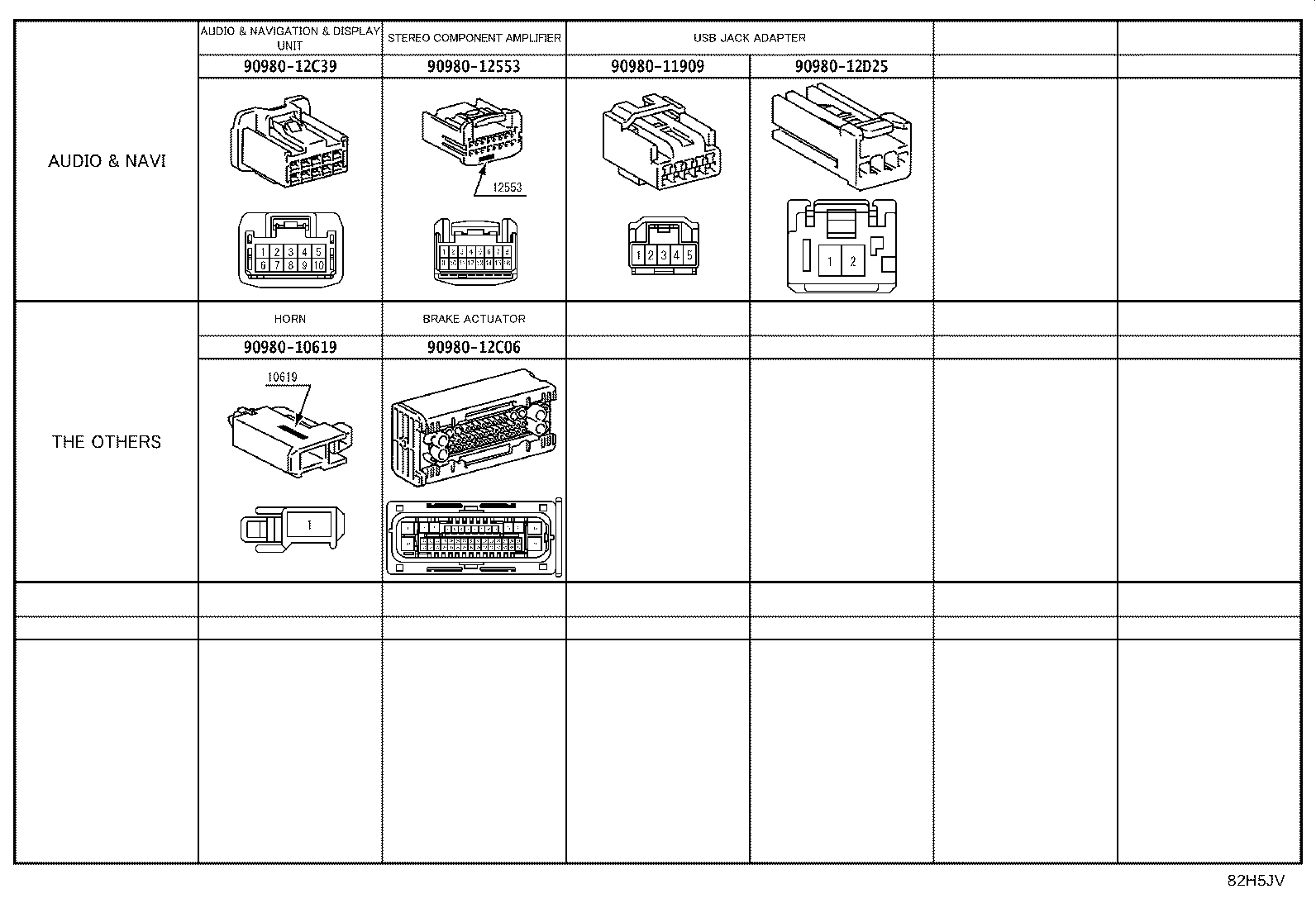

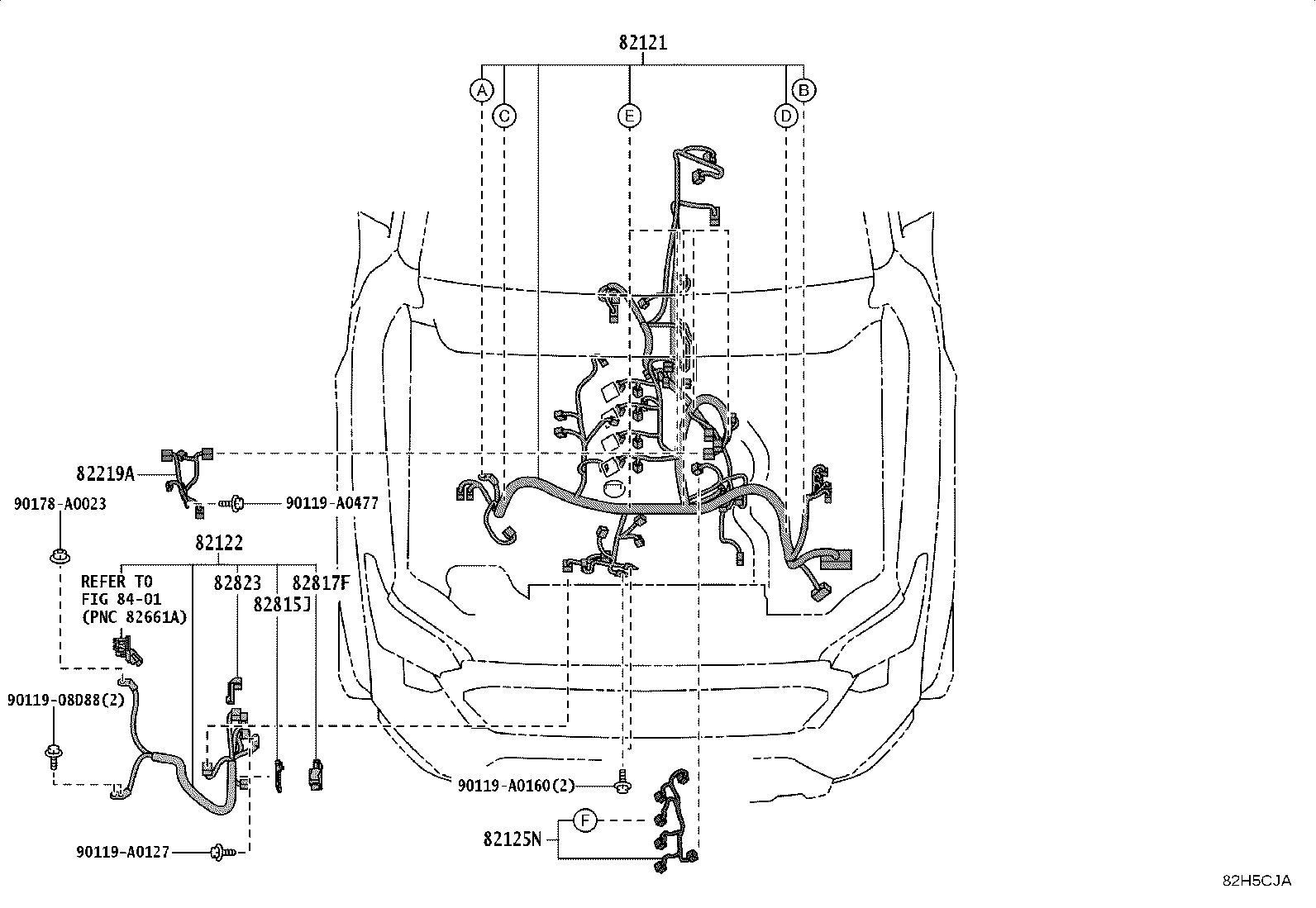

Figure 82H5CF 82H5CF 2023-12 → — Figure 82H5CGA 82H5CGA 2023-12 → — Figure 82H5CH 82H5CH 2024-04 → — Figure 82H5CIA 82H5CIA 2024-04 → — Figure 82H5CJA 82H5CJA 2023-12 → — Figure 82H5CK 82H5CK 2023-12 → — Figure 82H5CLA 82H5CLA 2024-04 → — Figure 82H5CM 82H5CM 2024-04 → — Figure 82H5CN 82H5CN 2023-12 → — Figure 82H5CO 82H5CO 2023-12 → — Figure 82H5CPB 82H5CPB 2023-12 → — Figure 82H5CQB 82H5CQB 2023-12 → — Figure 82H5CRA 82H5CRA 2023-12 → — Figure 82H5CS 82H5CS 2023-12 → — Figure 82H5CT 82H5CT 2023-12 → — Figure 82H5JU 82H5JU 2023-12 → — Figure 82H5JV 82H5JV 2023-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
8211A Wire, Engine Room, NO.6

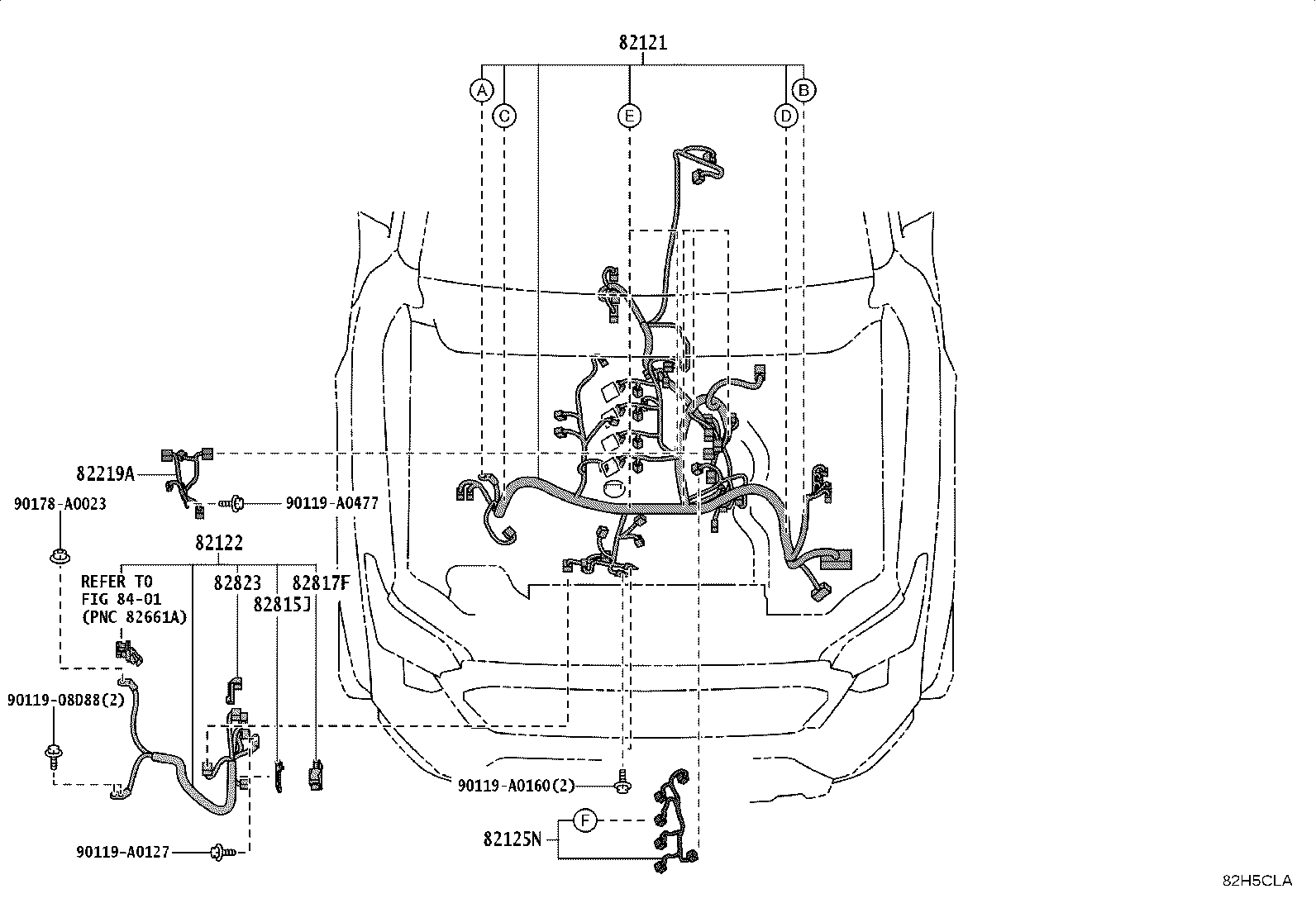

82121 Wire, Engine
82122 Wire, Engine, NO.2
82125N Wire, Engine, NO.5

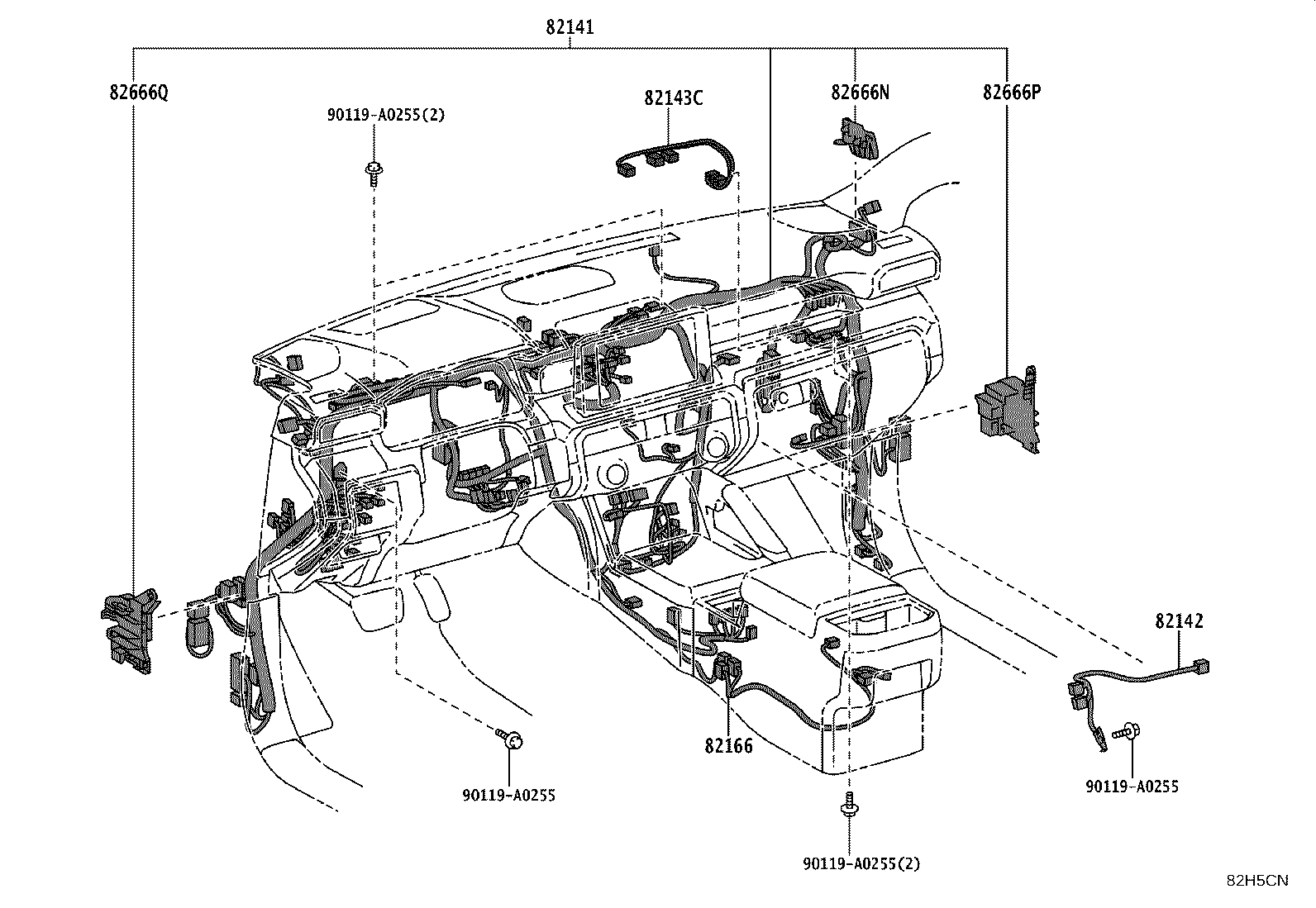

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143C Wire, Instrument Panel, NO.3

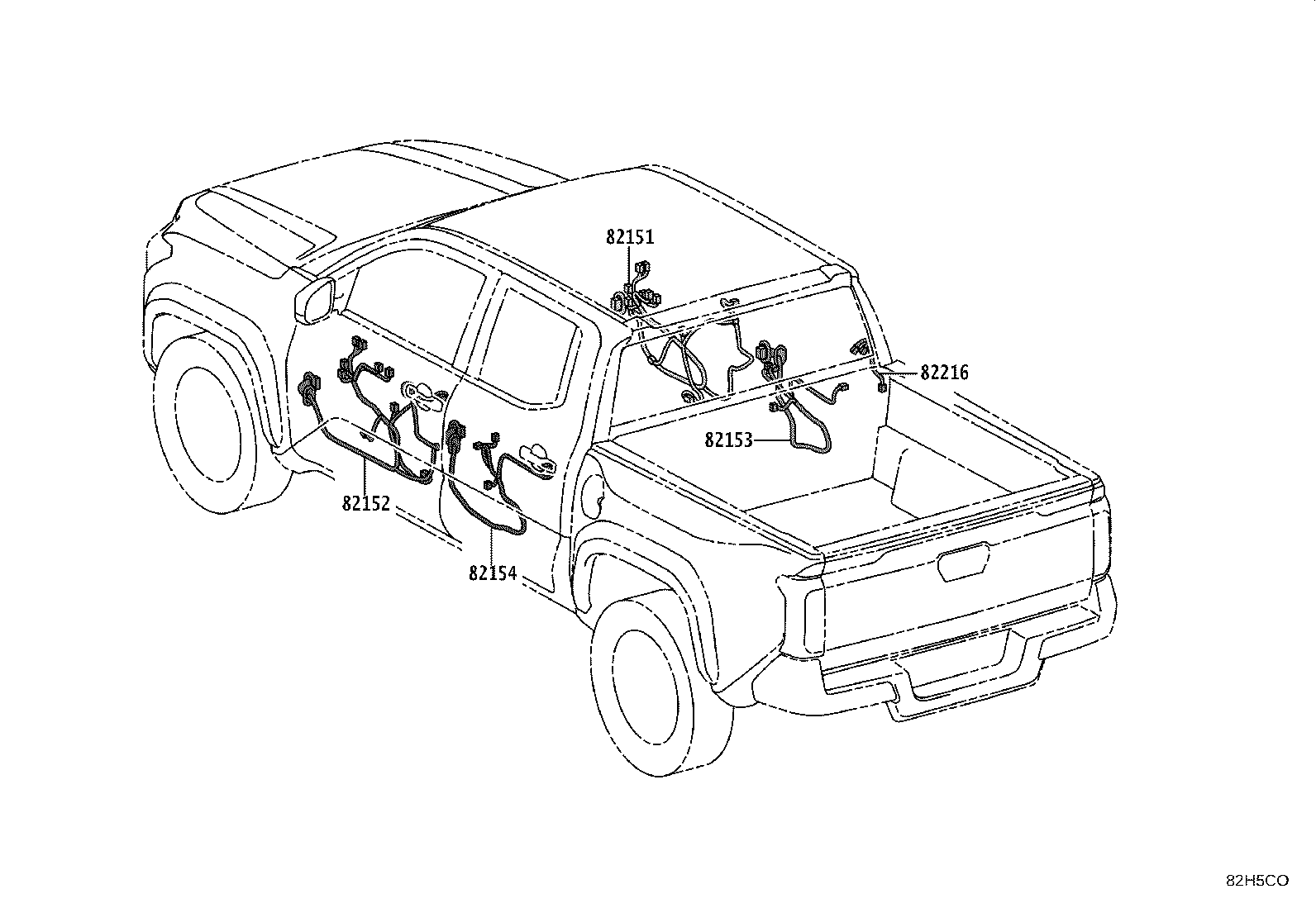

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
82169 Wire Frame, NO.3
82177 Wire, Rear Body
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3

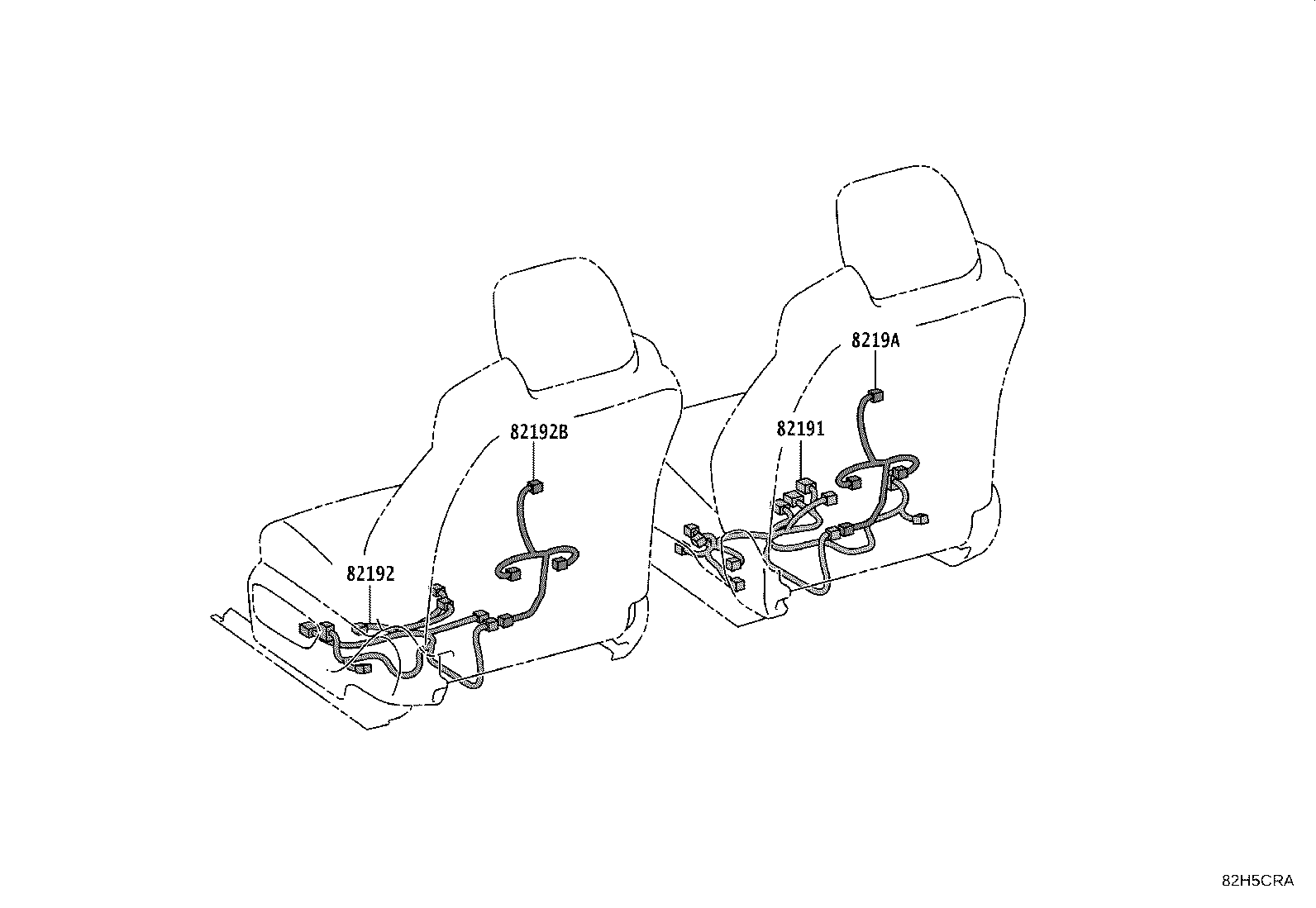

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
8219A Wire, Front Seat, RH NO.2
821H1 Wire, Floor Under
82214A Wire, Lamp
82216 Wire, Rear Window Defogger
82219A Wire, Sensor
82225A Wire, Lamp, NO.2
82284 Wire, Earth

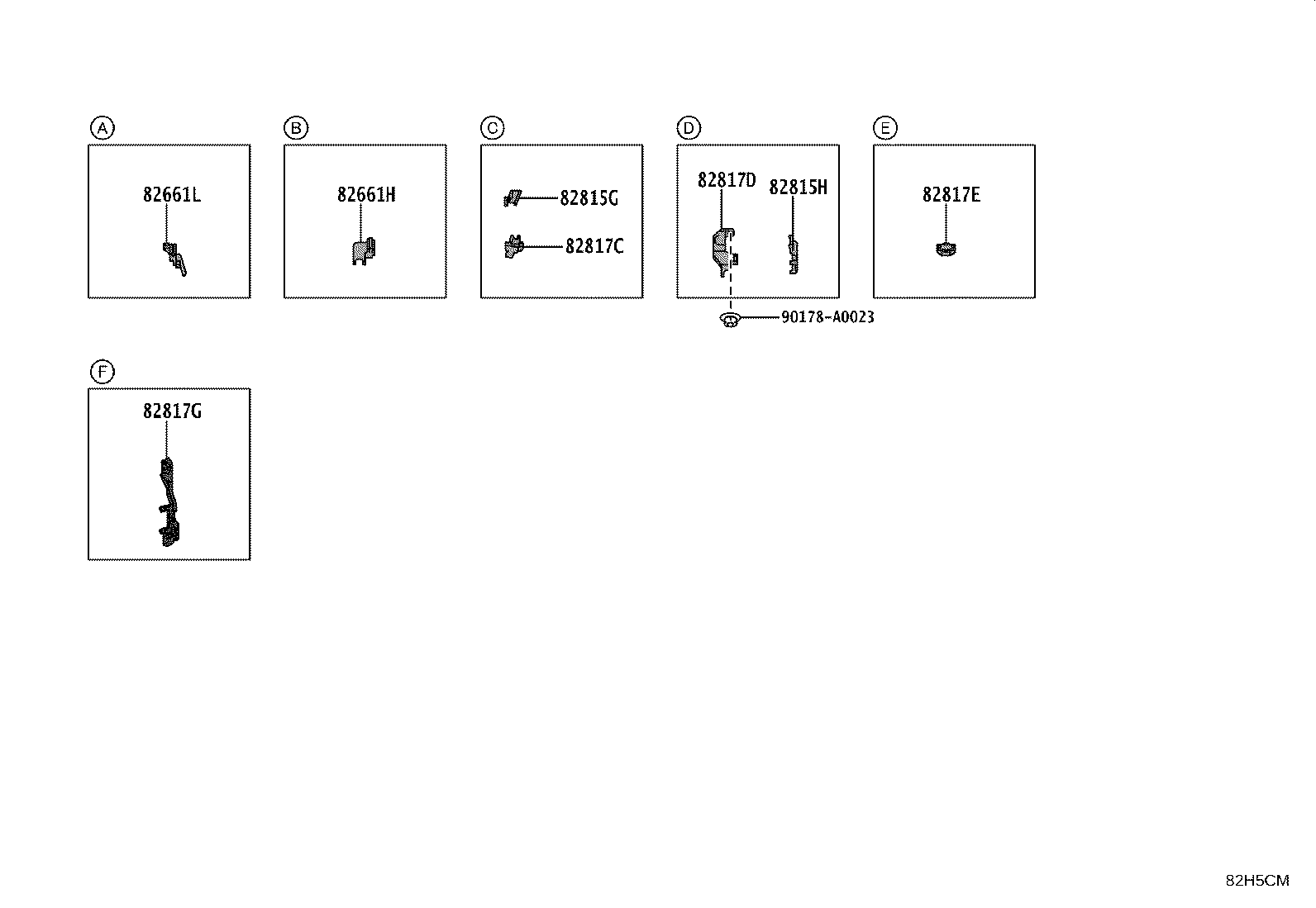

82661H Cover, Relay Block
82661L Cover, Relay Block, NO.2
82661M Cover, Relay Block, NO.3
82661N Cover, Relay Block, NO.4
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89623 Wire, Power Steering Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
