Toyota Hiace

2005-01 → 2014-02 · chassis KDH2##,LH2##,TRH2## · catalogue 711350 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

67 part groups · 28 illustrations

Illustrations

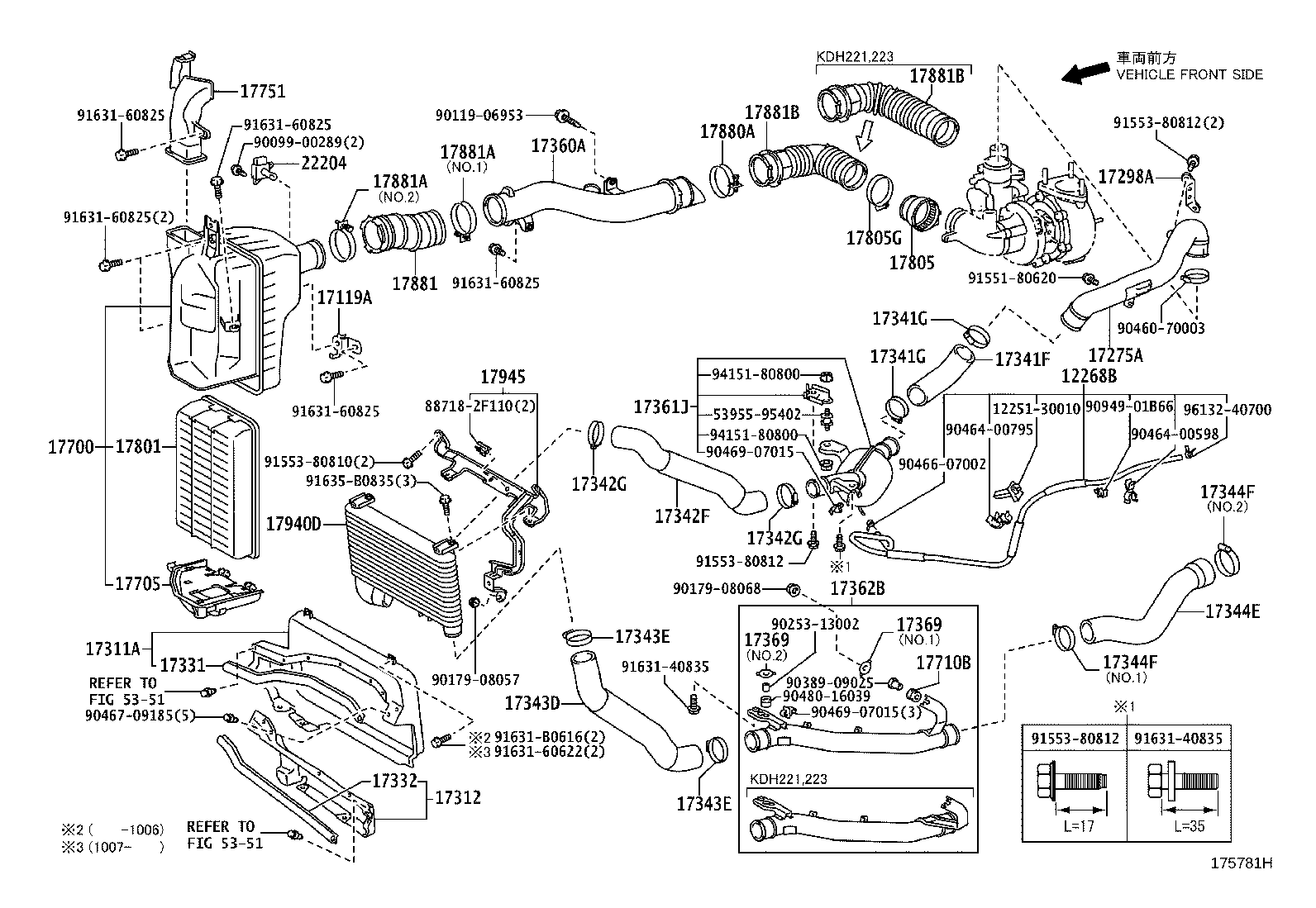

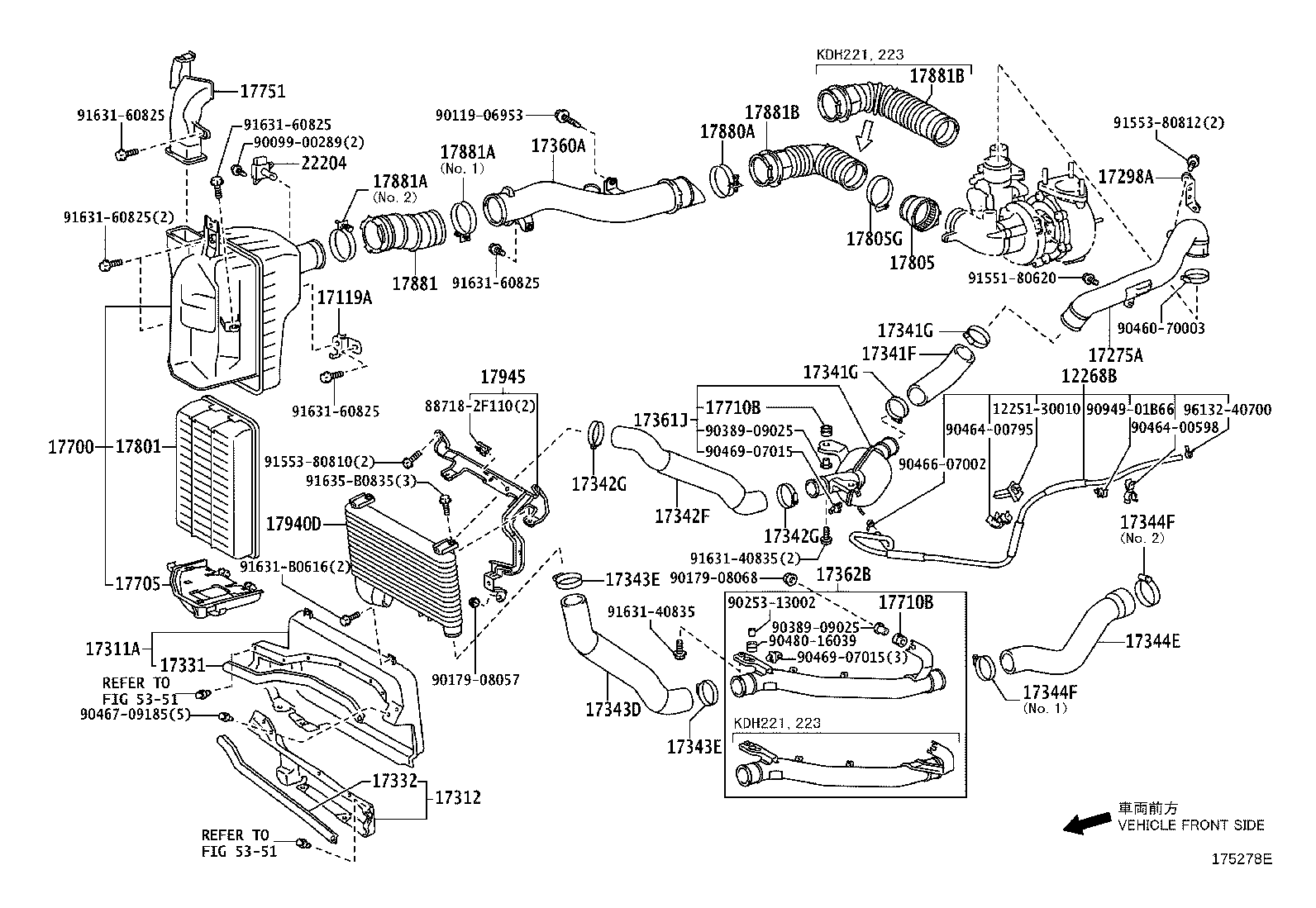

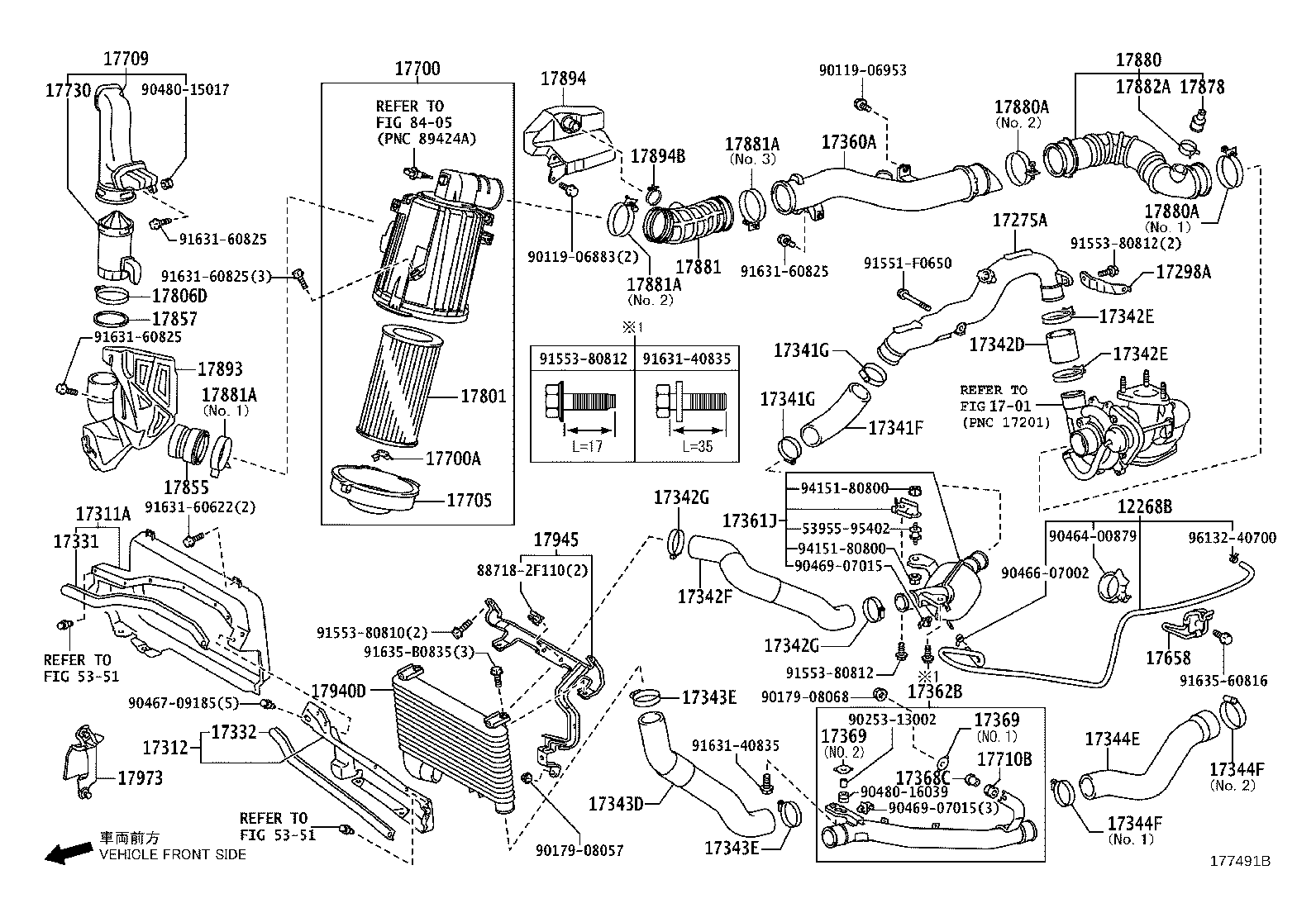

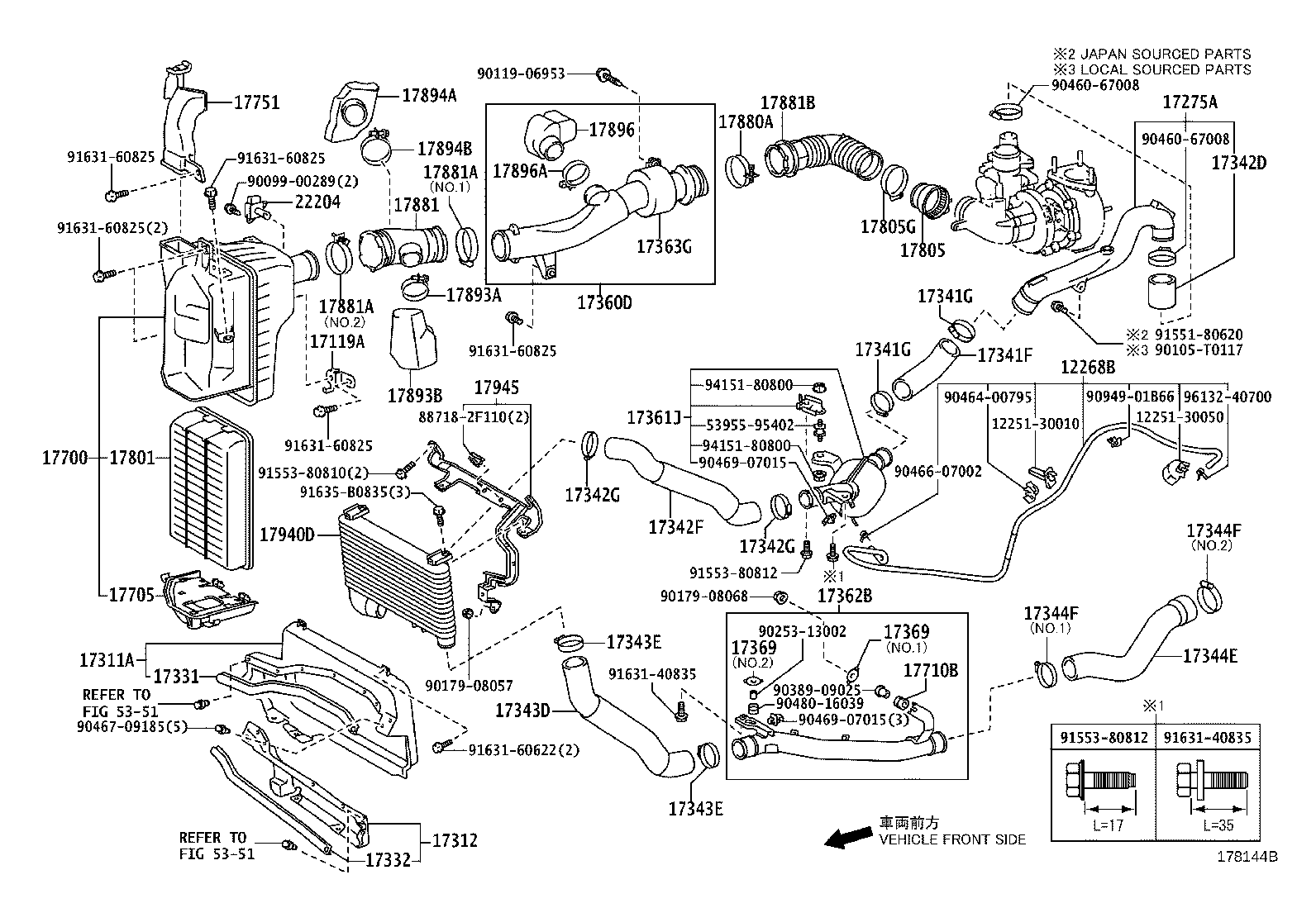

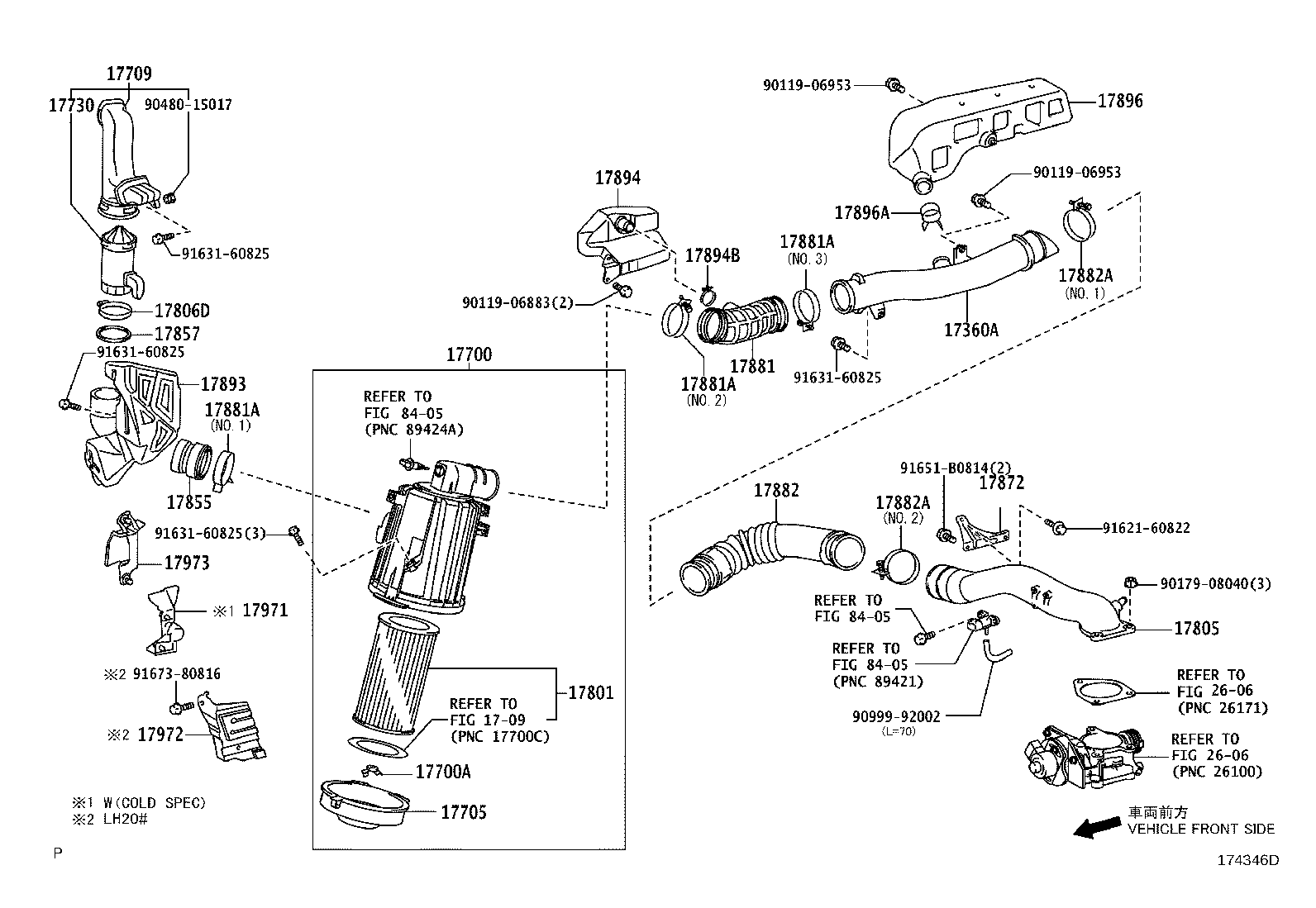

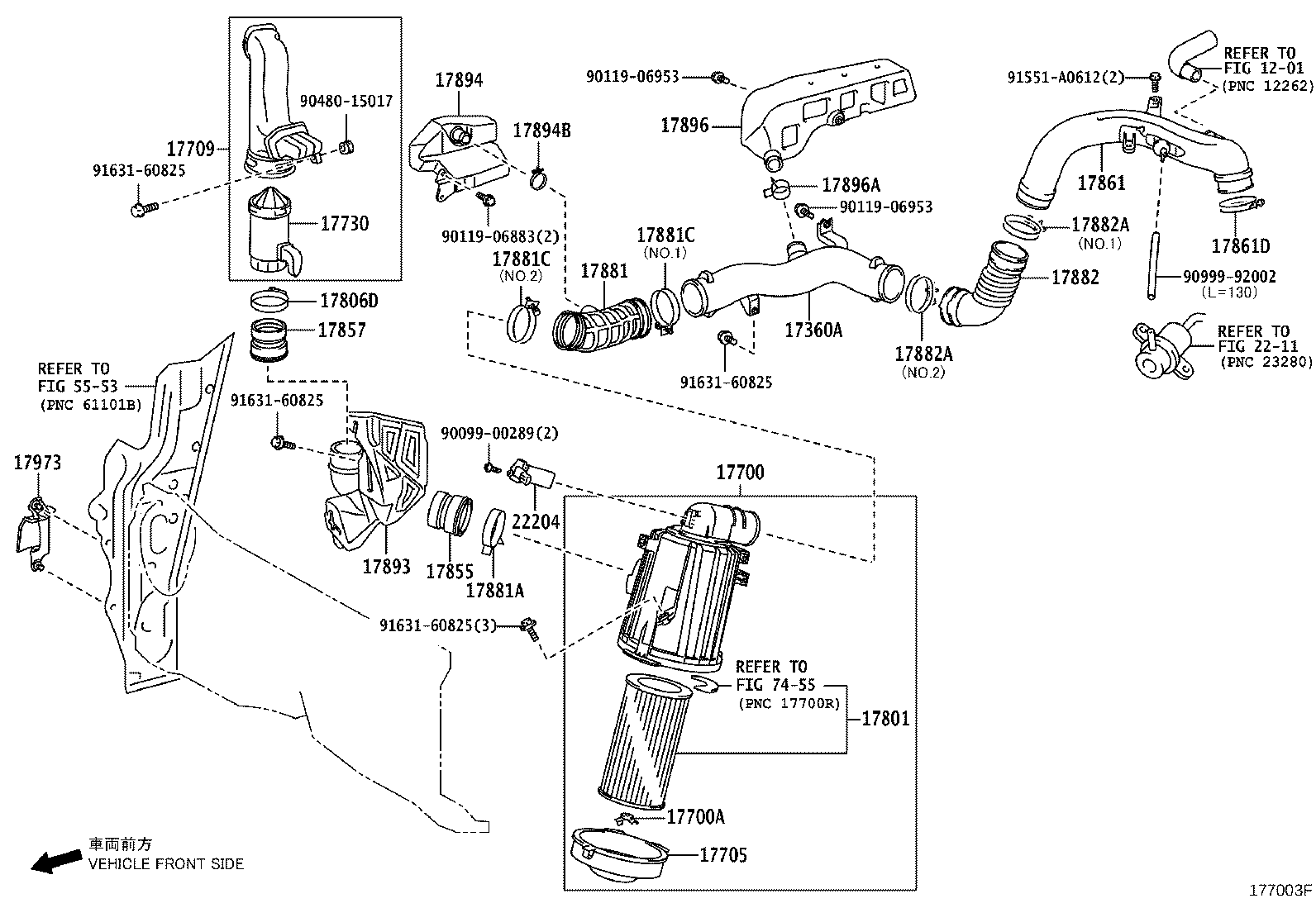

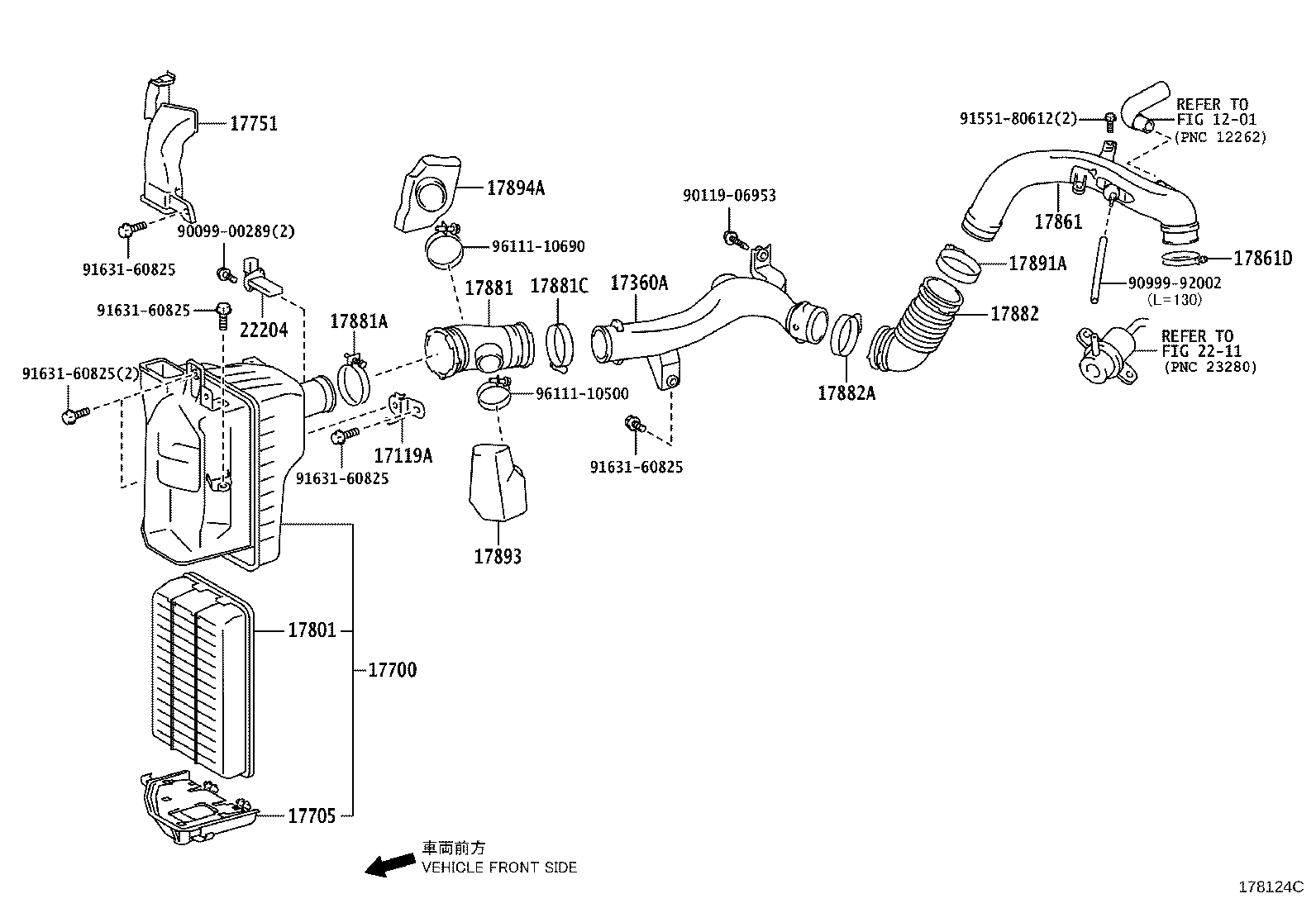

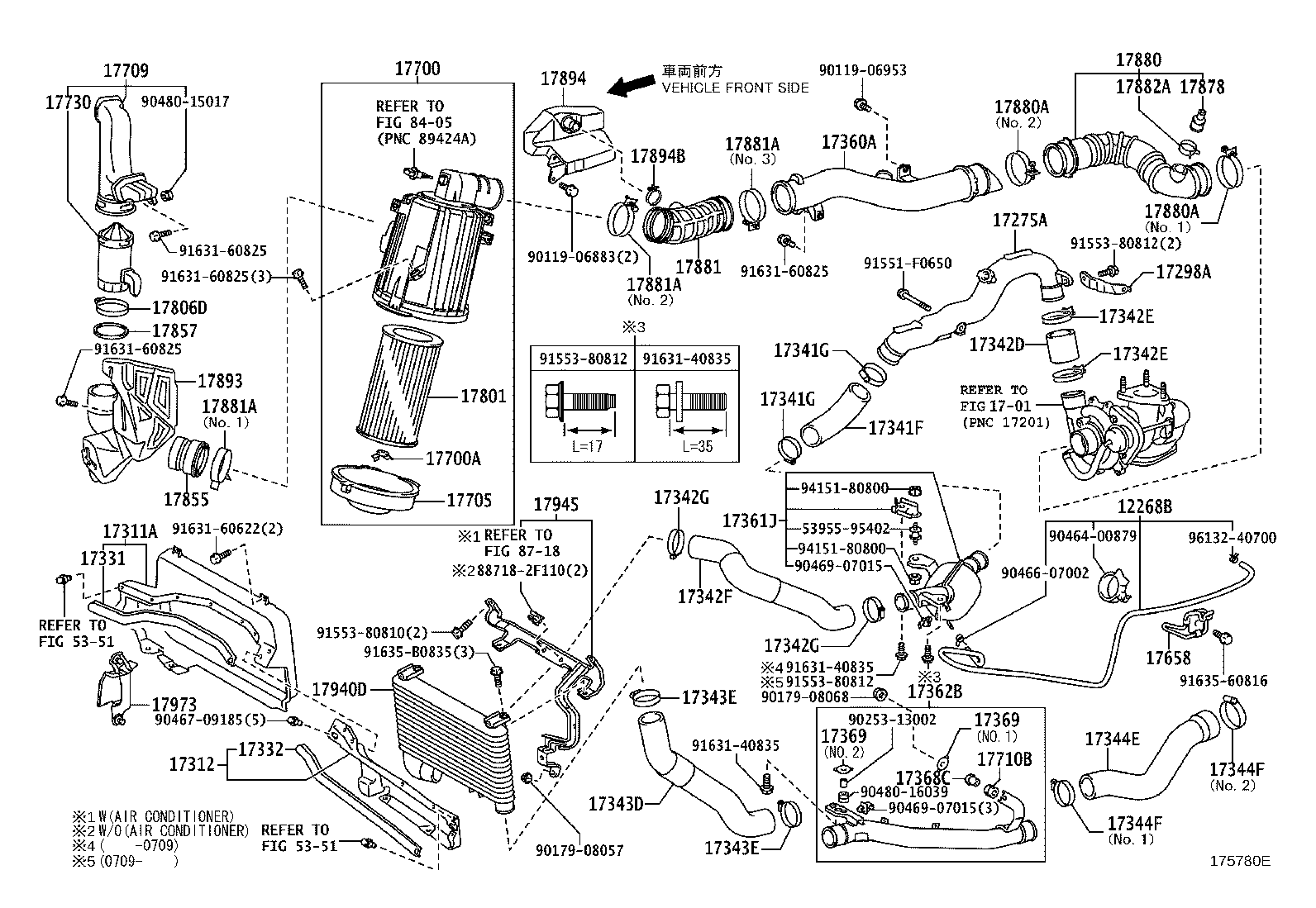

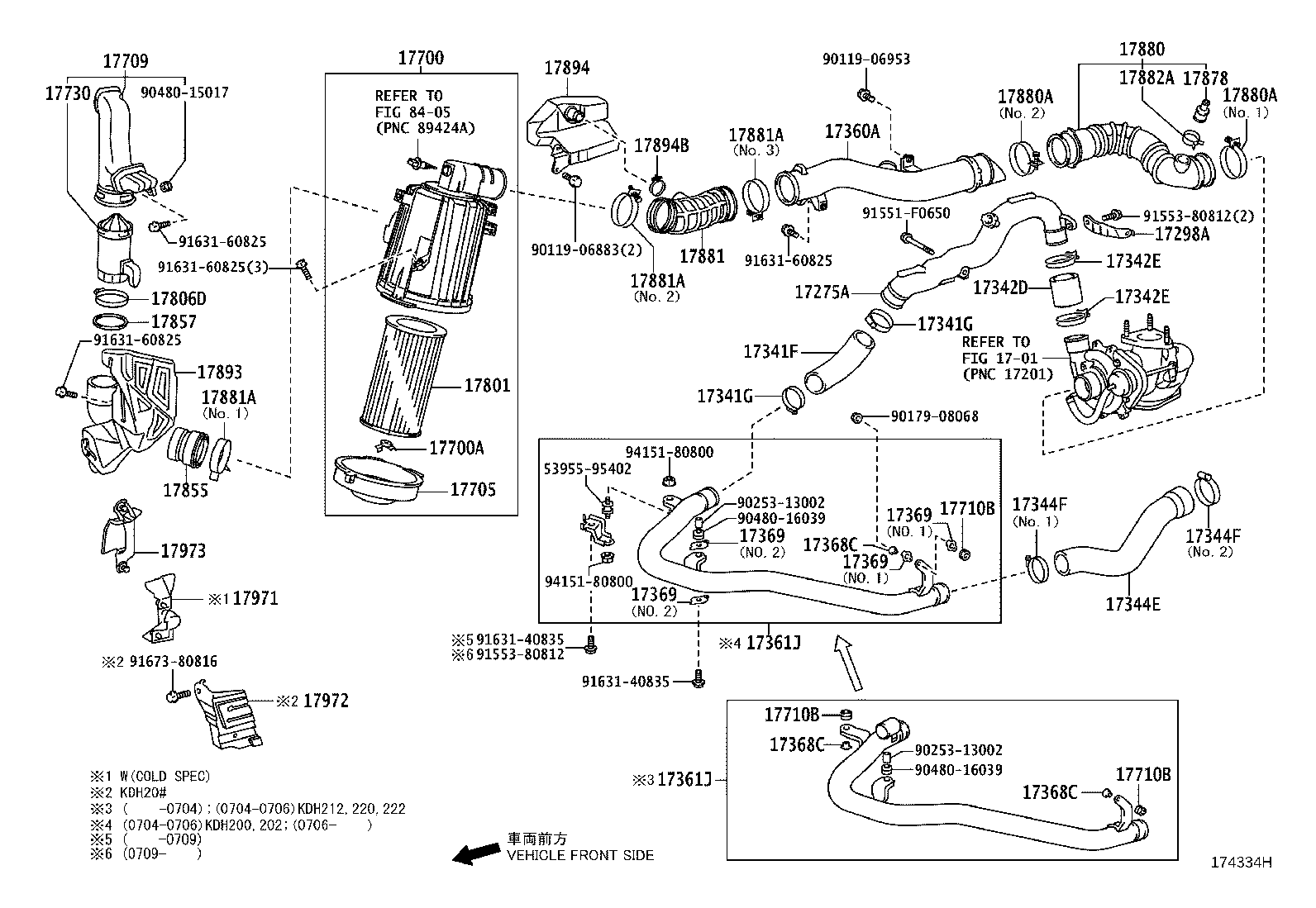

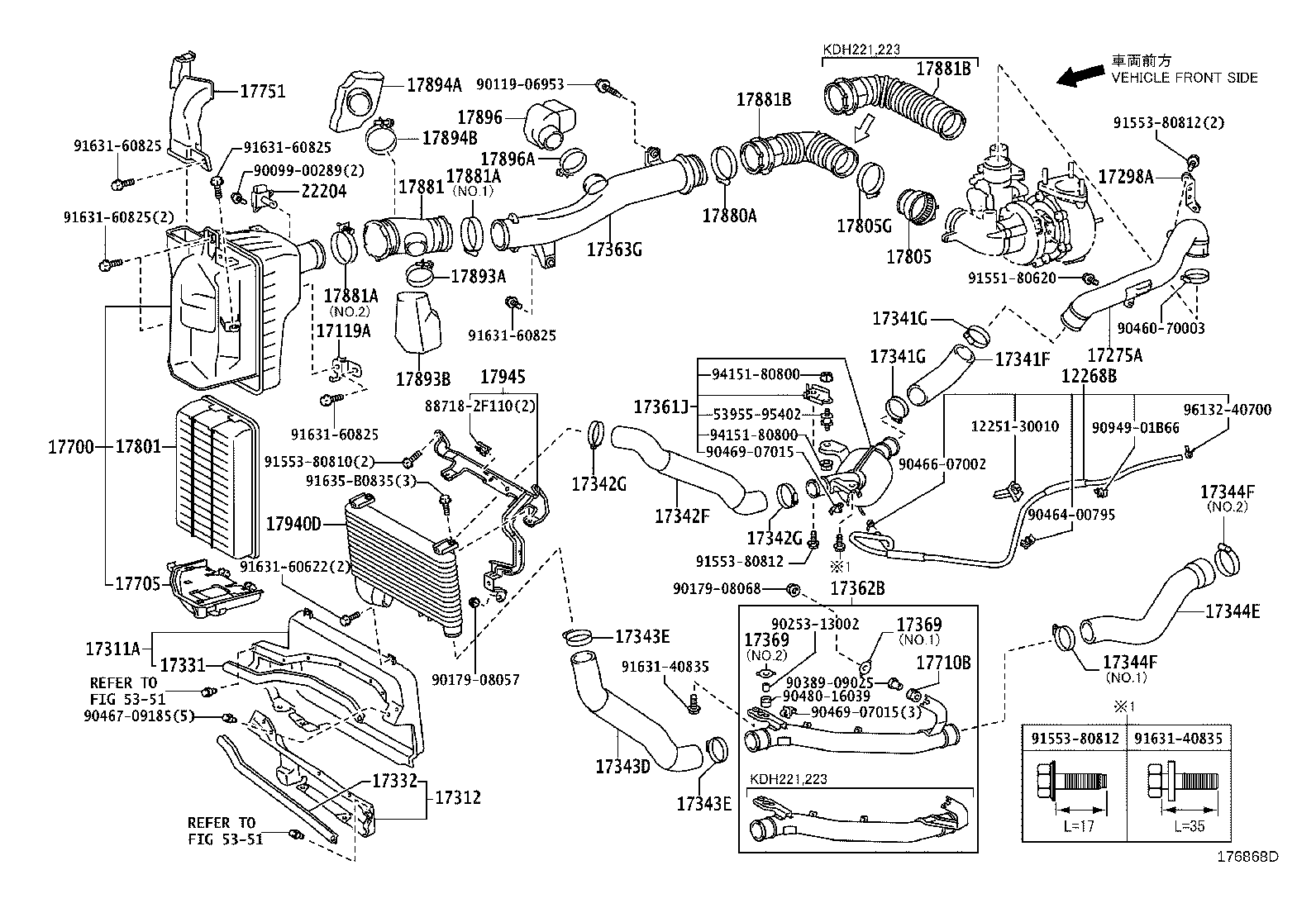

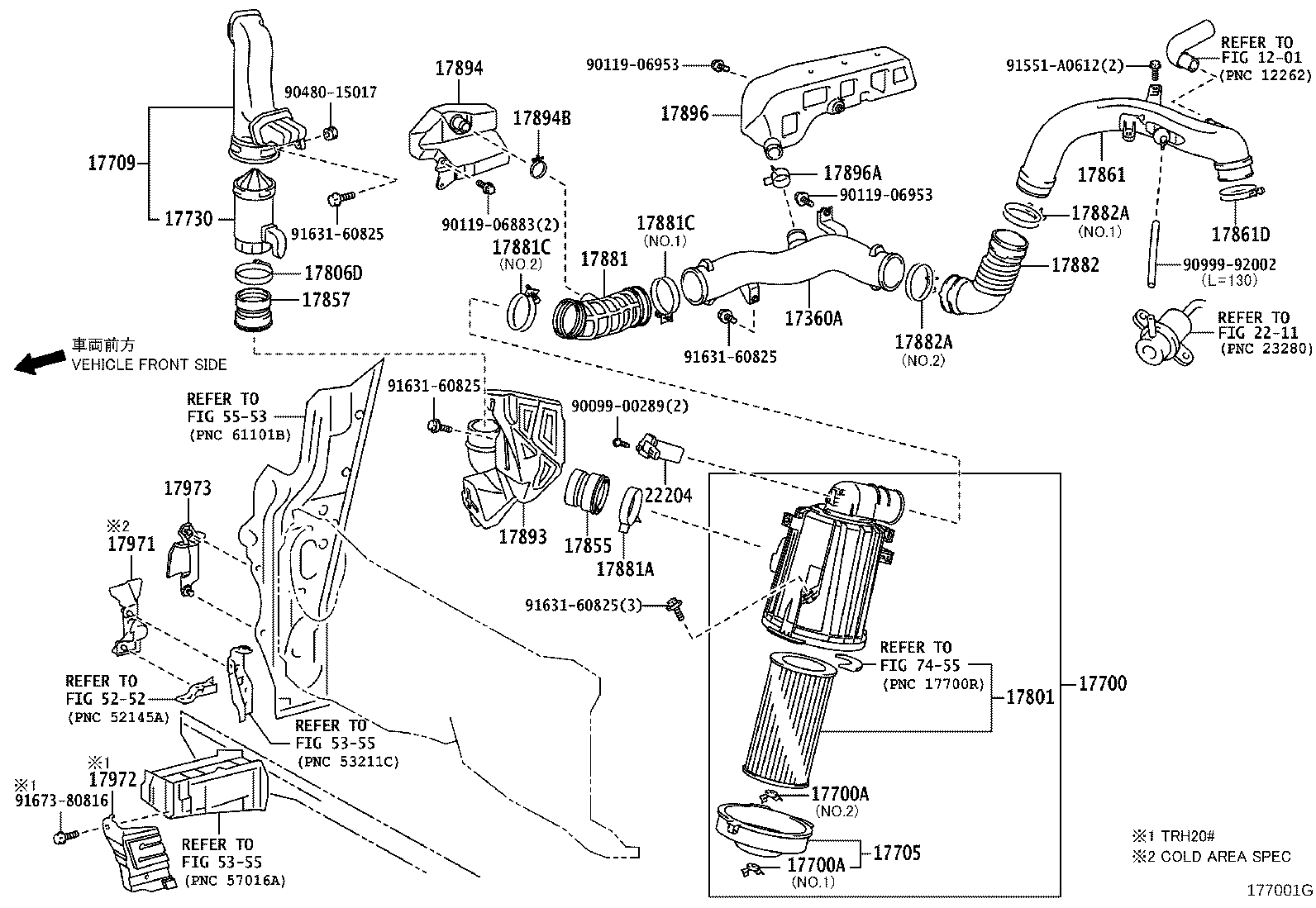

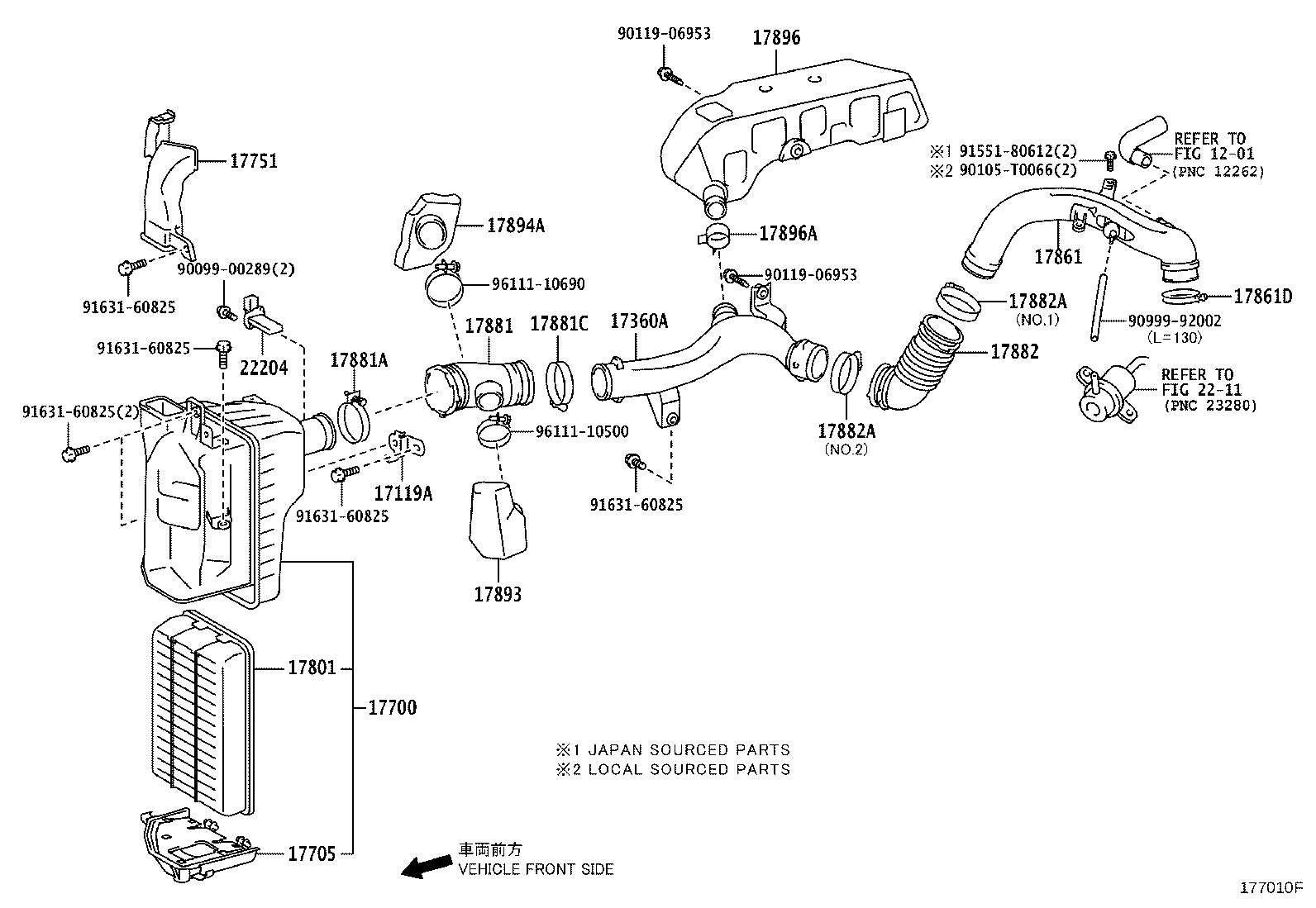

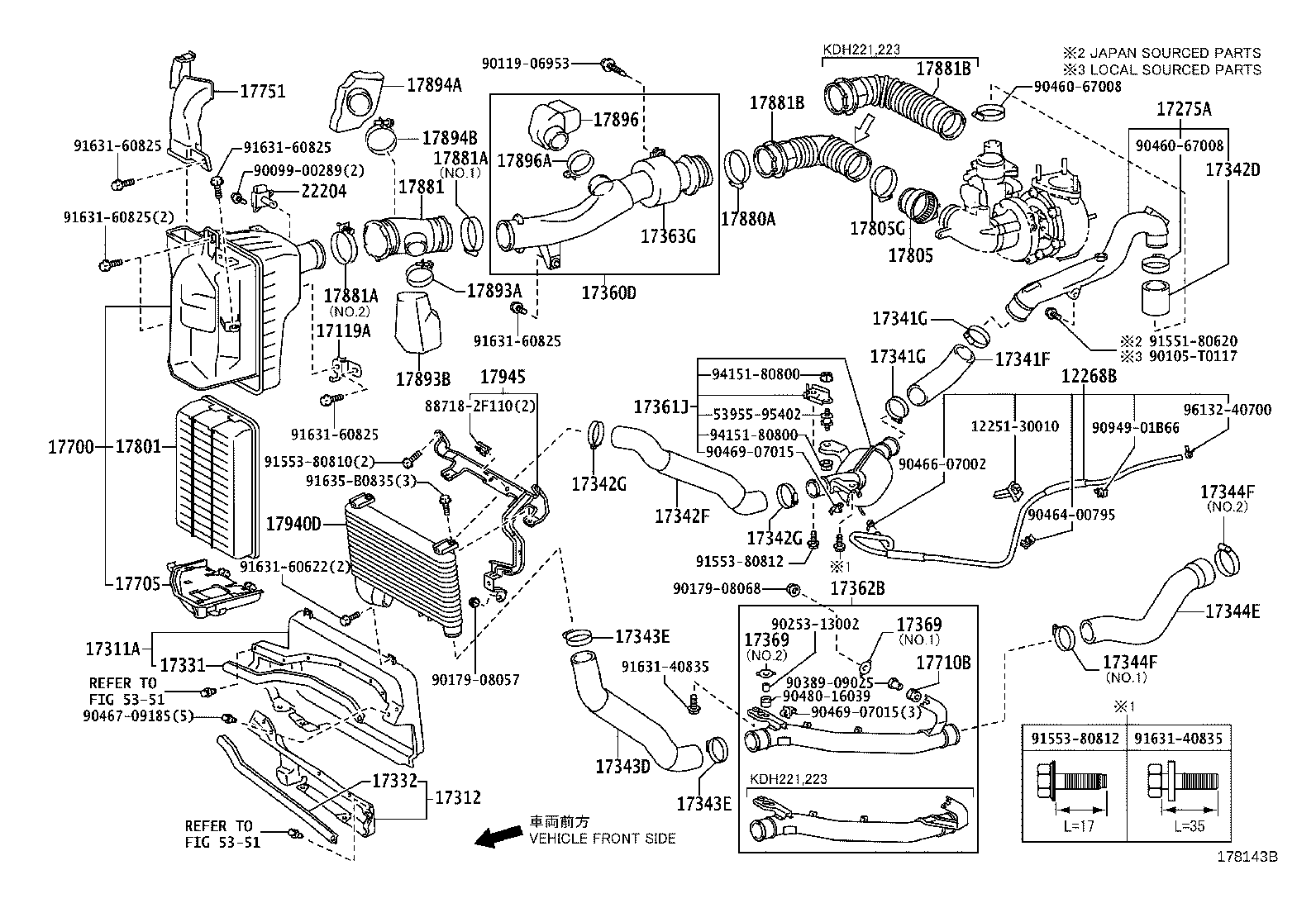

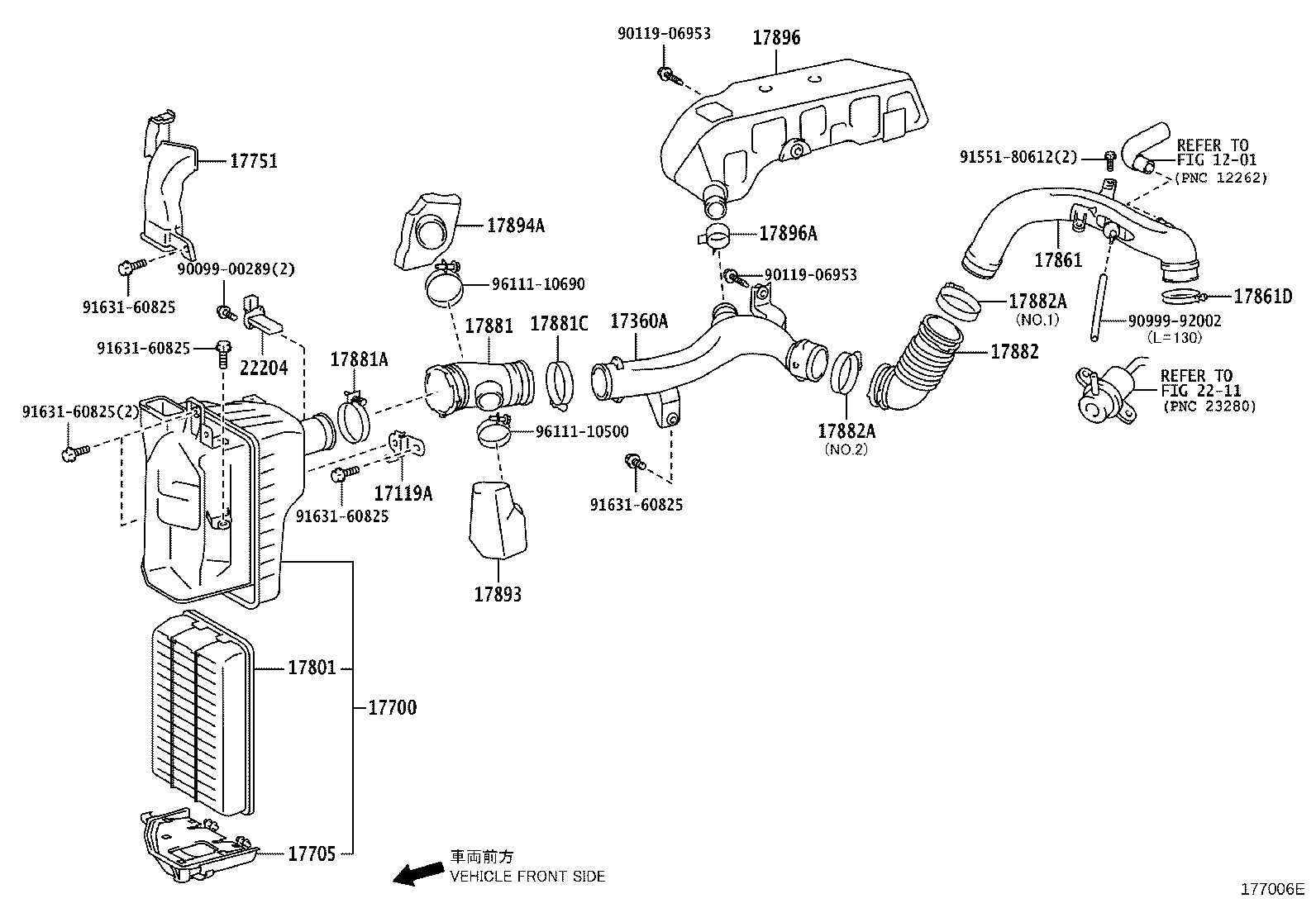

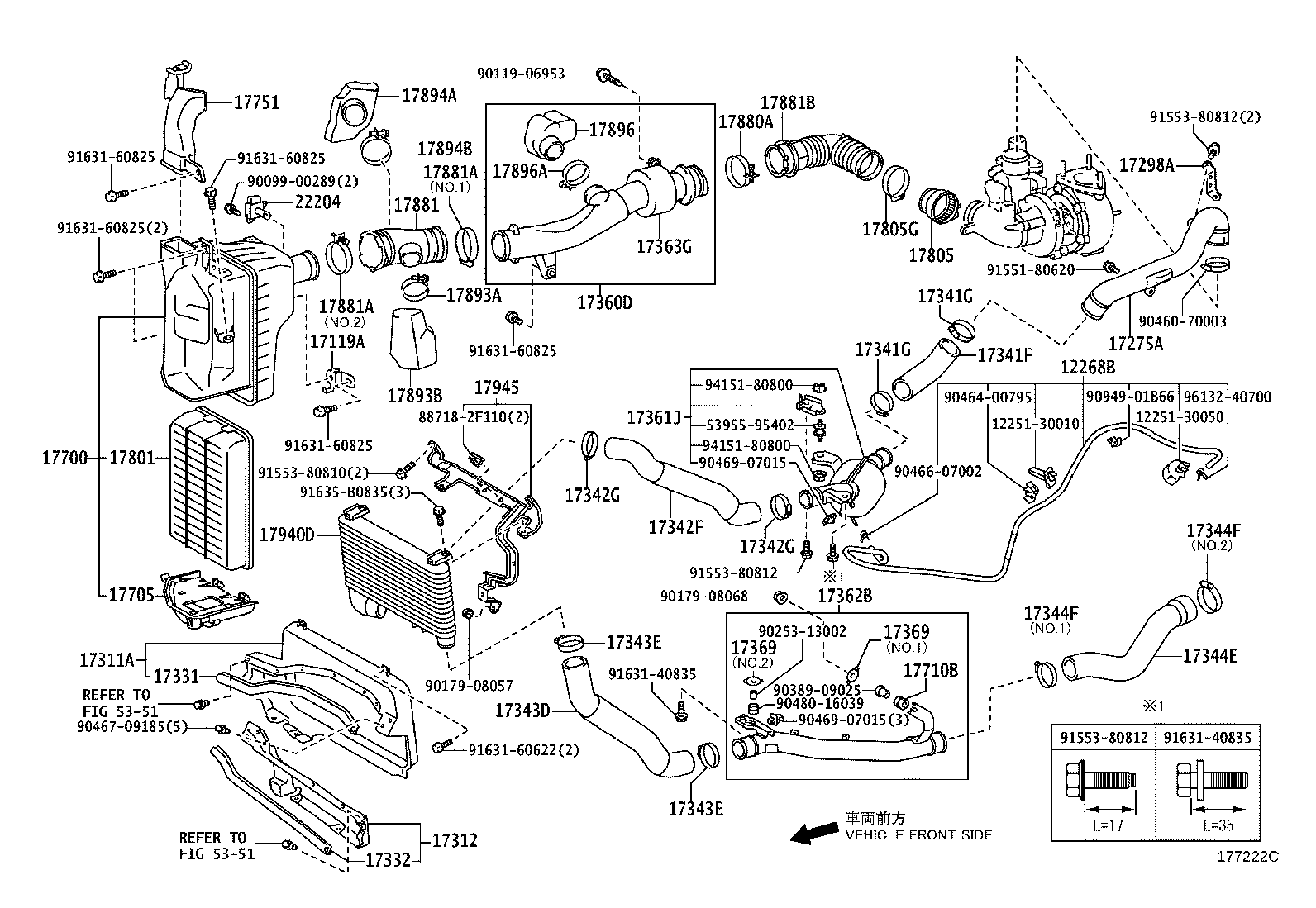

Figure 174333H 174333H 2005-01 → 2007-09 Figure 175780E 175780E 2007-09 → — Figure 174334H 174334H 2005-01 → — Figure 174334H 174334H 2005-01 → — Figure 174334H 174334H 2007-09 → — Figure 175278E 175278E 2006-10 → 2007-09 Figure 175781H 175781H 2007-09 → 2010-08 Figure 176868D 176868D 2010-08 → 2011-10 Figure 177383C 177383C 2011-10 → 2012-05 Figure 177383C 177383C 2012-05 → 2012-12 Figure 177383C 177383C 2012-05 → 2013-07 Figure 177383C 177383C 2012-05 → 2013-07 Figure 178143B 178143B 2013-07 → — Figure 177222C 177222C 2011-10 → 2013-07 Figure 177222C 177222C 2012-12 → 2013-07 Figure 178144B 178144B 2013-07 → — Figure 177491B 177491B 2012-05 → — Figure 174346D 174346D 2005-01 → — Figure 177001G 177001G 2005-01 → 2010-08 Figure 177001G 177001G 2010-08 → — Figure 177001G 177001G 2011-11 → — Figure 177001G 177001G 2011-11 → — Figure 177001G 177001G 2011-11 → — Figure 177003F 177003F 2010-08 → — Figure 177010F 177010F 2010-08 → — Figure 177010F 177010F 2010-08 → — Figure 177006E 177006E 2010-08 → — Figure 178124C 178124C 2013-08 → —

Part groups

PNCDescription
12268B Hose, Oil Return
17030 Hose Assy, Air
17119A Bracket, Air Cleaner
17275A Elbow, Compressor Outlet
17298A Stay, Compressor Elbow
17311A Duct, Air Inlet, NO.1
17312 Duct, Air Inlet, NO.2
17331 Seal, Duct Air Inlet NO.1
17332 Seal, Duct Air Inlet NO.2
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17360A Tube Assy, Air
17360D Pipe Assy, Air
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17363G Tube, Air, NO.3
17368C Bush(FOR AIR TUBE SUPPORT)
17369 Bracket, Air Tube Support
17658 Bracket, Vacuum Hose Clamp
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17710B Grommet
17730 Precleaner Assy, Air W/Hose
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805G Clamp, Hose(FOR AIR CONNECTOR)
17806D Clamp(FOR AIR CLEANER PIPE)
17855 Gasket, Air Inlet Duct, NO.1
17857 Gasket, Air Inlet Duct, NO.2
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17872 Bracket, Intake Air Connector
17878 Pipe, Intake Air Connector, NO.3
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881B Hose, Air Cleaner, NO.1
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17891A Clamp, Air Cleaner Hose
17893 Resonator, Intake Air
17893A Clamp, Hose
17893B Resonator, Intake Air, NO.2
17894 Bracket, Resonator
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17896 Resonator, Intake Air, NO.3
17896A Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.3)
17940D Intercooler Assy
17945 Bracket, Intercooler Support
17971 Inlet, Cool Air, NO.1
17972 Inlet, Cool Air, NO.2
17973 Inlet, Cool Air, NO.3
22204 Meter Sub-assy, Intake Air Flow
