Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09

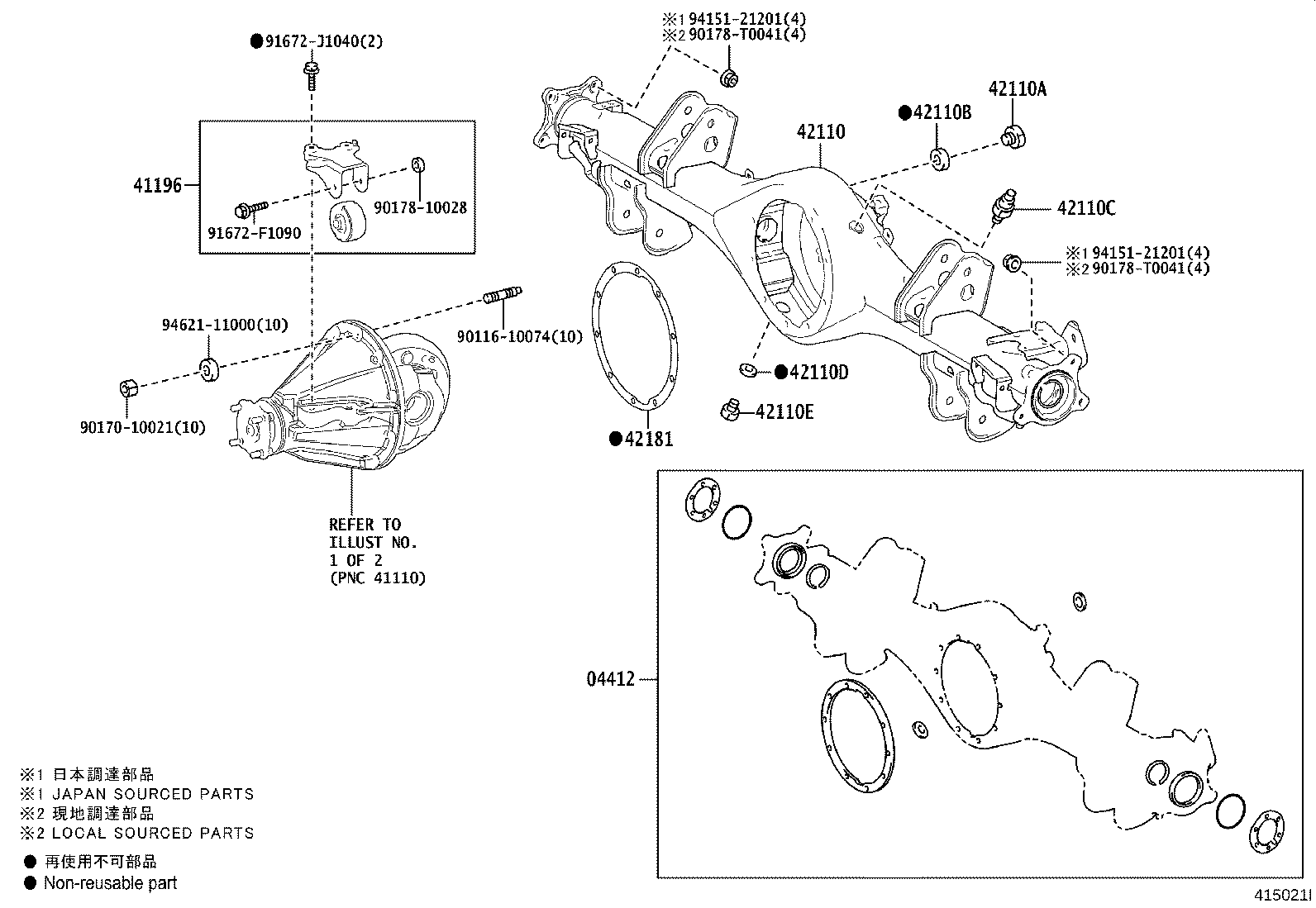

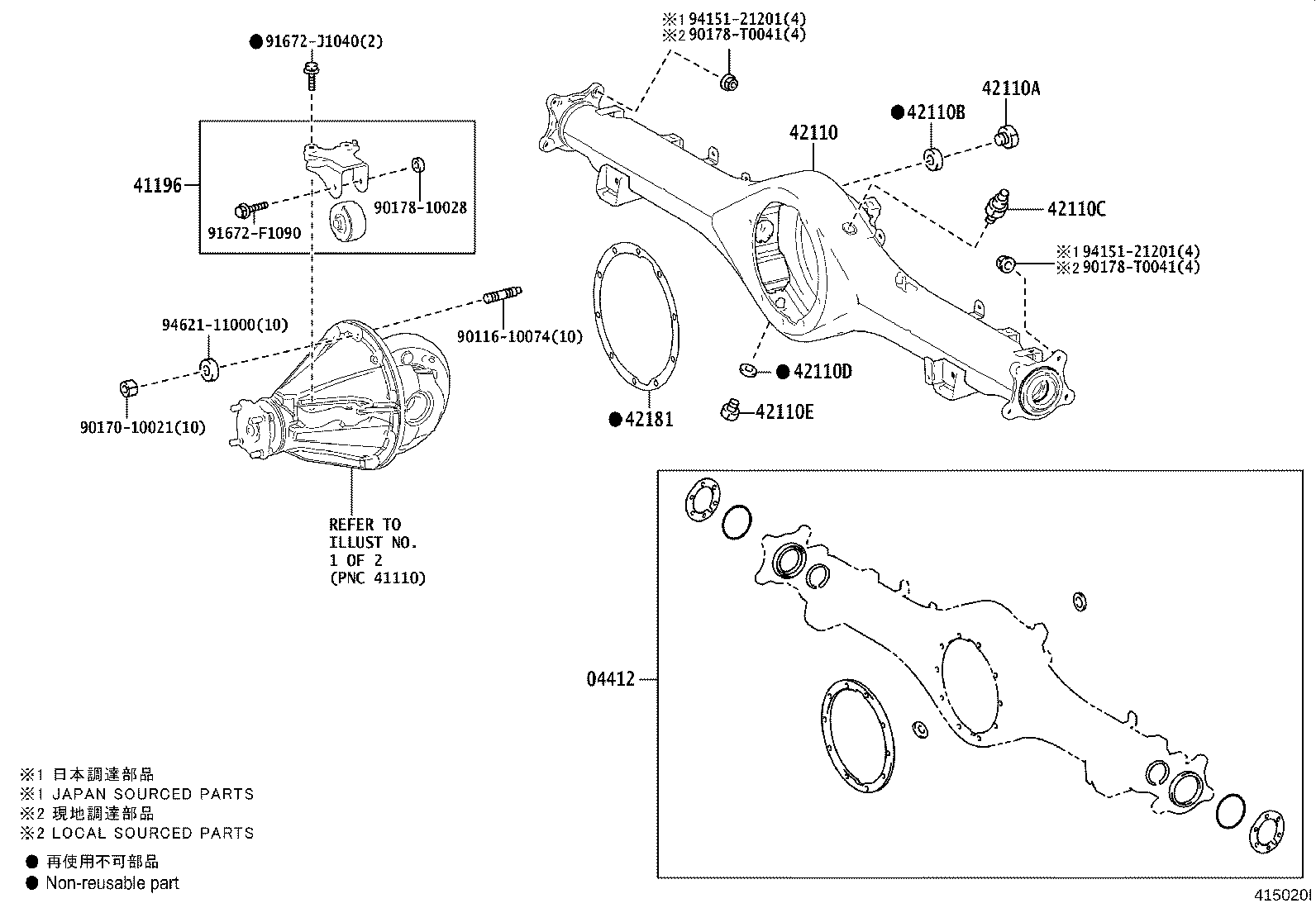

Rear Axle Housing & Differential
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04412 | Gasket Kit, Rear Differential Carrier |
| 41039 | Gear Kit, Differential, Rear |
| 41101 | Carrier Sub-assy, Differential, Rear |
| 41110 | Carrier Assy, Differential, Rear |
| 41114 | Bolt, Rear Differential Bearing Cap |
| 41115 | Ring, Differential Oil Storage |
| 41196 | Damper, Rear Differential Dynamic |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41201E | Shim (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) |
| 41204 | Flange Sub-assy, Rear Drive Pinion Companion, Rear |
| 41204B | Nut (FOR REAR DRIVE PINION) |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41301 | Case Sub-assy, Rear Differential |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41301E | Shim(FOR DIFFERENTIAL CASE) |
| 41302A | Bolt(FOR REAR DIFFERENTIAL CASE) |
| 41342 | Shaft, Rear Differential Pinion |
| 41342B | Pin, Straight (FOR REAR DIFFERENTIAL PINION SHAFT) |
| 41351 | Washer, Rear Differential Pinion Thrust |
| 41361 | Washer, Rear Differential Side Gear Thrust, NO.1 |
| 42110 | Housing Assy, Rear Axle |
| 42110A | Plug (FOR REAR AXLE HOUSING FILLER) |
| 42110B | Gasket (FOR REAR AXLE HOUSING FILLER PLUG) |
| 42110C | Plug, Breather (FOR REAR AXLE HOUSING) |
| 42110D | Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) |
| 42110E | Plug (FOR REAR AXLE HOUSING DRAIN) |
| 42181 | Gasket, Rear Differential Carrier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
