Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

89 part groups · 18 illustrations

Illustrations

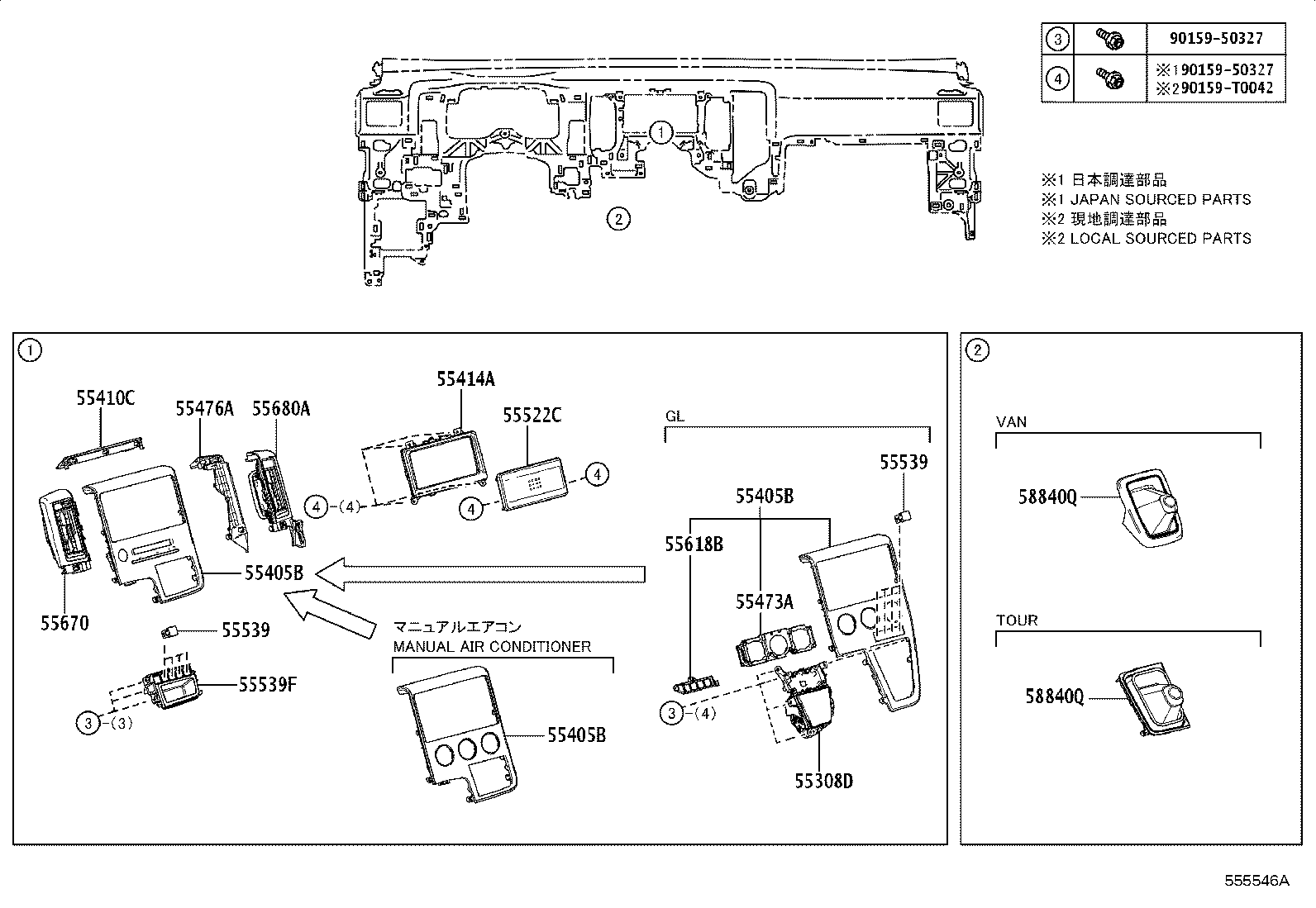

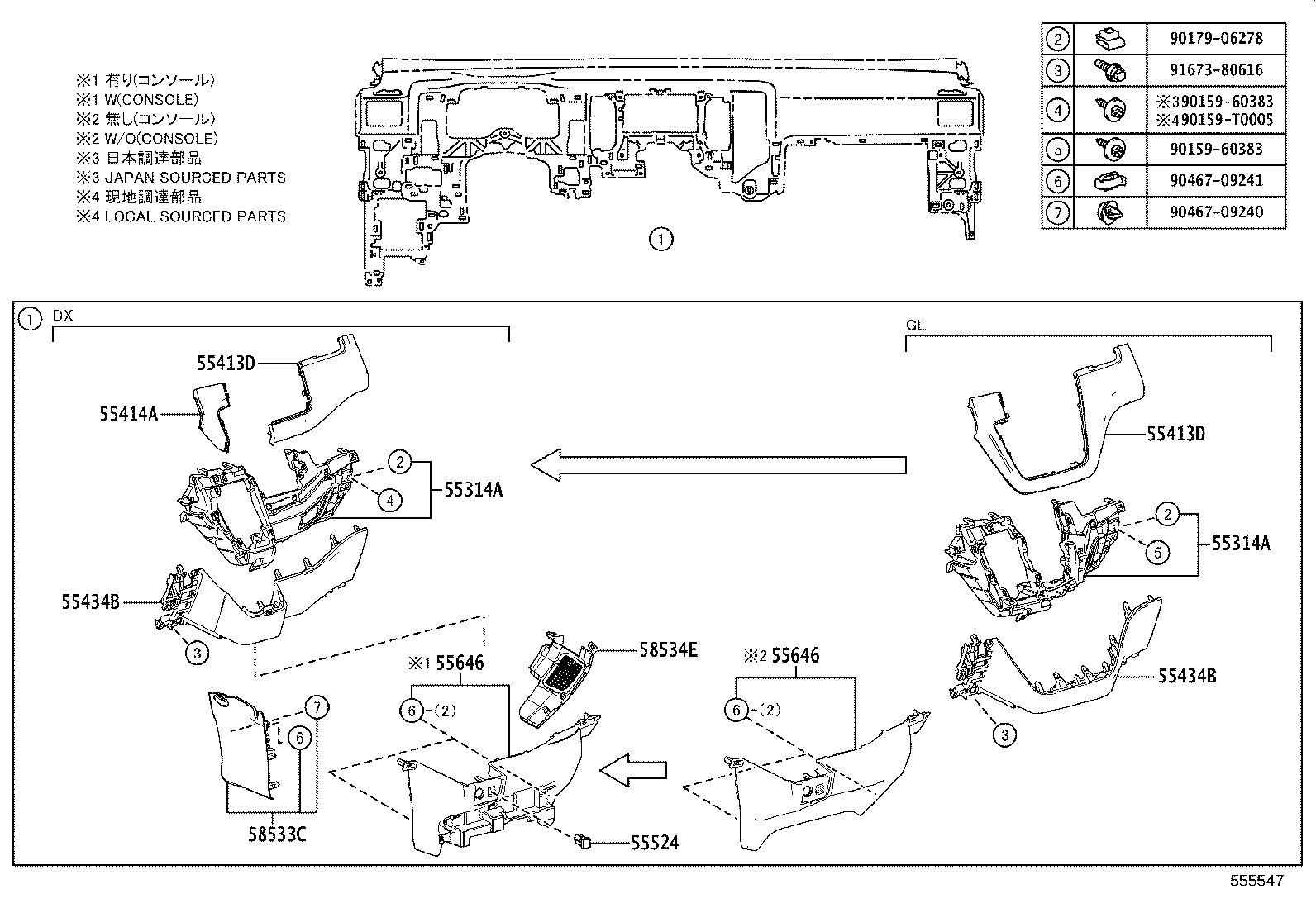

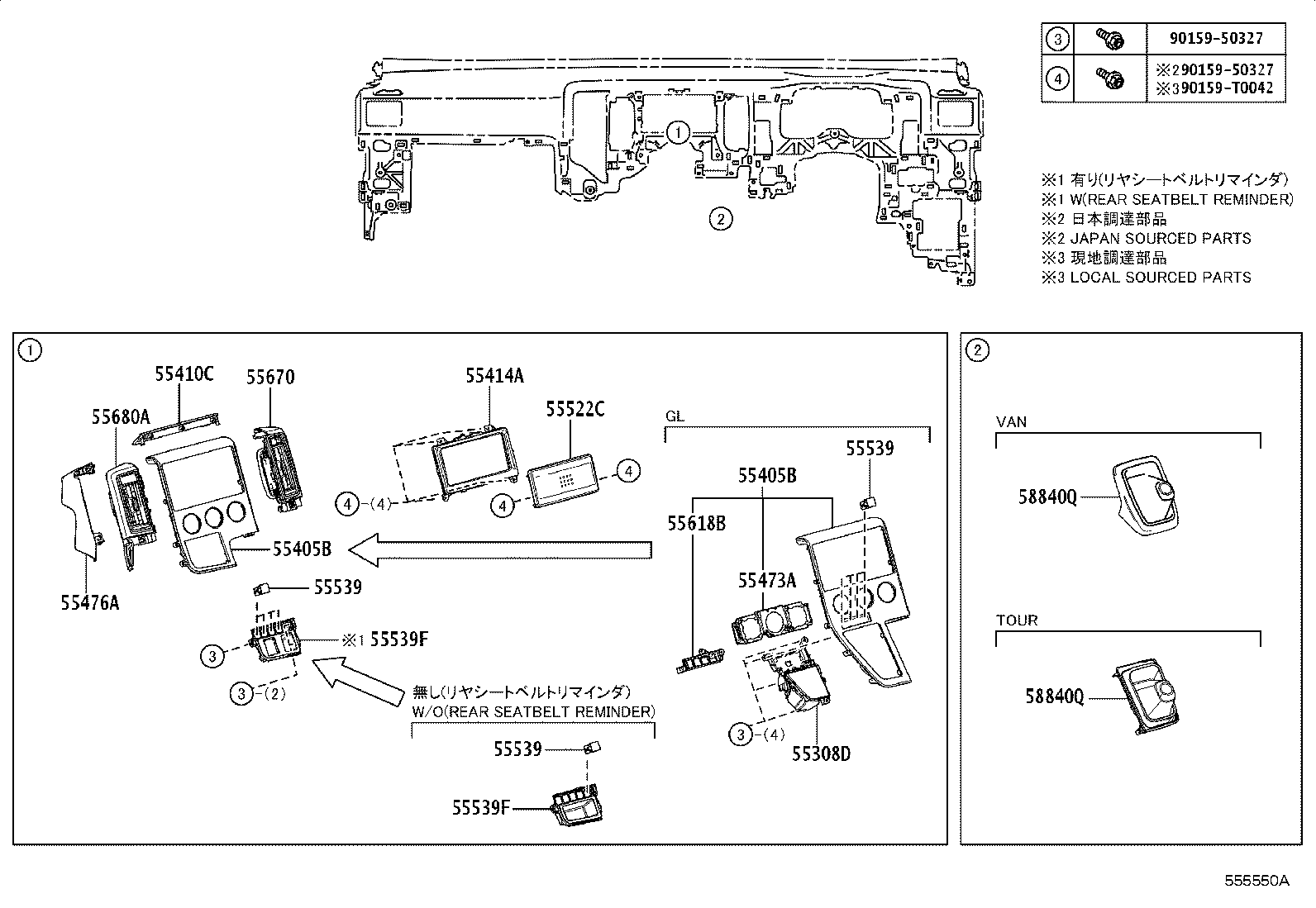

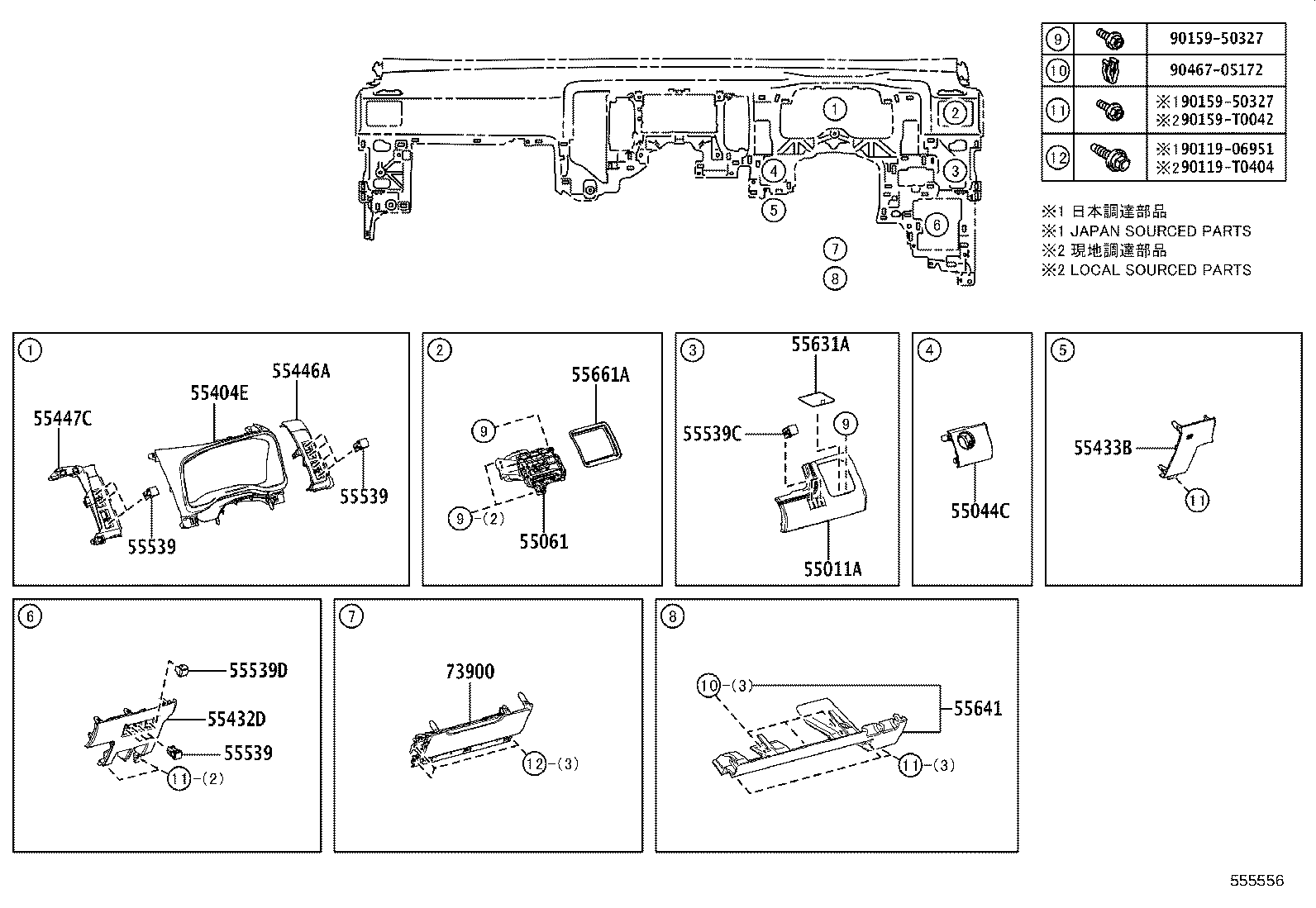

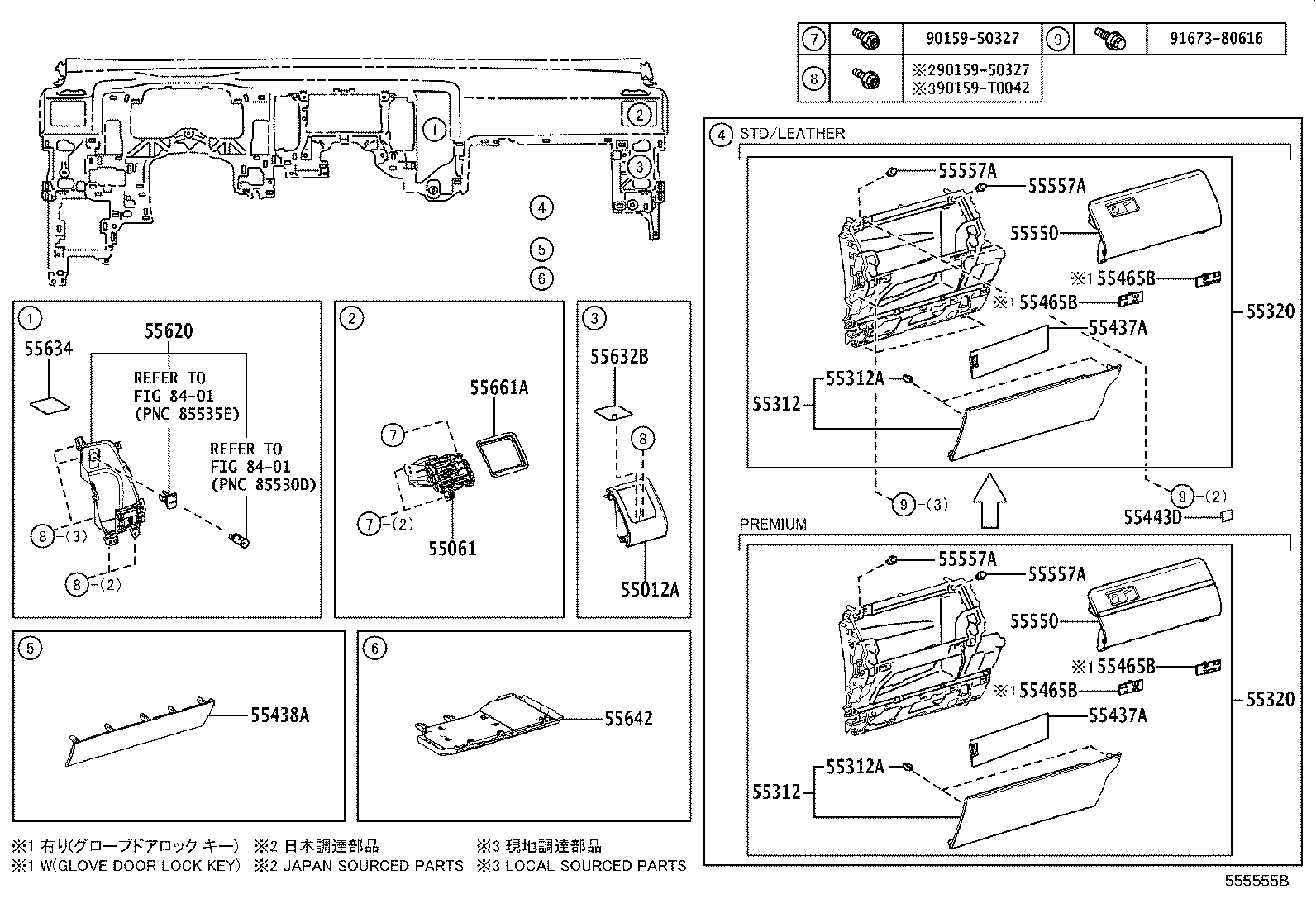

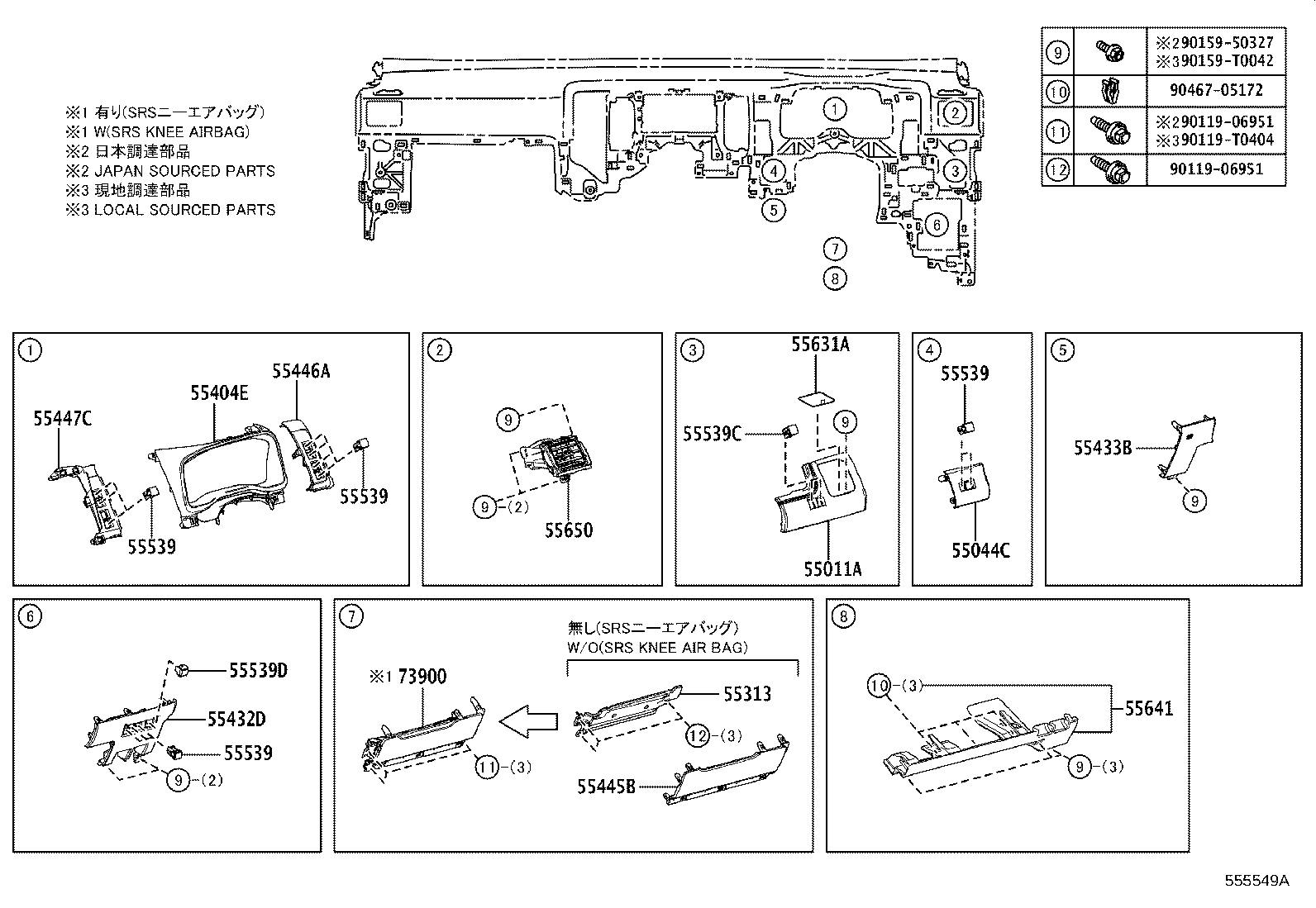

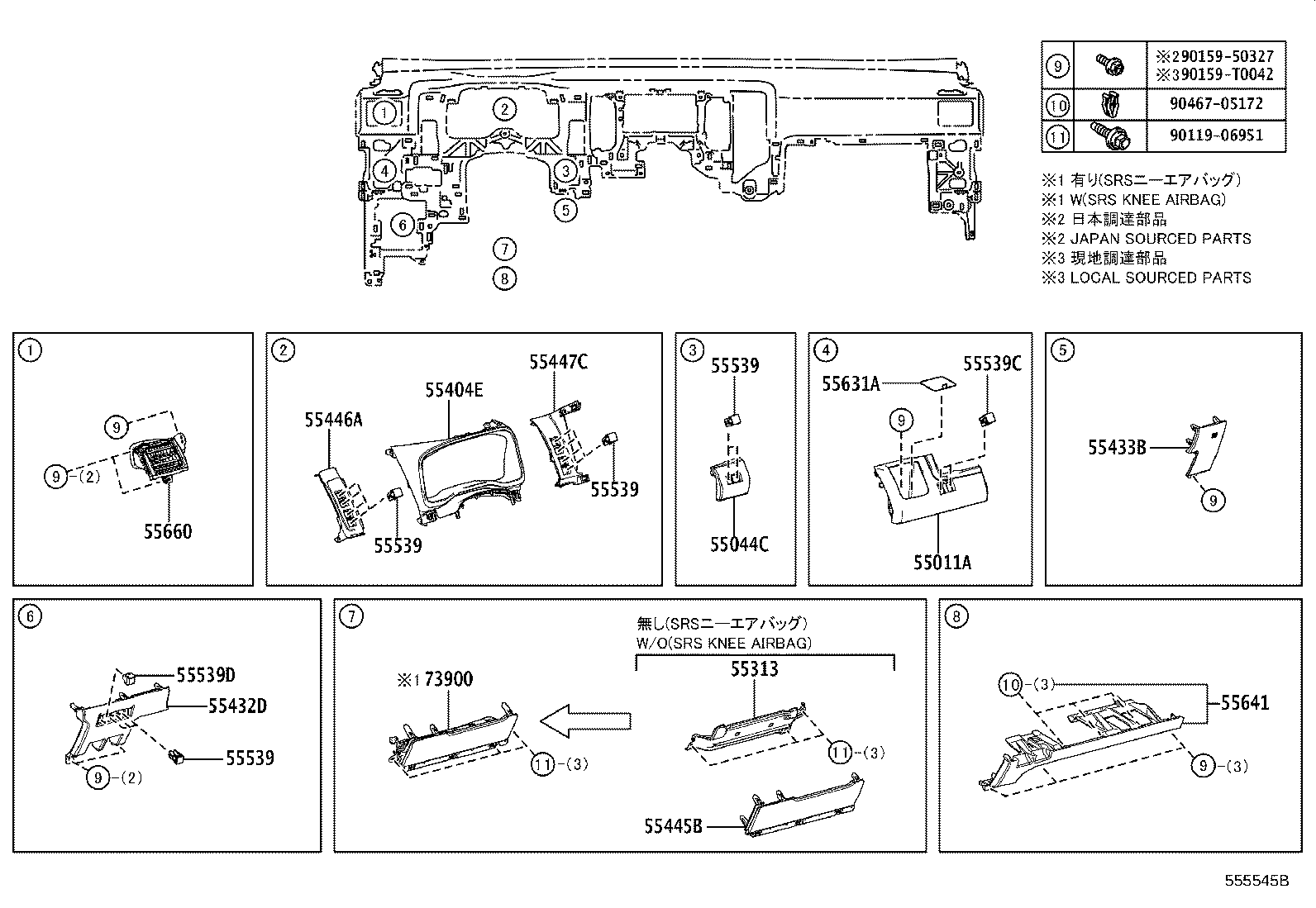

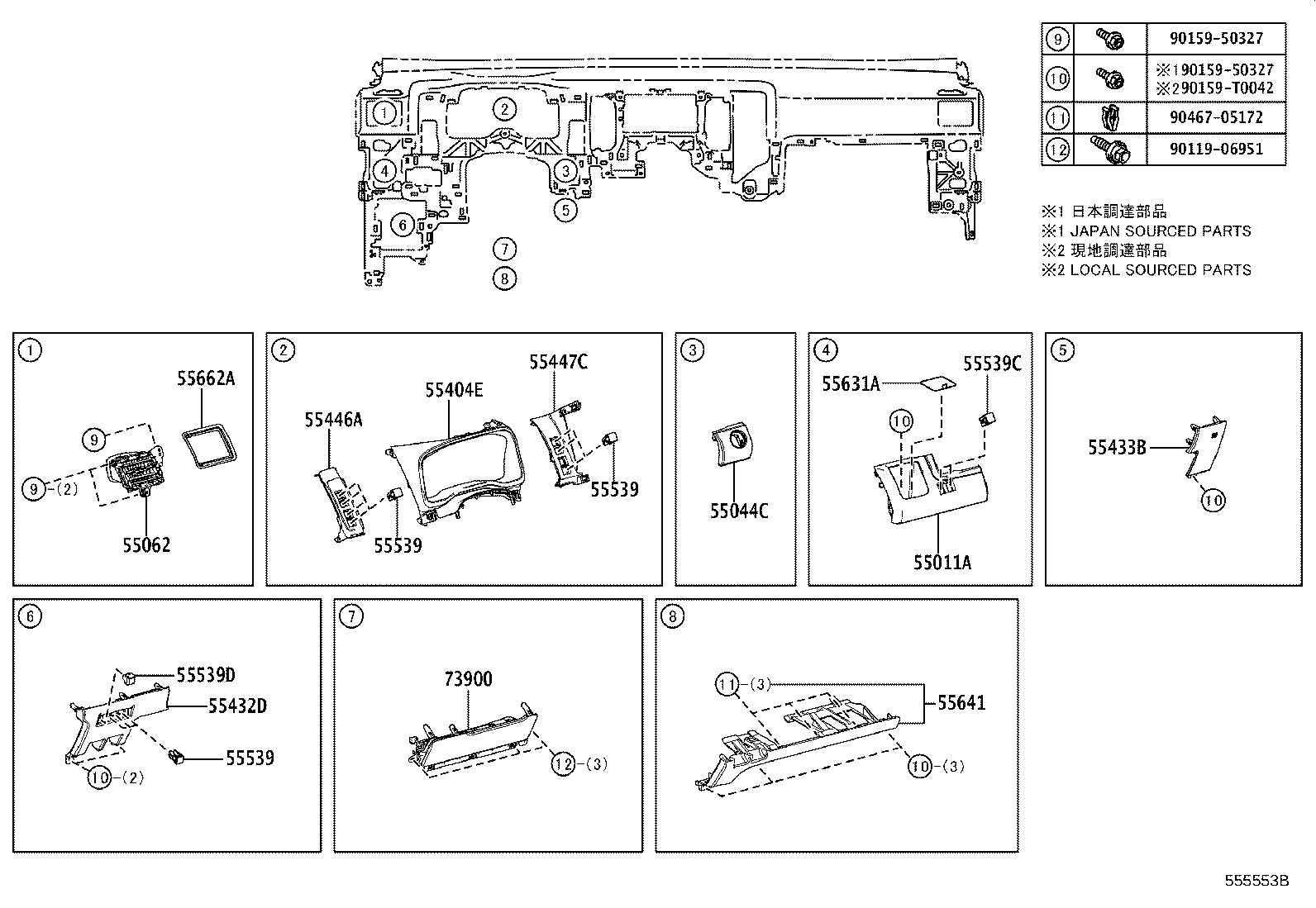

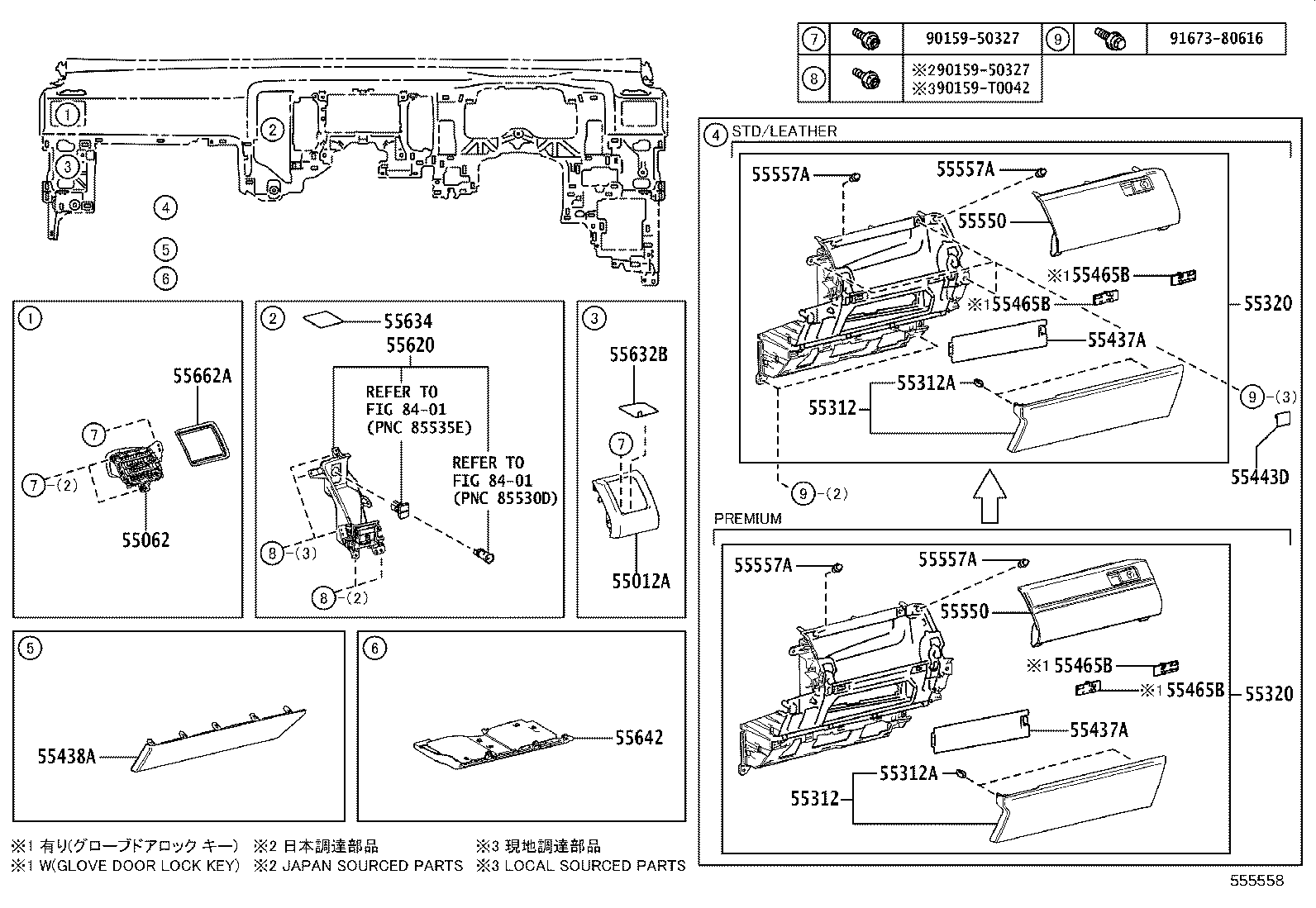

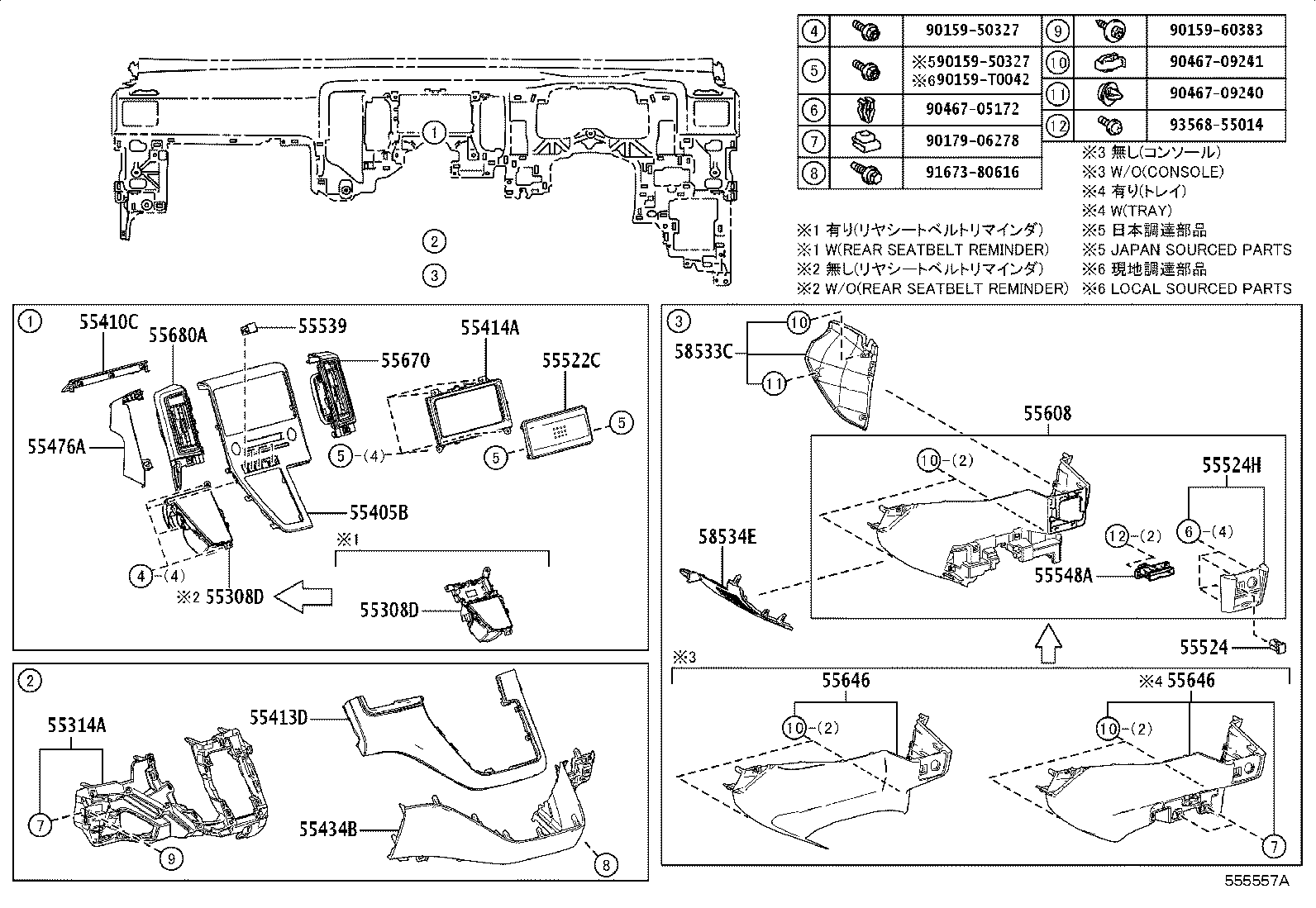

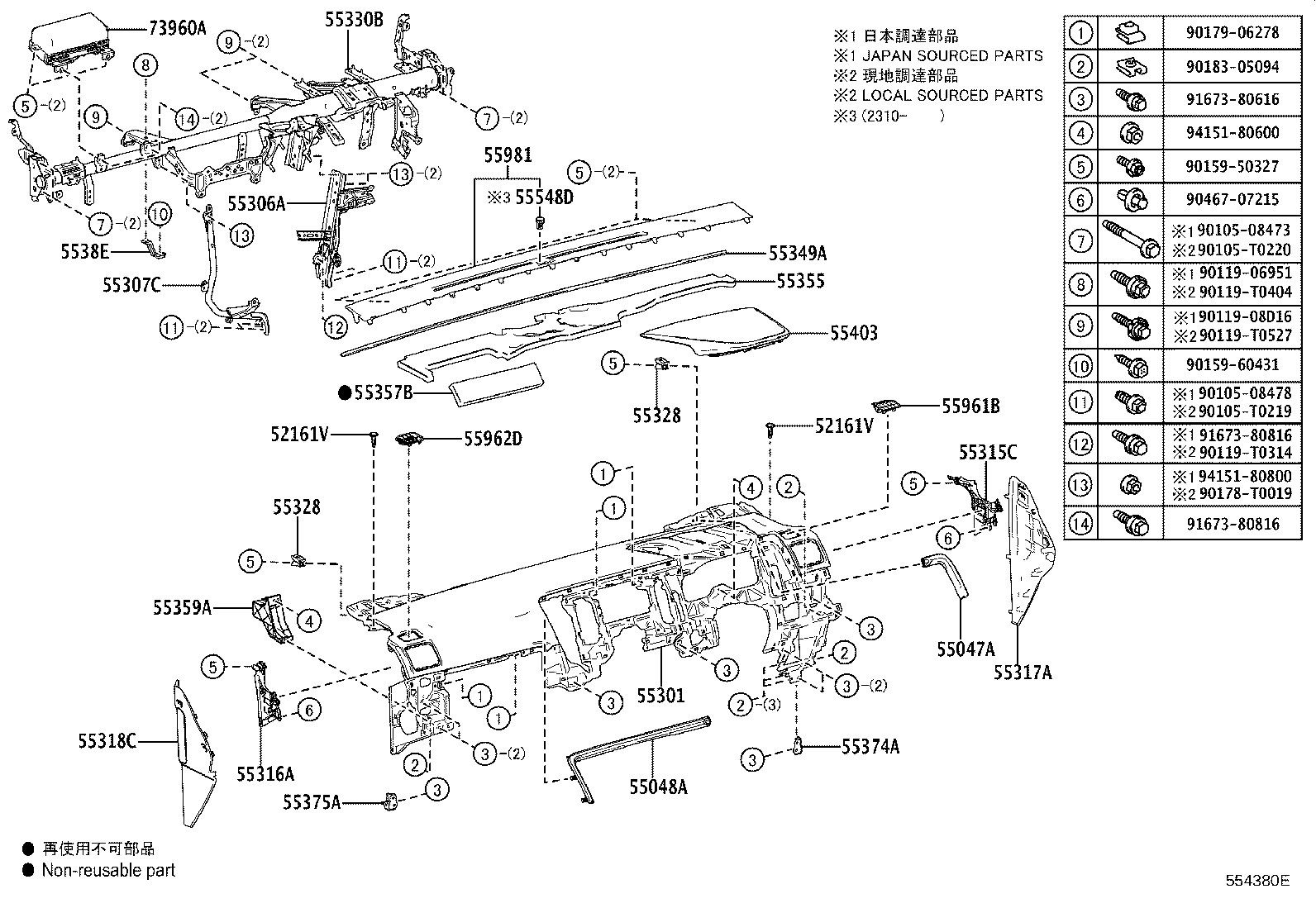

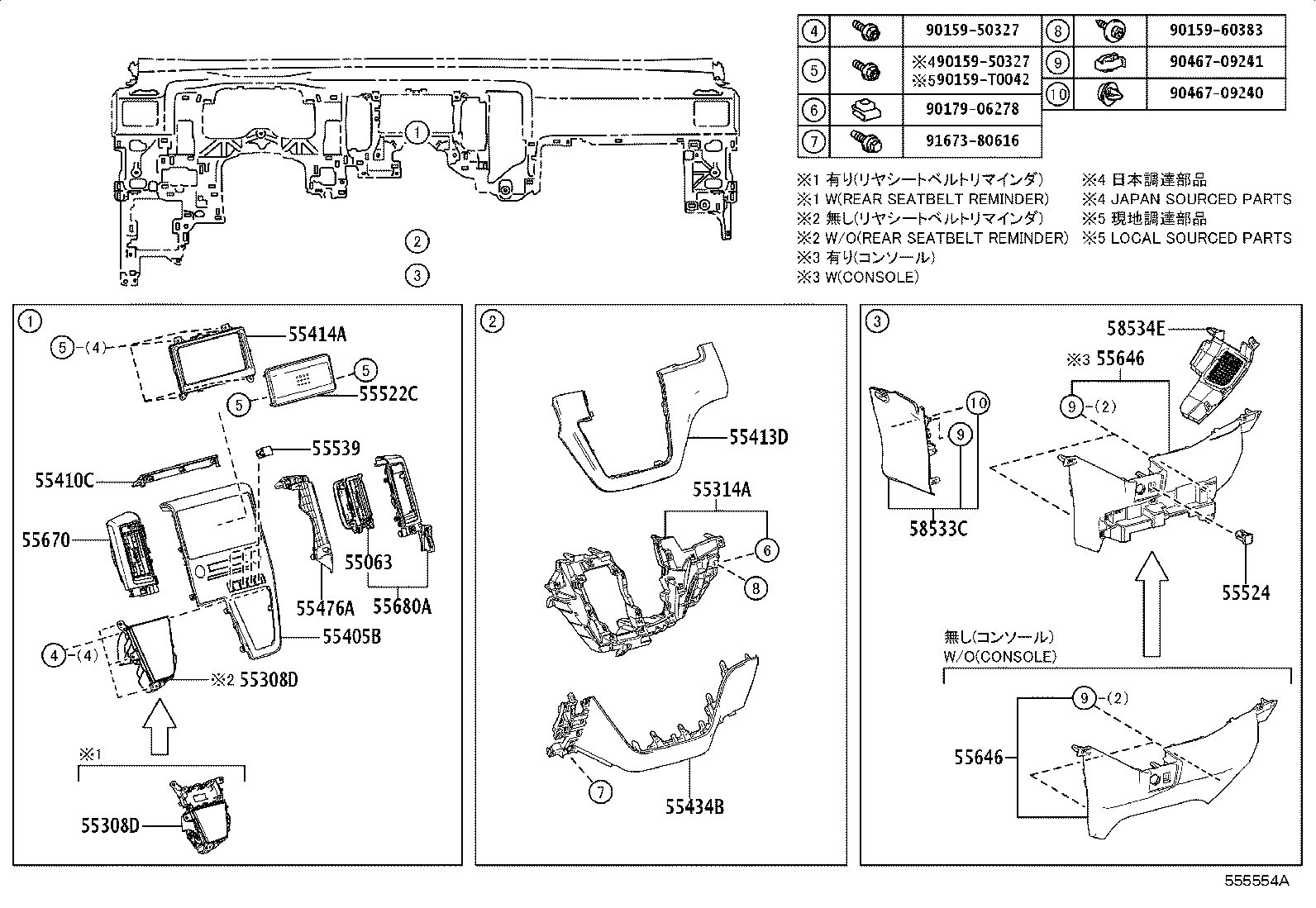

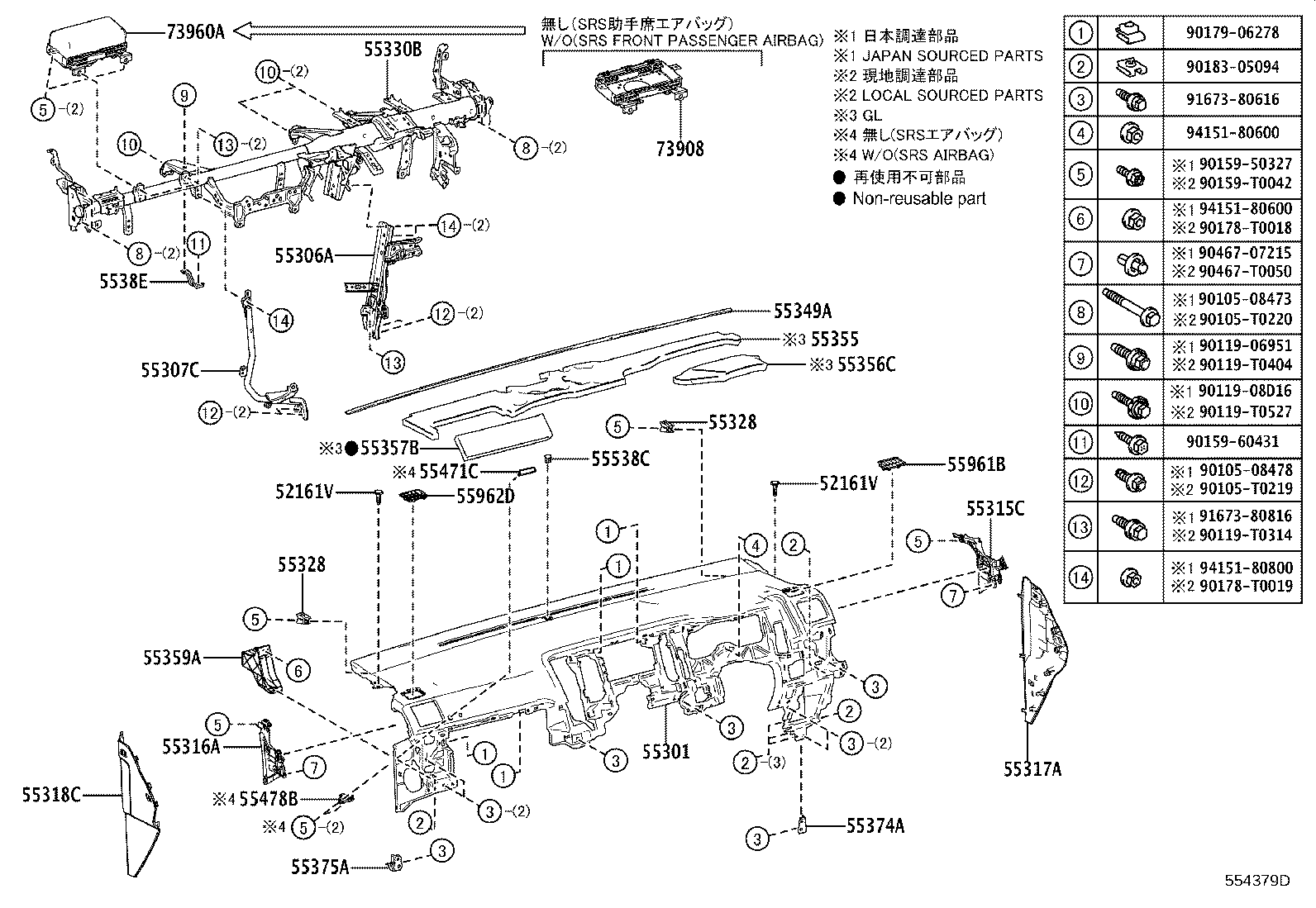

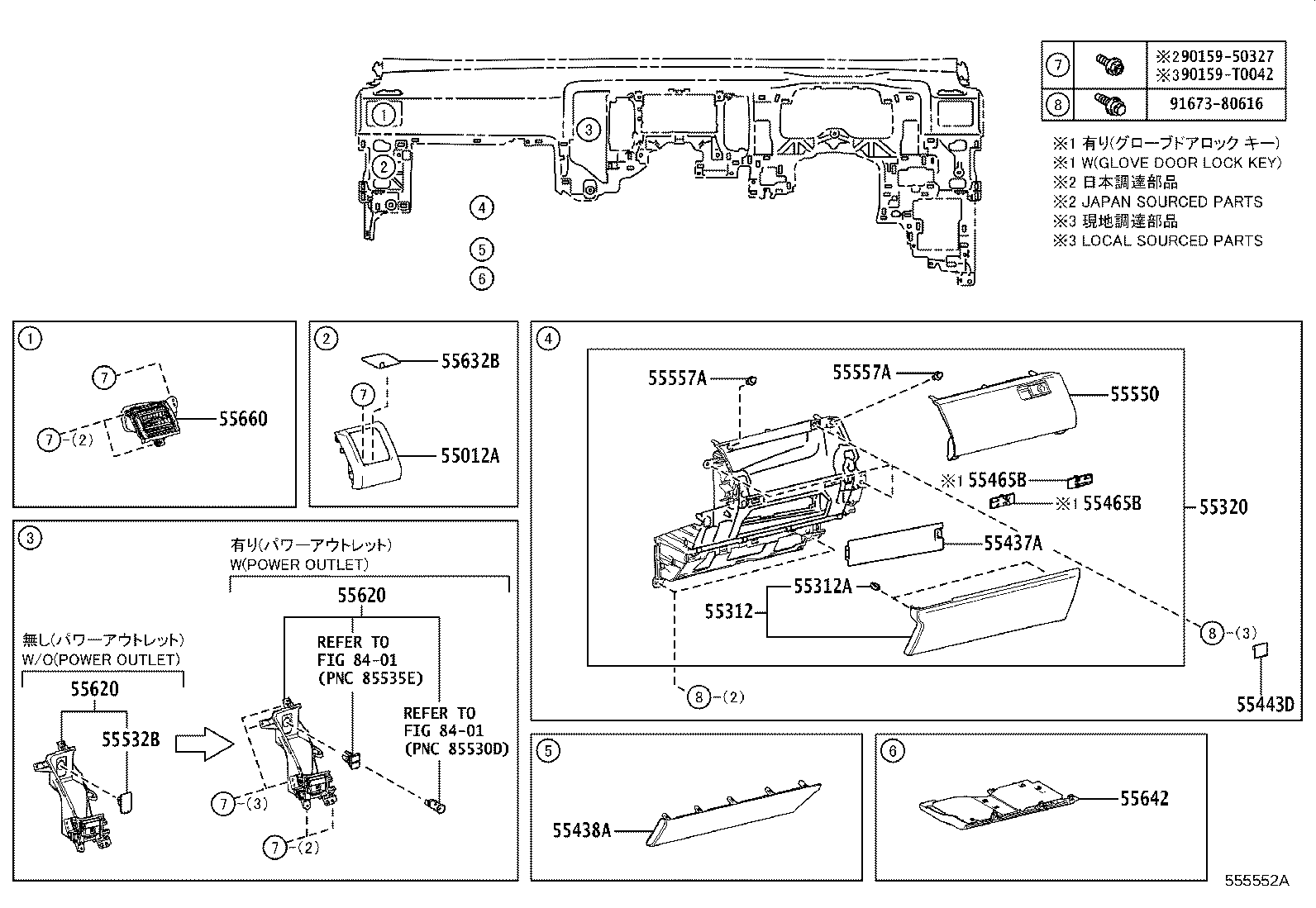

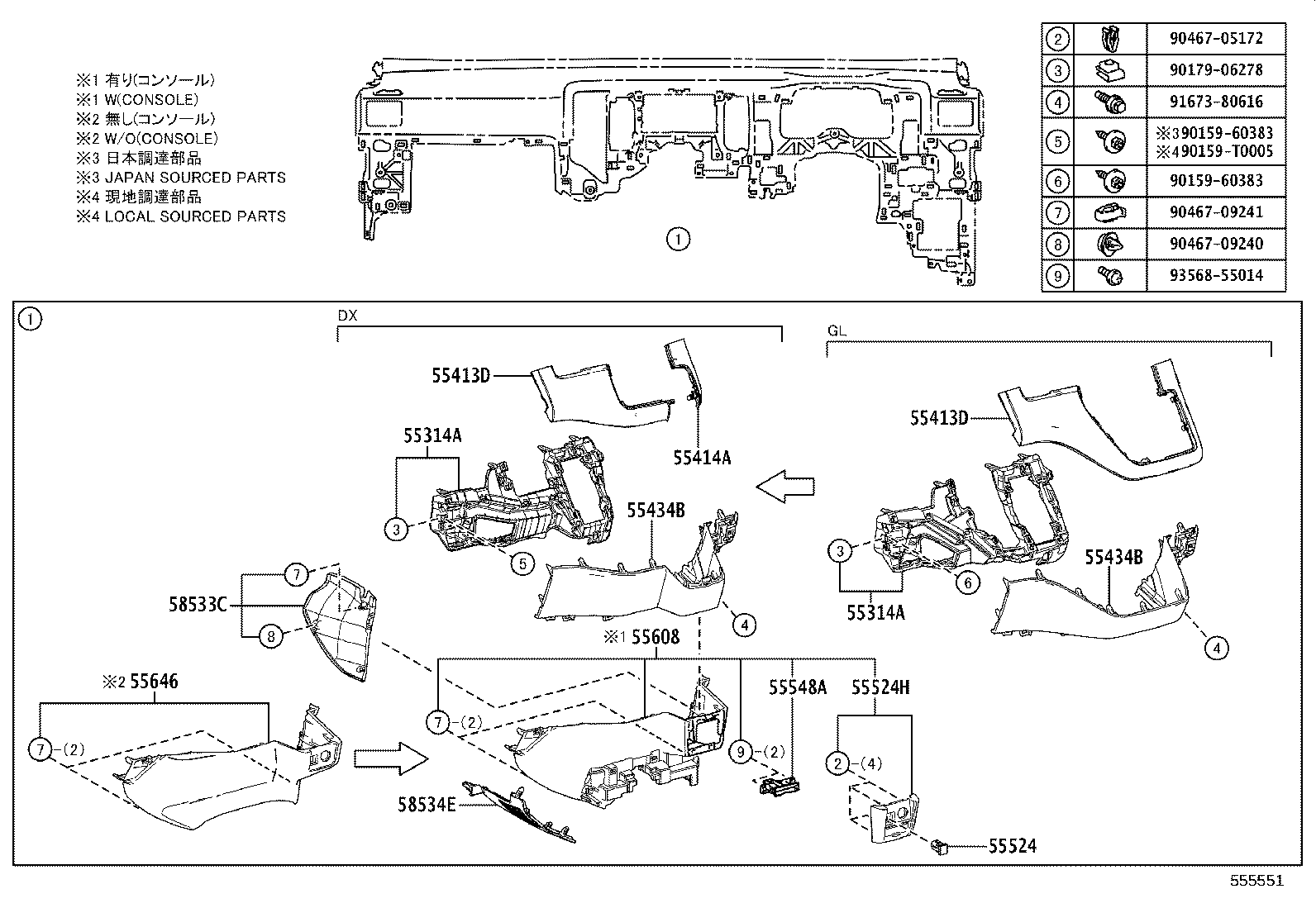

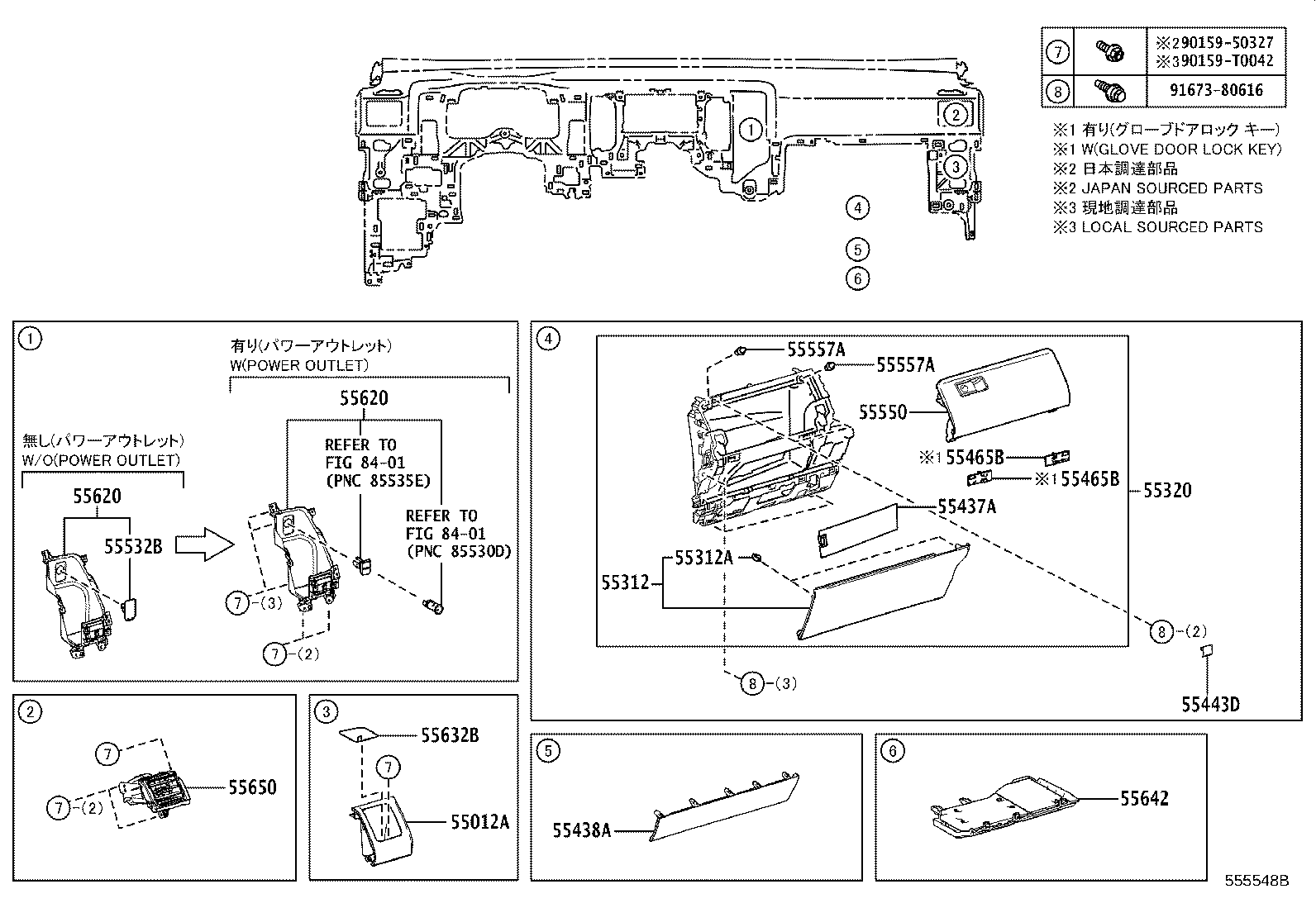

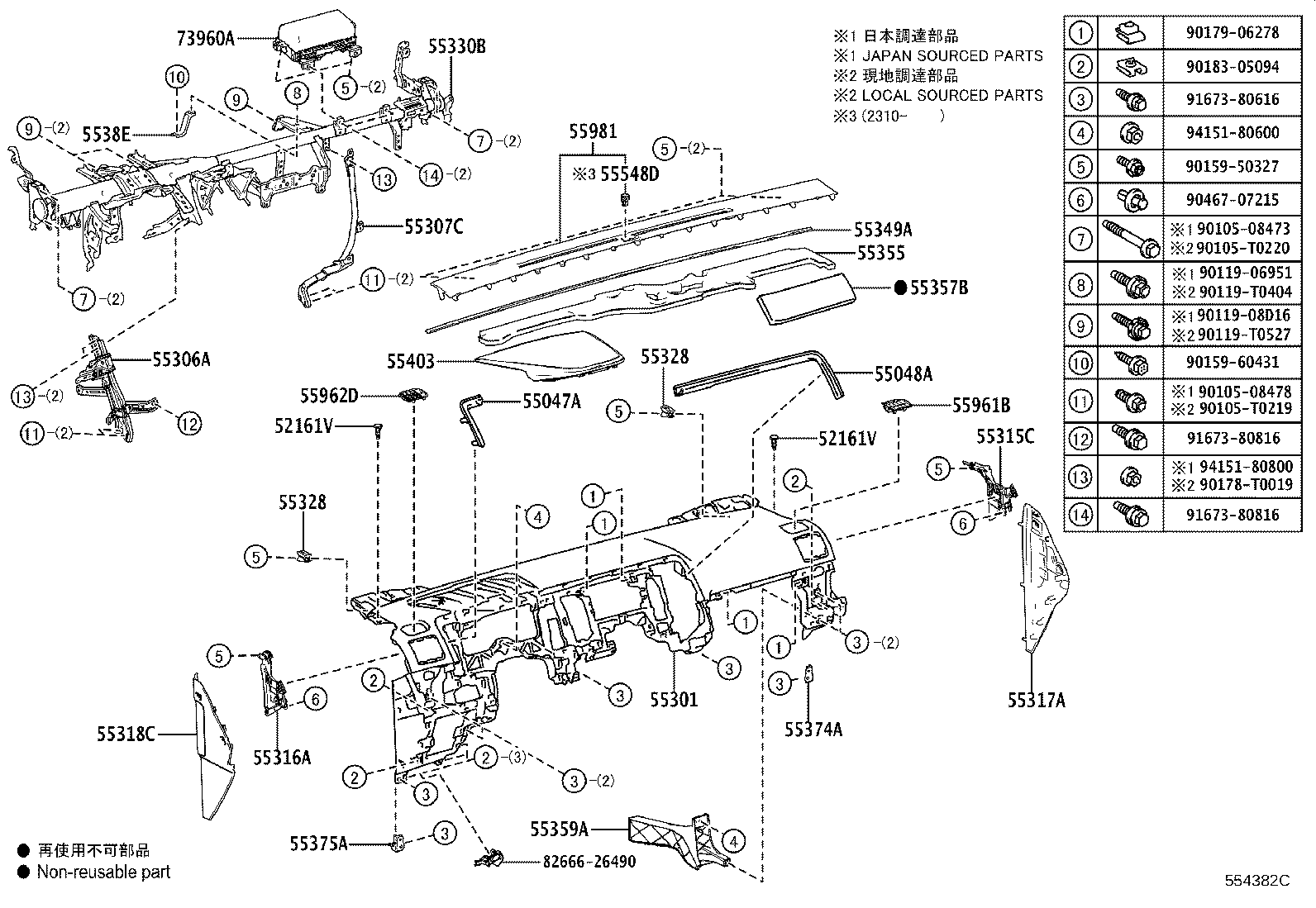

Figure 554381D 554381D 2019-02 → — Figure 555545B 555545B 2019-02 → — Figure 555546A 555546A 2019-02 → — Figure 555547 555547 2019-02 → — Figure 555548B 555548B 2019-02 → — Figure 554379D 554379D 2019-02 → — Figure 555549A 555549A 2019-02 → — Figure 555550A 555550A 2019-02 → — Figure 555551 555551 2019-02 → — Figure 555552A 555552A 2019-02 → — Figure 554382C 554382C 2019-07 → — Figure 555553B 555553B 2019-07 → — Figure 555554A 555554A 2019-07 → — Figure 555555B 555555B 2019-07 → — Figure 554380E 554380E 2019-07 → — Figure 555556 555556 2019-07 → — Figure 555557A 555557A 2019-07 → — Figure 555558 555558 2019-07 → —

Part groups

PNCDescription
52161V Piece, Instrument Panel
55011A Garnish Sub-assy, Instrument Panel, NO.1
55012A Garnish Sub-assy, Instrument Panel, NO.2
55044C Panel Sub-assy, Instrument Panel Finish
55047A Cluster Sub-assy, Meter Hood, RH
55048A Cluster Sub-assy, Meter Hood, LH
55061 Register Sub-assy, Instrument Panel, NO.1
55062 Register Sub-assy, Instrument Panel, N0.2
55063 Register Sub-assy, Instrument, NO.3
55301 Panel Sub-assy, Instrument
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308D Box Sub-assy, Instrument Panel, Center
55312 Panel, Instrument, Lower
55312A Clip, Instrument Panel
55313 Panel, Instrument, Lower LH
55314A Panel, Instrument, Lower Center
55315C Patch, Instrument Side, Upper RH
55316A Patch, Instrument Side, Upper LH
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55320 Panel Assy, Instrument, Lower NO.2
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55349A Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55357B Cushion, Instrument Panel, NO.3
55359A Protector, Instrument Panel, NO.2
55374A Bracket, Instrument Panel Lower Mounting, RH
55375A Bracket, Instrument Panel Lower Mounting, LH
5538E Bracket, Electrical Parts Mounting
55403 Hood Sub-assy, Meter
55404E Panel Sub-assy, Instrument Cluster Finish, Upr
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55410C Panel Assy, Instrument Cluster Finish
55413D Panel, Instrument Cluster Finish, Center Lower
55414A Panel, Instrument Cluster Finish, End
55432D Panel, Instrument Panel Finish, Lower NO.1
55433B Panel, Instrument Panel Finish, Lower NO.2
55434B Panel, Instrument Panel Finish, Lower Center
55437A Retainer, Instrument Panel Finish Panel, NO.1
55438A Retainer, Instrument Panel Finish Panel, NO.2
55443D Knob, Instrument Panel Box Door
55445B Plate, Instrument Panel Finish
55446A Base, Switch Hole, NO.1
55447C Base, Switch Hole, NO.2
55465B Knob, Instrument Panel Box Lock
55471C Plate, Instrument Panel Name
55473A Retainer, Instrument Panel Finish Panel
55476A Garnish, Instrument Cluster Finish Panel, NO.3
55478B Retainer, Instrument Panel Safety Pad, NO.4
55522C Cover, Radio Receiver Opening
55524 Cover, Switch Bace Hole
55524H Cover, Switch Base Hole
55532B Cover, Cigar Lighter Hole
55538C Cover, Cooler Switch Hole
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55539F Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55548D Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55608 Cover Sub-assy, Instrument Panel Under, NO.3
55618B Base, Switch Hole, NO.3
55620 Holder Assy, Instrument Panel Cup
55631A Stopper, Instrument Panel Under Tray, NO.1
55632B Support, Instrument Panel Under Tray, NO.2
55634 Support, Instrument Panel Under Tray, NO.3
55641 Cover, Instrument Panel Under, NO.1
55642 Cover, Instrument Panel Under, NO.2
55646 Cover, Instrument Panel Under, NO.3
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55661A Bezel, Instrument Panel Register
55662A Bezel, Instrument Panel Resister, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
55961B Nozzle, Side Defroster, NO.1
55962D Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
58533C Cover, Floor Carpet, Center RH
58534E Cover, Floor Carpet, Center LH
58840Q Cover Assy, Shifting Hole
73900 Airbag Assy, Instrument Panel, Lower NO.1
73908 Case Sub-assy, Instrument Panel Passenger Airbag
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
