Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

57 part groups · 11 illustrations

Illustrations

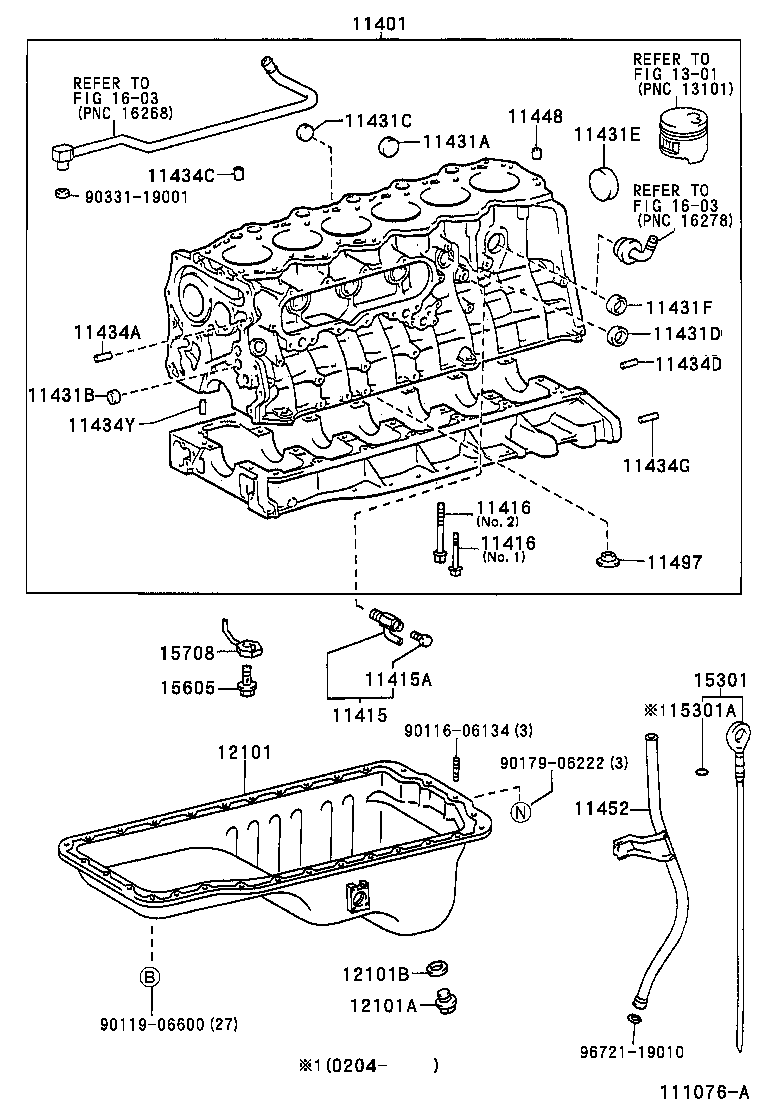

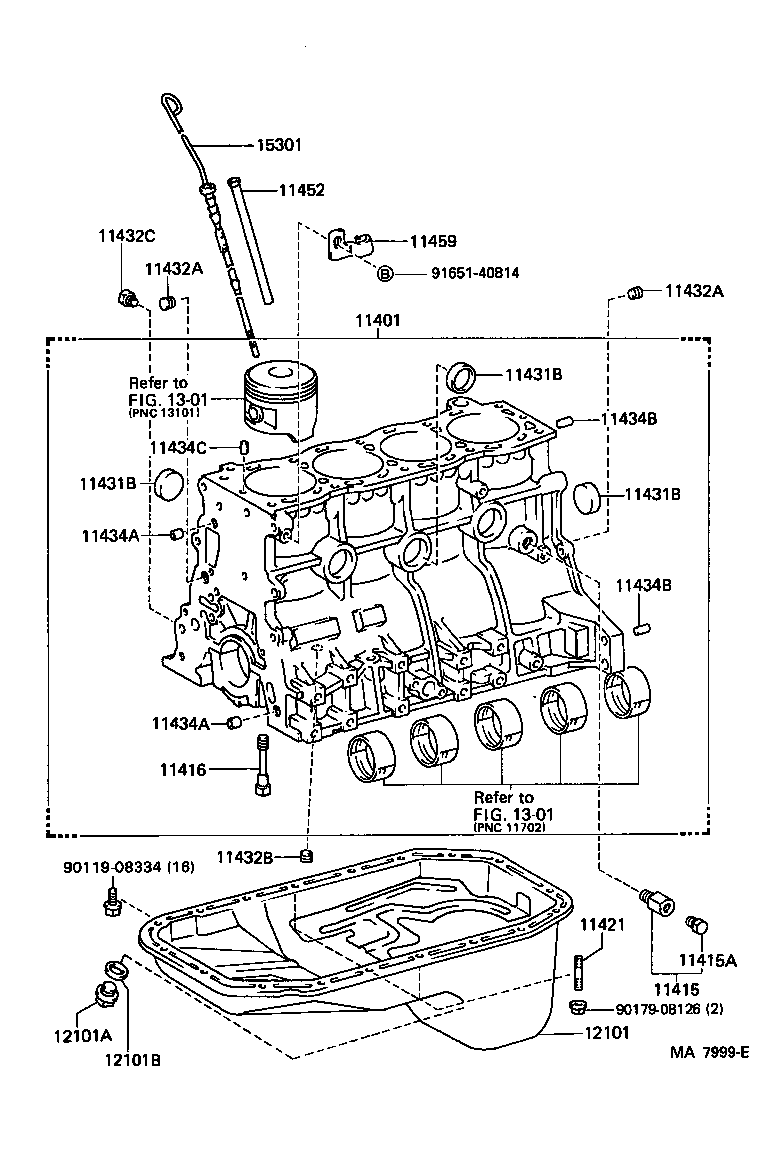

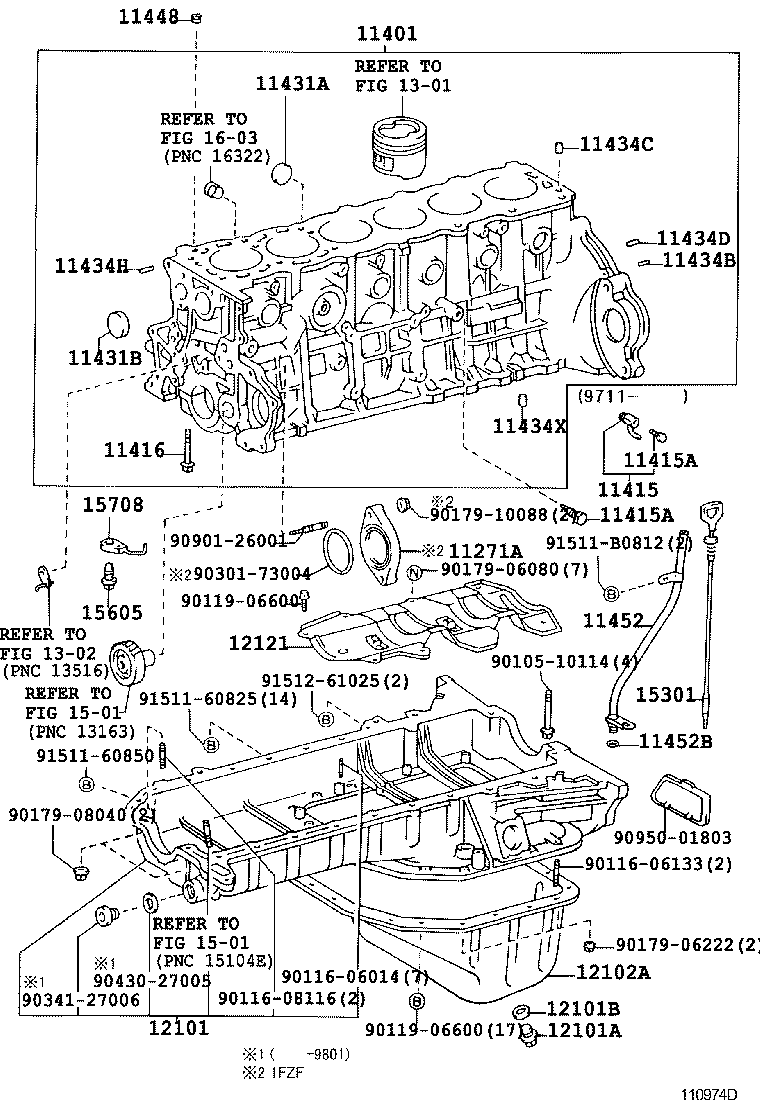

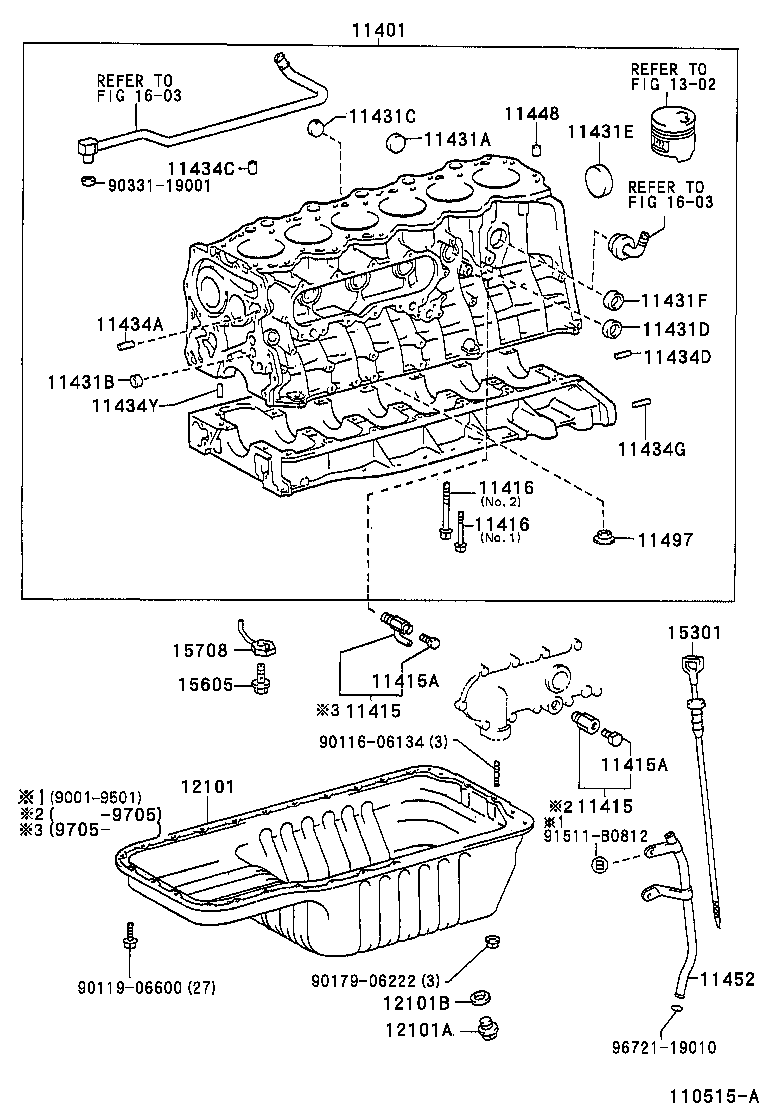

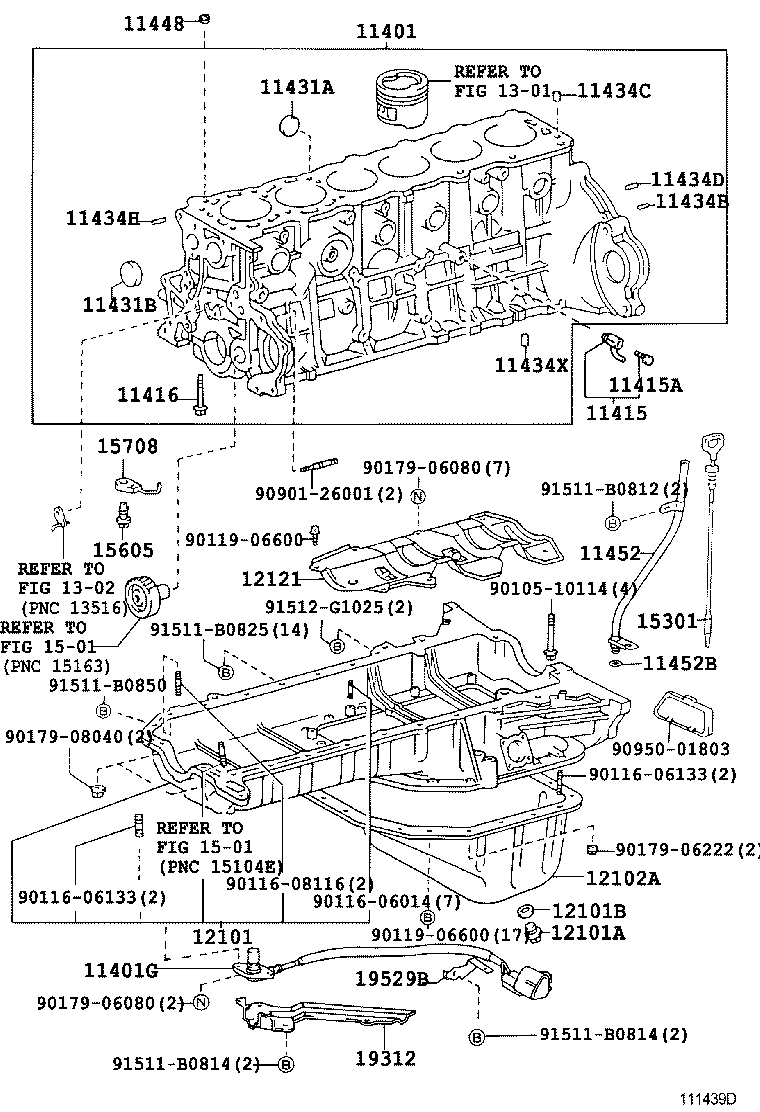

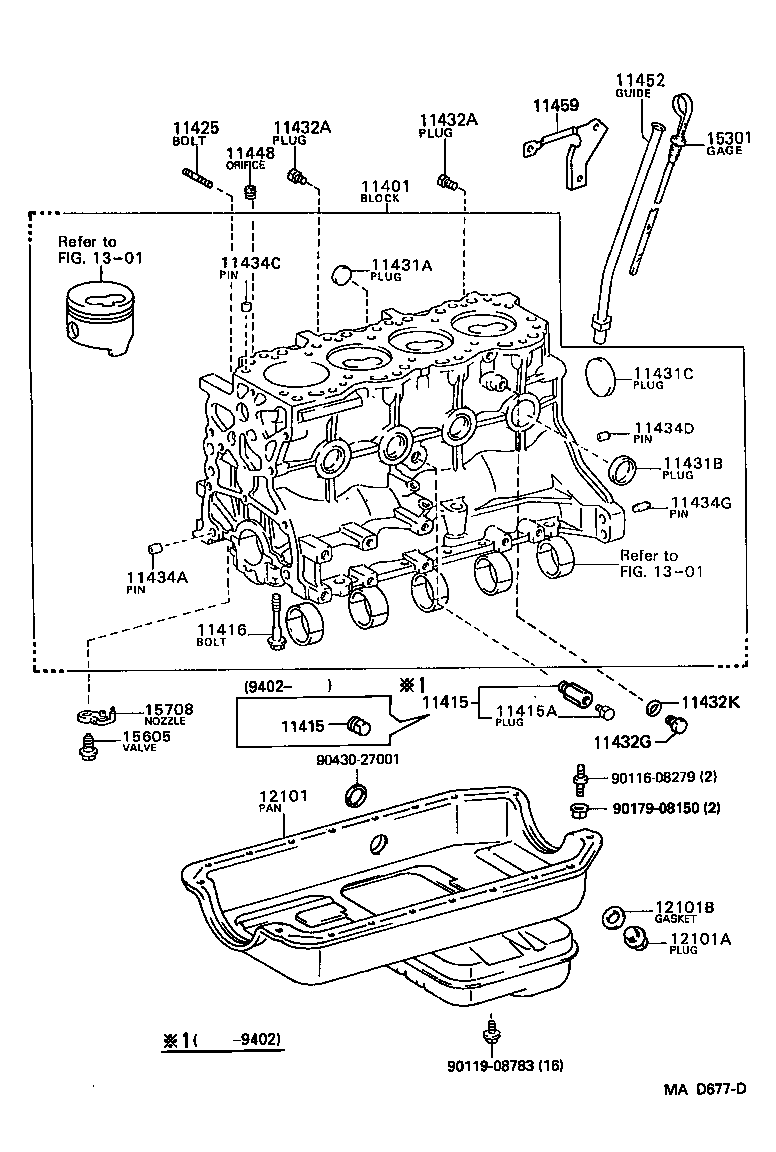

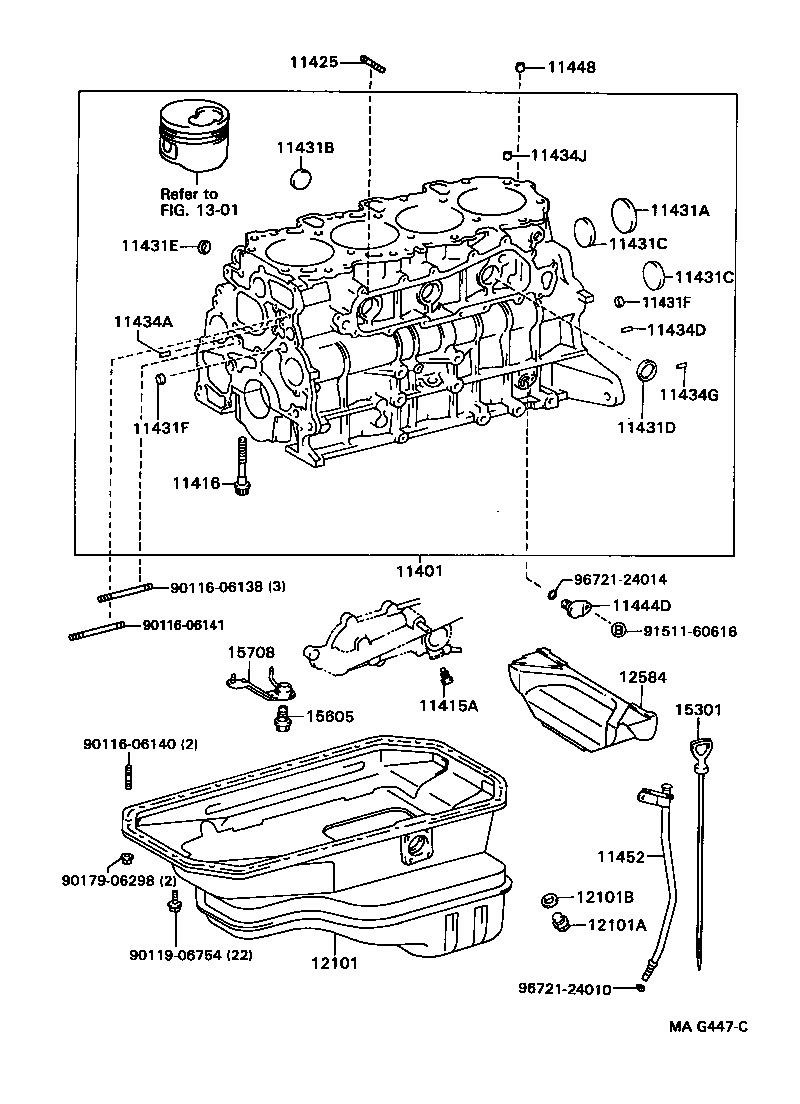

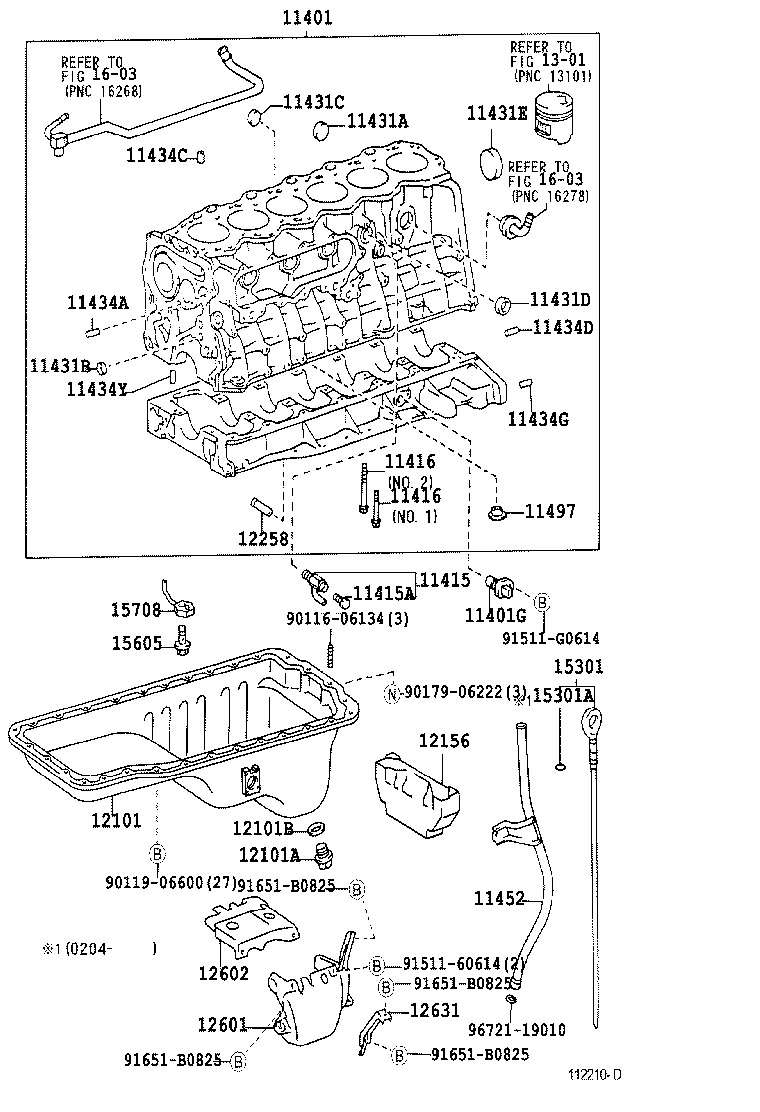

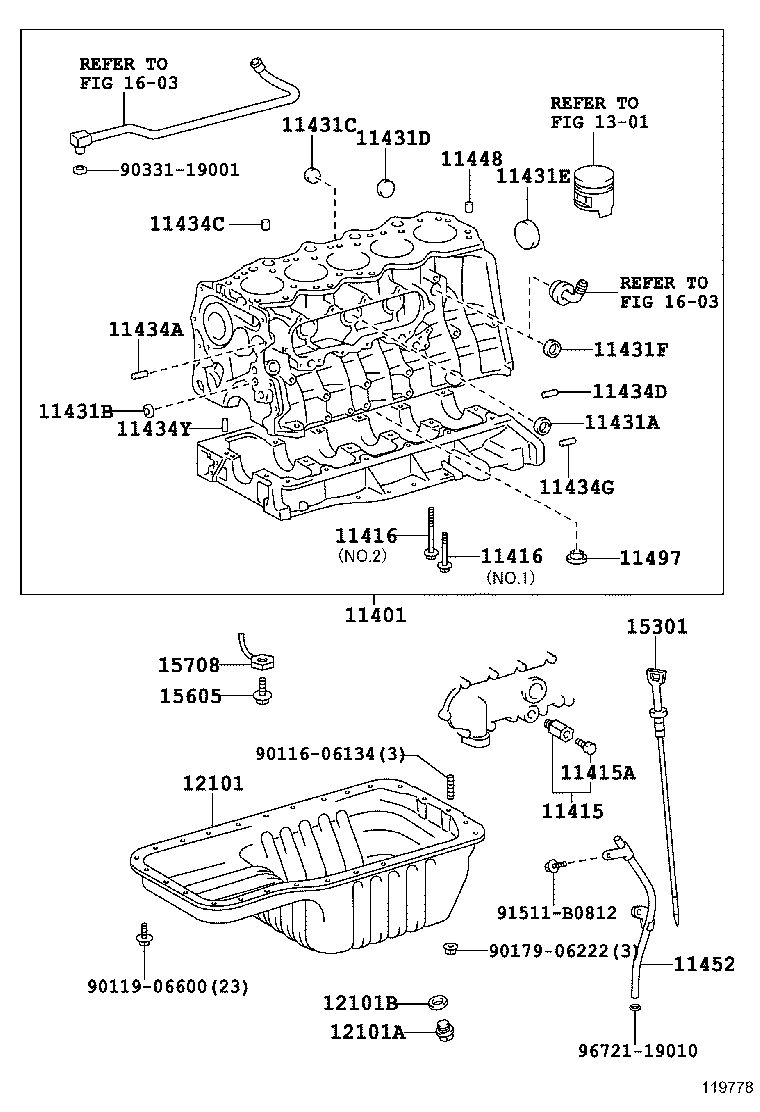

Figure 110563A 110563A 1990-01 → 1992-08 Figure 110974D 110974D 1992-01 → — Figure 111439D 111439D 1999-08 → — Figure 110515A 110515A 1990-01 → 1998-05 Figure 111076A 111076A 1998-05 → — Figure 112210D 112210D 2001-08 → — Figure MAG447C MAG447C 1993-05 → 1996-04 Figure MAD677D MAD677D 1990-01 → 1993-05 Figure MAD677D MAD677D 1990-04 → 1996-04 Figure 119778 119778 1990-01 → 1995-01 Figure MA7999E MA7999E 1990-01 → —

Part groups

PNCDescription
11251 Cover, Valve Push Rod
11251E Bolt, Stud(FOR VALVE PUSH ROD COVER)
11253 Gasket, Valve Push Rod Cover
11271A Cover, Cylinder Block, Rear
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11417 Nozzle, Oil
11421 Bolt, Stud(FOR OIL PAN)
11425 Bolt, Stud(FOR OIL FILTER)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11431E Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11431F Plug, Tight, NO.6(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11432B Plug, W/Head Taper Screw, NO.2
11432C Plug, W/Head Taper Screw, NO.3
11432G Plug, W/Head Straight Screw, NO.5
11432K Gasket, W/Head Straight Screw Plug
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G Pin, Straight(FOR END PLATE)
11434H Pin, Ring (FOR TIMING BELT COVER SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434X Pin, Ring(FOR CHAIN CACE)
11434Y Pin, Straight(FOR OIL PAN)
11444D Plug, Hole
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
11497 Gasket, Cylinder Block Oil Hole
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
12121 Plate, Oil Pan Baffle, NO.1
12151 Gasket, Oil Pan
12156 Insulator, Oil Pan
12258 Pipe, Oil Return
12584 Insulator, Cylinder Brock, NO.4
12601 Cover Sub-assy, Engine, NO.1
12602 Cover Sub-assy, Engine, NO.2
12631 Bracket, Engine Cover
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15605 Valve Sub-assy, Oil Check
15708 Nozzle Sub-assy, Oil, NO.1
19312 Protector, Crank Position Sensor
19529B Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
