Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

17 part groups · 6 illustrations

Illustrations

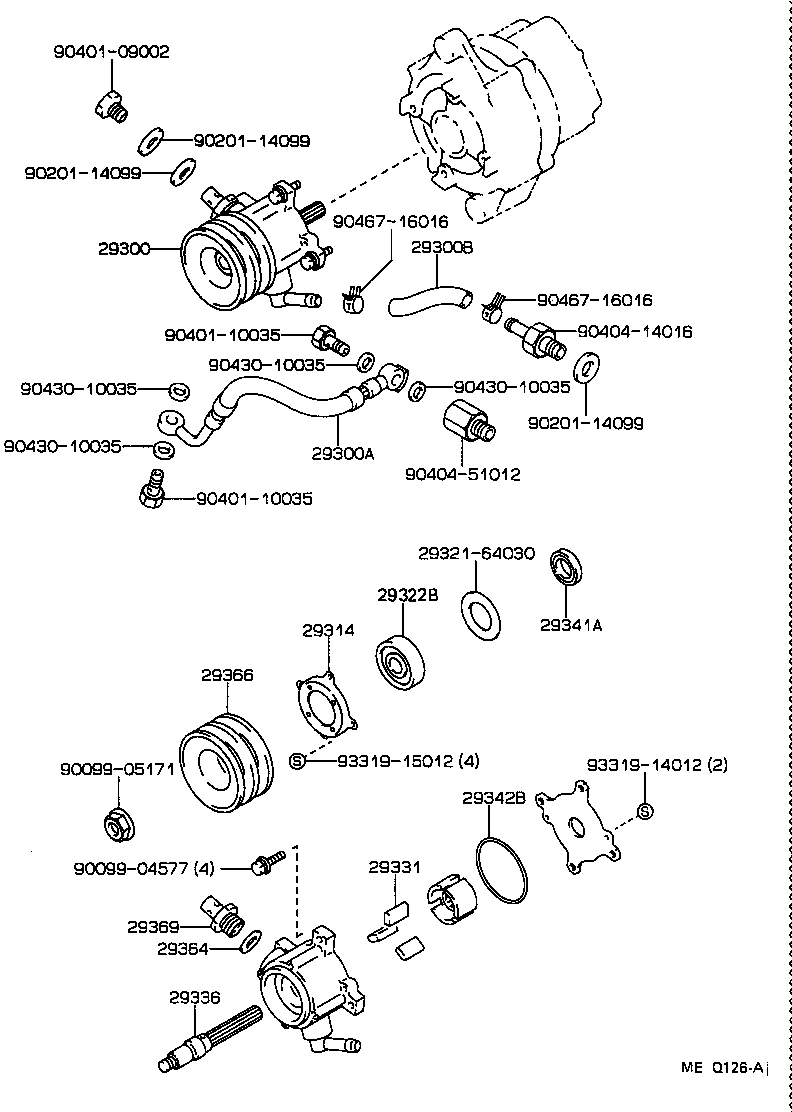

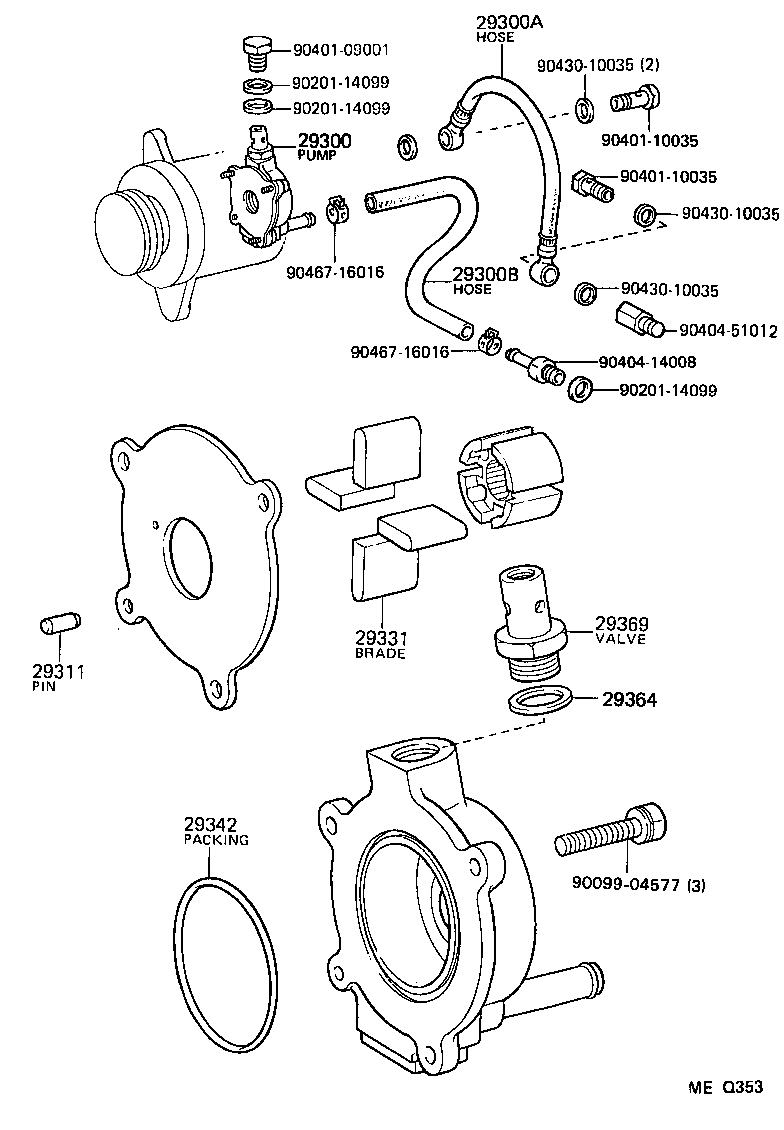

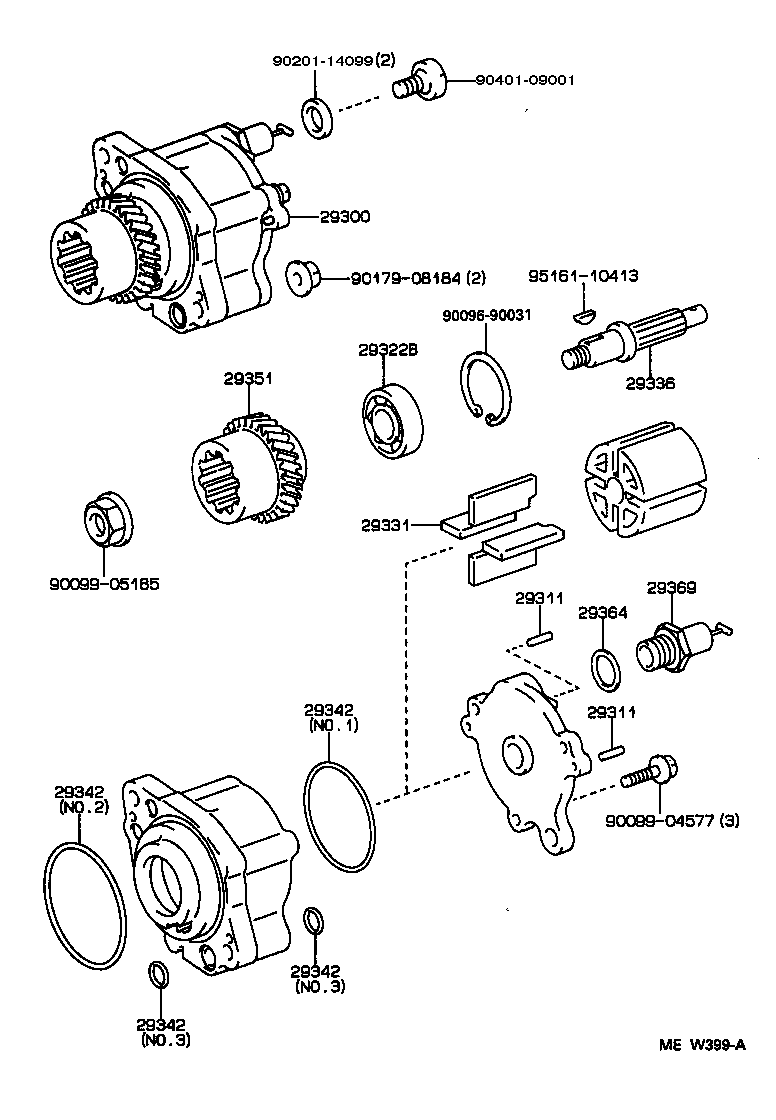

Figure 190944A 190944A 1990-01 → 1995-01 Figure 190944A 190944A 1990-01 → 1999-08 Figure 190944A 190944A 1999-08 → 2007-01 Figure MEQ126A MEQ126A 1990-01 → 1996-04 Figure MEQ353 MEQ353 1990-01 → 1991-08 Figure MEW399A MEW399A 1993-05 → 1996-04

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29303 Rotor Sub-assy, Vacuum Pump
29311 Pin, Vacuum Pump Dowel, NO.1
29314 Ring, Stop
29322B Bearing, Vacuum Pump
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29341A Seal, Oil
29342 Packing, Vacuum Pump
29342B Ring, O
29351 Gear, Vacuum Pump
29364 Washer, Vacuum Pump
29366 Pulley, Vacuum Pump
29369 Valve Sub-assy, Check
29391 Tube, Vacuum Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
