Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Booster

21 part groups · 11 illustrations

Illustrations

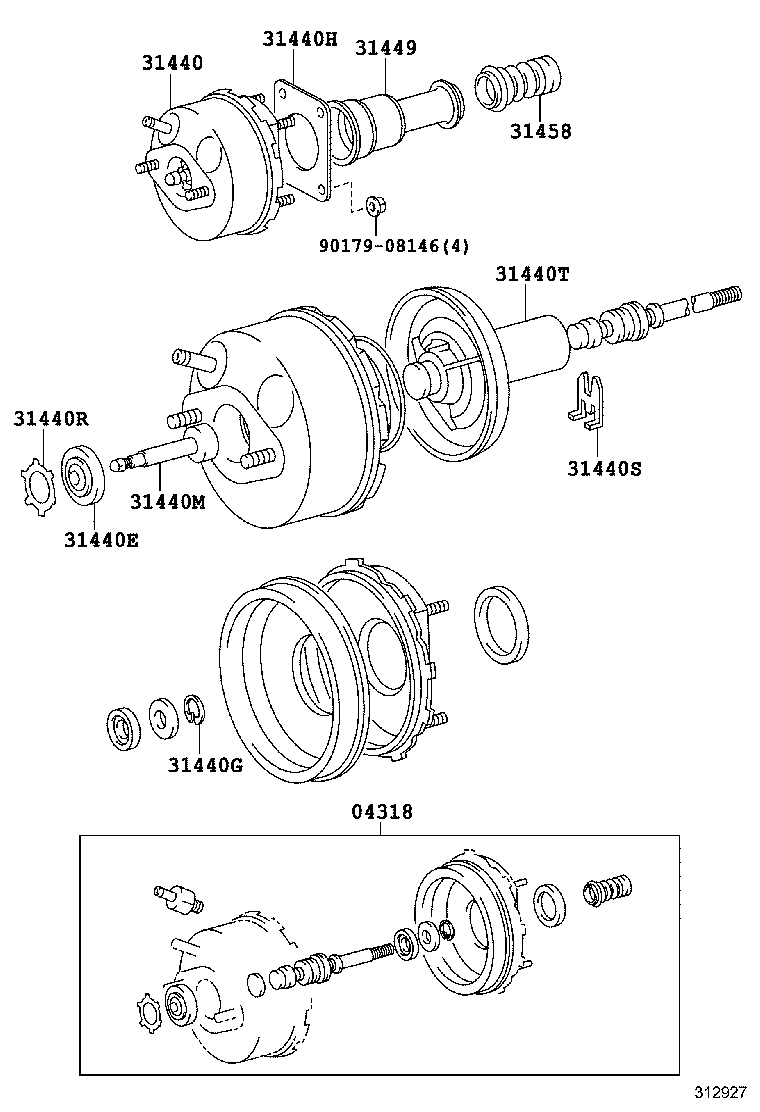

Figure 312926 312926 1990-01 → 1993-05 Figure 312926 312926 1993-05 → — Figure 312927 312927 1990-01 → 1995-01 Figure 310255A 310255A 1990-01 → 1992-08 Figure 310256A 310256A 1990-01 → 1992-08 Figure 310257A 310257A 1992-01 → 2004-05 Figure 310258B 310258B 1992-01 → 2004-05 Figure 310259A 310259A 1990-01 → 2004-05 Figure 310260A 310260A 1990-01 → 2000-07 Figure 310617D 310617D 1999-08 → — Figure 310618D 310618D 1999-08 → 2007-01

Part groups

PNCDescription
04318 Booster Kit, Clutch
31040 Valve Assy, Clutch Vacuum Check
31403A Valve Assy, Vacuum Check(FOR CLUTCH VACUUM)
31430 Reservoir Assy, Clutch Vacuum
31436A Hose, NO.1(FOR CLUTCH BOOSTER VACUUM)
31437 Hose, NO.2(FOR CLUTCH BOOSTER VACUUM)
31437A Clamp(FOR CLUTCH BOOSTER VACUUM)
31438 Hose, NO.3(FOR CLUTCH BOOSTER VACUUM)
31440 Booster Assy, Clutch W/Air Cleaner
31440E Seal, Booster Body NO.1(FOR CLUTCH BOOSTER)
31440G Ring, E(FOR CLUTCH BOOSTER AIR VALVE)
31440H Gasket, Clutch Booster Bracket
31440J Union(FOR CLUTCH BOOSTER VACUUM)
31440M Rod Sub-assy, Clutch Booster Piston
31440R Ring, Circular Intern(FOR CLUTCH BOOSTER AIR VALVE)
31440S Key, Valve Stopper(FOR CLUTCH BOOSTER)
31440T Piston, Booster(FOR CLUTCH BOOSTER)
31449 Cover, Clutch Booster Piston
31454A Boot, Clutch Booster
31458 Boot, Clutch Booster Piston Cover
31488B Tube, Vacuum Hose TO Vacuum Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
