Toyota Land Cruiser
1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States
Discontinued model
Data version 2014-05

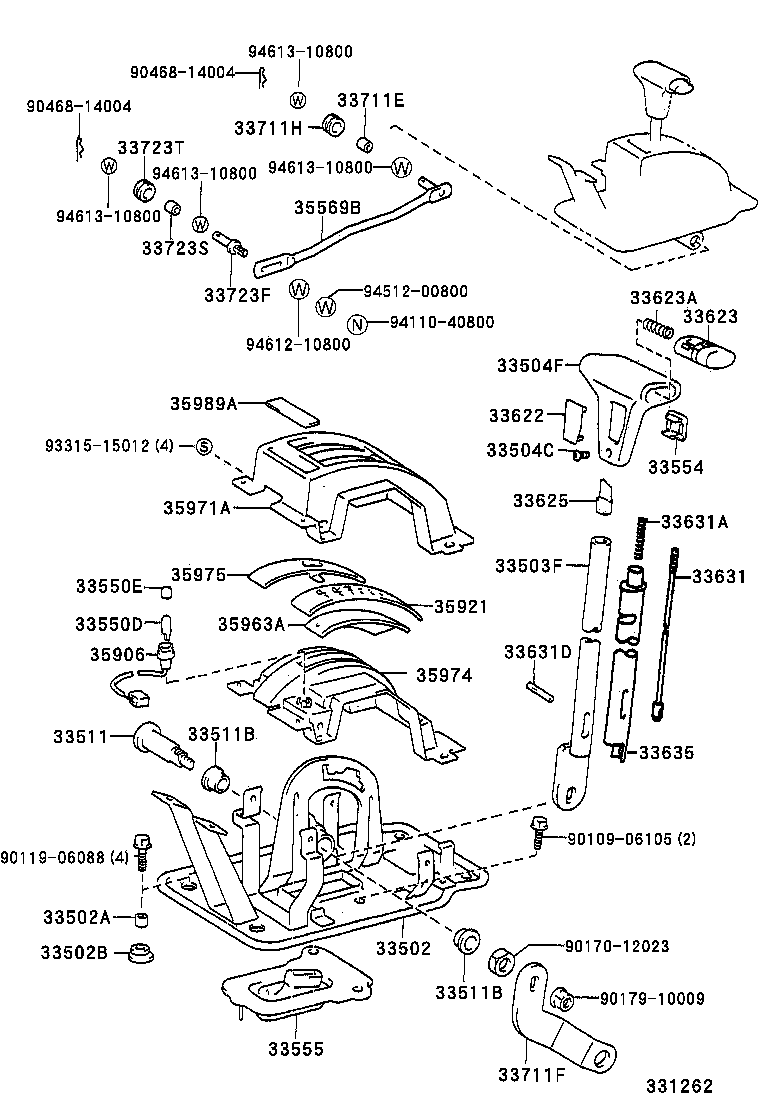

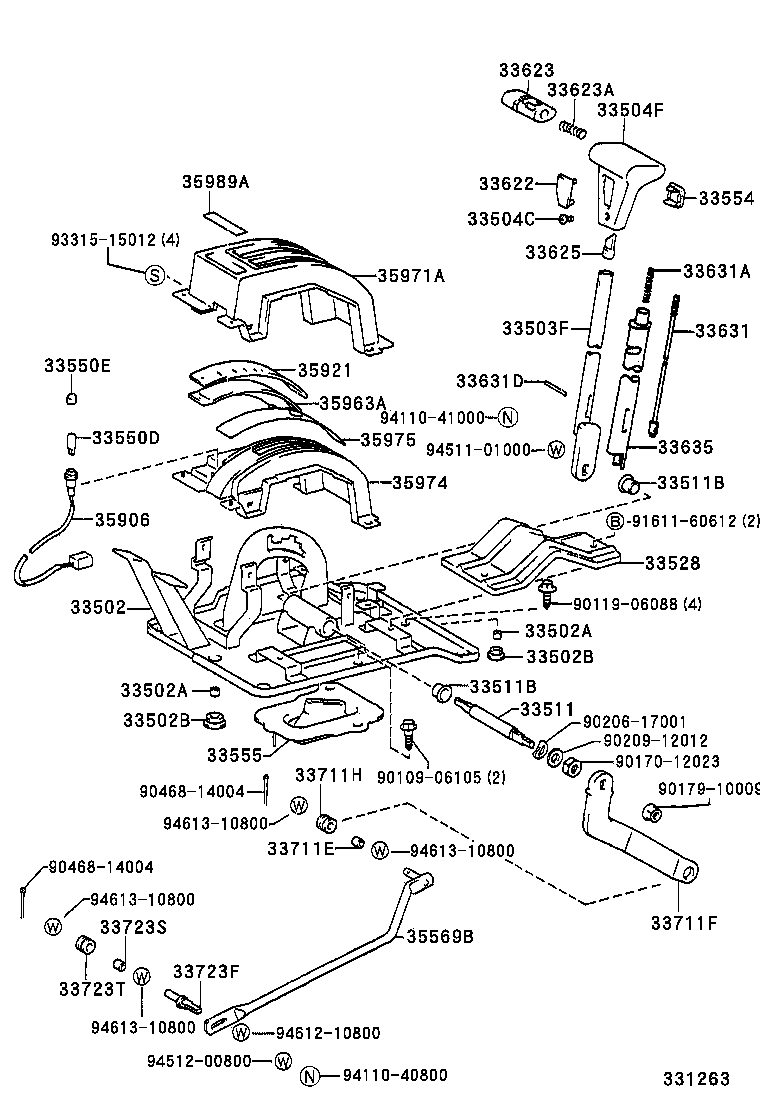

Shift Lever & Retainer
45 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 33105A | Deflector Sub-assy, Extension Housing Oil(MTM) |
| 33502 | Plate Sub-assy, Shift Lever |
| 33502A | Collar (FOR FLOOR SHIFT SETTING) |
| 33502B | Grommet (FOR SHIFT LEVER PLATE) |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33504C | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33505B | Seat Sub-assy, Shift Lever |
| 33506A | Bolt (FOR CONTROL SHIFT LEVER RETAINER) |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33506W | Plug, Breather (FOR SHIFT LEVER RETAINER) |
| 33511 | Shaft, Control (FOR FLOOR SHIFT) |
| 33511B | Bush (FOR CONTROL SHAFT) |
| 33528 | Cover, Control Shaft |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33530G | Spring, Conical (FOR SHIFT LEVER) |
| 33548F | Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33554 | Cap, Shift Lever |
| 33555 | Boot, Shift Lever |
| 33556F | Seat, Transmission Shift Lever Ball |
| 33584F | Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT) |
| 33622 | Cover, Shift Lever Knob, NO.1 |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 33625 | Sleeve, Shift Lever Knob |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631D | Pin, Grooved (FOR DETENT ROD) |
| 33635 | Guide, Wire (FOR SHIFT LEVER) |
| 33711E | Bush (FOR CONTROL SHAFT LEVER) |
| 33711F | Lever, Control Shaft (FOR FLOOR SHIFT) |
| 33711H | Grommet (FOR CONTROL SHAFT LEVER) |
| 33723F | Swivel, Connecting Rod (FOR FLOOR SHIFT) |
| 33723S | Bush (FOR CONNECTING ROD SWIVEL) |
| 33723T | Grommet (FOR CONNECTING ROD SWIVEL) |
| 35569B | Rod, Transmission Control (FOR FLOOR SHIFT) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35963A | Plate, Indicator Lamp Earth (FOR FLOOR SHIFT) |
| 35971A | Housing, Position Indicator, Upper |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35989A | Plate, Transmission Name |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
