Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

14 part groups · 4 illustrations

Illustrations

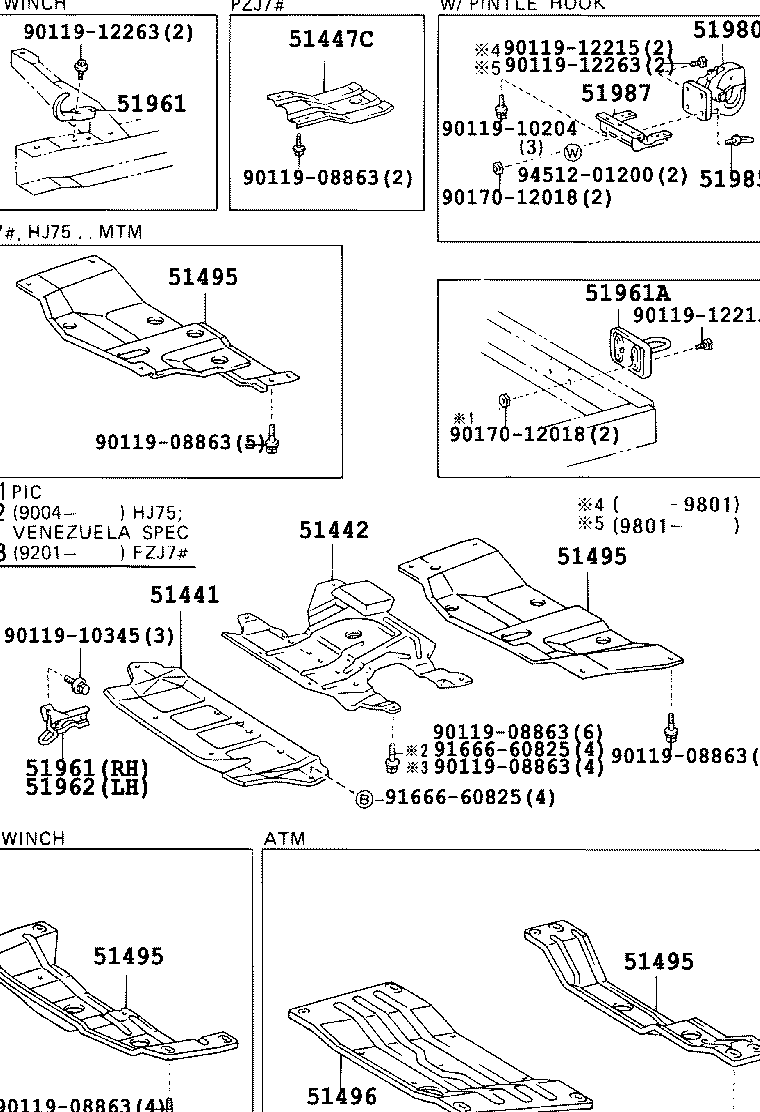

Figure 510145 510145 1990-01 → 1996-04 Figure 510144B 510144B 1990-01 → 2007-01 Figure 510519A 510519A 1999-08 → 2007-01 Figure 510519A 510519A 1999-08 → 2008-08

Part groups

PNCDescription
51405A Cover Sub-assy, Engine Under, NO.1
51406A Cover Sub-assy, Engine Under, NO.2
51407A Cover Sub-assy, Engine Under, NO.3
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51447C Protector, Transfer Case
51495 Cover, Transmission Under
51496 Cover, Transmission Under, NO.2
51961 Hook, NO.1
51961A Hook, NO.3
51962 Hook, NO.2
51980 Hook Assy, Pintle
51985 Hook, Eyelet Pintle
51987 Bracket, Pintle Hook
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
