Roof Panel & Back Panel

155 part groups · 12 illustrations

Illustrations

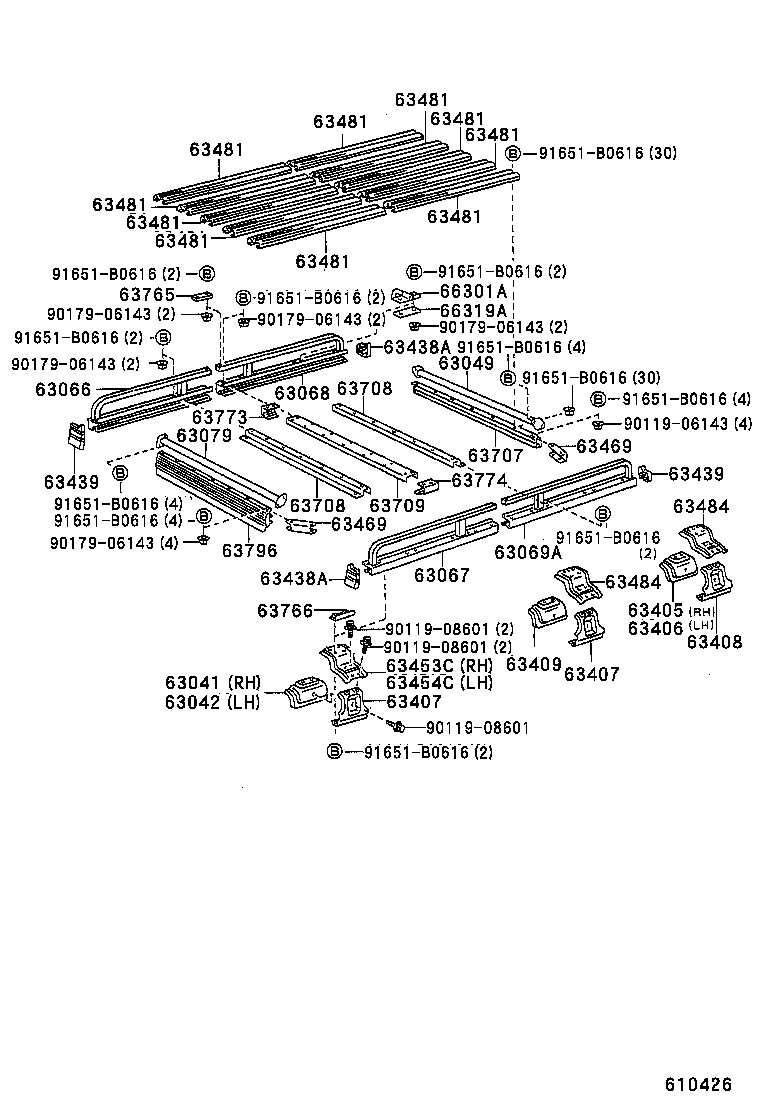

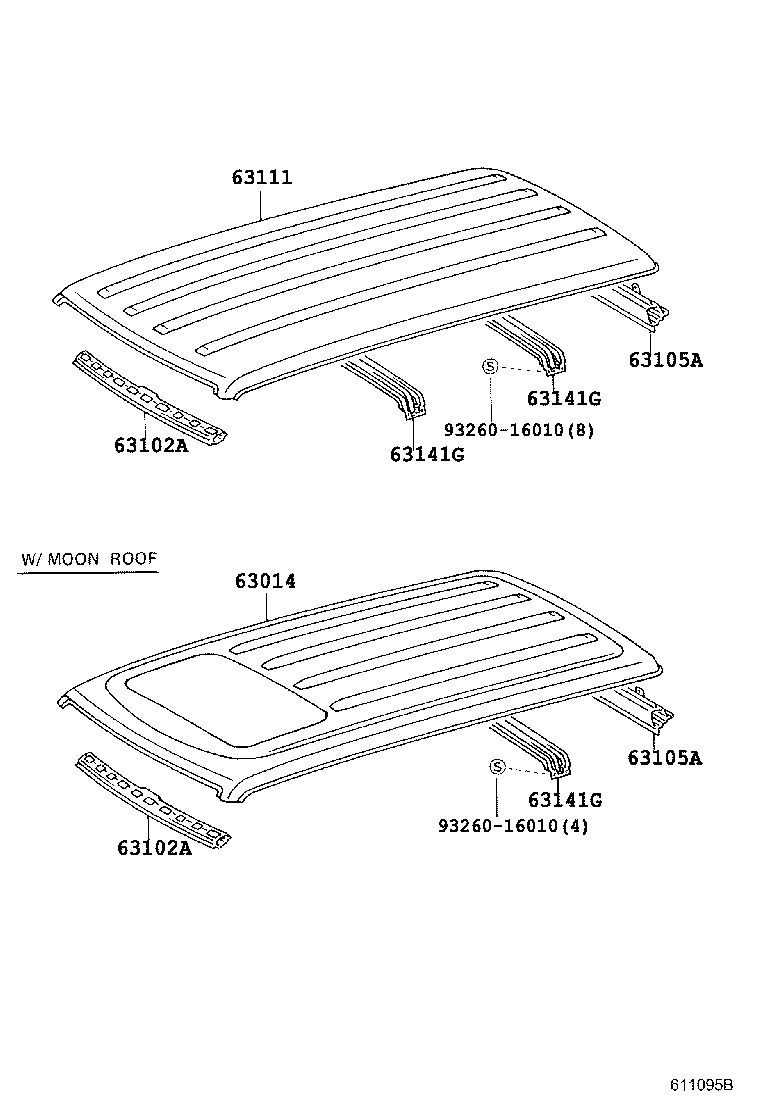

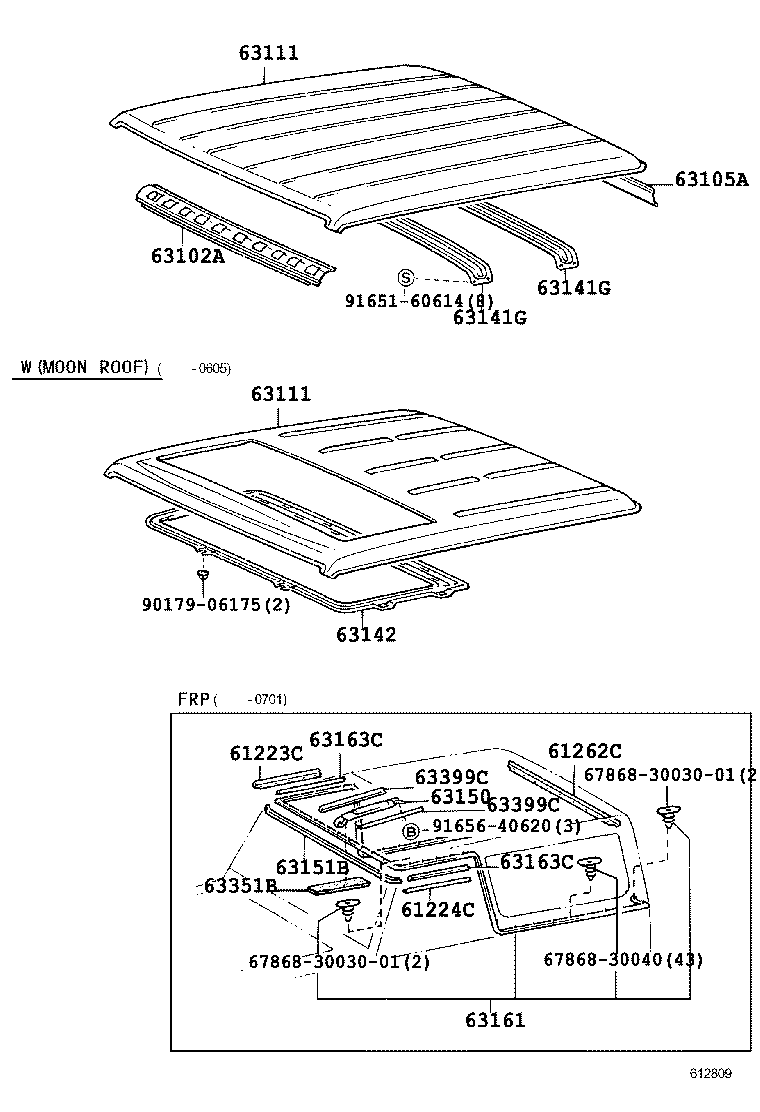

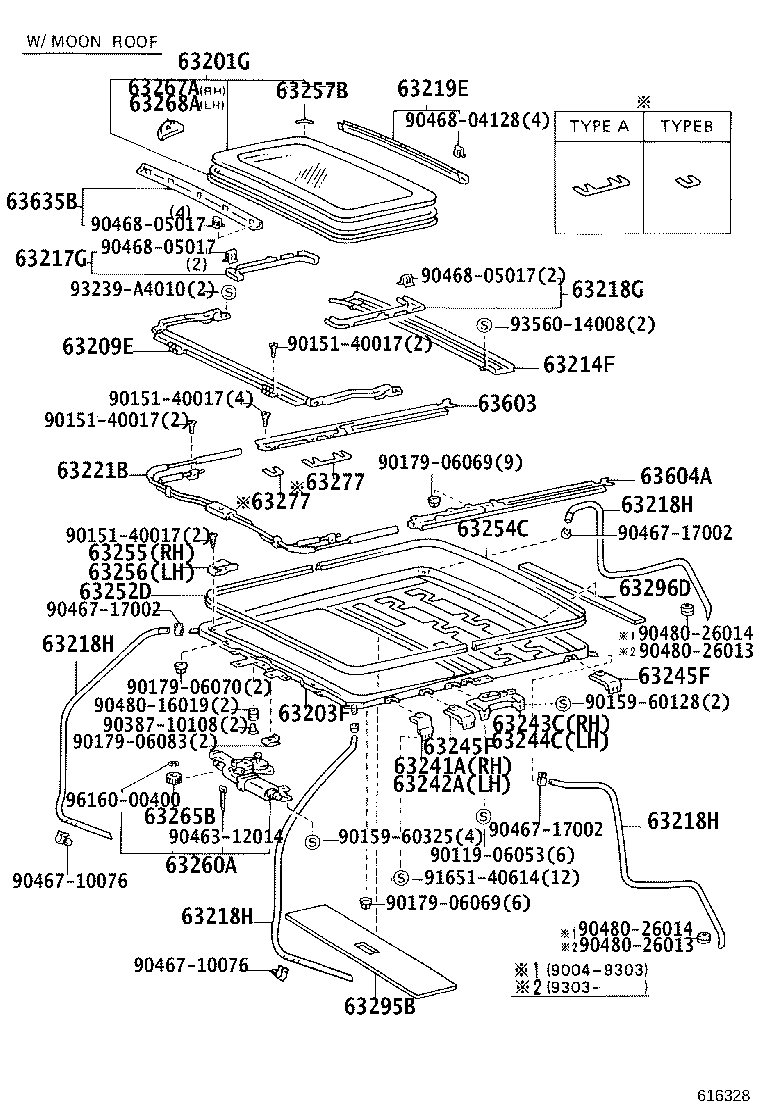

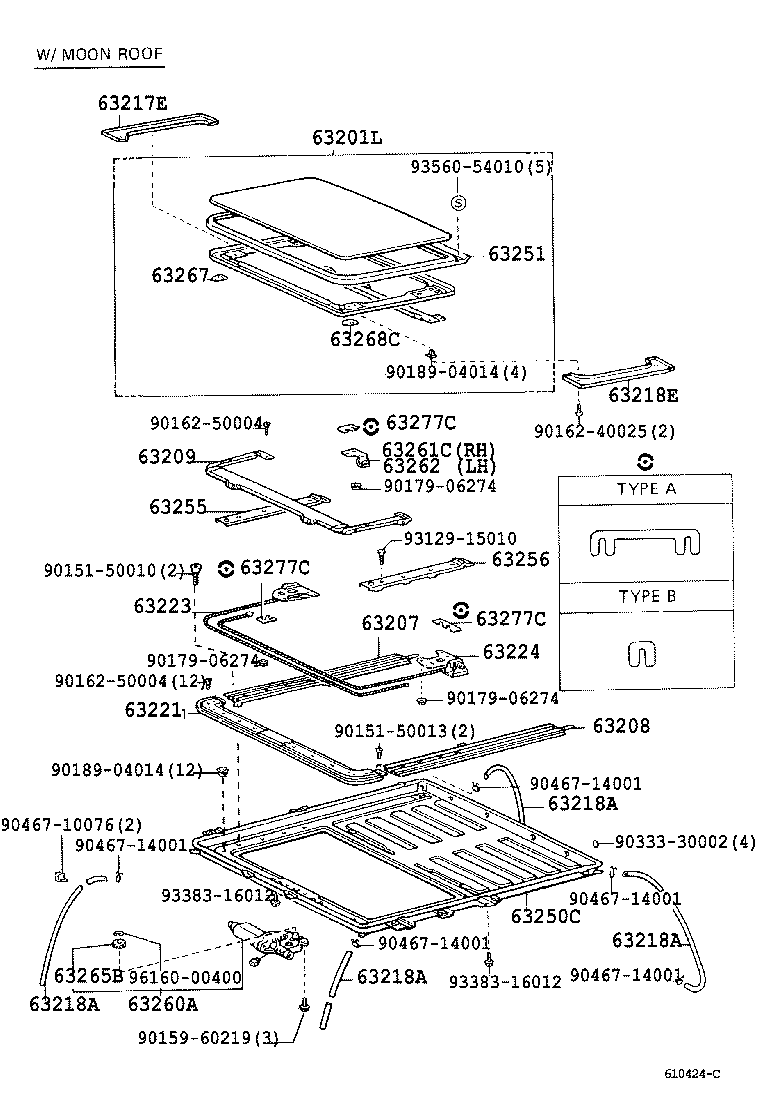

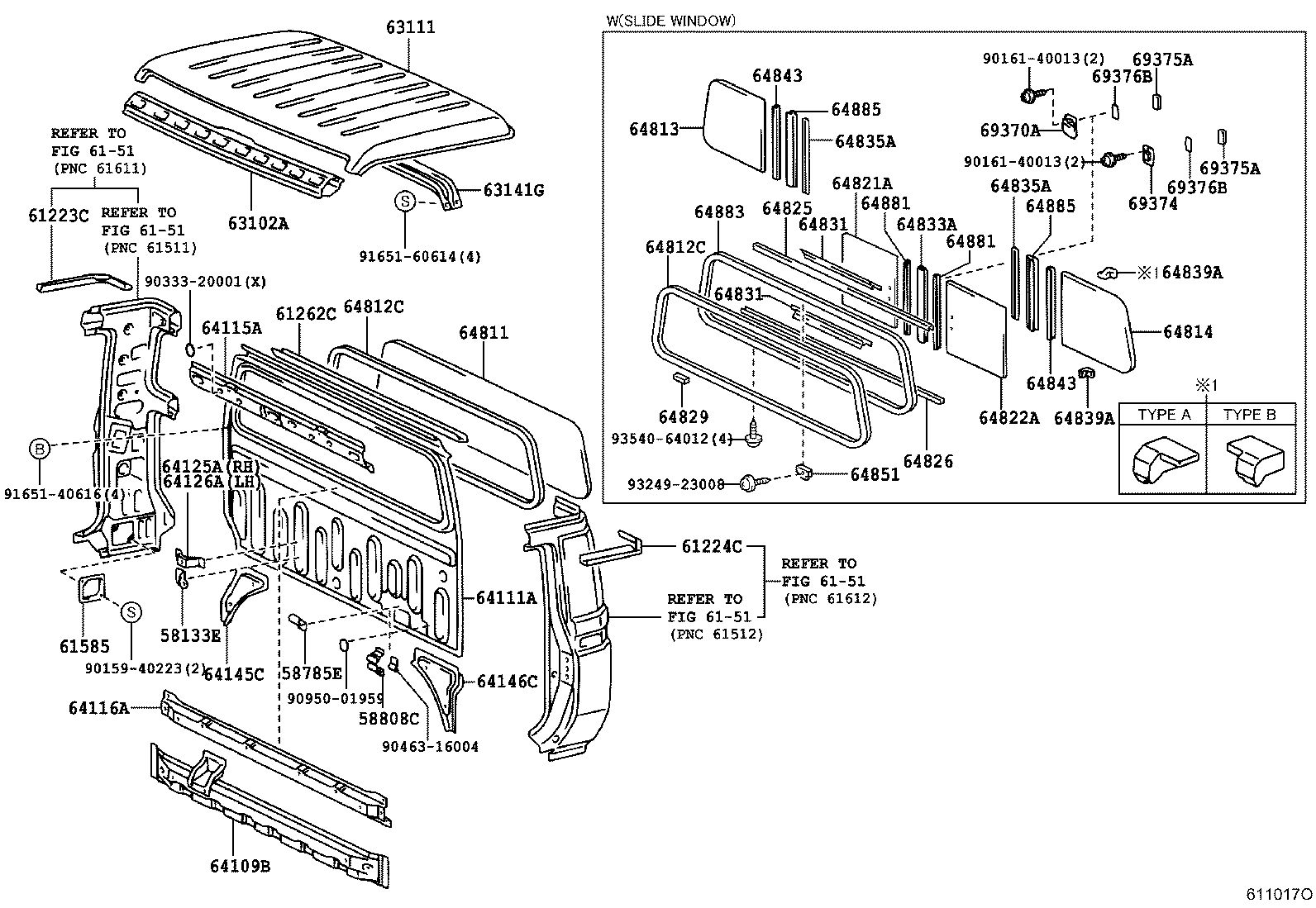

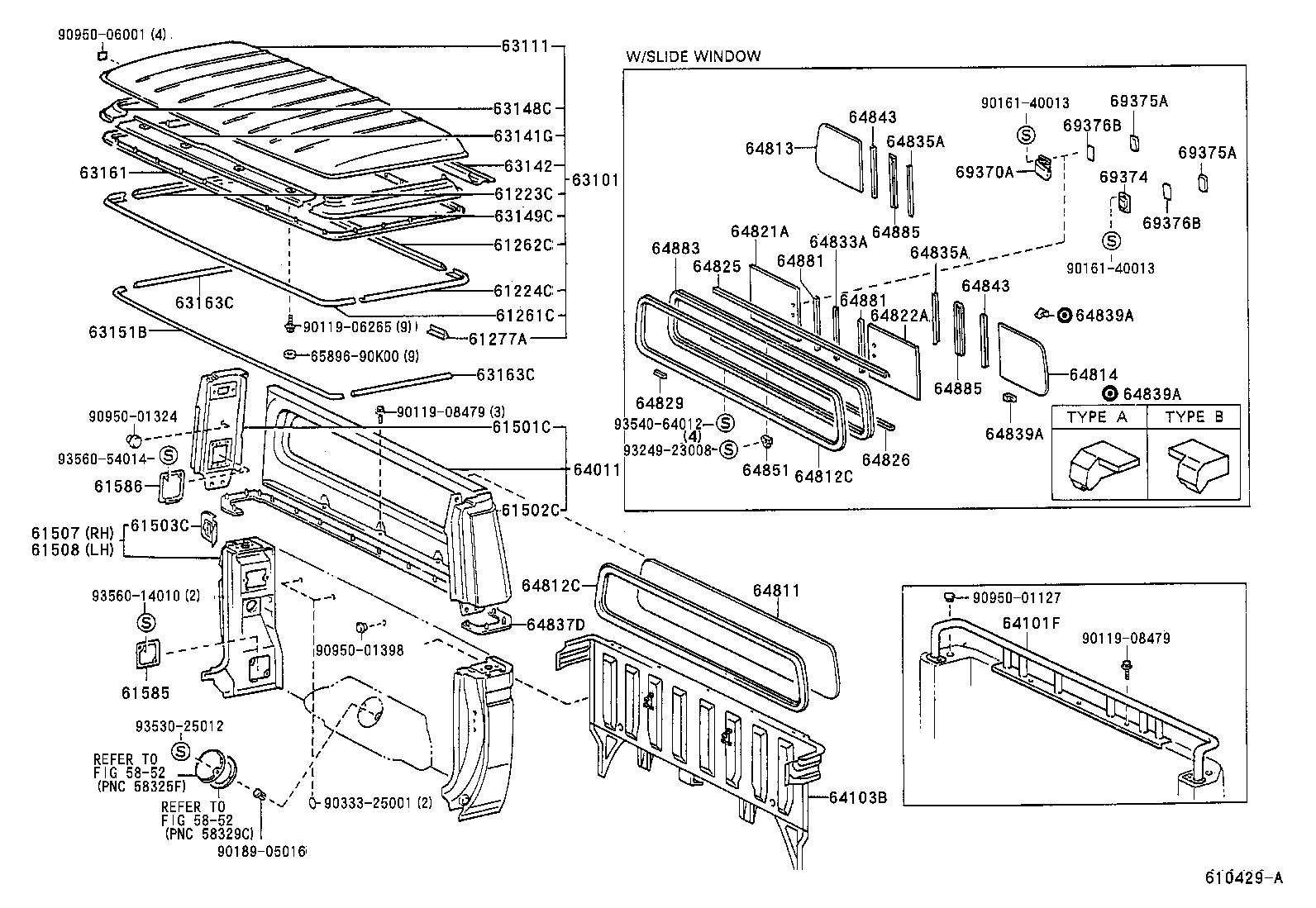

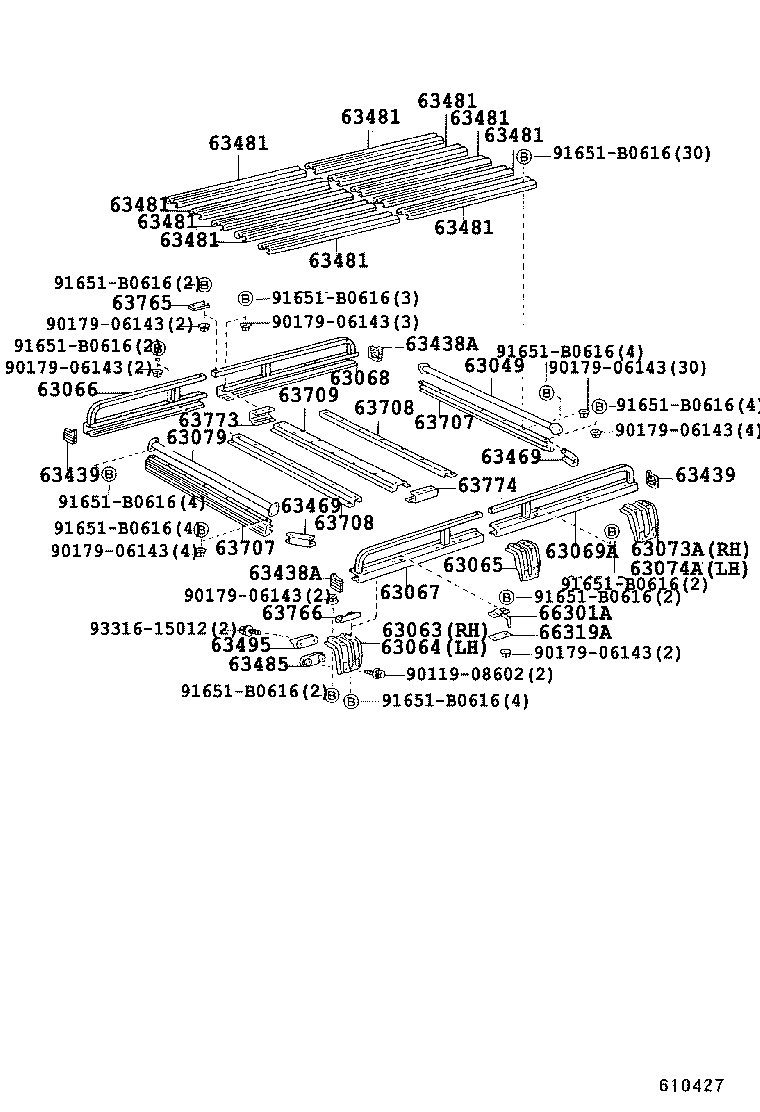

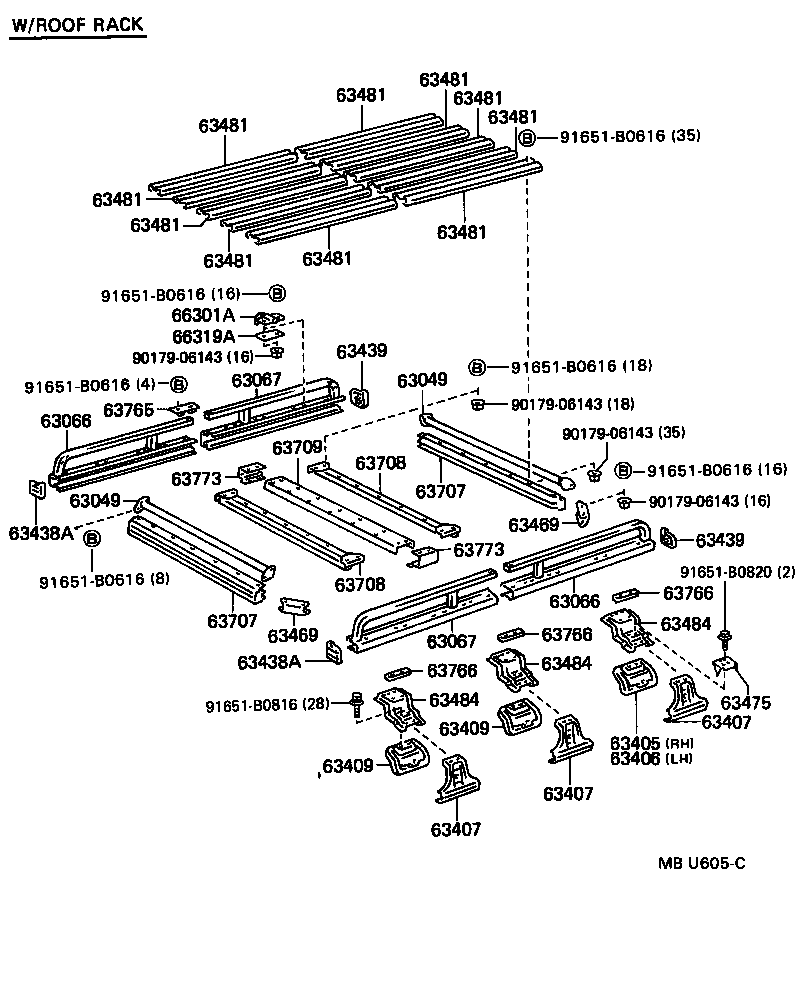

Figure 611015B 611015B 1990-01 → 2001-06 Figure 612809 612809 1999-08 → — Figure 610424C 610424C 1990-01 → — Figure 610426 610426 1990-01 → — Figure MBU389 MBU389 1990-01 → 2000-09 Figure 610432C 610432C 1990-01 → — Figure 610427A 610427A 1990-01 → — Figure 610429A 610429A 1990-01 → 2004-05 Figure 611095B 611095B 1990-04 → 1996-04 Figure 616328 616328 1990-04 → 1996-04 Figure MBU605C MBU605C 1990-04 → 1996-04 Figure 611017O 611017O 1999-08 → —

Part groups

PNCDescription
58133E Bracket, Front Floor Heat Insulator, NO.3
58785E Bracket, Tool Bag Band
58808C Spring Sub-assy, Juck Handle
61223C Channel, Roof Drip Side, RH
61224C Channel, Roof Drip Side, LH
61261C Channel, Roof Drip, Front
61262C Channel, Roof Drip, Rear
61277A Joint, Roof Drip Channel
61501C Pillar Sub-assy, Cab Rear, Upper RH
61502C Pillar Sub-assy, Cab Rear, Upper LH
61503C Reinforcement Sub-assy, Quarter Lock Pillar, RH
61507 Pillar Sub-assy, Cab Rear, Lower RH
61508 Pillar Sub-assy, Cab Rear, Lower LH
61585 Lid, Quarter Hole, NO.1
61586 Lid, Quarter Hole, NO.2
63014 Panel Sub-assy, Roof, NO.1
63041 Leg Sub-assy, Roof Rack, Front RH
63042 Leg Sub-assy, Roof Rack, Front LH
63049 Frame Sub-assy, Roof Rack, Upper End
63063 Stay Sub-assy, Roof Rack, Front RH
63064 Stay Sub-assy, Roof Rack, Front LH
63065 Stay Sub-assy, Roof Rack, Center
63066 Frame Sub-assy, Roof Rack, Lower Front RH
63067 Frame Sub-assy, Roof Rack, Lower Front LH
63068 Frame Sub-assy, Roof Rack, Lower Rear RH
63069A Frame Sub-assy, Roof Rack, Lower Rear LH
63073A Stay Sub-assy, Roof Rack, Rear RH
63074A Stay Sub-assy, Roof Rack, Rear LH
63079 Frame Sub-assy, Roof Rack, Upper Front
63101 Panel Sub-assy, Roof
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63104D Reinforcement Sub-assy, Roof Panel, NO.2
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63123D Reinforcement, Roof Panel, Front RH
63124B Reinforcement, Roof Panel, Front LH
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63148C Reinforcement, Roof Panel Side, RH
63149C Reinforcement, Roof Panel Side, LH
63150 Reinforcement Assy, Roof Panel
63151B Seal, Roof Panel Reinforcement
63161 Weatherstrip, Roof
63163C Seal, Roof Panel Reinforcement, Side
63189A Bracket, Roof Rack, Center
63189B Bracket, Roof Rack, Center
63201G Glass Sub-assy, Sliding Roof
63201L Glass Sub-assy, Removable Roof
63203F Housing Sub-assy, Sliding Roof
63207 Rail Sub-assy, Sliding Roof Guide, RH
63208 Rail Sub-assy, Sliding Roof Guide, LH
63209 Panel Sub-assy, Roof Wind Deflector
63209E Panel Sub-assy, Roof Wind Deflector
63214F Channel, Roof Drip, Rear
63217E Garnish, Sliding Roof, Front RH
63217G Garnish, Sliding Roof Side, RH
63218A Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63218E Garnish, Sliding Roof, Front LH
63218G Garnish, Sliding Roof Side, LH
63218H Hose, Sliding Roof Drain
63219E Garnish, Sliding Roof, Rear
63221 Casing, Sliding Roof Cable Guide
63221B Casing, Sliding Roof Cable Guide
63223 Cable, Sliding Roof Drive, RH
63224 Cable, Sliding Roof Drive, LH
63241A Bracket, Sliding Roof Housing Front Mounting, RH
63242A Bracket, Sliding Roof Housing Front Mounting, LH
63243C Bracket, Sliding Roof Housing Center Mounting, RH
63244C Bracket, Sliding Roof Housing Center Mounting, LH
63245F Bracket, Sliding Rear Mounting
63250C Housing Assy, Sliding Roof
63251 Weatherstrip, Sliding Roof Panel OR Removable Roof
63252D Weatherstrip, Sliding Roof Housing
63254C Weatherstrip, Slide Roof, Rear
63255 Cover, Sliding Roof Guide Rail, RH
63256 Cover, Sliding Roof Guide Rail, LH
63257B Seal, Sliding Roof
63260A Gear Sub-assy, Sliding Roof Drive
63261C Shoe, Sliding Roof, Front RH
63262 Shoe, Sliding Roof, Front LH
63265B Gear, Sliding Roof Drive
63267 Protector, Sliding Roof Weatherstrip
63267A Protector, Sliding Roof Weatherstrip, RH
63268A Protector, Sliding Roof Weatherstrip, LH
63268C Protector, Sliding Roof Weatherstrip, LH
63277 Shim, Sliding Roof Rail
63277C Shim, Sliding Roof Panel
63295B Pad, Roof Wind Deflector Panel
63296D Pad, Sliding Roof Housing, NO.2
63351B Pad, Roof Headlining
63399C Clip, Roof Headlining
63405 Leg Sub-assy, Roof Rack, Rear RH
63406 Leg Sub-assy, Roof Rack, Rear LH
63407 Support Sub-assy, Roof Rack Leg, Front
63408 Support Sub-assy, Roof Rack Leg, Rear
63409 Leg Sub-assy, Roof Rack, Center
63438A Cover, Roof Rack End, NO.1
63439 Cover, Roof Rack End, NO.2
63453C Stay, Roof Rack, Front RH
63454C Stay, Roof Rack, Front LH
63469 Gusset, Roof Rack Lower Frame
63475 Step, Roof Rack
63481 Board, Roof Rack Deck, NO.1
63484 Stay, Roof Rack
63485 Cushion, Roof Rack Leg, Center
63495 Spacer, Roof Rack Support
63603 Rail Sub-assy, Sliding Roof Drive, RH
63604A Rail Sub-assy, Sliding Roof Drive, LH
63635B Garnish, Sliding Roof, Front
63707 Frame Sub-assy, Roof Rack, Lower NO.1
63708 Frame Sub-assy, Roof Rack, Lower NO.2
63709 Frame Sub-assy, Roof Rack, Lower NO.3
63765 Retainer, Roof Rack, Upper
63766 Retainer, Roof Rack, Lower
63773 Gusset, Roof Rack Center Frame, RH
63774 Gusset, Roof Rack Center Frame, LH
63796 Frame, Roof Rack, Lower NO.4
64011 Panel, Upper Back, Outer
64101F Railing Sub-assy, Cab Rear
64103B Panel Sub-assy, Cab Back, Lower
64109B Reinforcement Sub-assy, Cab Back, Lower
64111A Panel, Back
64115A Reinforcement, Back, Upper
64116A Reinforcement, Back, Lower
64125A Bracket, Upper Back Panel, RH
64126A Bracket, Upper Back Panel, LH
64145C Gusset, Back Panel, RH
64146C Gusset, Back Panel, LH
64811 Glass, Back Window
64812C Weatherstrip, Back Window Glass
64813 Glass, Back Window Corner, RH
64814 Glass, Back Window Corner, LH
64821A Glass, Back Window Slide, RH
64822A Glass, Back Window Slide, LH
64825 Run, Back Window Channel, Upper
64826 Run, Back Window Channel, Lower
64829 Film, Back Window Frame
64831 Weatherstrip, Back Window Glass
64833A Weatherstrip, Back Window Center Channel
64835A Weatherstrip, Back Window Glass, Center
64837D Weatherstrip, Cab Back Panel, Center
64839A Packing, Back Window
64843 Weatherstrip, Back Window Channel
64851 Stop, Back Window Slide Glass
64881 Channel, Back Window Glass
64883 Frame, Back Window
64885 Frame, Back Window Vertical
66301A Hook Sub-assy, Rope
66319A Plate, Rope Hook
69370A Lock Assy, Back Window
69374 Catch, Back Window Lock
69375A Retainer, Back Window Lock
69376B Packing, Back Window Lock
