Heating & Air Conditioning - Water Piping

23 part groups · 17 illustrations

Illustrations

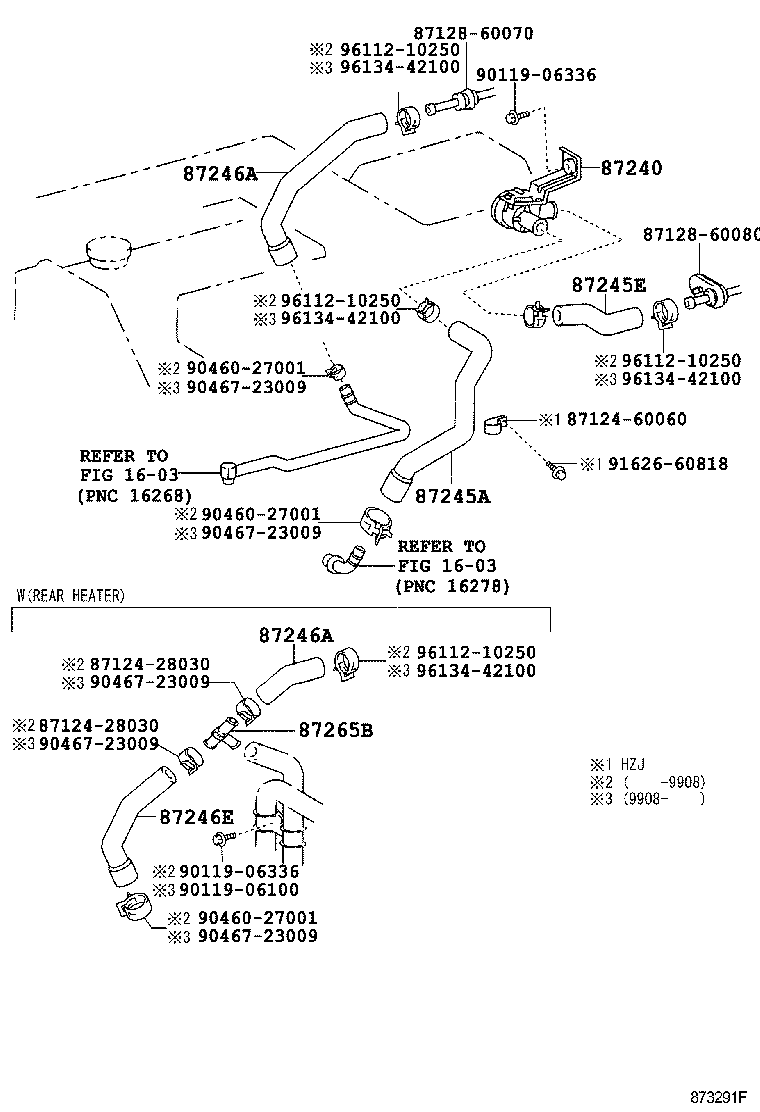

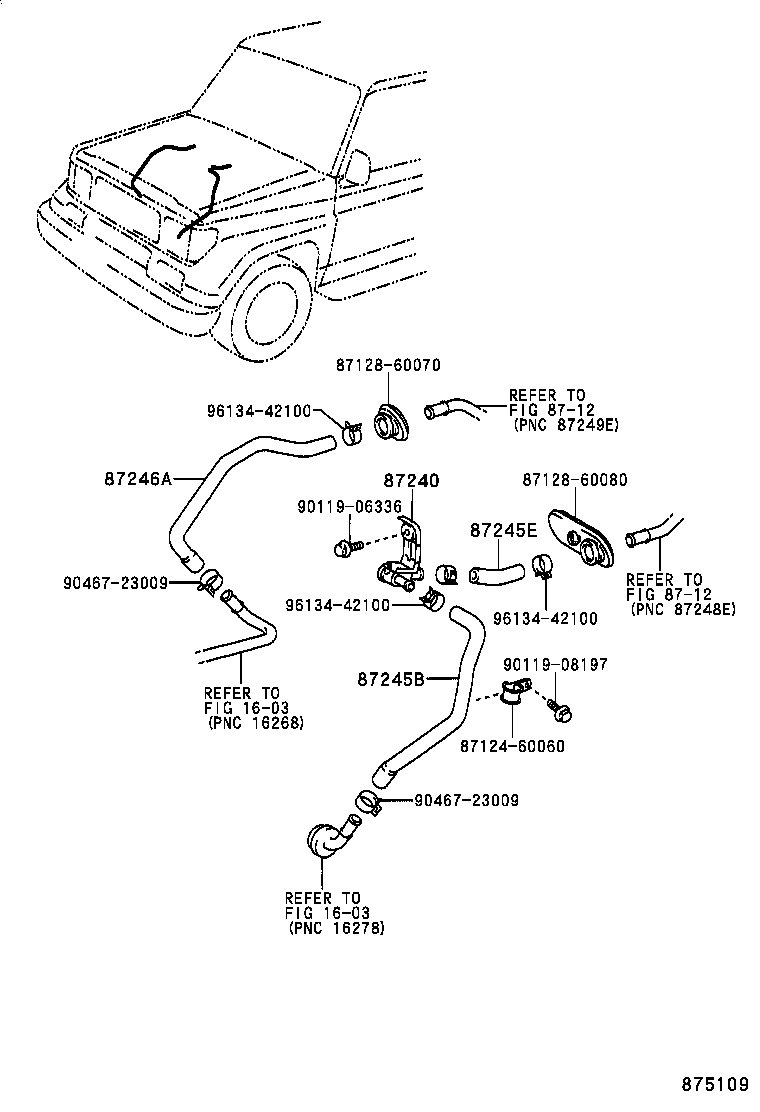

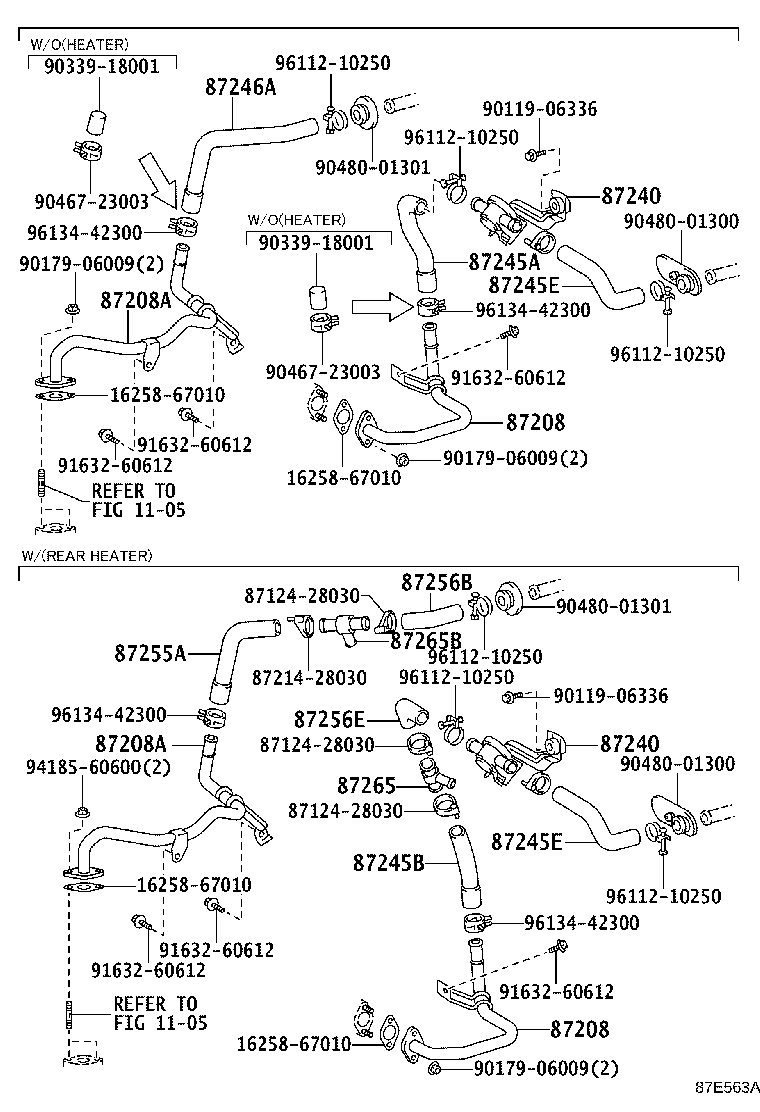

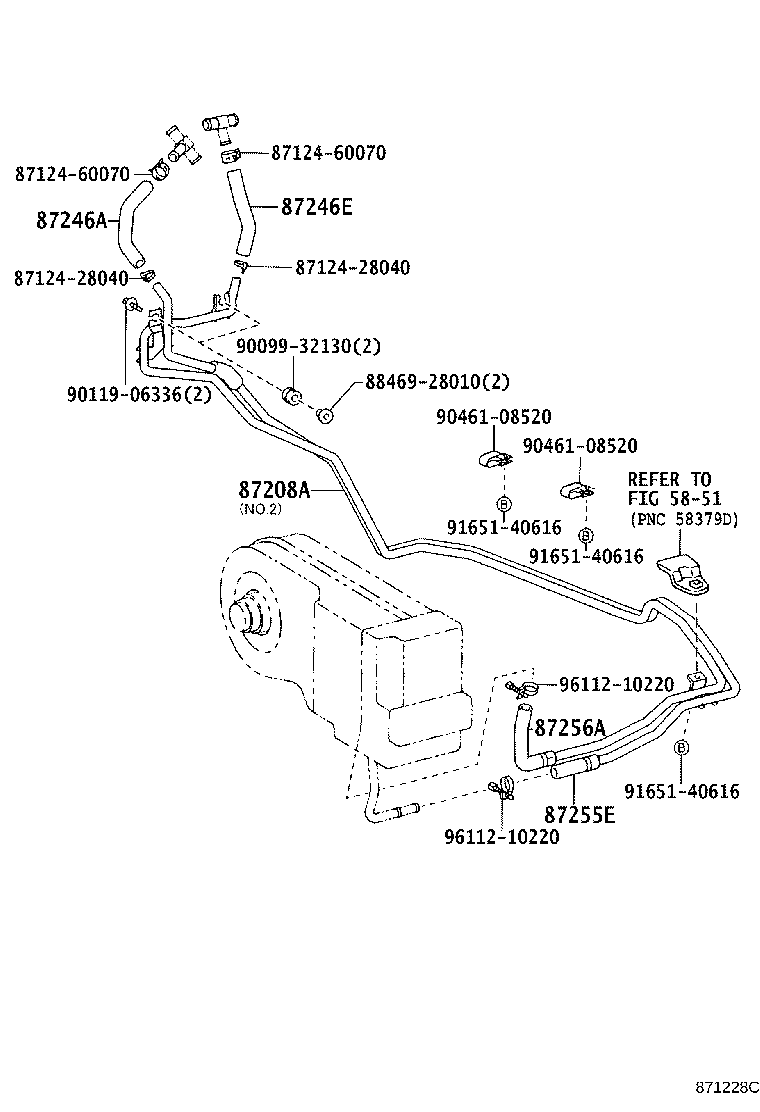

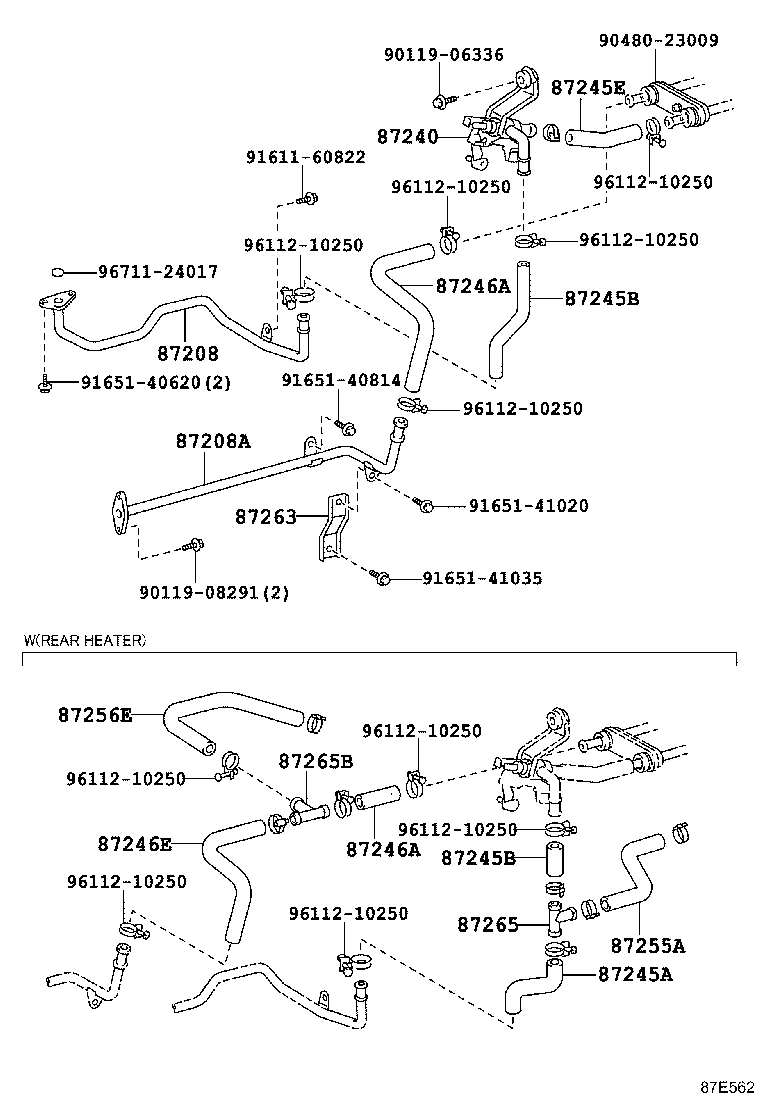

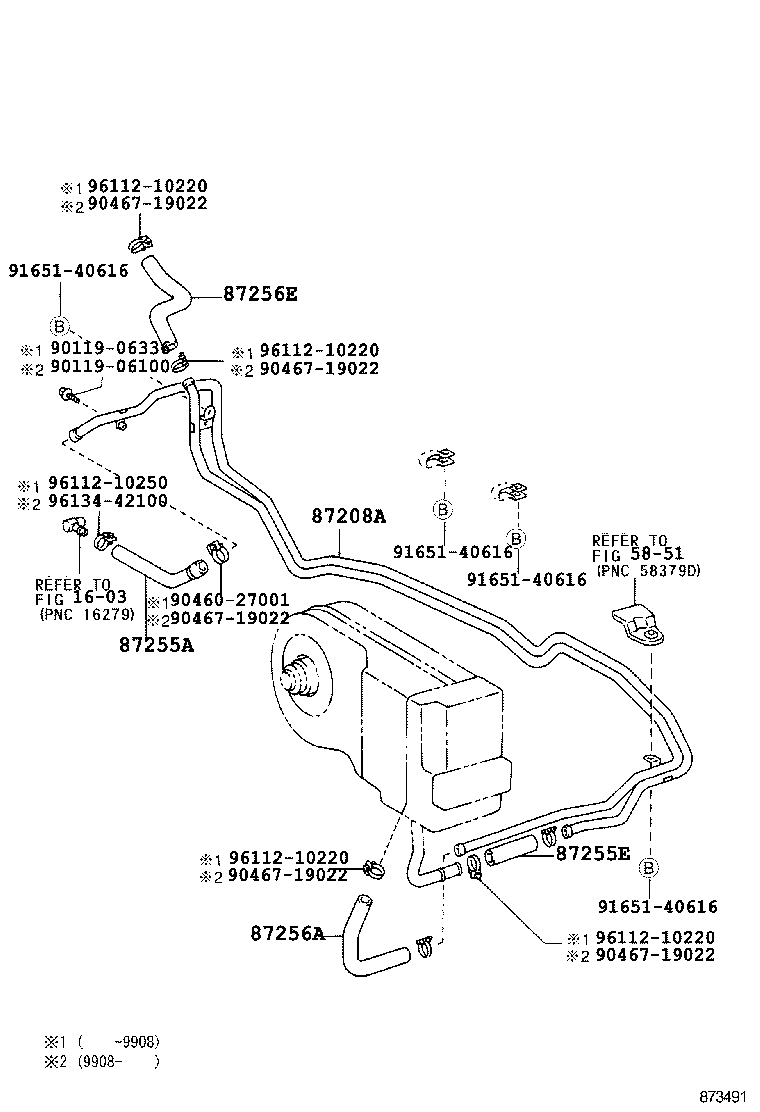

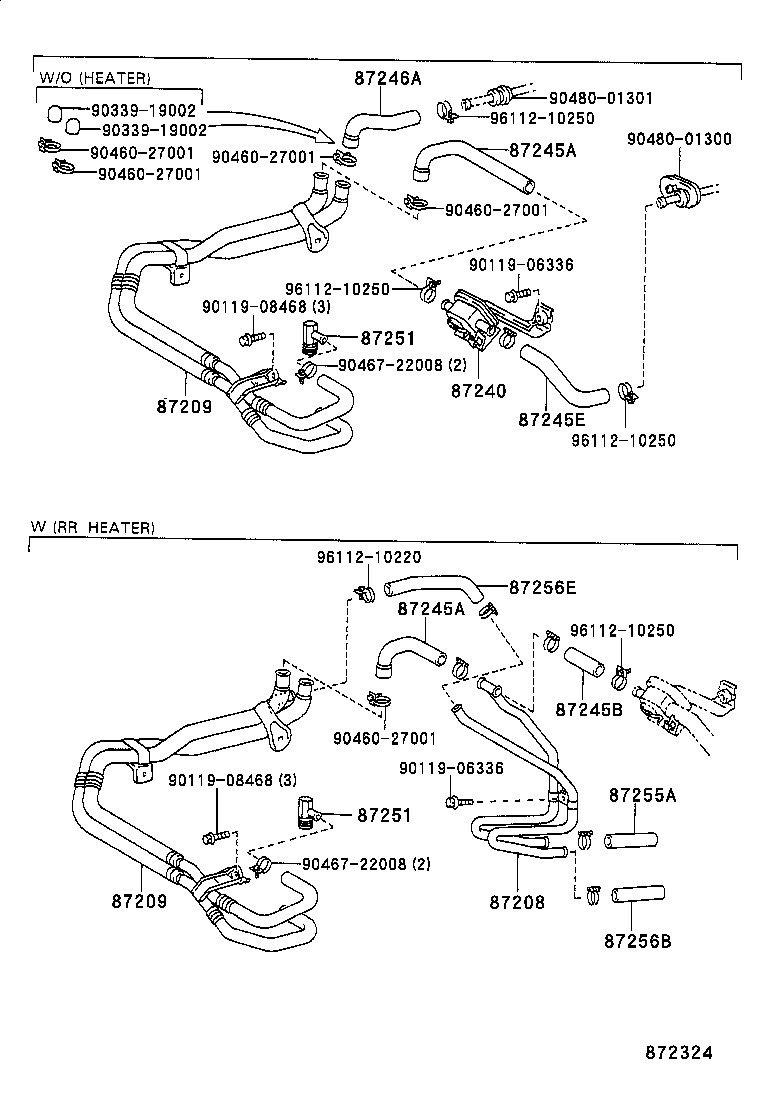

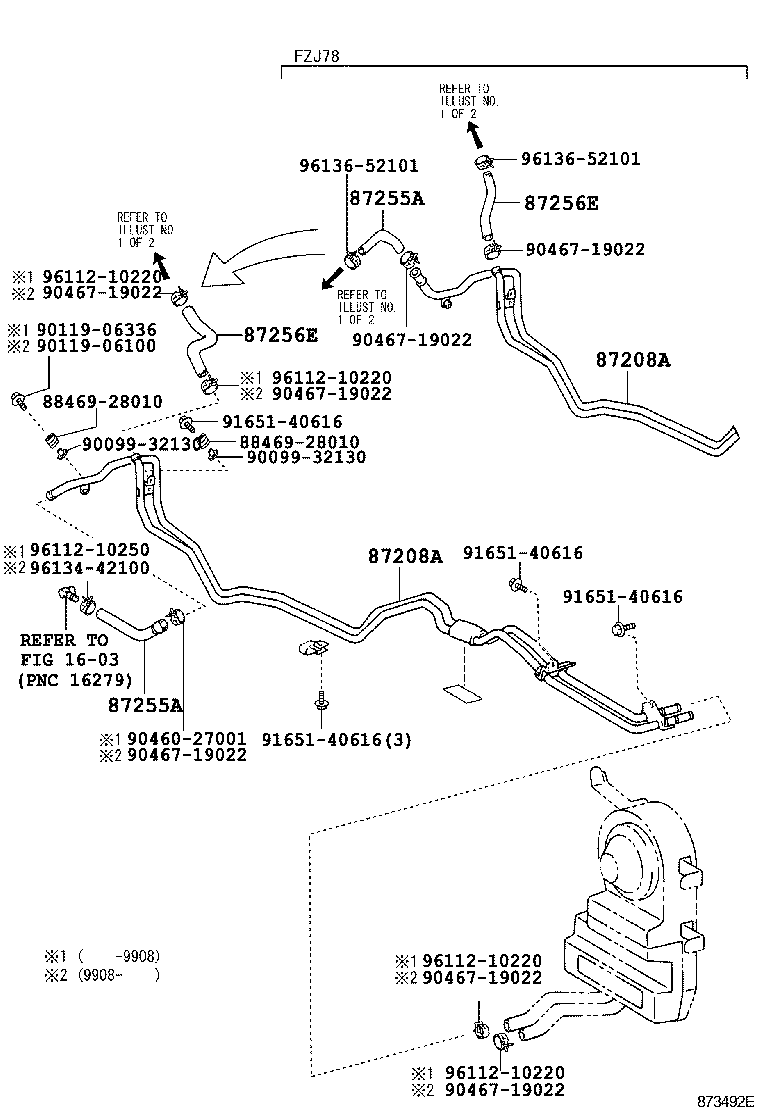

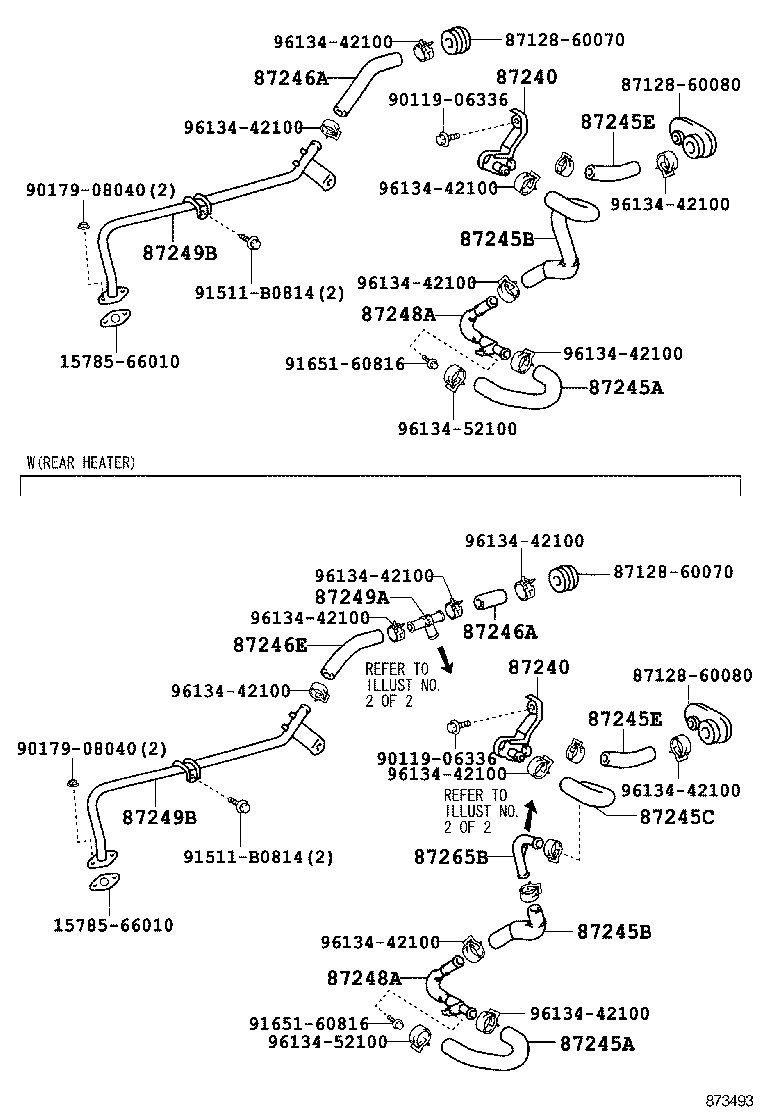

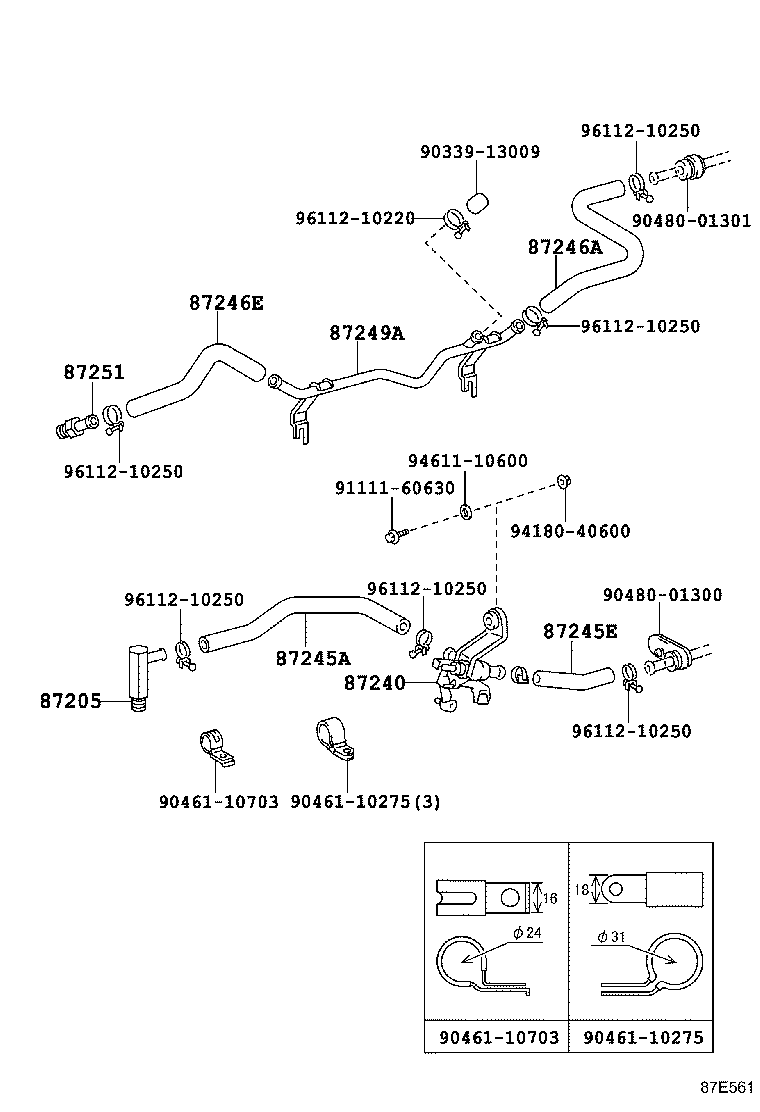

Figure 873290 873290 1990-01 → — Figure 873290 873290 1992-01 → — Figure 873290 873290 1992-08 → — Figure 87E561 87E561 1990-01 → — Figure 873291F 873291F 1990-01 → — Figure 872324 872324 1990-01 → — Figure 87E562 87E562 1990-01 → — Figure 87E563A 87E563A 1993-05 → — Figure 871533A 871533A 1997-09 → 1999-08 Figure 873493D 873493D 1999-08 → — Figure 875109 875109 2001-08 → — Figure 87E564 87E564 1990-01 → — Figure 87E565 87E565 1990-01 → — Figure 873491A 873491A 1990-01 → — Figure 873492E 873492E 1990-01 → 2007-01 Figure 873492E 873492E 1990-01 → — Figure 871228C 871228C 1993-05 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87251 Joint OR Union, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87263 Bracket, Heater Water Pipe, NO.1
87265 Connector, Heater Water Hose
87265B Connector, Heater Water Hose, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
