Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

40 part groups · 31 illustrations

Illustrations

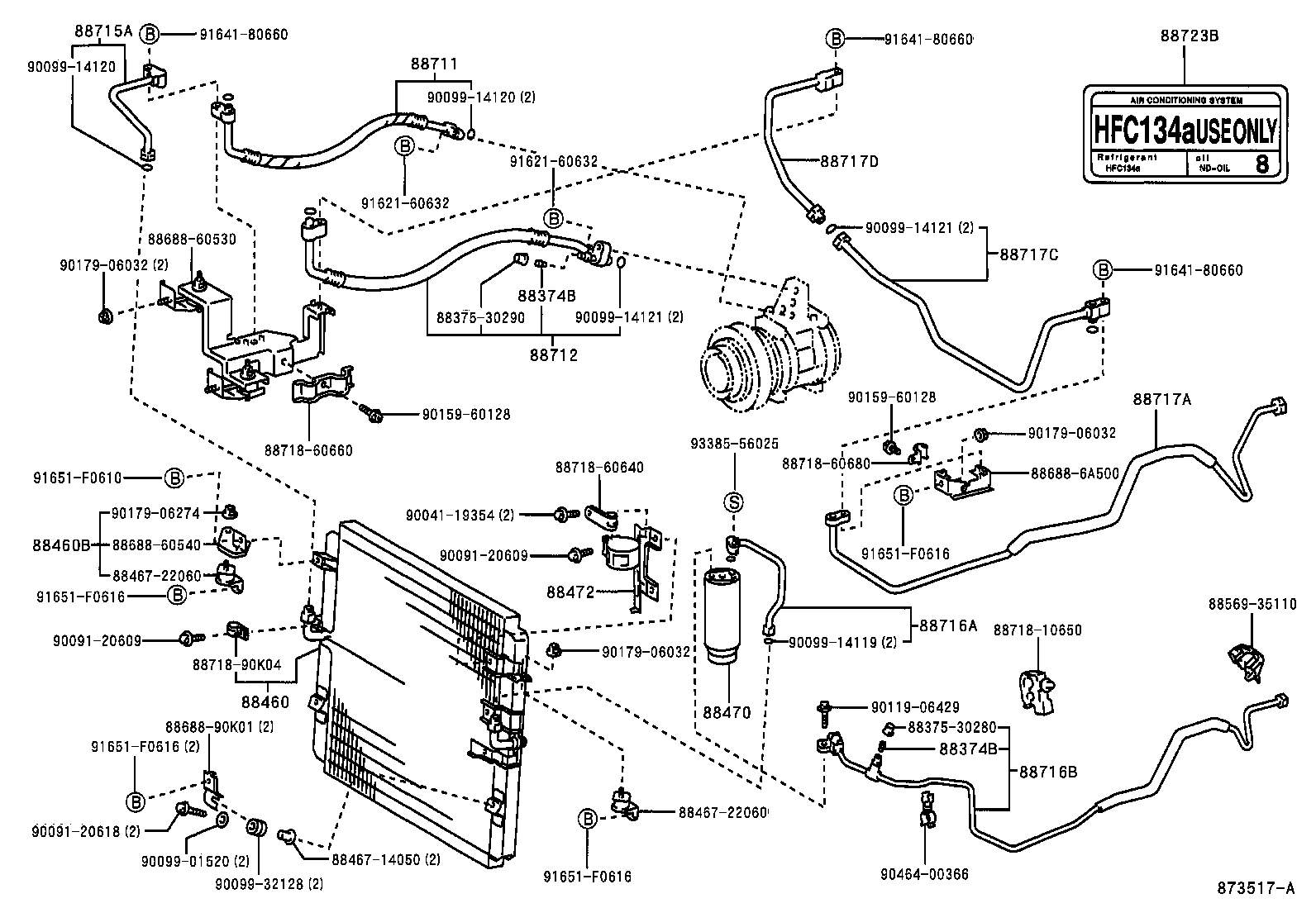

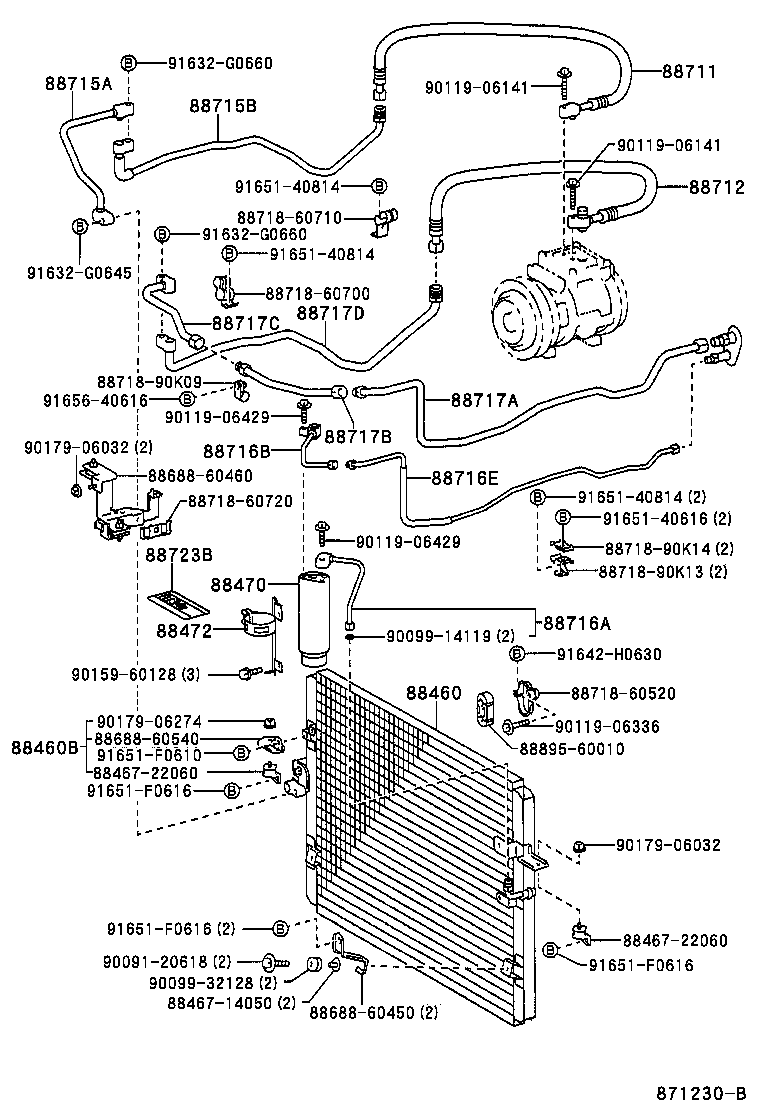

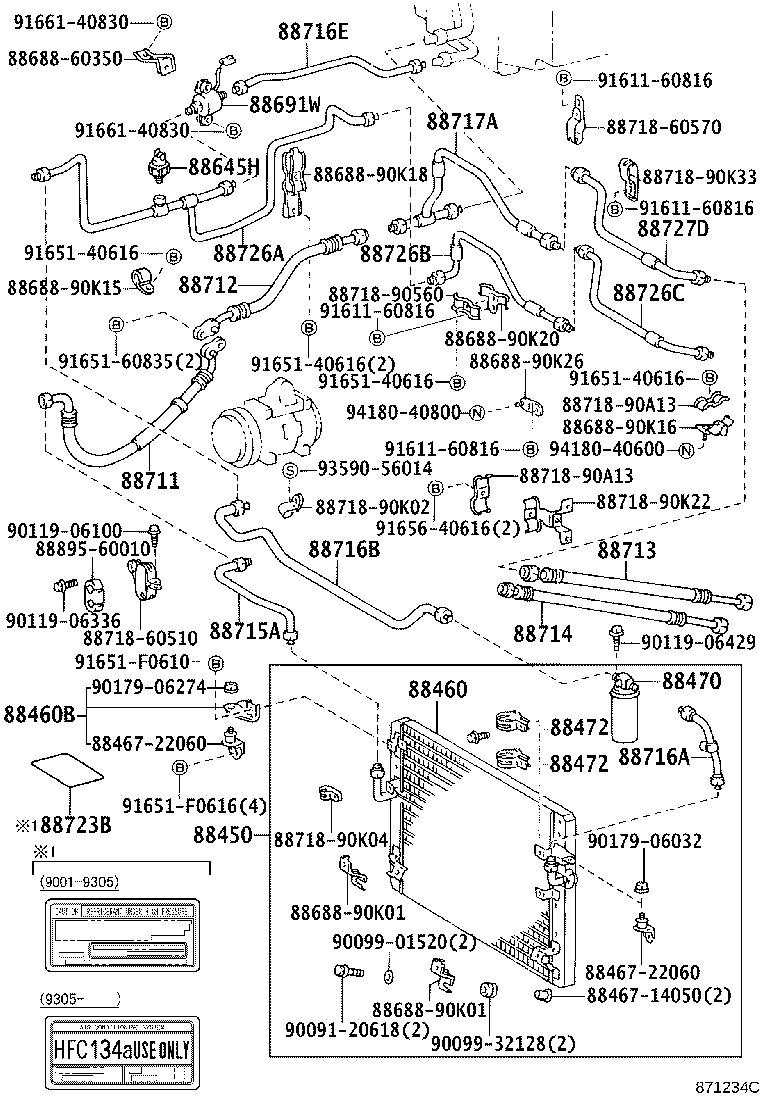

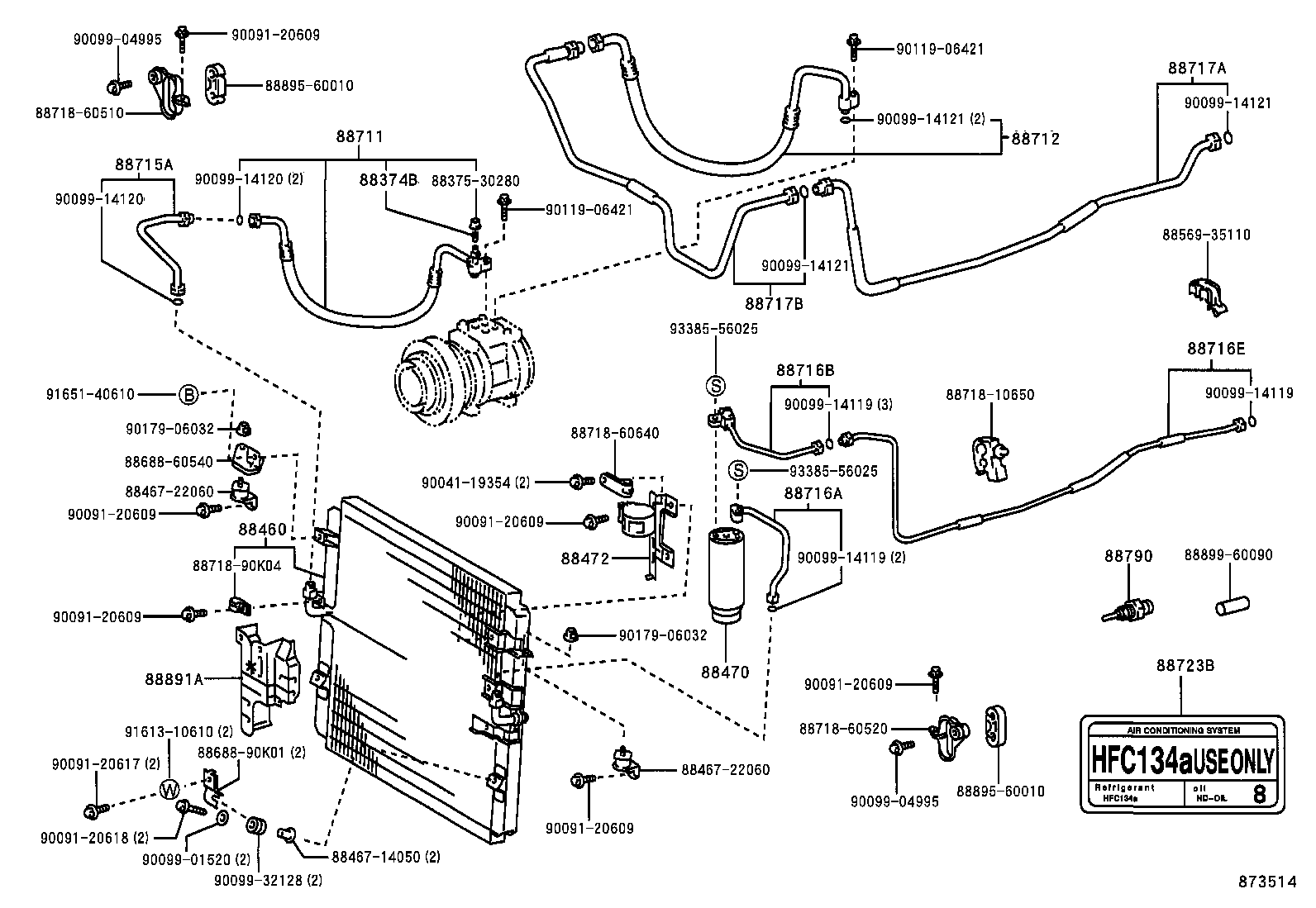

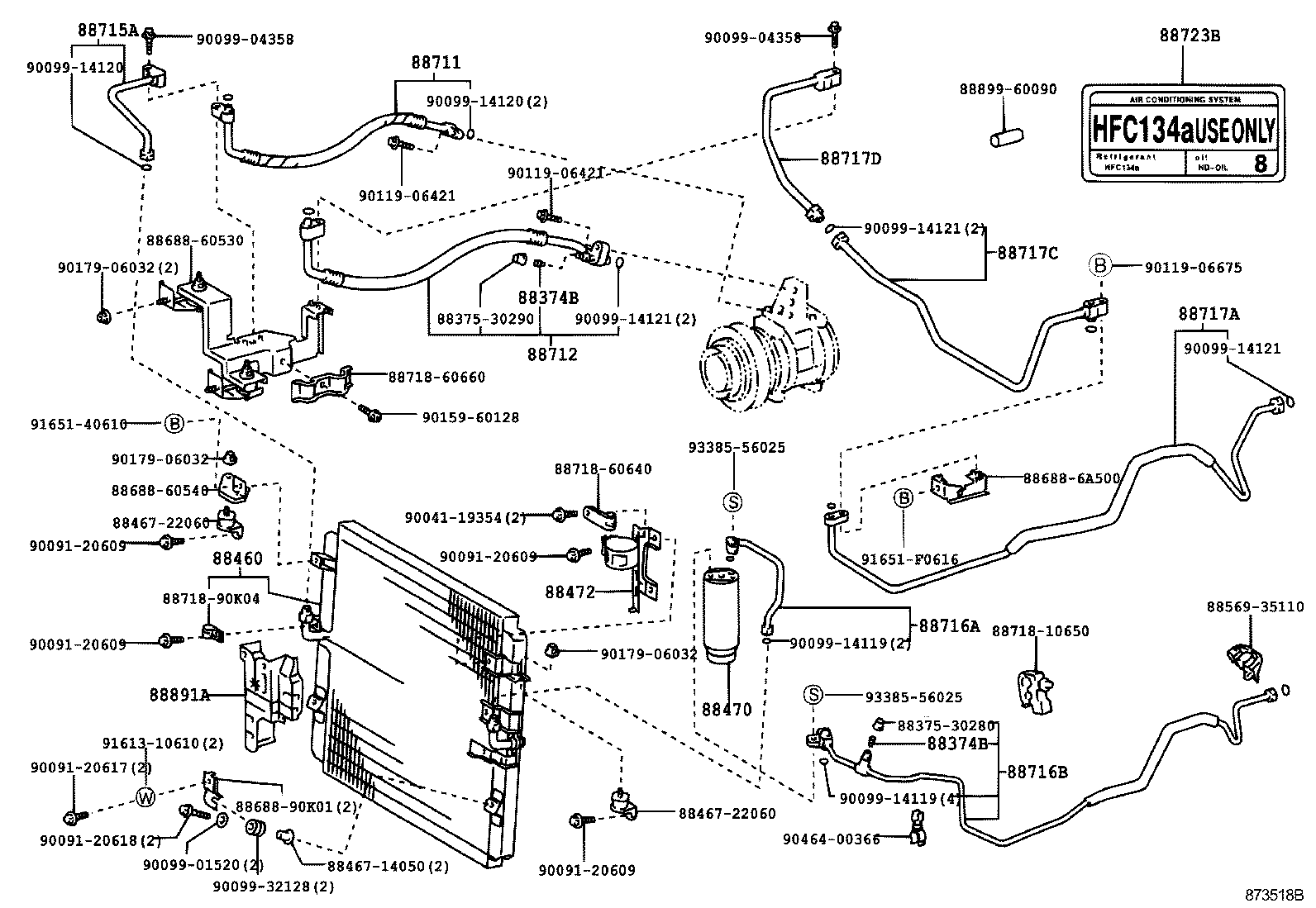

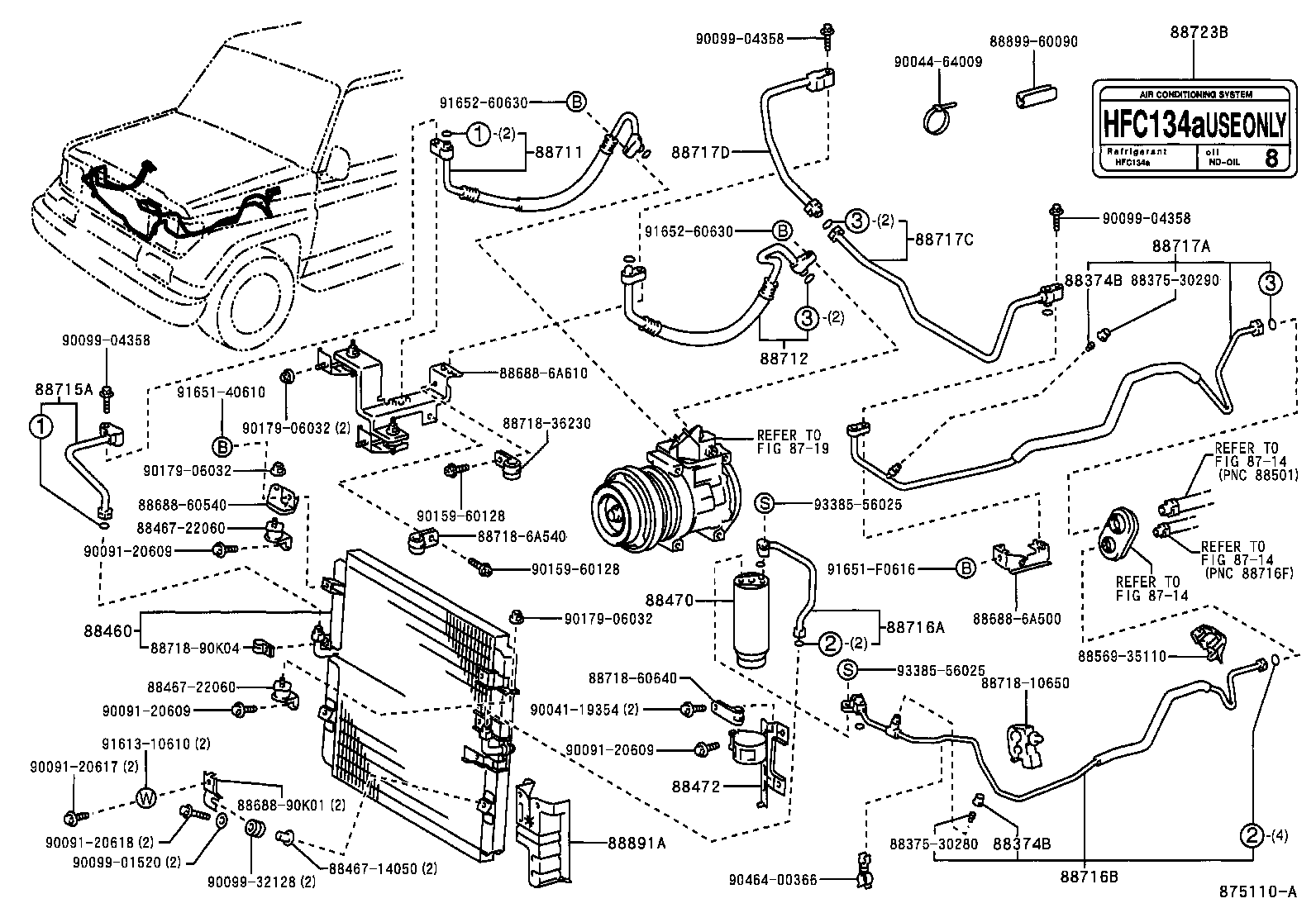

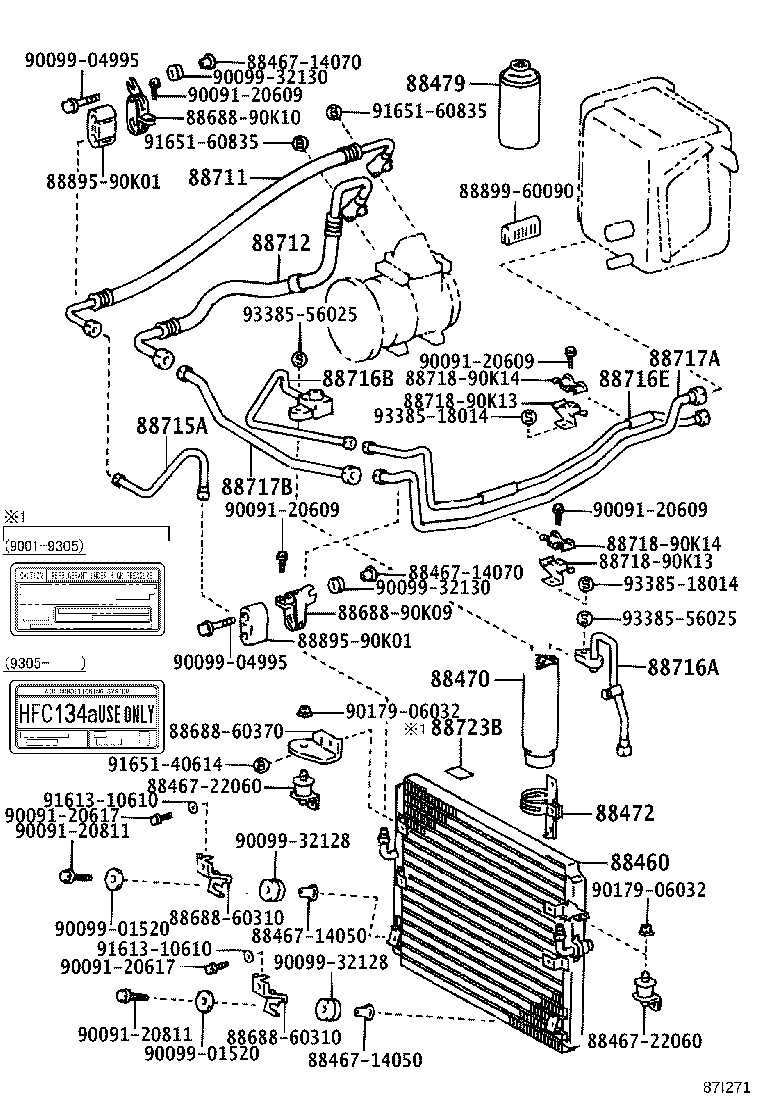

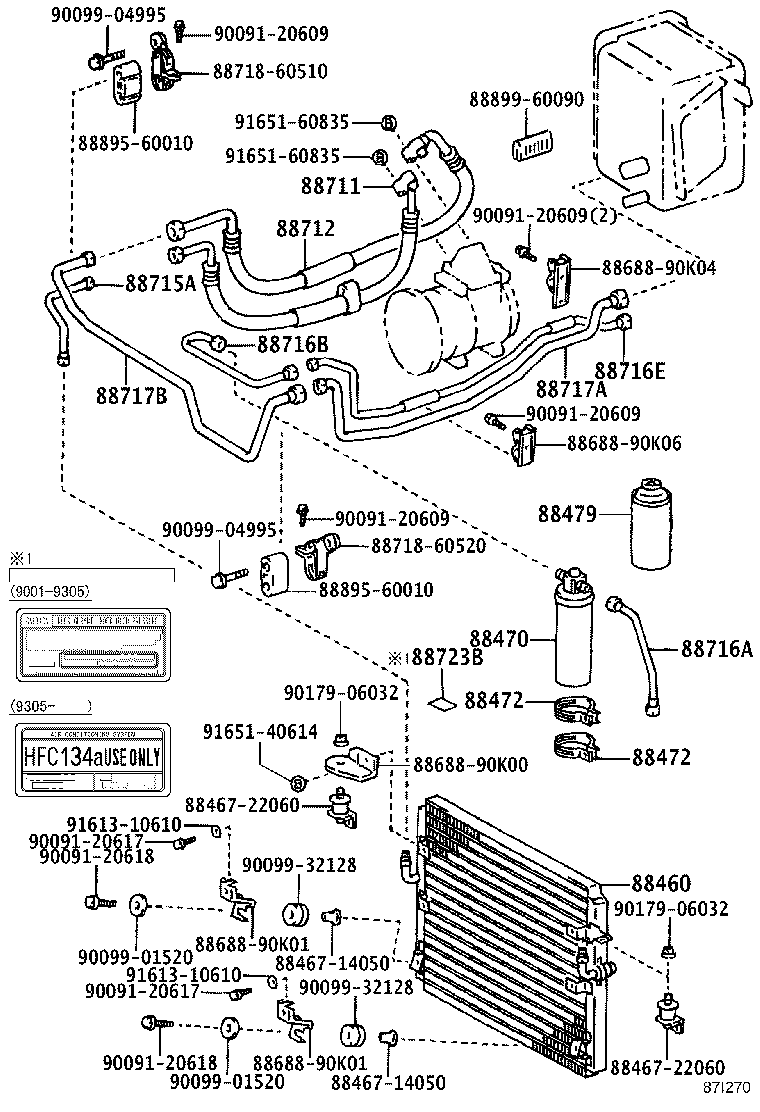

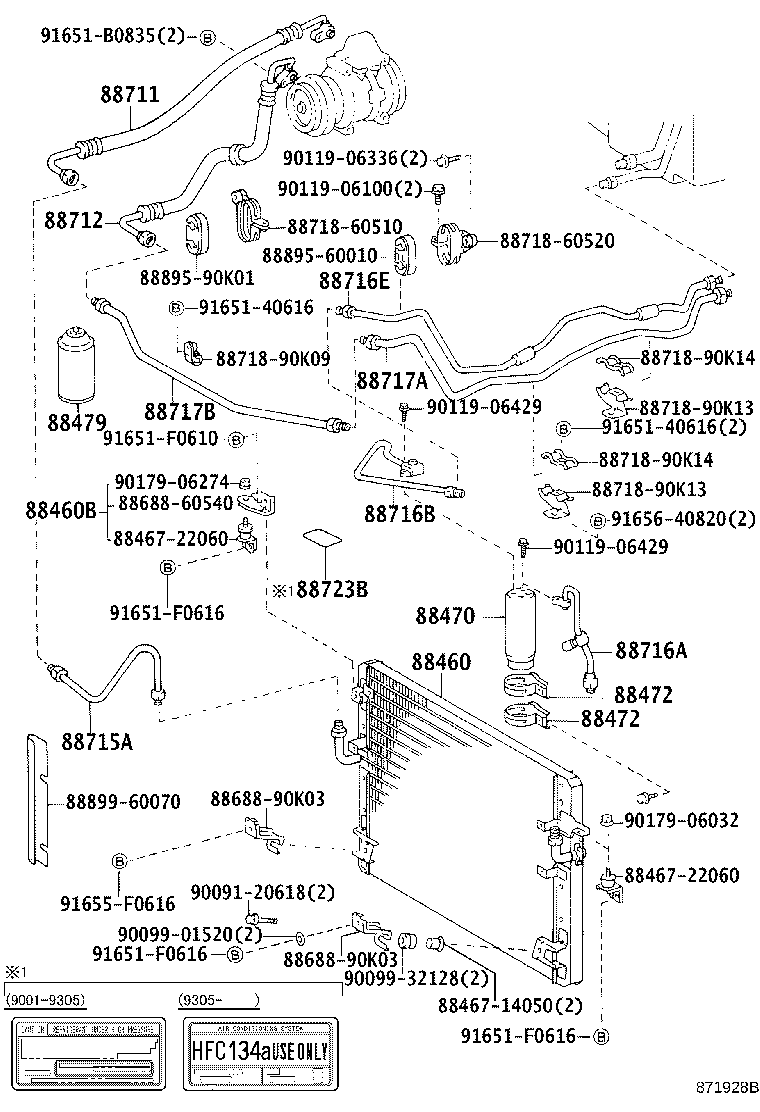

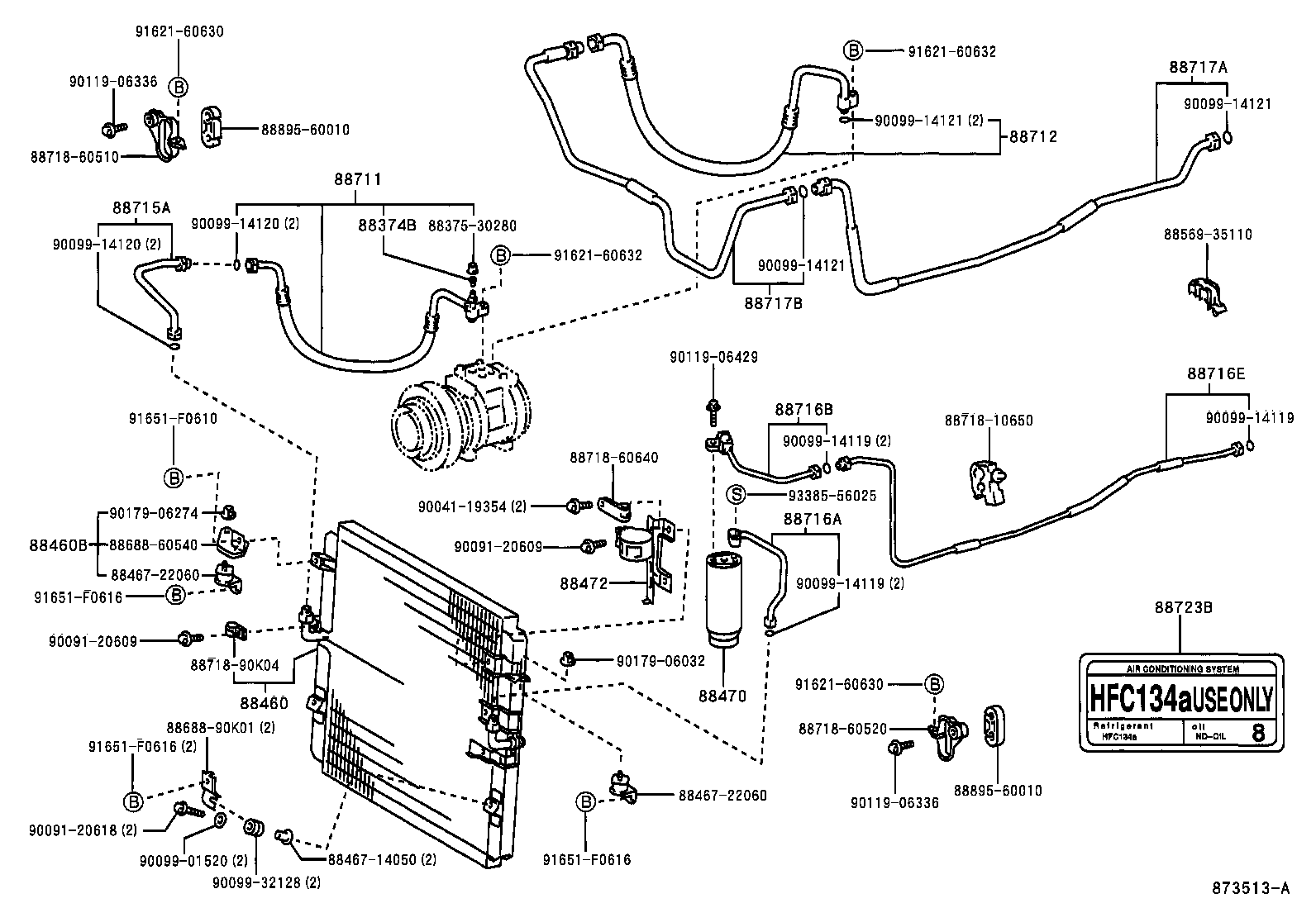

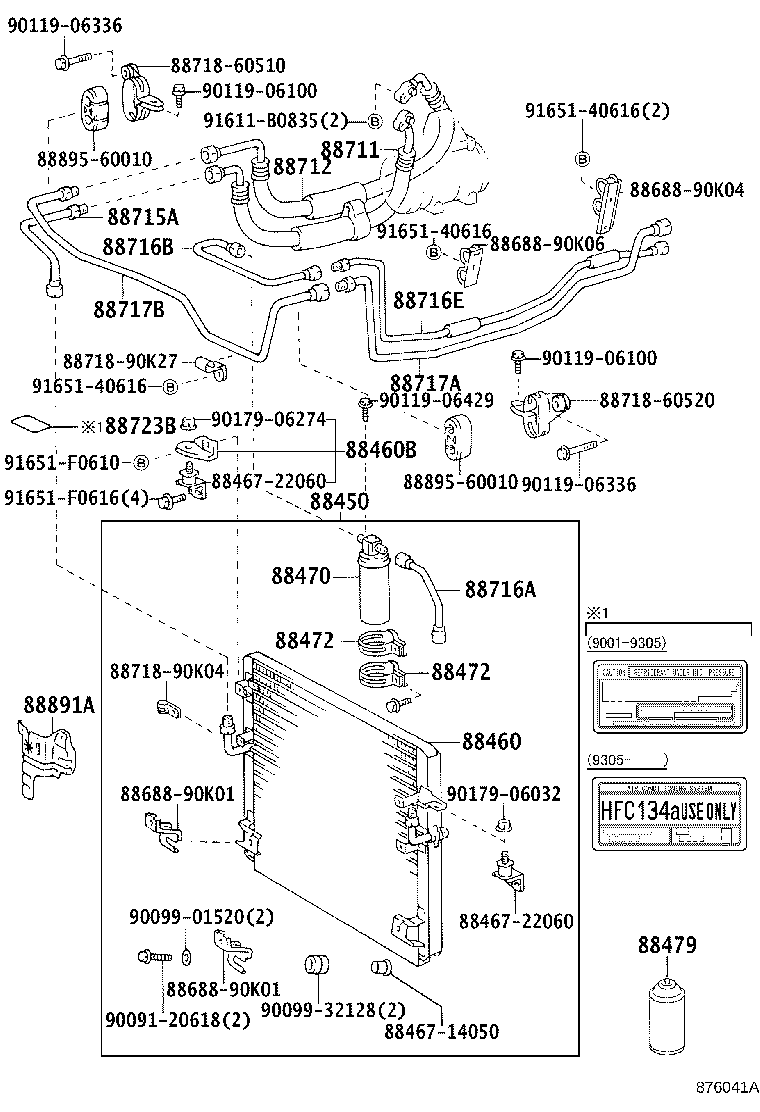

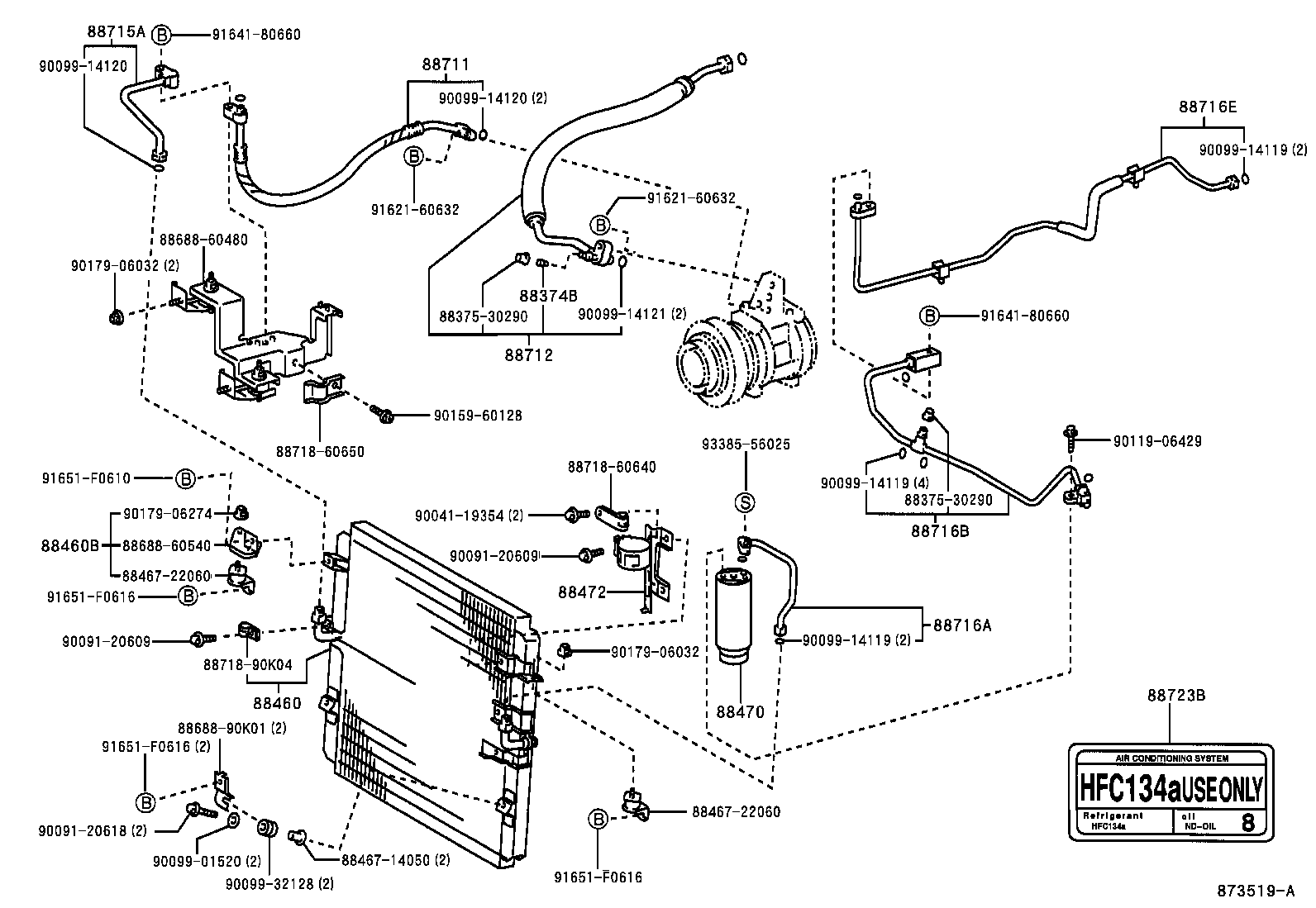

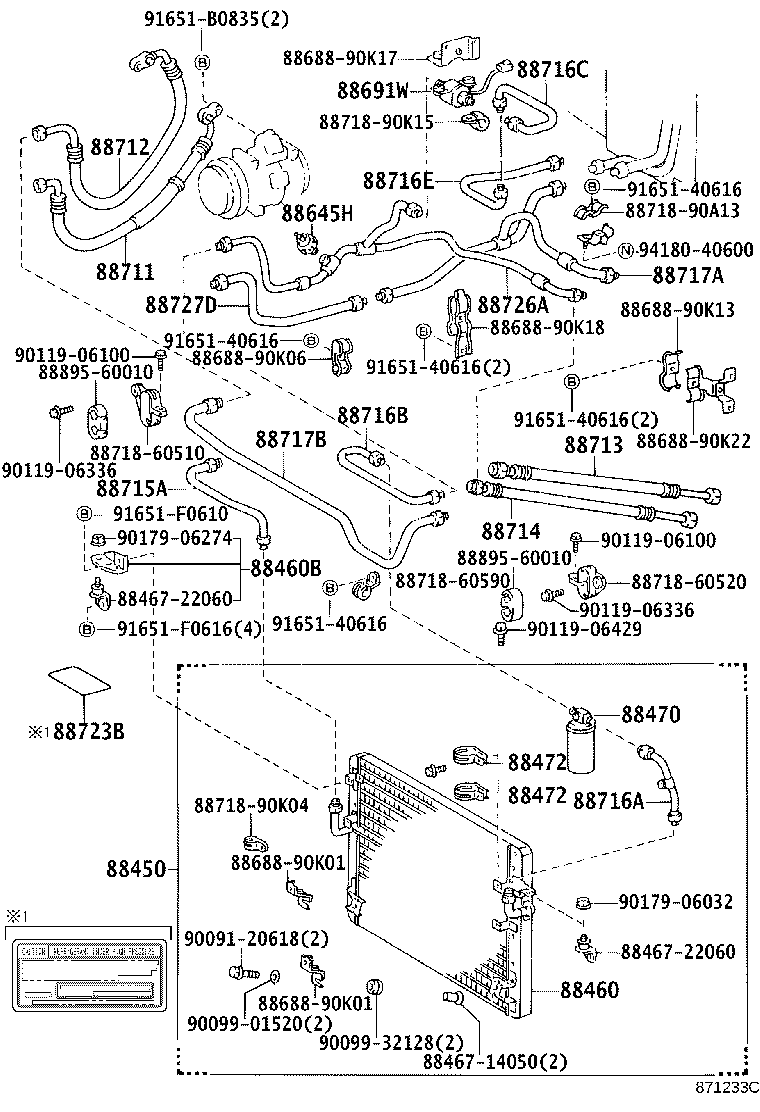

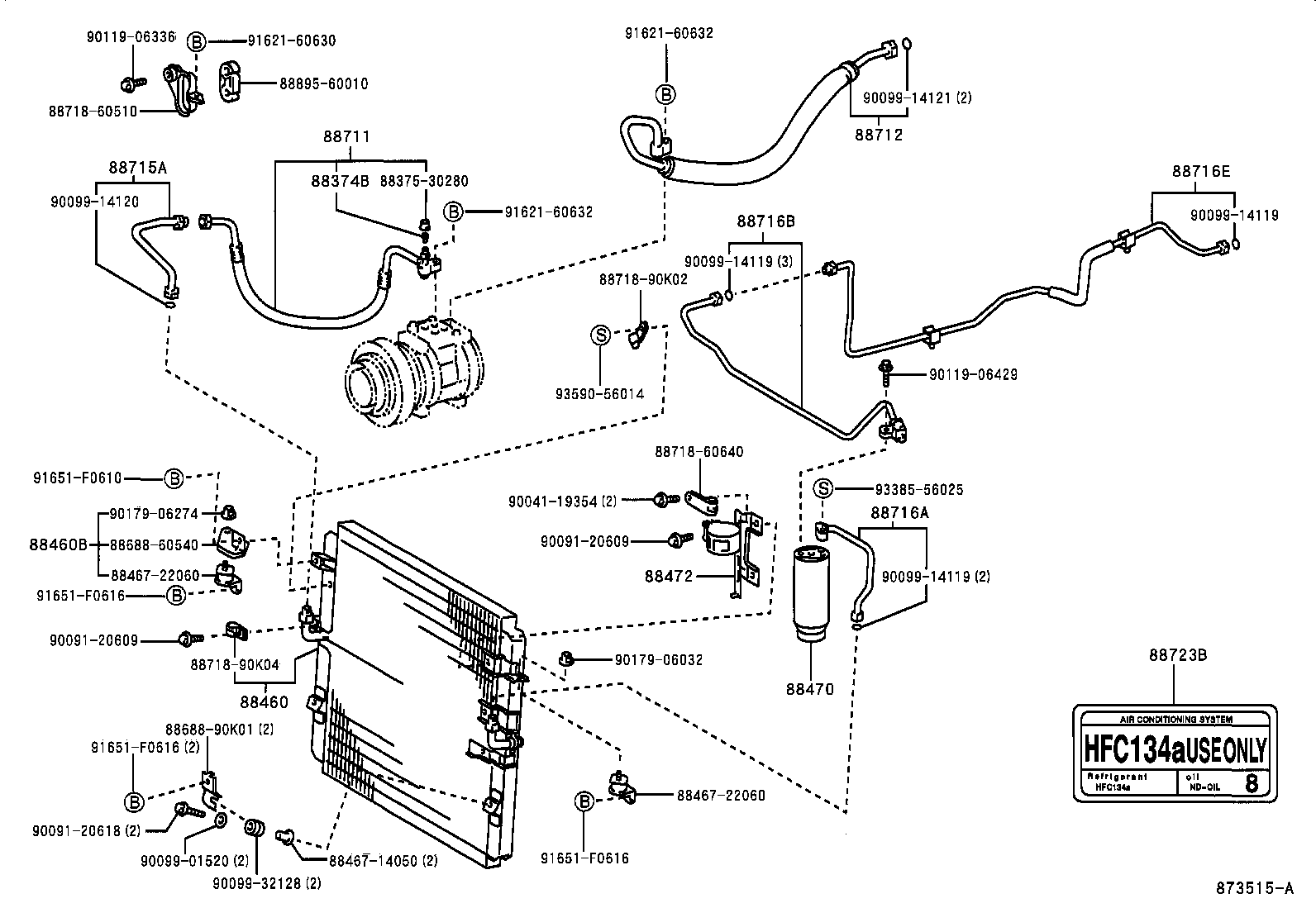

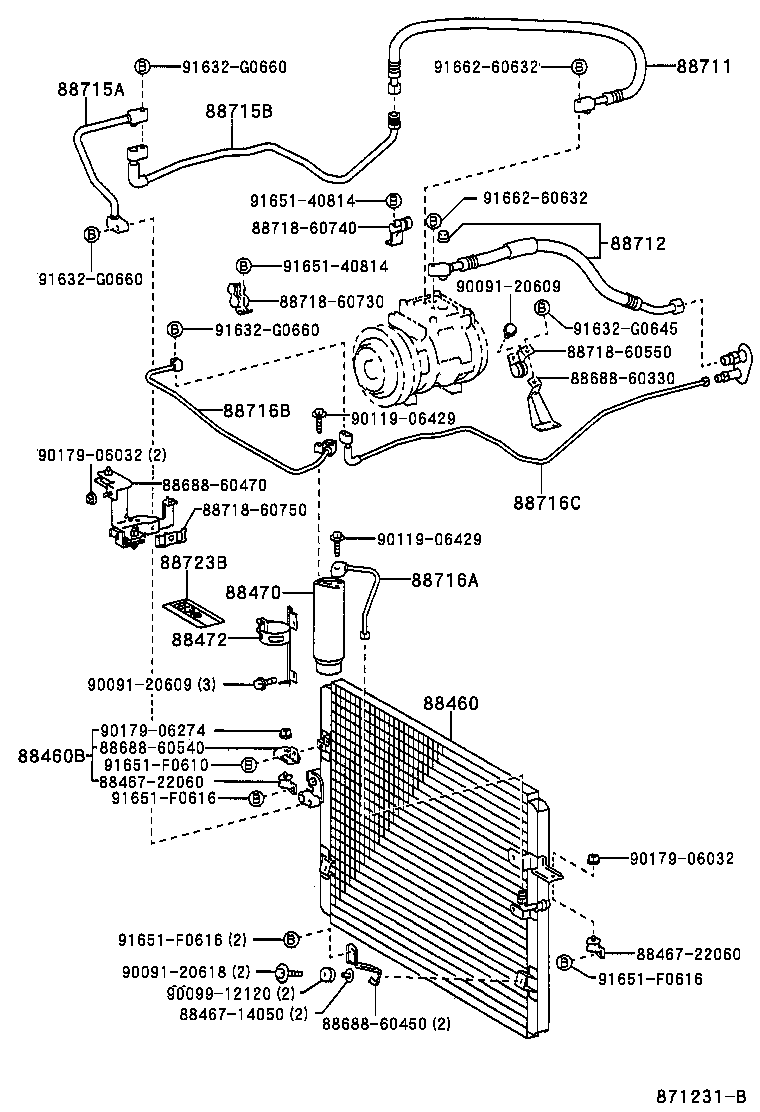

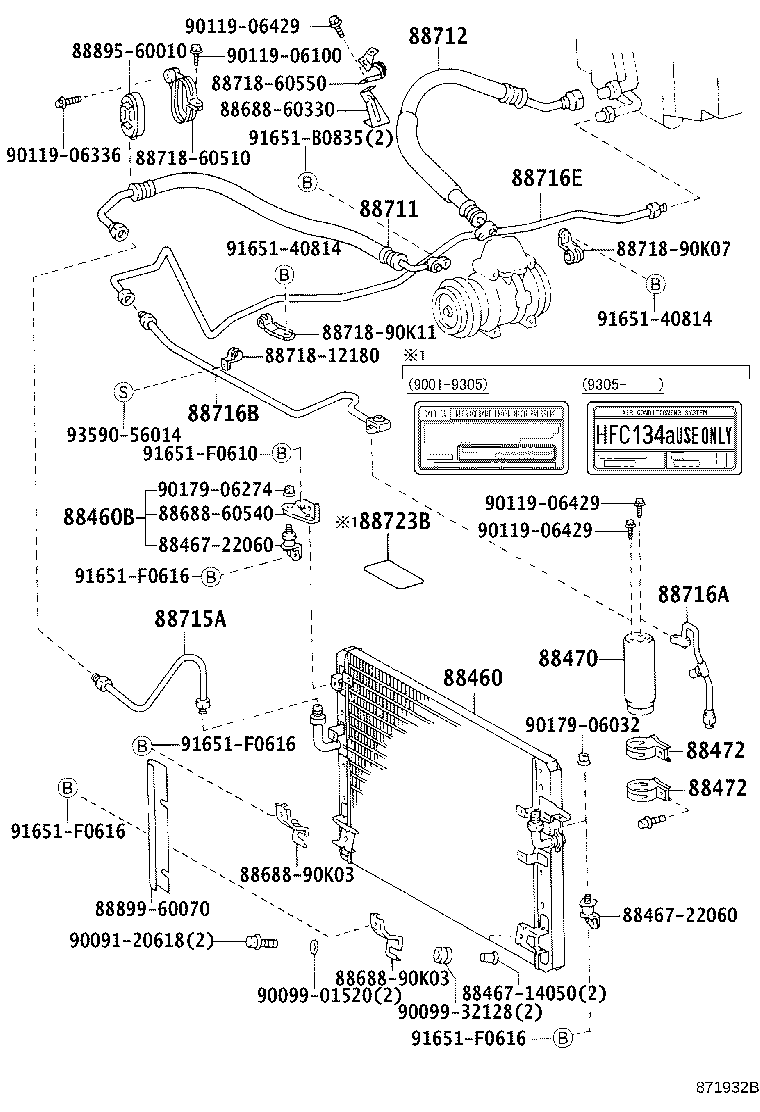

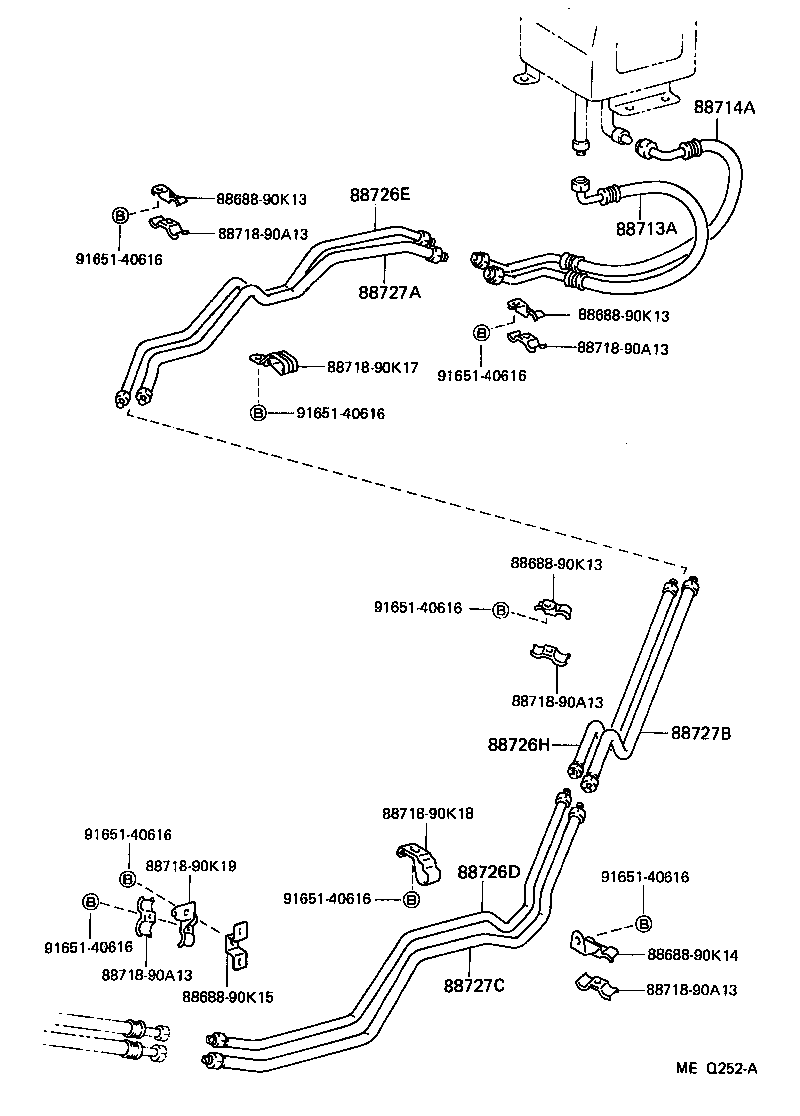

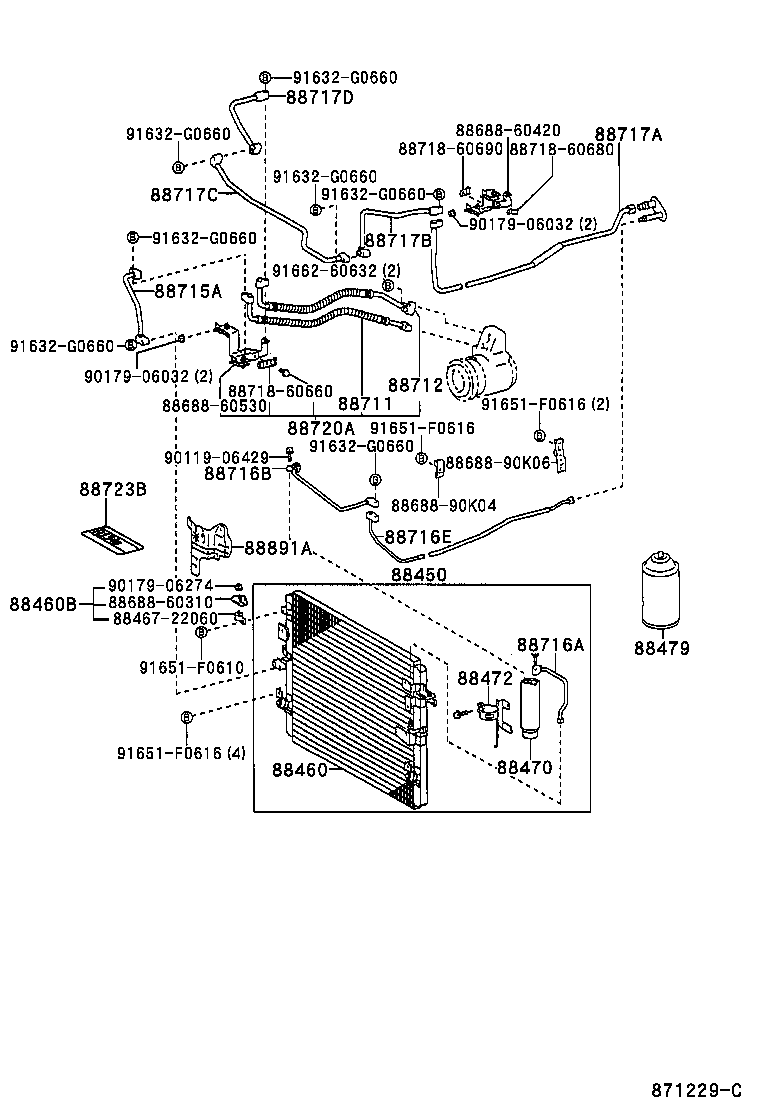

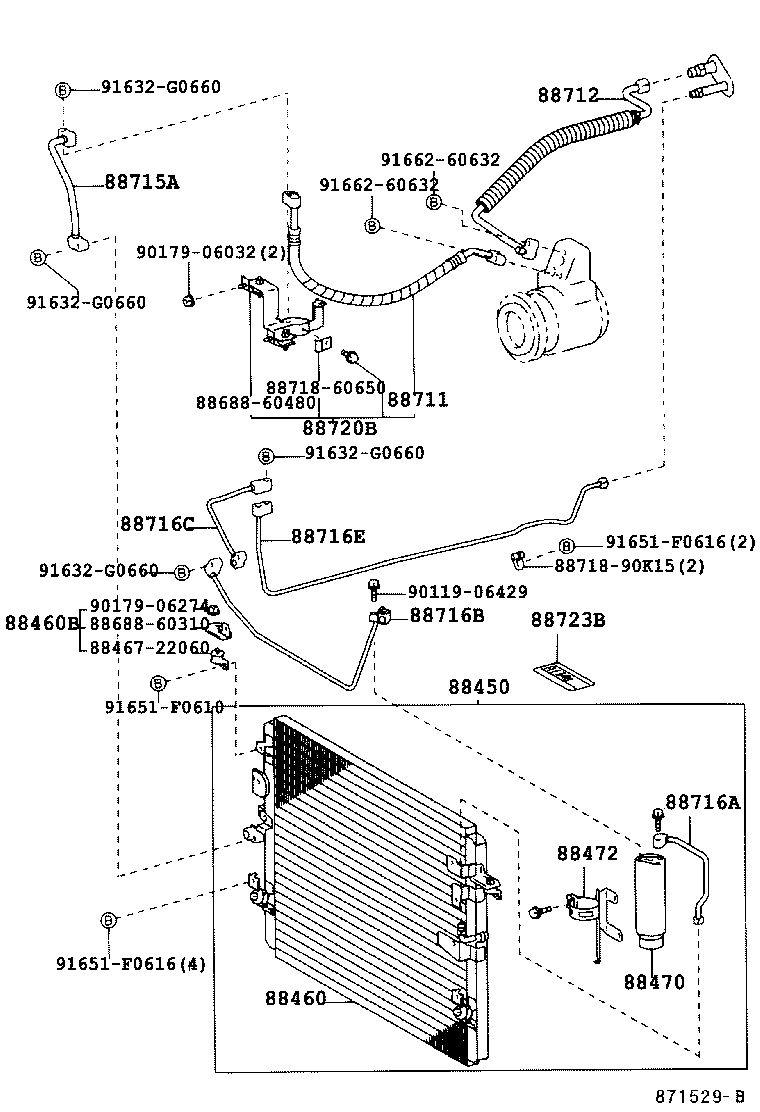

Figure 876042A 876042A 1990-01 → 1992-01 Figure 876042A 876042A 1990-01 → 1994-01 Figure 876042A 876042A 1990-01 → 1999-08 Figure 871234C 871234C 1990-01 → 1992-01 Figure 871234C 871234C 1990-01 → 1992-08 Figure 876041A 876041A 1990-01 → 1992-01 Figure 876041A 876041A 1990-01 → 1994-01 Figure 876041A 876041A 1990-01 → 1995-01 Figure 876041A 876041A 1990-01 → 2000-07 Figure 871233C 871233C 1990-01 → 1992-01 Figure 87I270 87I270 1990-01 → 1995-01 Figure 87I270 87I270 1990-01 → 2000-07 Figure 871932B 871932B 1990-01 → 1996-04 Figure 871928B 871928B 1990-01 → 1996-04 Figure 87I271 87I271 1990-01 → 1996-04 Figure 871529B 871529B 1992-01 → 1999-08 Figure 871529B 871529B 1997-09 → 2004-05 Figure 871229C 871229C 1992-01 → 1999-08 Figure 871229C 871229C 1992-01 → 1999-11 Figure 871231B 871231B 1993-05 → 1996-04 Figure 871230B 871230B 1993-05 → 1996-04 Figure 873519A 873519A 1999-08 → 2007-01 Figure 873519A 873519A 1999-08 → — Figure 873517A 873517A 1999-08 → 2007-01 Figure 873518B 873518B 1999-08 → — Figure 873515A 873515A 1999-08 → 2007-01 Figure 873513A 873513A 1999-08 → 2007-01 Figure 873514 873514 1999-08 → — Figure 875110A 875110A 2001-08 → — Figure MEQ252A MEQ252A 1990-01 → 1992-01 Figure 871295B 871295B 1990-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88450 Condenser Assy, W/Receiver
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88645H Switch, Pressure NO.1
88691W Valve, Magnet
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88713A Hose, Cooler Refrigerant Suction, NO.3
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714A Hose, Cooler Refrigerant Liquid, NO.2
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88720A Hose & Accessory, Air Conditioner
88720B Hose & Accessory, Air Conditioner
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88726D Pipe, Cooler Refrigerant Liquid, D
88726E Pipe, Cooler Refrigerant Liquid, E
88726H Pipe, Cooler Refrigerant Liquid, H
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
88727D Pipe, Cooler Refrigerant Suction, D
88790 Valve Assy, Magnet
88891A Packing A (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
