Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

159 part groups · 22 illustrations

Illustrations

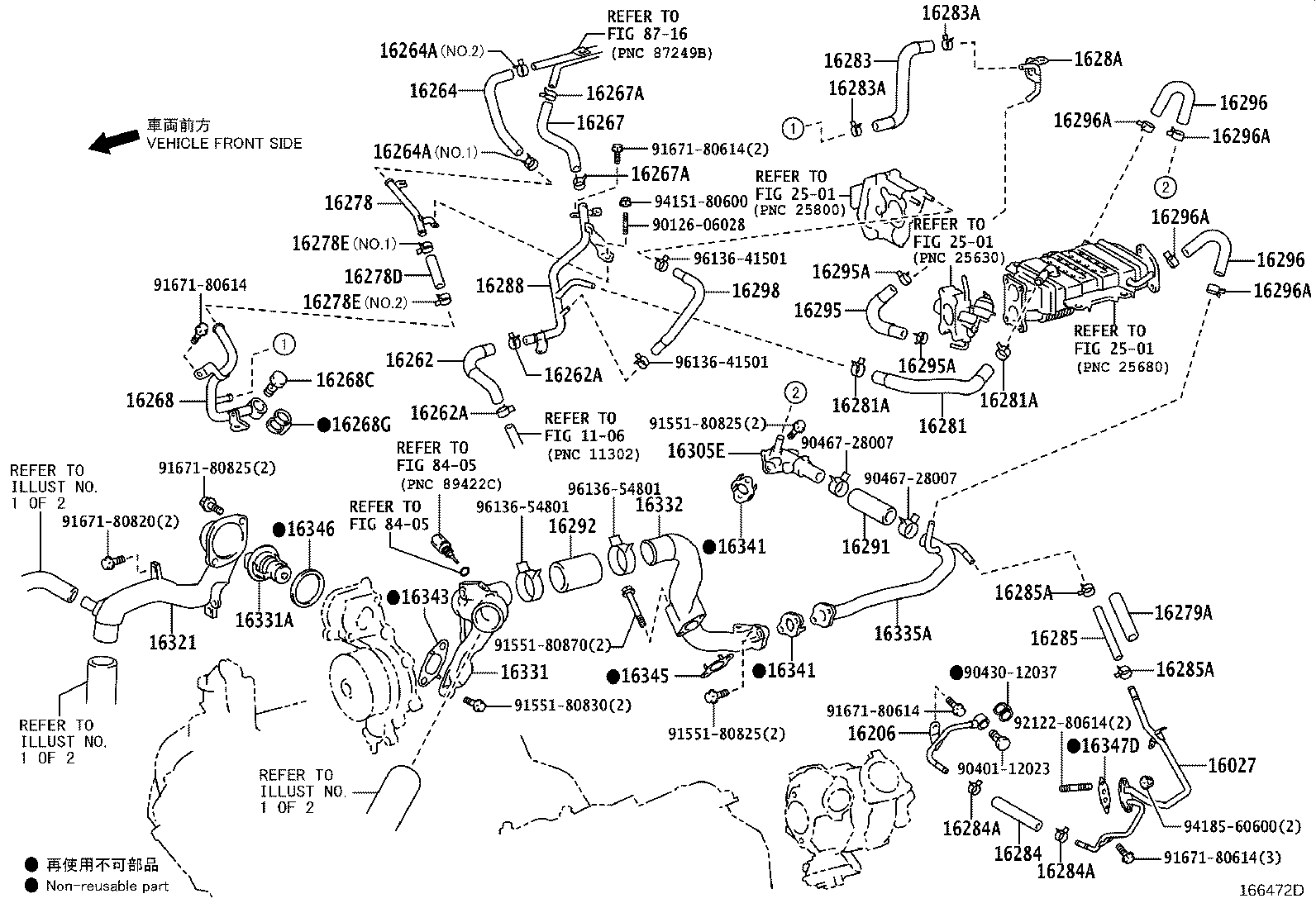

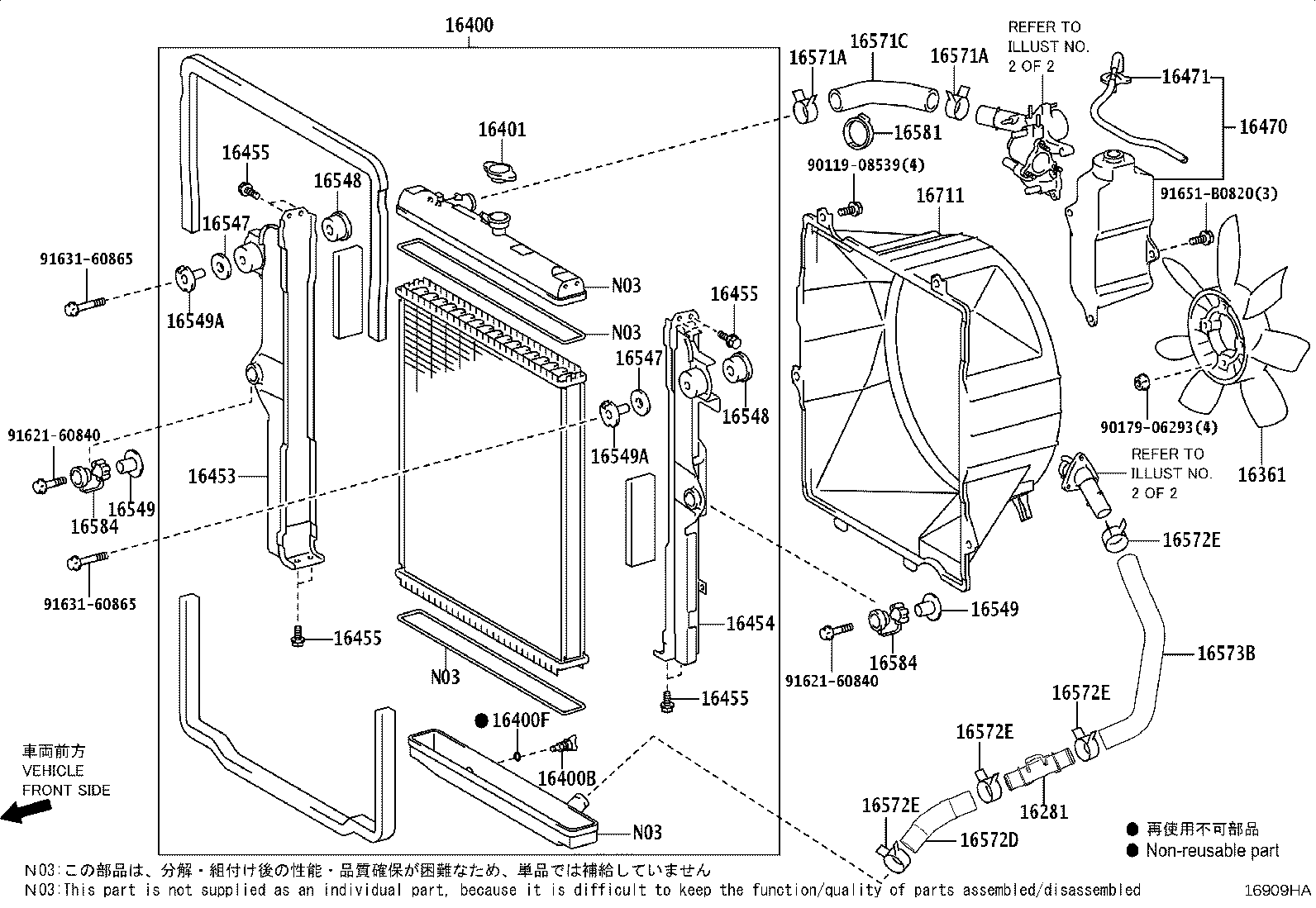

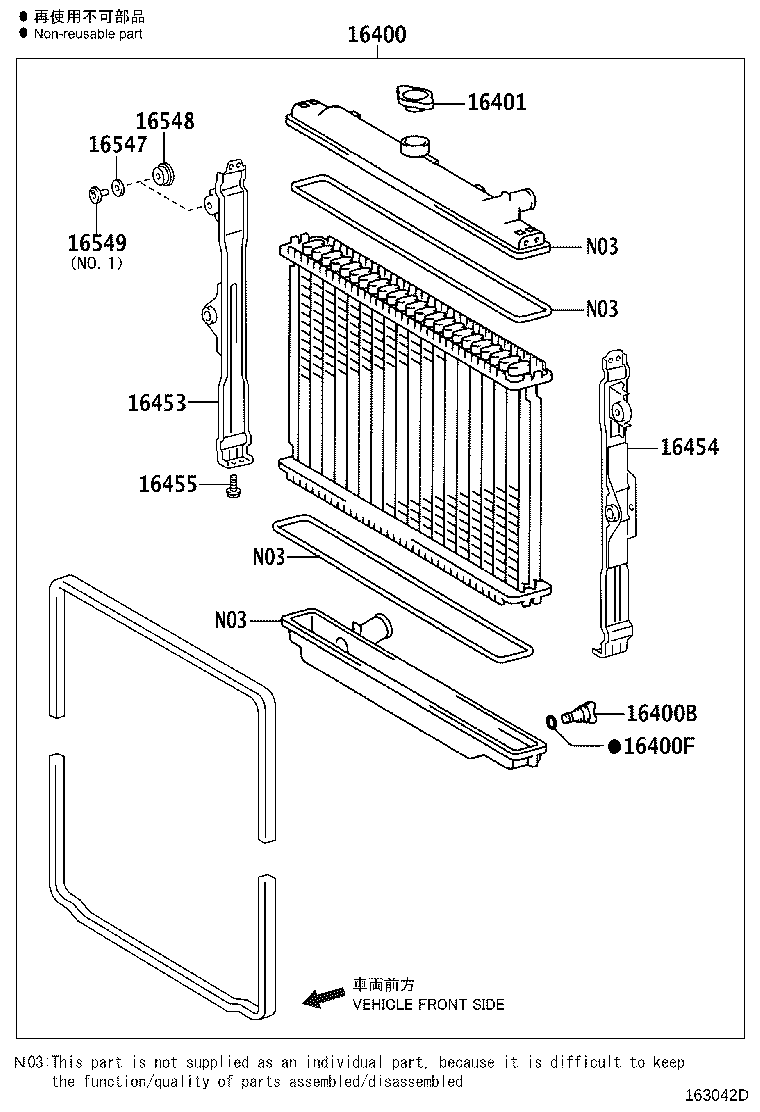

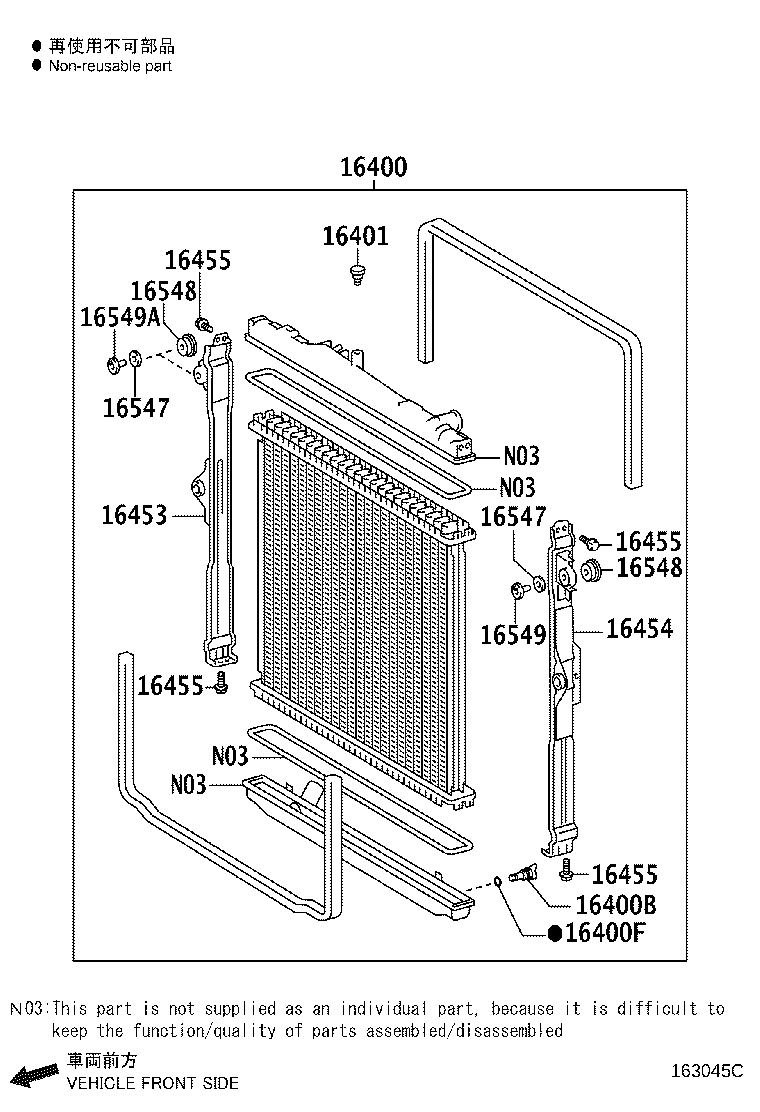

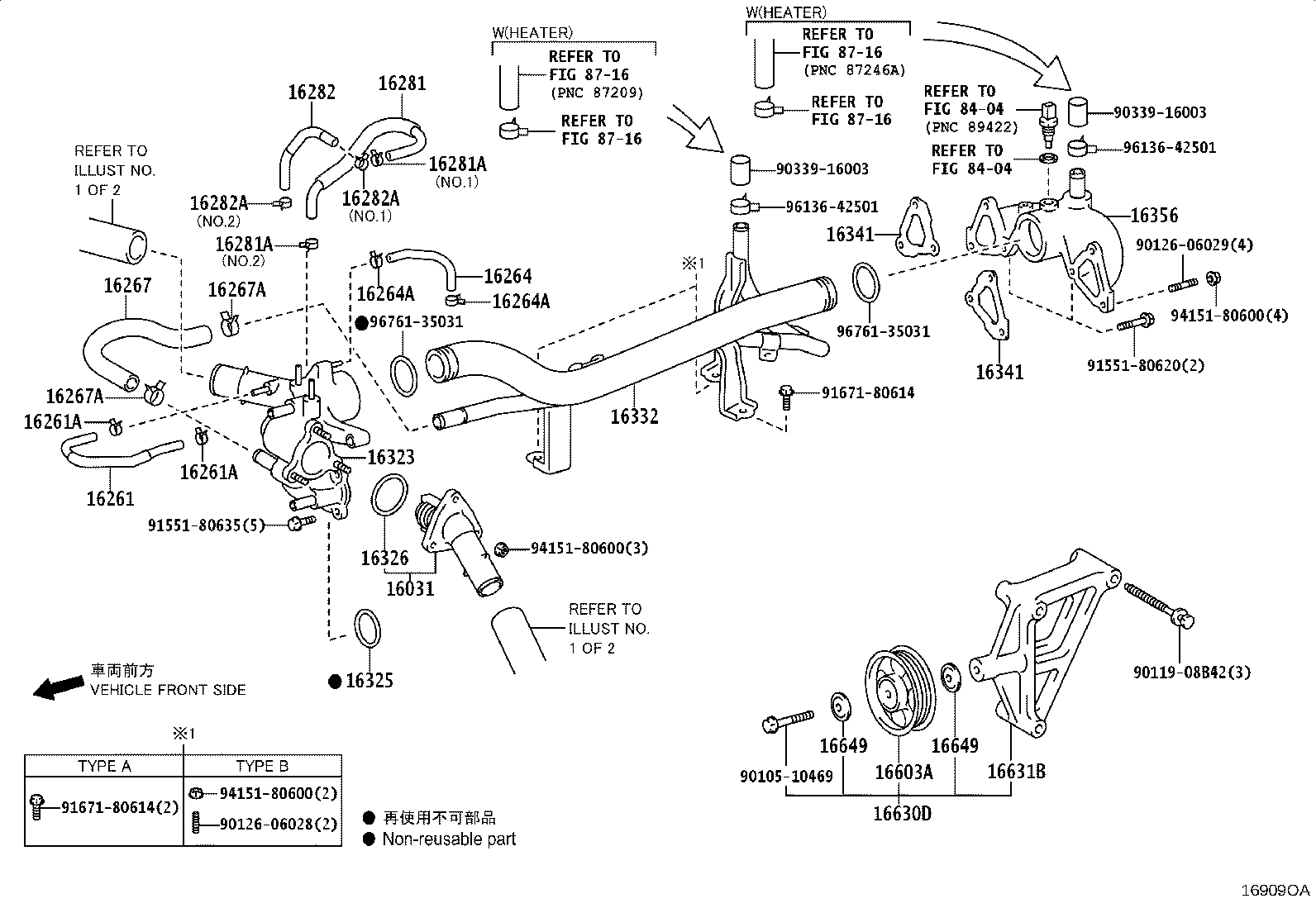

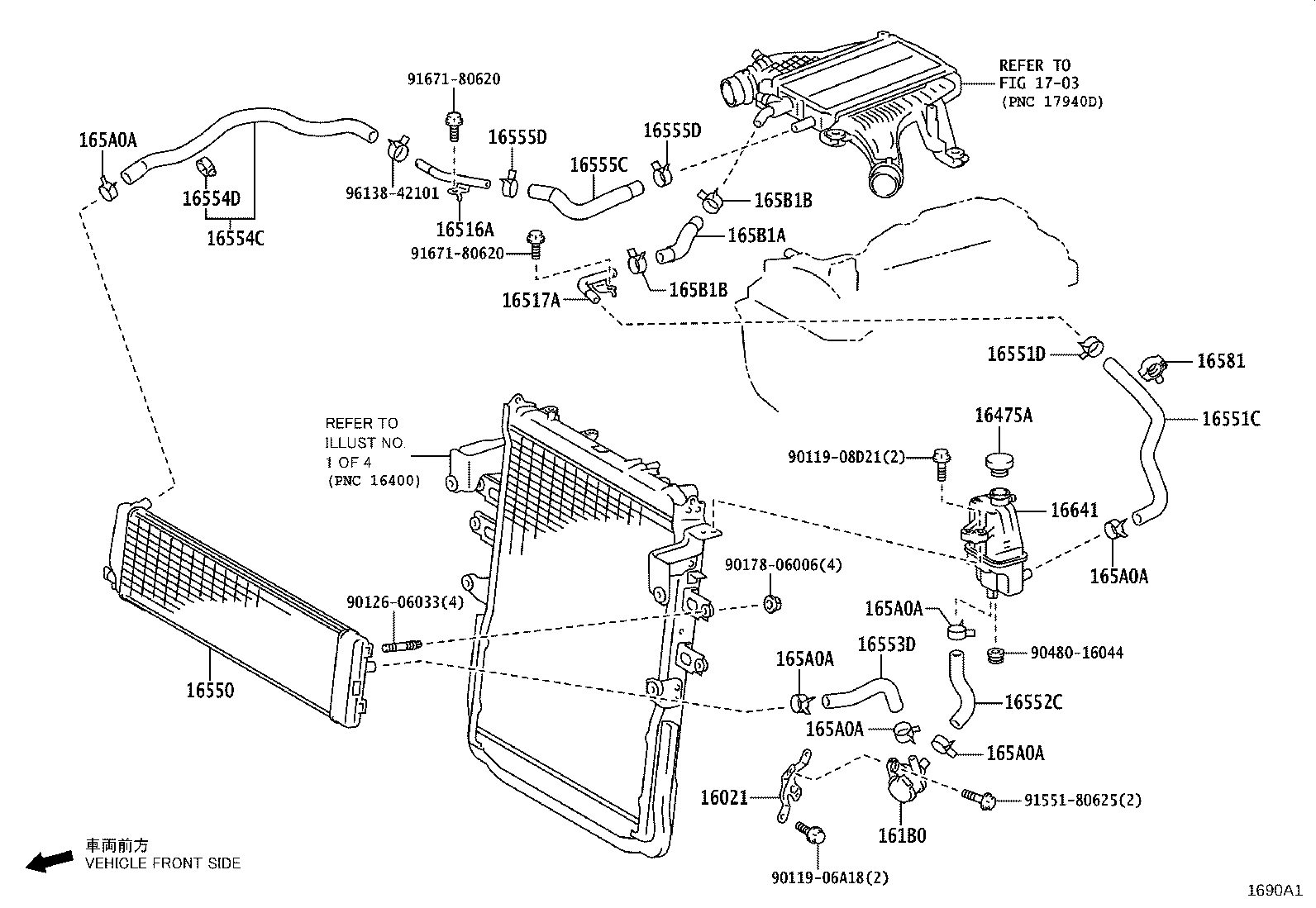

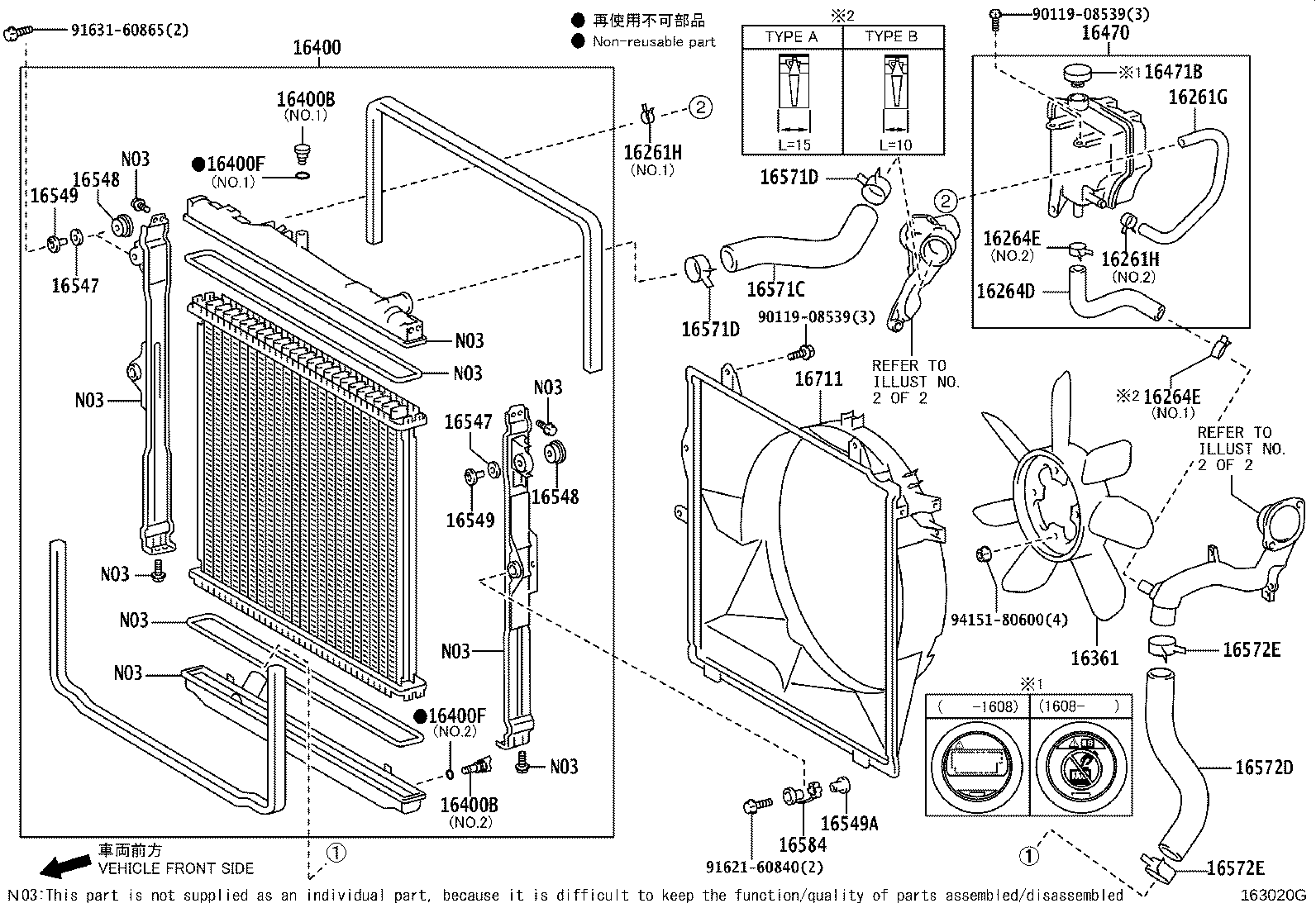

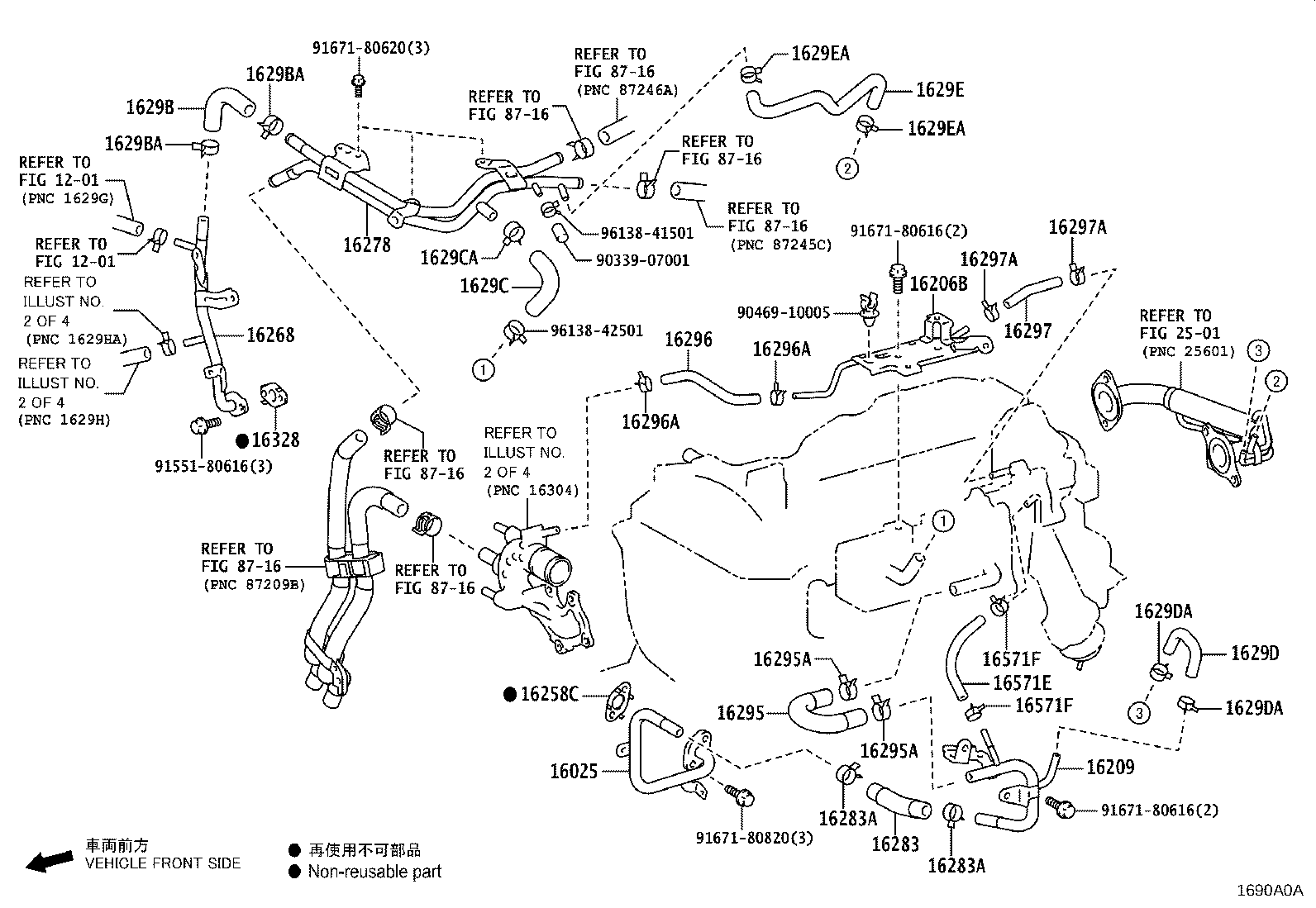

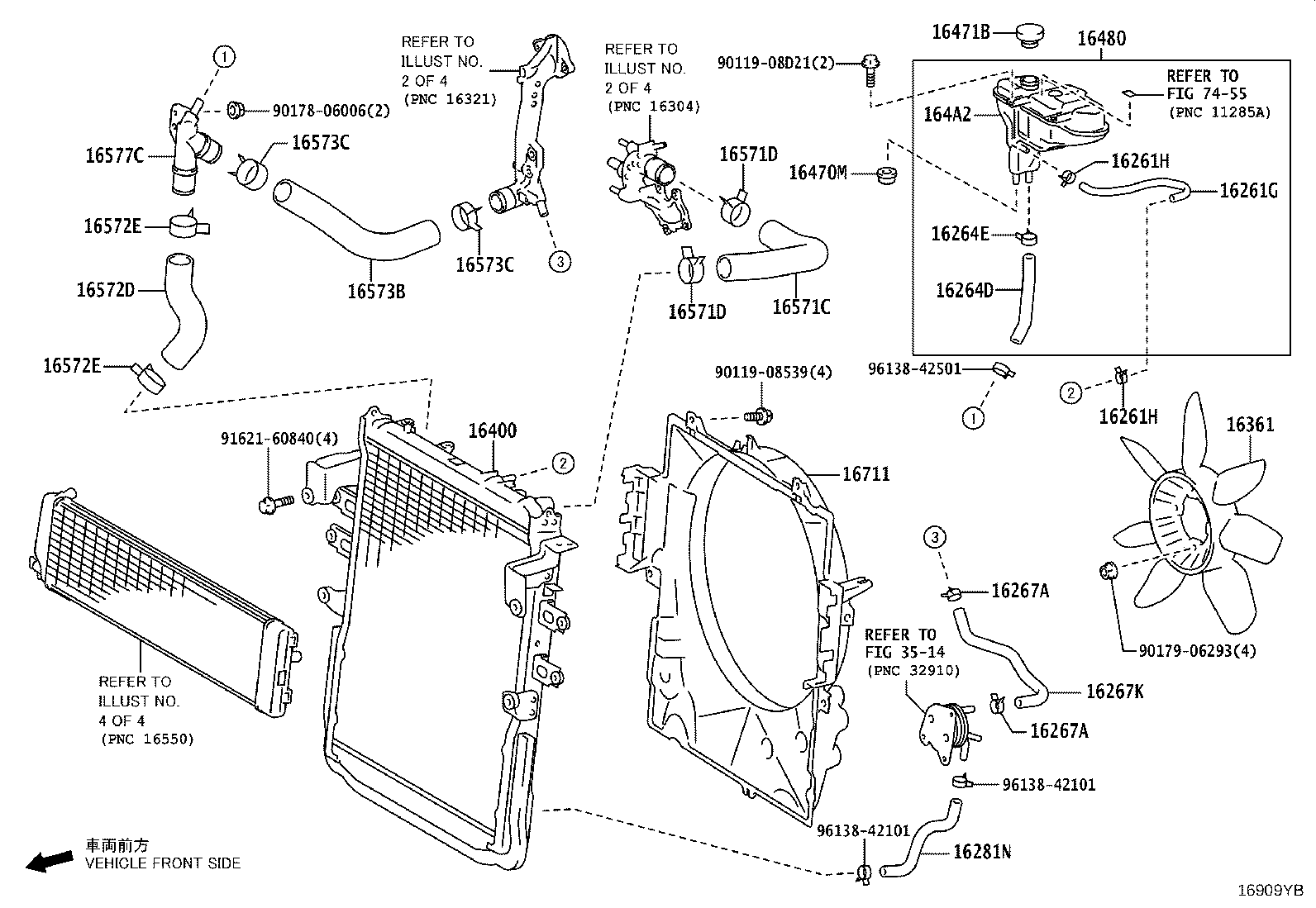

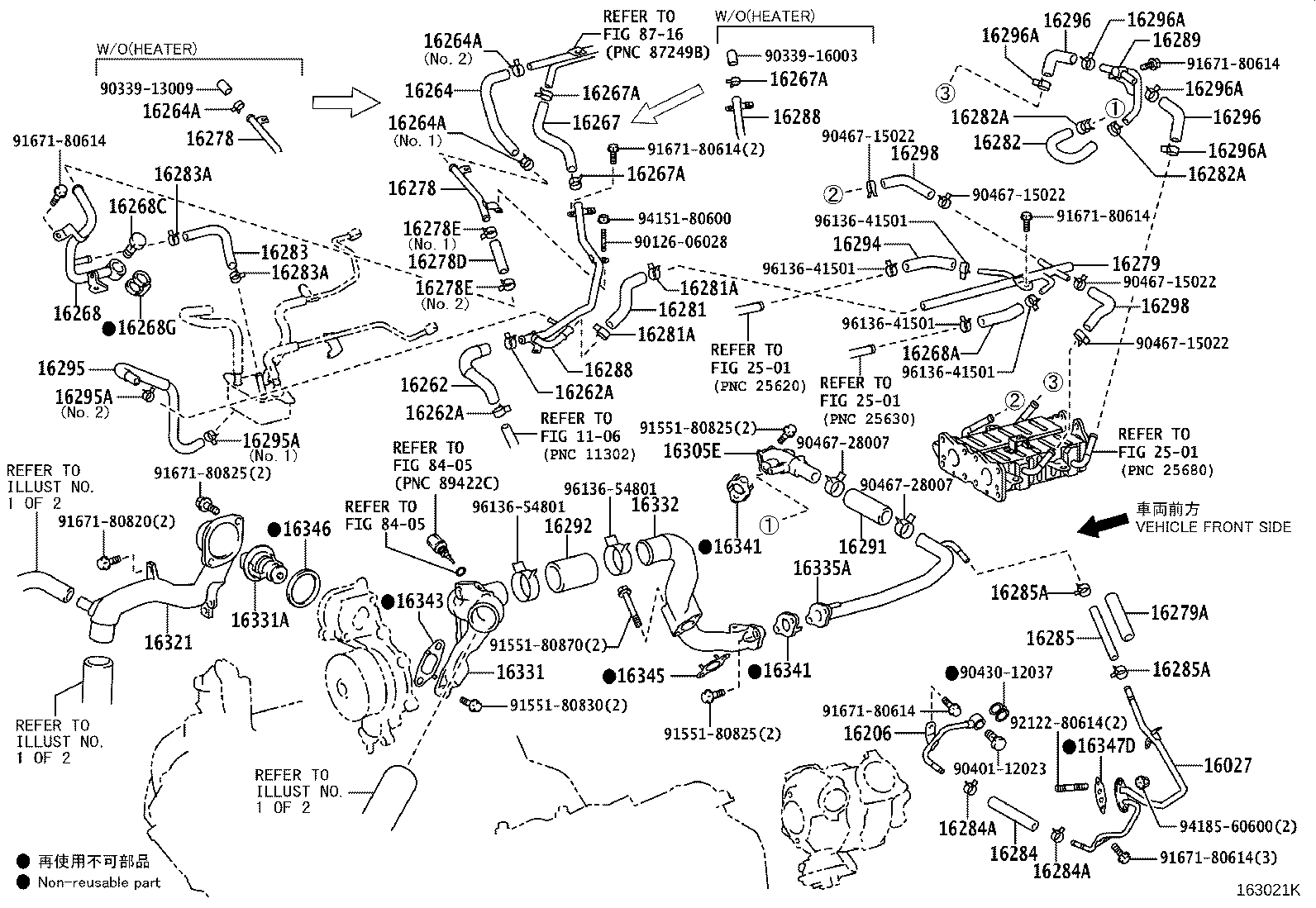

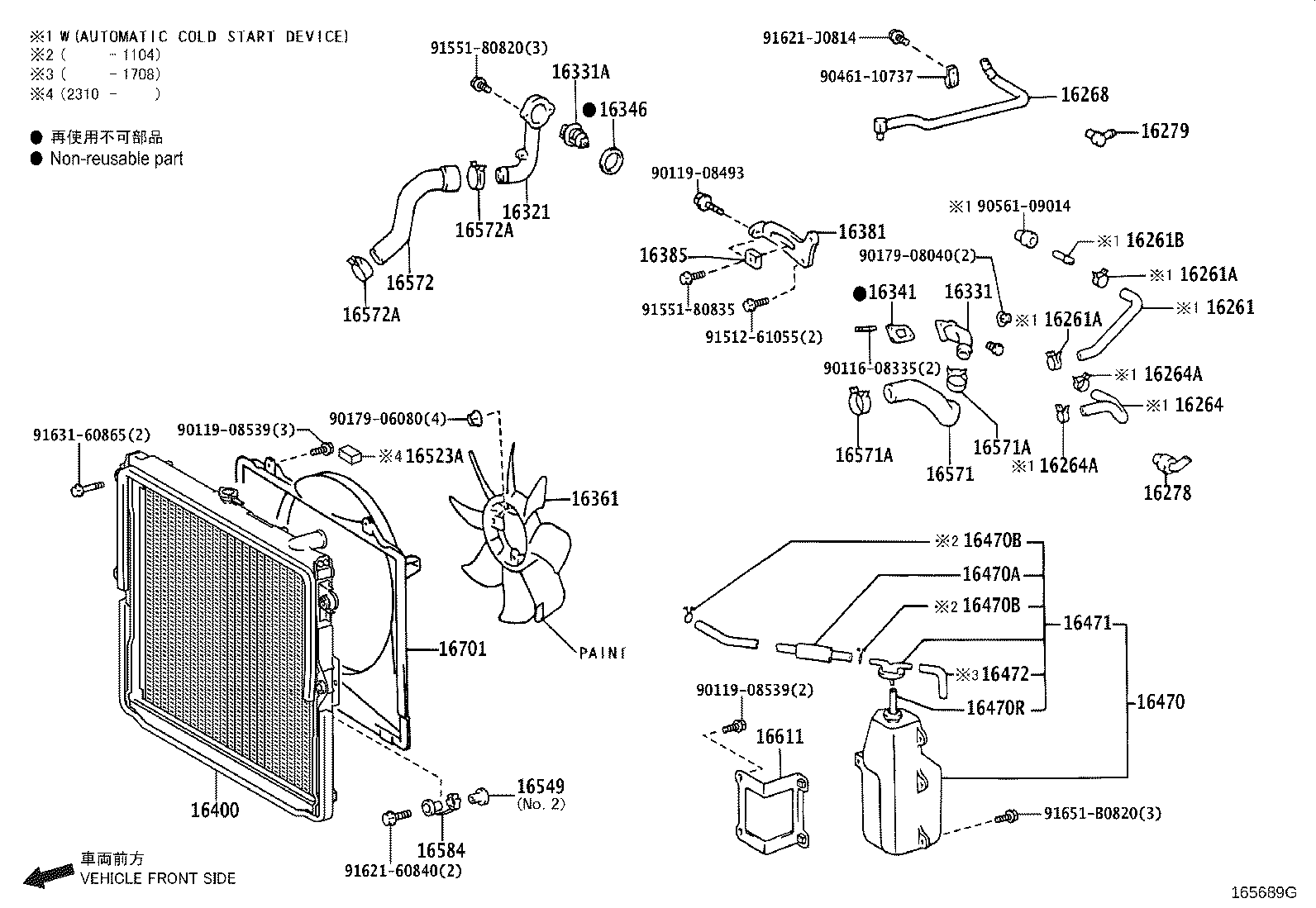

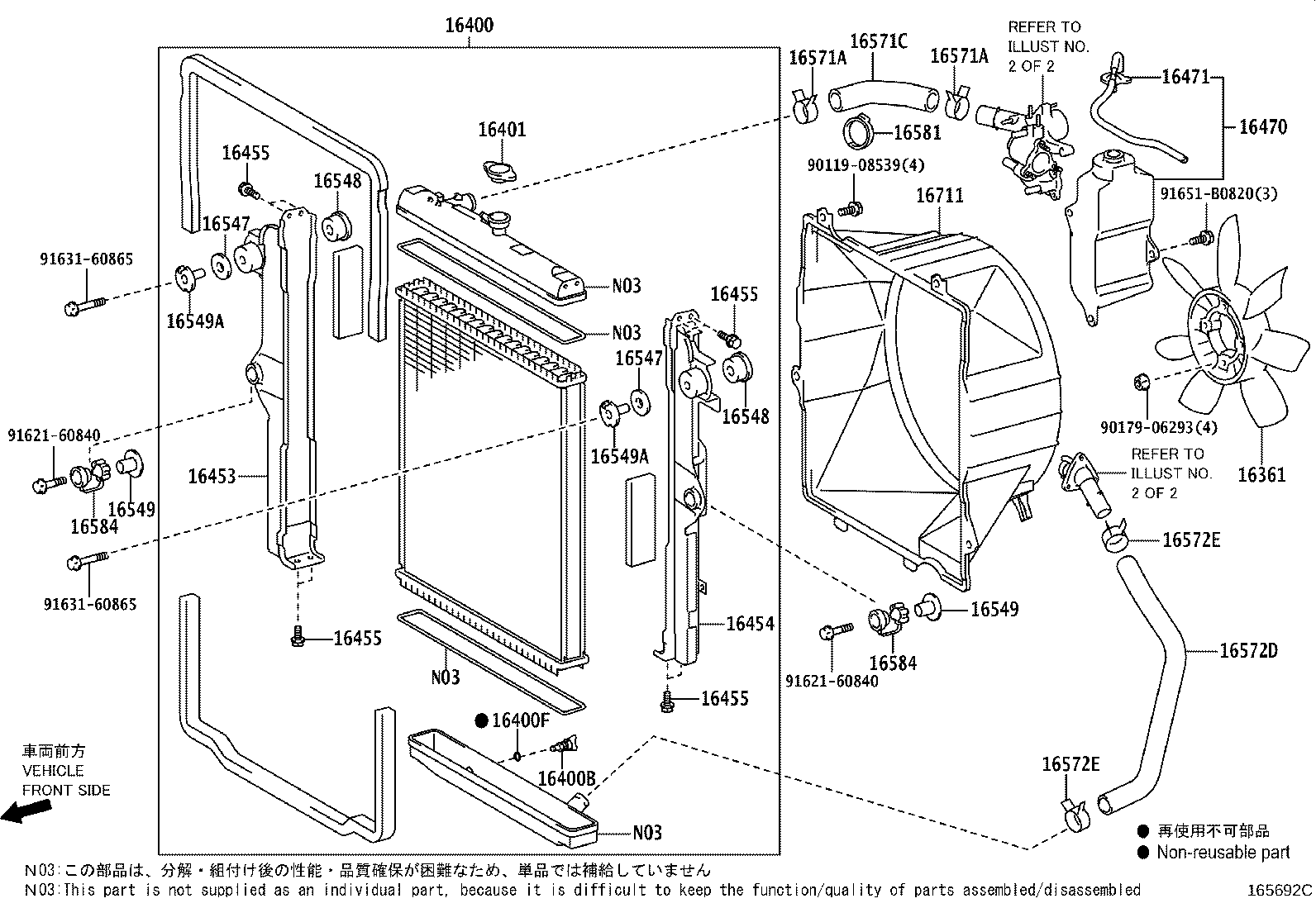

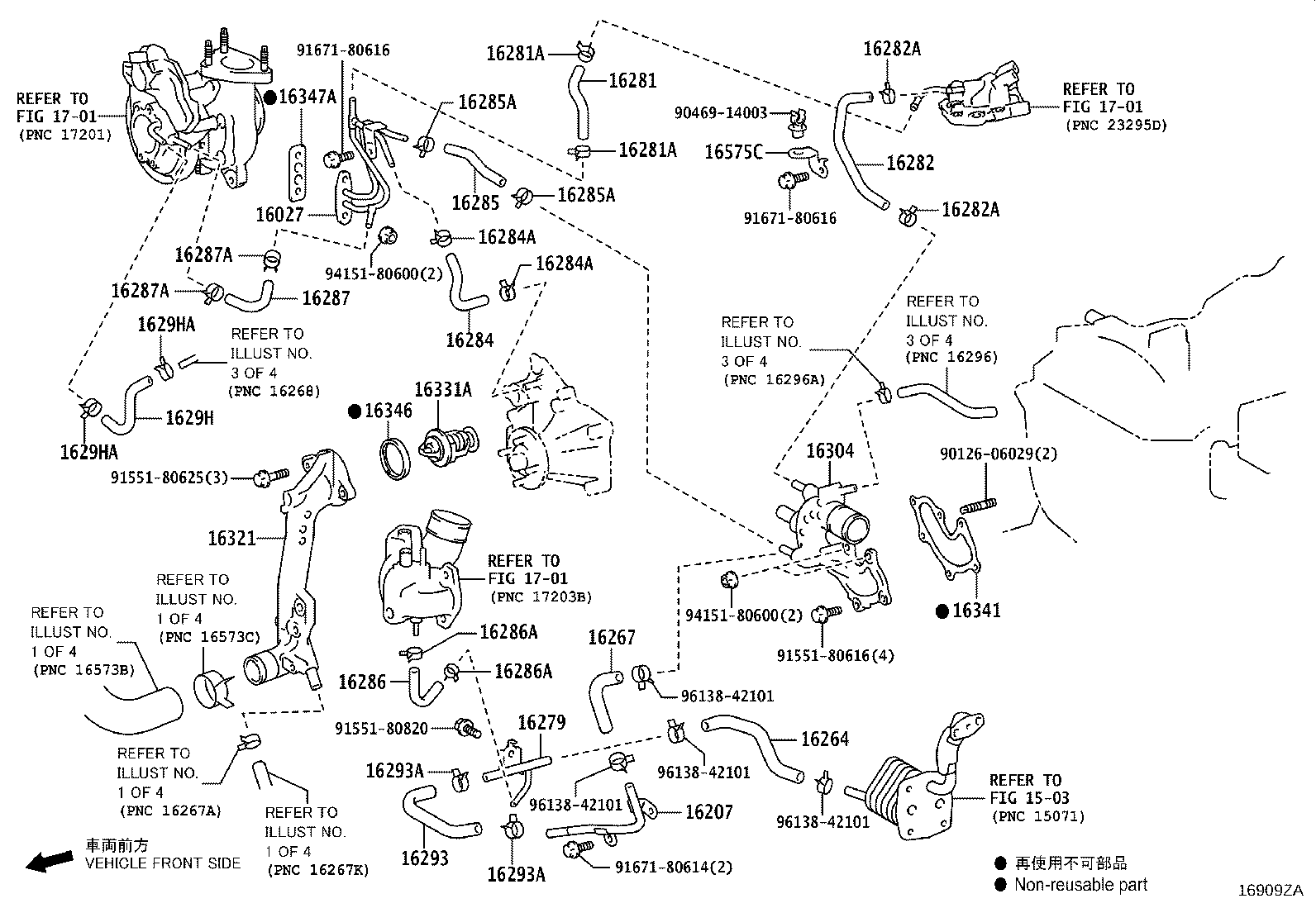

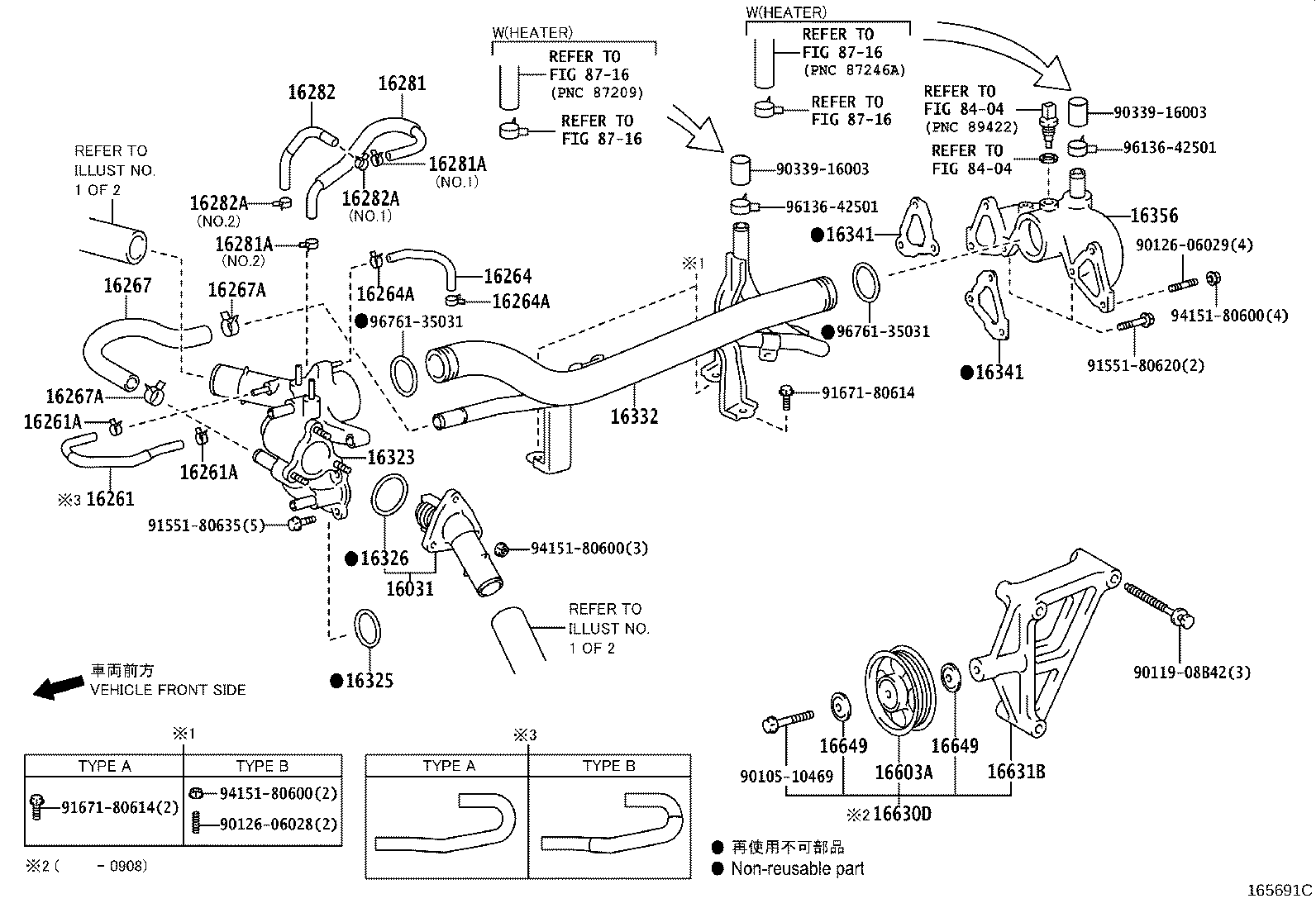

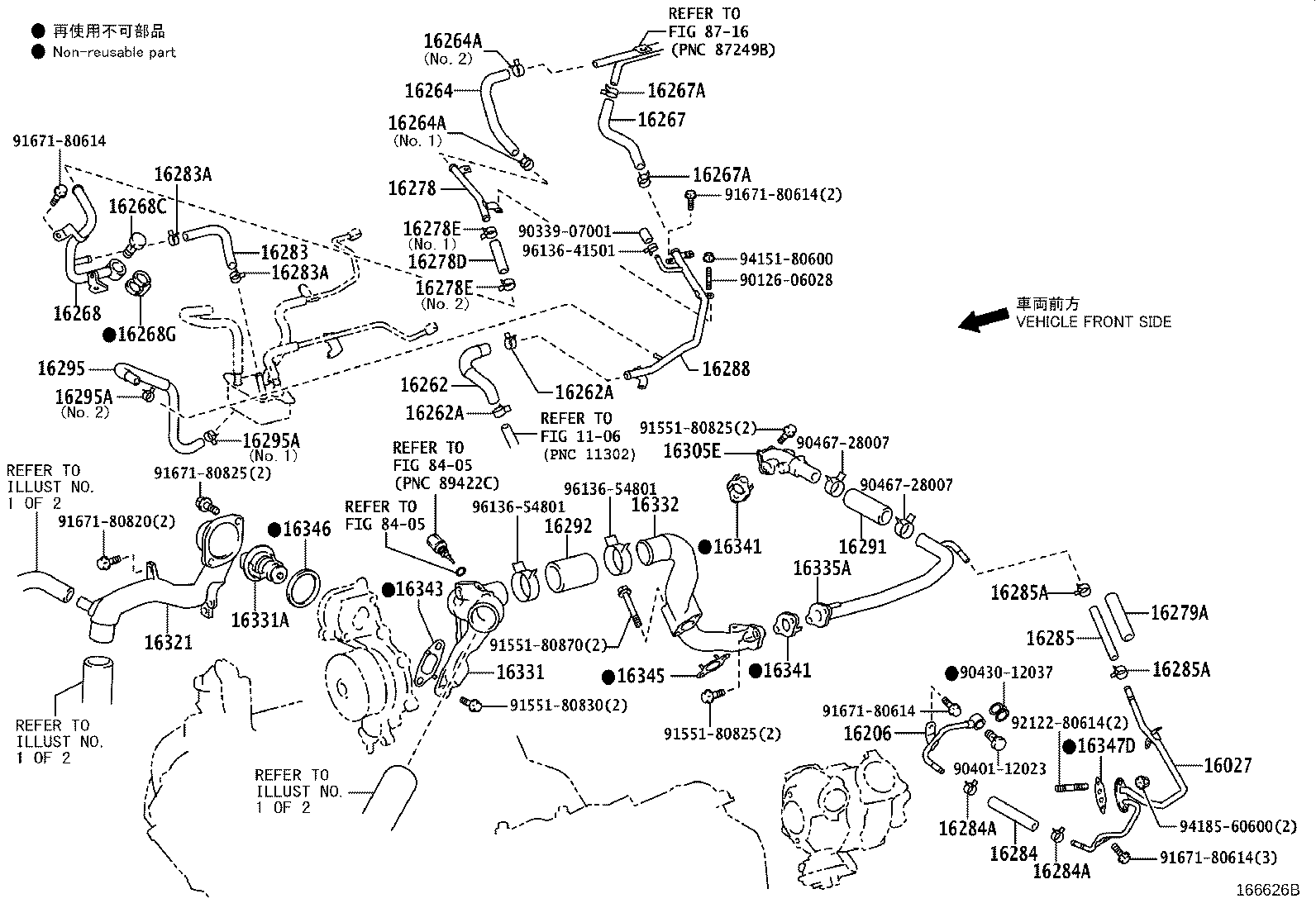

Figure 163030B 163030B 2007-01 → — Figure 163045C 163045C 2007-01 → — Figure 165692C 165692C 2009-07 → 2023-09 Figure 165692C 165692C 2023-09 → — Figure 165691C 165691C 2009-07 → 2023-09 Figure 165691C 165691C 2023-09 → — Figure 16909HA 16909HA 2023-09 → — Figure 16909OA 16909OA 2023-09 → — Figure 16909YB 16909YB 2023-09 → — Figure 16909ZA 16909ZA 2023-09 → — Figure 1690A0A 1690A0A 2023-09 → — Figure 1690A1 1690A1 2023-09 → — Figure 165689G 165689G 2007-01 → — Figure 163042D 163042D 2007-01 → — Figure 163020G 163020G 2007-01 → — Figure 163021K 163021K 2007-01 → 2016-08 Figure 163021K 163021K 2016-08 → — Figure 163021K 163021K 2017-09 → — Figure 163021K 163021K 2017-09 → — Figure 166472D 166472D 2016-08 → — Figure 166472D 166472D 2022-09 → — Figure 166626B 166626B 2017-01 → —

Part groups

PNCDescription
16021 Bracket Sub-assy, Water Pump
16025 Pipe Sub-assy, Water By-pass, NO.5
16027 Pipe Sub-assy, Turbo Water, NO.1
16031 Water Inlet Sub-assy, W/Thermostat
16119A Gasket, Thermostat Guide
161B0 Pump Assy, Electric Water
16206 Pipe Sub-assy, Water By-pass
16206B Pipe Sub-assy, Water By-pass, NO.3
16207 Pipe Sub-assy, Water By-pass, NO.2
16209 Pipe Sub-assy, Water By-pass, NO.4
16258C Gasket(FOR WATER BY-PASS PIPE)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16262 Hose, Water Inlet
16262A Clip(FOR WATER INLET HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268A Hose(FOR WATER BY-PASS PIPE)
16268C Union, Water By-pass Pipe
16268F Ring, O(FOR WATER BY-PASS PIPE)
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16278D Hose, Water By-pass
16278E Clip(FOR WATER BY-PASS HOSE)
16279 Pipe, Water By-pass, NO.3
16279A Protector, Hose Heat
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281N Hose, Water By-pass, NO.4
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
1628A Pipe, Water By-pass, NO.6
16291 Joint, Water Hose
16292 Joint, Water Hose, NO.2
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16294 Hose, Water By-pass, NO.11
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16298 Hose, Water By-pass, NO.12
1629B Hose, Water By-pass, NO.15
1629BA Clip(FOR WATER BY-PASS HOSE NO.15)
1629C Hose, Water By-pass, NO.16
1629CA Clip(FOR WATER BY-PASS HOSE NO.16)
1629D Hose, Water By-pass, NO.17
1629DA Clip(FOR WATER BY-PASS HOSE NO.17)
1629E Hose, Water By-pass, NO.18
1629EA Clip(FOR WATER BY-PASS HOSE NO.18)
1629H Hose, Water By-pass, NO.21
1629HA Clip(FOR WATER BY-PASS HOSE NO.21)
16304 Outlet Sub-assy, Water
16305E Outlet Sub-assy, Water By-pass
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16328 Gasket, Water Inlet Pipe
16331 Outlet, Water
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16335A Hose, Water Outlet
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16345 Gasket, Water Outlet Pipe
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16347D Gasket, Water By-pass
16351 Outlet, Water By-pass
16351A Ring, O(FOR WATER BY-PASS OUTLET)
16356 Joint, Water By-pass, Rear
16361 Fan
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470M Grommet
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16471B Cap, Reserve Tank
16472 Hose, Breather
16475A Cap, Reserve Tank
16480 Reserve Tank Assy, Radiator W/O Cap
164A2 Tank, Reserve Sealed W/O Cap
16516A Pipe, Intercooler Cooling Water, NO.2
16517A Pipe, Intercooler Cooling Water, NO.3
16523A Cushion, Radiator Support
16547 Bush, Radiator Support, NO.1
16548 Bush, Radiator Support, NO.2
16549 Collar, Radiator Support, NO.2
16549A Collar, Radiator Support, NO.1
16550 Radiator Assy, Intercooler Cooling
16551C Hose, Intercooler Cooling Water, NO.1
16551D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
16552C Hose, Intercooler Cooling Water, NO.2
16553D Hose, Intercooler Cooling Water, NO.3
16554C Hose, Intercooler Cooling Water, NO.4
16554D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
16555C Hose, Intercooler Cooling Water, NO.5
16555D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16571E Hose, Water
16571F Clamp OR Clip(FOR WATER HOSE)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16575C Bracket, Water Hose Clamp, NO.1
16577C Pipe, Radiator
16581 Clamp, Hose(FOR WATER HOSE)
16584 Insulator, Radiator Mounting
165A0A Clip, Hose
165B1A Hose, Intercooler Cooling Water Outlet
165B1B Clip(FOR INTERCOOLER COOLING WATER OUTLET HOSE)
16603A Pulley Sub-assy, Idler, NO.1
16611 Bracket, Radiator Reserve Tank
16630D Pulley Assy, Idler
16631B Bracket, Idler Pulley
16641 Tank, Intercooler Reserve
16649 Plate, Idler Pulley Cover
16701 Shroud Sub-assy, Fan
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
