Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

157 part groups · 39 illustrations

Illustrations

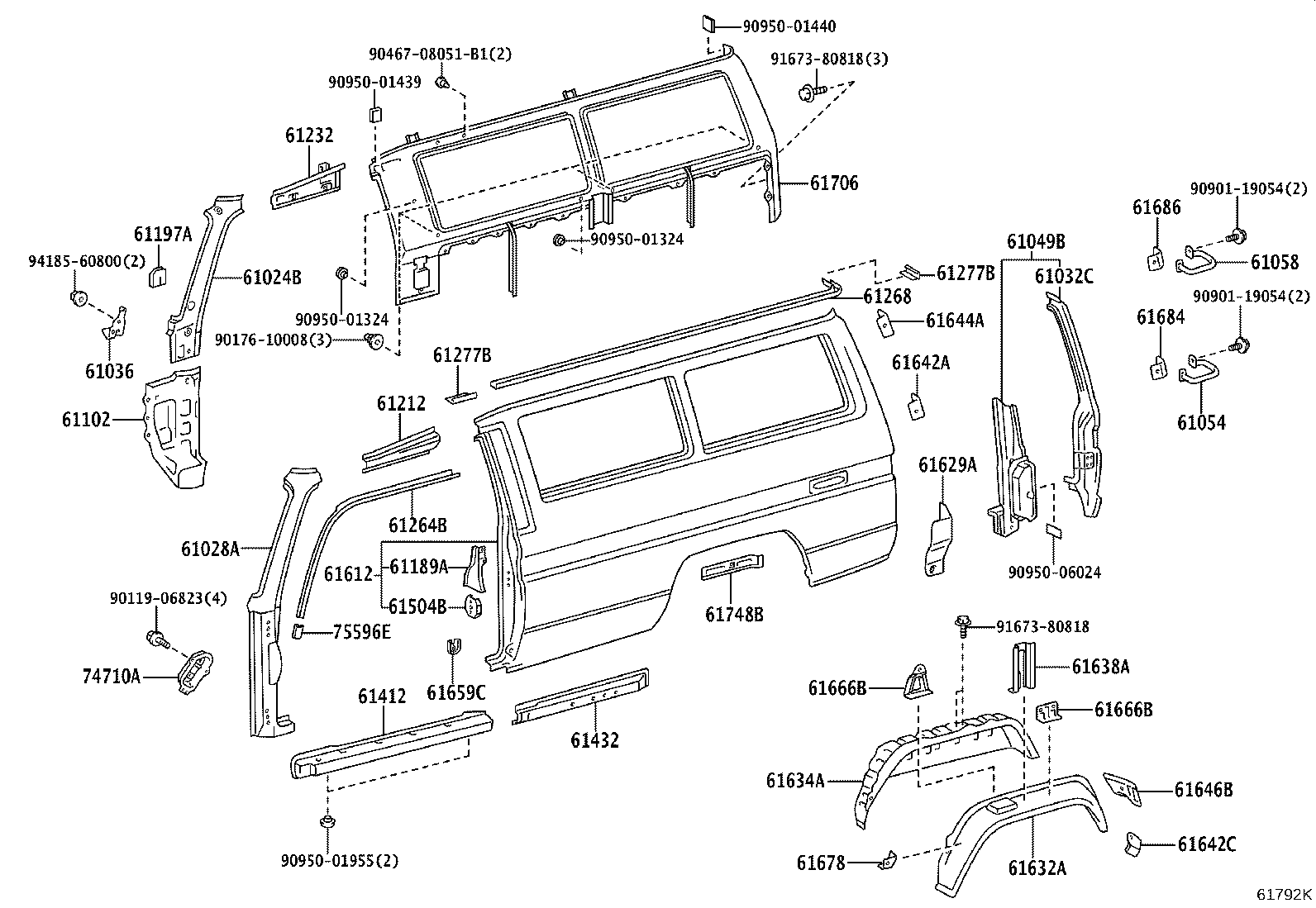

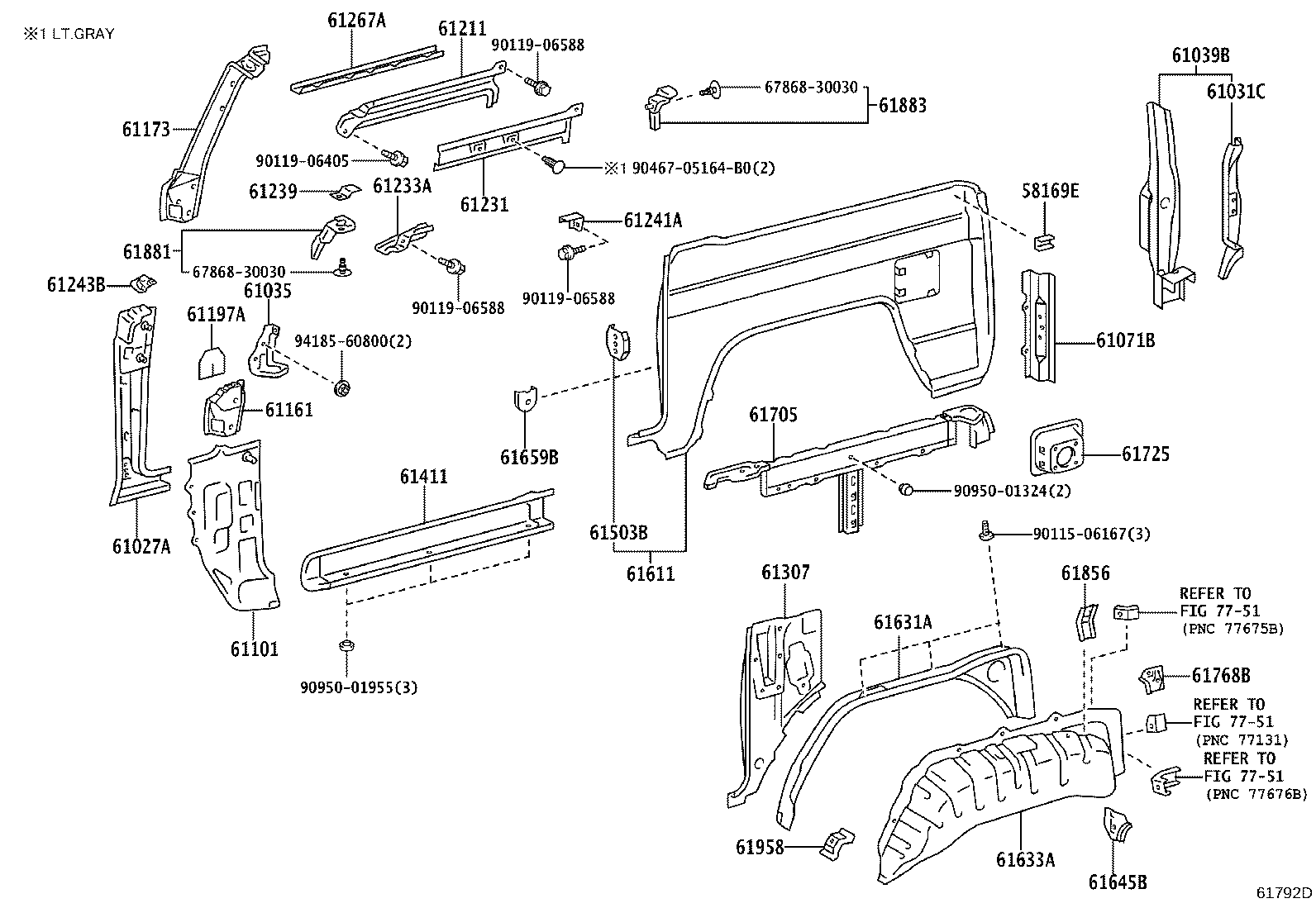

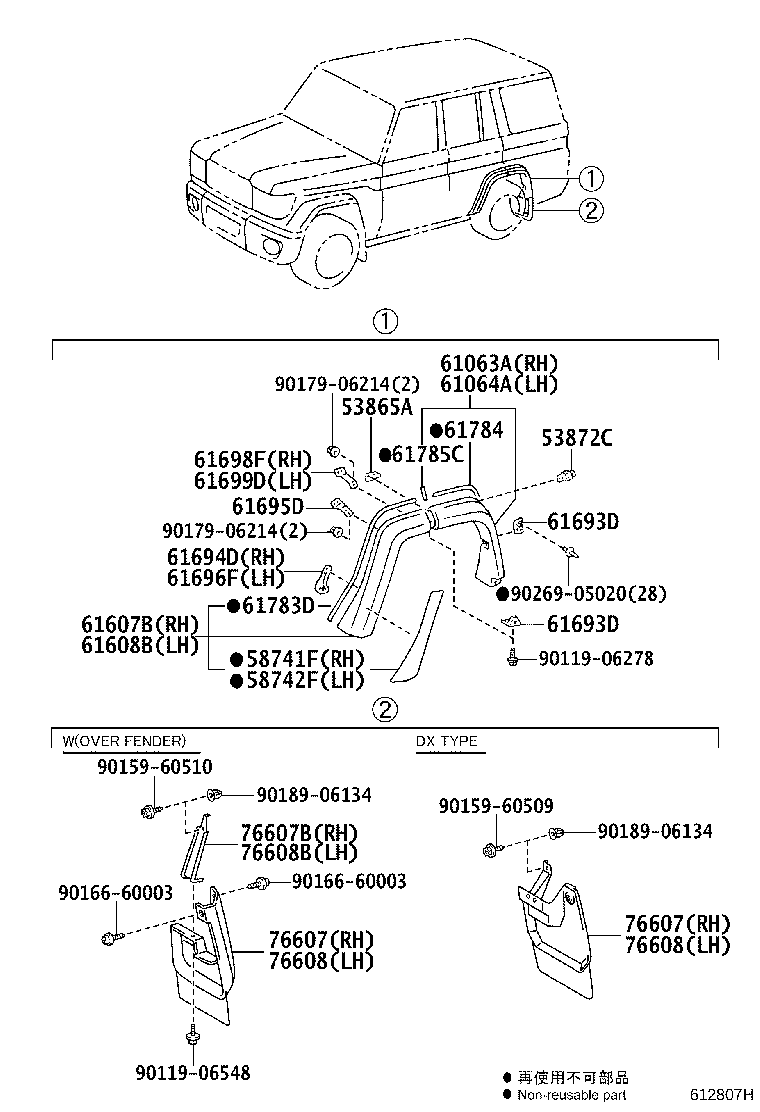

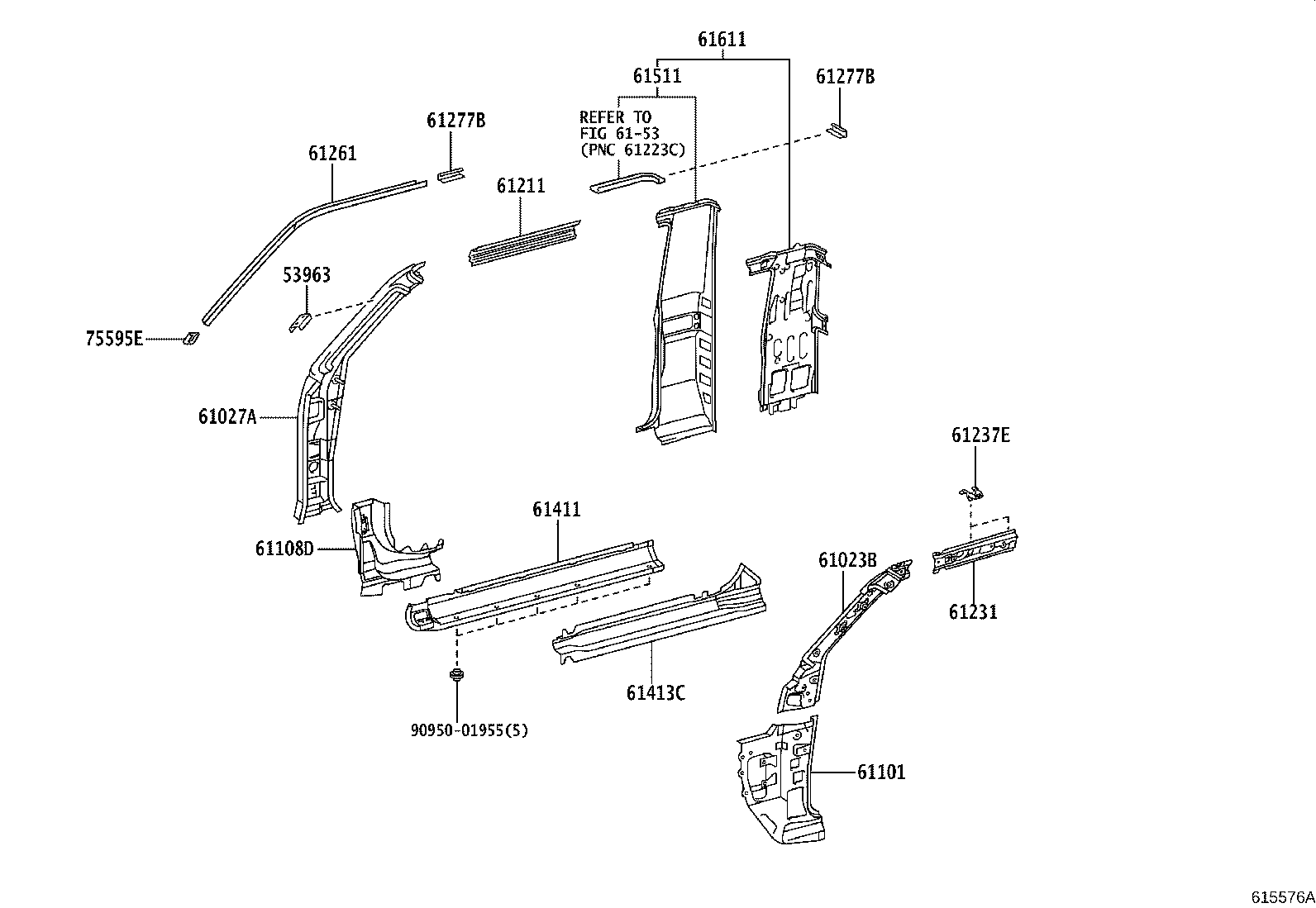

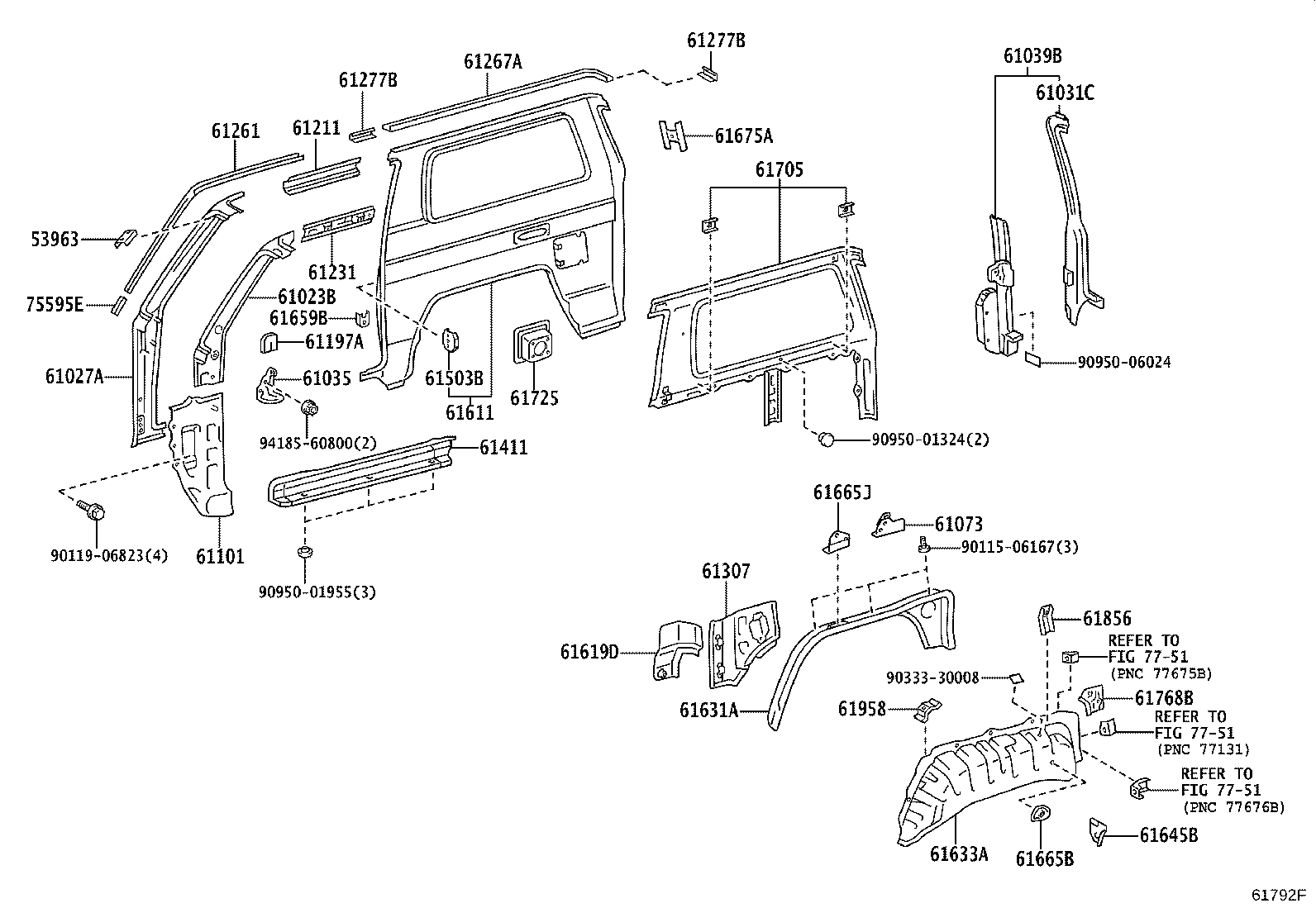

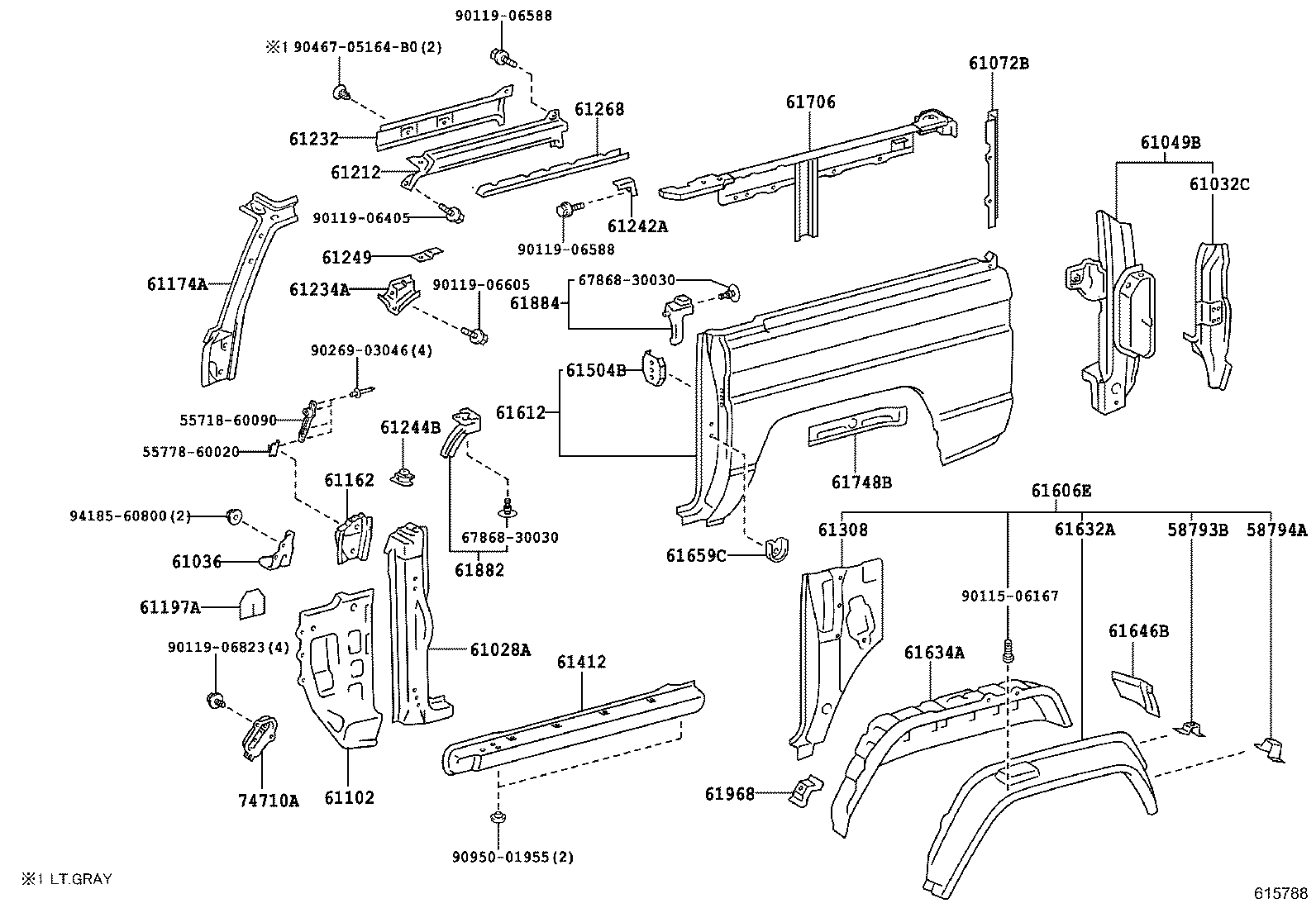

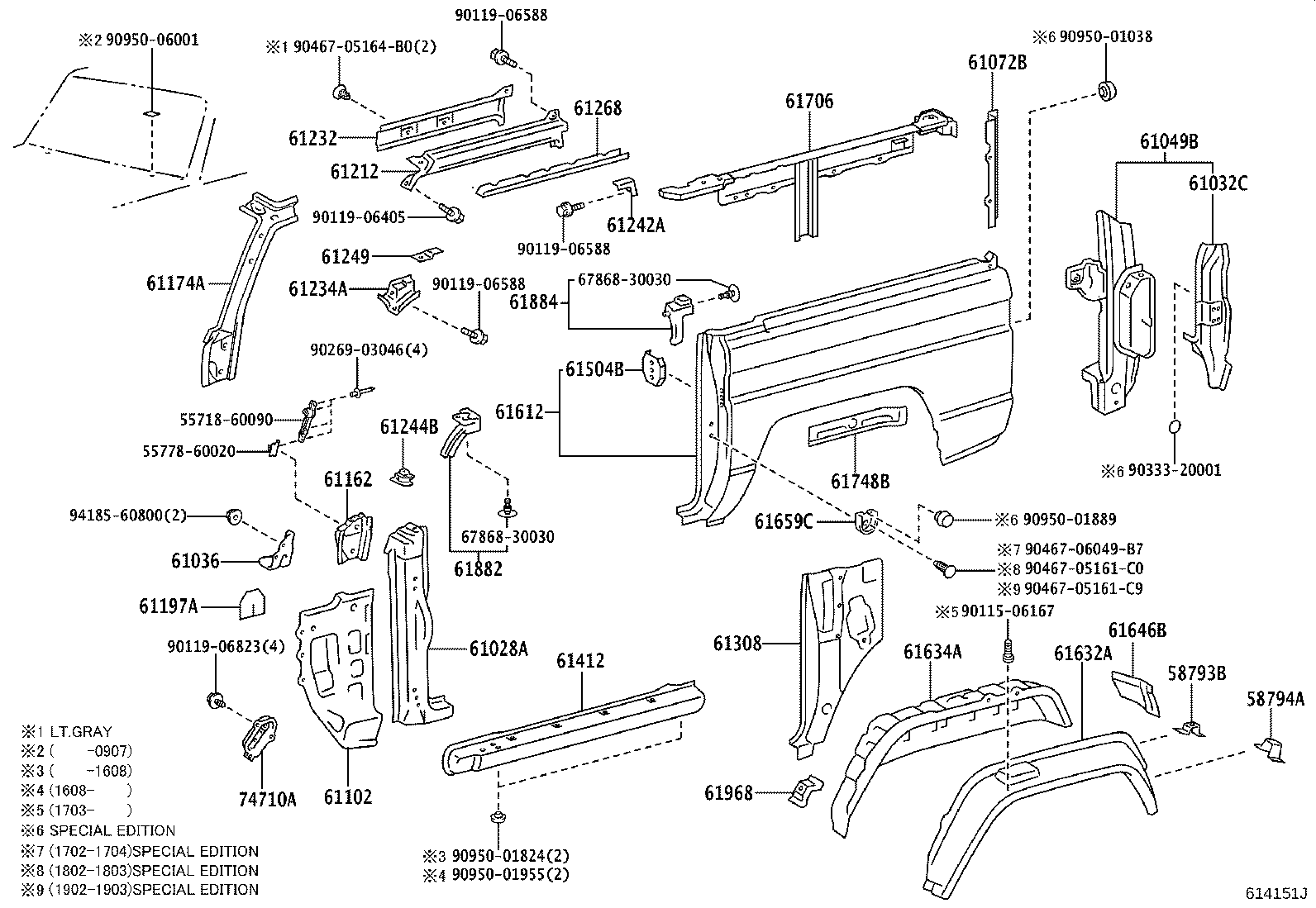

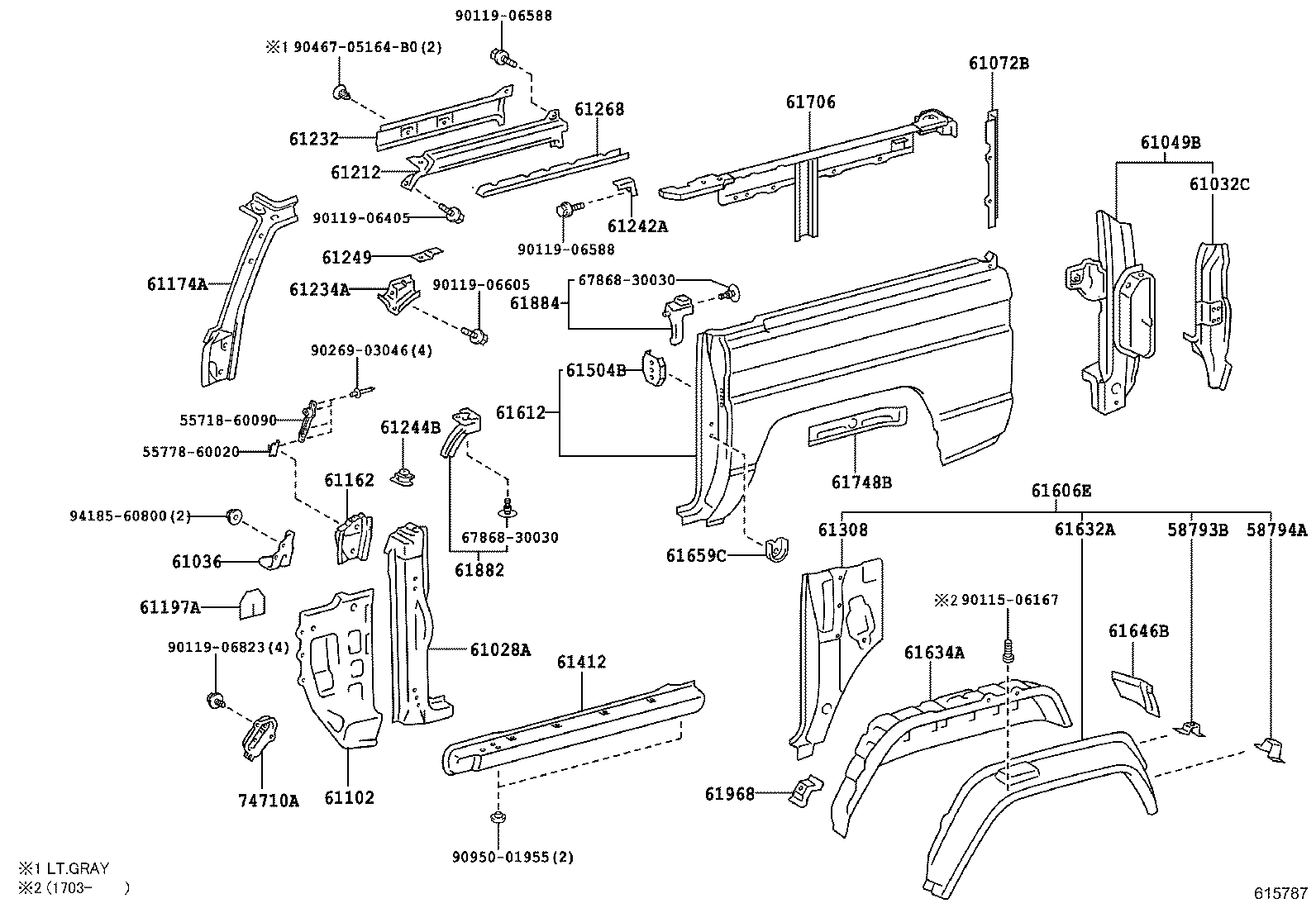

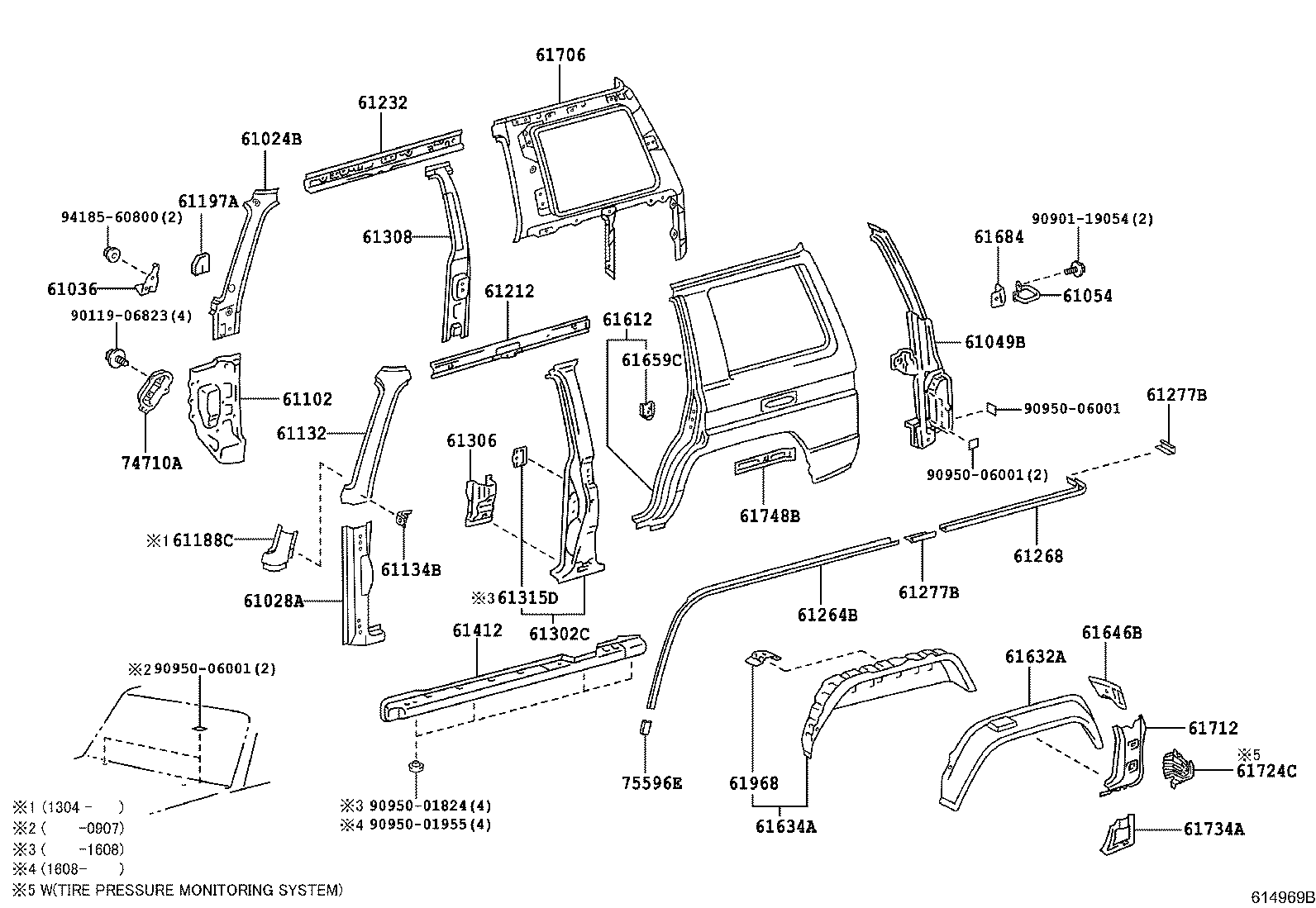

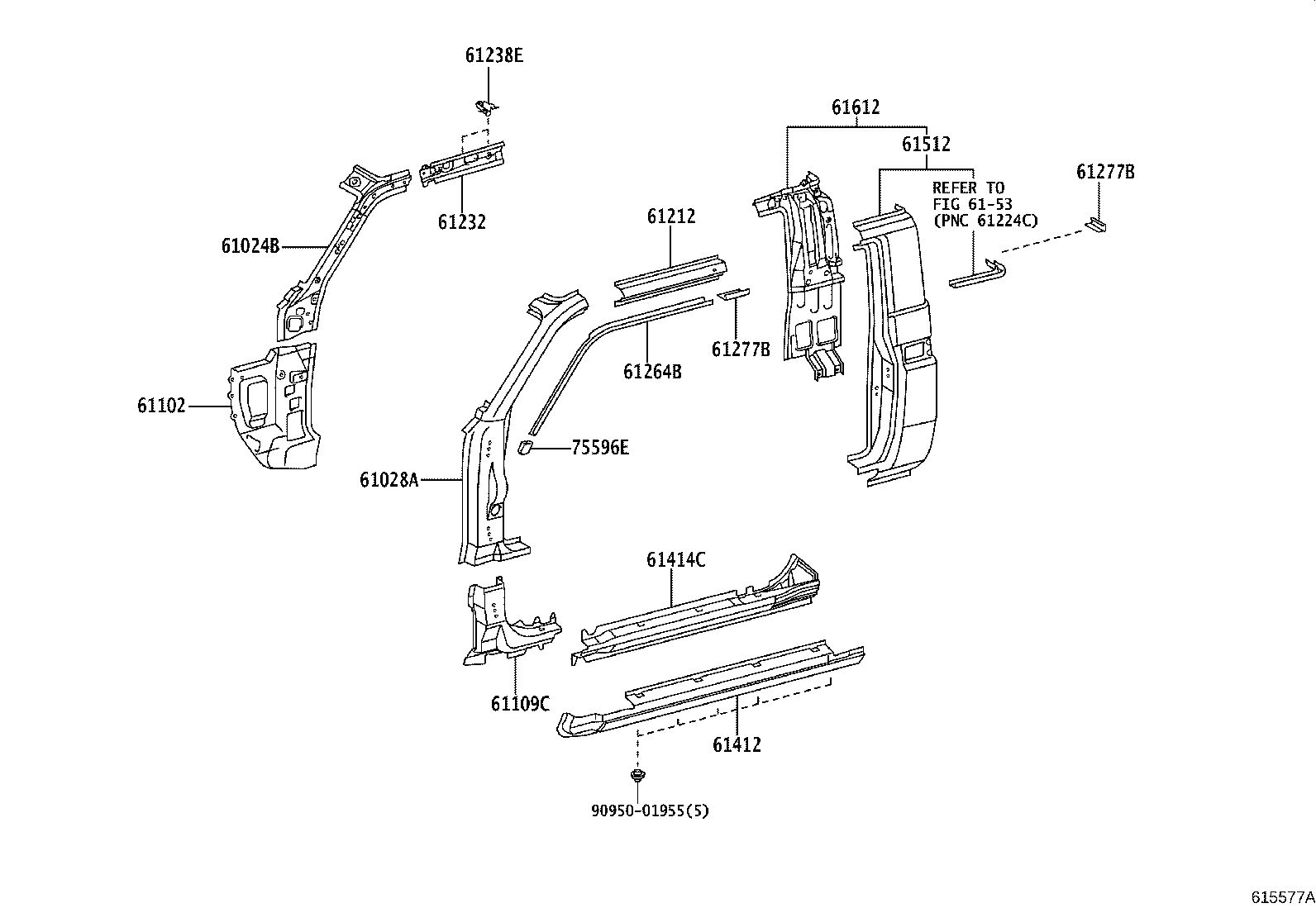

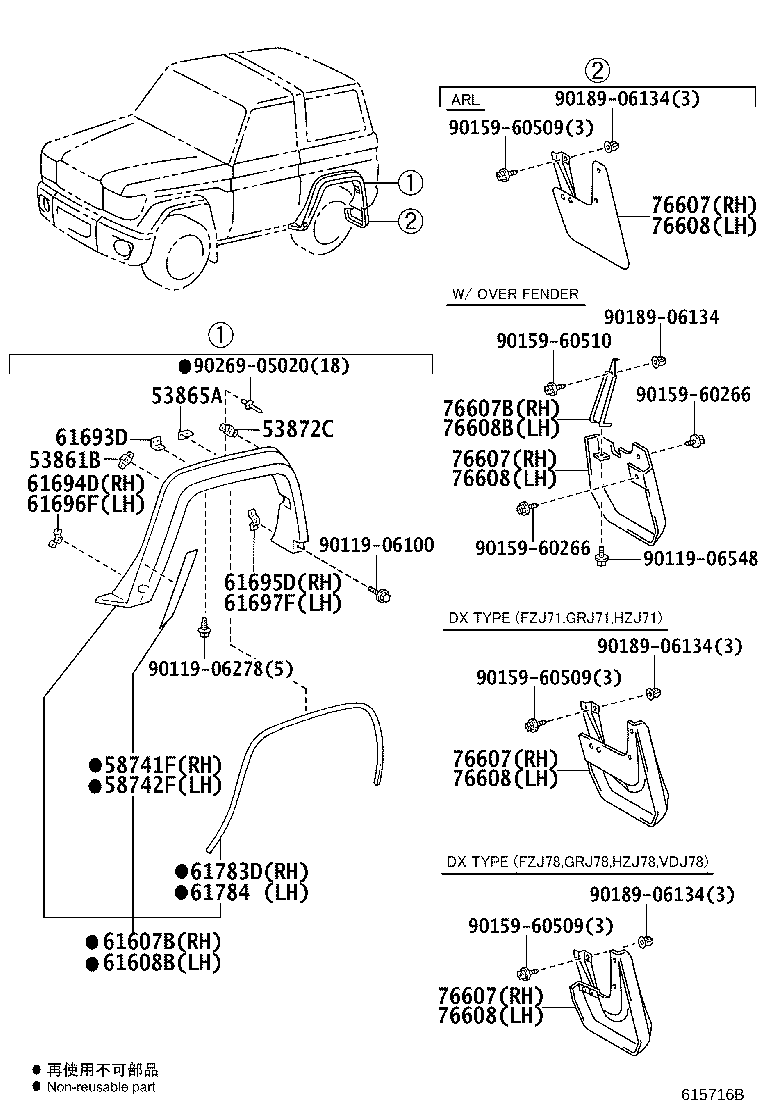

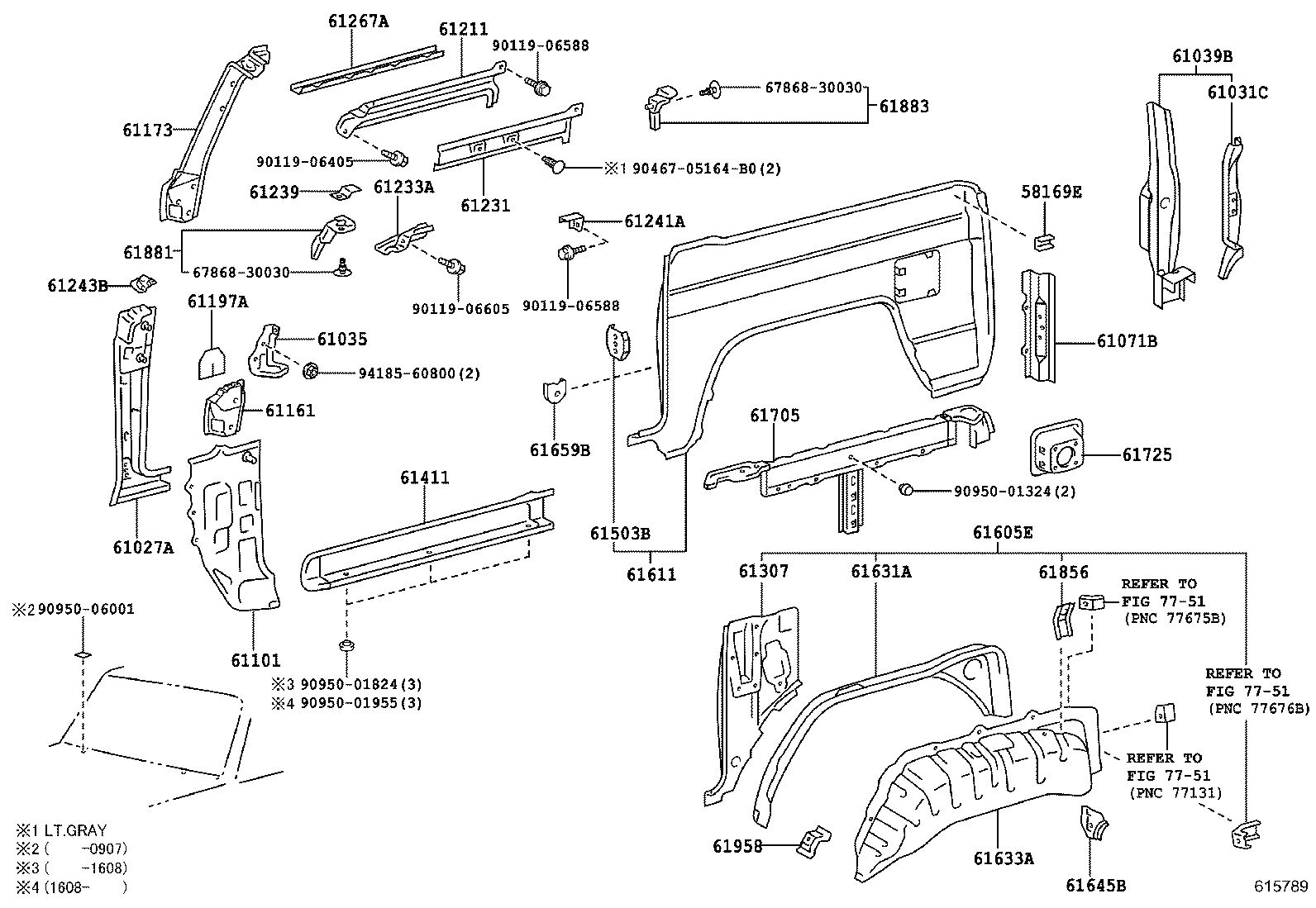

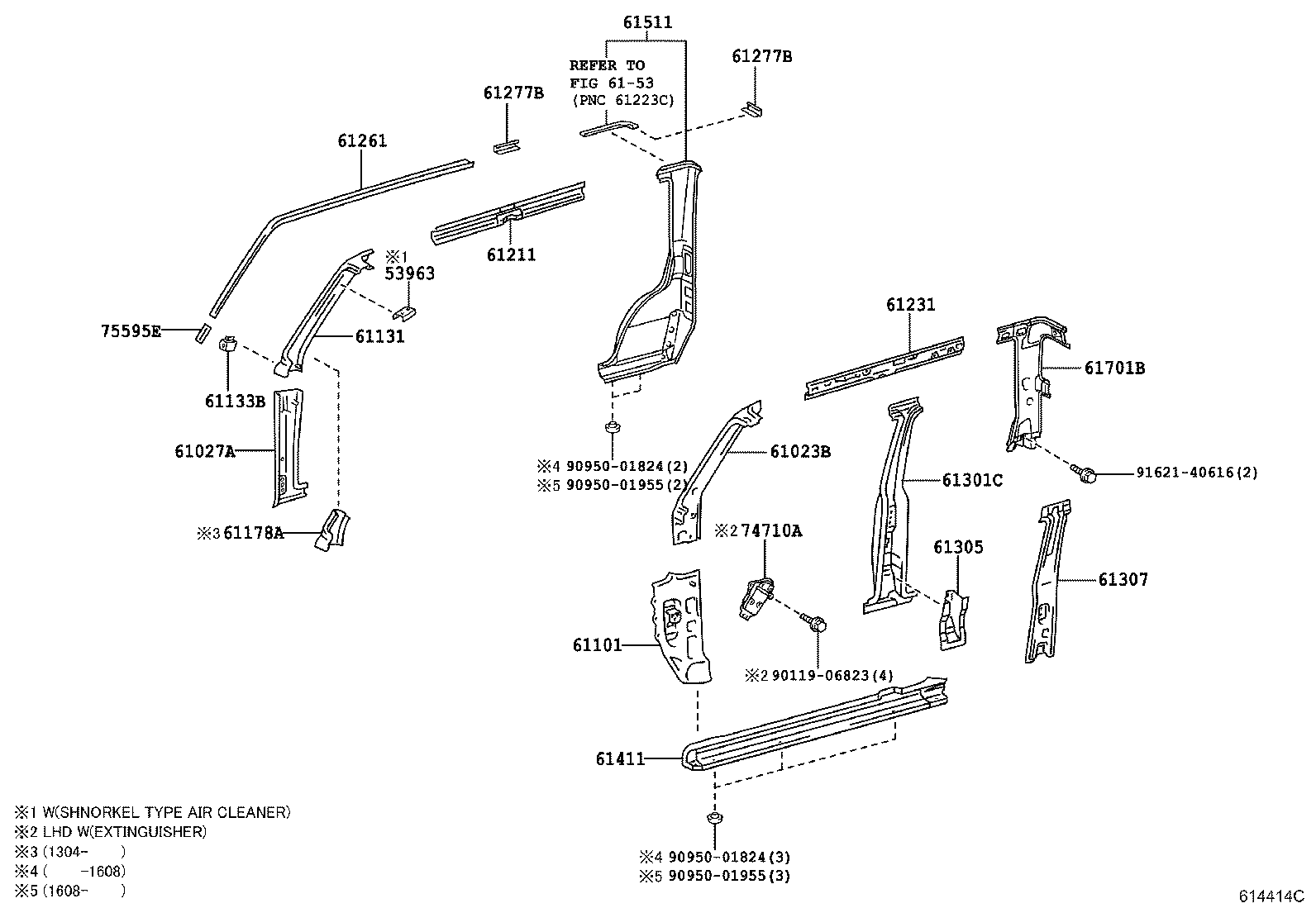

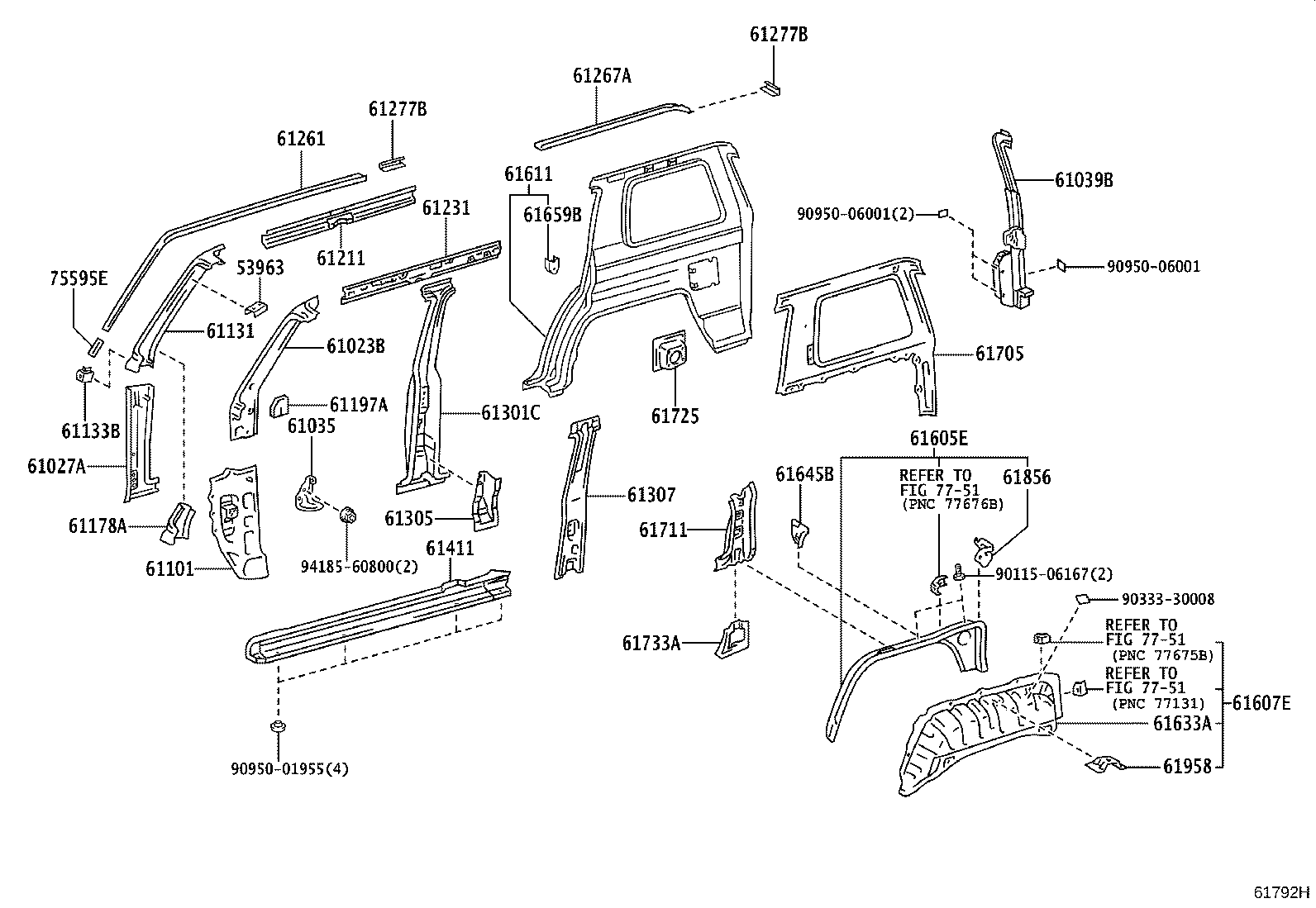

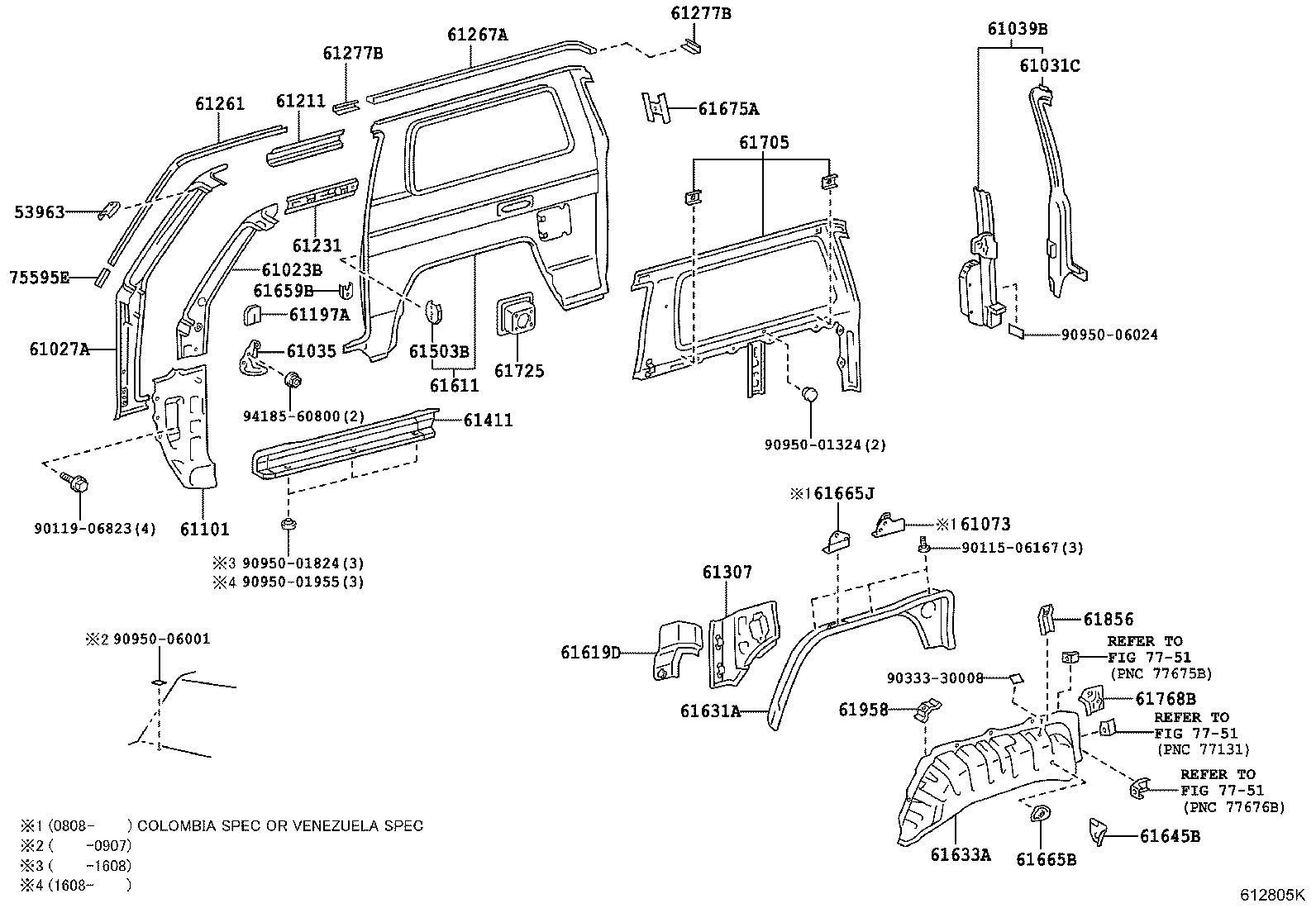

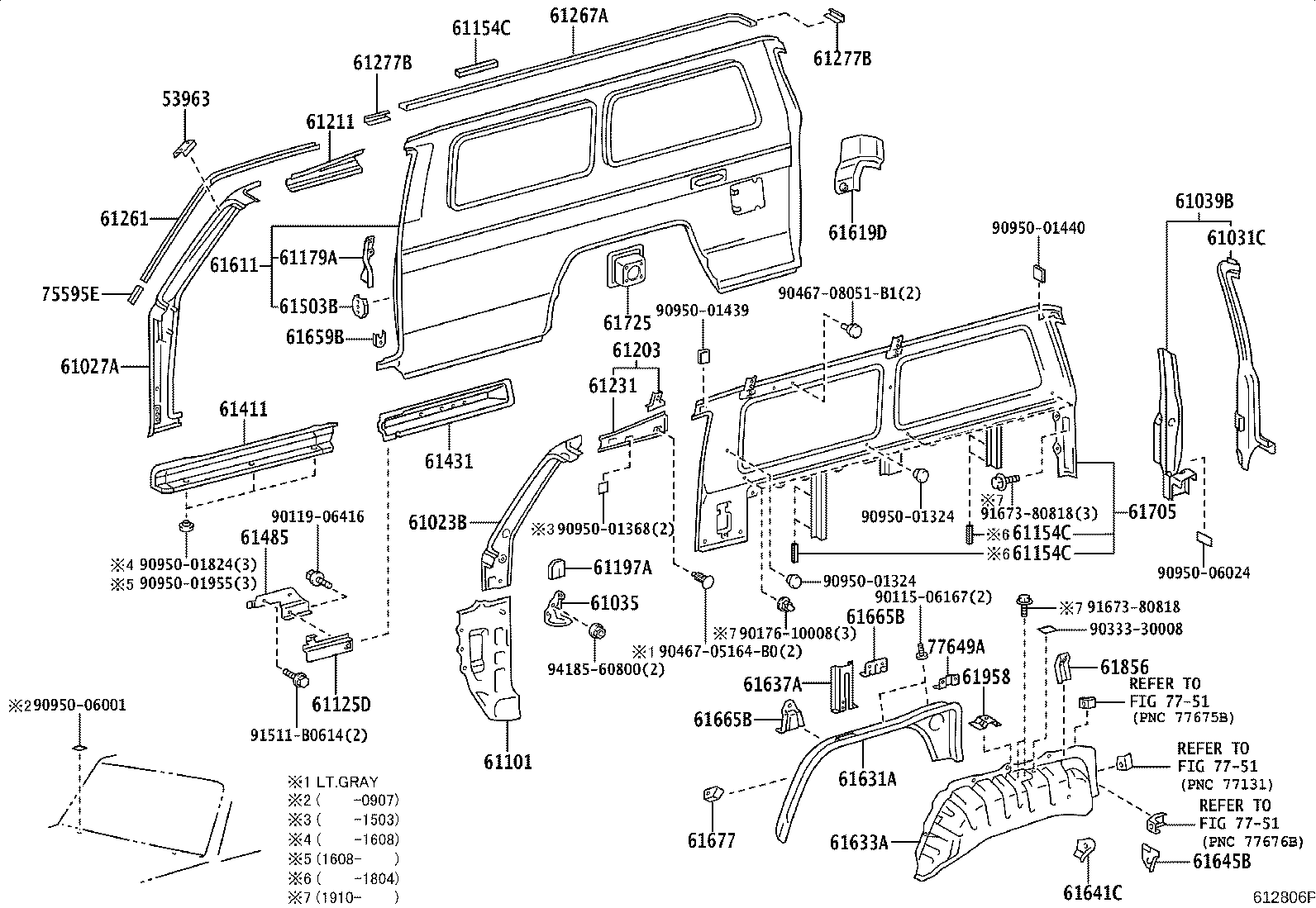

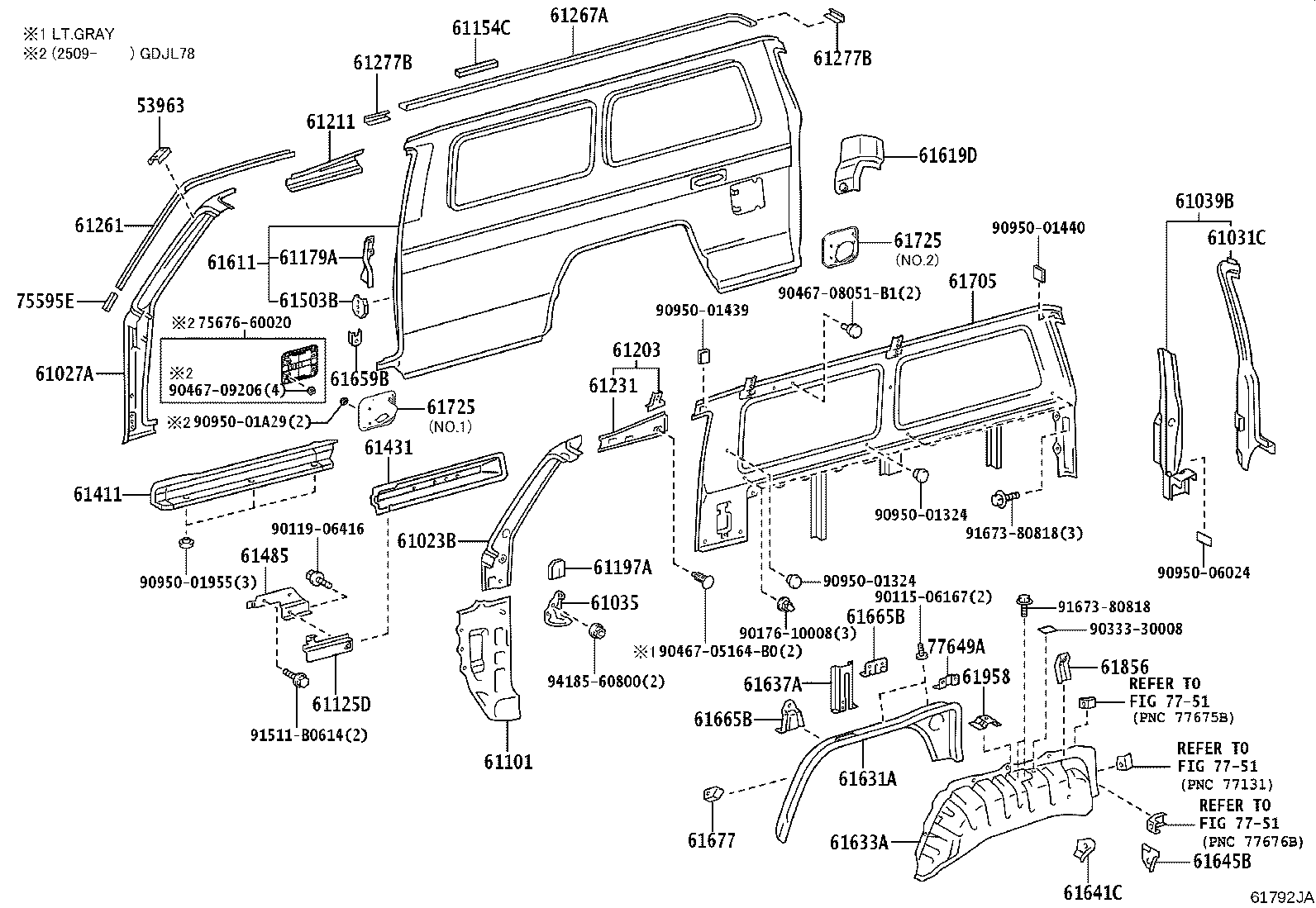

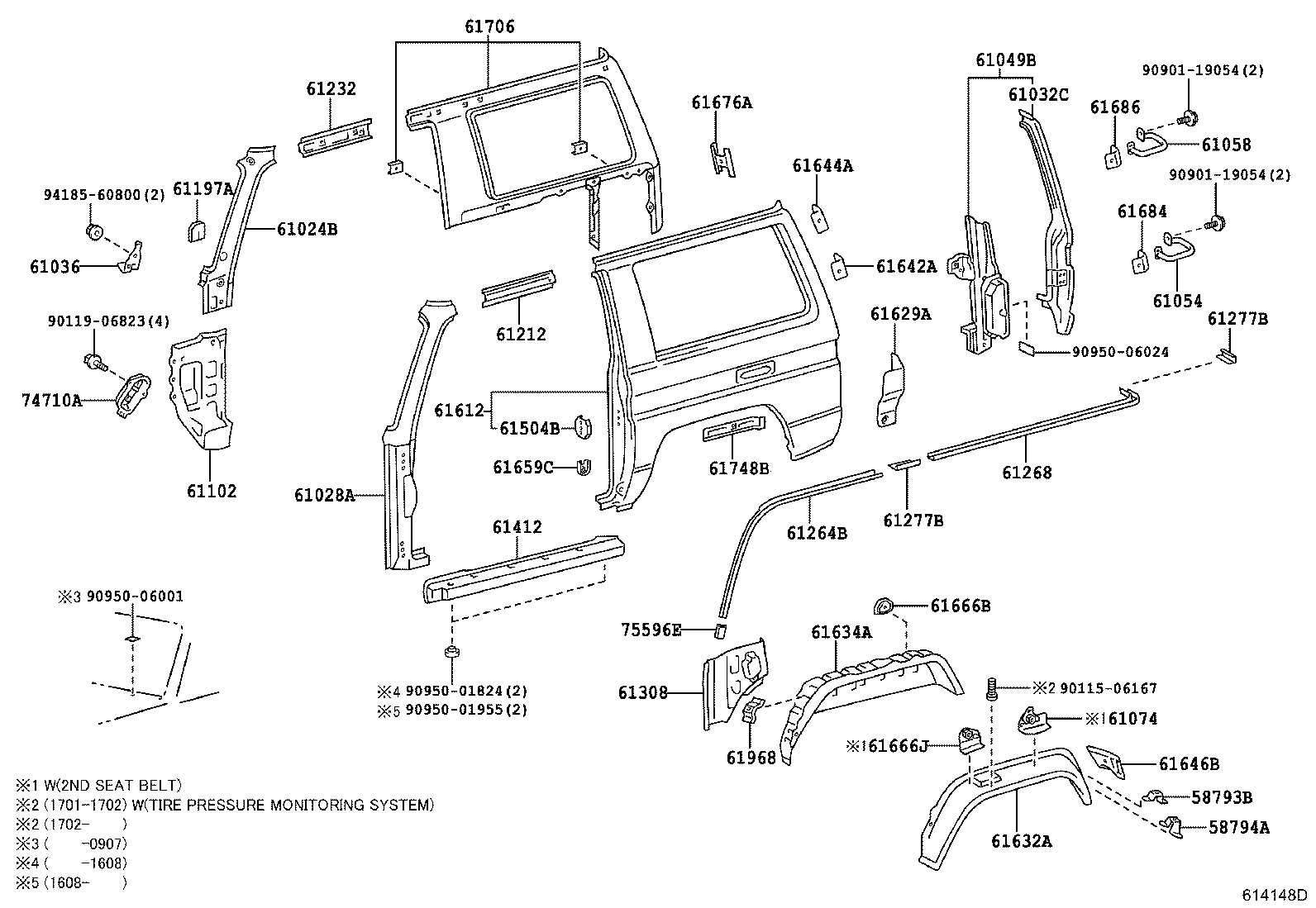

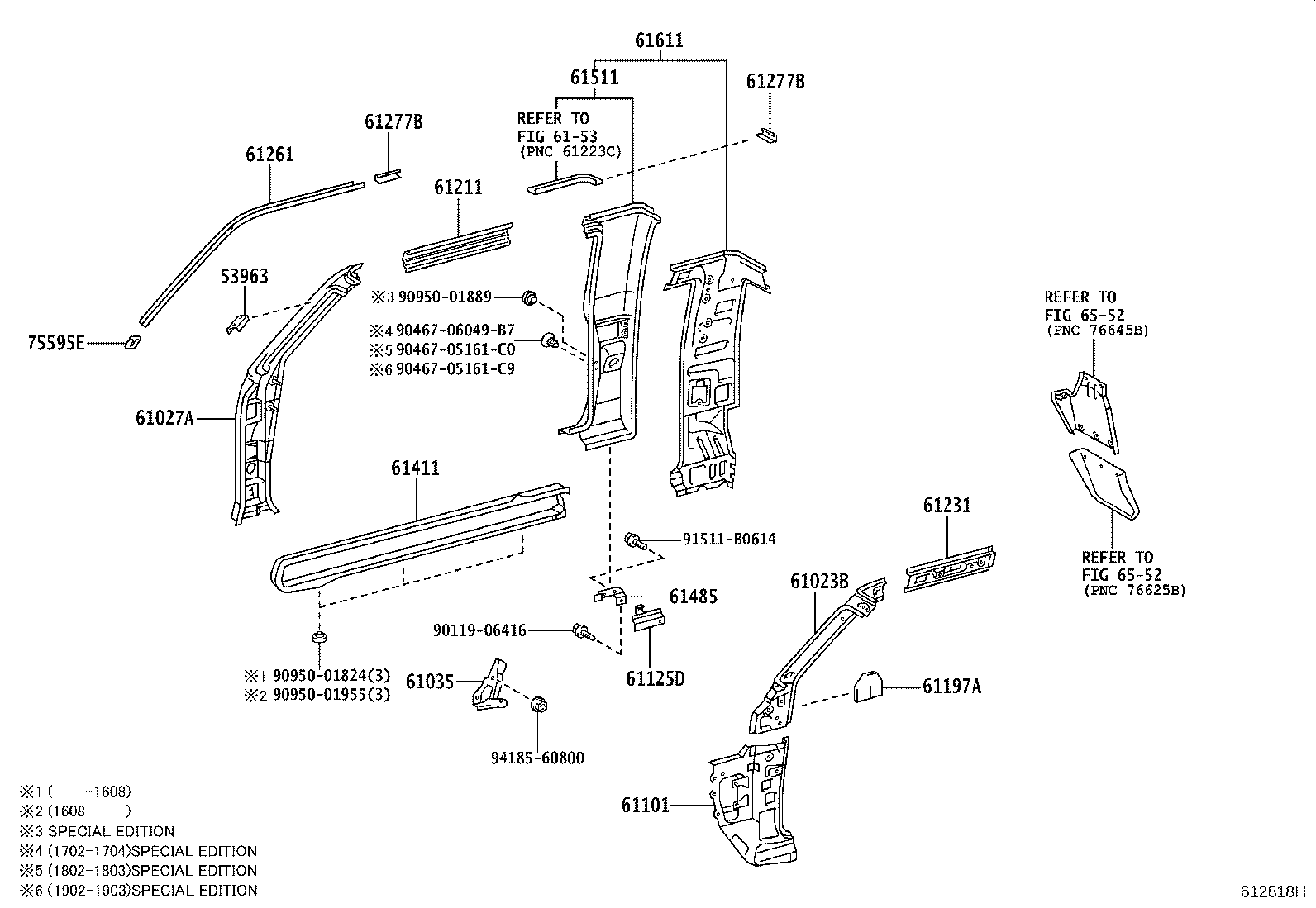

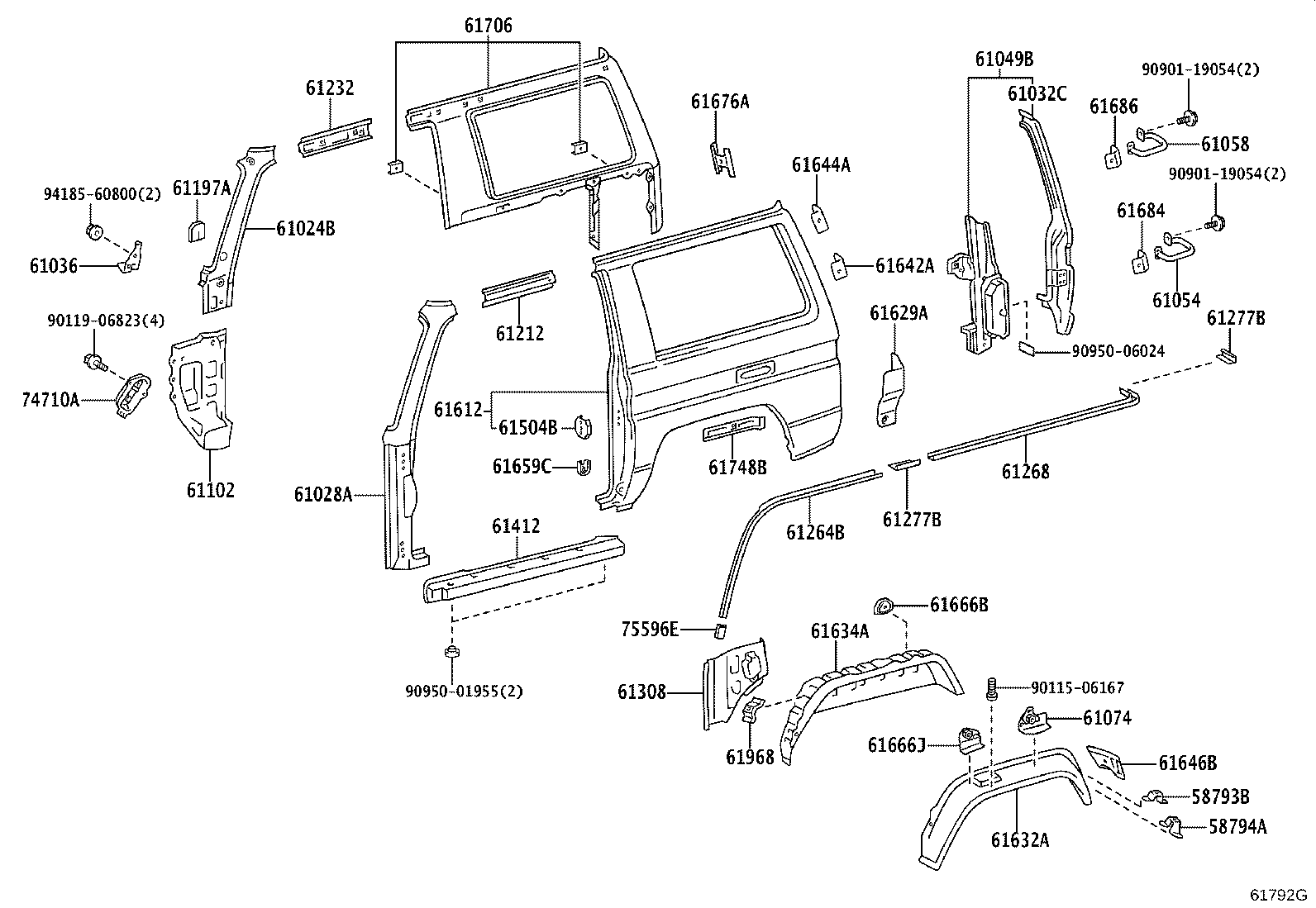

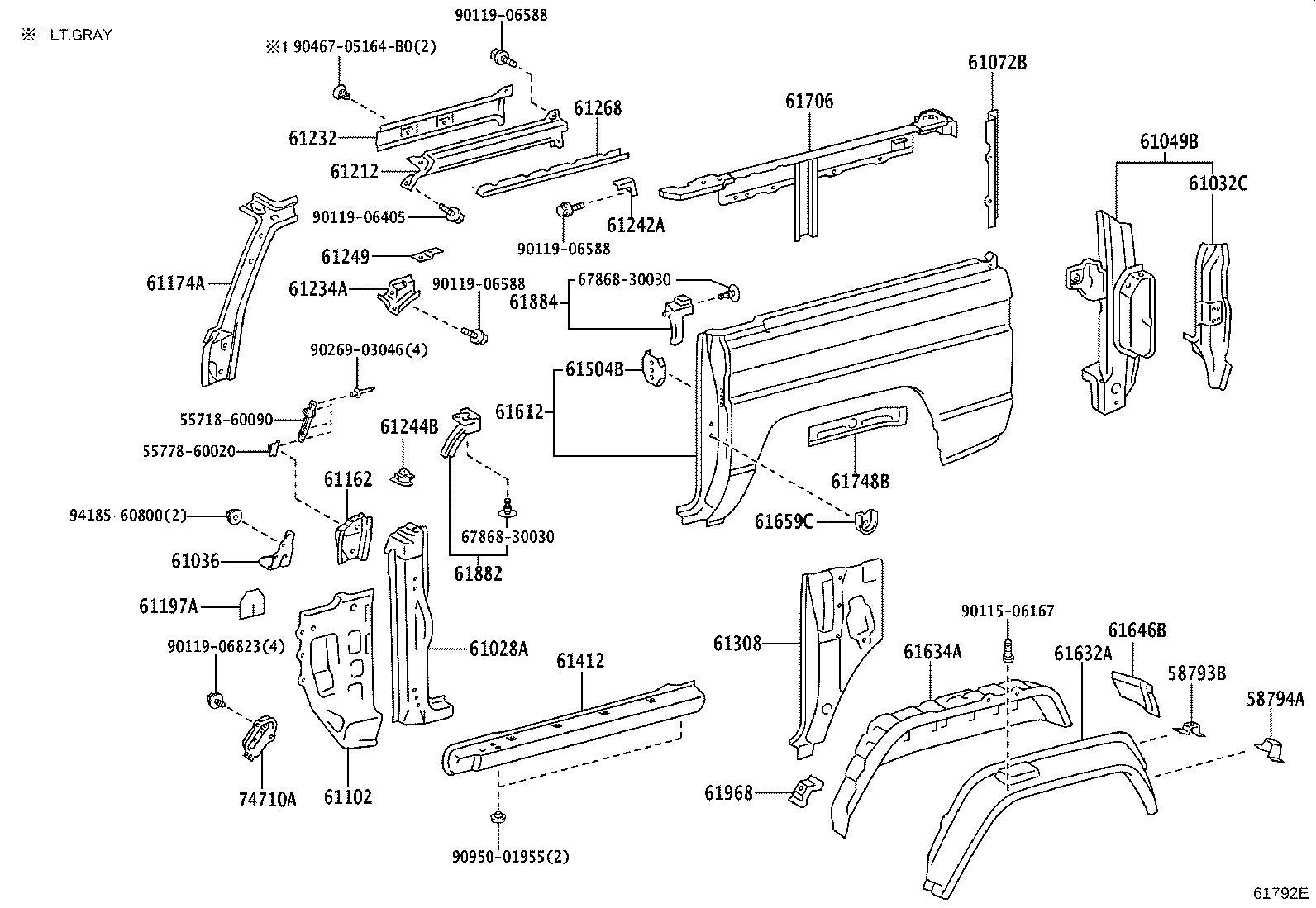

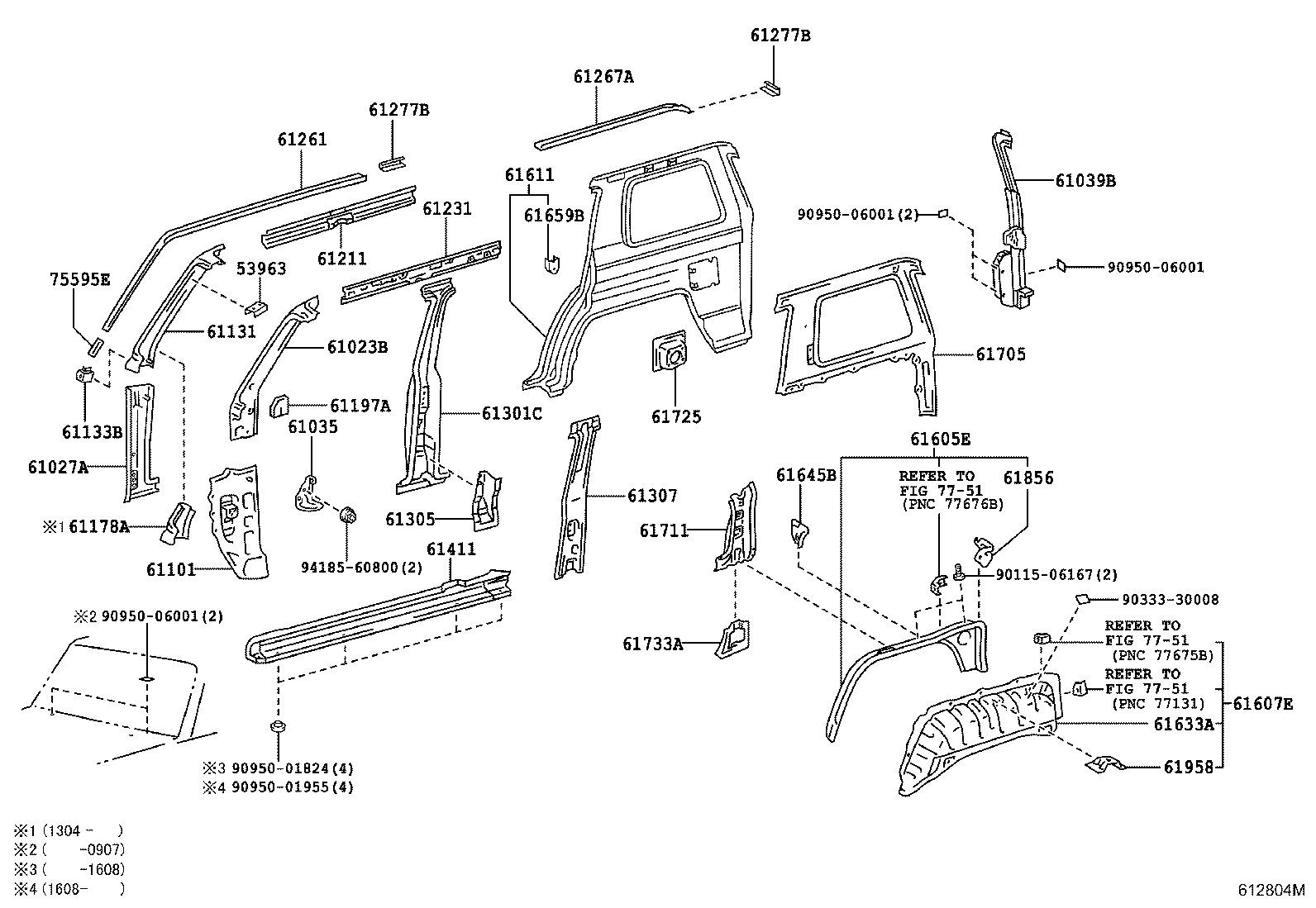

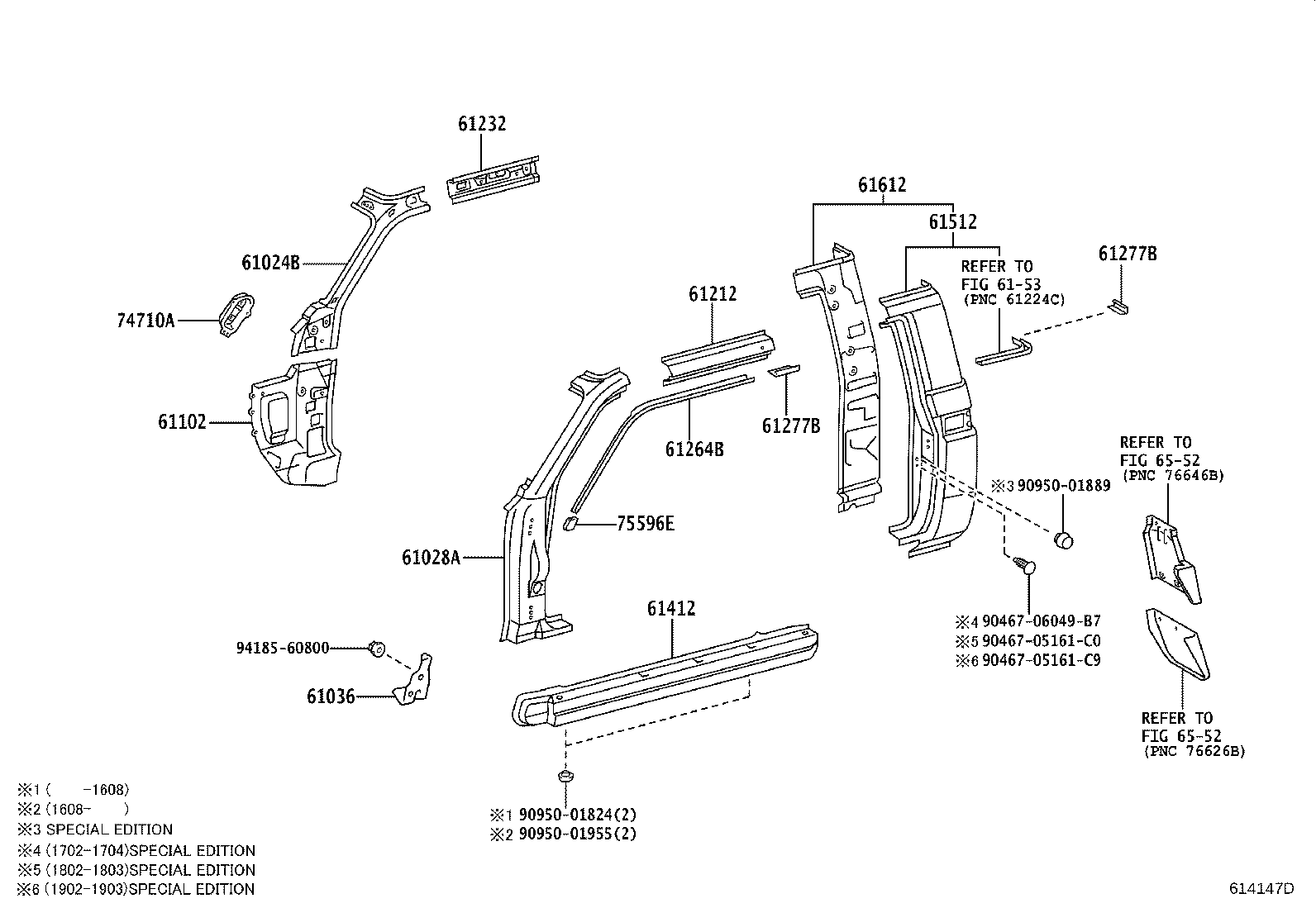

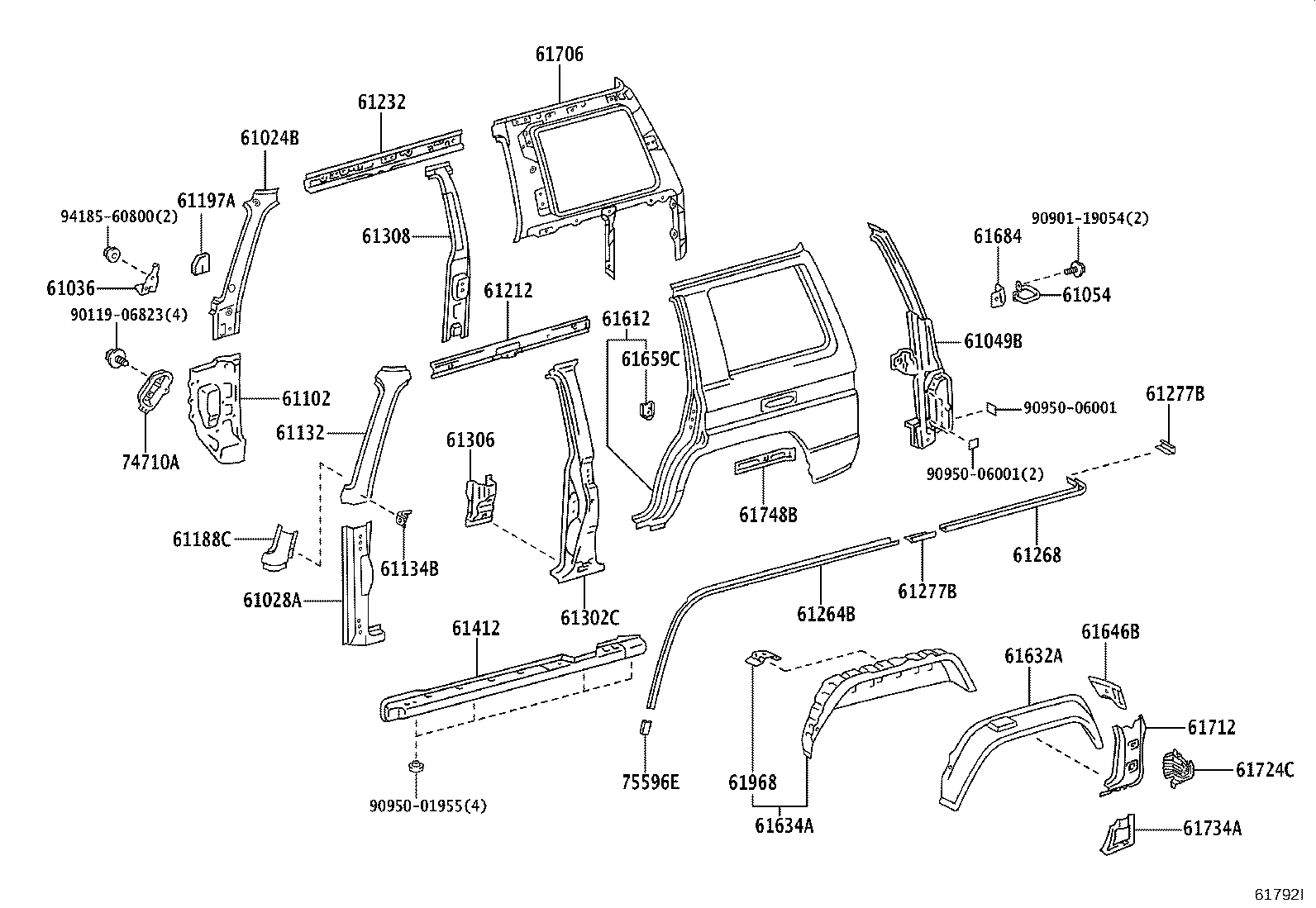

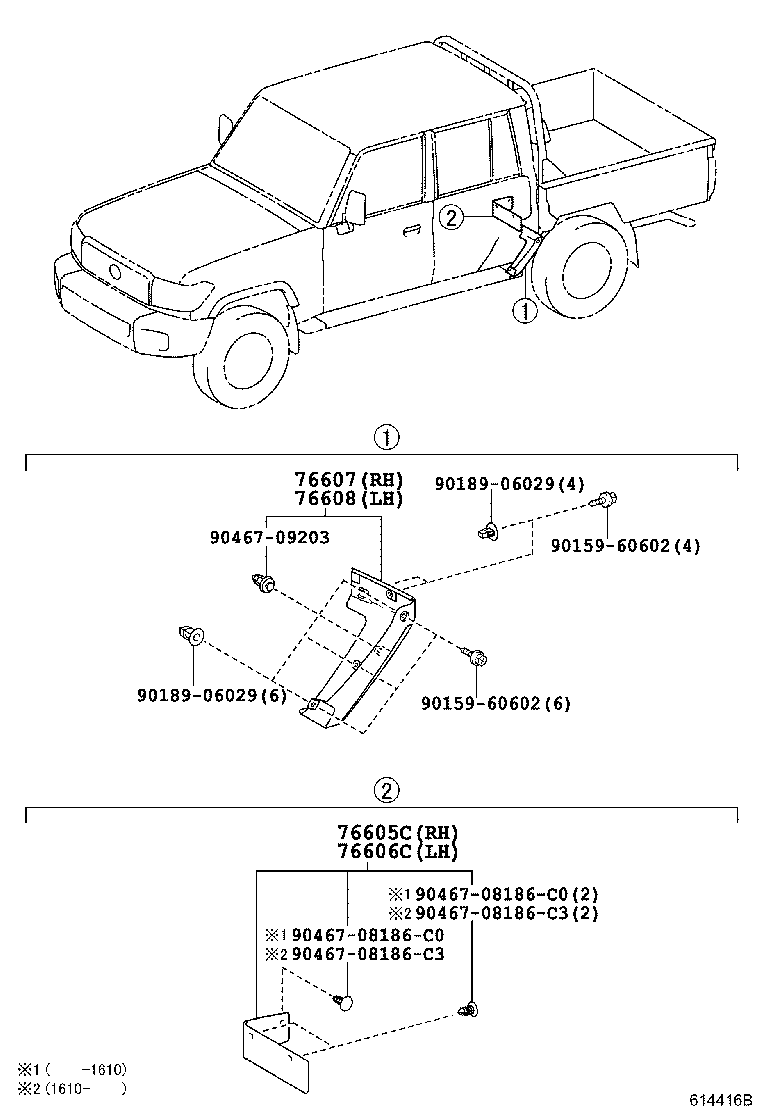

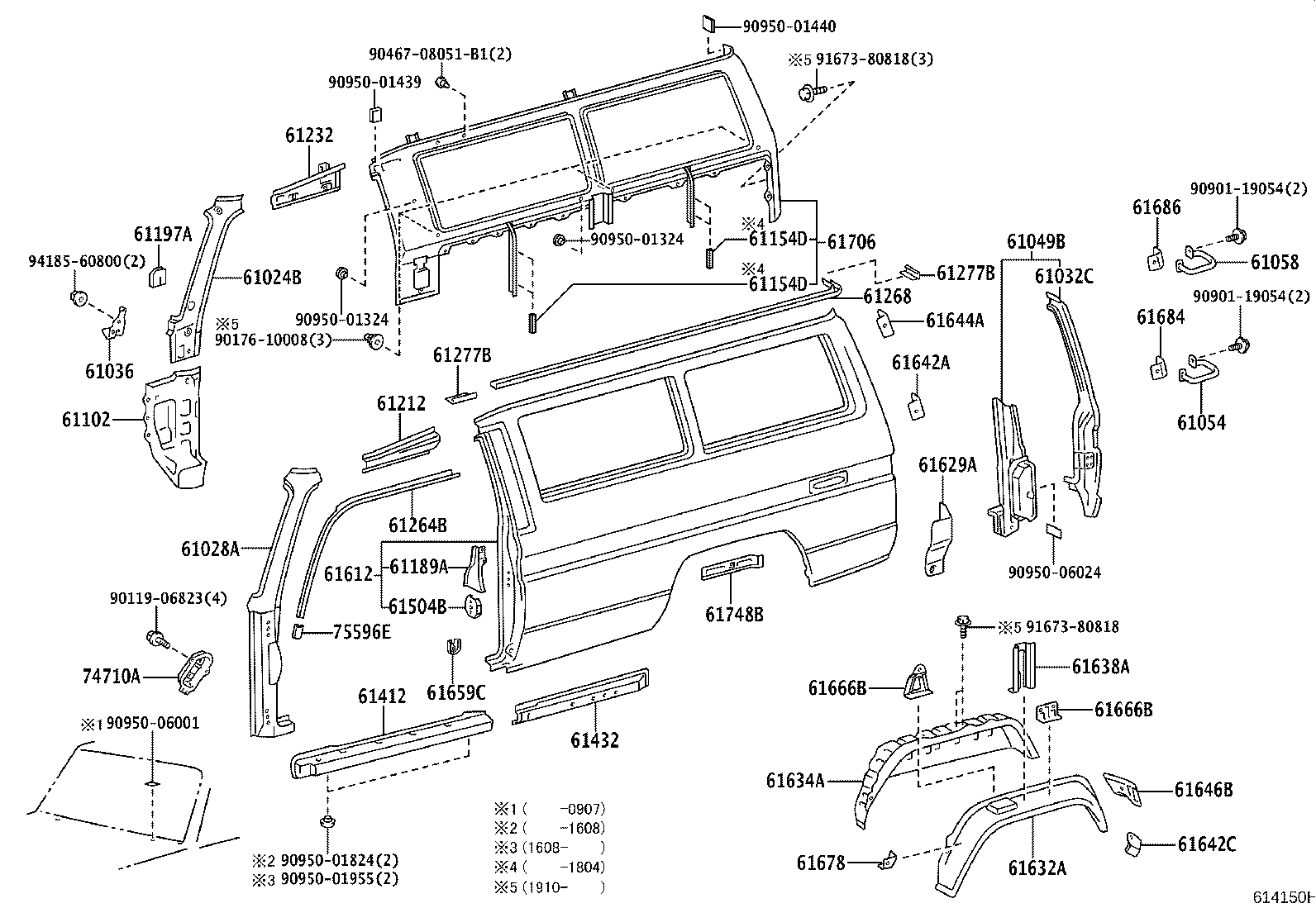

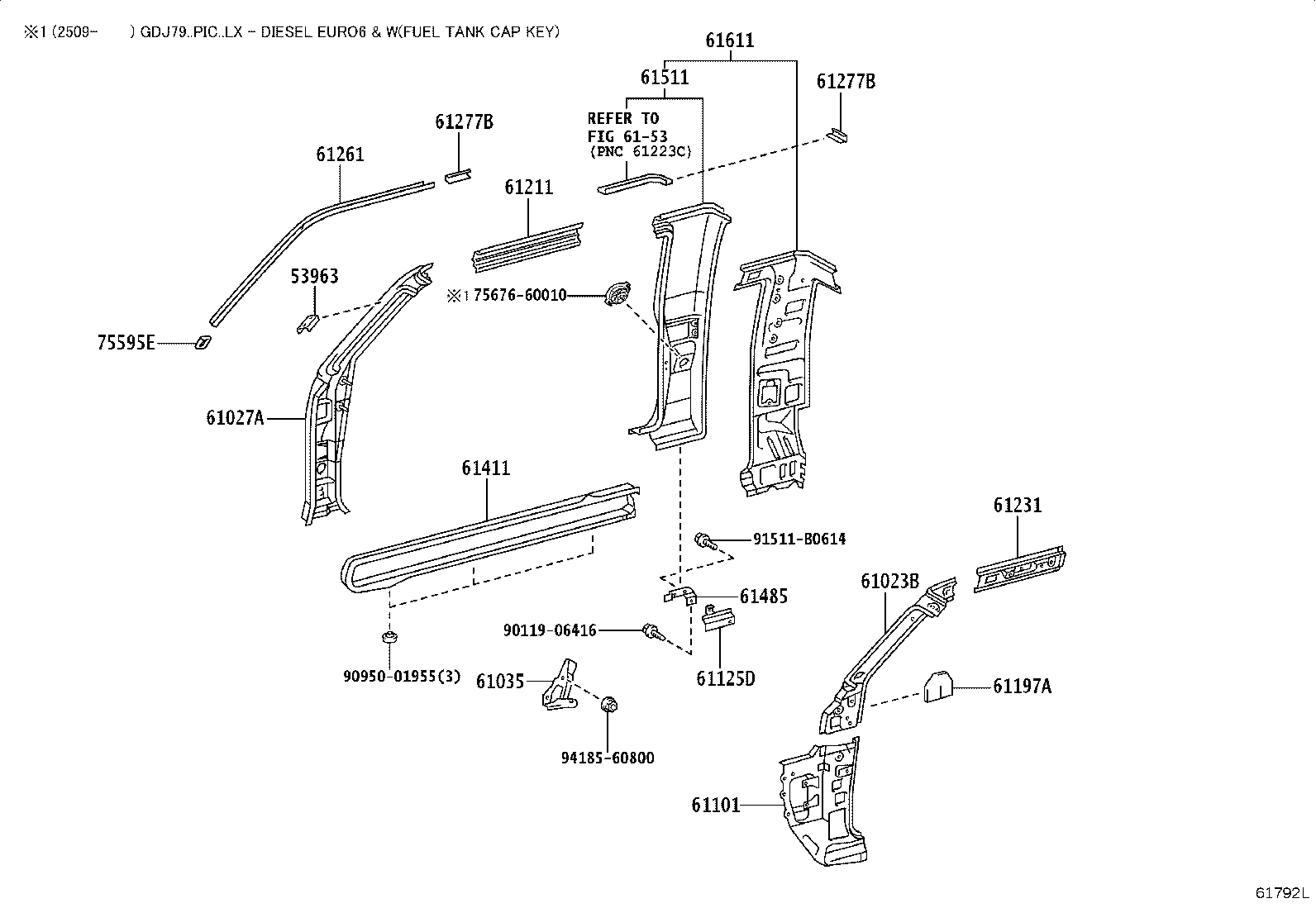

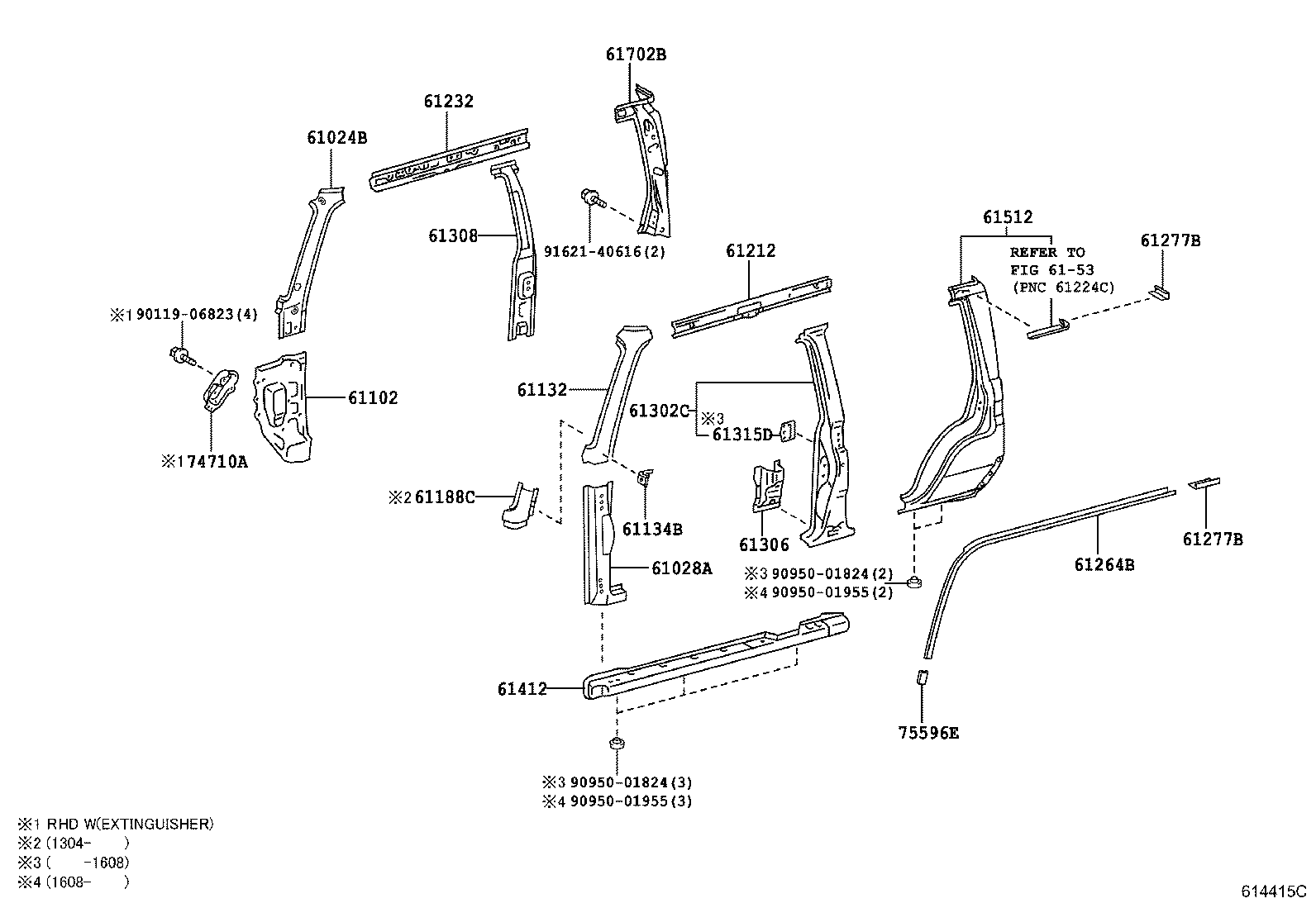

Figure 612803P 612803P 2007-01 → 2023-09 Figure 615789 615789 2007-01 → 2023-09 Figure 614151J 614151J 2007-01 → 2023-09 Figure 615787 615787 2016-08 → 2017-04 Figure 615788 615788 2017-04 → 2023-09 Figure 612805K 612805K 2007-01 → 2023-09 Figure 614148D 614148D 2007-01 → 2023-09 Figure 612804M 612804M 2007-01 → 2023-09 Figure 614969B 614969B 2007-01 → 2023-09 Figure 612806P 612806P 2007-01 → 2023-09 Figure 614150H 614150H 2007-01 → 2023-09 Figure 612818H 612818H 2007-01 → 2016-08 Figure 612818H 612818H 2007-01 → 2023-09 Figure 614147D 614147D 2007-01 → 2016-08 Figure 614147D 614147D 2007-01 → 2023-09 Figure 615576A 615576A 2016-08 → 2023-09 Figure 615577A 615577A 2016-08 → 2023-09 Figure 614414C 614414C 2012-08 → 2023-09 Figure 614415C 614415C 2012-08 → 2023-09 Figure 615716B 615716B 2007-01 → 2023-09 Figure 612807H 612807H 2007-01 → 2023-09 Figure 614416B 614416B 2012-08 → 2023-09 Figure 61792D 61792D 2023-09 → — Figure 61792E 61792E 2023-09 → — Figure 61792F 61792F 2023-09 → — Figure 61792G 61792G 2023-09 → — Figure 61792H 61792H 2023-09 → — Figure 61792I 61792I 2023-09 → — Figure 61792JA 61792JA 2023-09 → — Figure 61792K 61792K 2023-09 → — Figure 61792LA 61792LA 2023-09 → — Figure 61792M 61792M 2023-09 → — Figure 61792N 61792N 2023-09 → — Figure 61792O 61792O 2023-09 → — Figure 61792P 61792P 2023-09 → — Figure 61792QA 61792QA 2023-09 → — Figure 61792RA 61792RA 2023-09 → — Figure 61792S 61792S 2023-09 → — Figure 61792T 61792T 2023-09 → —

Part groups

PNCDescription
53861B Bracket, Rear Wheel Opening, NO.1
53865A Bracket, Rear Wheel Opening, NO.3
53872C Bracket, Rear Wheel Opening, NO.8
53963 Retainer, Air Cleaner Inlet Pipe, NO.4
58169E Retainer, Rear Heater Mounting
58741F Protector, Rear Wheel Extension, RH
58742F Protector, Rear Wheel Extension, LH
58793B Bracket, Jack Carrier, NO.1
58794A Bracket, Jack Carrier, NO.2
61023B Pillar Sub-assy, Front Body, Inner RH
61024B Pillar Sub-assy, Front Body, Inner LH
61027A Pillar Sub-assy, Front Body, Outer RH
61028A Pillar Sub-assy, Front Body, Outer LH
61031C Extension Sub-assy, Quarter Panel, Rear RH
61032C Extension Sub-assy, Quarter Panel, Rear LH
61035 Bracket Sub-assy, Instrument Panel TO Cowl Side, RH
61036 Bracket Sub-assy, Instrument Panel TO Cowl Side, LH
61039B Reinforce Sub-assy, Rear Pillar, Upper RH
61049B Reinforce Sub-assy, Rear Pillar, Upper LH
61054 Step Sub-assy, Quarter Panel, NO.1 LH
61058 Step Sub-assy, Quarter Panel, NO.2 LH
61063A Extension Sub-assy, Rear Wheel Opening, NO.2 RH
61064A Extension Sub-assy, Rear Wheel Opening, NO.2 LH
61071B Panel Sub-assy, Roof Side, Inner Rear RH
61072B Panel Sub-assy, Roof Side, Inner Rear LH
61073 Brace Sub-assy, Quarter Wheel House, RH
61074 Brace Sub-assy, Quarter Wheel House, LH
61101 Panel Sub-assy, Cowl Side, RH
61102 Panel Sub-assy, Cowl Side, LH
61108D Reinforcement Sub-assy, Front Pillar, Lower RH
61109C Reinforcement Sub-assy, Front Pillar, Lower LH
61125D Gusset, Side Panel
61131 Pillar, Front Body, Upper Outer RH
61132 Pillar, Front Body, Upper Outer LH
61133B Bracket, Front Body Pillar ,Outer RH
61134B Bracket, Front Body Pillar Outer, LH
61154C Cushion, Side Panel Stiffener, NO.4, RH
61154D Cushion, Side Panel Stiffener, NO.4, LH
61161 Pillar, Front Body, Upper Inner RH
61162 Pillar, Front Body, Upper Inner LH
61173 Reinforcement, Front Body Pillar, Upper Inner
61174A Reinforcement, Front Body Pillar, Upper Inner LH
61178A Reinforcement, NO.1 Pillar, Lower RH
61179A Reinforcement, NO.2 Pillar, Center RH
61188C Reinforcement, NO.1 Pillar, Lower LH
61189A Reinforcement, NO.2 Pillar, Center LH
61197A Cover, Front Pillar, RH
61203 Rail Sub-assy, Roof Side, Inner RH
61211 Rail, Roof Side, Outer RH
61212 Rail, Roof Side, Outer LH
61231 Rail, Roof Side, Inner RH
61232 Rail, Roof Side, Inner LH
61233A Rail, Roof Side, Inner NO.2 RH
61234A Rail, Roof Side, Inner NO.2 LH
61237E Bracket, Assist Grip, NO.1
61238E Bracket, Assist Grip, NO.2
61239 Retainer, Roof Side Rail Outer, RH
61241A Gusset, Roof Side Rail, Rear RH
61242A Gusset, Roof Side Rail, Rear LH
61243B Plate, Front Body Pillar End, RH
61244B Plate, Front Body Pillar End, LH
61249 Retainer, Roof Side Rail, Outer LH
61261 Channel, Roof Drip, RH
61264B Channel, Roof Drip Side, Front LH
61267A Channel, Roof Drip Side, Rear RH
61268 Channel, Roof Drip Side, Rear LH
61277B Joint, Roof Drip Channel
61301C Pillar Sub-assy, Center Body, Outer RH
61302C Pillar Sub-assy, Center Body, Outer LH
61305 Reinforce Sub-assy, Center Body Pillar, Lower RH
61306 Reinforce Sub-assy, Center Body Pillar, Lower LH
61307 Pillar Sub-assy, Center Body, Inner RH
61308 Pillar Sub-assy, Center Body, Inner LH
61315D Retainer, Door Lock Striker, LH
61411 Panel, Rocker, Outer RH
61412 Panel, Rocker, Outer LH
61413C Reinforcement, Rocker Panel, NO.2 RH
61414C Reinforcement, Rocker Panel, NO.2 LH
61431 Panel, Rocker, Outer Rear RH
61432 Panel, Rocker, Outer Rear LH
61485 Plate, Lower Rail
61503B Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B Reinforcement Sub-assy, Quarter Lock Pillar, LH
61511 Pillar, Quarter Lock, RH
61512 Pillar, Quarter Lock, LH
61605E Panel, Quarter, RH
61606E Panel, Quarter, LH
61607B Extension Sub-assy, Rear Wheel Opening, RH
61607E Panel, Quarter Wheel House, Inner RH
61608B Extension Sub-assy, Rear Wheel Opening, LH
61611 Panel, Quarter, RH
61612 Panel, Quarter, LH
61619D Reinforcement, Quarter Panel, RH
61629A Reinforcement, Quarter Panel, LH
61631A Panel, Quarter Wheel House, Outer RH
61632A Panel, Quarter Wheel House, Outer LH
61633A Panel, Quarter Wheel House, Inner RH
61634A Panel, Quarter Wheel House, Inner LH
61637A Brace, Quarter Panel, RH
61638A Brace, Quarter Panel, LH
61641C Gusset, Quarter Wheel House, Front RH
61642A Retainer, Quarter Panel Step, NO.1 LH
61642C Gusset, Quarter Wheel House, Front LH
61644A Retainer, Quarter Panel Step, NO.2 LH
61645B Gusset, Quarter Wheel House, Rear RH
61646B Gusset, Quarter Wheel House, Rear LH
61659B Retainer, Rear Door Open Switch Set, RH
61659C Retainer, Rear Door Open Switch Set, LH
61665B Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH
61665J Plate, Seat Belt Anchorage, RH
61666B Reinforce, Seat Belt Anchorage TO Quarter Wheel House, LH
61666J Plate, Seat Belt Anchorage, LH
61675A Reinforce, Seat Belt Anchor, NO.2 Upper RH
61676A Reinforce, Seat Belt Anchor, NO.2 Upper LH
61677 Reinforce, Seat Belt Anchor, NO.2 Lower RH
61678 Reinforce, Seat Belt Anchor, NO.2 Lower LH
61684 Ornament, Quarter Panel Step, NO.1 LH
61686 Ornament, Quarter Panel Step, NO.2 LH
61693D Bracket, Rear Wheel Opening, NO.1
61694D Bracket, Rear Wheel Opening, NO.2
61695D Bracket, Rear Wheel Opening, NO.3
61696F Bracket, Rear Wheel Opening, NO.2 LH
61697F Bracket, Rear Wheel Opening, NO.3 LH
61698F Bracket, Rear Wheel Opening, NO.4
61699D Bracket, Rear Wheel
61701B Panel Sub-assy, Roof Side, Inner Upper RH
61702B Panel Sub-assy, Roof Side, Inner Upper LH
61705 Panel Sub-assy, Roof Side, Inner RH
61706 Panel Sub-assy, Roof Side, Inner LH
61711 Panel, Roof Side, Outer RH
61712 Panel, Roof Side, Outer LH
61724C Bracket, Switch Relay, NO.2
61725 Box, Fuel Inlet
61733A Panel, Roof Side, Inner Front RH
61734A Panel, Roof Side, Inner Front LH
61748B Reinforcement, Roof Side, Inner Rear, LH
61768B Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
61783D Pad, Rear Wheel Opening Extension, NO.1
61784 Pad, Rear Wheel Opening Extension, NO.2
61785C Pad, Rear Wheel Opening Extension, NO.3
61856 Bracket, Rear Washer Tank, Lower
61881 Seal, Roof Side Rail, Front RH
61882 Seal, Roof Side Rail, Front LH
61883 Seal, Roof Side Rail, Rear RH
61884 Seal, Roof Side Rail, Rear LH
61958 Bracket, Rear Seat Leg, NO.1 RH
61968 Bracket, Rear Seat Leg, NO.1 LH
74710A Bracket, Extinguisher
75595E Cover, Roof Drip Side Moulding End, Front RH
75596E Cover, Roof Drip Side Moulding End, Front LH
76605C Mudguard Sub-assy, Rear Body, Front RH
76606C Mudguard Sub-assy, Rear Body, Front LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76607B Bracket, Quarter Panel Rear Mudguard, RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76608B Bracket, Quarter Panel Rear Mudguard, LH
77649A Retainer, Jack Handle Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
