Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

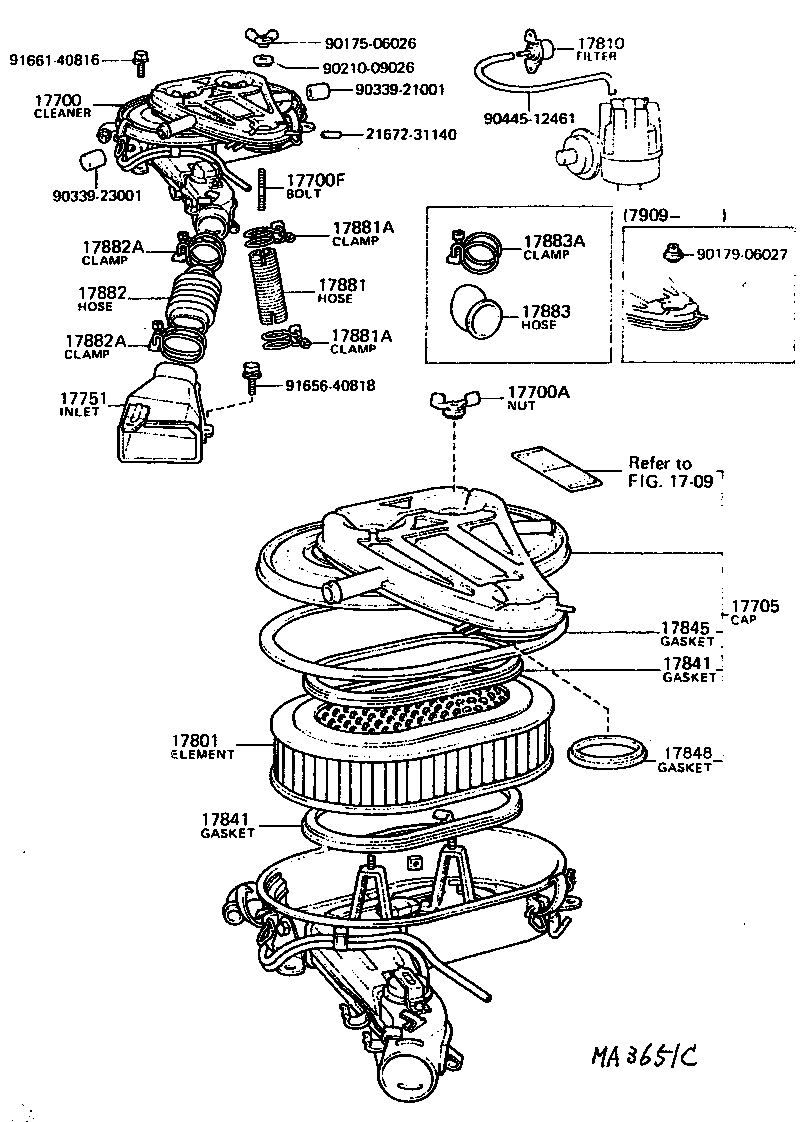

Exploded illustration MA3651C 17810 — FILTER ASSY, AIR (1 parts) 9017506026 — not listed in this catalogue 9166140816 — not listed in this catalogue 9021009026 — not listed in this catalogue 9033921001 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (17 parts) 9044512461 — not listed in this catalogue 2167231140 — not listed in this catalogue 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (4 parts) 9033923001 — not listed in this catalogue 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (5 parts) 17883A — CLAMP(FOR AIR CLEANER HOSE, NO.3) (5 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (6 parts) 9017906027 — not listed in this catalogue 17881 — HOSE, AIR CLEANER, NO.1 (5 parts) 17882 — HOSE, AIR CLEANER, NO.2 (4 parts) 17883 — HOSE, AIR CLEANER, NO.3 (3 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (5 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (6 parts) 9165640818 — not listed in this catalogue 17700A — NUT, WING(FOR AIR CLEANER) (5 parts) 17751 — INLET, AIR CLEANER, NO.1 (6 parts) 1709 — not listed in this catalogue 17705 — CAP SUB-ASSY, AIR CLEANER (15 parts) 17845 — GASKET, AIR CLEANER CAP (3 parts) 17841 — GASKET, FILTER ELEMENT (3 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (3 parts) 17848 — GASKET, AIR CLEANER TO CARBURETOR (5 parts) 17841 — GASKET, FILTER ELEMENT (3 parts)
MA3651C · 19 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
90 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-56061 Cleaner Assy, Air
1978-03 → 1978-06 ended
B BJ40 —
17700-56220 note Cleaner Assy, Air
1978-03 → 1978-06 ended
B BJ40 —
17700-56240 Cleaner Assy, Air
1978-06 → 1979-05 ended
B BJ40 —
17700-56241 Cleaner Assy, Air
1979-05 → 1980-07 ended
B BJ40 —
17700-56250 note Cleaner Assy, Air
1978-06 → 1979-05 ended
B BJ40 —
17700-56251 note Cleaner Assy, Air
1979-05 → 1980-07 ended
B BJ40 —
17700-60302 Cleaner Assy, Air
1969-09 → 1971-09 ended
F FJ40,55 —
17700-60303 Cleaner Assy, Air
1971-09 → 1972-09 ended
F FJ40,55 —
17700-60304 Cleaner Assy, Air
1972-09 → 1973-02 ended
F FJ40,55 —
17700-60305 Cleaner Assy, Air
1973-02 → 1973-09 ended
F FJ40,55 —
17700-60370 Cleaner Assy, Air
1973-09 → 1975-01 ended
F FJ40,55 —
17700-60390 note Cleaner Assy, Air
1973-10 → 1975-01 ended
F FJ40,55 —
17700-61020 Cleaner Assy, Air
1975-01 → 1977-09 ended
2F FJ4#,55 —
17700-61021 Cleaner Assy, Air
1977-09 → 1979-01 ended
2F FJ4#,55 —
17700-61022 Cleaner Assy, Air
1979-01 → 1980-07 ended
2F FJ4#,55 —
17700-61030 note Cleaner Assy, Air
1975-01 → 1976-02 ended
2F FJ40,55 —
17700-69015 Cleaner Assy, Air
1969-03 → 1969-09 ended
F FJ40,55 —
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 Nut, Wing(FOR AIR CLEANER)
1978-07 → 1980-07 ended
2F FJ4#,55 —
90175-06026 Nut, Wing(FOR AIR CLEANER)
1975-01 → 1978-07 ended
2F FJ4#,55 —
94270-00800 Nut, Wing(FOR AIR CLEANER)
1969-03 → 1973-05 ended
F FJ40,55 —
94271-00800 Nut, Wing(FOR AIR CLEANER)
1973-05 → 1975-01 ended
F FJ40,55 —
94271-00800 Nut, Wing(FOR AIR CLEANER)
1978-03 → 1980-07 ended
B BJ40 —
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06143 note Bolt, Stud(FOR AIR CLEANER SETTING)
1976-02 → 1980-07 ended
2F FJ40,55 USA —
90116-06143 note Bolt, Stud(FOR AIR CLEANER SETTING)
1975-01 → 1976-02 ended
2F FJ40,55 —
90116-06189 Bolt, Stud(FOR AIR CLEANER SETTING)
1969-03 → 1969-09 ended
F FJ40,55 —
90116-06222 note Bolt, Stud(FOR AIR CLEANER SETTING)
1976-02 → 1980-07 ended
2F FJ4#,55 CND —
17705 — Cap Sub-assy, Air Cleaner
17705-56071 Cap Sub-assy, Air Cleaner
1978-03 → 1980-07 ended
B BJ40 —
17705-60151 Cap Sub-assy, Air Cleaner
1969-03 → 1969-09 ended
F FJ40,55 —
17705-60152 Cap Sub-assy, Air Cleaner
1969-09 → 1971-09 ended
F FJ40,55 —
17705-60153 Cap Sub-assy, Air Cleaner
1971-09 → 1972-09 ended
F FJ40,55 —
17705-60154 Cap Sub-assy, Air Cleaner
1972-09 → 1973-02 ended
F FJ40,55 —
17705-60155 Cap Sub-assy, Air Cleaner
1973-02 → 1973-09 ended
F FJ40,55 —
17705-60156 Cap Sub-assy, Air Cleaner
1973-09 → 1975-01 ended
F FJ40,55 —
17705-60240 note Cap Sub-assy, Air Cleaner
1973-09 → 1975-01 ended
F FJ40,55 —
17705-60260 note Cap Sub-assy, Air Cleaner
1973-10 → 1975-01 ended
F FJ40,55 —
17705-61020 Cap Sub-assy, Air Cleaner
1975-01 → 1977-09 ended
2F FJ4#,55 —
17705-61021 Cap Sub-assy, Air Cleaner
1977-09 → 1979-01 ended
2F FJ4#,55 —
17705-61022 Cap Sub-assy, Air Cleaner
1979-01 → 1980-07 ended
2F FJ4#,55 —
17705-61030 note Cap Sub-assy, Air Cleaner
1975-01 → 1976-02 ended
2F FJ40,55 —
17705-61030 note Cap Sub-assy, Air Cleaner
1976-02 → 1977-09 ended
2F FJ40,55 USA —
17705-61031 note Cap Sub-assy, Air Cleaner
1977-09 → 1979-01 ended
2F FJ40,55 USA —
17751 — Inlet, Air Cleaner, NO.1
17751-61010 Inlet, Air Cleaner, NO.1
1975-01 → 1976-02 ended
2F FJ55 —
17751-61010 Inlet, Air Cleaner, NO.1
1976-02 → 1979-01 ended
2F FJ55 USA —
17751-61011 Inlet, Air Cleaner, NO.1
1979-01 → 1980-07 ended
2F FJ55 USA —
17751-61020 Inlet, Air Cleaner, NO.1
1975-01 → 1976-02 ended
2F FJ40 —
17751-61020 Inlet, Air Cleaner, NO.1
1976-02 → 1979-01 ended
2F FJ40 USA —
17751-61021 Inlet, Air Cleaner, NO.1
1979-01 → 1980-07 ended
2F FJ40 USA —
17801 — Element Sub-assy, Air Cleaner Filter
17801-60040 Element Sub-assy, Air Cleaner Filter
1969-03 → 1975-01 ended
F FJ40,55 —
17801-61010 Element Sub-assy, Air Cleaner Filter
1975-01 → 1980-07 ended
2F FJ4#,55 —
17801-66020 Element Sub-assy, Air Cleaner Filter
1978-03 → 1980-07 ended
B BJ40 —
17810 — Filter Assy, Air
17810-61010 Filter Assy, Air
1977-09 → 1980-07 ended
2F FJ4#,55 —
17841 — Gasket, Filter Element
17841-24020 Gasket, Filter Element
1978-03 → 1980-07 ended
B BJ40 —
17841-60011 Gasket, Filter Element
1969-03 → 1975-01 ended
F FJ40,55 —
17841-61010 Gasket, Filter Element
1975-01 → 1980-07 ended
2F FJ4#,55 —
17845 — Gasket, Air Cleaner Cap
17845-56040 Gasket, Air Cleaner Cap
1978-03 → 1980-07 ended
B BJ40 —
17845-60040 Gasket, Air Cleaner Cap
1969-03 → 1975-01 ended
F FJ40,55 —
17845-61010 Gasket, Air Cleaner Cap
1975-01 → 1980-07 ended
2F FJ4#,55 —
17848 — Gasket, Air Cleaner TO Carburetor
17848-60021 Gasket, Air Cleaner TO Carburetor
1969-09 → 1975-01 ended
F FJ40,55 —
17848-61010 Gasket, Air Cleaner TO Carburetor
1975-01 → 1975-07 ended
2F FJ40,55 —
17848-61011 Gasket, Air Cleaner TO Carburetor
1975-07 → 1979-01 ended
2F FJ4#,55 —
17848-61020 Gasket, Air Cleaner TO Carburetor
1979-01 → 1980-07 ended
2F FJ4#,55 —
90430-72178 Gasket, Air Cleaner TO Carburetor
1969-03 → 1969-09 ended
F FJ40,55 —
17881 — Hose, Air Cleaner, NO.1
17881-56030 Hose, Air Cleaner, NO.1
1978-03 → 1980-07 ended
B BJ40 —
17881-60020 Hose, Air Cleaner, NO.1
1973-09 → 1975-01 ended
F FJ40,55 —
17881-61010 Hose, Air Cleaner, NO.1
1975-01 → 1976-02 ended
2F FJ40,55 —
17881-61010 Hose, Air Cleaner, NO.1
1976-02 → 1979-01 ended
2F FJ40,55 USA —
17881-61010 Hose, Air Cleaner, NO.1
1979-01 → 1980-07 ended
2F FJ40,55 —
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10600 Clamp(FOR AIR CLEANER HOSE, NO.1)
1973-09 → 1975-01 ended
F FJ40,55 —
96111-10650 Clamp(FOR AIR CLEANER HOSE, NO.1)
1976-02 → 1979-01 ended
2F FJ40,55 USA —
96111-10650 Clamp(FOR AIR CLEANER HOSE, NO.1)
1979-01 → 1980-07 ended
2F FJ40,55 —
96111-10650 Clamp(FOR AIR CLEANER HOSE, NO.1)
1975-01 → 1976-02 ended
2F FJ40,55 —
96111-10670 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1978-03 → 1980-07 ended
B BJ40 —
17882 — Hose, Air Cleaner, NO.2
17882-56020 Hose, Air Cleaner, NO.2
1978-03 → 1980-07 ended
B BJ40 —
17882-61010 Hose, Air Cleaner, NO.2
1975-01 → 1976-02 ended
2F FJ40,55 —
17882-61010 Hose, Air Cleaner, NO.2
1976-02 → 1979-01 ended
2F FJ40,55 USA —
17882-61011 Hose, Air Cleaner, NO.2
1979-01 → 1980-07 ended
2F FJ40,55 USA —
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-01007 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1979-01 → 1980-07 ended
2F FJ40,55 USA —
96111-10670 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-03 → 1980-07 ended
B BJ40 —
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-03 → 1980-07 ended
B BJ40 —
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.2)
1976-02 → 1979-01 ended
2F FJ40,55 USA —
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.2)
1975-01 → 1976-02 ended
2F FJ40,55 —
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1979-01 → 1980-07 ended
2F FJ40,55 USA —
17883 — Hose, Air Cleaner, NO.3
17881-61020 note Hose, Air Cleaner, NO.3
1976-01 → 1976-02 ended
2F FJ40,55 —
17881-61020 note Hose, Air Cleaner, NO.3
1976-02 → 1977-09 ended
2F FJ40,55 USA —
17881-61020 Hose, Air Cleaner, NO.3
1976-02 → 1980-07 ended
2F FJ4#,55 CND —
17883A — Clamp(FOR AIR CLEANER HOSE, NO.3)
17783-90300 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1978-03 → 1980-07 ended
B BJ40 —
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1978-03 → 1980-07 ended
B BJ40 —
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1976-01 → 1976-02 ended
2F FJ40,55 —
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1976-02 → 1977-09 ended
2F FJ40,55 USA —
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.3)
1976-02 → 1980-07 ended
2F FJ4#,55 CND —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
