Toyota Lexus LX Series

2021-12 → present · chassis FJA310,VJA310,VJH310 · catalogue 792270 · United States

Supported model Data version 2024-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

219 part groups · 30 illustrations

Illustrations

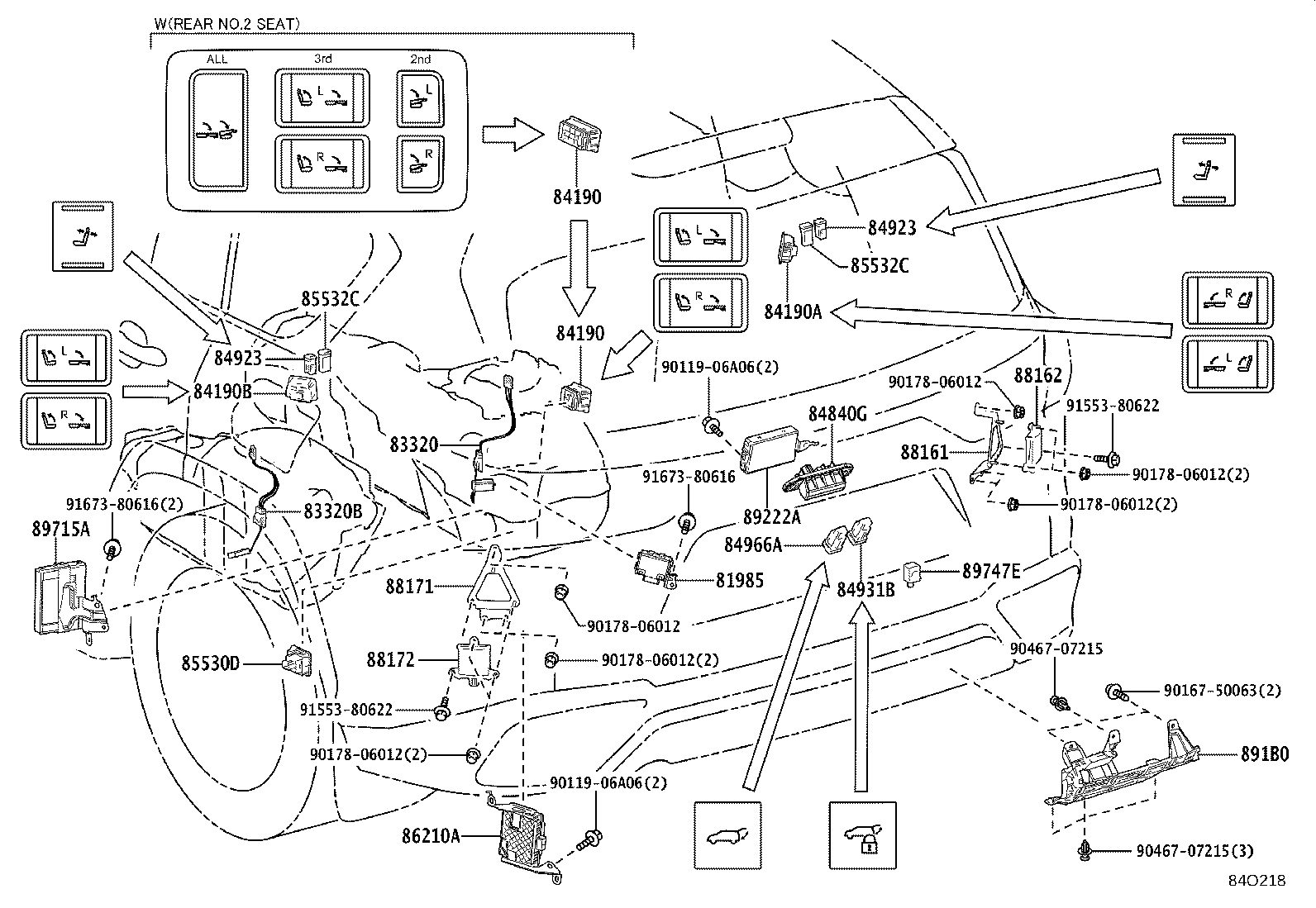

84O218 2021-12 → 2024-11

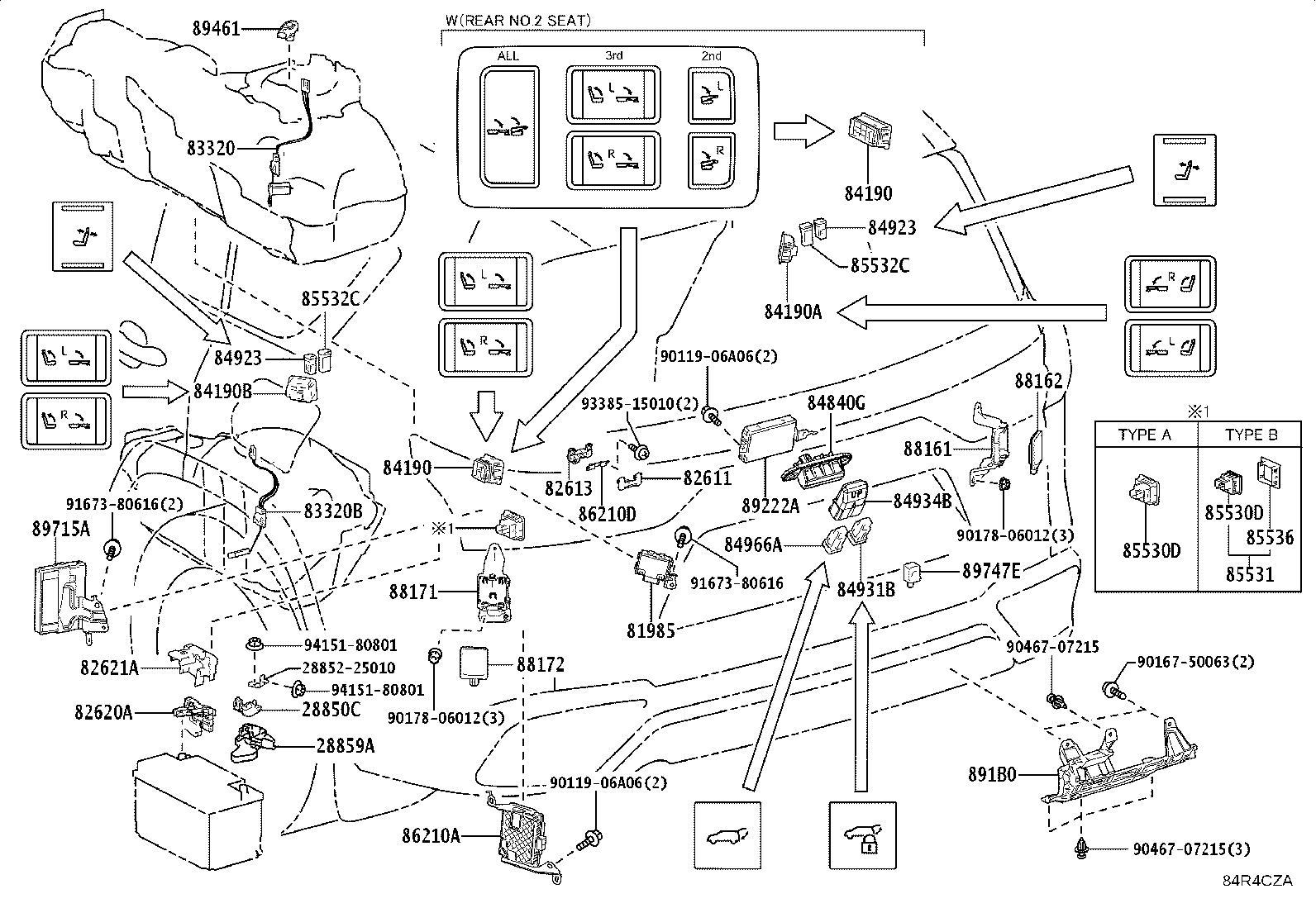

84R4CZA 2024-11 → —

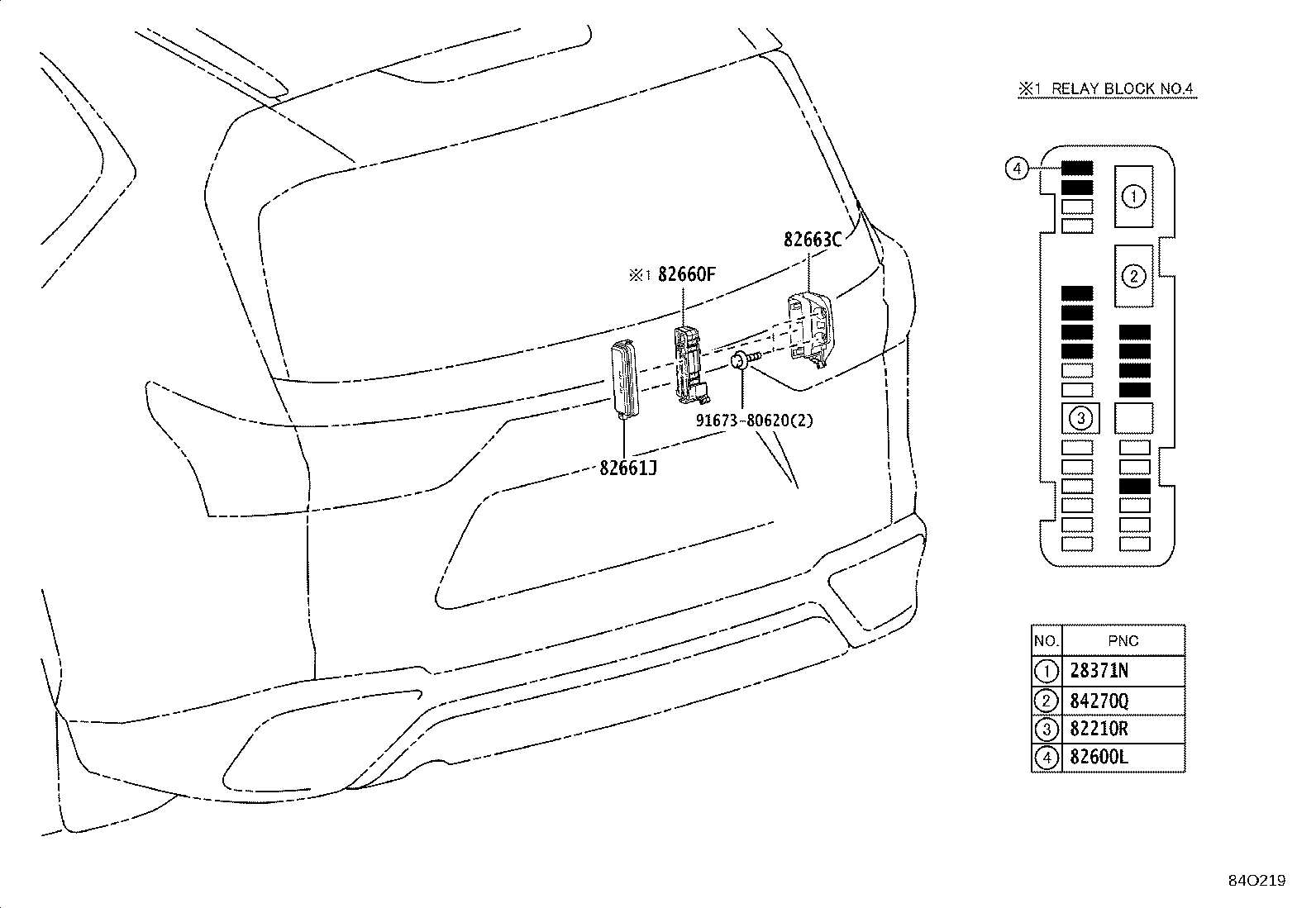

84O219 2021-12 → 2024-11

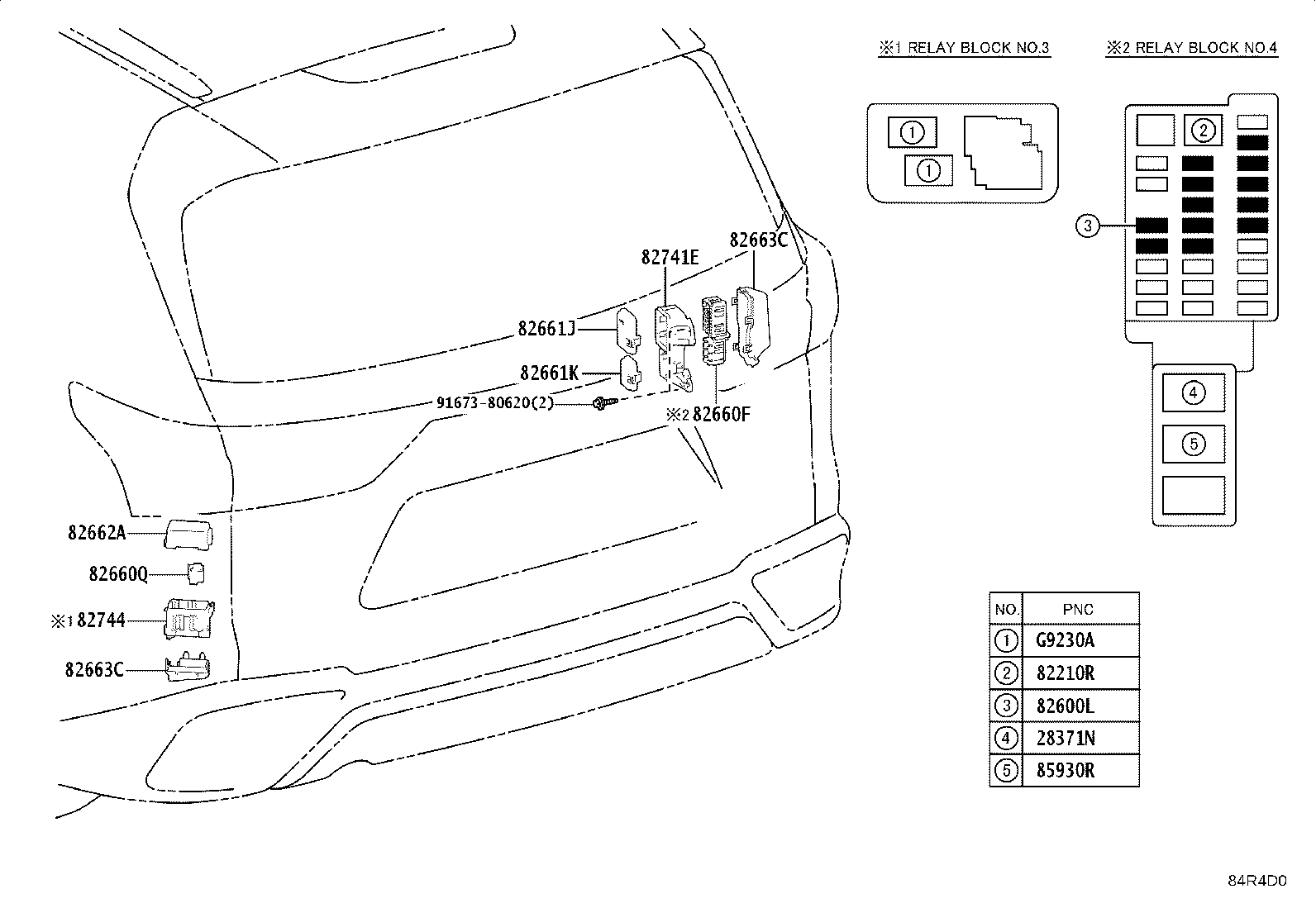

84R4D0 2024-11 → —

Part groups

PNC	Description
28300	Relay Assy, Starter
28300F	Relay Assy, Starter, NO.2
28300G	Relay Assy, Starter, NO.3
28371D	Relay, Ignition, NO.3
28371E	Relay, Ignition, NO.4
28371L	Relay, Igp
28371M	Relay, Igp, NO.2
28371N	Relay, Igp, NO.3

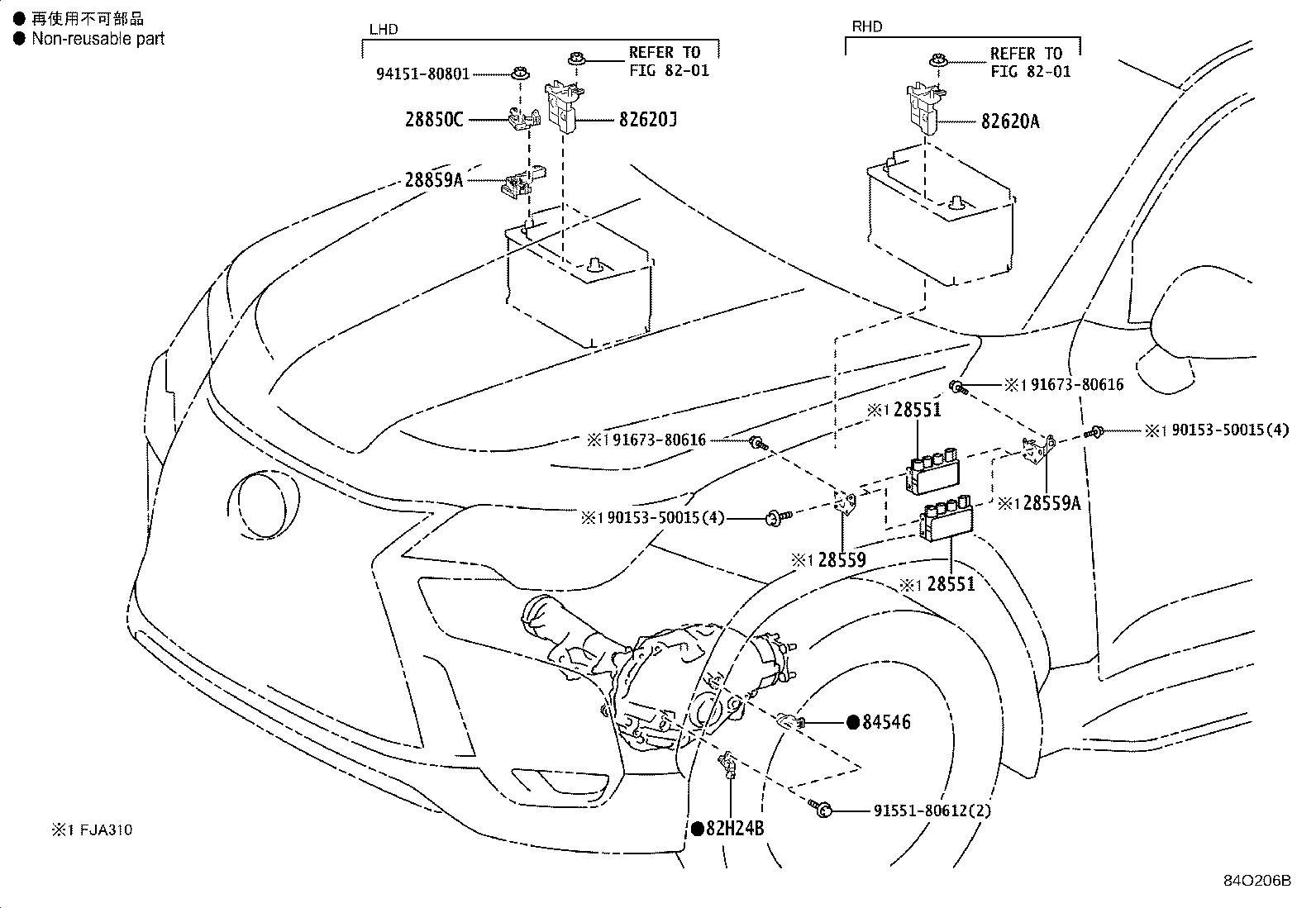

28551	Controller, Glow Plug
28559	Bracket, Glow Plug Controller, NO.1
28559A	Bracket, Glow Plug Controller, NO.2
28610	Relay Assy, Intake Heater OR Glow Plug
28850C	Sensor Assy, Battery State
28859A	Holder, Battery Current Sensor
28911	Bracket, Integration Control Supply, NO.1
28911A	Bracket, Integration Control Supply, NO.2
28912	Supply, Integration Control
81985	Relay, Towing Converter
81985A	Relay, Towing Back-up
81985B	Relay, Towing Stop Lamp
82210P	Engine Room Fusible Link
82210R	Luggage Room Fusible Link
82600	Block Assy, Fuse
82600E	Engine Room Fuse
82600F	Fuse, Fuse Block
82600L	Luggage Room Fuse
82610A	Block Assy, Fuse
82610C	Block Assy, Fuse
82610D	Block Assy, Fuse
82610E	Block Assy, Fuse
82611	Cover, Fuse Block
82613	Cover, Fuse Block
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82620B	Block Assy, Fusible Link
82620D	Block Assy, Fusible Link
82620E	Block Assy, Fusible Link
82620F	Block Assy, Fusible Link
82620G	Block Assy, Fusible Link
82620H	Block Assy, Fusible Link
82620J	Block Assy, Fusible Link
82621A	Cover, Fusible Link
82644	Computer, Semiconductor Power Integration
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82660F	Block Assy, Relay
82660Q	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82661A	Cover, Relay Block, NO.2
82661B	Cover, Relay Block, NO.3
82661J	Cover, Relay Block, NO.4
82661K	Cover, Relay Block, NO.5
82662A	Cover, Relay Block, Upper, NO.1
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82663C	Cover, Relay Block Lower, NO.4
82672K	Cover, Power Distribution Box
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82715	Bracket,Wiring Harness Clamp
82715W	Bracket, Wiring Harness Clamp

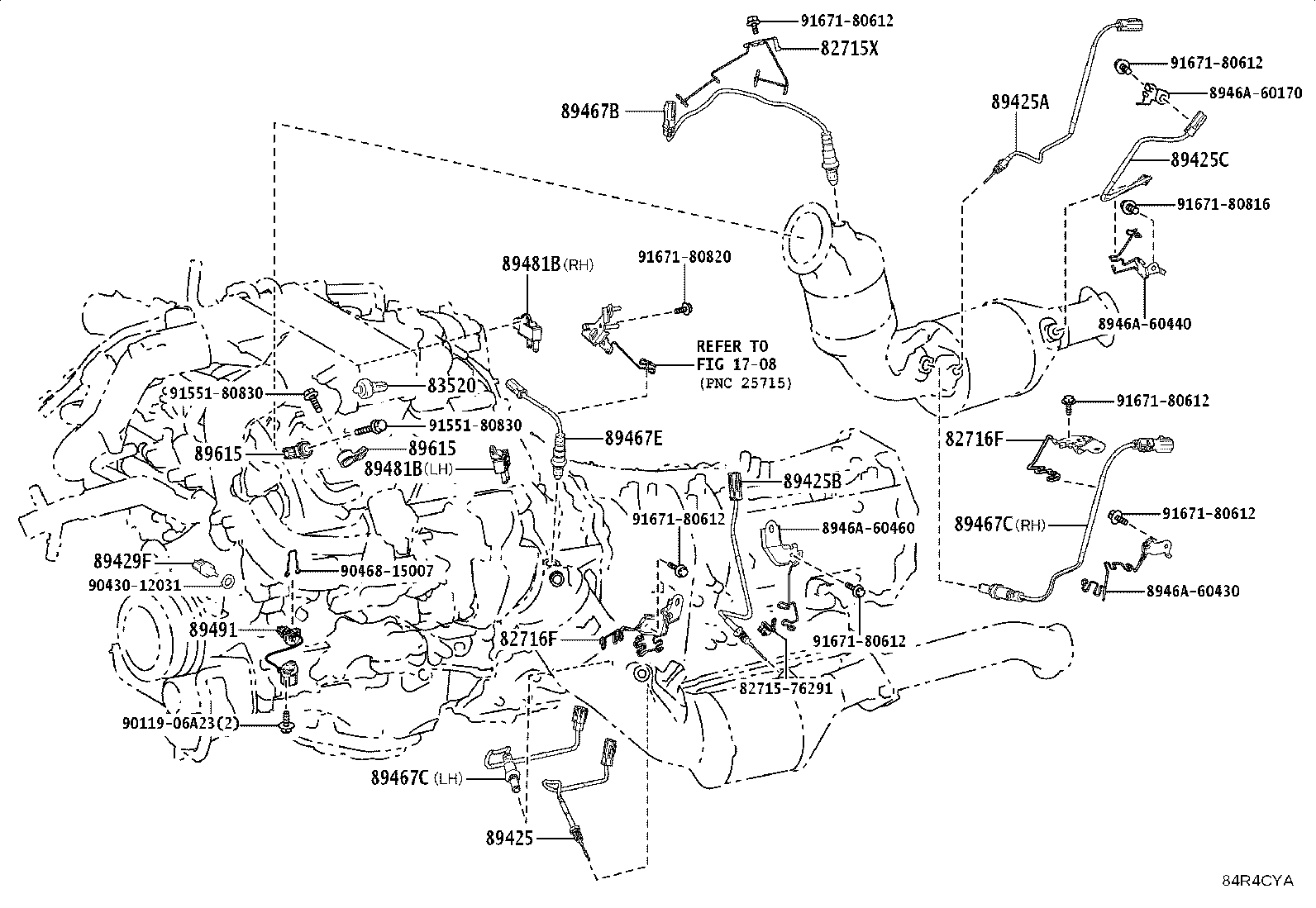

82715X	Bracket, Wiring Harness Clamp, NO.2
82715Y	Bracket, Wiring Harness Clamp, NO.3
82716F	Bracket, Wiring Harness Clamp, NO.4
82730G	Box Assy, Power Distribution

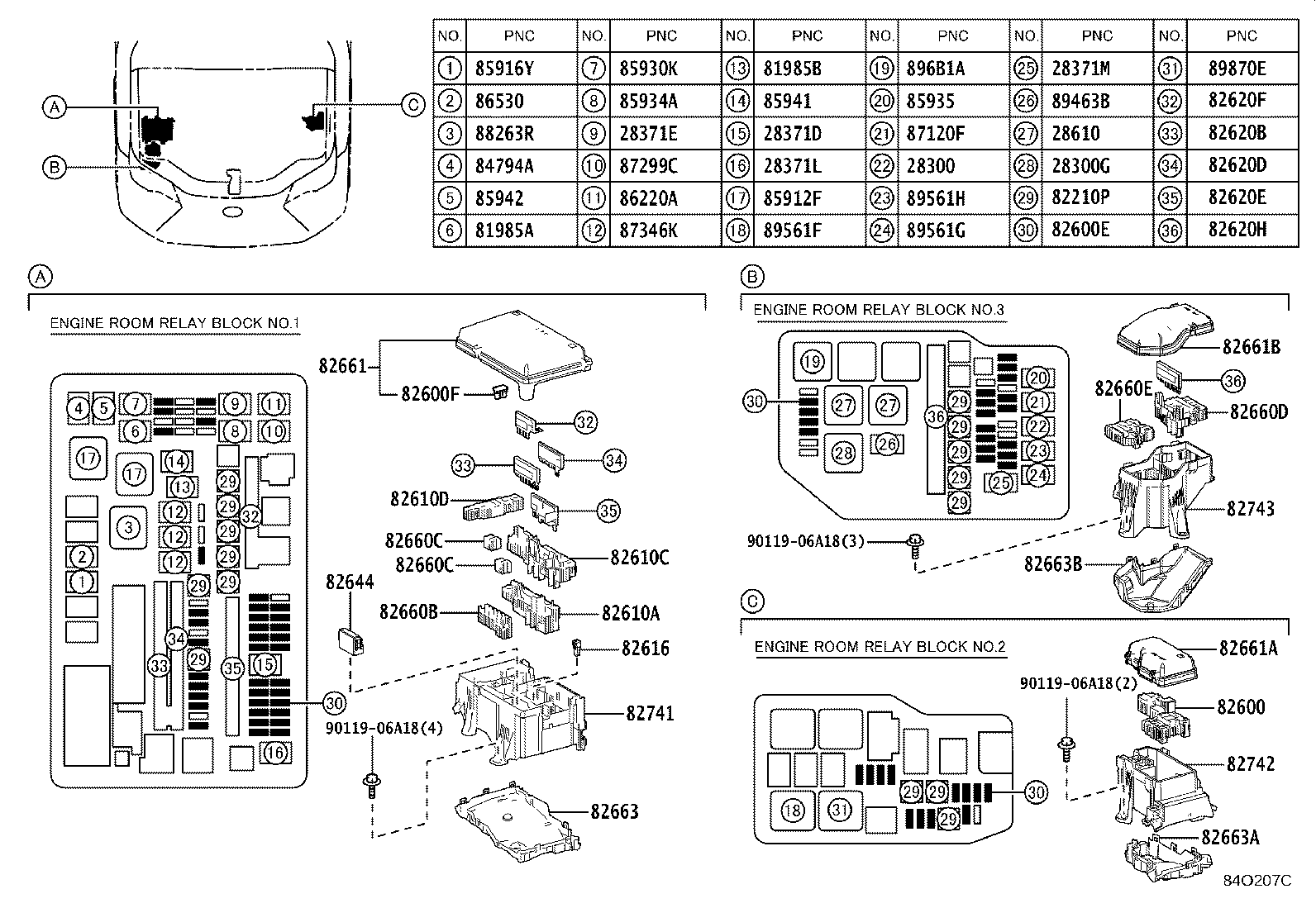

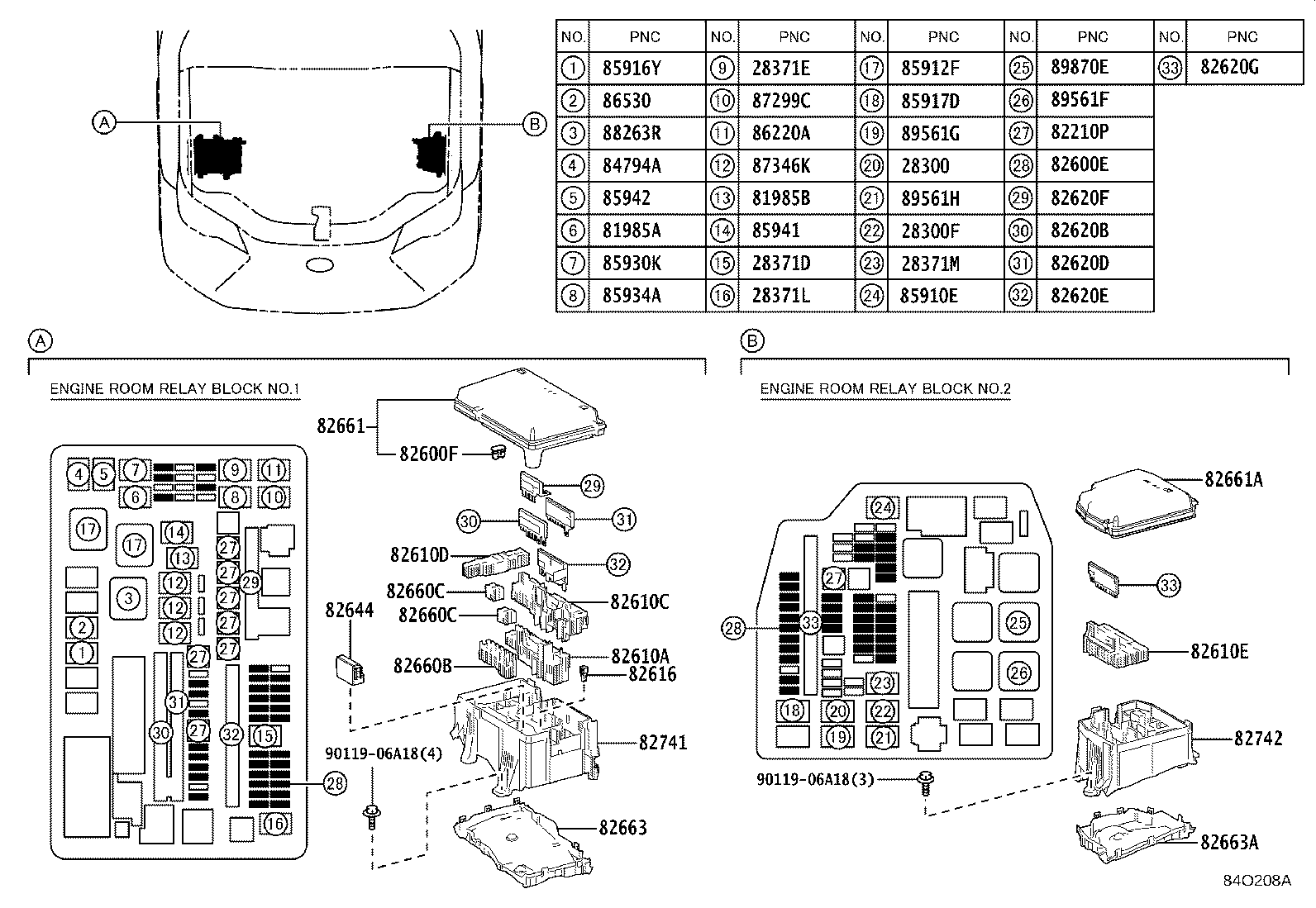

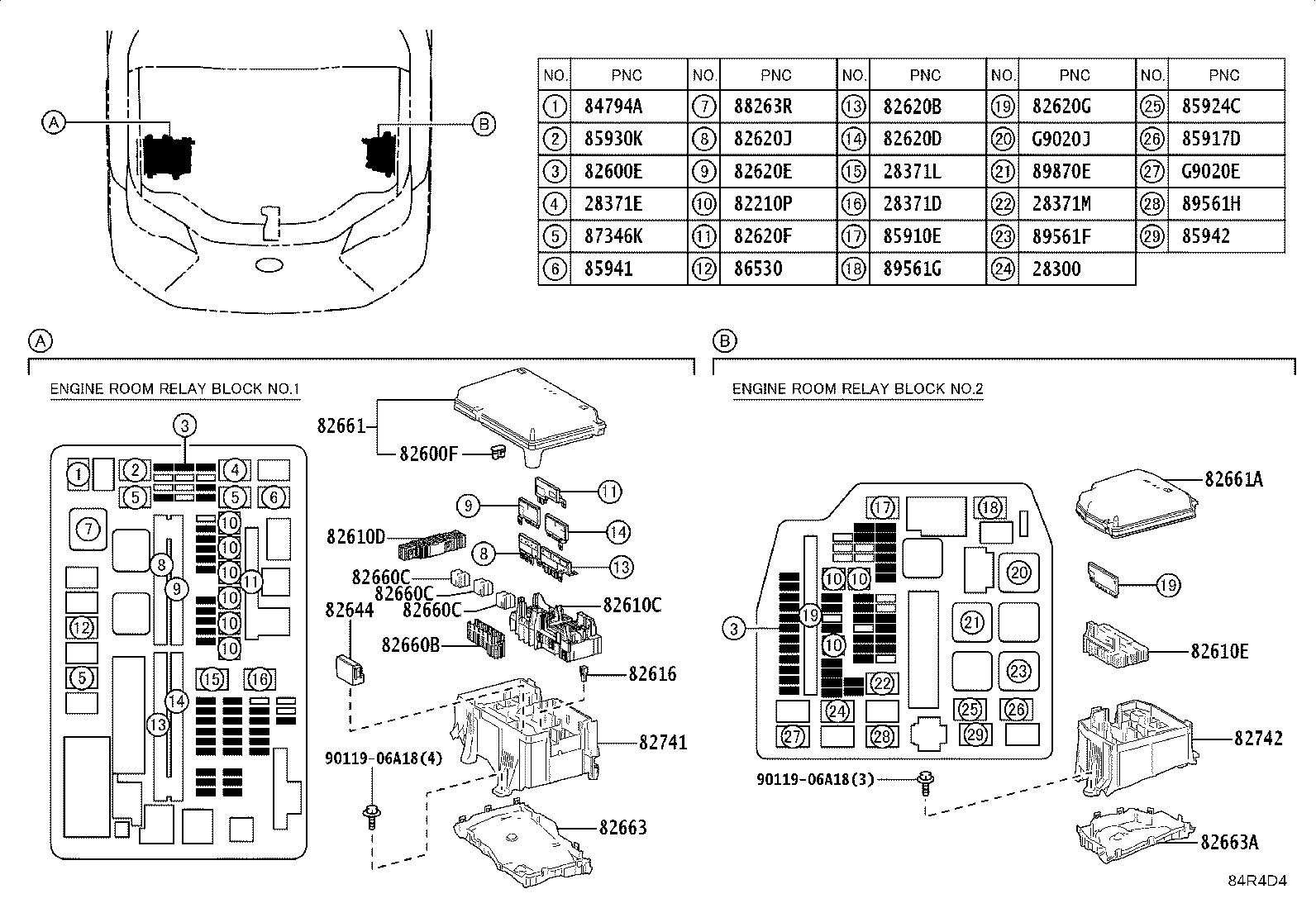

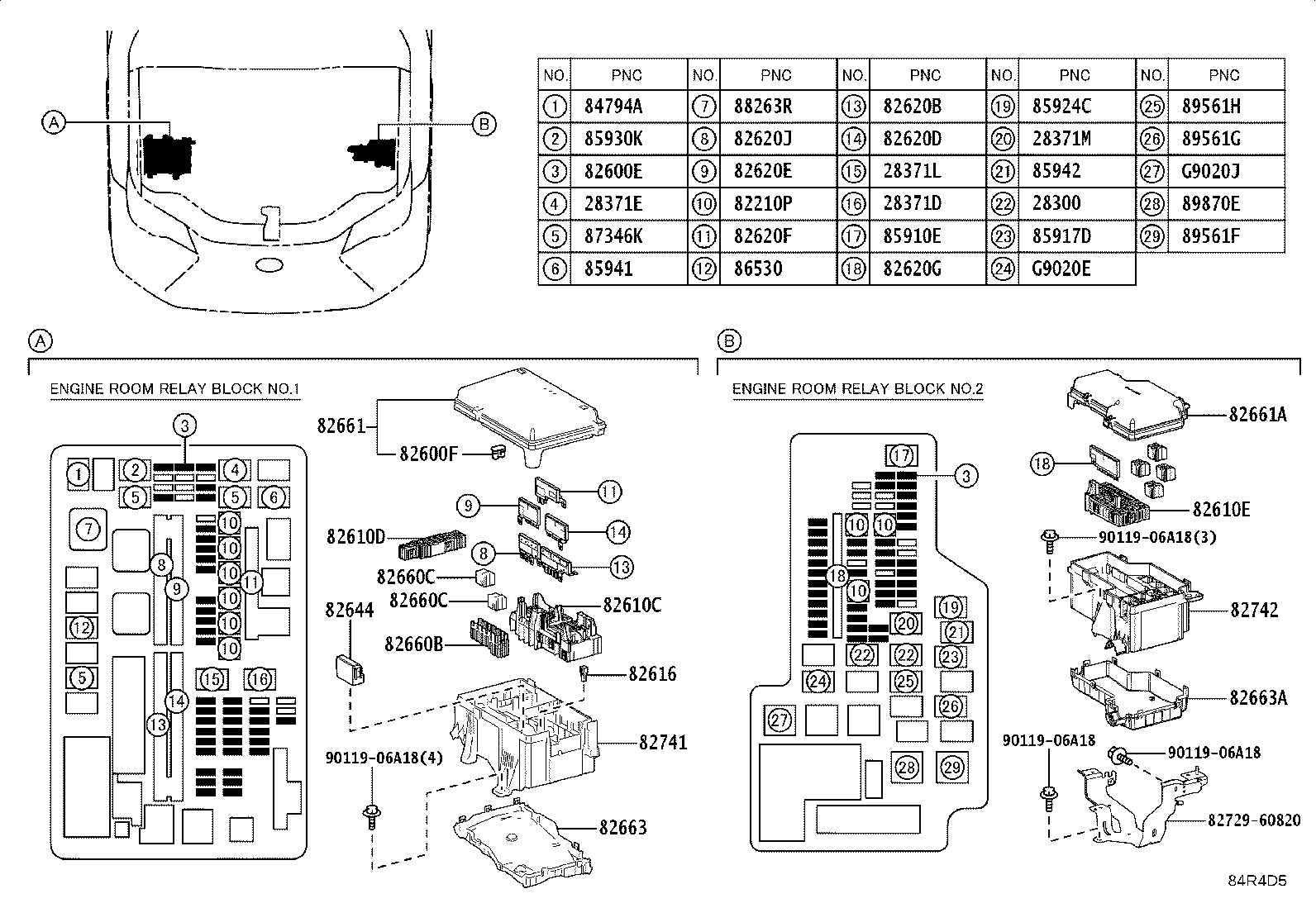

82741	Block, Engine Room Relay
82741E	Block, Luggage Room Relay, NO.1
82742	Block, Engine Room Relay, NO.2
82743	Block, Engine Room Relay, NO.3
82744	Block, Engine Room Relay, NO.4
82877	Box, Computer Integration, RH
82878	Box, Computer Integration, LH
82H24B	Connector, Wiring Harness
83320	Gage Assy, Fuel Sender
83320B	Gage Assy, Fuel Sender, NO.2
83520	Gage Assy,Oil Pressure Sender

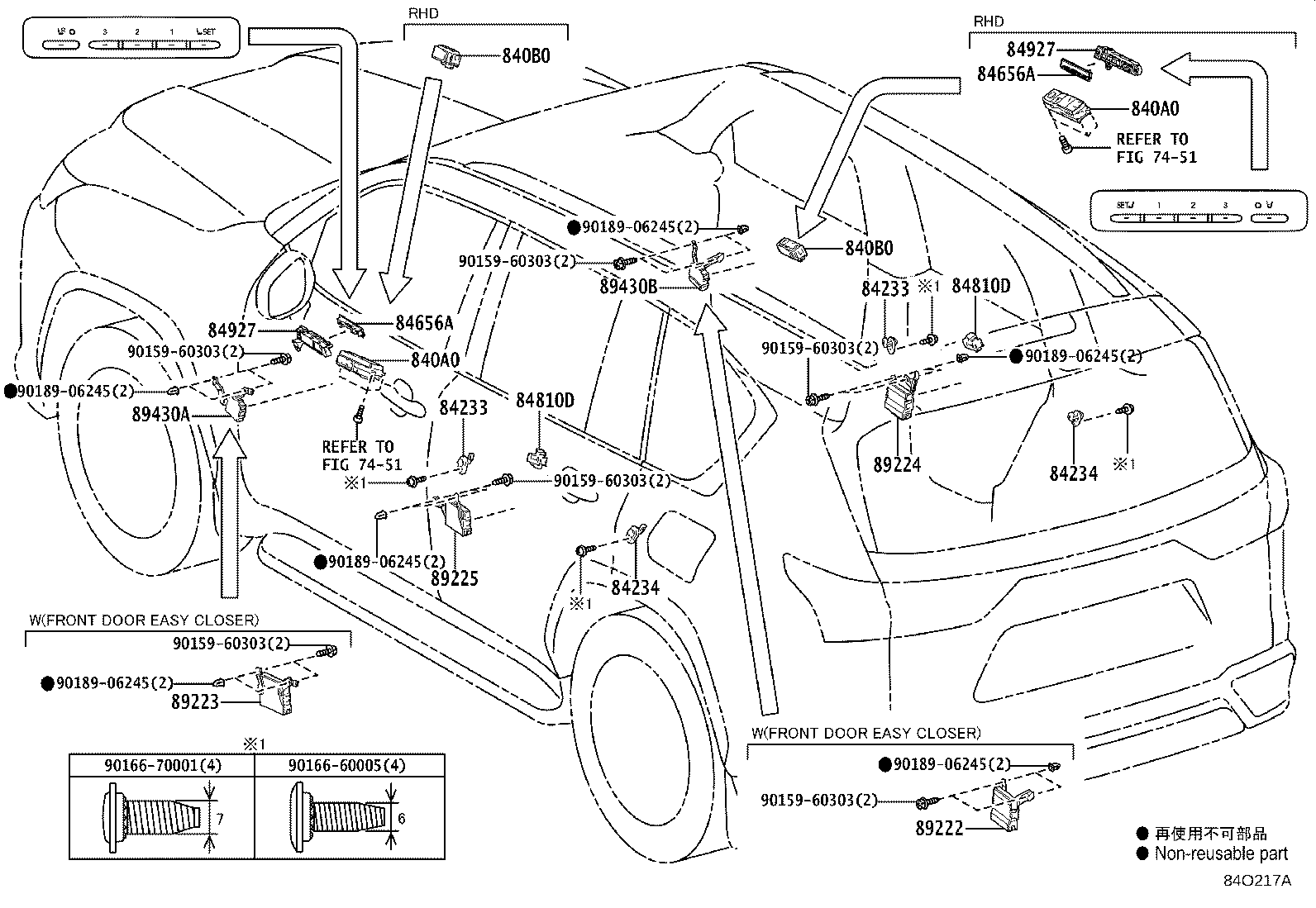

840A0	Switch Assy, Power Window Master, W/Bezel
840B0	Switch Assy, Power Window W/Bezel

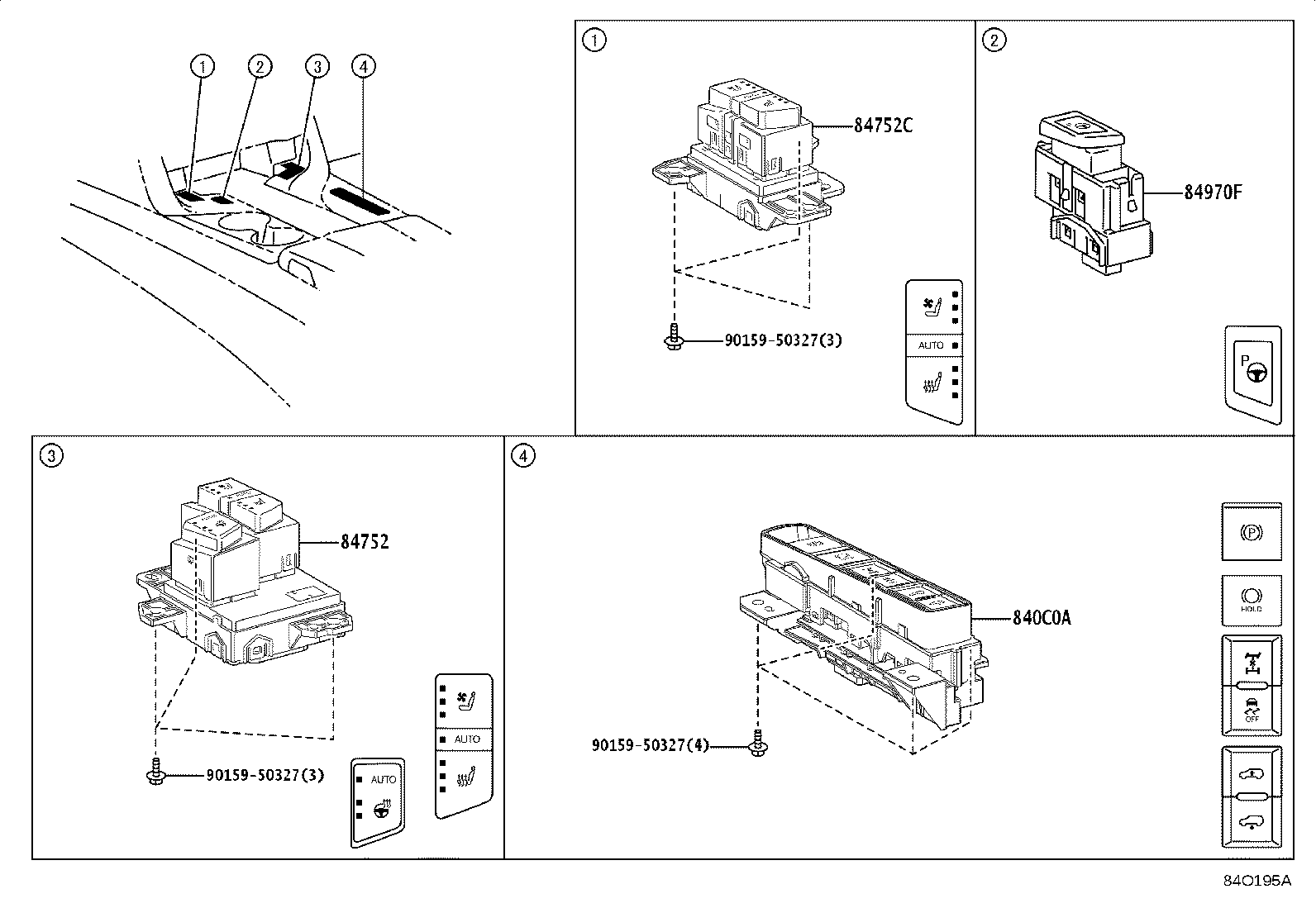

840C0A	Control Assy, Integration
84190	Switch Assy, Fold Seat
84190A	Switch Assy, Fold Seat, NO.1
84190B	Switch Assy, Fold Seat, NO.2
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)

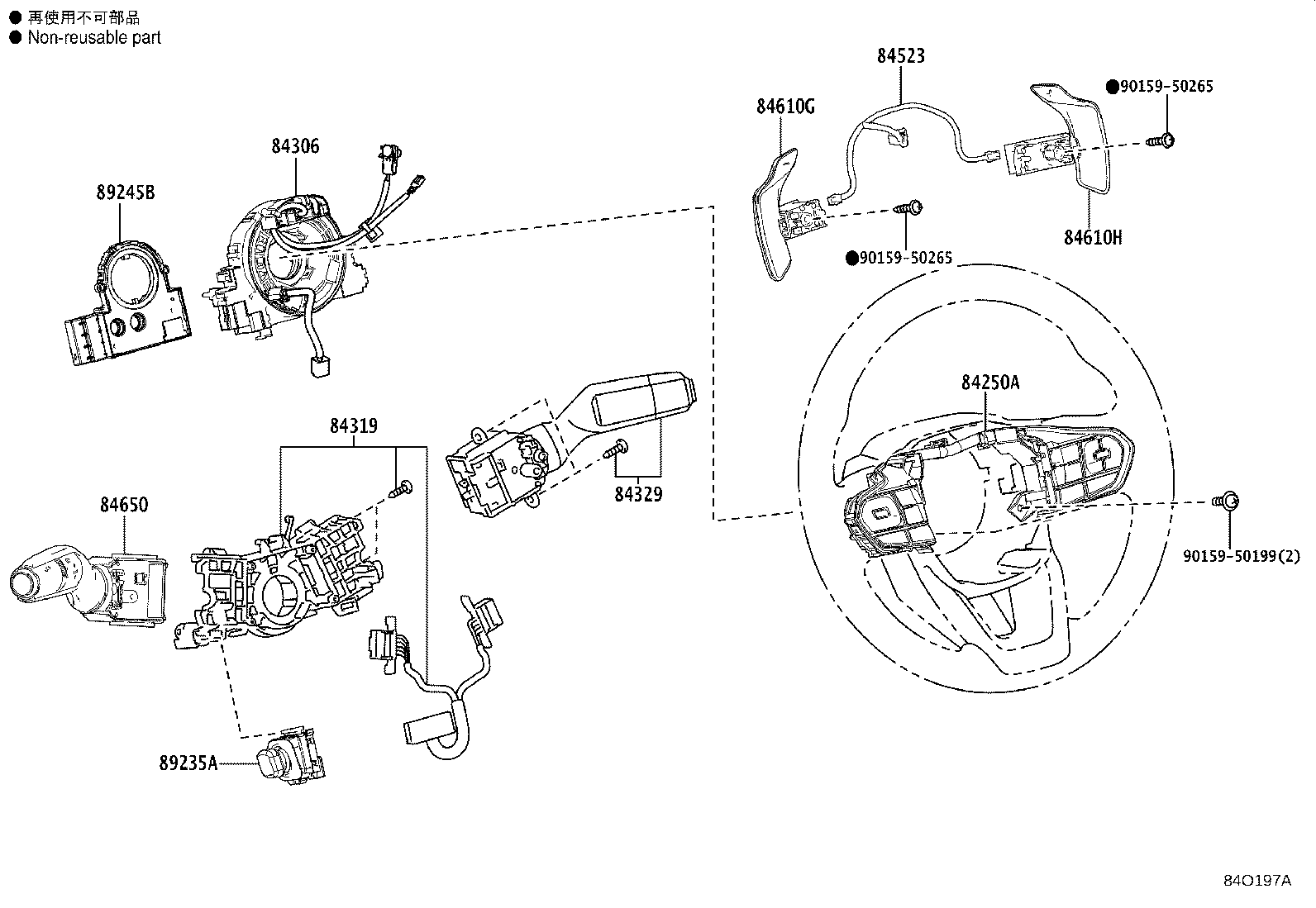

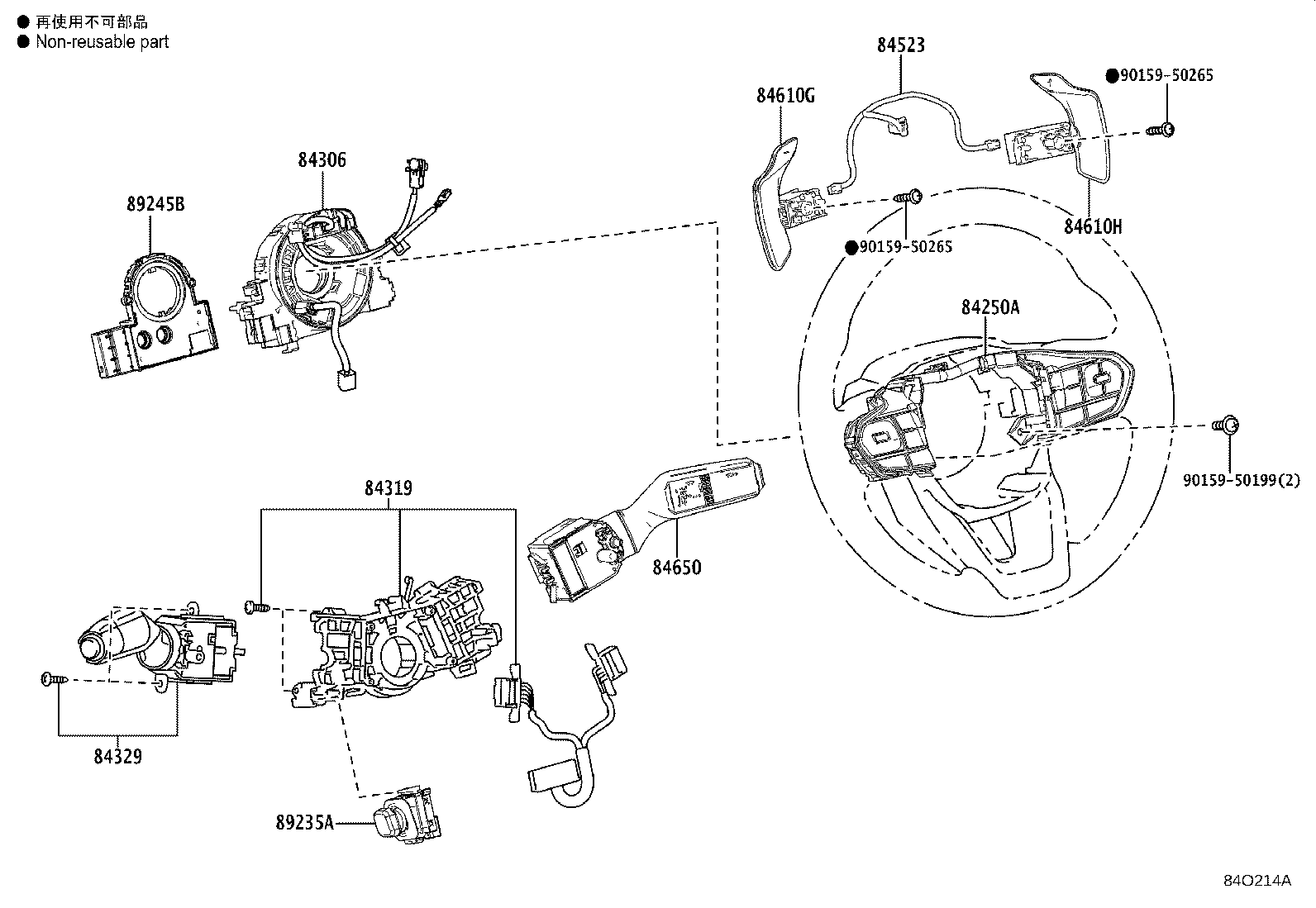

84250A	Switch Assy, Steering Pad
84270Q	Relay, Lamp Cut
84306	Cable Sub-assy, Spiral
84319	Housing, Steering Wheel Switch
84329	Switch, Turn Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84523	Wire, Switch NO.1
84540	Switch Assy, Neutral Start
84546	Switch, 4 Wheel Drive Position, NO.1
84610G	Switch Assy, Transmission Shift, NO.1
84610H	Switch Assy, Transmission Shift, NO.2
84650	Switch Assy, Windshield Wiper
84656A	Bezel, Switch

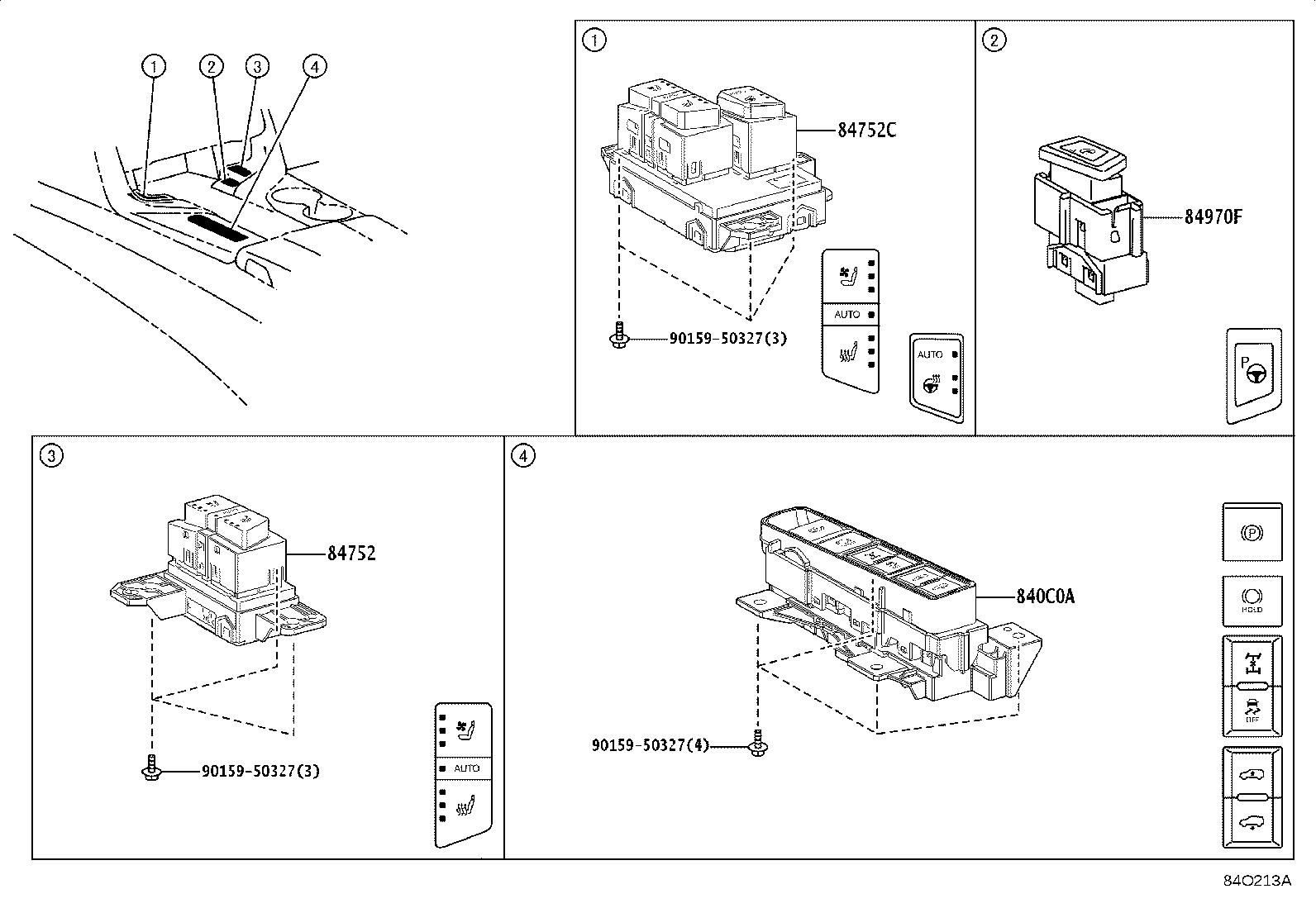

84752	Switch, Refreshing Seat
84752C	Switch, Refreshing Seat, NO.2
84794A	Relay, FR Wiper Deicer
84810D	Switch Assy, Power Window Regulator, Rear
84840G	Switch Assy, Back Door Opener

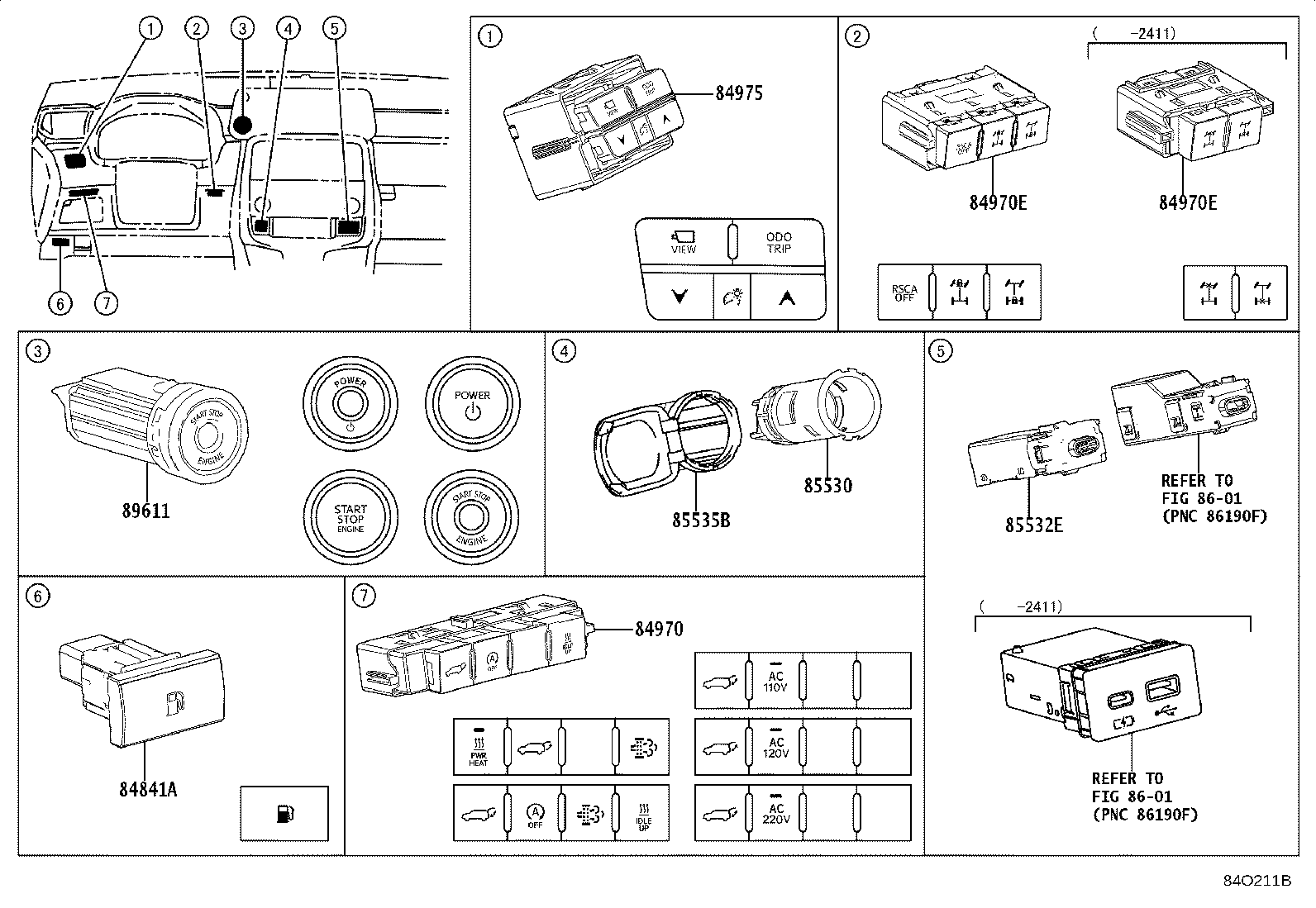

84841A	Switch, Fuel Lid Opener

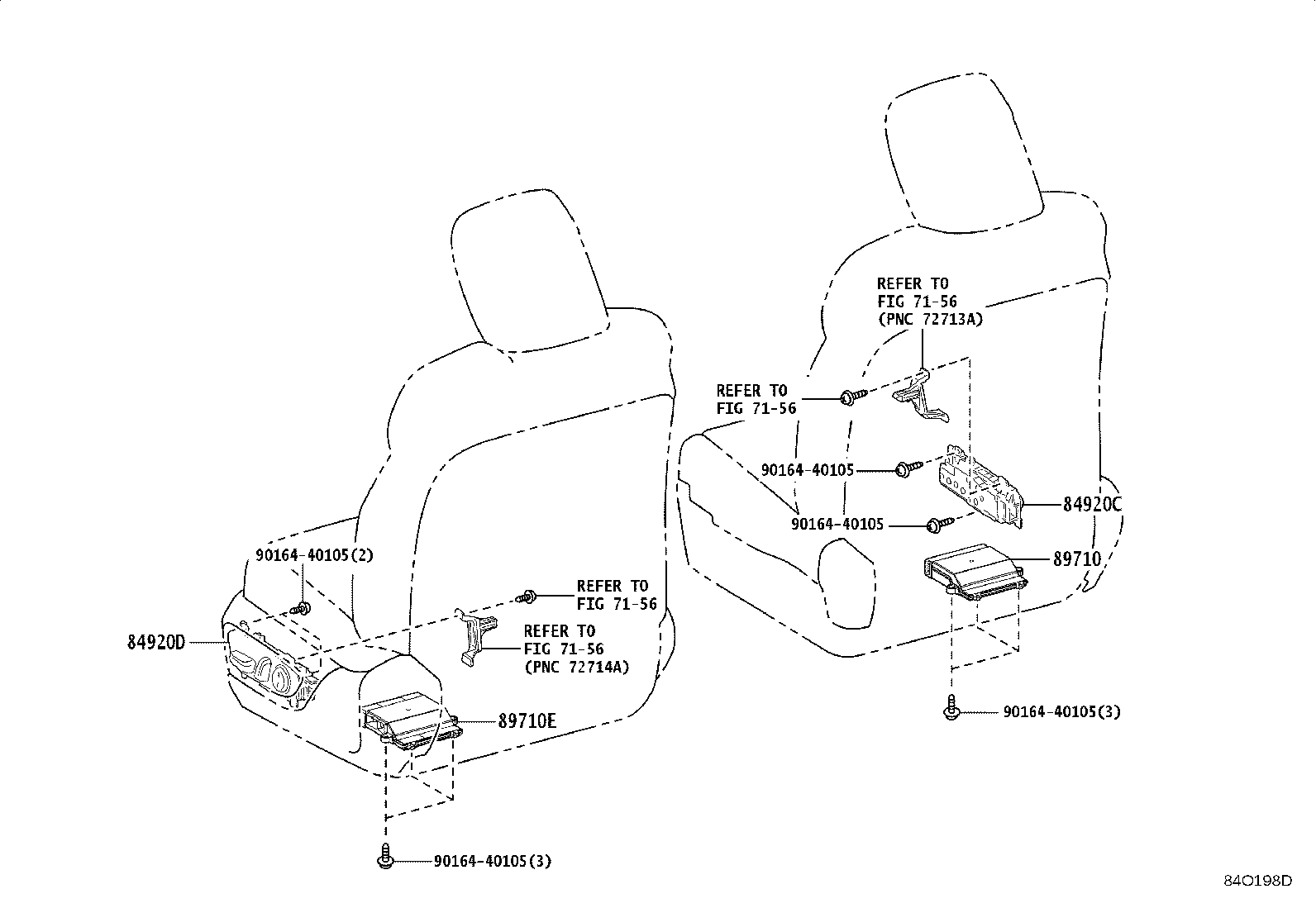

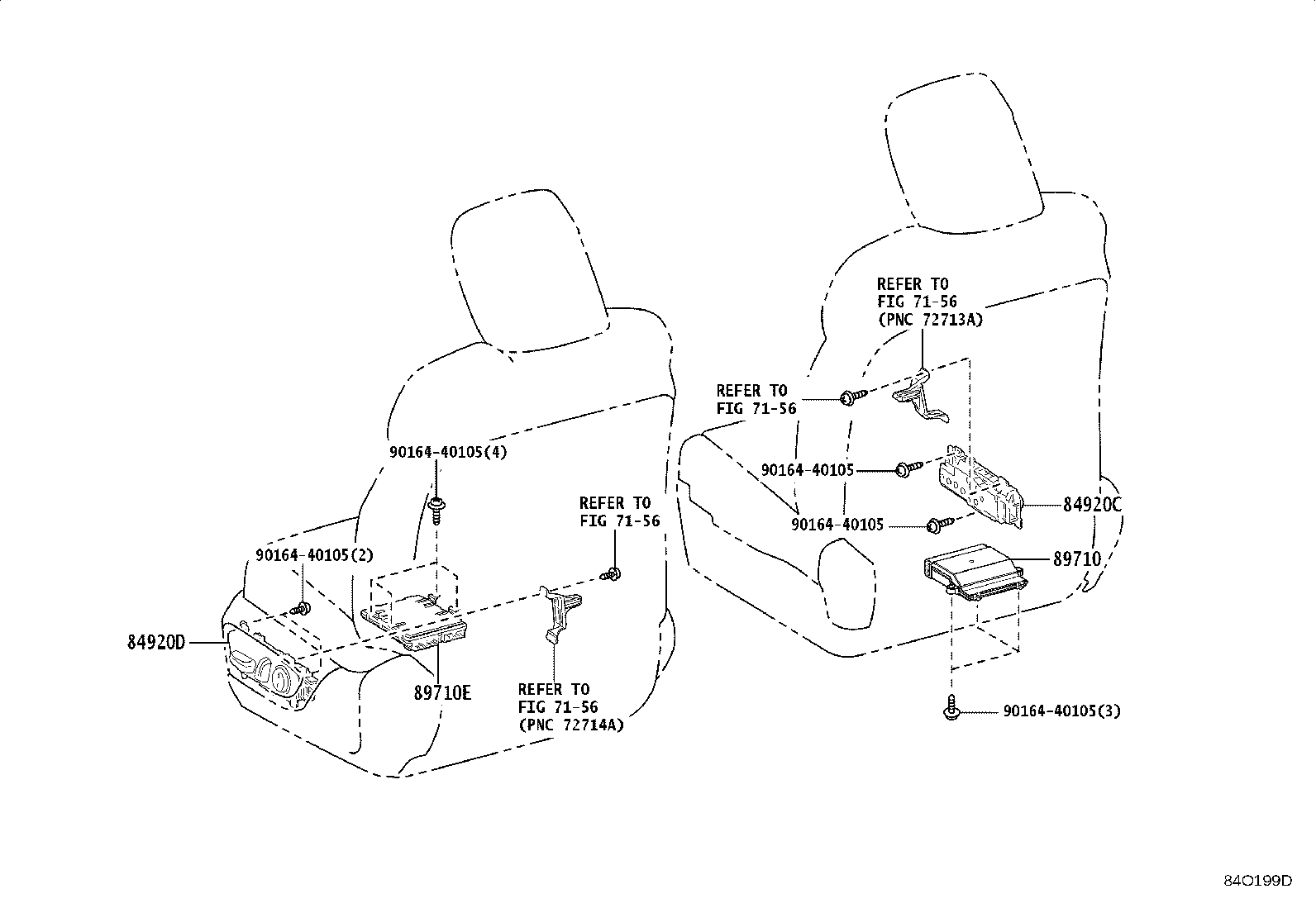

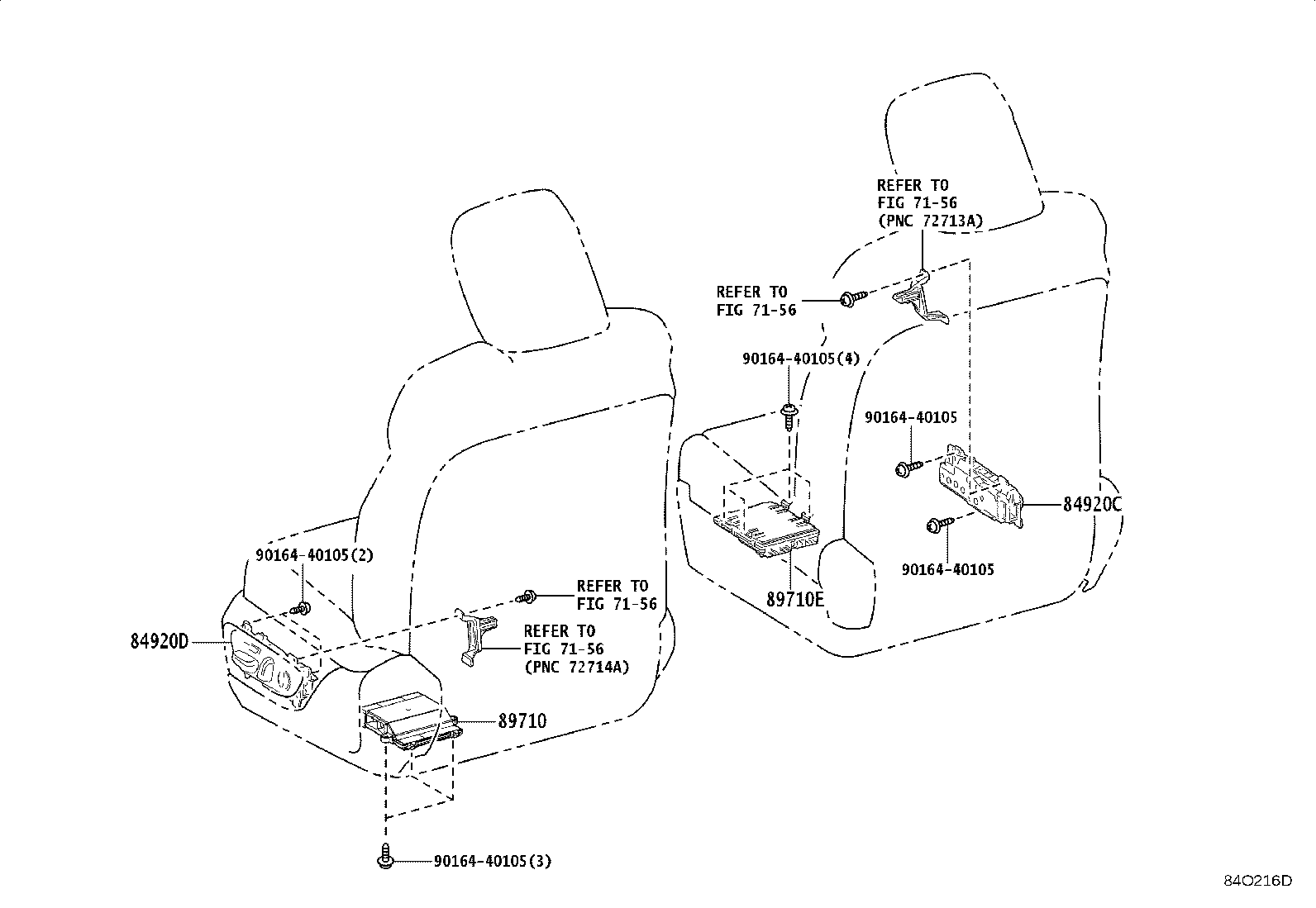

84920C	Switch Assy, Power Seat Front, RH
84920D	Switch Assy, Power Seat Front, LH
84923	Switch, Rear Power Seat
84923G	Switch, Rear Power Seat, NO.1, RH
84923H	Switch, Rear Power Seat, NO.1, LH
84927	Switch, Seat Memory
84931B	Switch, Door Control
84934B	Cover, Door Control Switch
84966A	Switch, Power Back Door Control, NO.1

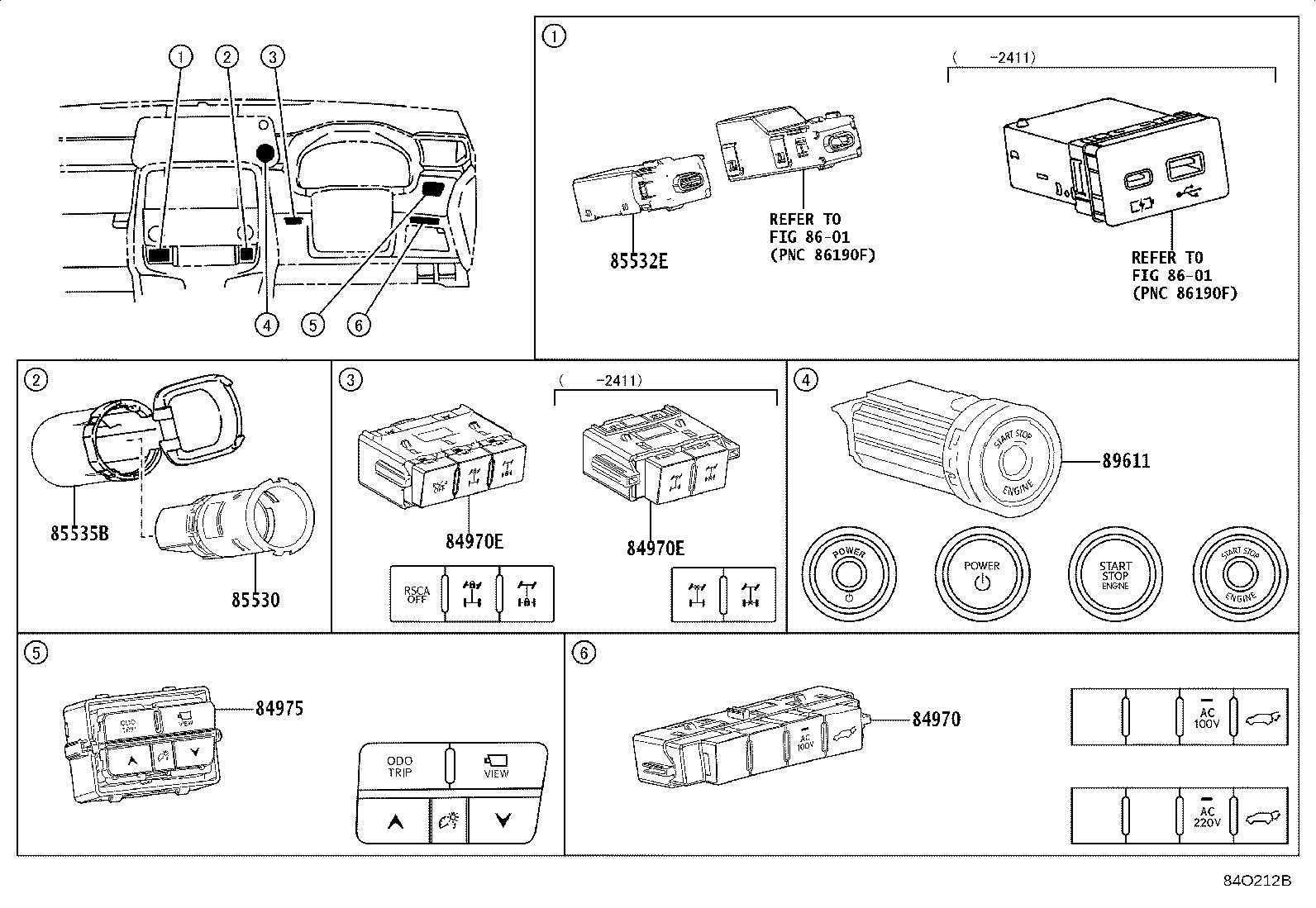

84970	Switch Assy, Combination
84970E	Switch Assy, Combination NO.2
84970F	Switch Assy, Combination, NO.3
84975	Switch, Trip
85530	Socket Assy, Power Outlet, NO.1
85530D	Socket Assy, Power Outlet, NO.2
85530E	Socket Assy, Power Outlet, NO.3
85531	Socket, Power Outlet
85532	Socket, Usb Charger
85532C	Socket, Usb Charger, NO.2
85532D	Socket, Usb Charger, NO.3
85532E	Socket, Usb Charger, NO.4
85535B	Cover, Power Outlet Socket, NO.1
85535E	Cover, Power Outlet Socket, NO.2
85536	Bezel, Power Outlet Socket
85910E	Relay, Injector
85912F	Relay, Hwd
85916Y	Relay, Towing Tail
85917D	Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85924C	Relay, Igct
85930K	Relay, Acc, NO.2
85930R	Relay, +BA
85934A	Relay Condenser Fan
85935	Relay, Fuel Pump
85940	Relay Assy, Windshield Wiper
85941	Relay, Windshield Washer
85942	Relay, Headlamp Cleaner Control
85965	Relay, Room Lamp Control
85970A	Relay Assy, Double Lock Door Control
8598A	Battery, Door Control
86210A	Inverter Assy, Voltage
86210D	Fuse, High Voltage
86220A	Relay, Inverter
86247A	Bracket, Voltage Inverter
86247C	Bracket, Voltage Inverter, NO.2
8624A	Inverter, Voltage
86530	Relay Assy, Horn
87120F	Relay, Viscous Heater
87211Y	Duct, Air
87299C	Relay, Washer Nozzle Heater
87346K	Relay, Ptc Heater
88161	Bracket, Blind Spot Monitor, RH
88162	Sensor, Blind Spot Monitor, RH
88171	Bracket, Blind Spot Monitor, LH
88172	Sensor, Blind Spot Monitor, LH
88263R	Relay, Ahc

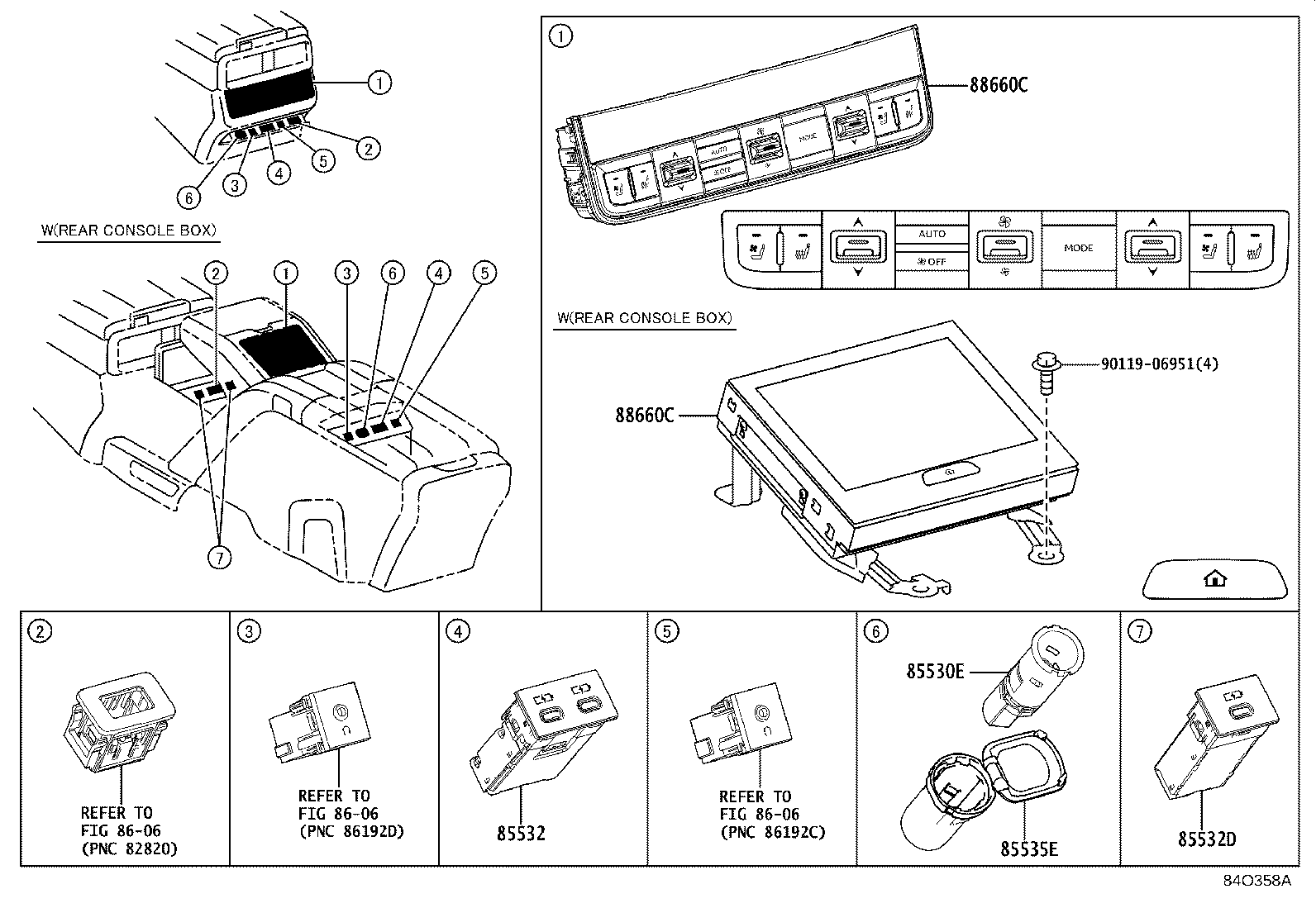

88660C	Switch Assy, Cooler Control
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
891B0	Sensor Assy, Kick Door Control

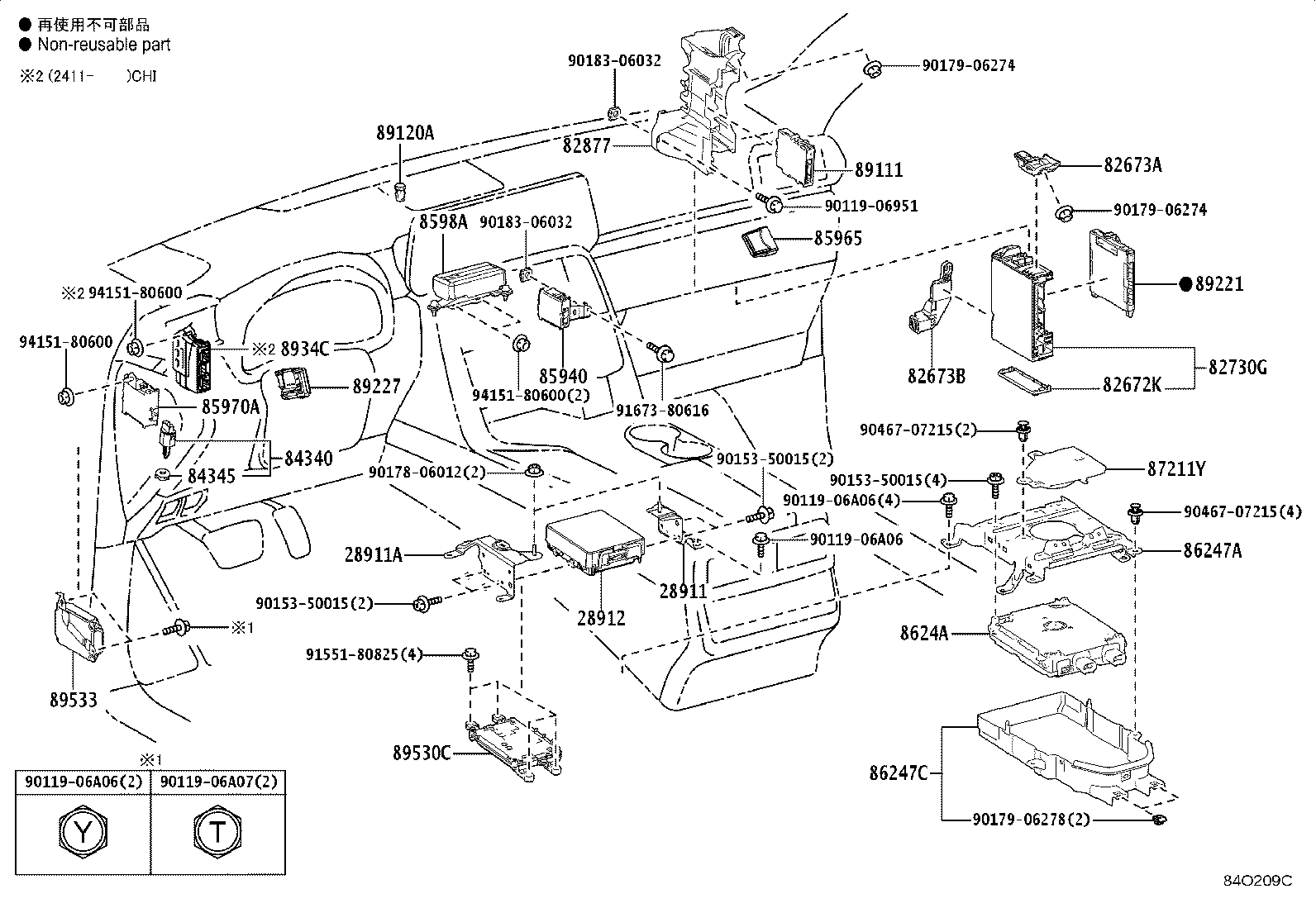

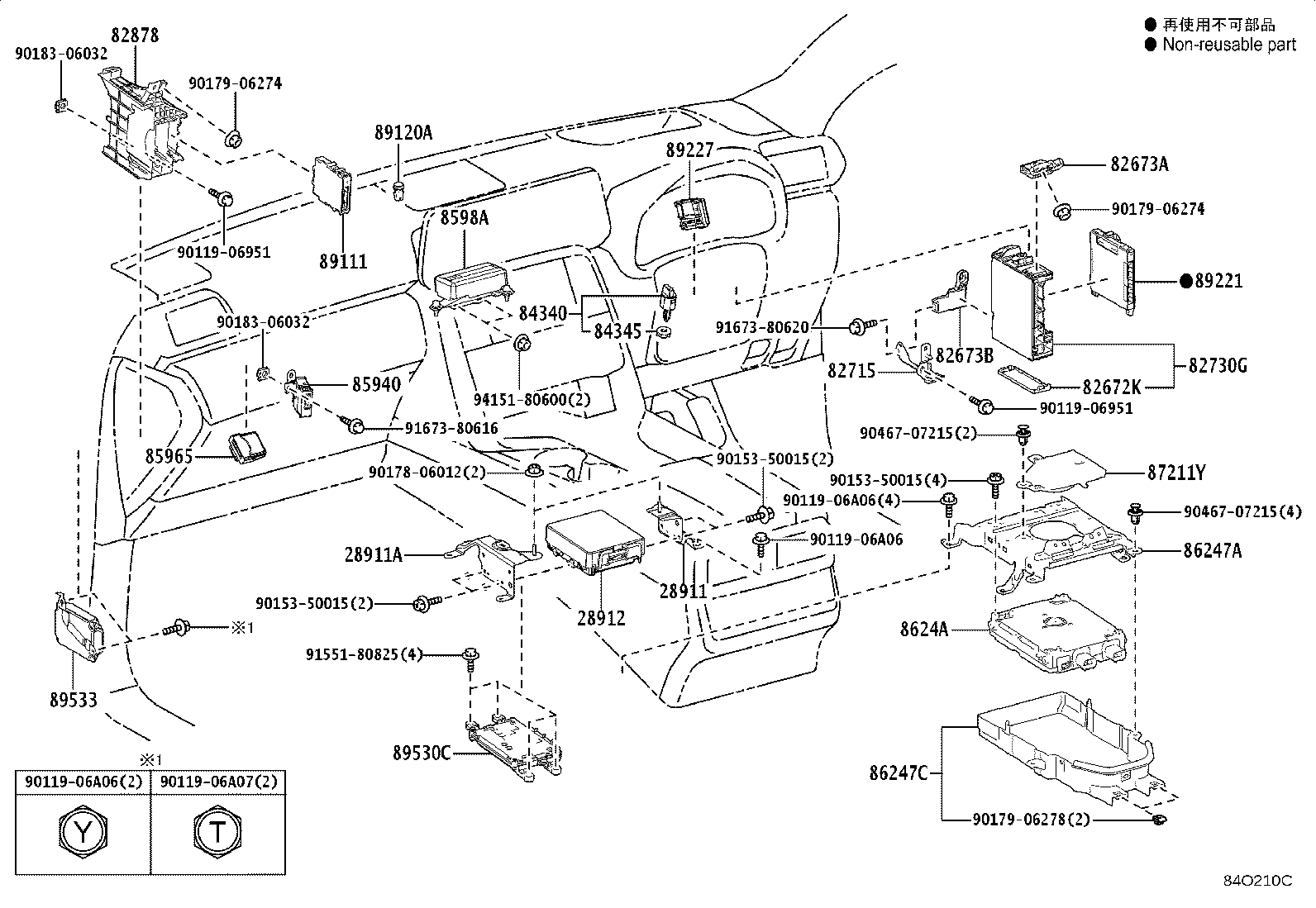

89221	Computer, Multiplex Network Body
89222	Computer, Multiplex Network Door, Front RH
89222A	Computer, Multiplex Network Door
89223	Computer, Multiplex Network Door, Front LH
89224	Computer, Multiplex Network Door, Rear RH
89225	Computer, Multiplex Network Door, Rear LH
89227	Computer, Multiplex Tilt & Telescopic
89235A	Switch, Tilt & Telescopic
89245B	Sensor, Steering
8934C	Circuit, Second Power Supply Remote Parking

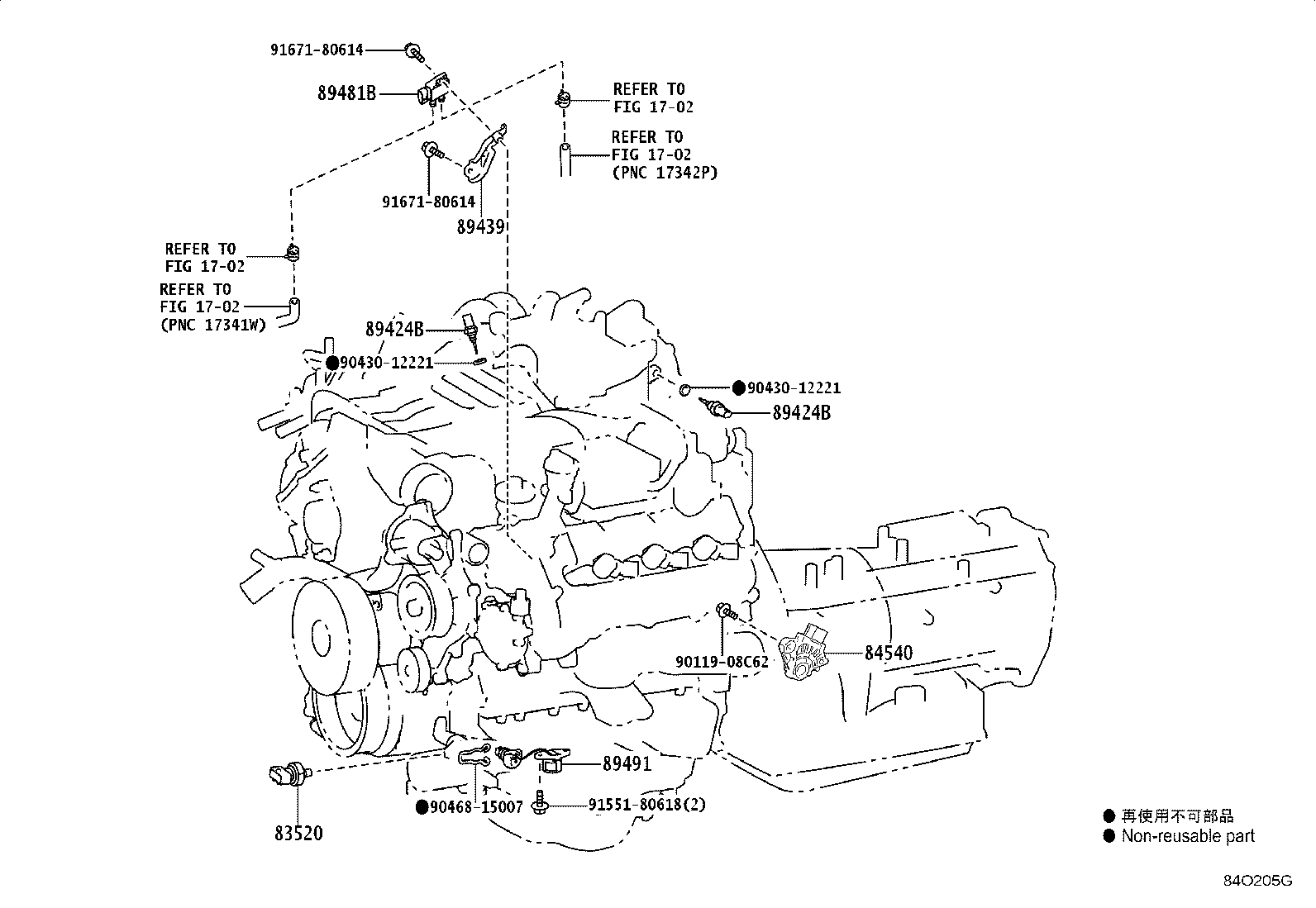

89424B	Switch, Inlet Air Temperature

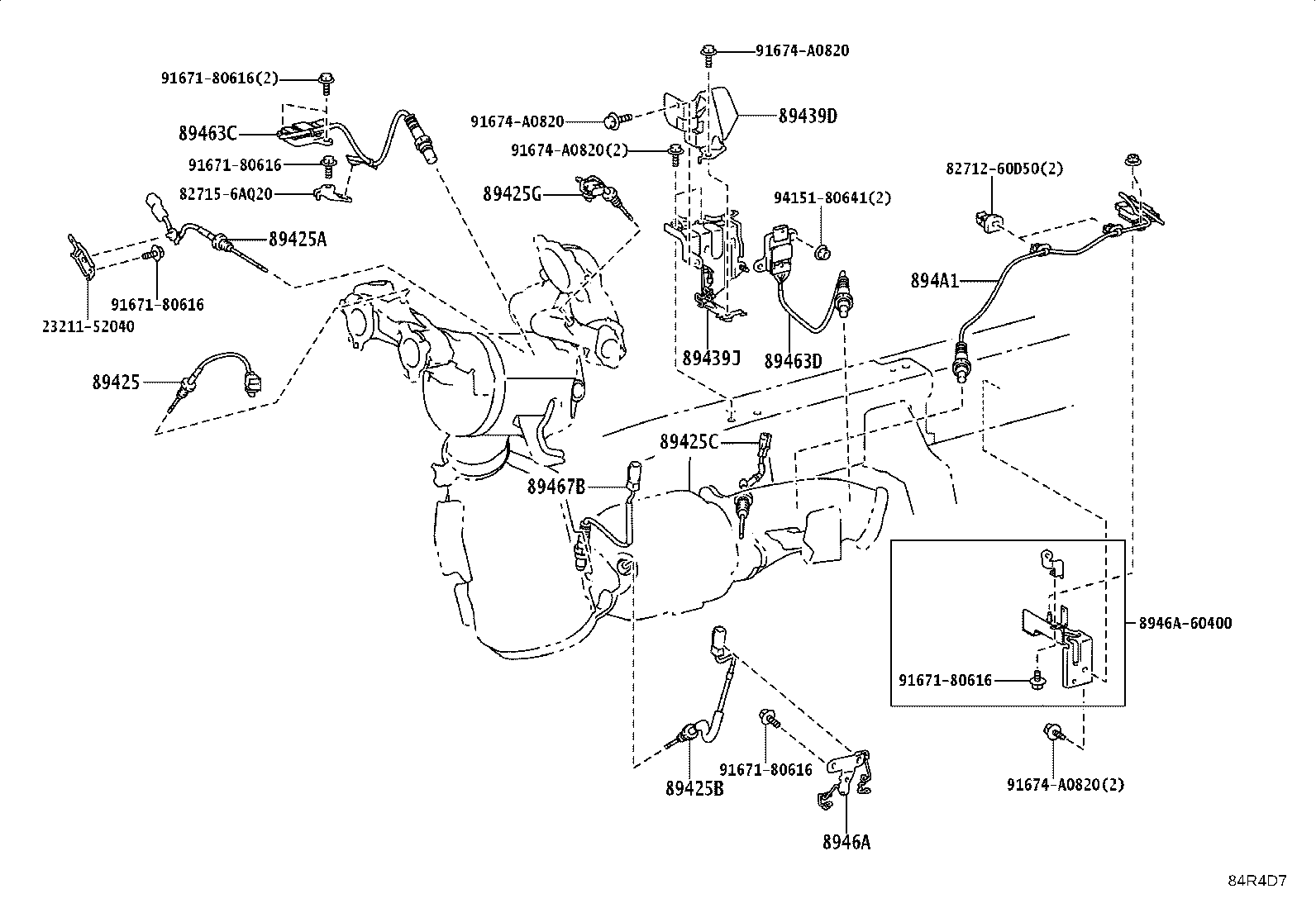

89425	Sensor, Exhaust Gas Temperature
89425A	Sensor, Exhaust Gas Temperature, NO.2
89425B	Sensor, Exhaust Gas Temperature, NO.3
89425C	Sensor, Exhaust Gas Temperature, NO.4
89425G	Sensor, Egr Gas Temperature
89429F	Sensor, Temperature
89430A	Computer Assy, Outer Mirror Control, LH
89430B	Computer Assy, Outer Mirror Control, RH
89439	Bracket, Sensor
89439D	Bracket, Sensor, NO.1
89439J	Bracket, Sensor, NO.2
89461	Sensor, Vapor Pressure
89463B	Relay, Nitrogen Oxides
89463C	Sensor, Nitrogen Oxides, NO.1
89463D	Sensor, Nitrogen Oxides, NO.2

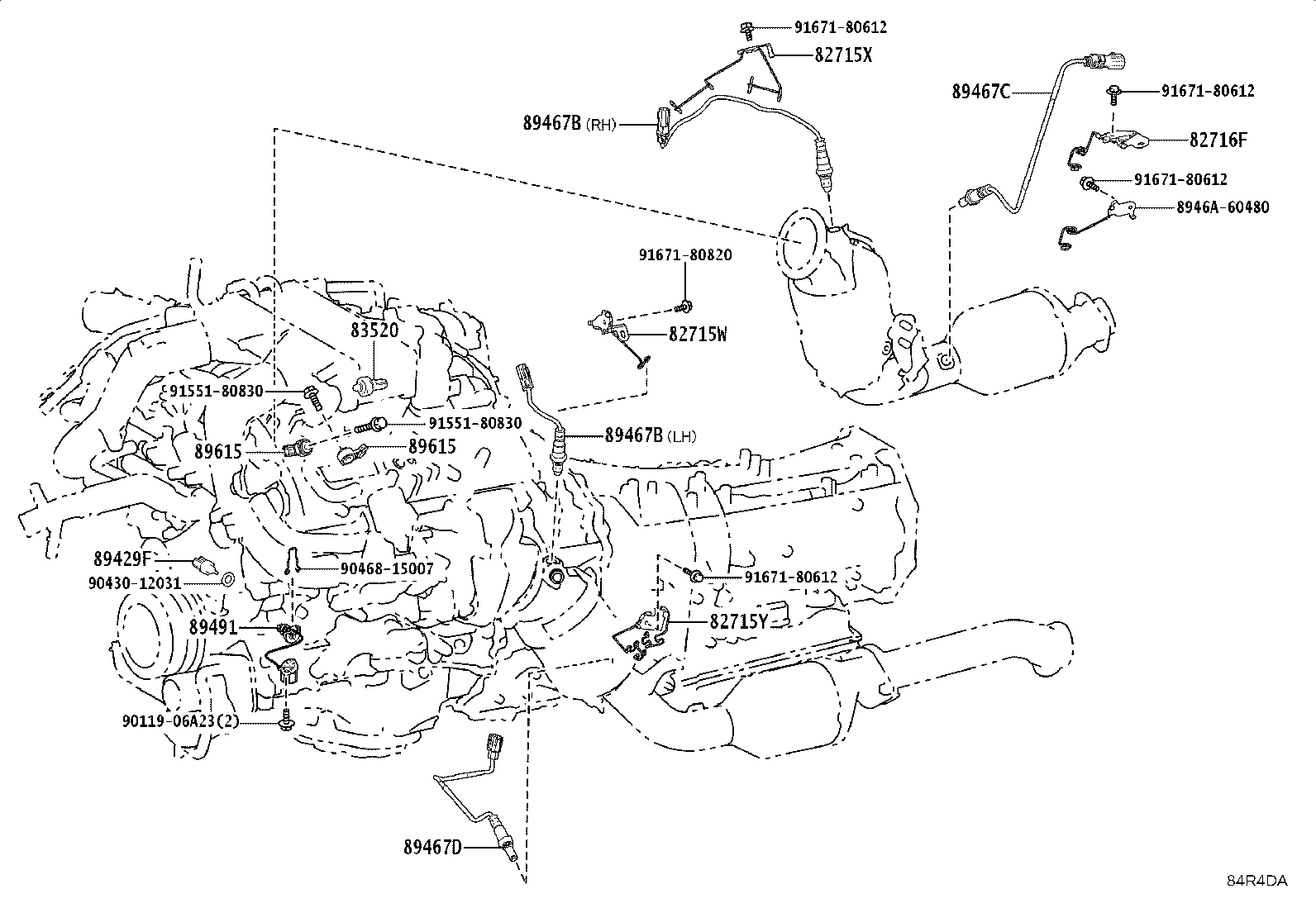

89467B	Sensor, Air Fuel Ratio
89467C	Sensor, Air Fuel Ratio, NO.2
89467D	Sensor, Air Fuel Ratio, NO.3
89467E	Sensor, Air Fuel Ratio, NO.4
8946A	Bracket, Exhaust Sensor Clamp
89481B	Sensor, Differential Pressure
89491	Sensor, Engine Oil Level
894A1	Sensor, Particulate Matter
89530C	Computer Assy, Transmission Control
89533	Computer, 4 Wheel Drive Control
89561F	Relay, Electronic Fuel Injection Main, NO.1
89561G	Relay, Electronic Fuel Injection Main, NO.2
89561H	Relay, Electronic Fuel Injection Main, NO.3
89611	Switch, Push Start
89615	Sensor, Knock Control
896B1A	Relay, Dcu Main
89710	Computer Assy, Position Control
89710C	Computer Assy, Position Control, RH
89710D	Computer Assy, Position Control, LH
89710E	Computer Assy, Position Control, NO.2
89715	Computer, Fold Seat Control
89715A	Computer, Fold Seat Control
89747E	Buzzer, Power Back Door Warning
89870E	Relay, Electronic Driver Unit
G9020E	Relay, Hybrid Water Pump
G9020J	Relay, Oil Pump
G9230A	Relay, Battery Fan, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
