Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

36 part groups · 6 illustrations

Illustrations

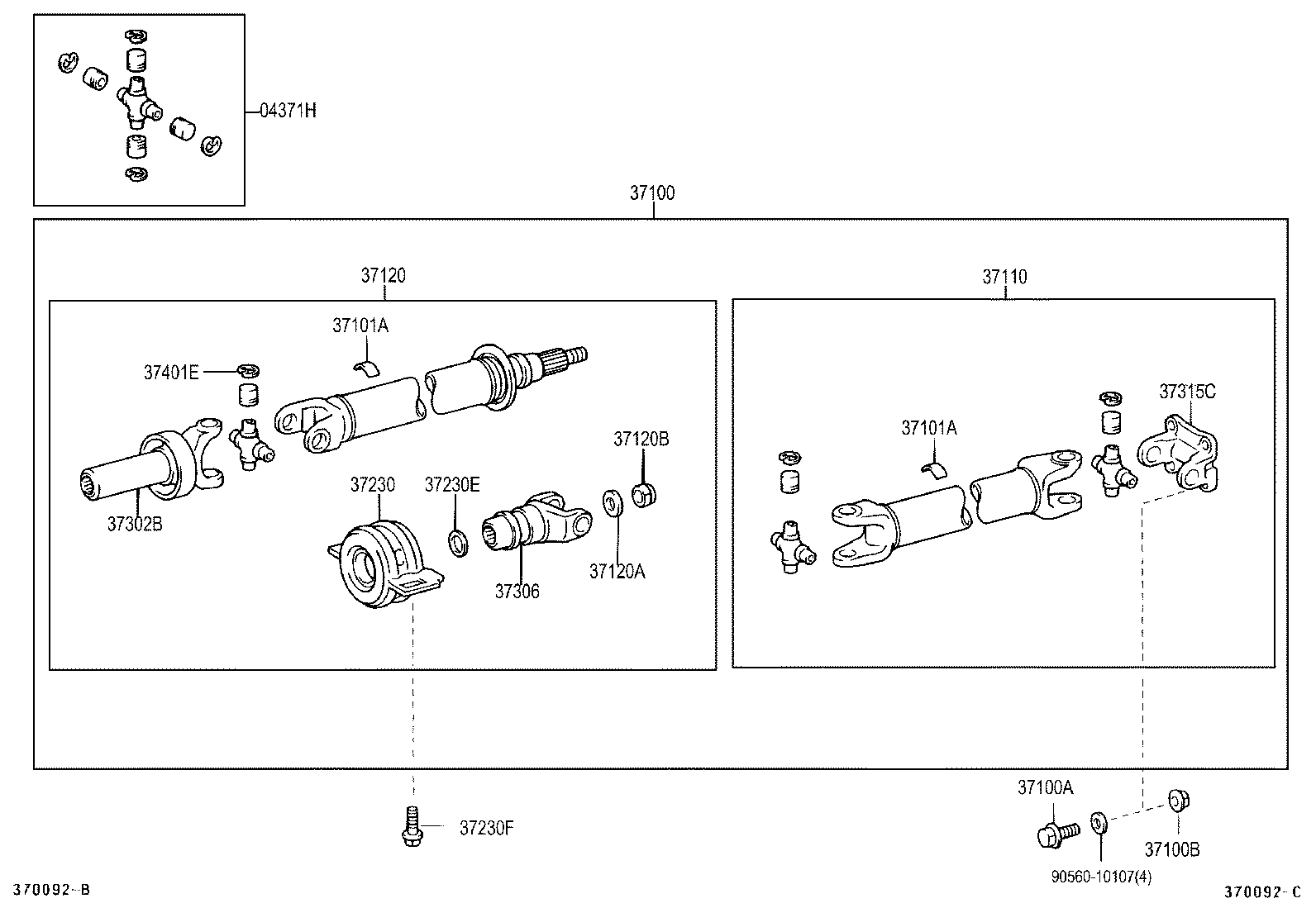

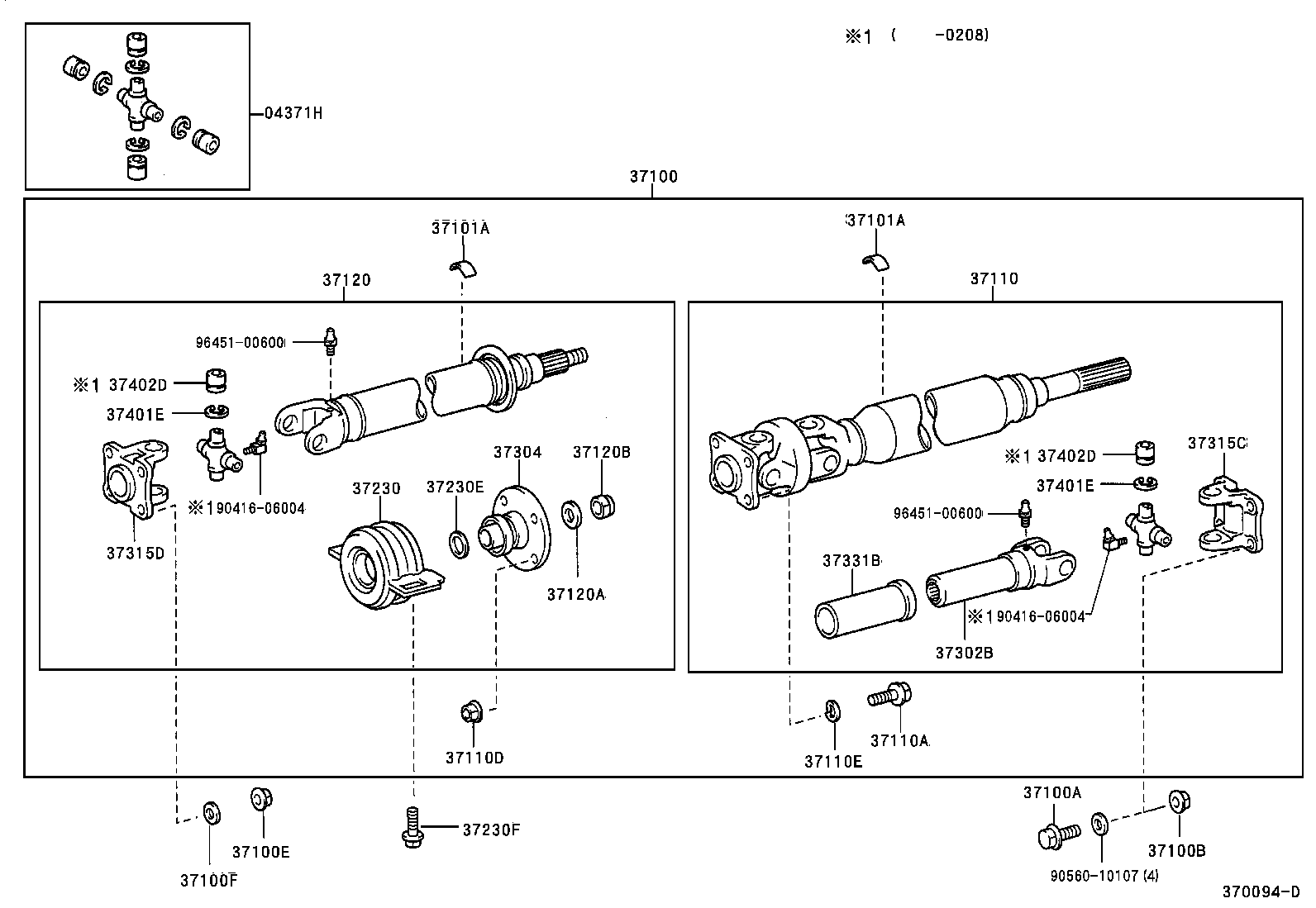

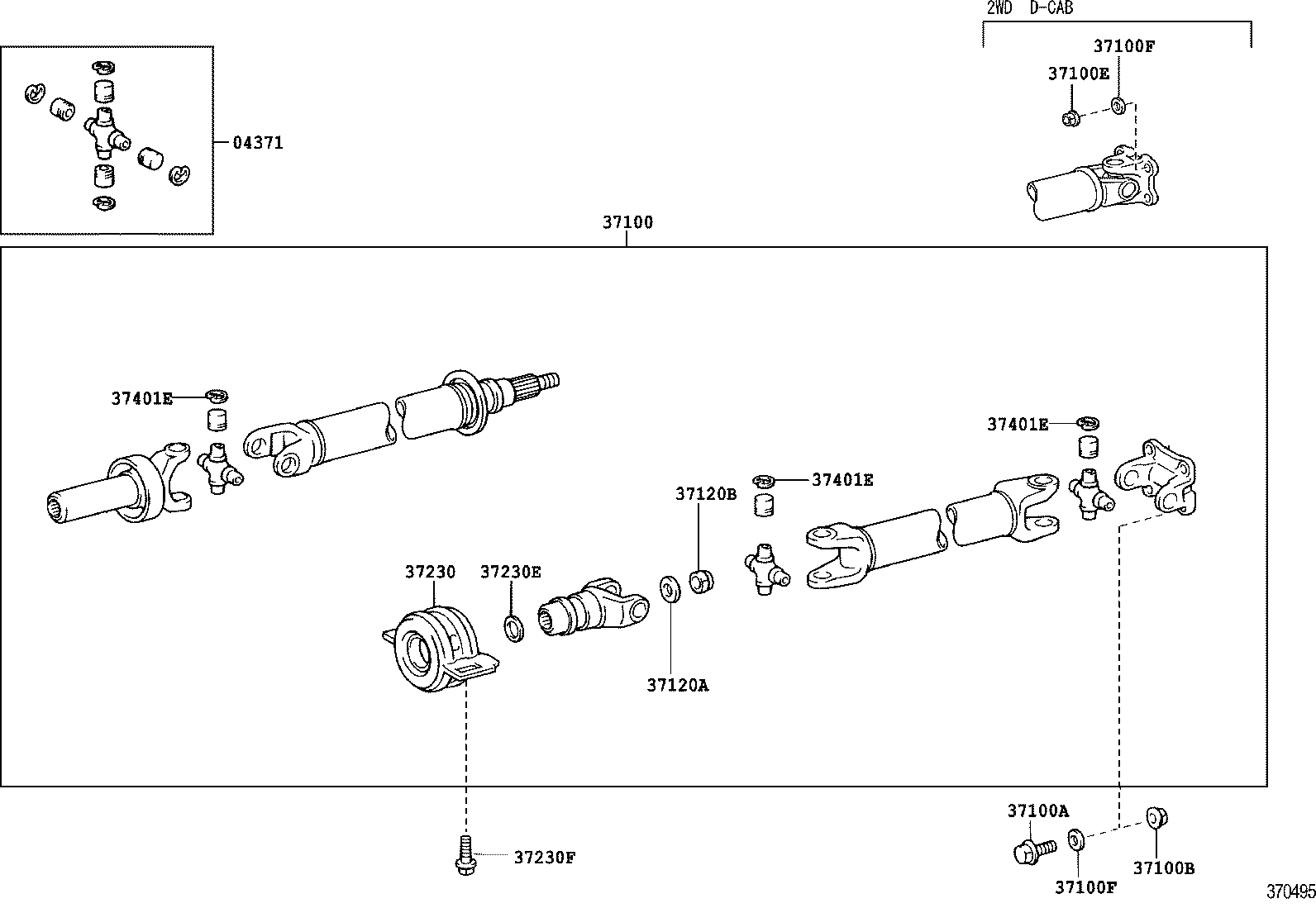

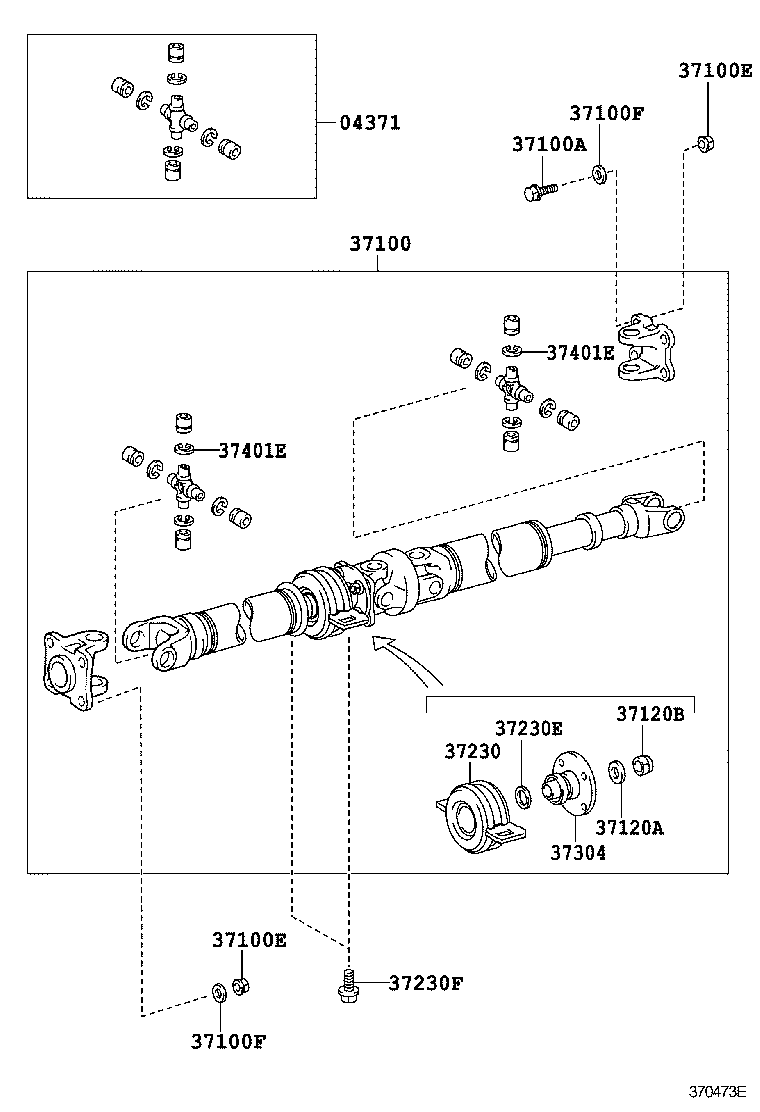

Figure 370093B 370093B 1999-02 → 2004-08 Figure 370092C 370092C 1999-02 → 2004-08 Figure 370094D 370094D 1999-02 → 2004-08 Figure 370472E 370472E 2004-08 → — Figure 370473E 370473E 2004-08 → — Figure 370495 370495 2004-08 → —

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
04371G Spider Kit, Front Propeller Shaft Universal Joint
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37100 Shaft Assy, Propeller W/Center Bearing
37100A Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100B Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100E Nut, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100F Washer, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37117 Insulator, Propeller Shaft Heat
37120 Shaft Assy, Propeller Intermediate
37120A Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37140 Shaft Assy, Propeller, Front
37140A Bolt (F0R FRONT PROPELLER SHAFT)
37140B Nut (F0R FRONT PROPELLER SHAFT)
37140C Washer (F0R FRONT PROPELLER SHAFT)
37230 Bearing Assy, Center Support, NO.1
37230E Washer, NO.1 (FOR CENTER SUPPORT BEARING)
37230F Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
37302A Yoke Sub-assy, FR Propeller Shaft Universal J0INT Sleeve
37302B Yoke Sub-assy, RR Propeller Shaft Universal J0INT Sleeve
37304 Flange Sub-assy, Universal Joint
37306 Yoke Sub-assy, Universal Joint, Center
37315B Y0KE, Front Propeller Shaft Universal J0INT Flange
37315C Yoke, NO.1, Rear Propeller Shaft Universal Joint Flange
37315D Yoke, NO.2, Rear Propeller Shaft Universal Joint Flange
37331B Cover Sub-assy, Rear Propeller Shaft Sliding Shaft Dust
37334A Boot, Sliding Shaft
37401D Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
37402D Bearing, Rear Propeller Shaft Universal Joint Spider
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
