Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04

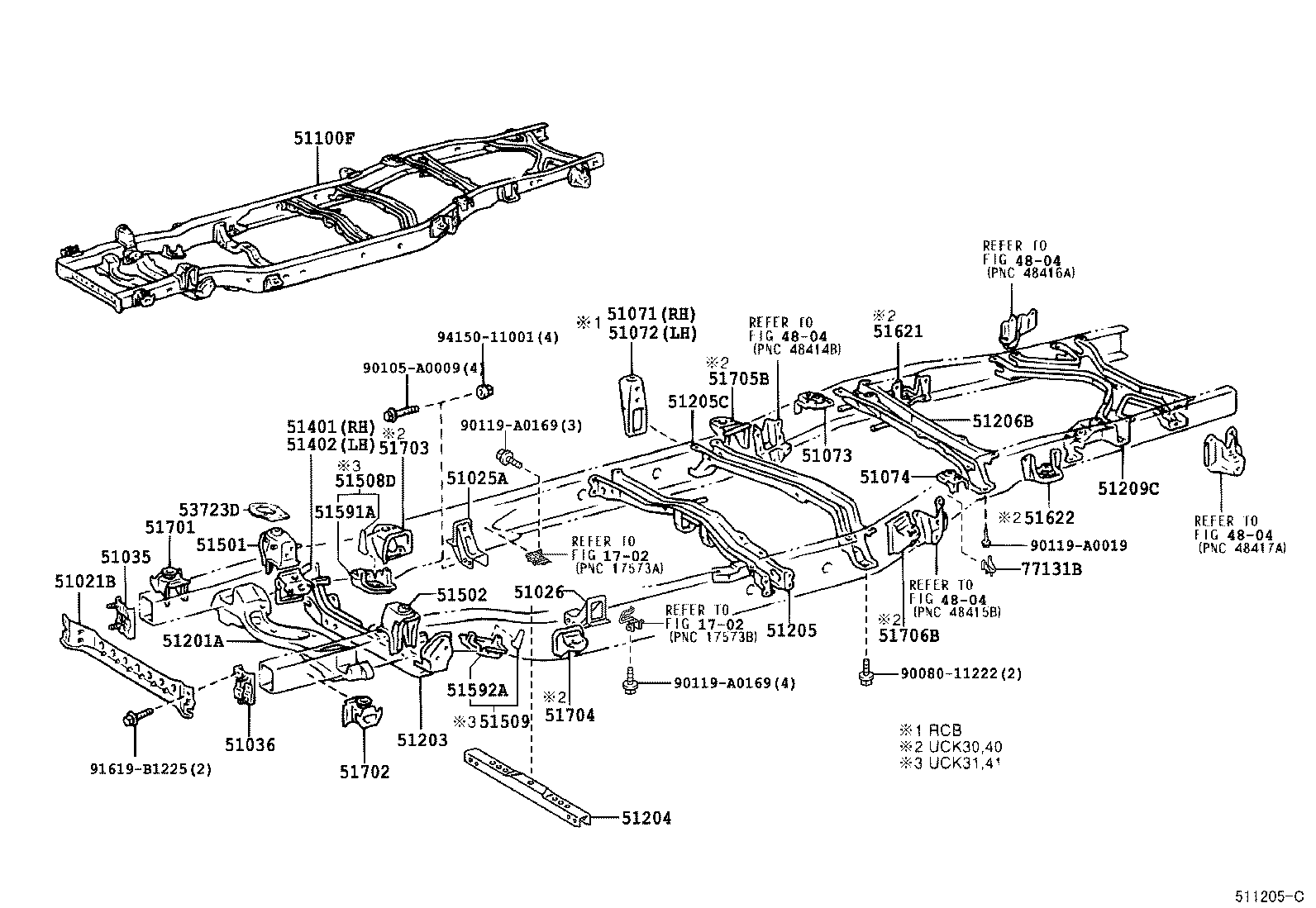

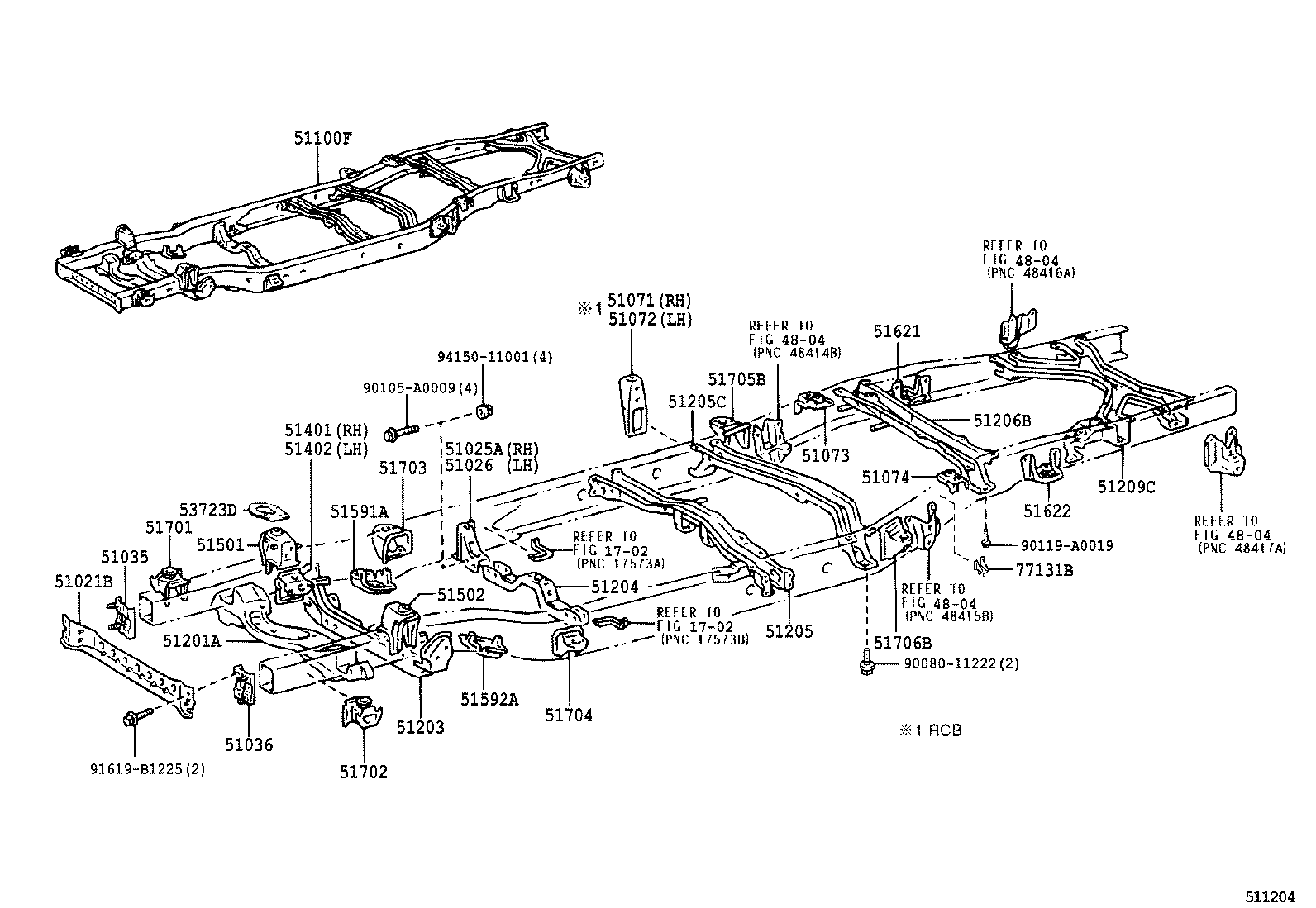

Frame

35 part groups · 3 illustrations

PNC	Description
51021B	Crossmember Sub-assy, Frame Auxiliary
51025A	Bracket Sub-assy, Frame NO.3 Crossmember, RH
51026	Bracket Sub-assy, Frame NO.3 Crossmember, LH
51035	Plate Sub-assy, Frame Side Rail, RH
51036	Plate Sub-assy, Frame Side Rail, LH
51071	Bracket Sub-assy, Rear Body Mounting, NO.1 RH
51072	Bracket Sub-assy, Rear Body Mounting, NO.1 LH
51073	Bracket Sub-assy, Rear Body Mounting, NO.2 RH
51074	Bracket Sub-assy, Rear Body Mounting, NO.2 LH
51100F	Frame Sub-assy
51201A	Crossmember Sub-assy, Frame, Front
51203	Crossmember Sub-assy, Frame, NO.2
51204	Crossmember Sub-assy, Frame, NO.3
51205	Crossmember Sub-assy, Frame, NO.4
51205C	Crossmember Sub-assy, Frame, NO.5
51206B	Crossmember Sub-assy, Frame, NO.6
51209C	Crossmember Sub-assy, Frame, Rear
51401	Bracket Sub-assy, Engine Front Mounting, RH
51402	Bracket Sub-assy, Engine Front Mounting, LH
51501	Support Sub-assy, Suspension Arm, RH
51502	Support Sub-assy, Suspension Arm, LH
51508D	Support Sub-assy, Stabilizer, RH
51509	Support Sub-assy, Stabilizer
51591A	Support, Stabilizer, RH
51592A	Support, Stabilizer, LH
51621	Bracket, Rear Bound Stopper, RH
51622	Bracket, Rear Bound Stopper, LH
51701	Bracket Sub-assy, Cab Mounting, NO.1 RH
51702	Bracket Sub-assy, Cab Mounting, NO.1 LH
51703	Bracket Sub-assy, Cab Mounting, NO.2, RH
51704	Bracket Sub-assy, Cab Mounting, NO.2 LH
51705B	Bracket Sub-assy, Cab Mounting, NO.3 RH
51706B	Bracket Sub-assy, Cab Mounting, NO.3 LH
53723D	Reinforcement, Front Spring Support
77131B	Bracket, Fuel Inlet Pipe Support

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
