Toyota Tundra

1999-02 → 2006-10 · chassis GSK30,UCK3#,4#,VCK30,40 · catalogue 841420 · United States

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

159 part groups · 26 illustrations

Illustrations

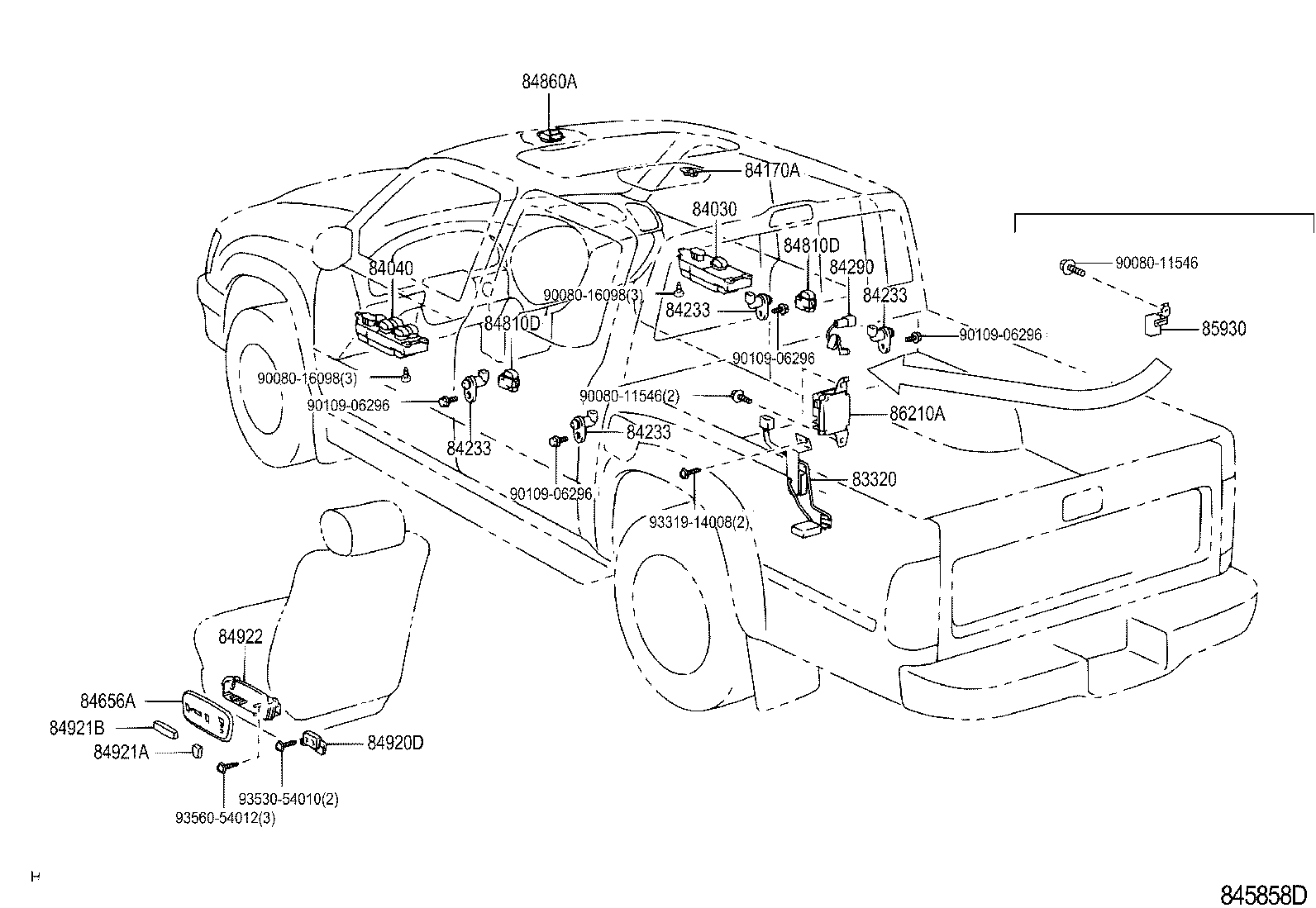

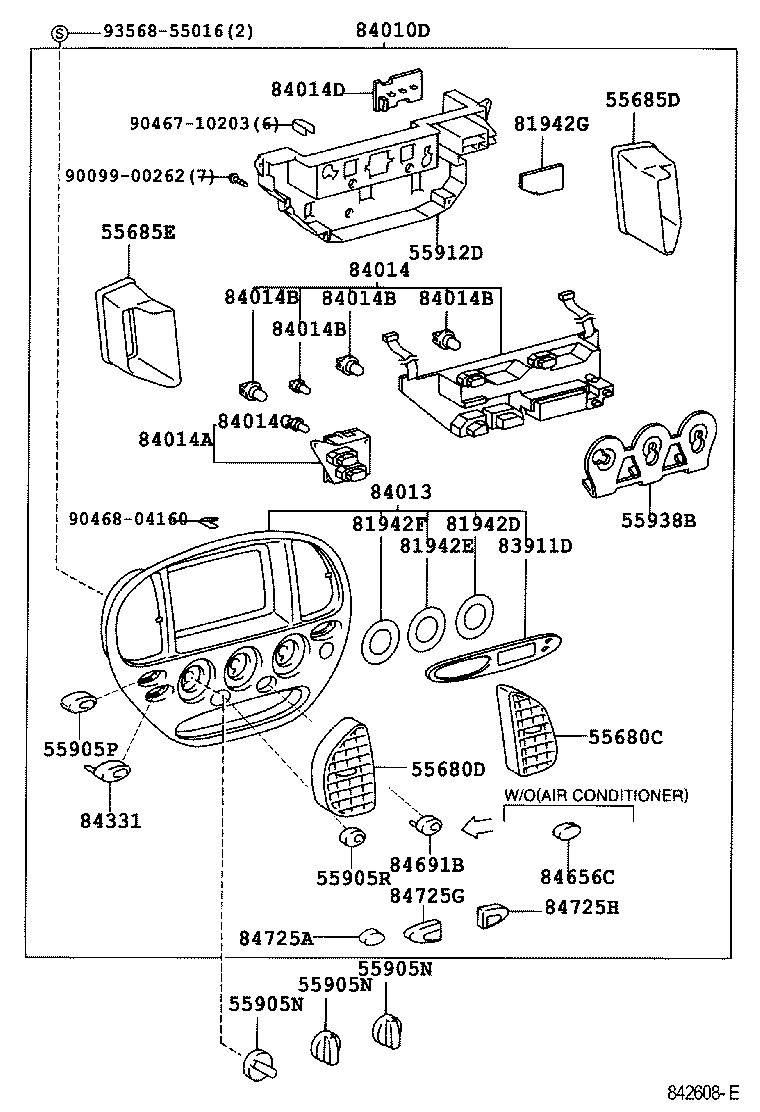

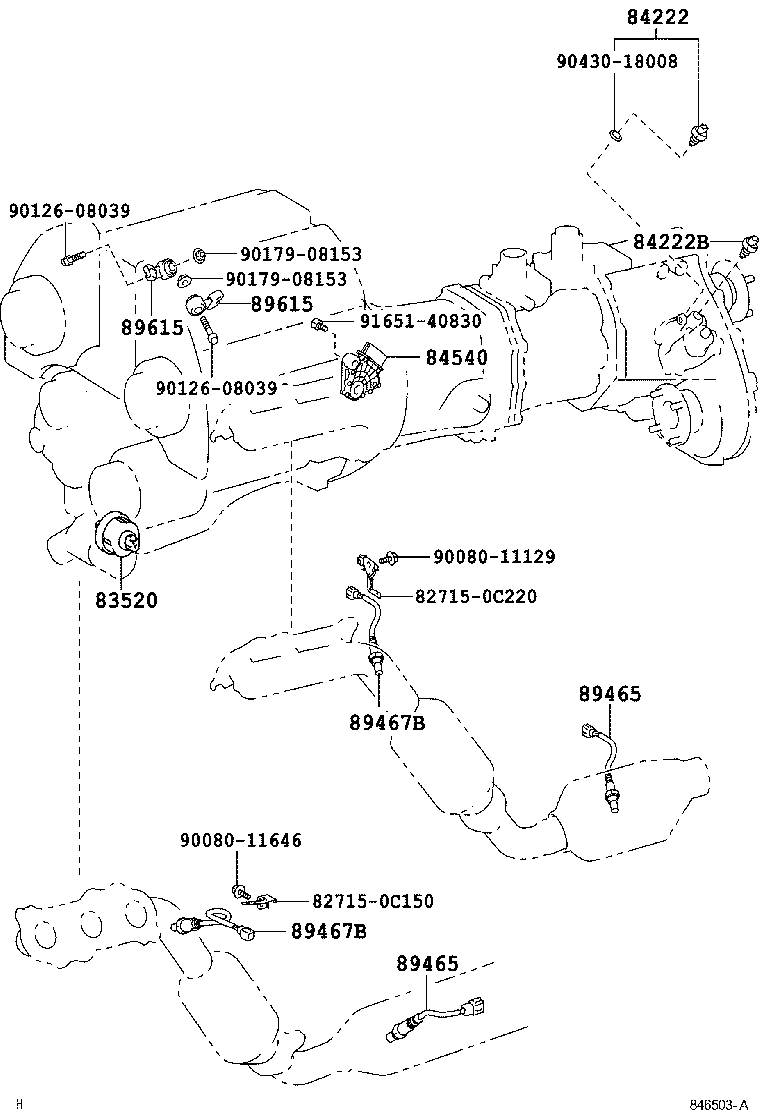

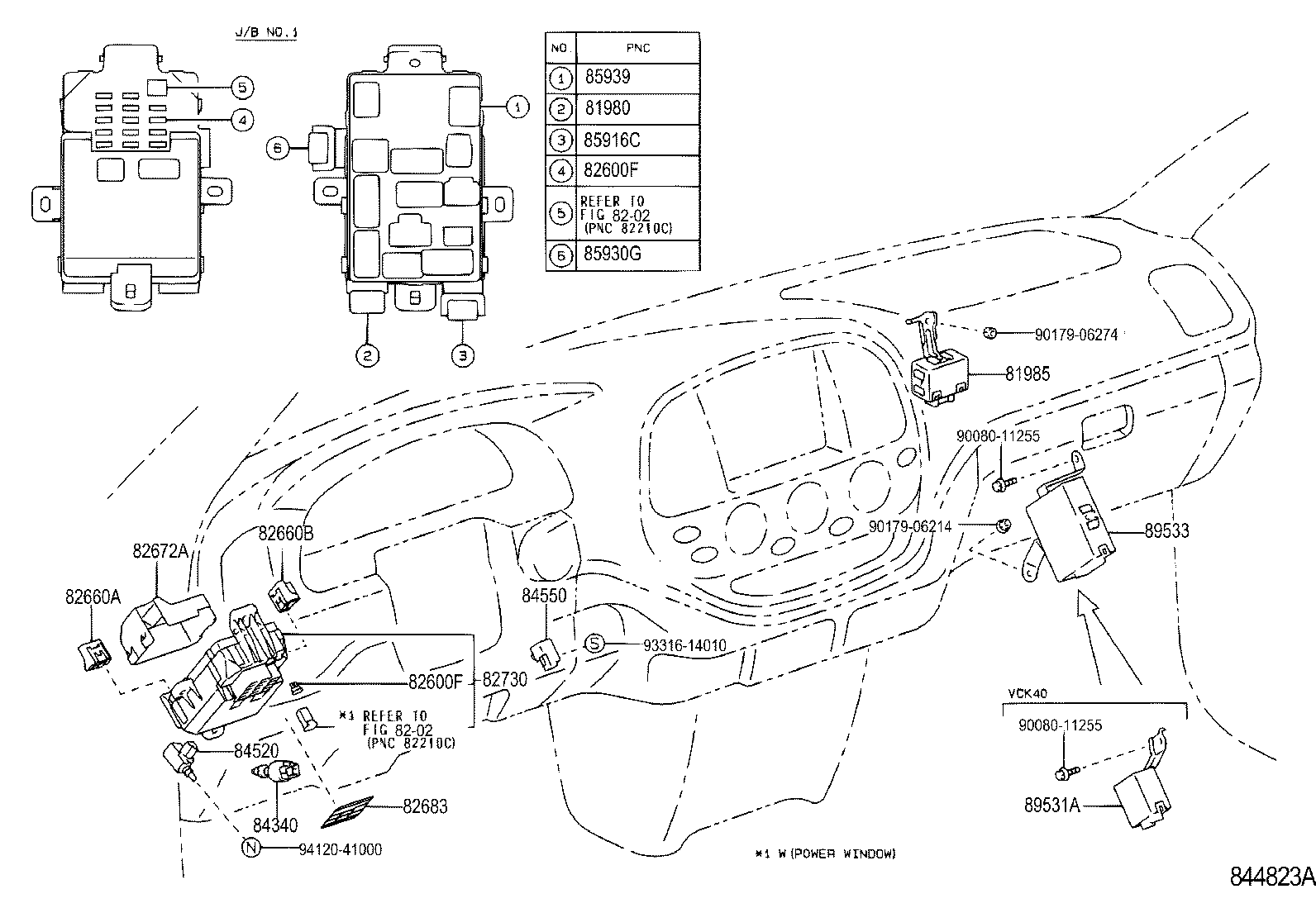

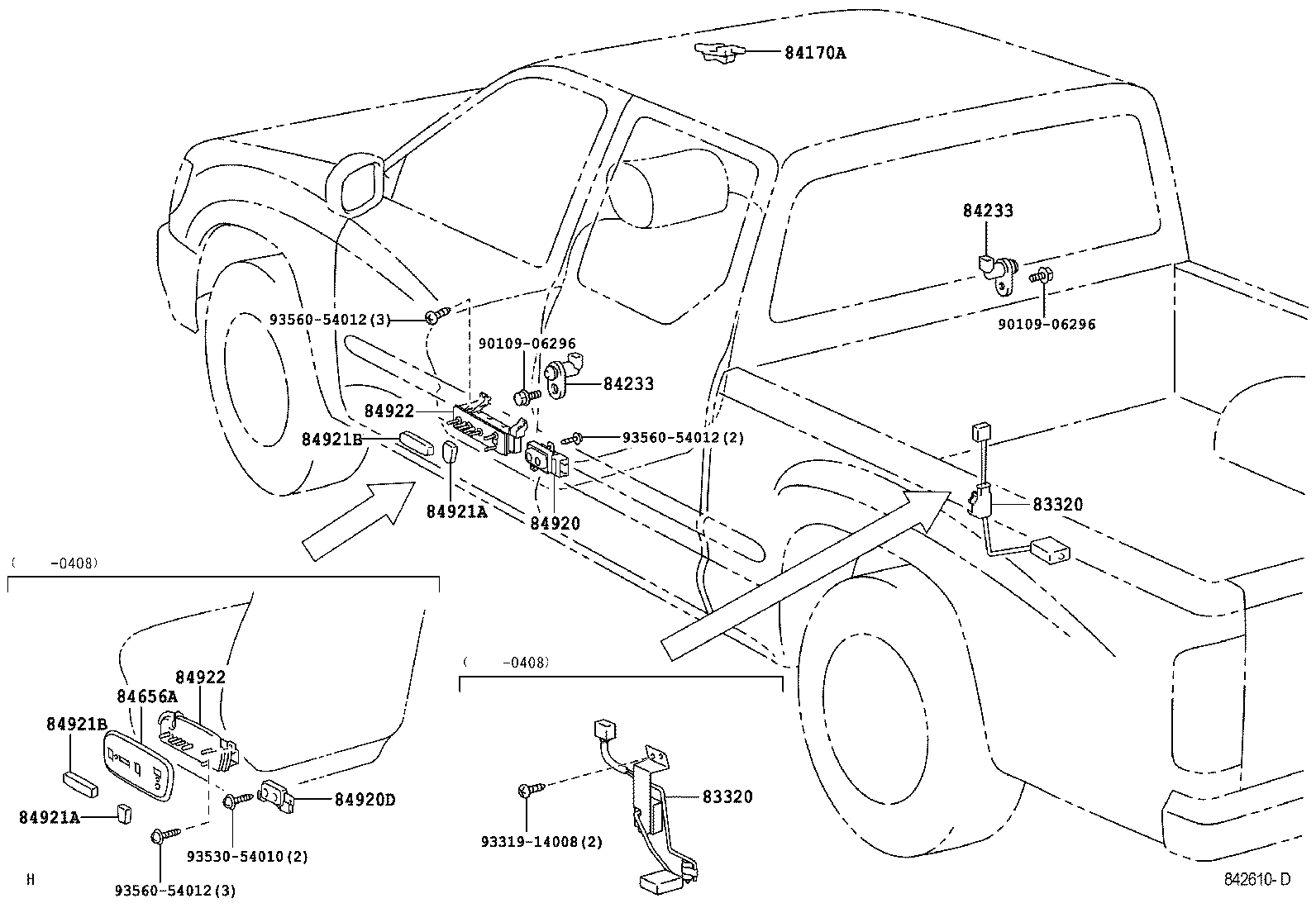

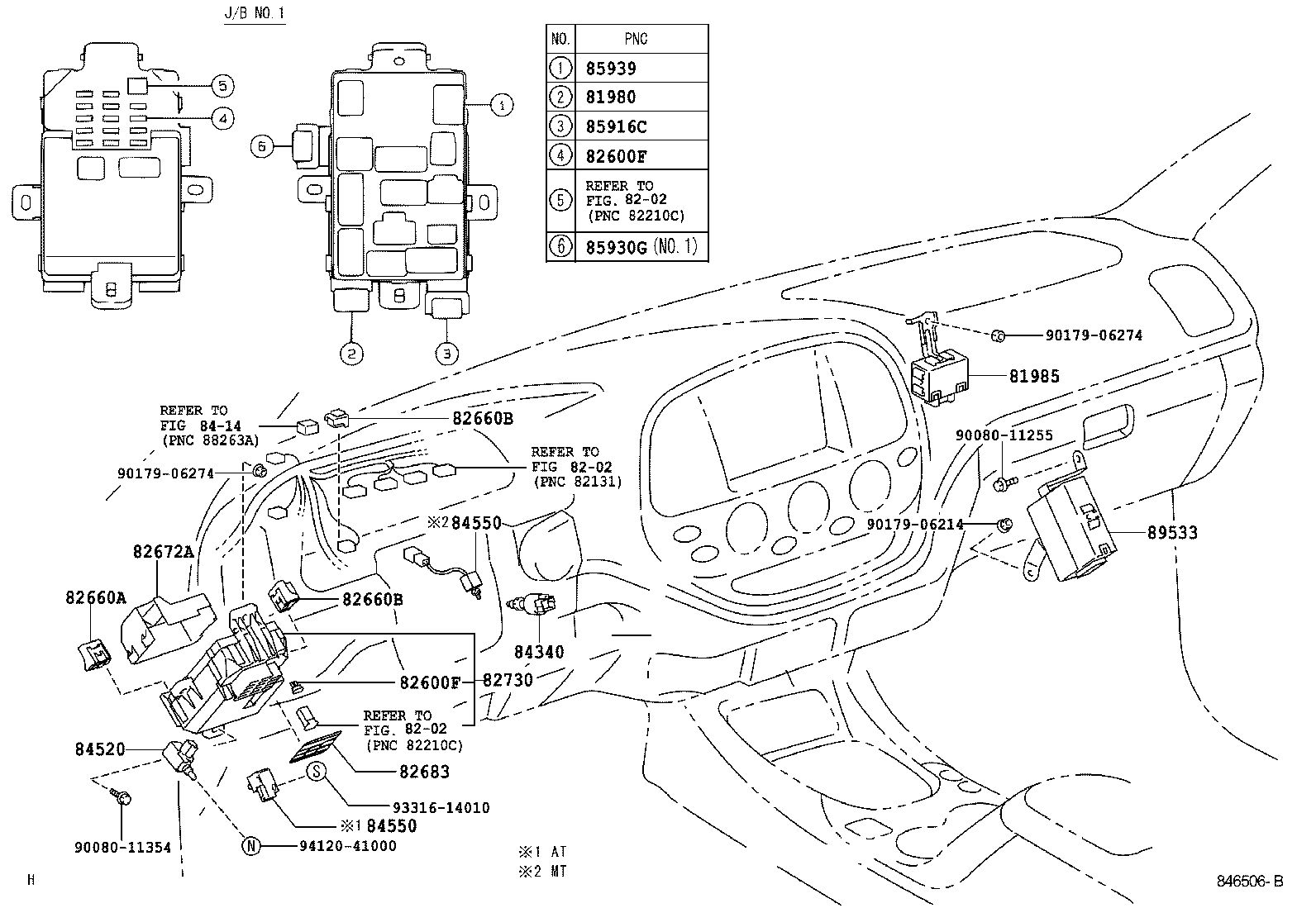

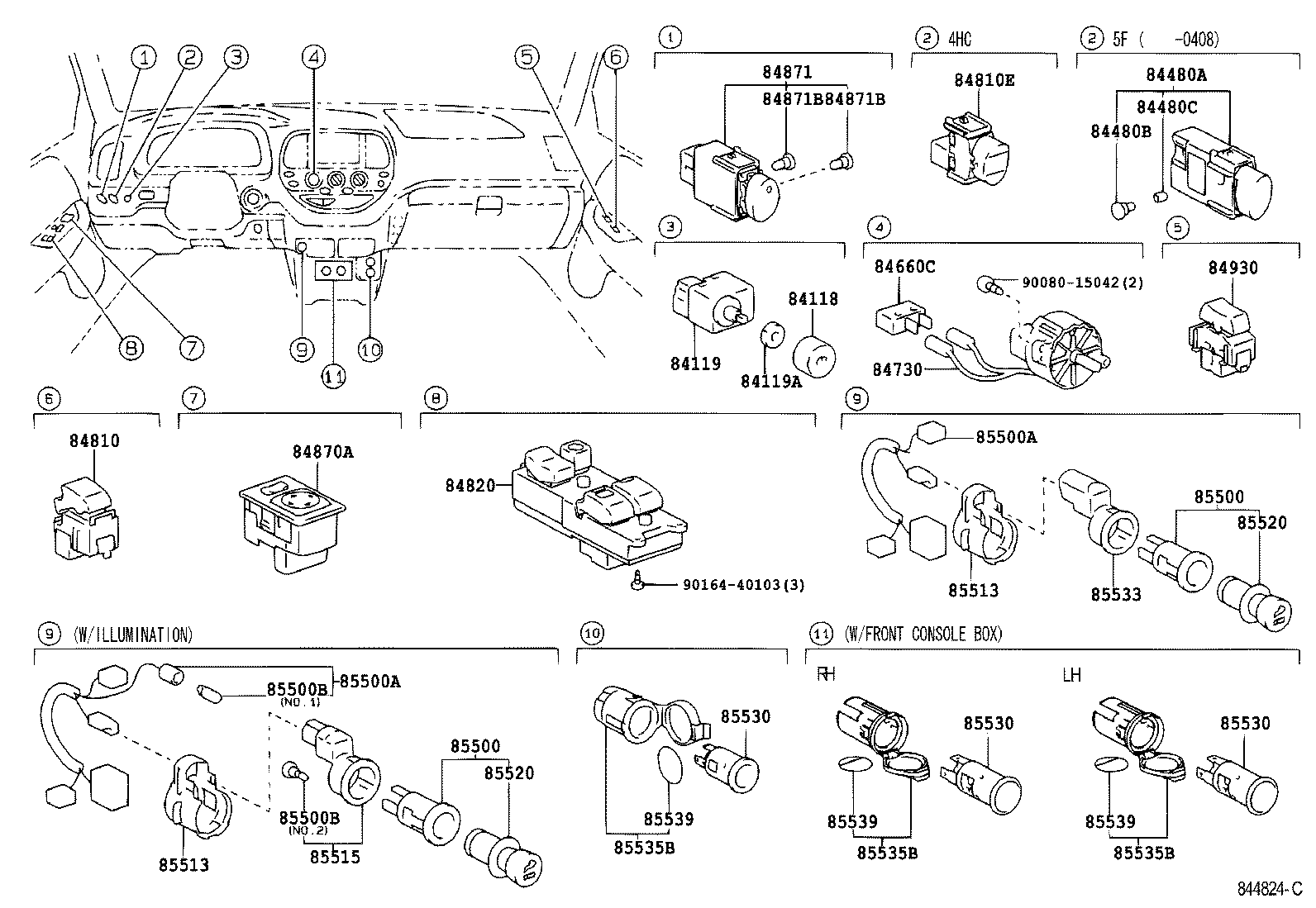

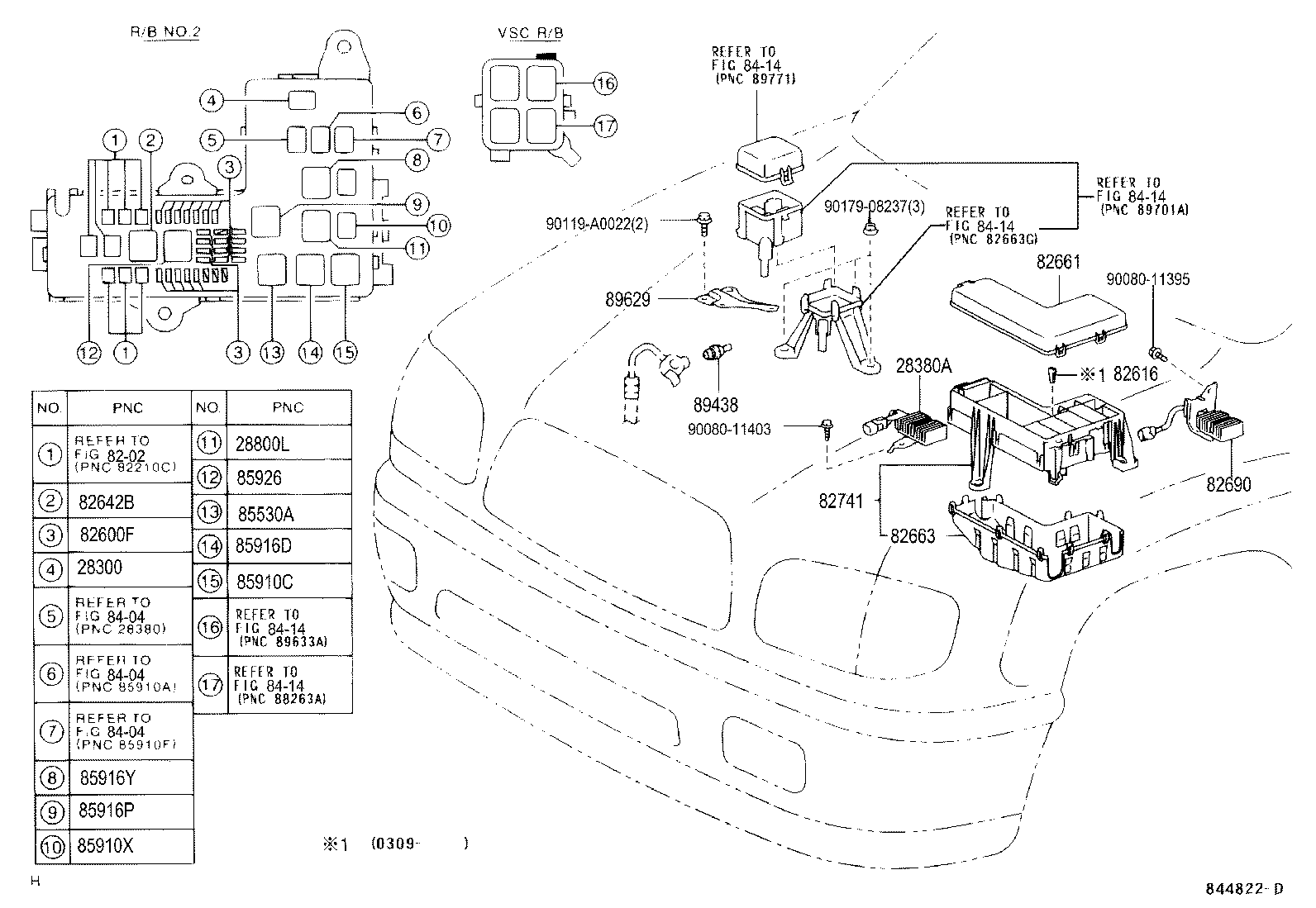

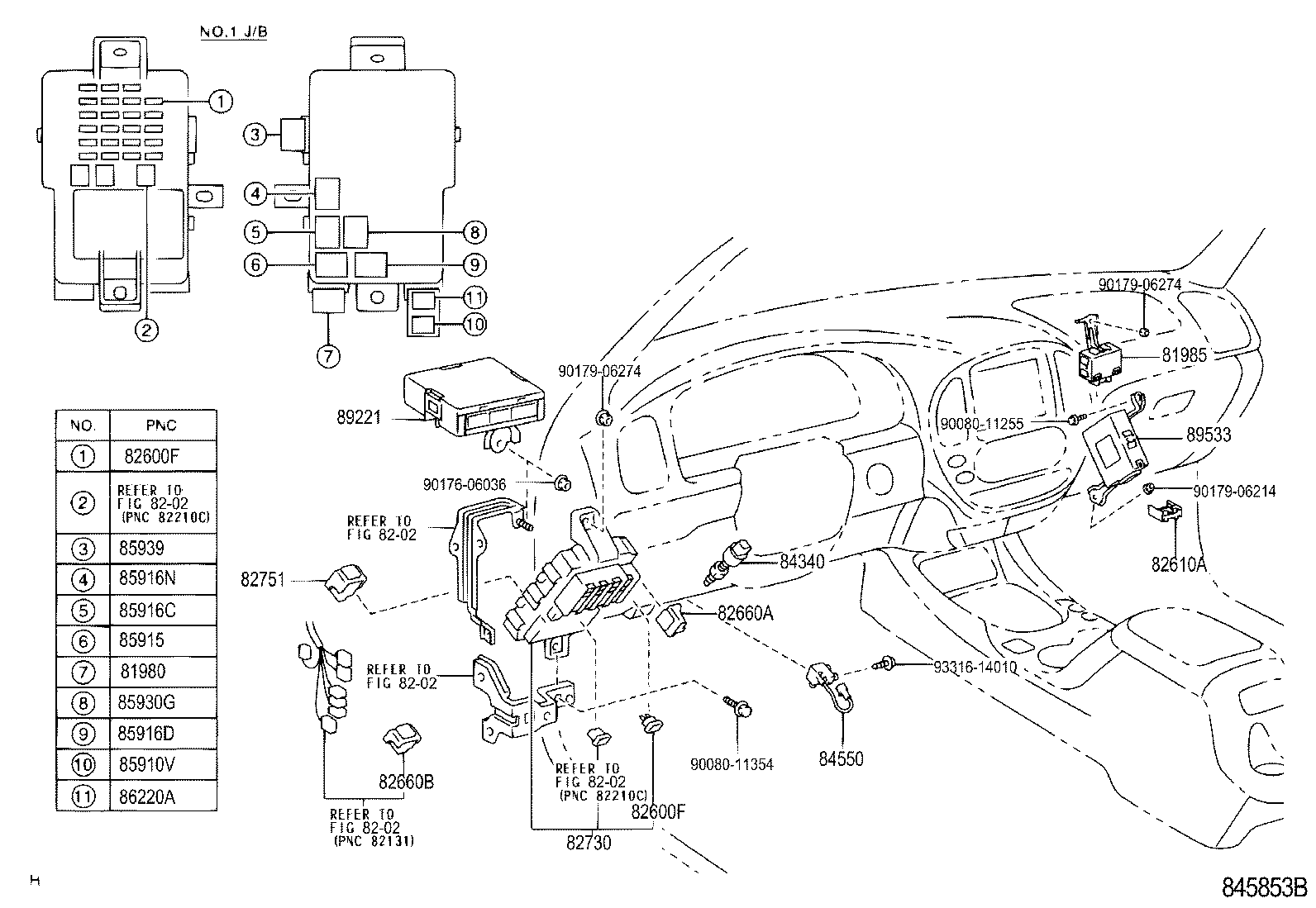

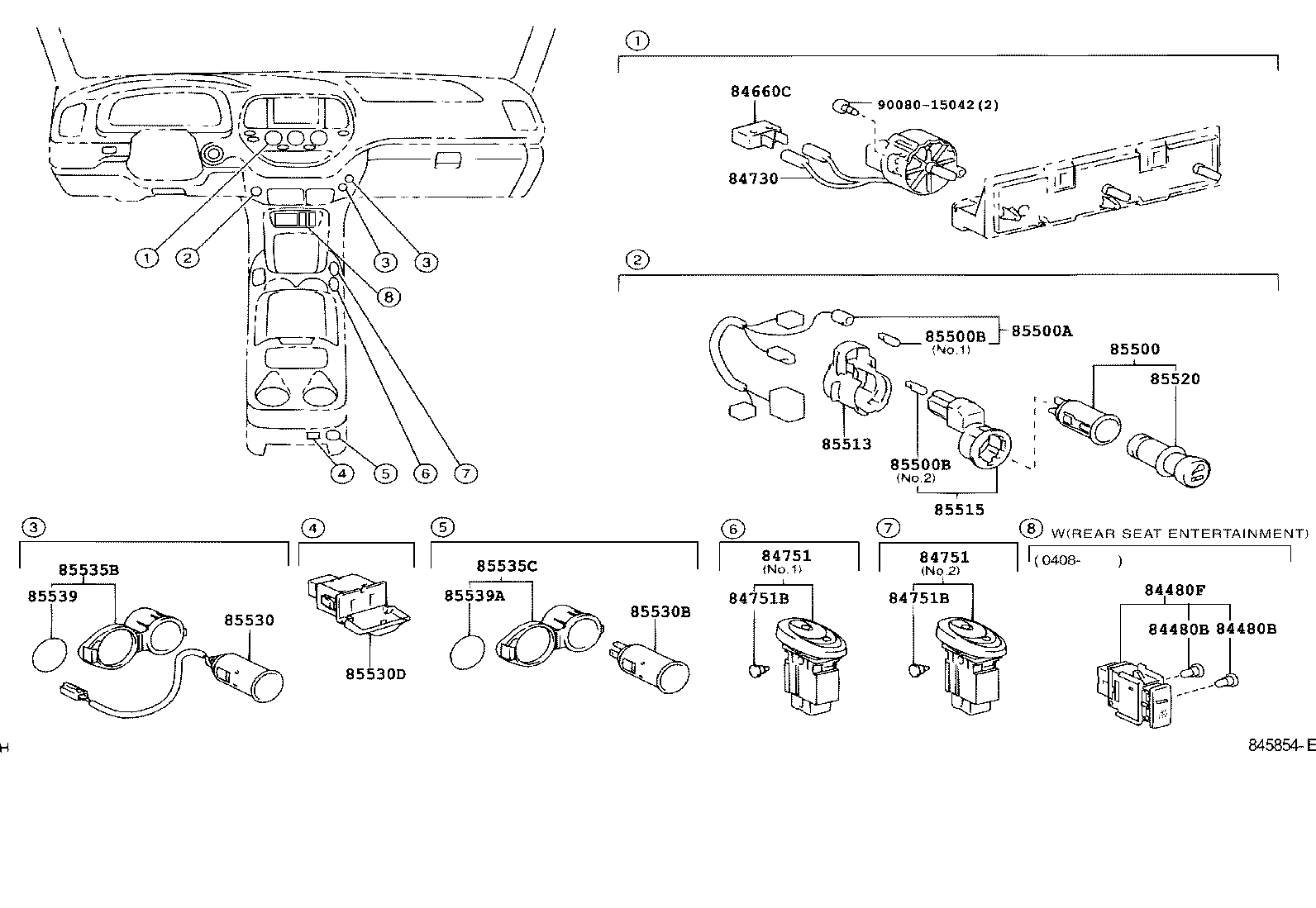

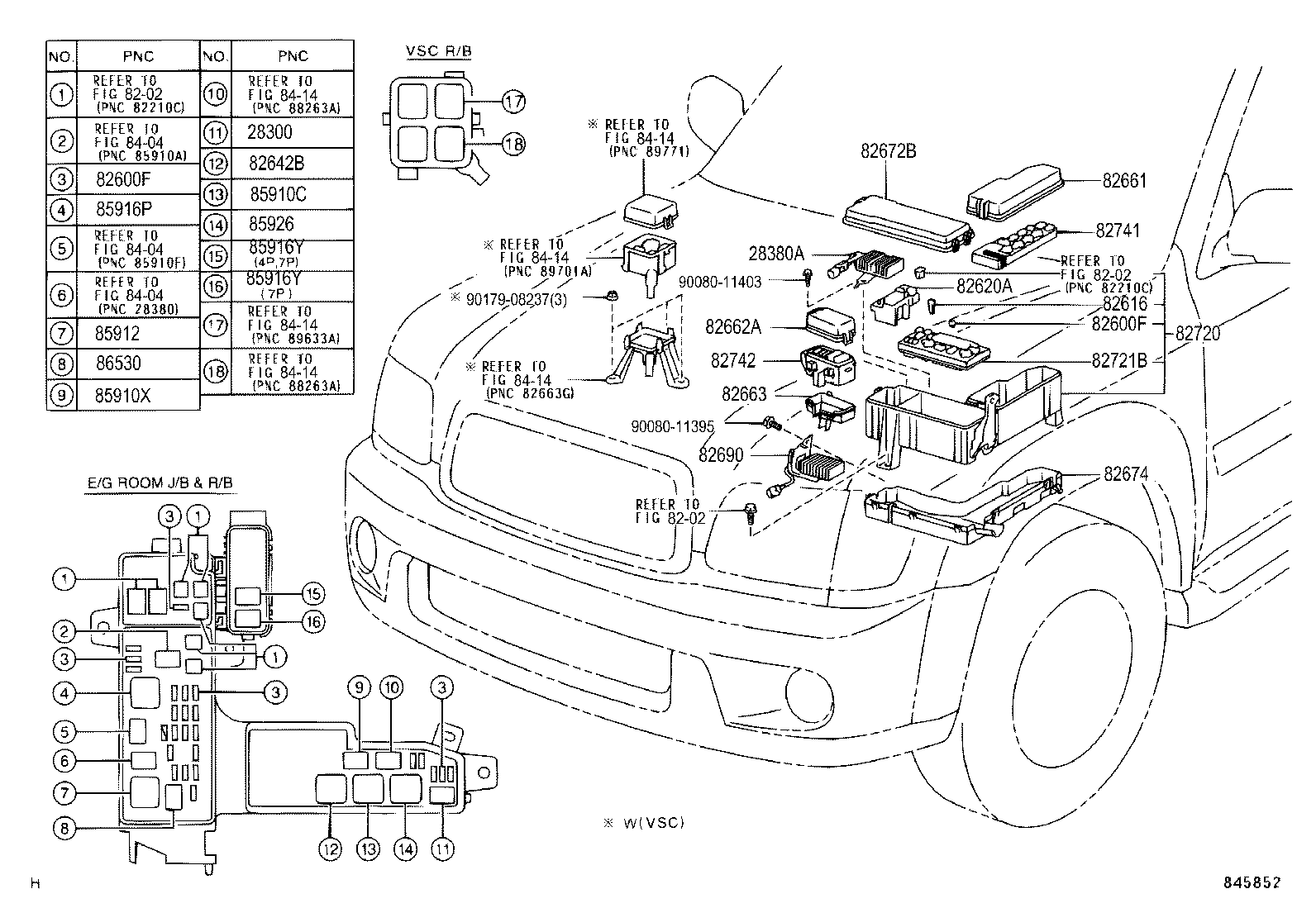

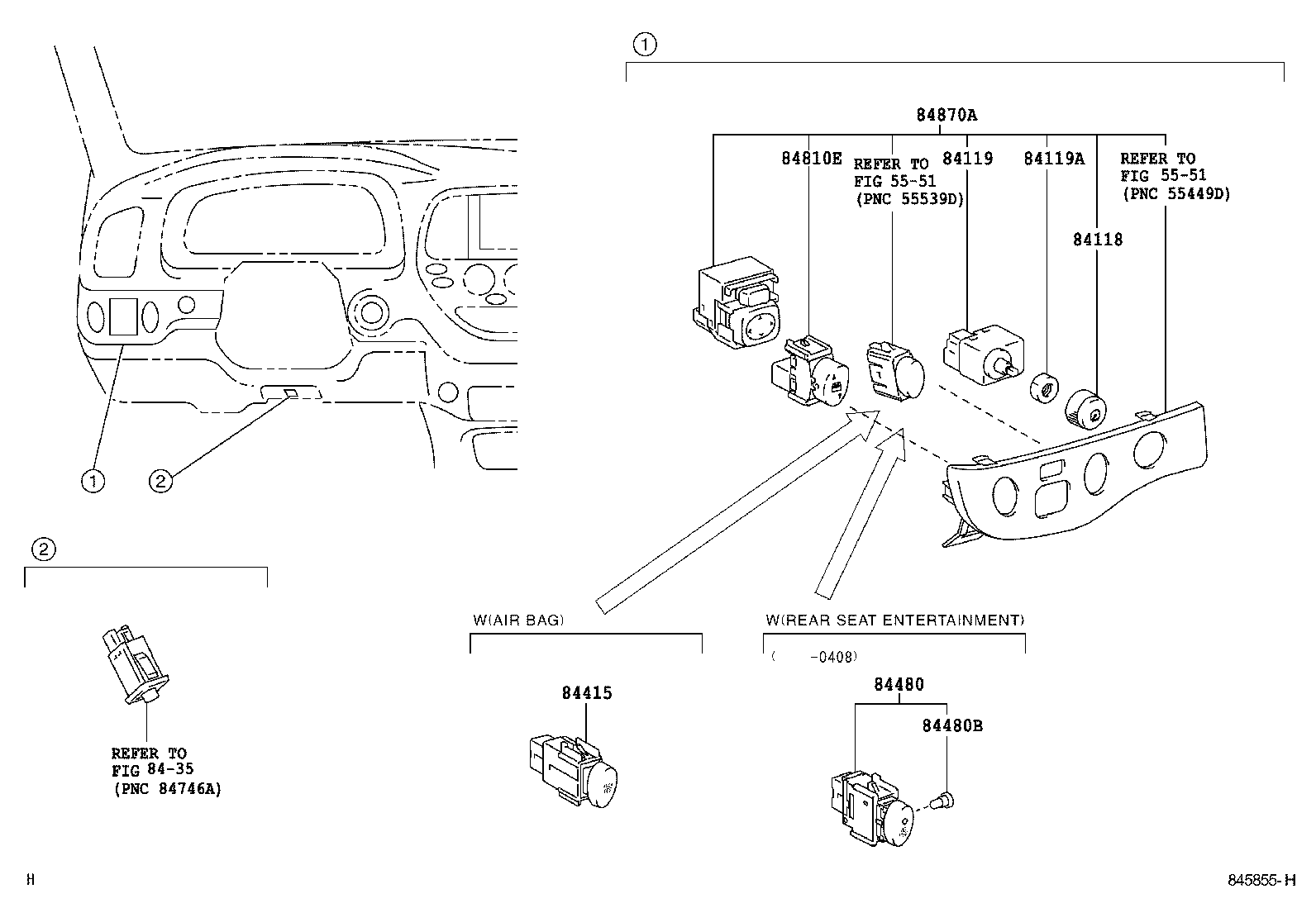

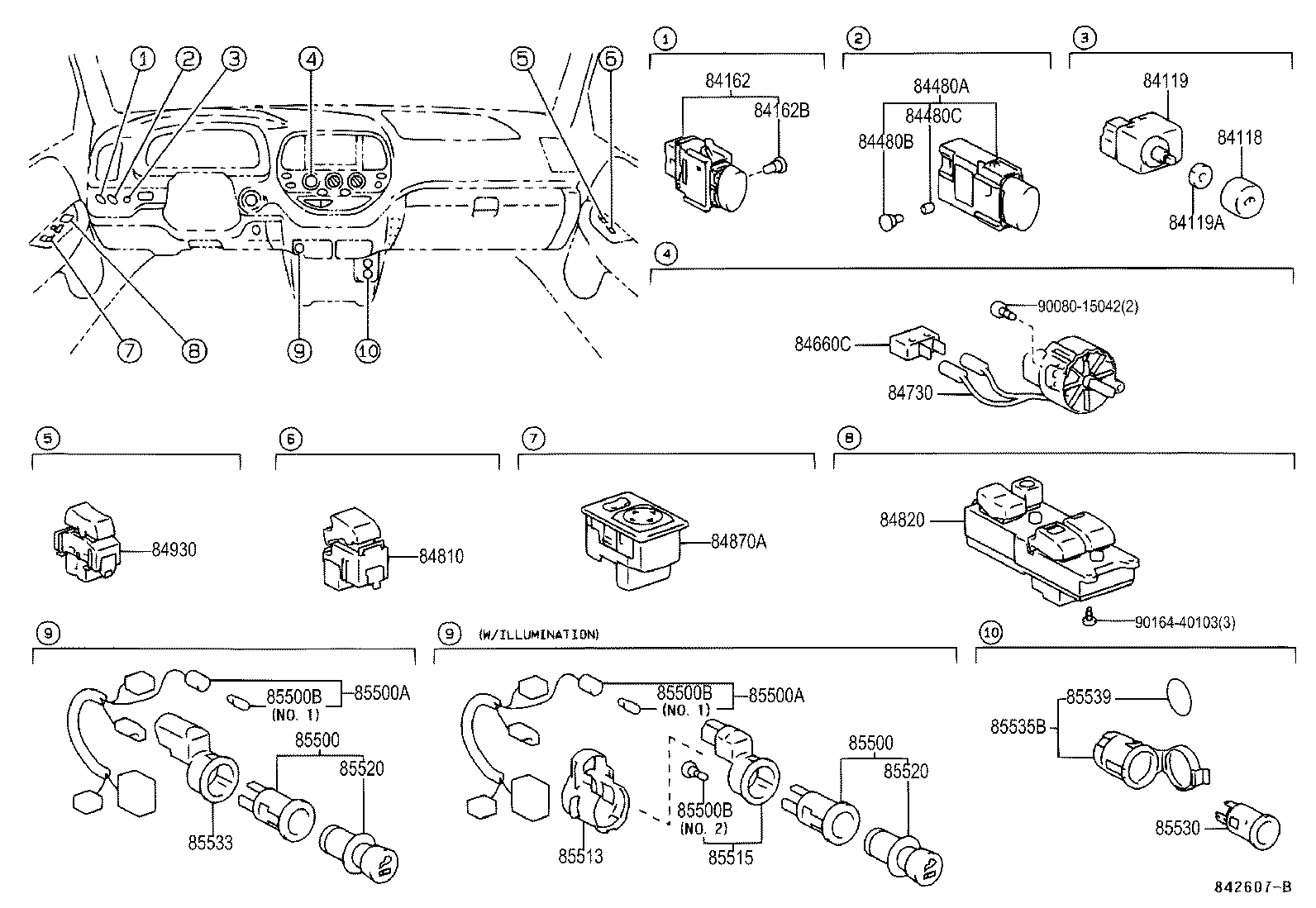

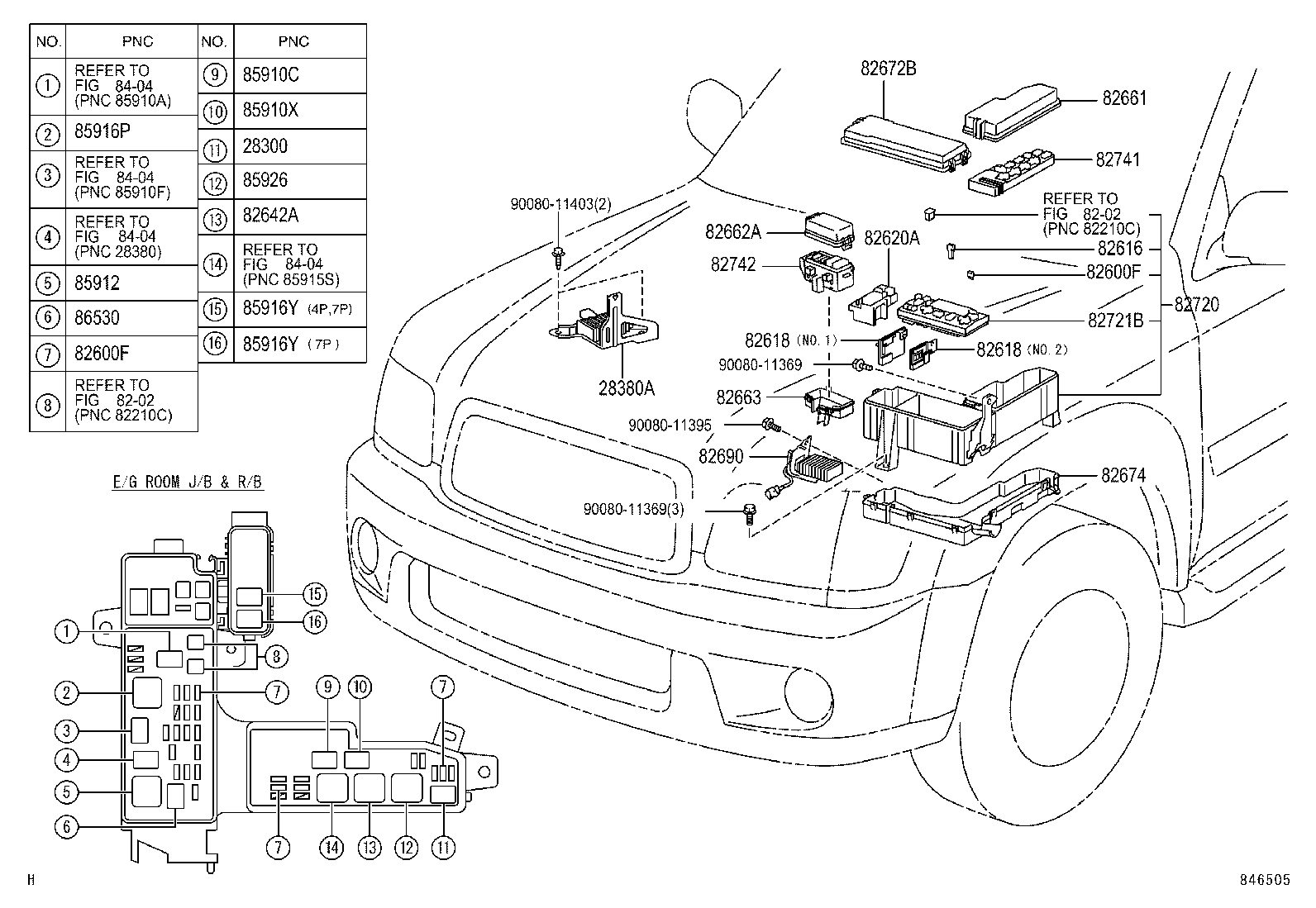

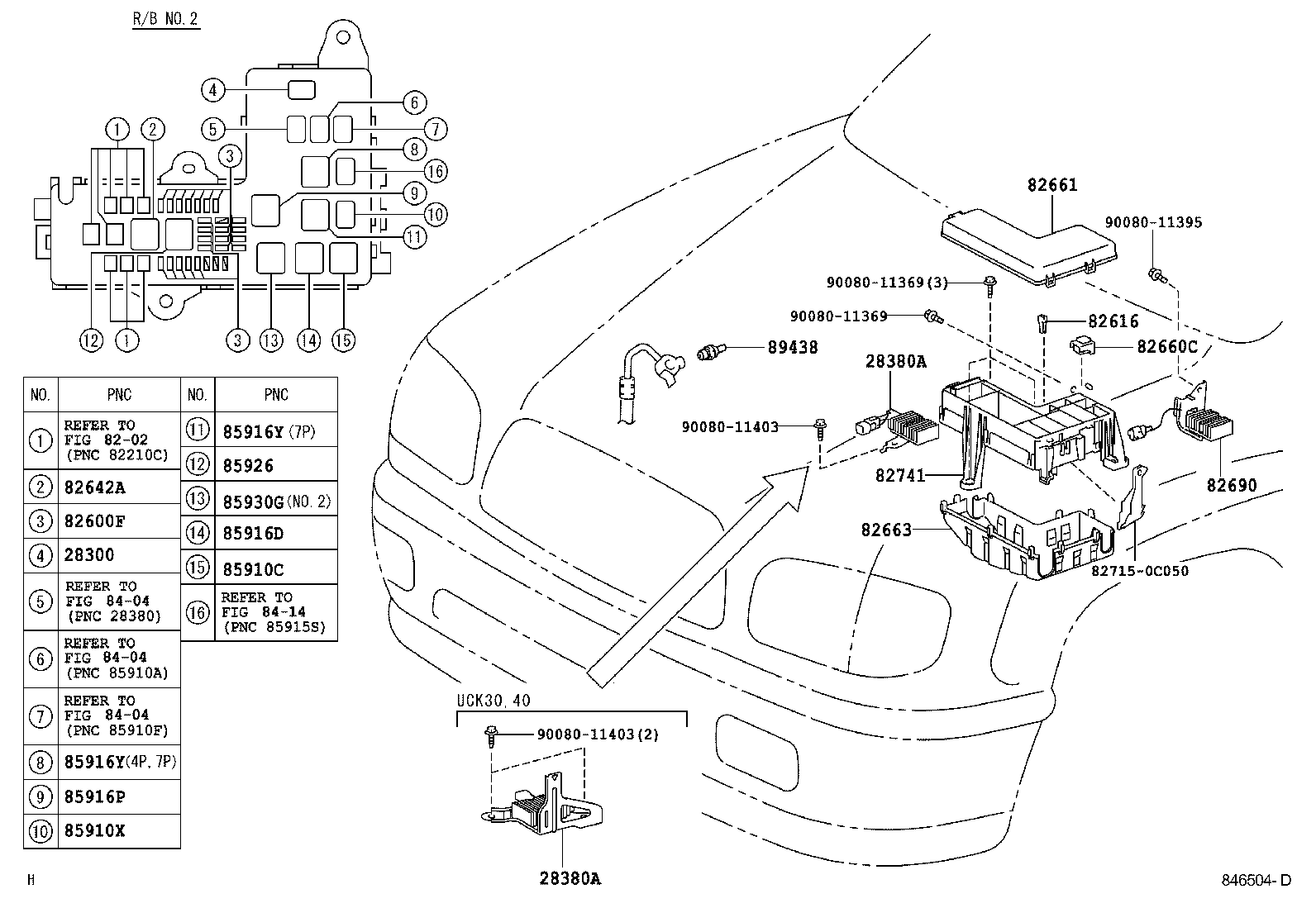

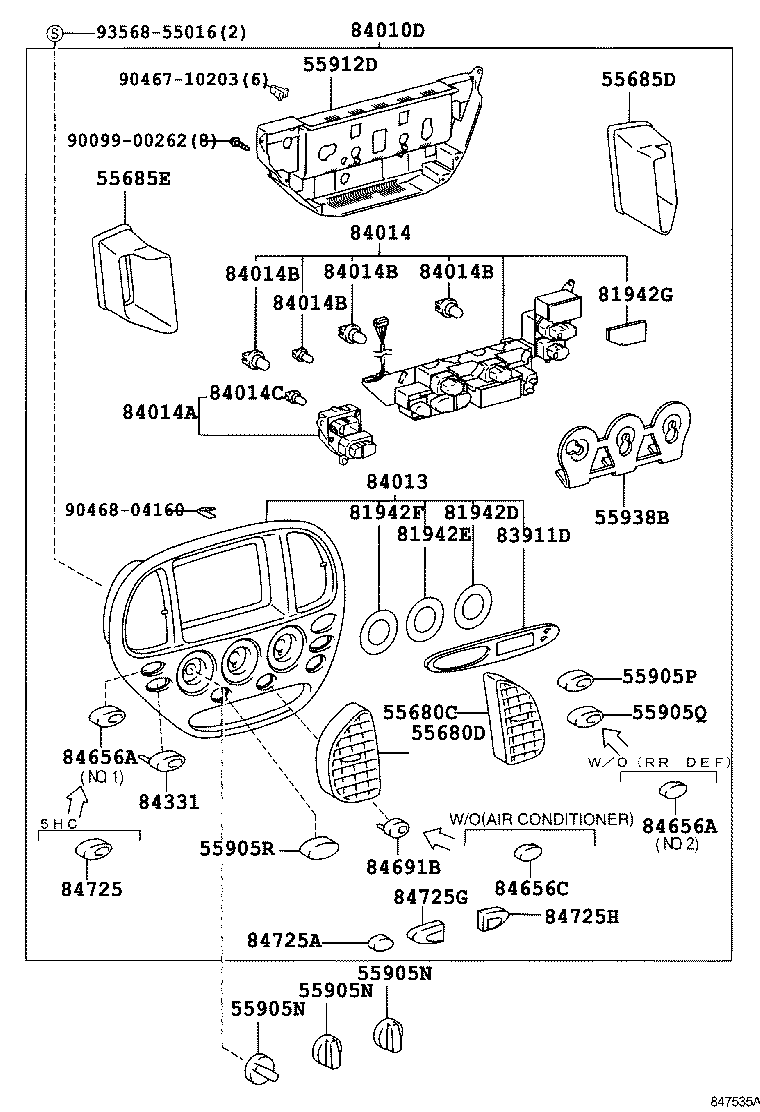

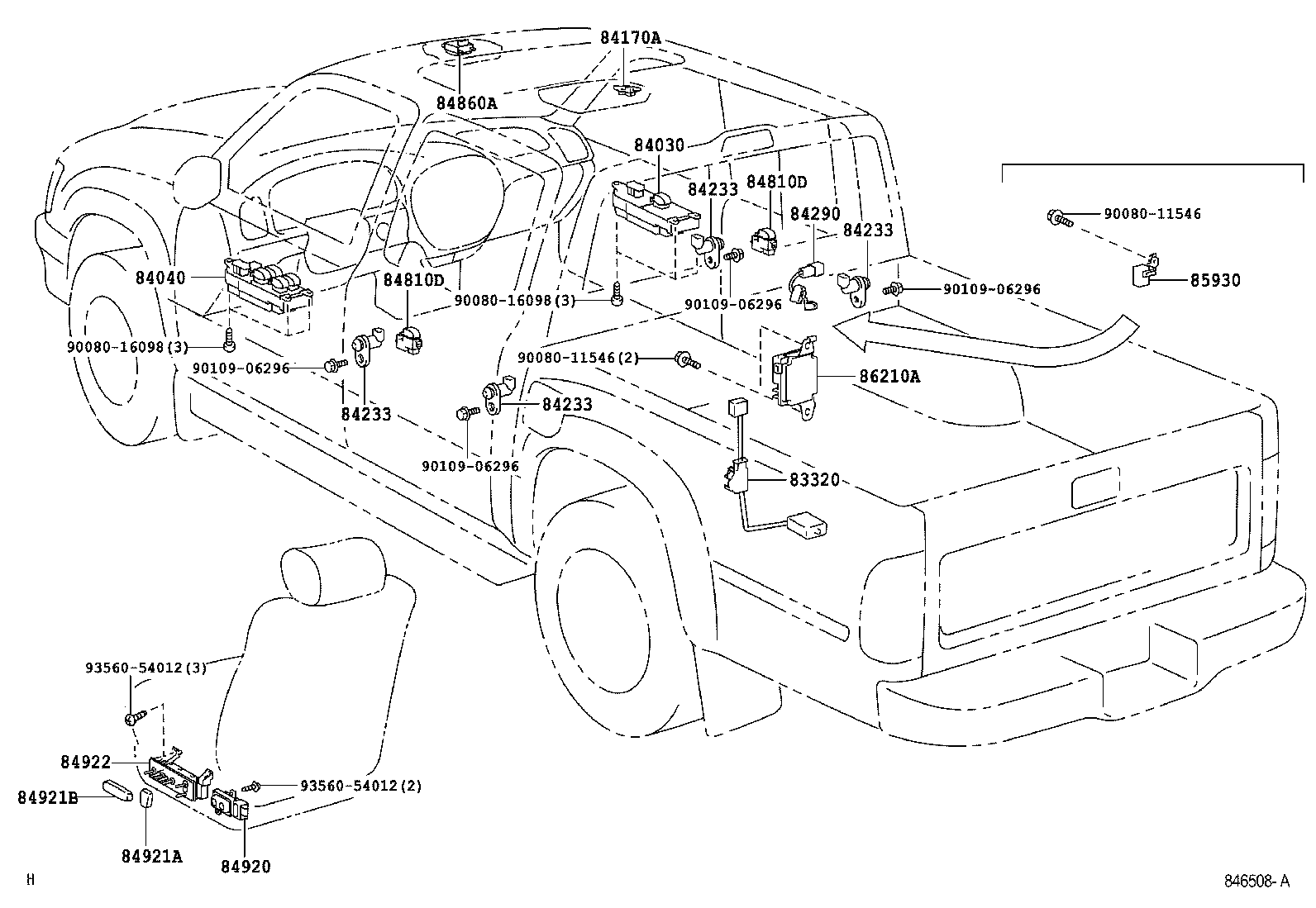

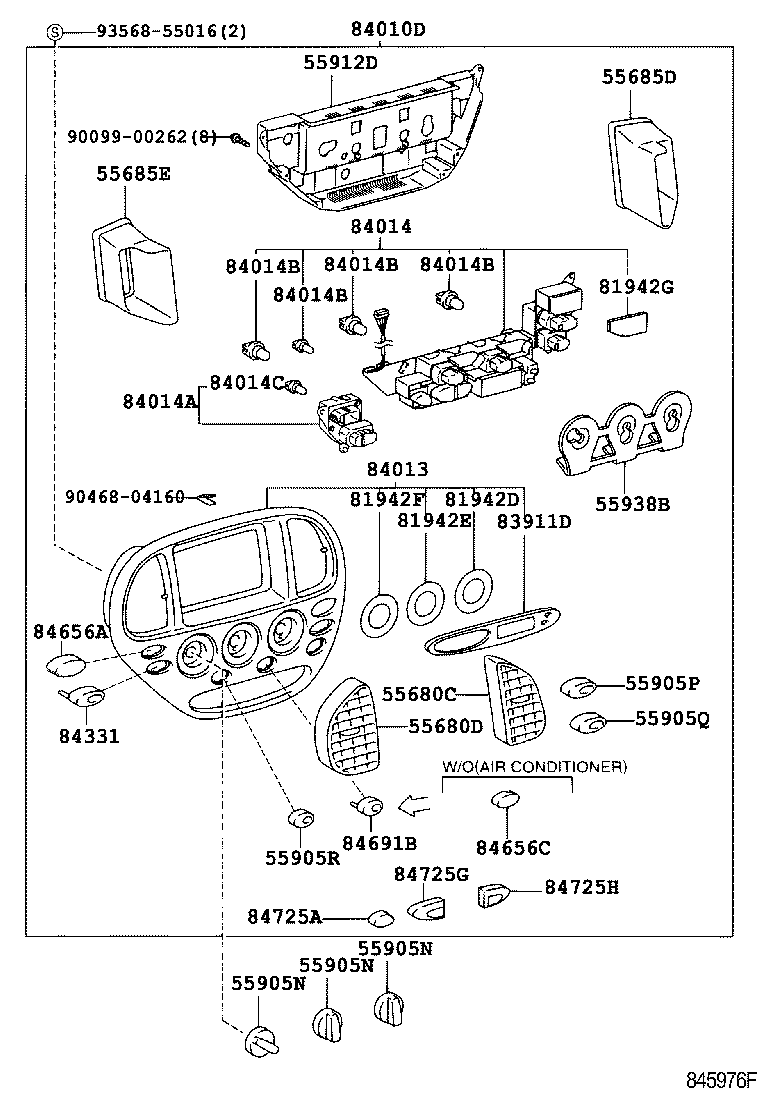

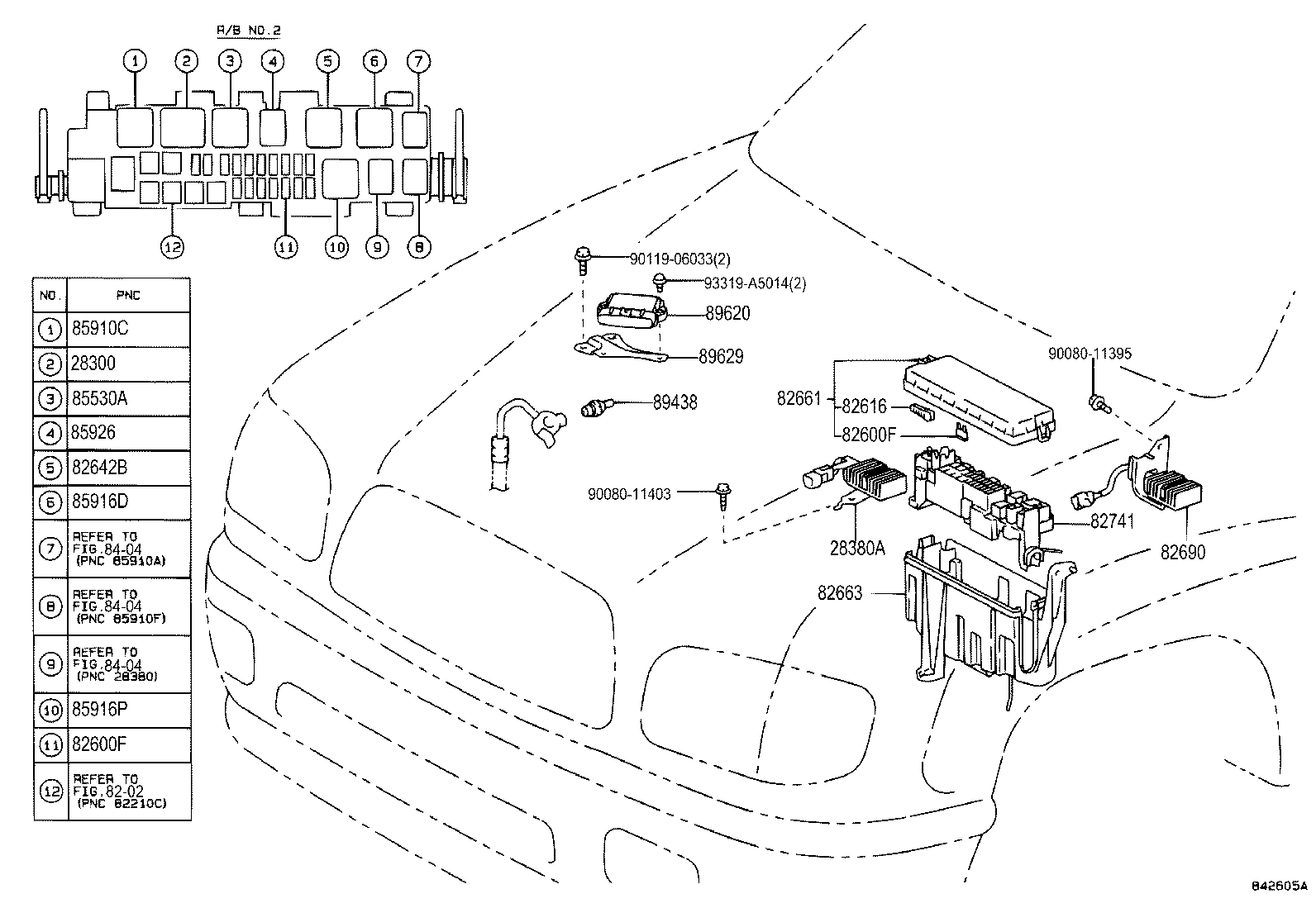

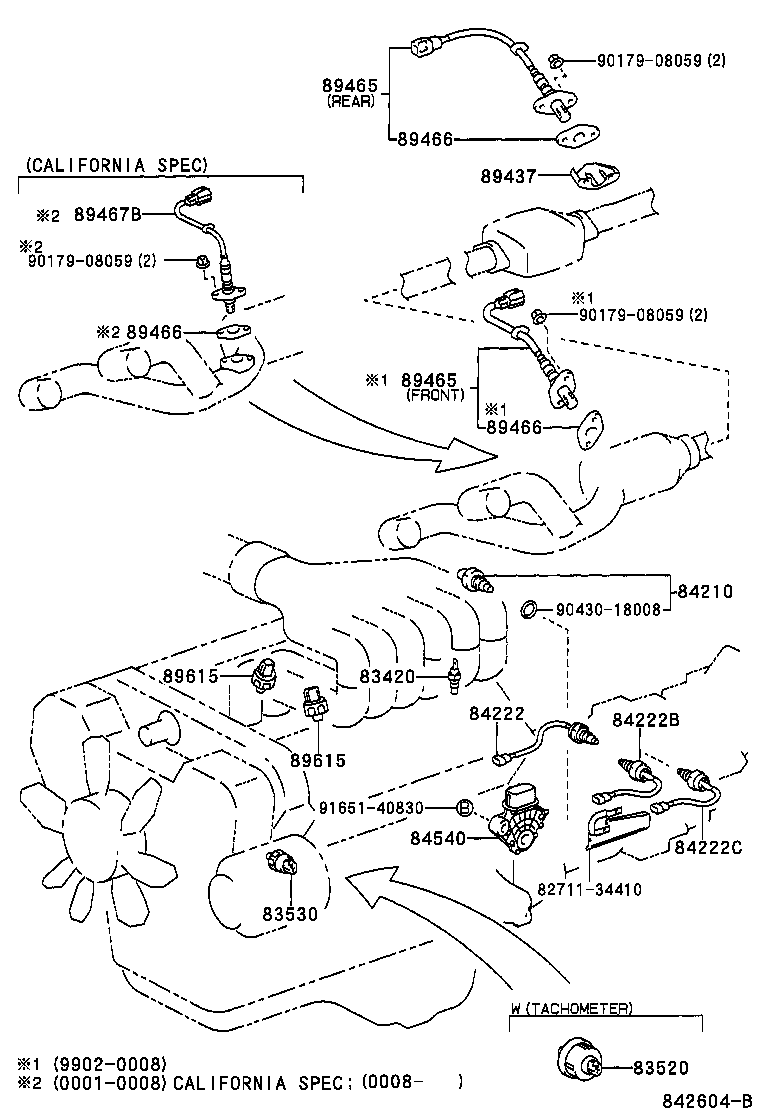

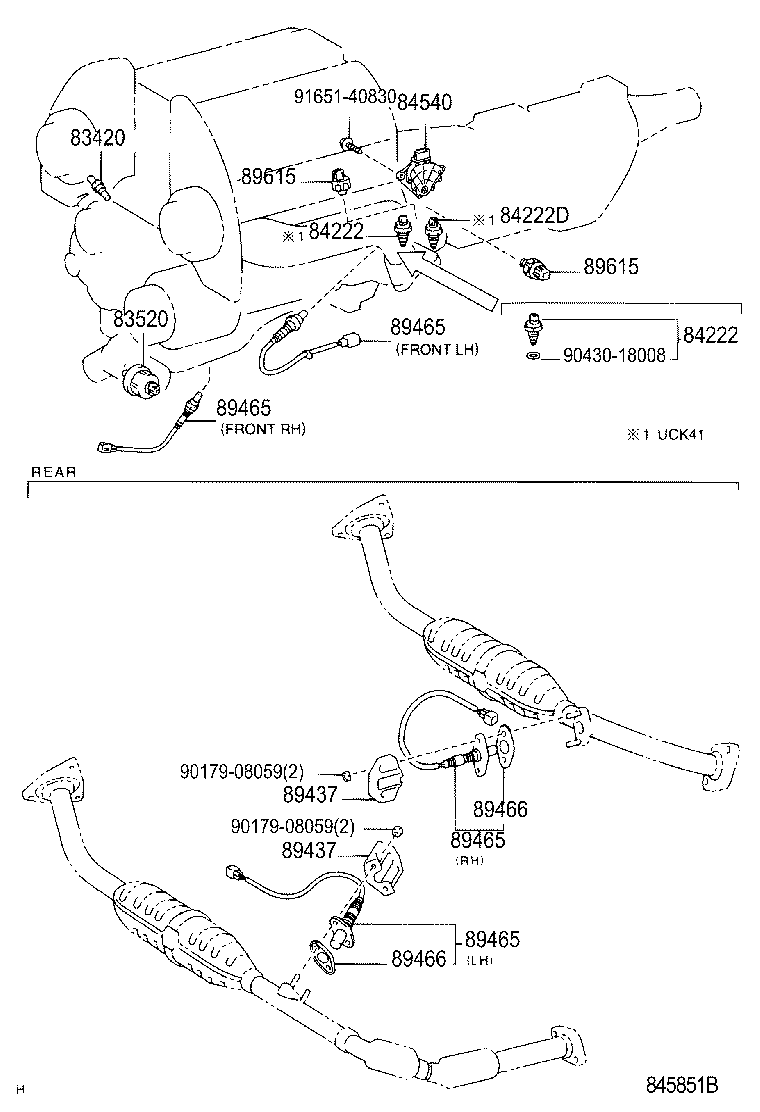

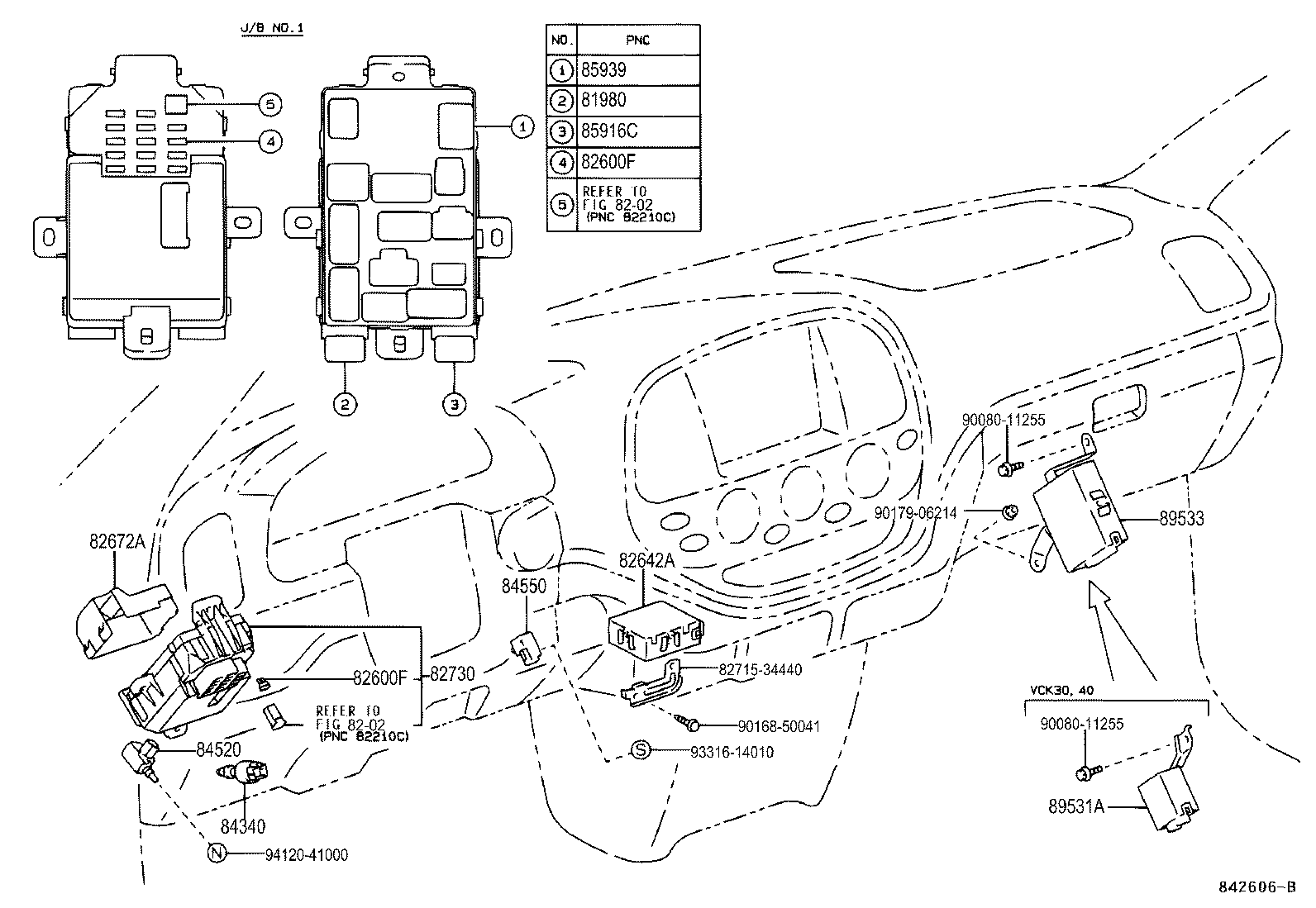

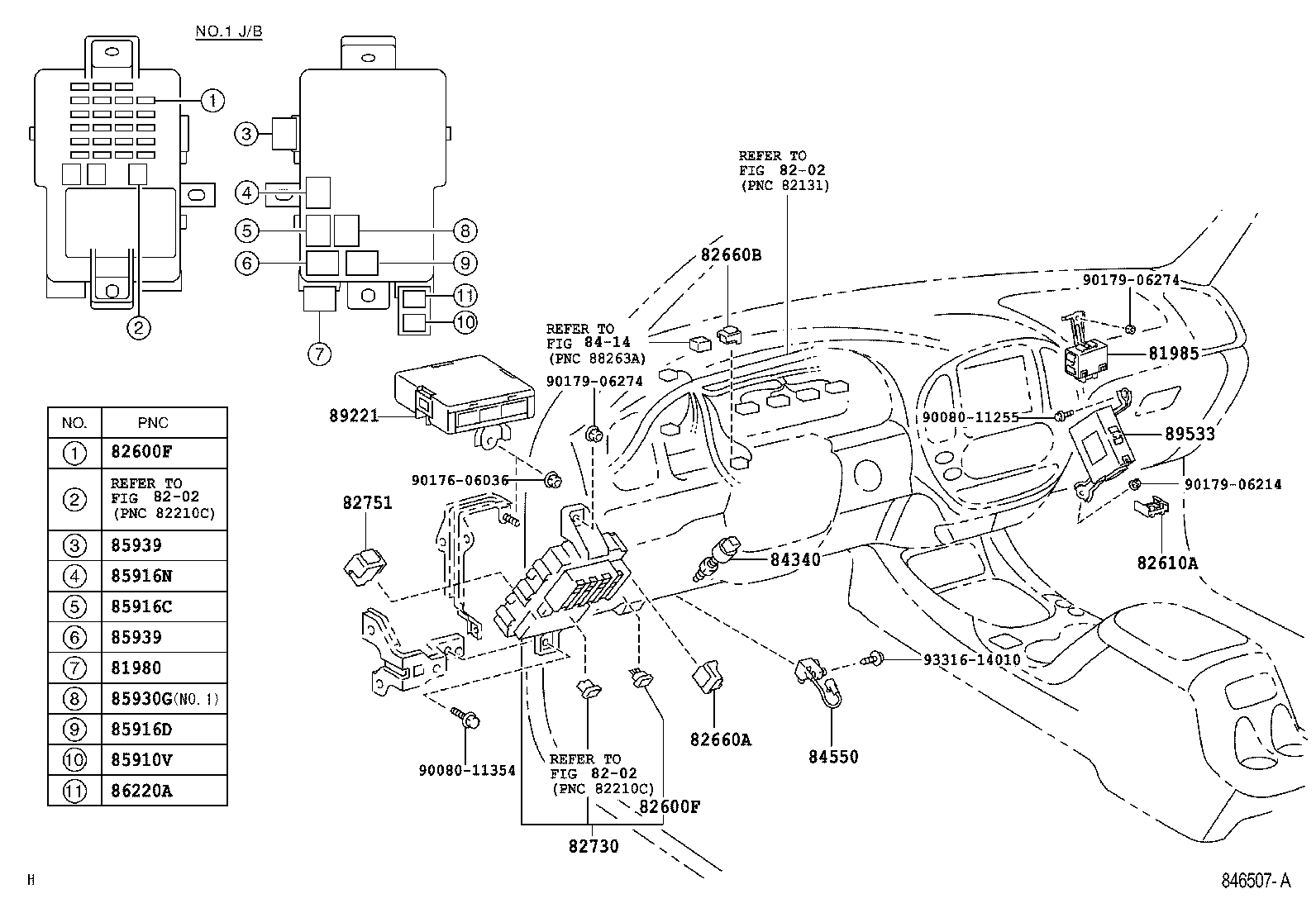

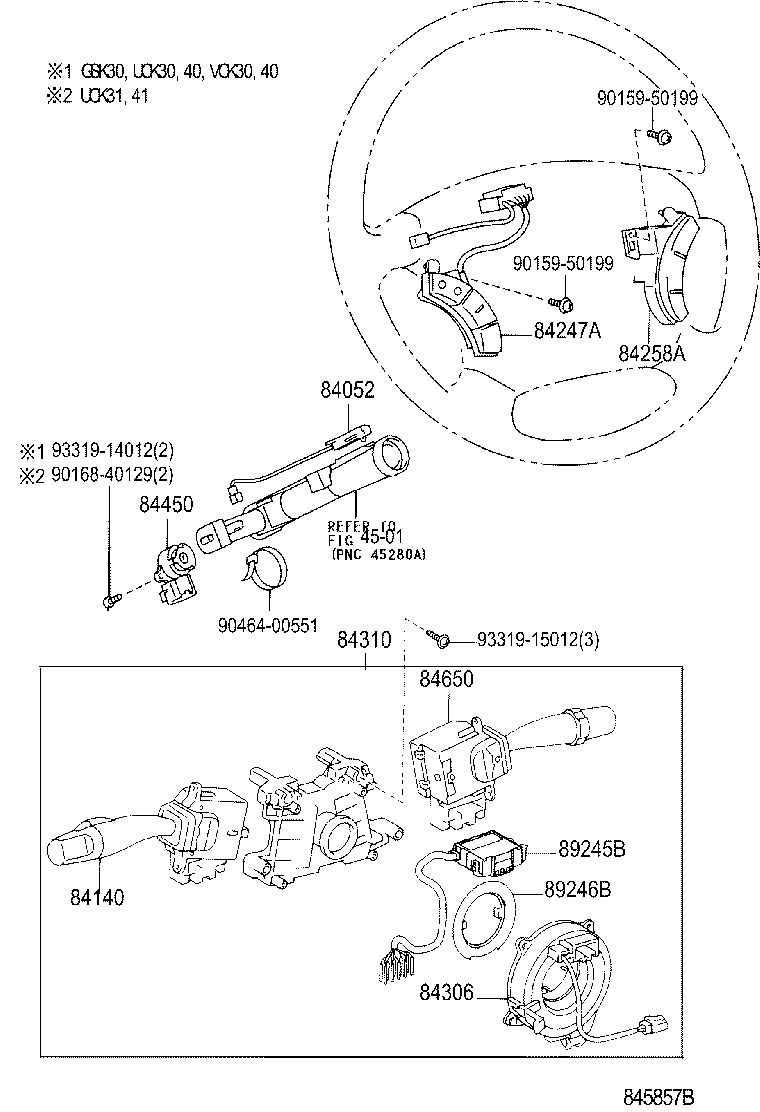

Figure 842603B 842603B 1999-02 → 2004-08 Figure 842604B 842604B 1999-02 → 2004-08 Figure 845851B 845851B 2003-10 → 2004-08 Figure 846502A 846502A 2004-08 → — Figure 846503A 846503A 2004-08 → — Figure 842605A 842605A 1999-02 → 2002-08 Figure 844822D 844822D 2002-08 → 2004-08 Figure 845852 845852 2003-10 → 2004-08 Figure 846504D 846504D 2004-08 → — Figure 846505 846505 2004-08 → — Figure 842606B 842606B 1999-02 → 2002-08 Figure 844823A 844823A 2002-08 → 2004-08 Figure 845853B 845853B 2003-10 → 2004-08 Figure 846506B 846506B 2004-08 → — Figure 846507A 846507A 2004-08 → — Figure 842607B 842607B 1999-02 → 2002-08 Figure 844824D 844824D 2002-08 → — Figure 845854E 845854E 2003-10 → — Figure 845855H 845855H 2003-10 → — Figure 842608E 842608E 1999-02 → 2004-08 Figure 845976F 845976F 2003-10 → 2004-08 Figure 847535A 847535A 2004-08 → — Figure 845857B 845857B 1999-02 → — Figure 842610D 842610D 1999-02 → — Figure 845858D 845858D 2003-10 → 2004-08 Figure 846508A 846508A 2004-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28380A Resister, Fuel Pump
28800L Relay, Sub Battery
55680C Register Assy, Instrument Panel, NO.1
55680D Register Assy, Instrument Panel, NO.2
55685D Retainer, Register Blade, NO.1
55685E Retainer, Register Blade, NO.2
55905N Knob Sub-assy, Control, NO.1
55905P Knob Sub-assy, Control, NO.2
55905Q Knob Sub-assy, Control, NO.3
55905R Knob Sub-assy, Control, NO.4
55912D Housing, Heater Control
55938B Lens, Center Cluster Module
81942D Sheet, Heater Control Name, NO.1
81942E Sheet, Heater Control Name, NO.2
81942F Sheet, Heater Control Name, NO.3
81942G Sheet, Heater Control Name, NO.4
81980 Flasher Assy, Turn Signal
81985 Relay, Towing Converter
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82616 Puller, Fuse
82618 Fuse, Fuse Block
82620A Block Assy, Fusible Link
82642A Relay, Running Light
82642B Relay, Day Time Running Light, NO.1
82660A Block Assy, Relay, Cowl Side
82660B Block Assy, Relay
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82672A Cover, Junction Block
82672B Cover, Junction Block
82674 Cover, Junction Block Lower
82683 Plate, Fuse Block Caution
82690 Resistor Assy, Dim Dip Lamp
82720 Block Assy, Engine Room Junction
82721B Block, Engine Room Junction
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82751 Block, Driver Side Relay
83320 Gage Assy, Fuel Sender
83420 Gage Assy, Water Temperature Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83911D Ornament, Clock
84010D Control & Panel Assy, Integration
84013 Panel Sub-assy, Integration
84014 Board Sub-assy, Printed Wire Integration
84014A Board Sub-assy, Printed Wire Integration, NO.2
84014B Bulb, Printed Wire Integration Board
84014C Bulb, Printed Wire Integration Board, NO.2
84014D Board Sub-assy, Printed Wire Integration, NO.3
84030 Switch Assy,Multiplex Network
84040 Master Switch Assy,Multiplex Network
84052 Switch Assy, Un-lock Warning
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84119A Bolt OR Nut, Rheostat Control Set
84140 Switch Assy, Headlamp Dimmer
84162 Switch, Front Fog Lamp
84162B Bulb, Fog Lamp Switch
84170A Switch Assy, Room Lamp NO.1
84210 Switch Assy, Back-up Lamp
84222 Switch, Transfer Indicator, NO.1
84222B Switch, Transfer Indicator, NO.2
84222C Switch, Transfer Indicator, NO.3
84222D Switch, Transfer Indicator, NO.4
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84247A Switch, Steering Pad, LH
84258A Cover, Steering Pad, RH
84290 Switch Assy, Limit
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84331 Knob, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84415 Switch, Curtain Airbag Cutoff
84450 Switch Assy, Ignition OR Starter
84480 Switch Assy, Main
84480A Switch Assy, Clutch Start Cancel
84480B Bulb, Main Switch Assy
84480C Cap Bulb, Main Switch Assy
84480F Switch Assy, Main
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84656C Bezel, Switch NO.2
84660C Switch, Cooler
84691B Knob, Condition Indicator
84725 Switch, Center Differential Lock
84725A Switch, Differential Lock
84725G Knob, Differential Lock Switch, NO.1
84725H Knob, Differential Lock Switch, NO.2
84730 Switch Assy, Heater Blower
84751 Switch, Seat Heater
84751B Bulb, Seat Heater Switch
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84810E Switch Assy, Back Door Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84860A Switch Assy, Sliding Roof
84870A Switch Assy, Outer Mirror
84871 Switch Assy, Outer Mirror Heater
84871B Bulb, Outer Mirror Heater Switch
84920 Switch Assy, Power Seat
84920D Switch Assy, Power Seat Front, LH
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922 Switch, Front Power Seat
84930 Switch Assy, Door Control
85500 Lighter Assy, Cigarette
85500A Wire, Cigarette Lighter
85500B Bulb, Cigarette Lighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85539 Label, Power Outlet Notice
85539A Label, Power Outlet Notice, Rear
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910V Relay, Seat Heater
85910X Relay, Heater Mirror
85912 Relay, Defogger
85915 Relay, Main
85916C Relay, Back UP Lamp
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85916Y Relay, Towing Tail
85926 Relay, Headlamp Dimmer
85930 Relay Assy, Power Window
85930G Relay, Acc
85939 Relay, Power Window
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89246B Disc, Sensor Steering
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89467B Sensor, Air Fuel Ratio
89531A Relay, Transmission Control
89533 Computer, 4 Wheel Drive Control
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
